Eco Assist System
Ambient Meter●Changes color to reflect your driving
style.
Green: Fuel efficient driving
Blue green: Moderate acceleration/
deceleration
Blue: Aggressive acceleration/
deceleration
● The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P245)
ECON Mode Indicator (P76)
Helps maximize fuel economy.
Comes on when ECON mode is on.
The message is displayed for a few seconds
when ECON mode is turned on.
15 CIVIC IMA-31TR26300.book 10 ページ ２０１４年９月９日　火曜日　午後１２時２０分

11

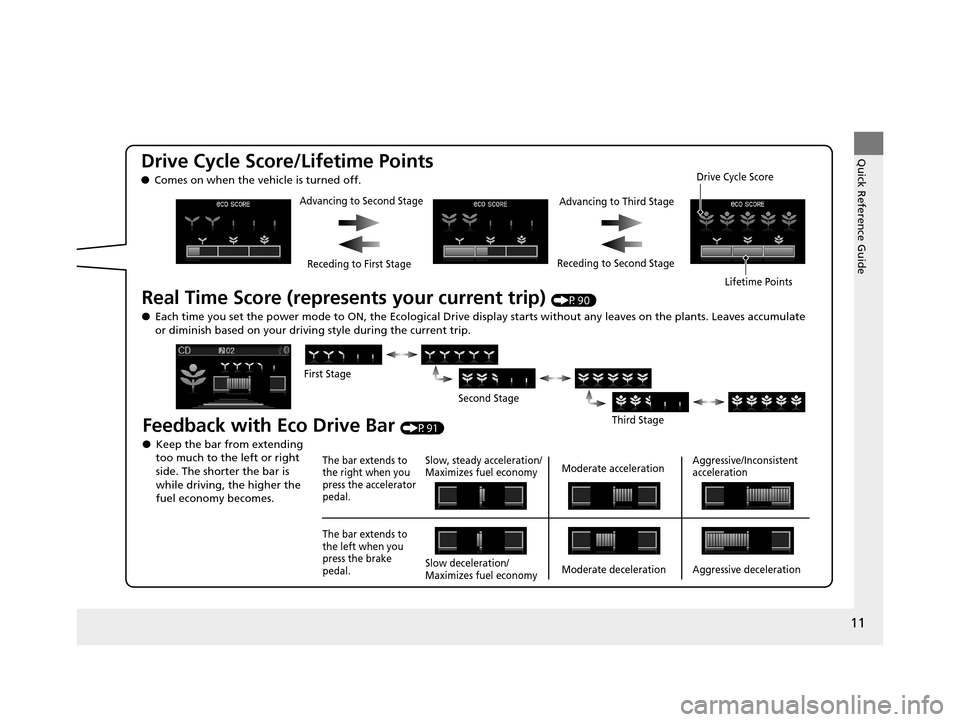

Quick Reference GuideDrive Cycle Score/Lifetime Points
●Comes on when the vehicle is turned off.
Real Time Score (represents your current trip) (P90)
● Each time you set the power mode to ON, th e Ecological Drive display starts without any leaves on the plants. Leaves accumulate
or diminish based on your driving style during the current trip.
Feedback with Eco Drive Bar (P91)
Advancing to Second Stage Advancing to Third Stage
Receding to Second Stage
Receding to First Stage Drive Cycle Score
Lifetime Points
The bar extends to
the right when you
press the accelerator
pedal.
The bar extends to
the left when you
press the brake
pedal.Slow, steady acceleration/
Maximizes fuel economy
Slow deceleration/
Maximizes fuel economy
Moderate deceleration Moderate accelerationAggressive/Inconsistent
acceleration
Aggressive deceleration
First Stage
Second StageThird Stage
●Keep the bar from extending
too much to the left or right
side. The shorter the bar is
while driving, the higher the
fuel economy becomes.
15 CIVIC IMA-31TR26300.book 11 ページ ２０１４年９月９日　火曜日　午後１２時２０分

12
Quick Reference Guide

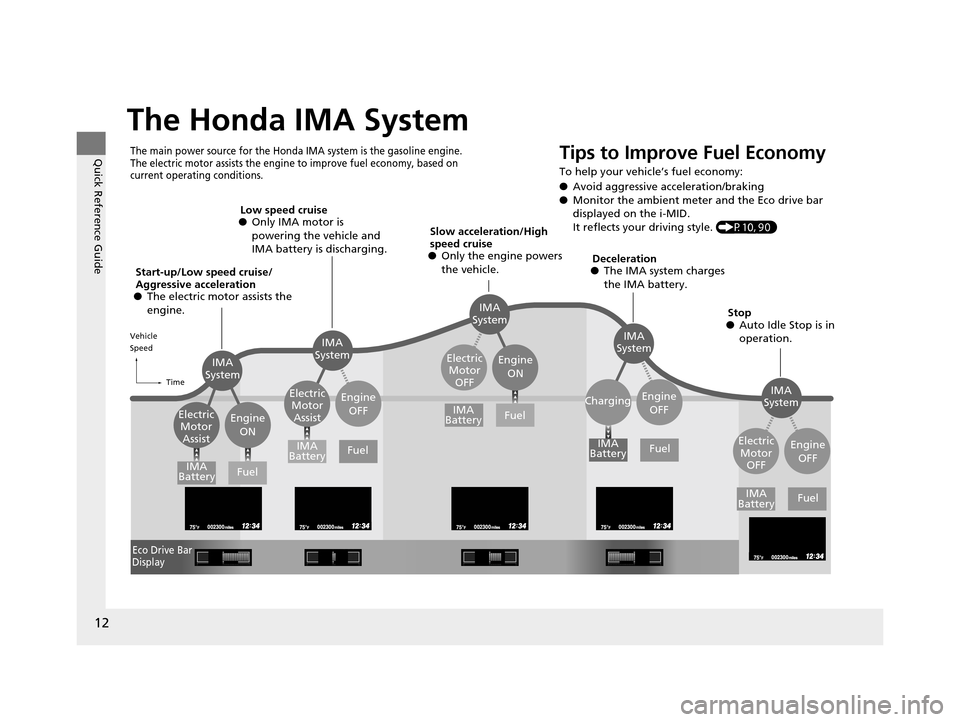

The Honda IMA System
The main power source for the Honda IMA system is the gasoline engine.
The electric motor assists the engine to improve fuel economy, based on
current operating conditions.Tips to Improve Fuel Economy
To help your vehicle’s fuel economy:
●Avoid aggressive acceleration/braking
● Monitor the ambient meter and the Eco drive bar
displayed on the i-MID.
It reflects your driving style. (P10, 90)
Start-up/Low speed cruise/
Aggressive acceleration
● The electric motor assists the
engine. Low speed cruise
● Only IMA motor is
powering the vehicle and
IMA battery is discharging. Slow acceleration/High
speed cruise
● Only the engine powers
the vehicle. Deceleration
● The IMA system charges
the IMA battery.
Stop
● Auto Idle Stop is in
operation.
Vehicle
Speed
Time
Eco Drive Bar
Display
IMA
System IMA
System
IMA
System
IMA
System
IMA
System
Electric
Motor Assist Engine
ON Electric
Motor Assist Electric
Motor OFF
Charging
Engine
OFF Engine
ON
Engine OFF
Engine OFF
IMA
Battery IMA
Battery IMA
Battery
IMA
Battery
IMA
Battery
Fuel
Fuel Fuel
Fuel
Fuel
Electric Motor OFF
15 CIVIC IMA-31TR26300.book 12 ページ ２０１４年９月９日　火曜日　午後１２時２０分

13
Quick Reference Guide

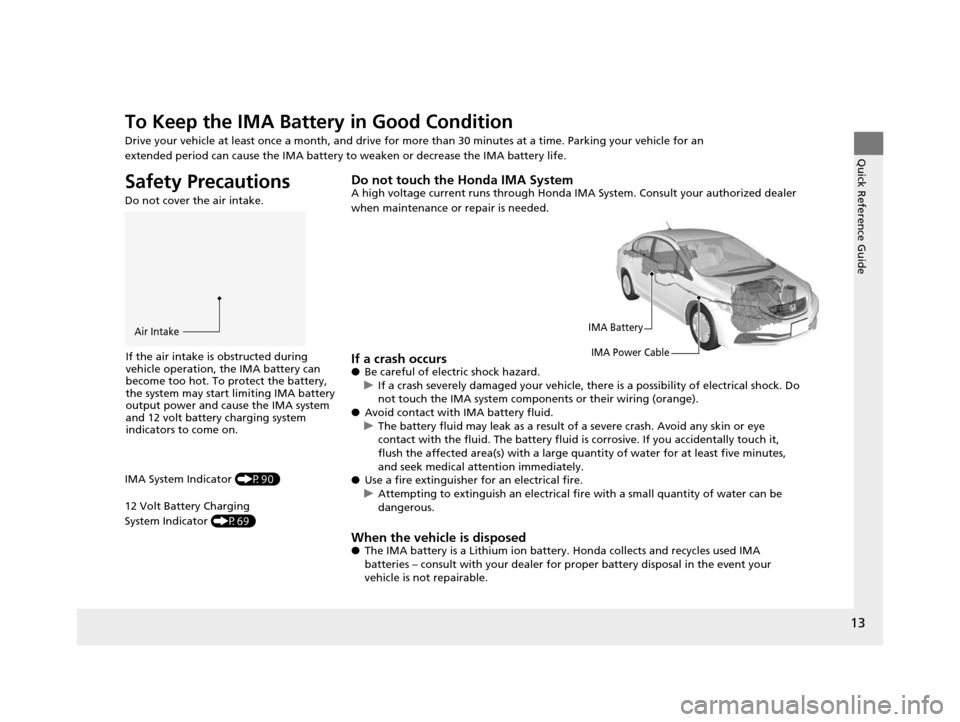

To Keep the IMA Battery in Good Condition
Drive your vehicle at least once a month, and drive for more than 30 minutes at a time. Parking your vehicle for an
extended period can cause the IMA battery to weaken or decrease the IMA battery life.
Safety Precautions
Do not cover the air intake.
Air Intake
If the air intake is obstructed during
vehicle operation, the IMA battery can
become too hot. To protect the battery,
the system may start limiting IMA battery
output power and cause the IMA system
and 12 volt battery charging system
indicators to come on.
IMA System Indicator (P90)
12 Volt Battery Charging
System Indicator (P69)
Do not touch the Honda IMA SystemA high voltage current runs through Honda IMA System. Consult your authorized dealer
when maintenance or repair is needed.
IMA Battery
IMA Power Cable
If a crash occurs● Be careful of electric shock hazard.
u If a crash severely damaged your vehicle, there is a possibility of electrical shock. Do
not touch the IMA system compon ents or their wiring (orange).
● Avoid contact with IMA battery fluid.
u The battery fluid may leak as a result of a severe crash. Avoid any skin or eye
contact with the fluid. The battery fluid is corrosive. If you accidentally touch it,
flush the affected area(s) with a large quan tity of water for at least five minutes,
and seek medical attention immediately.
● Use a fire extinguisher for an electrical fire.
u Attempting to extinguish an electrical fi re with a small quantity of water can be
dangerous.
When the vehicle is disposed● The IMA battery is a Lithium ion battery. Honda collects and recycles used IMA
batteries – consult with your dealer for pr oper battery disposal in the event your
vehicle is not repairable.
15 CIVIC IMA-31TR26300.book 13 ページ ２０１４年９月９日　火曜日　午後１２時２０分

14
Quick Reference Guide

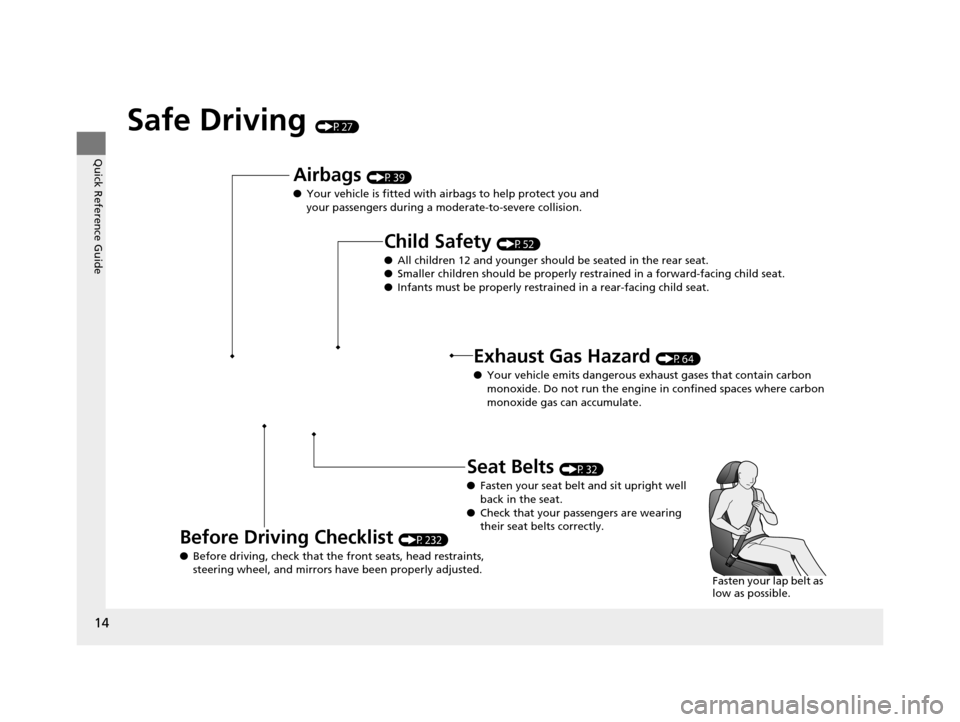

Safe Driving (P27)
Airbags (P39)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P52)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P64)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P232)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P32)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
15 CIVIC IMA-31TR26300.book 14 ページ ２０１４年９月９日　火曜日　午後１２時２０分

15
Quick Reference Guide

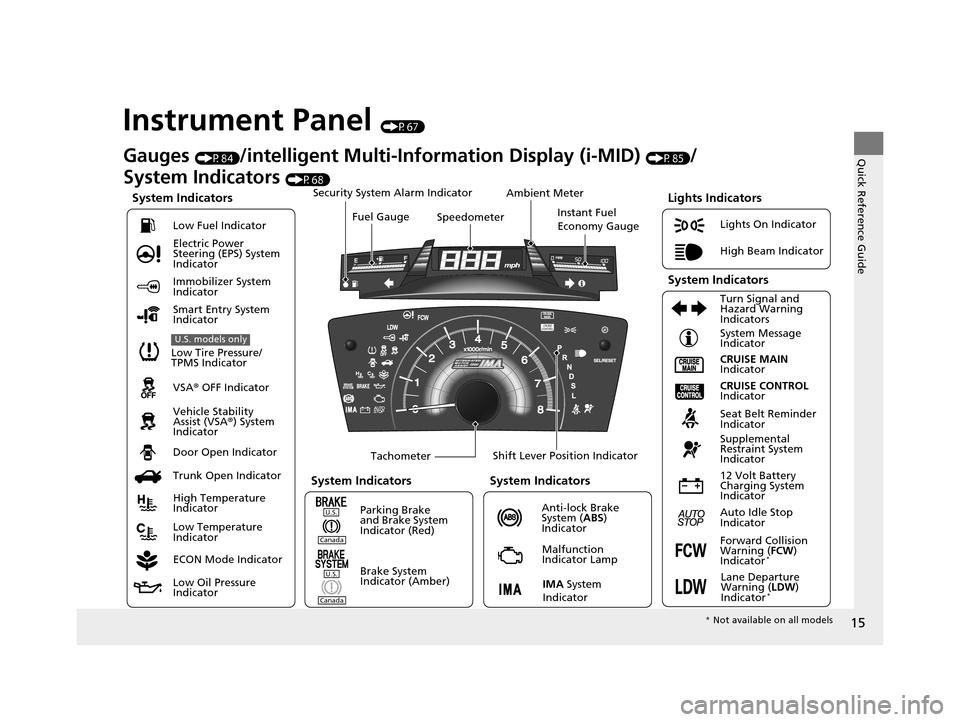

Instrument Panel (P67)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator Anti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist (VSA
®) System
Indicator VSA ® OFF Indicator
Electric Power
Steering (EPS) System
Indicator
Lights On Indicator
High Beam Indicator
Smart Entry System
Indicator
Seat Belt Reminder
Indicator
Lights Indicators
CRUISE MAIN
Indicator System Message
Indicator
Brake System
Indicator (Amber) Supplemental
Restraint System
Indicator
Forward Collision
Warning (
FCW)
Indicator
*
Door Open Indicator TachometerInstant Fuel
Economy Gauge
Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P84)/intelligent Multi-Info
rmation Display (i-MID) (P85)/
System Indicators
(P68)
Trunk Open Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator
Low Temperature
Indicator Ambient Meter
System Indicators
System Indicators
Low Tire Pressure/
TPMS Indicator
U.S. models only
Parking Brake
and Brake System
Indicator (Red)
IMA System
Indicator
CRUISE CONTROL
Indicator
System Indicators
12 Volt Battery
Charging System
Indicator
Auto Idle Stop
Indicator
U.S.
Canada
U.S.
Canada
Lane Departure
Warning ( LDW)
Indicator
*
Immobilizer System
Indicator
* Not available on all models
15 CIVIC IMA-31TR26300.book 15 ページ ２０１４年９月９日　火曜日　午後１２時２０分

16
Quick Reference Guide

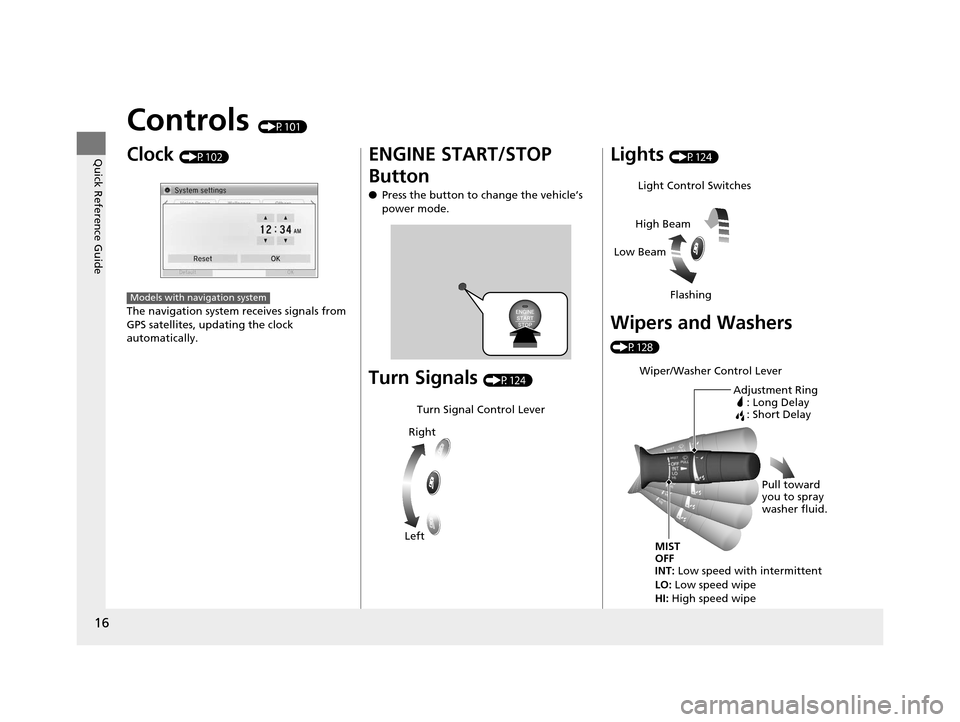

Controls (P101)
Clock (P102)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models with navigation system
ENGINE START/STOP
Button
● Press the button to change the vehicle’s
power mode.
Turn Signals (P124)
Turn Signal Control Lever
Right
Left
Lights (P124)
Wipers and Washers
(P128)
Light Control Switches
Low Beam High Beam
Flashing
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
15 CIVIC IMA-31TR26300.book 16 ページ ２０１４年９月９日　火曜日　午後１２時２０分

17
Quick Reference Guide
Steering Wheel (P131)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P111)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P114)
● To unlock and open the trunk:
•Pull the trunk release.
•Press the trunk release button on the
smart entry remote.
•Press the trunk release button on the
trunk lid.
Power Door Mirrors
(P132)
●With the power mode in ON, move the
selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows (P119)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
15 CIVIC IMA-31TR26300.book 17 ページ ２０１４年９月９日　火曜日　午後１２時２０分

18
Quick Reference Guide

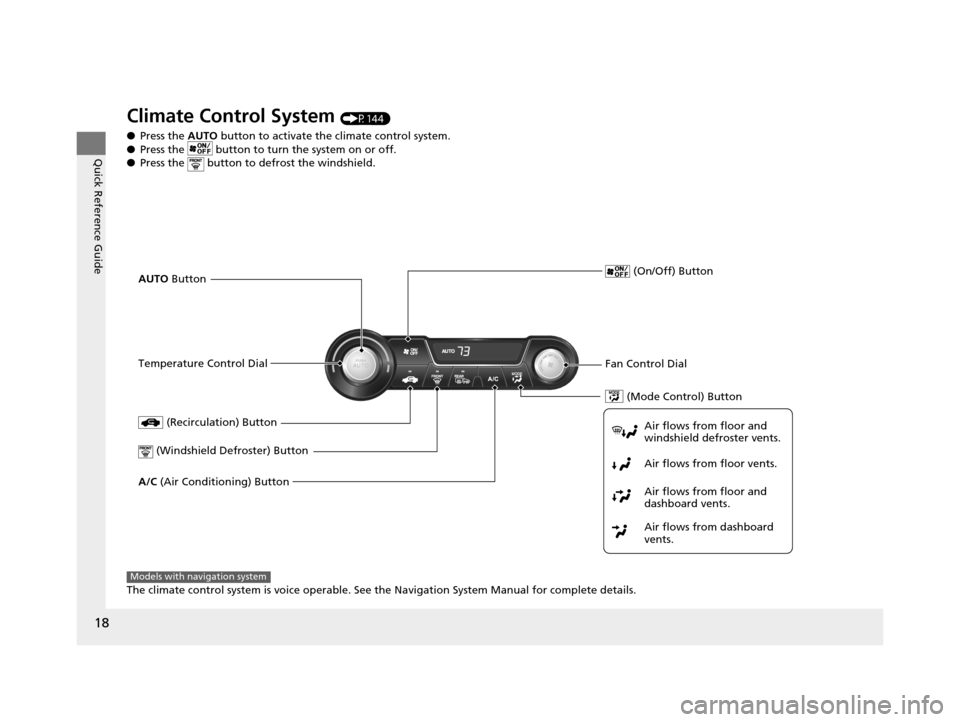

Climate Control System (P144)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the Navigation System Manual for complete details.
(Mode Control) Button
(Windshield Defroster) Button
A/C (Air Conditioning) Button Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
Temperature Control Dial
AUTO Button (On/Off) Button
Fan Control Dial
Models with navigation system
15 CIVIC IMA-31TR26300.book 18 ページ ２０１４年９月９日　火曜日　午後１２時２０分

19
Quick Reference Guide
Features (P147)
002300
75°F miles
Audio System (P148)For navigation system operation () See the Navigation System Manual
MENU VOL HOME
BACK i-MID
CD Slot HOME Screen
(Power)
Button
(CD Eject)
Button
Button
Audio Remote Controls
(P152)
●
( + / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/SiriusXM
*/CD/USB/iPod/
Pandora ®*/ahaTM */Apps*/Bluetooth®
Audio/AUX HDMI.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- Button
SOURCE
Button / Button
*
Not available on all models
