audio HONDA CIVIC HYBRID 2015 9.G Owners Manual
[x] Cancel search | Manufacturer: HONDA, Model Year: 2015, Model line: CIVIC HYBRID, Model: HONDA CIVIC HYBRID 2015 9.GPages: 377, PDF Size: 18.05 MB
Page 3 of 377

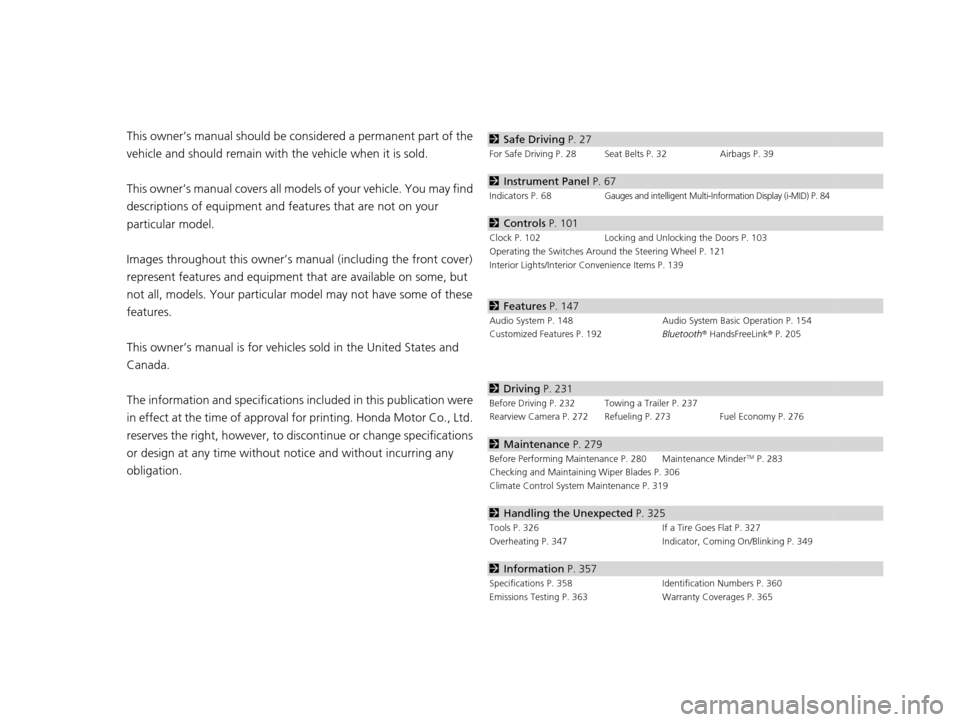

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 32 Airbags P. 39
2Instrument Panel P. 67
Indicators P. 68Gauges and intelligent Multi-Information Display (i-MID) P. 84
2Controls P. 101
Clock P. 102 Locking and Unlocking the Doors P. 103
Operating the Switches Ar ound the Steering Wheel P. 121
Interior Lights/Interior Convenience Items P. 139
2 Features P. 147
Audio System P. 148 Audio System Basic Operation P. 154
Customized Features P. 192 Bluetooth® HandsFreeLink ® P. 205
2 Driving P. 231
Before Driving P. 232 Towing a Trailer P. 237
Rearview Camera P. 272 Refueling P. 273 Fuel Economy P. 276
2Maintenance P. 279
Before Performing Maintenance P. 280 Maintenance MinderTM P. 283
Checking and Maintaining Wiper Blades P. 306
Climate Control System Maintenance P. 319
2Handling the Unexpected P. 325
Tools P. 326 If a Tire Goes Flat P. 327
Overheating P. 347 Indicator, Coming On/Blinking P. 349
2Information P. 357
Specifications P. 358 Identification Numbers P. 360
Emissions Testing P. 363 Warranty Coverages P. 365
15 CIVIC IMA-31TR26300.book 2 ページ 2014年9月9日 火曜日 午後12時20分
Page 4 of 377
Contents
Child Safety P. 52Exhaust Gas Hazard P. 64Safety Labels P. 65
Opening and Closing the Trunk P. 114 Security System P. 117 Opening and Closing the Windows P. 119
Adjusting the Mirrors P. 132 Adjusting the Seats P. 134
Climate Control System P. 144
Audio Error Messages P. 184 General Information on the Audio System P. 188
When Driving P. 238 Braking P. 267Parking Your Vehicle P. 271
Accessories and Modifications P. 277
Maintenance Under the Hood P. 288 Replacing Light Bulbs P. 300
Checking and Maintaining Tires P. 308 12 Volt Battery P. 317 Remote Transmitter Care P. 318
Cleaning P. 320
Engine Does Not Start P. 341 Jump Starting P. 344 Shift Lever Does Not Move P. 346
Fuses P. 353 Emergency Towing P. 356
Devices that Emit Radio Waves P. 361 Reporting Safety Defects P. 362
Authorized Manuals P. 367 Customer Service Information P. 368
Quick Reference GuideP. 4
Safe DrivingP. 27
Instrument PanelP. 67
ControlsP. 101
FeaturesP. 147
DrivingP. 231
MaintenanceP. 279
Handling the UnexpectedP. 325
InformationP. 357
IndexP. 369
15 CIVIC IMA-31TR26300.book 3 ページ 2014年9月9日 火曜日 午後12時20分
Page 5 of 377
4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments
(P 131)
❙System Indicators (P 68)
❙ECON Button (P 245)
❙Hazard Warning Button
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 260)
❙Gauges (P 84)
❙intelligent Multi-Information
Display (i-MID)
(P 85)
❙Audio System (P148)
❙Navigation System*
() See the Navigation System Manual
❙Heated Mirror Button* (P 130)
❙Rear Window Defogger (P 130)
❙Climate Control System (P 144)
❙ENGINE START/STOP Button (P121)
❙Seat Heater Switches* (P143)
❙Lane Departure Warning (LDW) Button* (P257)
15 CIVIC IMA-31TR26300.book 4 ページ 2014年9月9日 火曜日 午後12時20分
Page 10 of 377

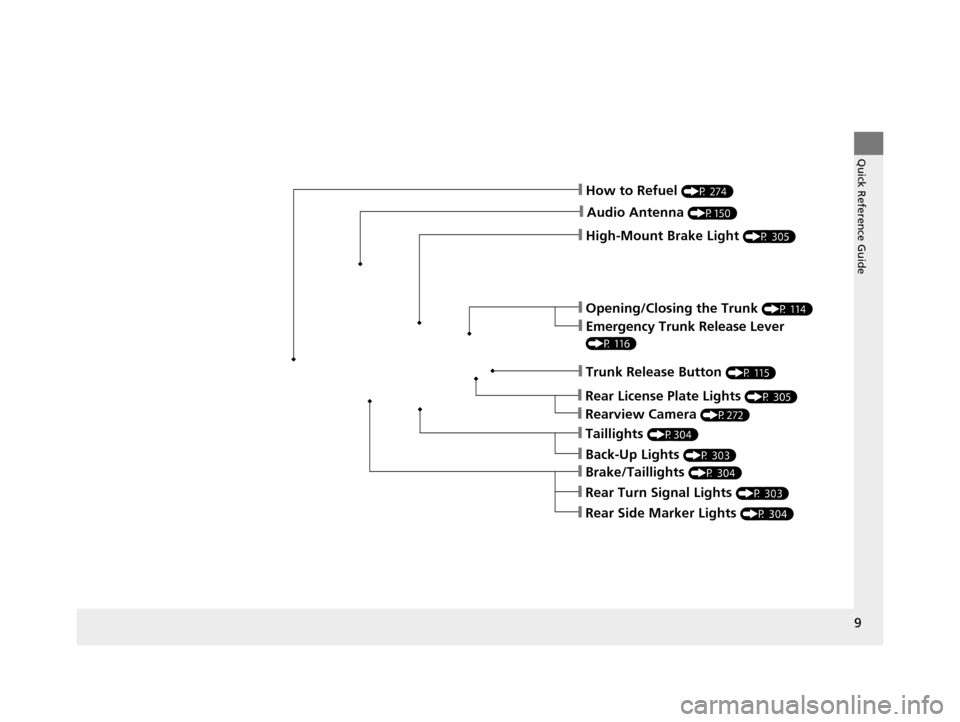

9
Quick Reference Guide
❙High-Mount Brake Light (P 305)
❙How to Refuel (P 274)
❙Brake/Taillights (P 304)
❙Rear Turn Signal Lights (P 303)
❙Rear Side Marker Lights (P 304)
❙Audio Antenna (P150)
❙Opening/Closing the Trunk (P 114)
❙Emergency Trunk Release Lever
(P 116)
❙Trunk Release Button (P 115)
❙Taillights (P304)
❙Back-Up Lights (P 303)
❙Rearview Camera (P272)
❙Rear License Plate Lights (P 305)
15 CIVIC IMA-31TR26300.book 9 ページ 2014年9月9日 火曜日 午後12時20分
Page 20 of 377

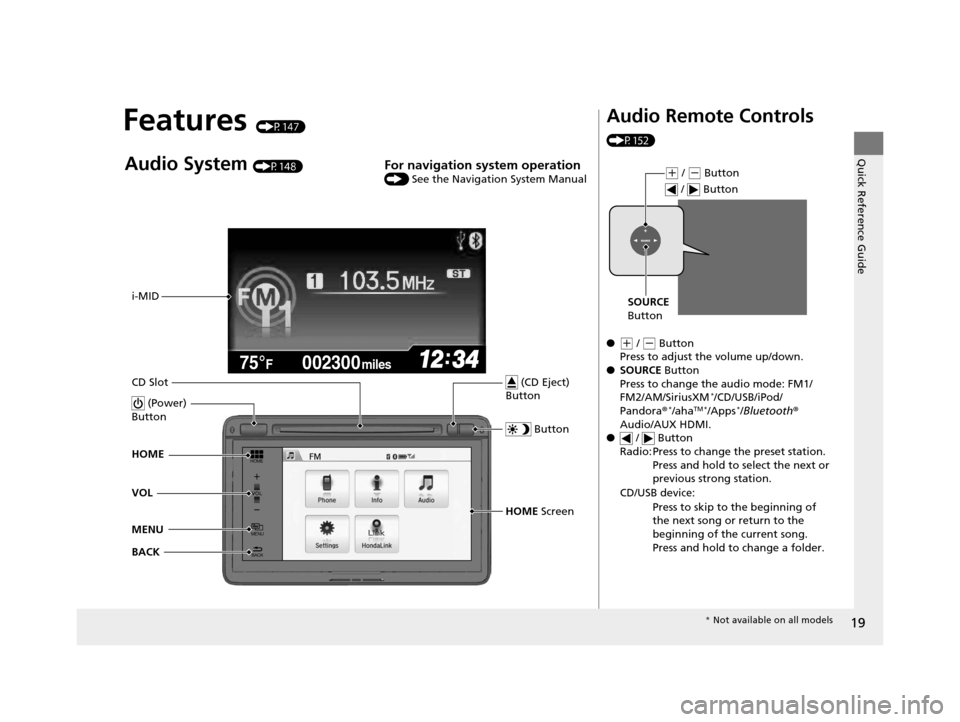

19
Quick Reference Guide
Features (P147)
002300
75°F miles
Audio System (P148)For navigation system operation () See the Navigation System Manual
MENU VOL HOME
BACK i-MID
CD Slot HOME Screen
(Power)
Button
(CD Eject)
Button
Button
Audio Remote Controls
(P152)
●
( + / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/SiriusXM
*/CD/USB/iPod/
Pandora ®*/ahaTM */Apps*/Bluetooth®
Audio/AUX HDMI.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- Button
SOURCE
Button / Button
*
Not available on all models
15 CIVIC IMA-31TR26300.book 19 ページ 2014年9月9日 火曜日 午後12時20分
Page 86 of 377

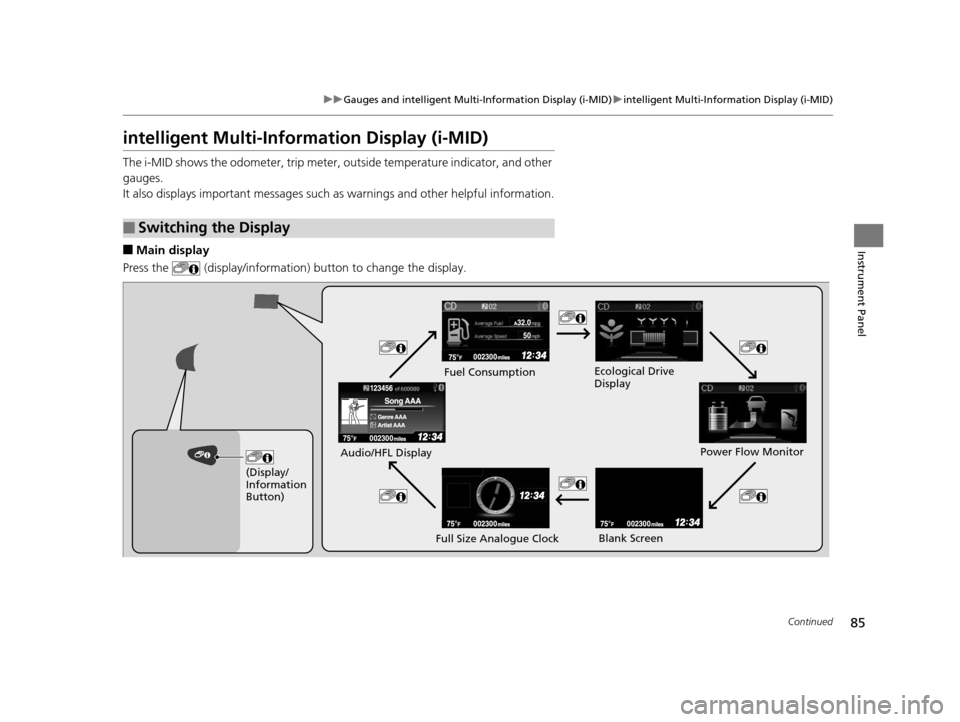

85
uuGauges and intelligent Multi- Information Display (i-MID)uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
intelligent Multi-Information Display (i-MID)
The i-MID shows the odometer, trip meter, outside temperature indicator, and other
gauges.
It also displays important messages such as warnings and other helpful information.
■Main display
Press the (display/information ) button to change the display.
■Switching the Display
(Display/
Information
Button)
Fuel Consumption
Power Flow Monitor
Full Size Analogue Clock
Audio/HFL Display
Blank Screen
Ecological Drive
Display
15 CIVIC IMA-31TR26300.book 85 ページ 2014年9月9日 火曜日 午後12時20分
Page 103 of 377

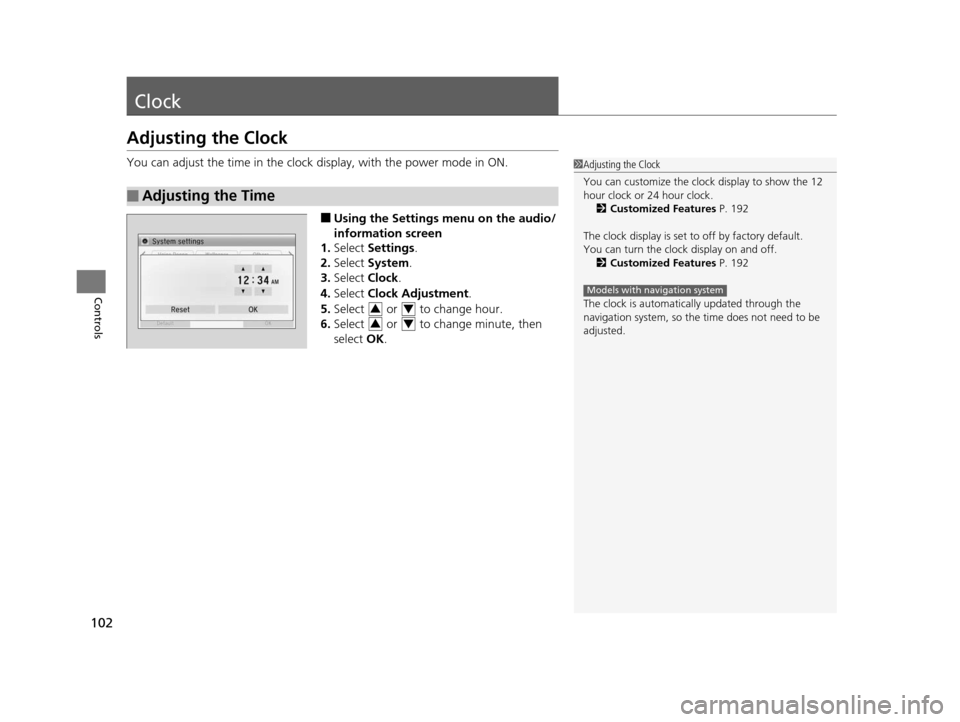

102
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display, with the power mode in ON.
■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select System .
3. Select Clock.
4. Select Clock Adjustment .
5. Select or to change hour.
6. Select or to change minute, then
select OK.
■Adjusting the Time
1Adjusting the Clock
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 192
The clock display is set to off by factory default.
You can turn the clock display on and off.
2 Customized Features P. 192
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
34
34
15 CIVIC IMA-31TR26300.book 102 ページ 2014年9月9日 火曜日 午後12時20分
Page 122 of 377

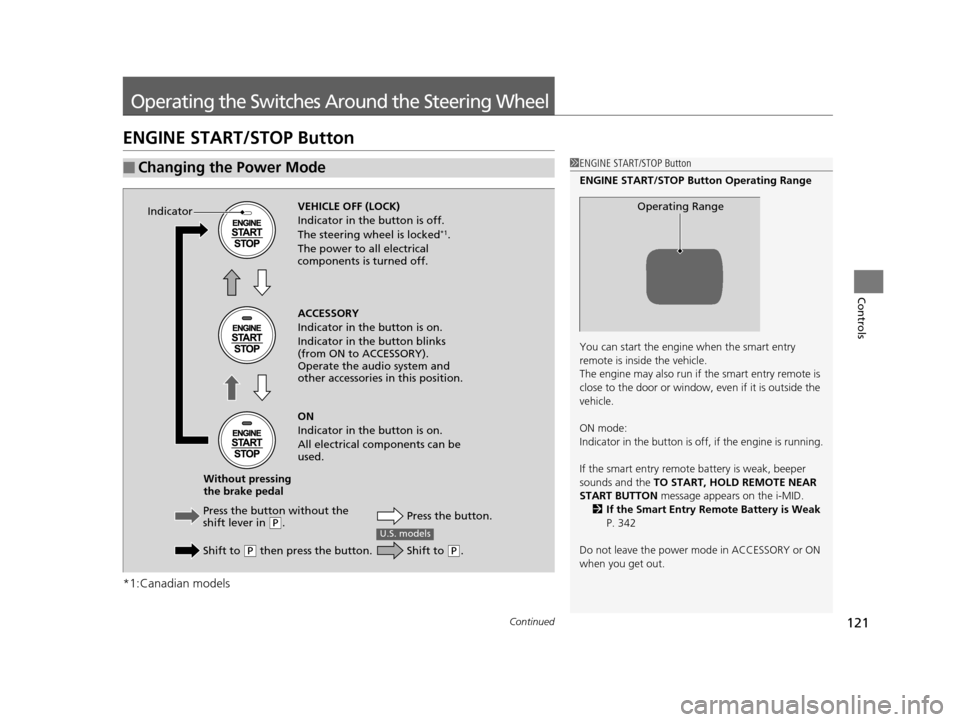

121Continued
Controls
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button
*1:Canadian models
■Changing the Power Mode1ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, ev en if it is outside the
vehicle.
ON mode:
Indicator in the button is of f, if the engine is running.
If the smart entry remote battery is weak, beeper
sounds and the TO START, HOLD REMOTE NEAR
START BUTTON message appears on the i-MID.
2 If the Smart Entry Remote Battery is Weak
P. 342
Do not leave the power mode in ACCESSORY or ON
when you get out.
Operating RangeVEHICLE OFF (LOCK)
Indicator in th e button is off.
The steering wheel is locked
*1.
The power to all electrical
components is turned off.
Press the butto n without the
shift lever in
( P.
Shift to
( P then press the button. Press the button.
Without pressing
the brake pedal ACCESSORY
Indicator in the button is on.
Indicator in th
e button blinks
(from ON to ACCESSORY).
Operate the audio system and
other accessories in this position.
ON
Indicator in the button is on.
All electrical components can be
used.
Indicator
U.S. models
Shift to (
P.
15 CIVIC IMA-31TR26300.book 121 ページ 2014年9月9日 火曜日 午後12時20分
Page 148 of 377

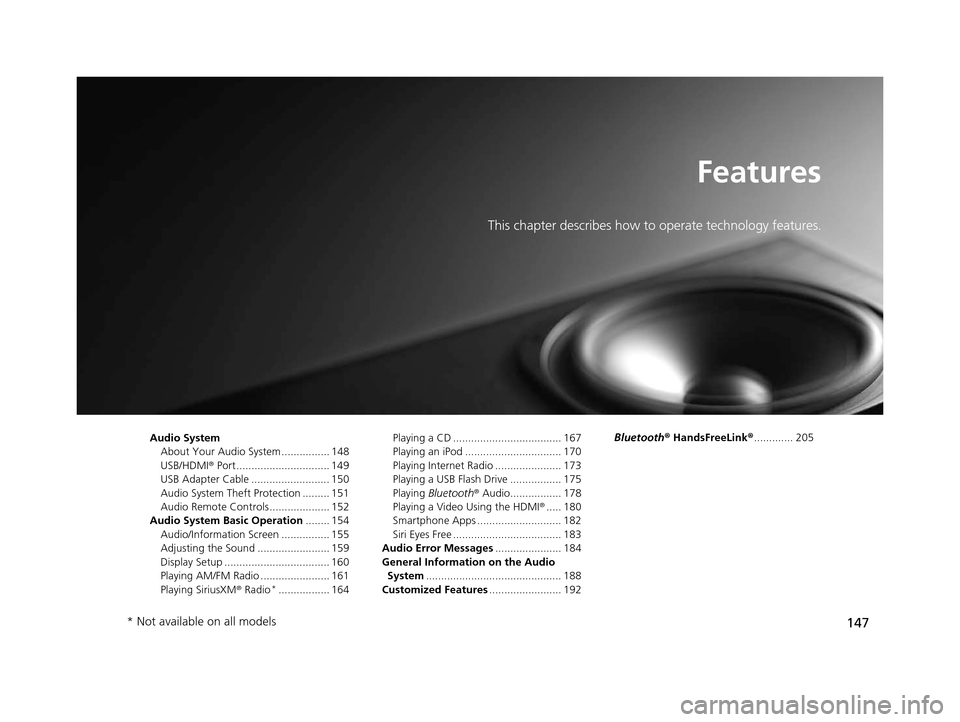

147
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 148
USB/HDMI ® Port ............................... 149
USB Adapter Cable .......................... 150
Audio System Theft Protection ......... 151
Audio Remote Controls .................... 152
Audio System Basic Operation ........ 154
Audio/Information Screen ................ 155
Adjusting the Sound ........................ 159
Display Setup ................................... 160
Playing AM/FM Radio ....................... 161
Playing SiriusXM ® Radio
*................. 164 Playing a CD .................................... 167
Playing an iPod ................................ 170
Playing Internet Radio ...................... 173
Playing a USB Flash Drive ................. 175
Playing
Bluetooth ® Audio................. 178
Playing a Video Using the HDMI ®..... 180
Smartphone Apps ............................ 182
Siri Eyes Free .................................... 183
Audio Error Messages ...................... 184
General Information on the Audio System ............................................. 188
Customized Features ........................ 192 Bluetooth
® HandsFreeLink® ............. 205
* Not available on all models
15 CIVIC IMA-31TR26300.book 147 ページ 2014年9月9日 火曜日 午後12時20分
Page 149 of 377

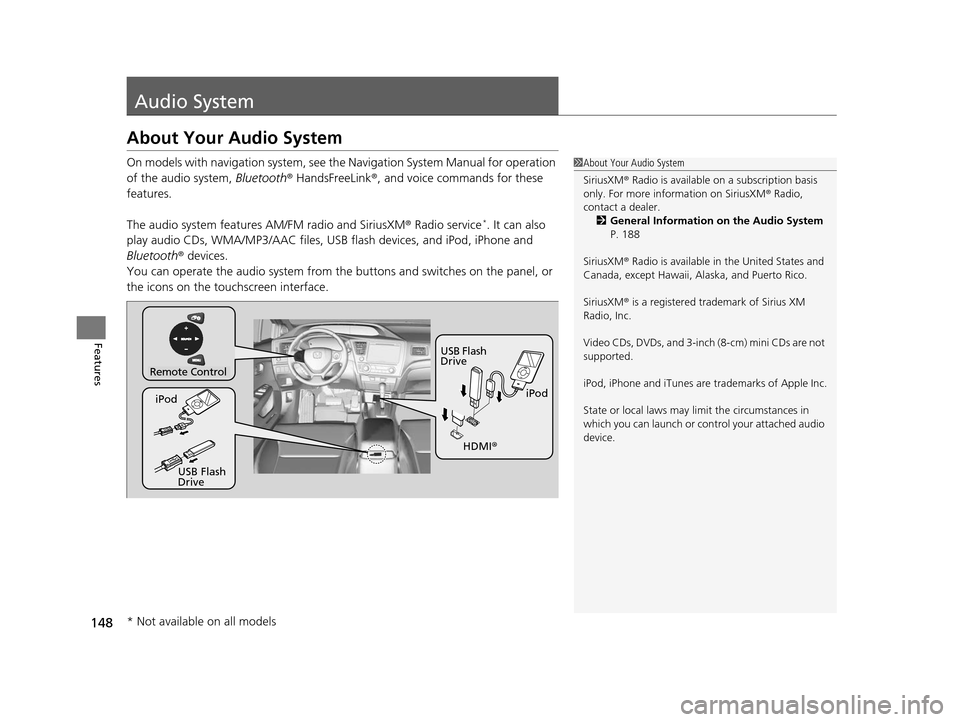

148
Features
Audio System
About Your Audio System
On models with navigation system, see the Navigation System Manual for operation
of the audio system, Bluetooth® HandsFreeLink ®, and voice commands for these
features.
The audio system features AM/FM radio and SiriusXM ® Radio service
*. It can also
play audio CDs, WMA/MP3/AAC files, USB flash devices, and iPod, iPhone and
Bluetooth ® devices.
You can operate the audio system from the buttons and switches on the panel, or
the icons on the touchscreen interface.
1 About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio,
contact a dealer.
2 General Information on the Audio System
P. 188
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a registered trademark of Sirius XM
Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may li mit the circumstances in
which you can launch or cont rol your attached audio
device.
Remote Control
iPod
USB Flash
Drive
iPod
USB Flash
Drive HDMI
®
* Not available on all models
15 CIVIC IMA-31TR26300.book 148 ページ 2014年9月9日 火曜日 午後12時20分
