Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator light should go out within
f ive seconds. If it does not, turn of f
the engine and reinspect your
work.
Let the engine run f or several
minutes and check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine, let it sit f or
several minutes, then check the oil
level. If necessary, add oil to bring
the level to the upper mark on the
dipstick.
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including f ilter):
5.
6.
7.
8.
9.
(U.S.: DX, LX, Canada: DX, LX)
(U.S.: EX) (U.S.: DX, LX, Canada: DX, LX)
(U.S.: EX)
Engine Oil
Maint enance208
33 lbf·ft (44 N·m , 4.5 kgf·m)
29 lbf·ft (39 N·m , 4.0 kgf·m)
3.4 US qt (3.2
, 2.8 Imp qt)
3.7 US qt (3.5
, 3.1 Imp qt) Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.
This coolant should always be a
mixtureof 50percentantifreezeand
50 percent water. Never add straight
antif reeze or plain water.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Make sure the engine and radiator
are cool.
This coolant is pre-mixed with 50
percent antif reeze and 50 percent
water. It does not require any
additional mixing. If it is not available,
you may use another major-brand
non-silicate coolant as a temporary
replacement. Make sure it is a high-
quality coolant recommended f or
aluminum engines. However,
continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible. Always use genuine Honda All
Season Antif reeze/Coolant Type 2.
1.
CONT INUED
A dding Engine Coolant
Cooling Syst em
Maint enance209
R REES
SE ER
RV V E
E T
TA
A N
NK K
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

Remove the radiator cap by
pushing down and turning
counterclockwise. Turn the radiator cap counter-
clockwise, without pressing down
on it, until it stops. This relieves
any pressure remaining in the
cooling system.Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank. Put the radiator cap back on.
Tighten it f ully. The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.Do not add any rust inhibitors or
other additives to your car’s cooling
system. They may not be compatible
with the coolant or engine compo-
nents.
2.
3. 4.
5.
6.
Cooling Syst em
Maint enance210
R RA
A D
DI
IAA T
TO
OR R C
CAA P
P R
RE
ES
SE ER
RV V E
E T
TA
A N
NK K

CONT INUED
Remove the radiator cap. Turn the ignition ON (II). Turn
the temperature control dial to
maximum heat. Turn of f the
ignition. Open the hood. Make
sure the engine and radiator are
cool to the touch.Loosen the drain plug on the
bottom of the radiator. The
coolant will drain through the
splash guard. Remove the drain
bolt and washer f rom the engine
block.
Draining the coolant requires access
to the underside of the car. Unless
you have the tools and knowledge,
you should have this maintenance
done by a skilled mechanic. Thecoolingsystemshouldbe
completely drained and ref illed with
new coolant according to the time
and distance recommendations in
the maintenance schedule. Only use
genuine Honda All Season
Antif reeze/Coolant Type 2.
1.3.
2.
Replacing Engine Coolant
Cooling Syst em
Maint enance211

µ
´ ´
µ
Disconnect the battery cables
f rom the terminals. Disconnect
the negative ( ) cable first, then
the positive ( ) cable.
Remove the bolt and nut, then
remove the battery case. Remove the reserve tank
mounting bolt. Remove the
reserve tank and drain the coolant.
Put the tank back in place, making
sure its bottom tab is in the holder.
Reinstall the bolt.
Reinstall the battery and battery
case. Secure them with the bolt
and nut.Reconnect the battery cables to
the terminals. Connect the positive
( ) cable f irst, then the negative
()cable.
Battery posts,
terminals and related accessories
contain lead and lead compounds.
Remove the battery. If your car’s battery is disconnected
or goes dead, the audio system will
disableitself.Thenexttimeyouturn
on the radio you will see ‘‘ ’’
in the f requency display. Use the
Preset buttons to enter the five-digit
code (see page ).
4.
6. 7.
5. 8.9.
157
On EX and Canadian LX models
Cooling Syst em
Maint enance
WARNING:
Wash hands af ter handling.
212
N NUUTT B
BO
OL LTT
B
BOOL LTT
T
T A
A B
B

Tightening torque: When the coolant stops draining,
tightenthedrainpluginthe
bottom of the radiator. Apply non-
hardening sealant to the drain bolt
threads, put a new washer on the
drain bolt, and reinstall the drain
bolt in the engine block. Tighten it
securely.Pour genuine Honda All Season
Antif reeze/Coolant Type 2 into
the radiator up to the base of the
f iller neck. This coolant is a
mixture of 50 percent antif reeze
and 50 percent water. Pre-mixing
is not required.The cooling system capacity is:
10.
11.
CONT INUED
With 5-speed manual transmission:With automatic transmission:
Cooling Syst em
Maint enance213
F FIILLL LEE R
R N
NEEC
CK K
F
Fi illll u
u p
p t
too h
he
erree
58 lbf·ft (78 N·m , 8.0 kgf·m) 1.03 US gal (3.9
, 0.86 Imp gal)
1.00 US gal (3.8
, 0.84 Imp gal)

Start the engine and hold it at
1,500 rpm until the radiator f an
comes on. Turn of f the engine.
Check the coolant level in the
radiator and add coolant if needed.
Install the radiator cap, and
tighten it fully.
If necessary, f ill the reserve tank
to the MAX mark. Install the
reserve tank cap.
Start the engine and let it run until
the radiator fan comes on two
times. Then stop the engine.
Remove the radiator cap. Fill the
radiator with coolant up to the
base of the f iller neck.
Start the engine and let it run f or
about 30 seconds. Then turn of f
the engine.
Check the level in the radiator,
add coolant if needed.
Fill the reserve tank to the MAX
mark. Install the reserve tank cap.
Install the radiator cap, and
tighten it to the first stop.
16.
17. 18.
19. 20.
12.
13.
14. 15.
Cooling Syst em
Maint enance214

Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers of ten,
check the level every time you stop
for fuel.When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
The windshield washer reservoir is
located behind the driver’s side
headlight. Check the reservoir’s f luid
level by removing the cap and
looking at the level gauge attached
to the cap. Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
The low washer level indicator will
light when the level is low (see page
).
215
On Canadian models
Windshield Washers
Maint enance215
L LE E V
V E
EL
L G
GAAU
UG GEE
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.

Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
Check the f luid level with the engine
at normal operating temperature.
Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth. Park the car on level ground. Shut
of f the engine. If the level is below the lower
mark, add f luid into the f iller hole
to bring it to the upper mark.
Always use genuine Honda
ATF-Z1 (Automatic Transmission
Fluid). If it is not available, you
may use a DEXRON
III
automatic transmission fluid as a
temporary replacement. However,
continued use can af f ect shif t
quality. Have the transmission
f lushed and ref illed with Honda
ATF-Z1 as soon as it is convenient.
To thoroughly f lush the transmission,
the technician should drain and ref ill
it with genuine Honda ATF-Z1
(Automatic Transmission Fluid),
then drive the vehicle a short
distance. Do this three times. Then
drain and ref ill the transmission a
final time.
3.
4. 5.
1.
2. Automatic Transmission
T ransmission Fluid
Maint enance216
D D I
IPP S
ST TI
ICCK K U
UP
PP
PE
ER
R
M
M A
AR
RKK
L
LO OW WE ER
R
M
M A
AR
RKK

If Honda MTF is not available, you
may use an API service SG, SH or SJ
grade motor oil with a viscosity of
SAE 10W-30 or 10W-40 as a
temporary replacement. An SG
grade is pref erred, but an SH or SJ
grade may be used if SG is not
available. However, motor oil does
not contain the proper additives and
continued use can cause stif f er
shif ting. Replace as soon as it is
convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.

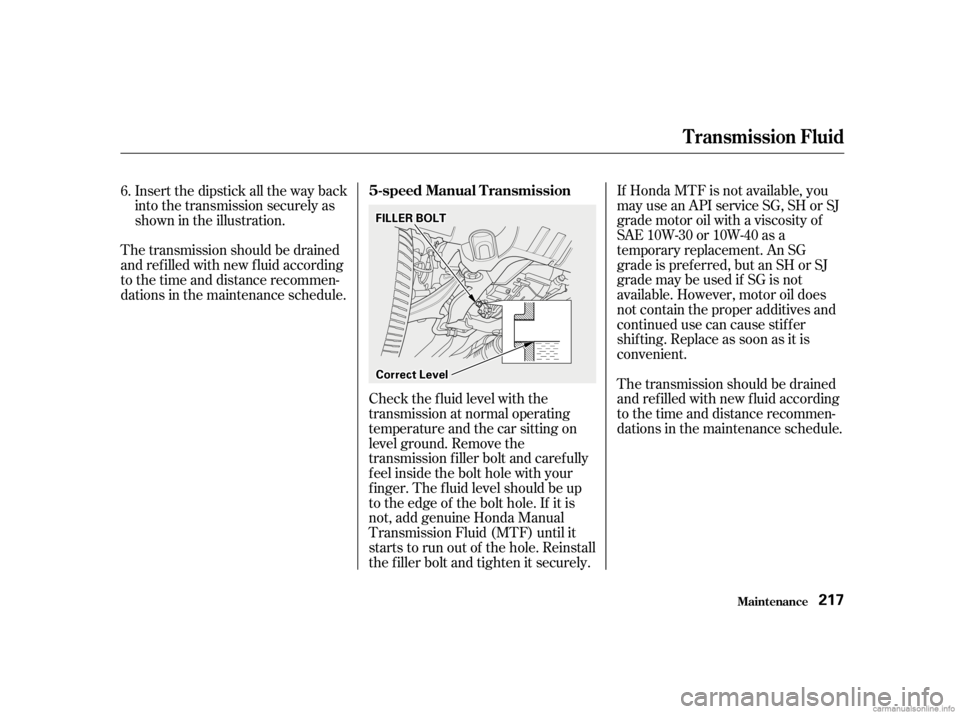

Check the f luid level with the
transmission at normal operating
temperature and the car sitting on
level ground. Remove the
transmission f iller bolt and caref ully
f eel inside the bolt hole with your
f inger. The f luid level should be up
to the edge of the bolt hole. If it is
not, add genuine Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Reinstall
the f iller bolt and tighten it securely.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule. 6.
T ransmission Fluid
Maint enance
5-speed Manual Transmission
217
F FI ILLL LEE R
R B
BOOL LTT
C
Co or
rrreec ctt L
Leevveell
