steering HONDA CIVIC SEDAN 2011 Navigation Manual (in English)

Navigation System11
Getting Started
Joystick/ENT button Moves left, right, up, and down to move the highlighting around the display, to scroll through lists, or to look around a displayed map. After making a selection in a menu or list, push in on the joystick to enter the selection into the system.In almost all cases, you can enter a selection into the system by using the voice control system , highlighting the item and pushing in on the joystick, or by touching the appropriate item you wish to select.
INFO button Displays the screen for selecting Cellular Phonebook , Voice Command Help , Map Legend, Calendar , and Calculator. See page 70.
MAP/GUIDE button Displays the map. When en route, switches between the map, guidance, and Direction list screens. See page 19 or 51.
MENU button Displays the Enter destination by screen. When en r oute, displays the Change route by screen.
SETUP button Displays the Setup screens where you can customize information in the system. See page 75.
CANCEL button Cancels the current sc reen and returns to the previous screen display.
NOTE:
The NAVI BACK button on the steering wheel performs the same basic function.
ZOOM (IN)/ (OUT) buttons Press ZOOM to zoom in (to show more detail), or ZOOM to zoom out (to show more area and less detail) while a map screen is displayed. ZOOM IN reduces the scale (showing less area with greater detail). ZOOM OUT increases the scale (showing more area with less detail).
AUDIO button Press to display the audio screen. For information on audio system features, see the Audio section of your Owner’s Manual.
Other buttons See the Audio section of your Owner's Manual.
Screen All selections and instructions are displayed on the screen. In addition, the display is a “touch screen” – you can enter information into the system by touching the images (icons) on the screen with your finger.
For example, if you need to enter a street name, a keyboard will be displayed. You can type in the street name by saying or selecting the individual character s on the screen.
Clean the screen with a soft damp cloth. You may use a mild cleaner intended for use on liquid crystal displays (LCDs). Harsher chemicals may damage the screen.

12Navigation System
Getting Started
Voice Control Basics
Your vehicle has a voice control system that allows hands-free operation of most of the navigation system functions. You can also control th e audio. The voice control system uses the NAVI TALK and NAVI BACK buttons on the steering wheel and a microphone near the map lights on the ceiling.
(Sedan Controls shown)
NOTE:
While using the voice control system, all of the speakers are muted.
NAVI TALK button
This button activates the voice control system. Press and release it when you want to give a voice command. See Voice Command Index on page 140 for a list of voice commands.
NAVI BACK button
This button has the same function as the CANCEL button. When you press and release it, the disp lay returns to the previous screen. When the previous screen appears, the system replays the last prompt. This button is enabled for navigation system commands only. However, it can be used to cancel an audio voice command up to one second after the command confirmation.
NOTE:
The NAVI TALK and NAVI BACK buttons are deactivated while using the Bluetooth® HandsFreeLink® feature. See your Owner’s Manual and the official website ( handsfreelink.honda.com) for information on this system.
NAVI BACK button
NAVI TALK button
HFL TALK button
HFL BACK button
Microphone (on the ceiling)

14Navigation System
Getting Started
• After pressing and releasing the NAVI TALK button, wait for the beep, then give a voice command.
• Give a voice command in a clear, natural speaking voice without pausing between words.
• If the system cannot recognize your command because of background noise, speak louder.
• If you are still having trouble with the voice control sy stem, refer to Voice Command Help on the Information screen.
Selecting an Item (Button)
on the Screen
On most screens, there are items that can be selected (like buttons with titles such as OK or Return). To select an item on any screen, do one of the following:
• Use the voice control system and say the name of the desired item. Almost all selectable items on the screen, including some listed items, are recognized by the voice control system.
• Touch the desired item on the screen.
• Move the highlighting to the desired item with the joystick, then push in on the joystick.
Tip:
If items are grayed out, this means that they cannot be selected.
Selecting an Item in a List
To scroll through a list, do one of the following:
• Use the joystick to scroll through the list item by item.
• Use the voice control system and say “Next” or “Previous” or use the “on-screen” scroll up or down buttons, or the ZOOM buttons to scroll through the list page by page.
If you cannot find the desired name, or have made an error, return to the previous screen by pressing the CANCEL or the NAVI BACK button on the steering wheel.
To select the desired item in the list, do one of the following:
• Use the voice control system, and say the item number of the desired item.
• Touch the item on the screen.
• Use the joystick to move the highlighting to the it em, then push in on the joystick.

20Navigation System
Getting Started
Map Screen Description
Zoom In/Out
Use the ZOOM buttons to change the scale of the map. Zooming in increases the detail, while zooming out gives you a wide area view. After changing the scale, give the system a few moments to update the display.
Map Scrolling
To view other areas on the map, move the joystick left, right, up, or down. The map will shift in that direction. To return the map to you r current location, press either the MAP/GUIDE, CANCEL , or NAVI BACK button on the steering wheel.
Displaying Current Location
You can say “Display current location” or touch the vehicle position icon at any time to see the current address, latitude, longitude, and elevation. The screen will change to:
NOTE:
The elevation will not appear when the system is temporarily lacking proper GPS information. The system elevation may not agree with elevations shown on roadside elevation signs, and may fluctuate plus or minus 100 feet or more.
You can say “Save current location” or select Save on the screen to save the current location in your Address Book.
Select Return to return to the previous screen.

Navigation System67
Driving to Your Destination
Cancel Current Route
Cancels the current route (and any waypoints) and returns you to the map screen.
Back to Current Route
Returns you to the original map screen.
Changing Your Destination
There are four methods by which you can change or add a waypoint to your route. These are:
Find Nearest (Voice command)
From the map screen, say one of the “Find Nearest...” voice commands to locate the nearest gas station, ATM, restaurant, or other point of interest. See the “Find Nearest” voice commands listing on page 142.
Go Home (Voice command)
From the map screen, say “Go home.” If you have entered a “Go home” address, then the system will display a confirmation screen.
Using Joystick to Change
Destination
While following a calculated route, you can select a new destination with the map screen and the joystick.
With the map screen displayed, use the joystick to move the position icon. It will change to cr osshairs. Use the joystick to position the crosshairs on your desired new destination, street, or icon, then push in on the joystick. The Select a place screen or the address of the location will be displayed.
NOTE:
The Select a place screen will be displayed when the crosshairs are positioned near multiple icons or locations. The address of the location will be displayed at th e top of the screen when the crosshairs are positioned on a particular street, icon, or location.
If this is not your desired new destination, press the CANCEL button or the NAVI BACK button on the steering wheel to return to the map screen. Reposition the crosshairs with the joystick, then push in on the joystick again to see the new address.

Navigation System69
Driving to Your Destination
Entering a Destination from the
Menu Screen (while en route)
If you say “Menu” or press the MENU button twice, the sy stem displays the Enter destination by screen. Follow the procedure described in Entering a Destination , which begins on page 22. After selecting OK to the Calculate route to screen, your new location can be used either as a waypoint or as a replacement destination.
Continue Trip Screen
If you restart the vehicle without having completed your prior trip, you will see the following screen:
• To continue to your destination or other waypoints, say or select OK.
• To cancel your destination, press the CANCEL button or the NAVI BACK button on the steering wheel, or using the voice control system, say “Cancel” or “Back.”
• If you wish to change the route method, say or select CHANGE METHOD .
• For additional information on changing the routing method, see Changing the Routing Method on page 47.

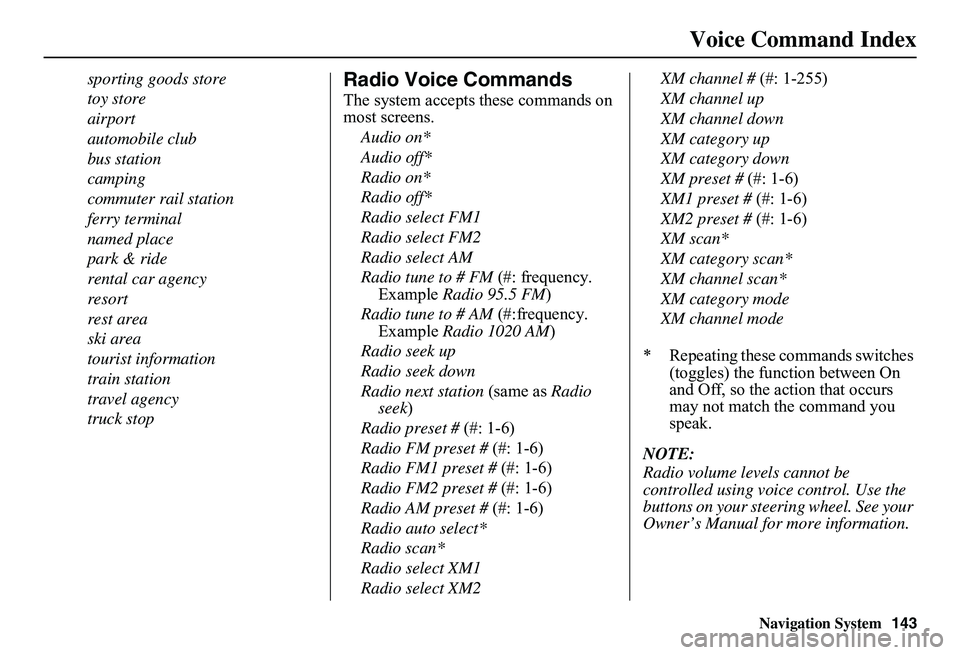

Navigation System143
Voice Command Index
sporting goods store
toy store
airport
automobile club
bus station
camping
commuter rail station
ferry terminal
named place
park & ride
rental car agency
resort
rest area
ski area
tourist information
train station
travel agency
truck stop
Radio Voice Commands
The system accepts these commands on most screens.
Audio on*
Audio off*
Radio on*
Radio off*
Radio select FM1
Radio select FM2
Radio select AM
Radio tune to # FM (#: frequency. Example Radio 95.5 FM)
Radio tune to # AM (#:frequency. Example Radio 1020 AM)
Radio seek up
Radio seek down
Radio next station (same as Radio seek )
Radio preset # (#: 1-6)
Radio FM preset # (#: 1-6)
Radio FM1 preset # (#: 1-6)
Radio FM2 preset # (#: 1-6)
Radio AM preset # (#: 1-6)
Radio auto select*
Radio scan*
Radio select XM1
Radio select XM2
XM channel # (#: 1-255)
XM channel up
XM channel down
XM category up
XM category down
XM preset # (#: 1-6)
XM1 preset # (#: 1-6)
XM2 preset # (#: 1-6)
XM scan*
XM category scan*
XM channel scan*
XM category mode
XM channel mode
* Repeating these commands switches (toggles) the function between On and Off, so the action that occurs may not match the command you speak.
NOTE:
Radio volume levels cannot be controlled using voice control. Use the buttons on your steering wheel. See your Owner’s Manual for more information.
