warning light HONDA CIVIC SEDAN 2011 Owner's Manual (in English)

ÎÎ
Î
Î Î
Î
Î
Î
Î
Î
Î
Î Only on vehicles equipped with navigation system. Ref er to the navigation system manual. To use the horn, press the center pad of the steering wheel.
If equipped
1:
2:
3:
4: Si model

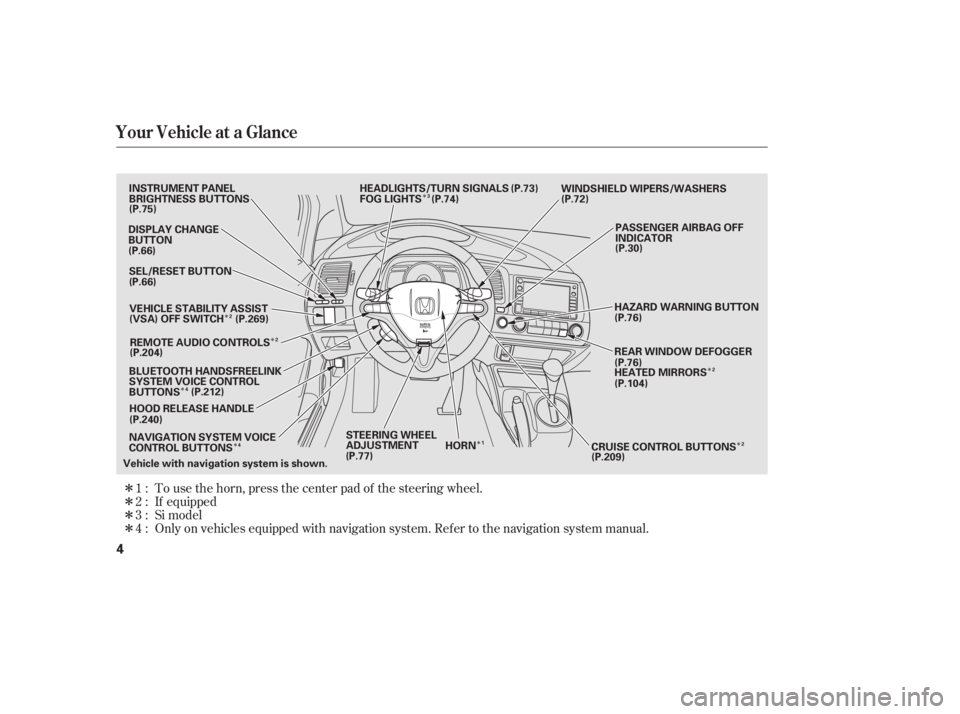

Your Vehicle at a Glance
4
STEERING WHEEL
ADJUSTMENT WINDSHIELD WIPERS/WASHERS
Vehicle with navigation system is shown. HORN
CRUISE CONTROL BUTTONSPASSENGER AIRBAG OFF
INDICATOR
HAZARD WARNING BUTTON
REAR WINDOW DEFOGGER
HEATED MIRRORS
INSTRUMENT PANEL
BRIGHTNESS BUTTONS
DISPLAY CHANGE
BUTTON
HOOD RELEASE HANDLE
SEL/RESET BUTTON
(P.75)
(P.66) (P.66)
(P.77) (P.76) (P.76)
(P.30)
(P.72)
REMOTE AUDIO CONTROLS HEADLIGHTS/TURN SIGNALS
(P.73)
FOG LIGHTS (P.74)
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS VEHICLE STABILITY ASSIST
(VSA) OFF SWITCH
(P.269)
(P.204)
(P.212)
BLUETOOTH HANDSFREELINK
SYSTEM VOICE CONTROL
BUTTONS
(P.240)
(P.209)(P.104)1
2
2
2 3
4
2
4
10/06/23 13:49:14 31SNA650_009

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 56
............................
Instrument Panel . 57
..........
Instrument Panel Indicators . 59
.............................................
Gauges . 66
..............
Display Change Button . 66
....................
Inf ormation Display . 67
..................................
Fuel Gauge . 70
...................
Temperature Gauge . 70
Controls Near the Steering ...........................................
Wheel . 71
.
Windshield Wipers and Washers . 72
.........
Turn Signals and Headlights . 73
............
Daytime Running Lights . 74
........................................
Fog Lights . 74
........
Instrument Panel Brightness . 75
.................
Hazard Warning Button . 76
.................
Rear Window Def ogger . 76
..........
Steering Wheel Adjustment . 77
...............................
Keys and Locks . 78
........................
Immobilizer System . 79
................................
Ignition Switch . 80
......................................
Door Locks . 81
......................
Power Door Locks . 82
..............
Childproof Door Locks . 82
.
Auto Door Locking/Unlocking . 83
.....................
Auto Door Locking . 83 .................
Auto Door Unlocking . 85
................................................
Trunk . 88
........
Emergency Trunk Opener . 89
.......................
Remote Transmitter . 90
.................................................
Seats . 93
..................................
Seat Heaters . 100
............................
Power Windows . 101
.......................................
Moonroof . 102
...........................................
Mirrors . 103
...............................
Parking Brake . 105
...............................
Interior Lights . 105
.........
Interior Convenience Items . 107
.....................
Beverage Holders . 108
.........
Accessory Power Socket . 108
..................................
Glove Box . 108
.............
Console Compartment . 108
Instruments and Controls
Inst rument s and Cont rols
55
10/06/23 13:58:04 31SNA650_060

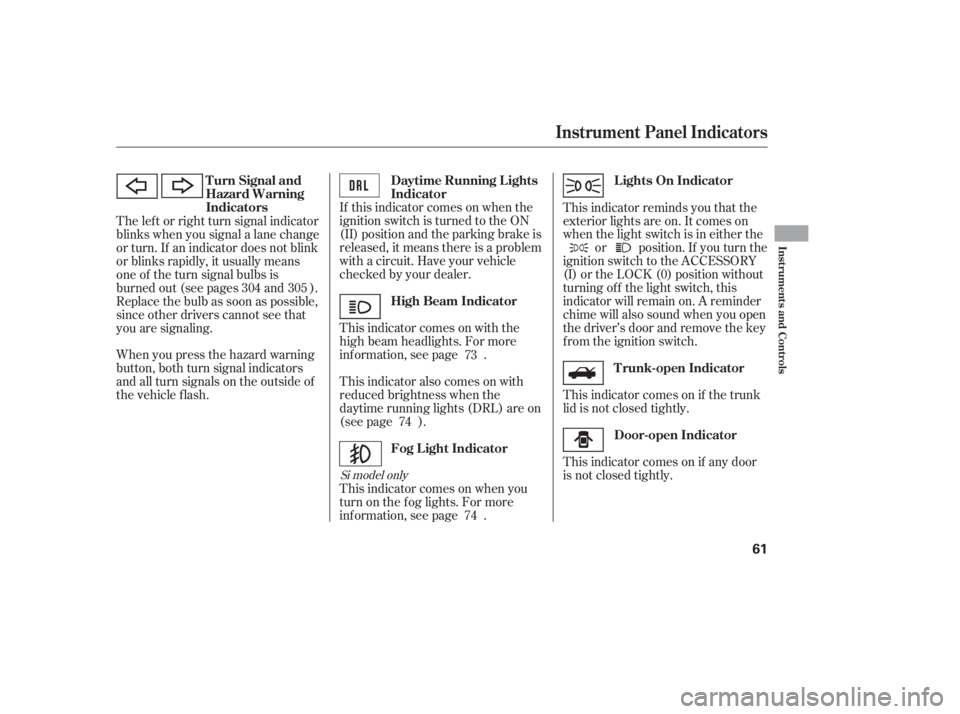

When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
with a circuit. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if any door
is not closed tightly.
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page . 73
74
74
304 305
Si model only
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator
High Beam Indicator Trunk-open Indicator
Door-open Indicator
Fog L ight Indicator Daytime Running L ights
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
10/06/23 13:59:08 31SNA650_066

ÎÎ
Î
Î Î
Î
Î
Î
Î
Î
Î
Î
Only on vehicles equipped with navigation system. Ref er to the navigation system manual. To use the horn, press the center pad of the steering wheel.
If equipped
1:
2:
3:
4: Si model

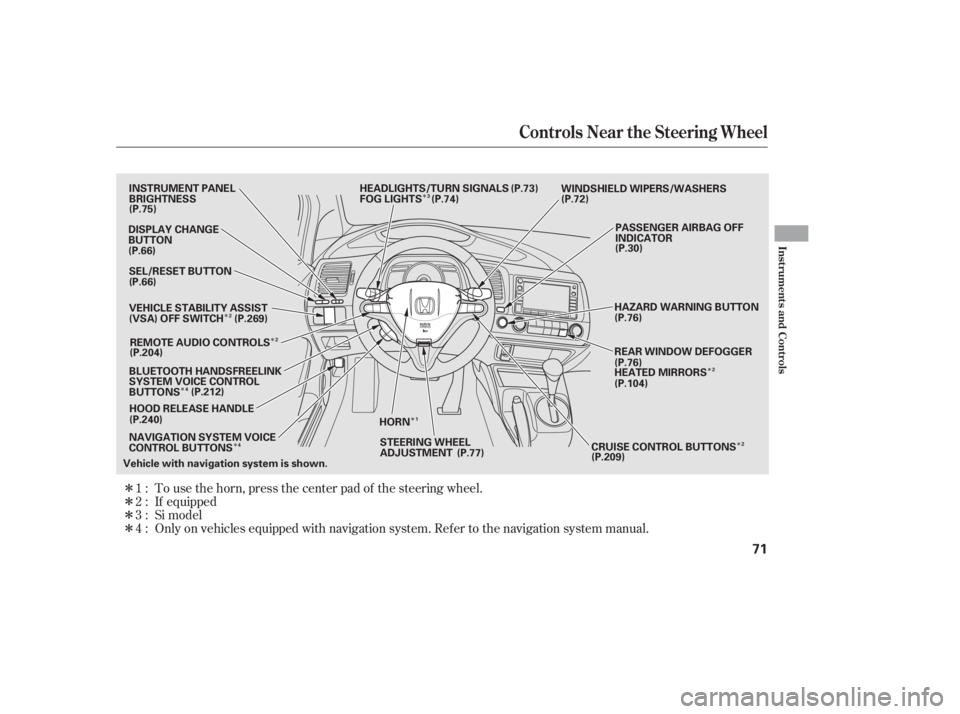

Controls Near the Steering Wheel
Inst rument s and Cont rols
71
STEERING WHEEL
ADJUSTMENT WINDSHIELD WIPERS/WASHERS
Vehicle with navigation system is shown. HORN
CRUISE CONTROL BUTTONSPASSENGER AIRBAG OFF
INDICATOR
HAZARD WARNING BUTTON
REAR WINDOW DEFOGGER
HEATED MIRRORS
DISPLAY CHANGE
BUTTON
HOOD RELEASE HANDLE
SEL/RESET BUTTON
(P.75)
(P.66) (P.66)
(P.76) (P.76)(P.30)
(P.72)
REMOTE AUDIO CONTROLS HEADLIGHTS/TURN SIGNALS
(P.73)
FOG LIGHTS (P.74)
INSTRUMENT PANEL
BRIGHTNESS
(P.77)
VEHICLE STABILITY ASSIST
(VSA) OFF SWITCH
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS (P.269)
(P.204)
BLUETOOTH HANDSFREELINK
SYSTEM VOICE CONTROL
BUTTONS (P.212)
(P.240)
(P.209)(P.104)
1
2
2
2 3
2
4
4
10/06/23 14:00:59 31SNA650_076

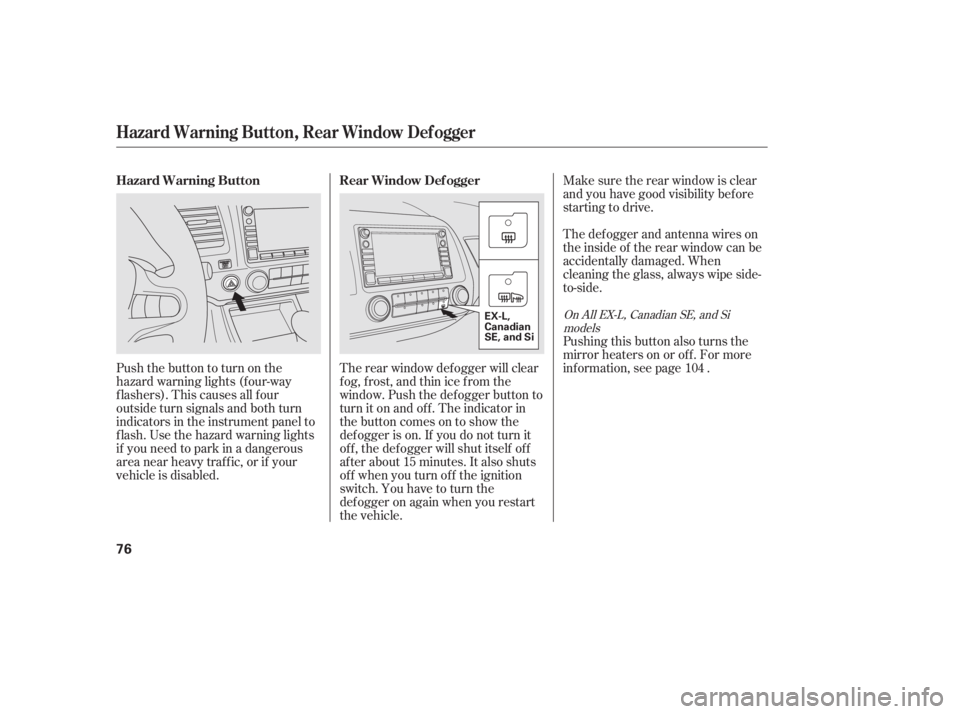

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The def ogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side-
to-side.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Pushthebuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both turn
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.
Pushing this button also turns the
mirror heaters on or of f . For more
inf ormation, see page .
104
OnAllEX-L,CanadianSE,andSi
models
Hazard Warning Button, Rear Window Def ogger
Rear Window Def ogger
Hazard Warning Button
76
EX-L,
Canadian
SE, and Si
10/06/23 14:01:47 31SNA650_081

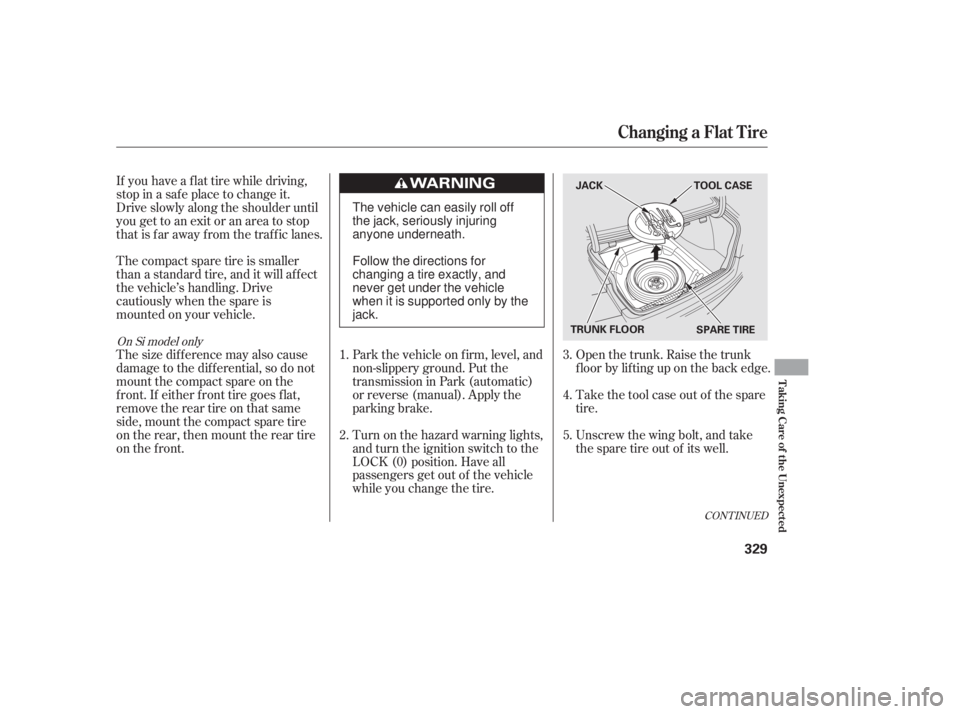

Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire. Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or reverse (manual). Apply the
parking brake.Open the trunk. Raise the trunk
f loor by lif ting up on the back edge.
Take the tool case out of the spare
tire.
Unscrew the wing bolt, and take
the spare tire out of its well.
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
Thecompactsparetireissmaller
than a standard tire, and it will affect
the vehicle’s handling. Drive
cautiously when the spare is
mounted on your vehicle.
Thesizedifferencemayalsocause
damage to the dif f erential, so do not
mount the compact spare on the
f ront. If either f ront tire goes f lat,
removethereartireonthatsame
side, mount the compact spare tire
on the rear, then mount the rear tire
on the f ront.
5. 4.
3.
2. 1.
CONT INUED
On Si model only
Changing a Flat Tire
T aking Care of t he Unexpect ed
329
SPARE TIRE
TRUNK FLOOR JACK TOOL CASE
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
10/06/23 14:44:35 31SNA650_334

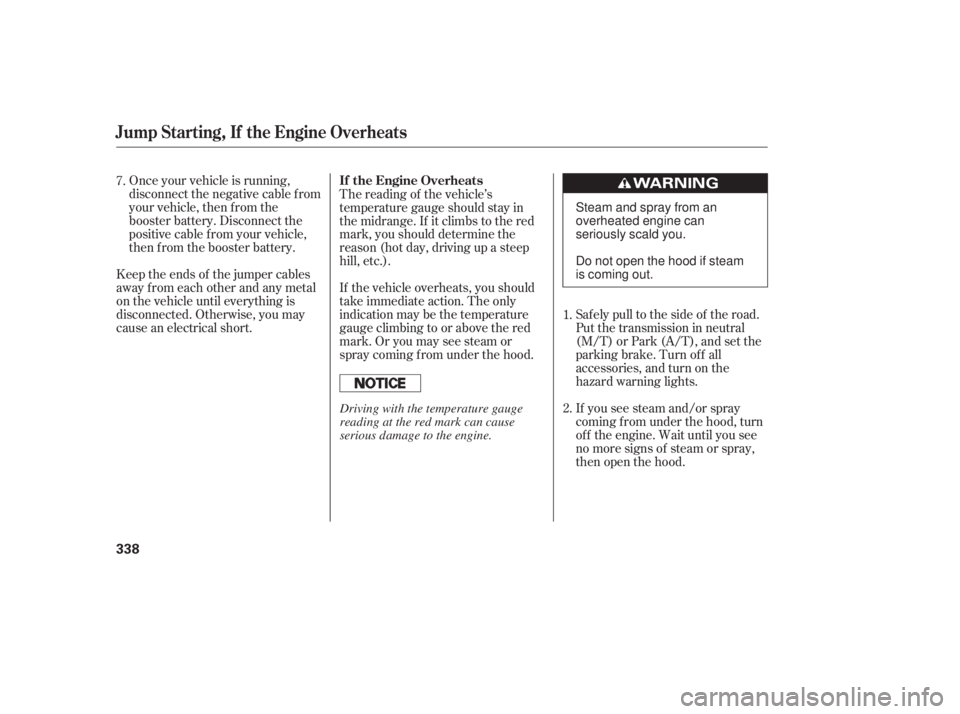

Once your vehicle is running,
disconnect the negative cable f rom
your vehicle, then f rom the
booster battery. Disconnect the
positive cable f rom your vehicle,
then from the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short. The reading of the vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If the vehicle overheats, you should
take immediate action. The only
indication may be the temperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming f rom under the hood.
Saf ely pull to the side of the road.
Put the transmission in neutral
(M/T) or Park (A/T), and set the
parking brake. Turn of f all
accessories, and turn on the
hazard warning lights.
If you see steam and/or spray
coming f rom under the hood, turn
of f the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
7.
1.
2.
Jump Starting, If the Engine Overheats
If the Engine Overheats
338
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
reading at the red mark can cause
serious damage to the engine.
10/06/23 14:45:59 31SNA650_343

Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(see on page).
Saf ely pull of f the road, and shut
of f the engine. Turn on the hazard
warning lights.

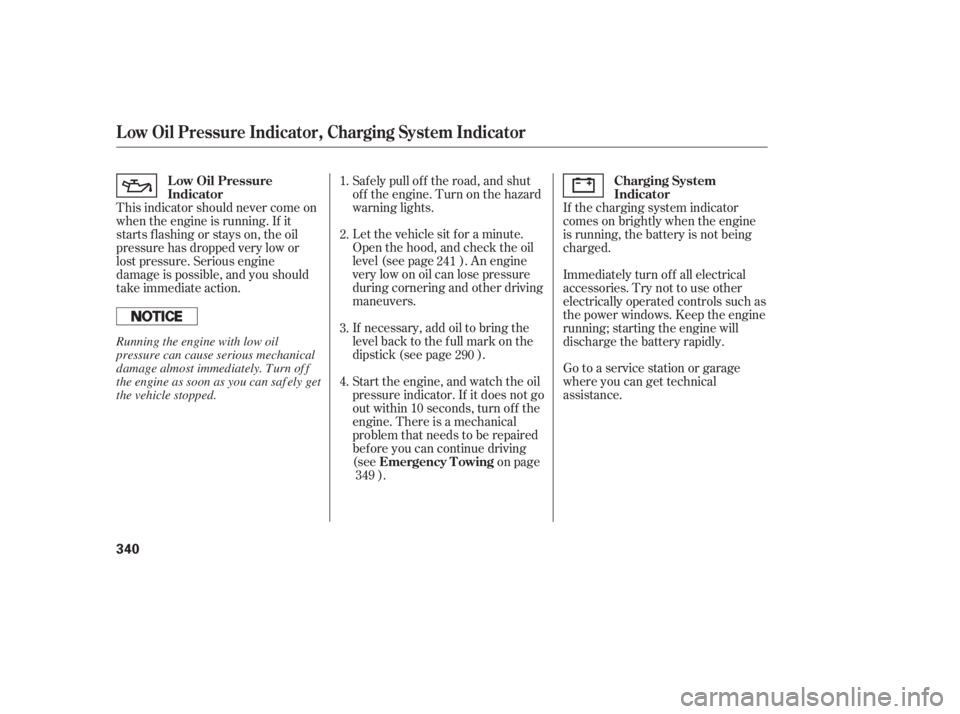

This indicator should never come on
when the engine is running. If it
starts flashing or stays on, the oil
pressure has dropped very low or
lost pressure. Serious engine
damage is possible, and you should
take immediate action. If the charging system indicator
comes on brightly when the engine
is running, the battery is not being
charged.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
1.
2.
3.
4.
241
290
349 Emergency T owing
L ow Oil Pressure
Indicator
Charging System
Indicator
L ow Oil Pressure Indicator, Charging System Indicator
340
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
10/06/23 14:46:22 31SNA650_345

Î
CONT INUED

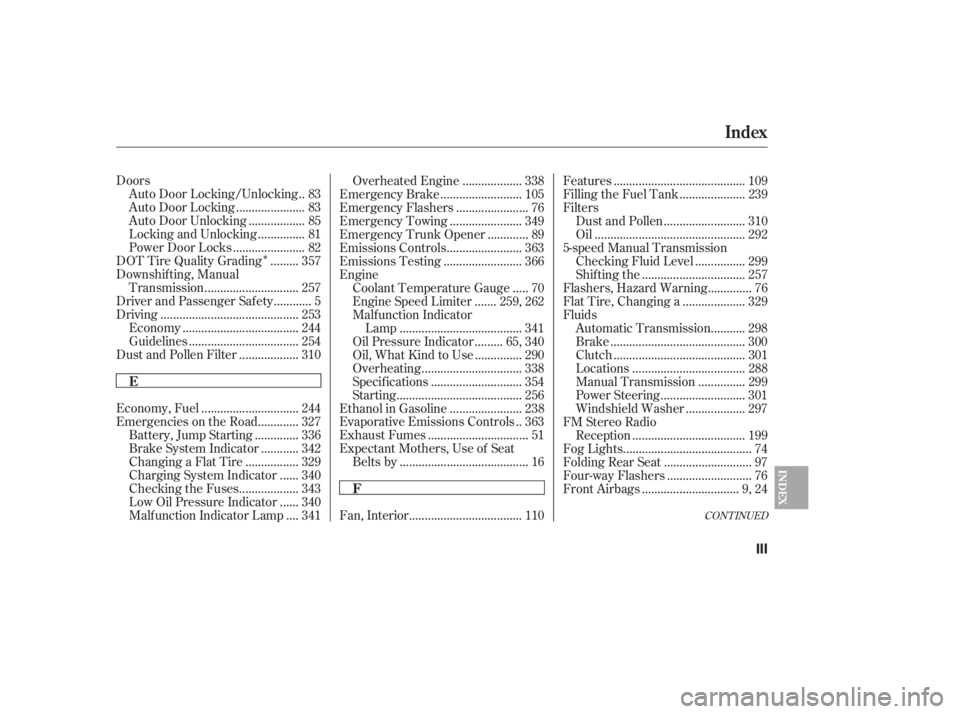

Doors.
Auto Door Locking/Unlocking . 83
.....................
Auto Door Locking . 83
.................
Auto Door Unlocking . 85
..............
Locking and Unlocking . 81
......................
Power Door Locks . 82
........
DOT Tire Quality Grading . 357
Downshif ting, Manual
.............................
Transmission . 257
...........
Driver and Passenger Safety . 5
...........................................
Driving . 253
....................................
Economy . 244
..................................
Guidelines . 254
..................
Dust and Pollen Filter . 310
..............................
Economy, Fuel . 244
............
Emergencies on the Road . 327
.............
Battery, Jump Starting . 336
...........
Brake System Indicator . 342
................
Changing a Flat Tire . 329
.....
Charging System Indicator . 340
..................
Checking the Fuses . 343
.....
Low Oil Pressure Indicator . 340
...
Malf unction Indicator Lamp . 341 ..................
Overheated Engine . 338
.........................
Emergency Brake . 105
......................
Emergency Flashers . 76
......................
Emergency Towing . 349
............
Emergency Trunk Opener . 89
.......................
Emissions Controls . 363
........................
Emissions Testing . 366
Engine
....
Coolant Temperature Gauge . 70
......
Engine Speed Limiter . 259, 262
Malf unction Indicator
......................................
Lamp . 341
........
Oil Pressure Indicator . 65, 340
..............
Oil, What Kind to Use . 290
...............................
Overheating . 338
............................
Specif ications . 354
.......................................
Starting . 256
......................
Ethanol in Gasoline . 238
.
Evaporative Emissions Controls . 363
...............................
Exhaust Fumes . 51
Expectant Mothers, Use of Seat
........................................
Belts by . 16
...................................
Fan, Interior . 110 .........................................
Features . 109
....................
Filling the Fuel Tank . 239
Filters
.........................
Dust and Pollen . 310
...............................................
Oil . 292
5-speed Manual Transmission ...............
Checking Fluid Level . 299
................................
Shif ting the . 257
.............
Flashers, Hazard Warning . 76
...................
Flat Tire, Changing a . 329
Fluids
..........
Automatic Transmission . 298
..........................................
Brake . 300
.........................................
Clutch . 301
...................................
Locations . 288
..............
Manual Transmission . 299
..........................
Power Steering . 301
..................
Windshield Washer . 297
FM Stereo Radio ...................................
Reception . 199
........................................
Fog Lights . 74
...........................
Folding Rear Seat . 97
..........................
Four-way Flashers . 76
..............................
Front Airbags . 9, 24
Index
F
E
INDEX
III
10/06/23 14:51:59 31SNA650_382

...............

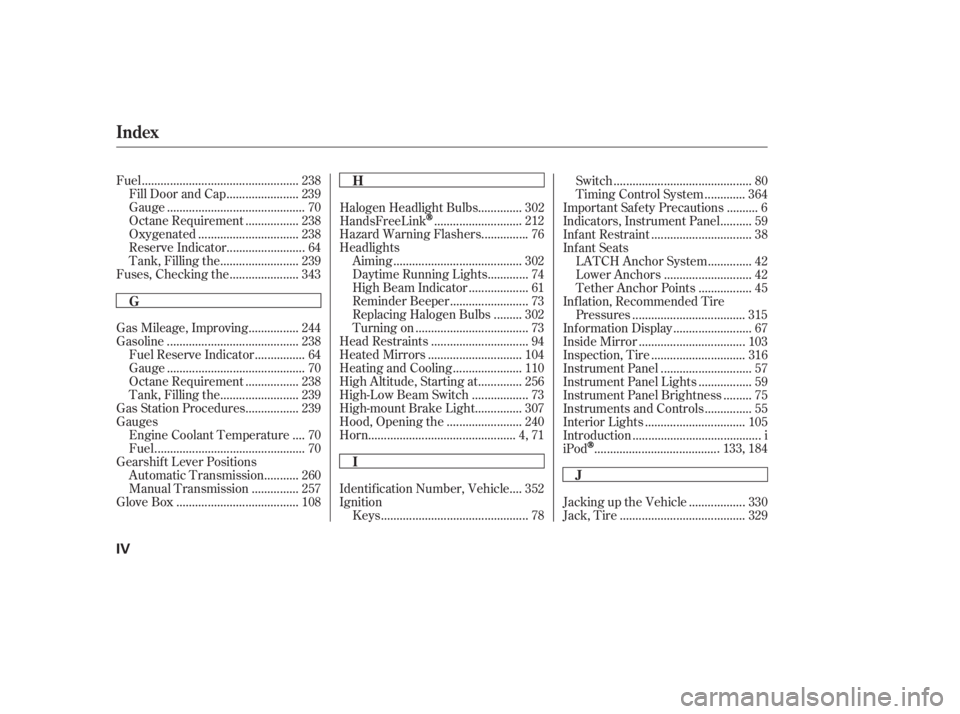

Gas Mileage, Improving . 244
.........................................
Gasoline . 238
...............
Fuel Reserve Indicator . 64
...........................................
Gauge . 70
................
Octane Requirement . 238
........................
Tank, Filling the . 239
................
Gas Station Procedures . 239
Gauges
...
Engine Coolant Temperature . 70
...............................................
Fuel . 70
Gearshif t Lever Positions ..........
Automatic Transmission . 260
..............
Manual Transmission . 257
......................................
Glove Box . 108 .............
Halogen Headlight Bulbs . 302
...........................
HandsFreeLink
. 212
..............
Hazard Warning Flashers . 76
Headlights
........................................
Aiming . 302
............
Daytime Running Lights . 74
..................
High Beam Indicator . 61
........................
Reminder Beeper . 73
........
Replacing Halogen Bulbs . 302
...................................
Turning on . 73
..............................
Head Restraints . 94
.............................
Heated Mirrors . 104
.....................
Heating and Cooling . 110
.............
High Altitude, Starting at . 256
.................
High-Low Beam Switch . 73
..............
High-mount Brake Light . 307
.......................
Hood, Opening the . 240
..............................................
Horn .4,71
...
Identif ication Number, Vehicle . 352
Ignition
..............................................
Keys . 78 ...........................................
Switch . 80
............
Timing Control System . 364
.........
Important Safety Precautions . 6
.........
Indicators, Instrument Panel . 59
...............................
Inf ant Restraint . 38
Inf ant Seats
.............
LATCH Anchor System . 42
...........................
Lower Anchors . 42
................
Tether Anchor Points . 45
Inf lation, Recommended Tire ...................................
Pressures . 315
........................
Inf ormation Display . 67
.................................
Inside Mirror . 103
.............................
Inspection, Tire . 316
............................
Instrument Panel . 57
................
Instrument Panel Lights . 59
........
Instrument Panel Brightness . 75
..............
Instruments and Controls . 55
...............................
Interior Lights . 105
........................................
Introduction . i
.......................................
iPod
. 133, 184
.................................................
Fuel . 238
......................
Fill Door and Cap . 239
...........................................
Gauge . 70
................
Octane Requirement . 238
...............................
Oxygenated . 238
........................
Reserve Indicator . 64
........................
Tank, Filling the . 239
.....................
Fuses, Checking the . 343
.................
Jacking up the Vehicle . 330
.......................................
Jack, Tire . 329
Index
H
I
G
J
IV
10/06/23 14:52:07 31SNA650_383
