System indicator HONDA CIVIC SEDAN 2012 Owner's Manual (in English)

Contents
This owner’s manual should be considered a permanent part of
the vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of the Civic 4-Door. You
may find descriptions of equipment and features that are not on
your particular model.
Images throughout this owner’s manual (including the front
cover) represent features and equipment that are available on
some, but not all, models. Your particular model may not have
some of these features.
This owner’s manual is for vehicles sold in the United States
The information and specifications included in this publication
were in effect at the time of approval for printing. Honda Motor
Co., Ltd. reserves the right, however, to discontinue or change
specifications or design at any time without notice and without
incurring any obligation.
2Safe Driving P.23
For Safe Driving P. 24 Seat Belts P. 28Airbags P. 35
2Instrument Panel P. 65
Indicators P.66 Gauges and Displays P. 78
2Controls P. 97
Setting the Clock P. 98Locking and Unlocking the Doors P. 99
Opening and Closing the Moonroof* P. 116
Adjusting the Seats P. 126
2Features P. 143
Audio System* P. 144 Audio System Basic Operation* P. 147
Bluetooth® HandsFreeLink®* P. 177
2 Driving P. 201
Before Driving P. 202 Towing a Trailer P. 207
Refueling P. 234 Fuel Economy P.237
2Maintenance P. 239
Before Performing Maintenance P. 240Maintenance Minder™ P. 243
Checking and Maintaining Wiper Blades P. 278
Heating and Cooling
* System Maintenance P. 291
2 Handling the Unexpected P. 297
Tools P. 298 If a Tire Goes Flat P.299
Overheating P. 311 Indicator, Coming On/Blinking P.313
2Information P. 323
Specifications P. 324 Identification Numbers P. 328
Emissions Testing P. 331 Warranty Coverages P.333
CIVIC 4D-31TR3600.book 0 ページ ２０１１年２月１４日　月曜日　午後２時５１分
QRGQuick Reference Guide
IndexIndex
HomeBook Table of Contents
TOCChapter Table of Contents
Navigation Key
2012 Civic Sedan
* Not available on all models
Home
QRG
Index
and Canada.Online Reference Owner's Manual

2
Quick Reference Guide - 2012 Civic Sedan
Quick Reference Guide
Visual Index
❙System Indicators (P 66)
❙Gauges (P 78)
❙Information Display* (P 80)
❙Navigation System*
() See Navigation System Manual
❙Audio System* (P 144)
❙Hazard Warning Button
❙Heating and Cooling* System
(P 140)
❙Rear Window Defogger (P 123)
❙Seat Heater Switches* (P 139)
❙Ignition Switch (P 117)
❙Steering Wheel Adjustments
(P 124)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button* (P 223)
❙ECON Button* (P 123)
❙Multi-Information Display* (P 82)
❙Heated Mirror Button* (P 123)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button* (P 223)
CIVIC 4D-31TR3600.book 2 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Home
QRG
Index
* Not available on all models

7
Quick Reference Guide - 2012 Civic SedanEco Assist System* (P 123)
Ambient Meter●Changes color to reflect your driving
style.
Green: Fuel efficient driving
Blue green: Moderate acceleration/
deceleration
Blue: Aggressive acceleration/
deceleration
● The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P 123)
Helps maximize fuel economy.
ECON Mode Indicator (P 75)
Comes on when the ECON button is pressed. This message is displayed for a few seconds
when the ECON button is pressed.
Models with multi-information display
*
Not available on all models
CIVIC 4D-31TR3600.book 7 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Home
QRG
Index

9
Quick Reference Guide - 2012 Civic SedanInstrument Panel (P 65)
U. S.
Canada
U. S.
Canada
Syste m In di ca tor s
Malfu nction
In dica to r Lam p
Low Oil Pressure
In dica to r
Ch argi ng S yst em
In dica to r
A nti-lo ck Brak e
S ystem (ABS)
In dica to r
Veh icle Stability
A ssist (VSA
®) Syst em
In dica to r
VSA
® OFF In dicator
Low Tire Pressure
Indicator
*/
Low Tire Pressure/
TPMS Ind icator
*
Elec tr ic Power
Steering (EPS)
In dicato r
Ligh ts R emi nd ers
Ligh ts On In dicator
Hig h B eam In dicato r
F o g L igh t In dicato r
*
Imm ob ilizer Sys tem
Ind icator Seat Belt R
eminder
In dicato r
System Indicat ors
Cru ise Con trol
Ind icator*
Sy stem Message
Ind icator*
Parking Brake
and Brake Syst em
Ind icator S
upp lemental
Re straint Syst em
Ind icator
Side Ai rb ag Off
Ind icator
Doo r Op en In dicato r
Cruise M ain Indic ator
*
T acho meter Instant Fuel
Econ
omy G aug e
*
Speed om et er
Fu el Gau ge
S e curity Alarm
S y stem Indica to r
*Shi ft Lever Position Indicator*
Lo w Fu el In dicat or
Gauges (P 78 )/Information Display* (P 80)/
Multi-Information Display
* (P 82 )/System Indicators (P 66)
Trunk Open In dicator
ECO N M ode Indicato r
*
TPMS Ind icator*
T u rn Sign al and
H aza rd Warning
In dic ators
H ig h Te mperat ur e
In dicato r
Low Te mperatu re
In dicato r
M aintena nce Minder
Ind icator
*
Dayti me Ru nnin g
Lights Indicator*
Wash er Level
Ind icator*
i- VTEC
I ndic ator
RE V
I ndic ator
2. 4 ℓ engi ne mod els
A m bient Meter*
* No t avai lable on all m odel s
CIVI C 4D-31TR3600.book 9 ペー ジ ２０ １１年２月１４日　月曜日　午後２時５１分
Home
QRG
Index

23

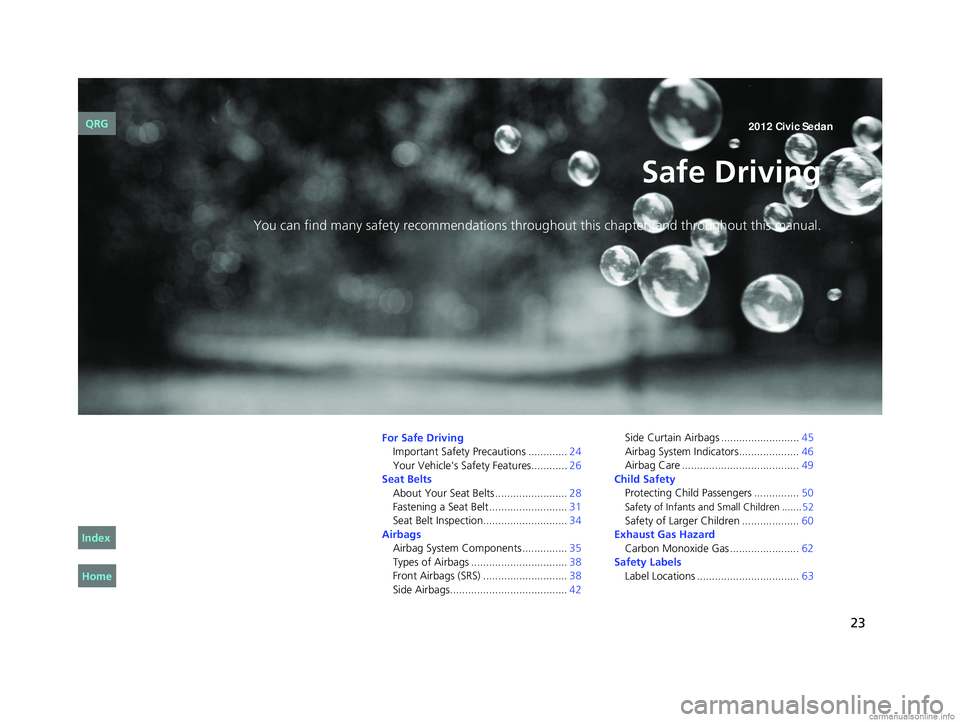

Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions ............. 24
Your Vehicle's Safety Features............ 26
Seat Belts About Your Seat Belts ........................ 28
Fastening a Seat Belt .......................... 31
Seat Belt Inspection............................ 34
Airbags Airbag System Components ............... 35
Types of Airbags ................................ 38
Front Airbags (SRS) ............................ 38
Side Airbags....................................... 42Side Curtain Airbags ..........................
45
Airbag System Indicators.................... 46
Airbag Care ....................................... 49
Child Safety
Protecting Child Passengers ............... 50
Safety of Infants and Small Children ....... 52
Safety of Larger Children ...................60
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 62
Safety Labels Label Locations .................................. 63
CIVIC 4D-31TR3600.book 23 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Home
QRG
Index 2012 Civic Sedan

uuSeat Belts uAbout Your Seat Belts
30

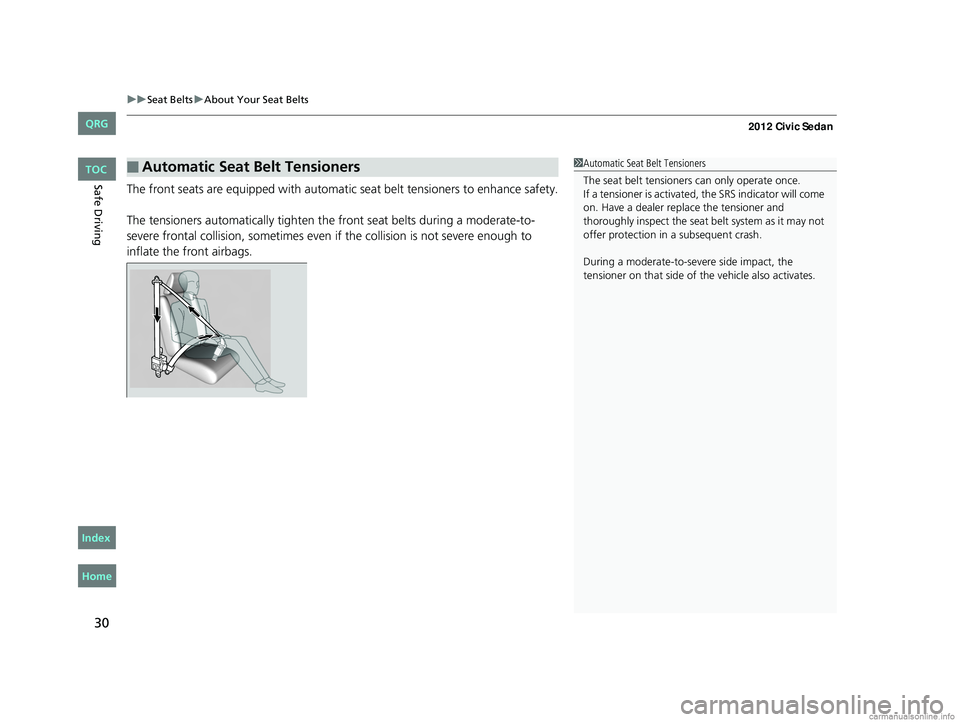

Safe DrivingThe front seats are equipped with automatic seat belt tensioners to enhance safety.
The tensioners automatically tighten th e front seat belts during a moderate-to-
severe frontal collision, sometimes even if the collision is not severe enough to
inflate the front airbags.
■Automatic Seat Belt Tensioners1 Automatic Seat Belt Tensioners
The seat belt tensioners can only operate once.
If a tensioner is activated, the SRS indicator will come
on. Have a dealer replace the tensioner and
thoroughly inspect the seat belt system as it may not
offer protection in a subsequent crash.
During a moderate-to-sev ere side impact, the
tensioner on that side of the vehicle also activates.
CIVIC 4D-31TR3600.book 30 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

36
uuAirbags uAirbag System Components
Safe Driving

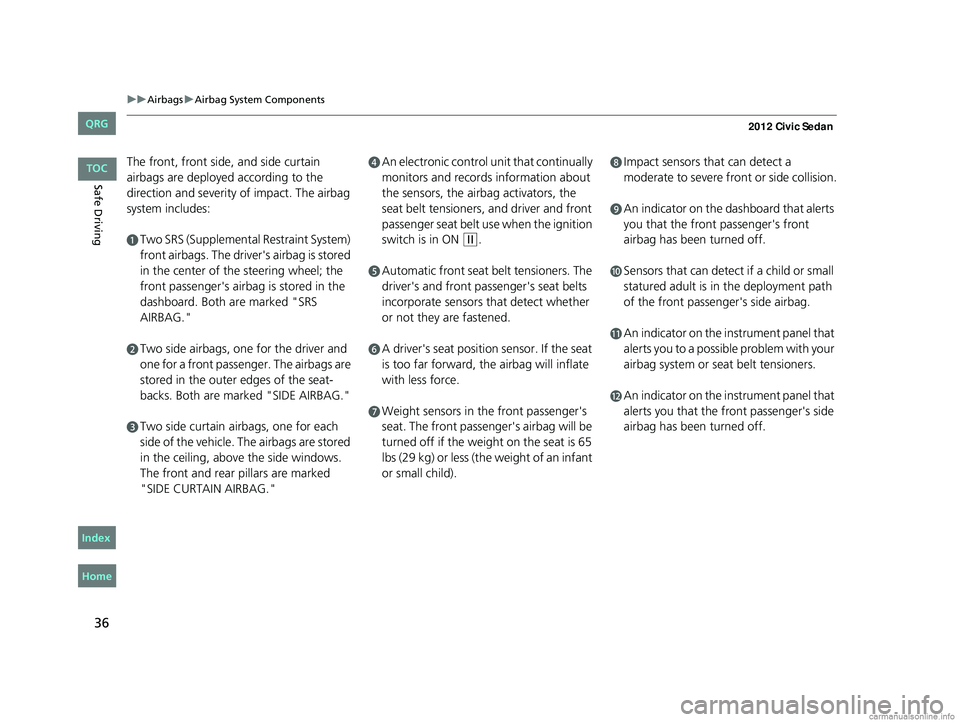

The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. The airbag
system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked "SRS
AIRBAG."
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked "SIDE AIRBAG."
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
"SIDE CURTAIN AIRBAG."
dAn electronic control unit that continually
monitors and record s information about
the sensors, the airb ag activators, the
seat belt tensioners, and driver and front
passenger seat belt use when the ignition
switch is in ON
(w.
eAutomatic front seat belt tensioners. The
driver's and front passenger's seat belts
incorporate sensors that detect whether
or not they are fastened.
fA driver's seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
gWeight sensors in the front passenger's
seat. The front passenger's airbag will be
turned off if the weight on the seat is 65
lbs (29 kg) or less (the weight of an infant
or small child).
hImpact sensors that can detect a
moderate to severe front or side collision.
iAn indicator on the dashboard that alerts
you that the front passenger's front
airbag has been turned off.
jSensors that can detect if a child or small
statured adult is in the deployment path
of the front passenger's side airbag.
kAn indicator on the instrument panel that
alerts you to a possibl e problem with your
airbag system or seat belt tensioners.
lAn indicator on the instrument panel that
alerts you that the front passenger's side
airbag has been turned off.
CIVIC 4D-31TR3600.book 36 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

41
uuAirbags uFront Airbags (SRS)

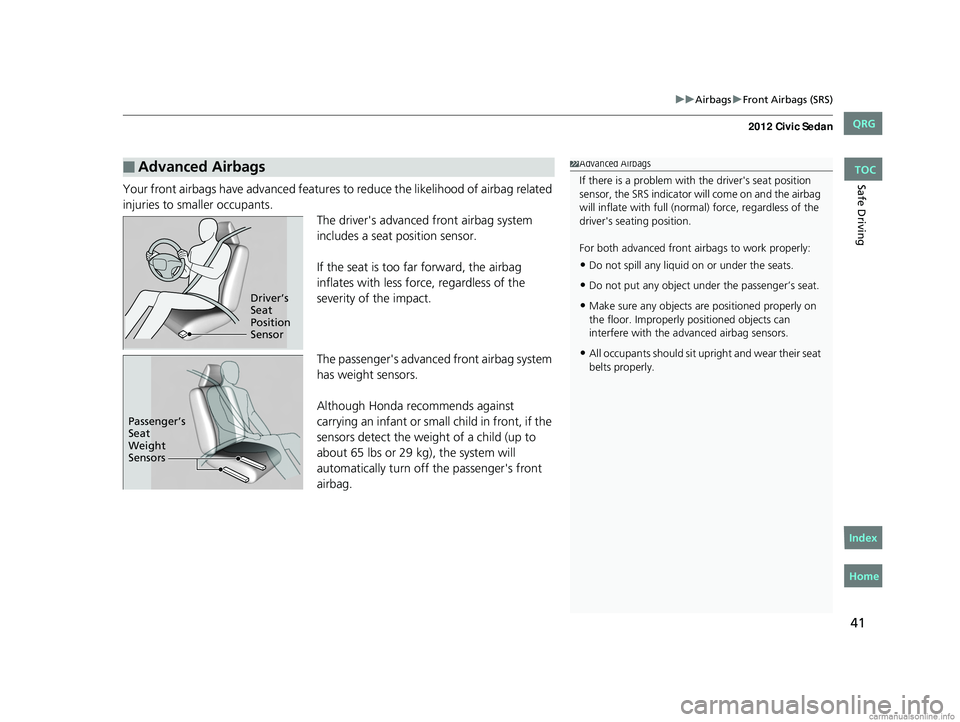

Safe DrivingYour front airbags have advanced features to reduce the likelihood of airbag related
injuries to smaller occupants. The driver's advanced front airbag system
includes a seat position sensor.
If the seat is too far forward, the airbag
inflates with less force, regardless of the
severity of the impact.
The passenger's advanced front airbag system
has weight sensors.
Although Honda recommends against
carrying an infant or small child in front, if the
sensors detect the weight of a child (up to
about 65 lbs or 29 kg), the system will
automatically turn off the passenger's front
airbag.
■Advanced Airbags1 Advanced Airbags
If there is a problem with the driver's seat position
sensor, the SRS indicator will come on and the airbag
will inflate with full (normal) force, regardless of the
driver's seating position.
For both advanced front airbags to work properly:
•Do not spill any liquid on or under the seats.
•Do not put any object under the passenger’s seat.
•Make sure any objects are positioned properly on
the floor. Improperly pos itioned objects can
interfere with the advanced airbag sensors.
•All occupants should sit upri ght and wear their seat
belts properly.
Driver’s
Seat
Position
Sensor
Passenger’s
Seat
Weight
Sensors
CIVIC 4D-31TR3600.book 41 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

uuAirbags uSide Airbags
44

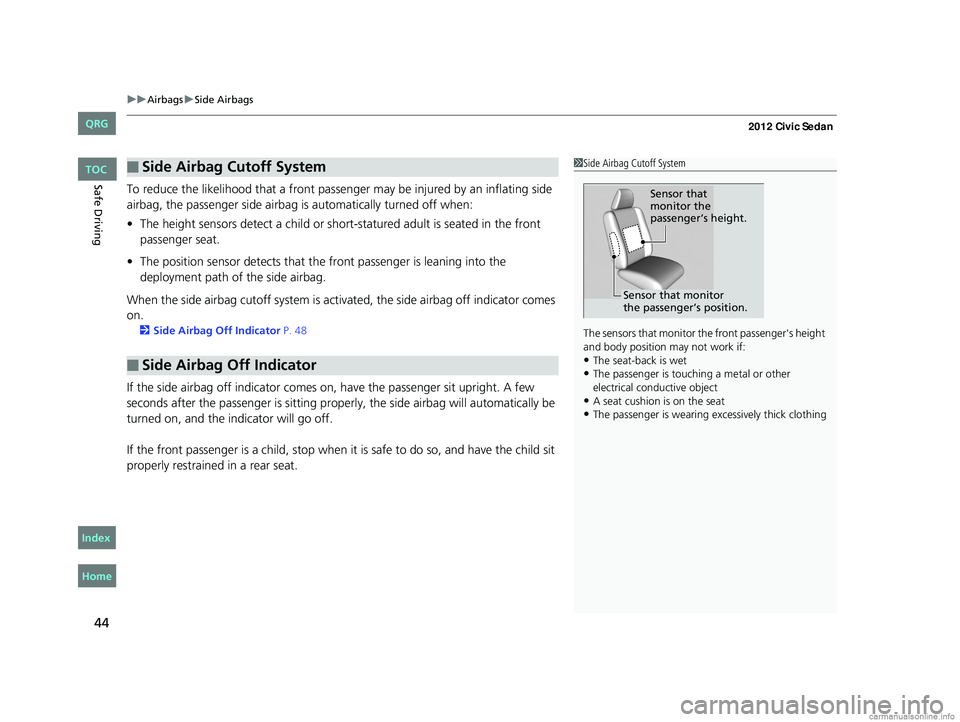

Safe DrivingTo reduce the likelihood that a front passeng er may be injured by an inflating side
airbag, the passenger side airbag is automatically turned off when:
• The height sensors detect a child or sho rt-statured adult is seated in the front
passenger seat.
• The position sensor detects that the front passenger is leaning into the
deployment path of the side airbag.
When the side airbag cutoff system is acti vated, the side airbag off indicator comes
on.
2 Side Airbag Off Indicator P. 48
If the side airbag off indicator comes on, have the passenger sit upright. A few
seconds after the passenger is sitting properly, the side airbag will automatically be
turned on, and the indicator will go off.
If the front passenger is a child, stop when it is safe to do so, and have the child sit
properly restrained in a rear seat.
■Side Airbag Cutoff System
■Side Airbag Off Indicator
1 Side Airbag Cutoff System
The sensors that monitor th e front passenger's height
and body position may not work if:
•The seat-back is wet•The passenger is touc hing a metal or other
electrical conductive object
•A seat cushion is on the seat•The passenger is wearing excessively thick clothing
Sensor that
monitor the
passenger’s height.
Sensor that monitor
the passenger’s position.
CIVIC 4D-31TR3600.book 44 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

46
uuAirbags uAirbag System Indicators
Safe Driving
Airbag System Indicators
If a problem occurs in the airbag syst em, the SRS indicator will come on and a
message appears on the multi-information display*.
■When the ignition sw itch is turned to
ON
(w
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as po ssible. If you don't, your airbags and seat
belt tensioners may not work properly when they are needed.
■SRS (Supplemental Restraint System) Indicator
1 SRS (Supplemental Restraint System) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if th e SRS indicator alerts
you to a possible problem.
*
* Not available on all models
CIVIC 4D-31TR3600.book 46 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
