163
uu Playing Bluetooth ® Audio u Audio Screen Control
Audio

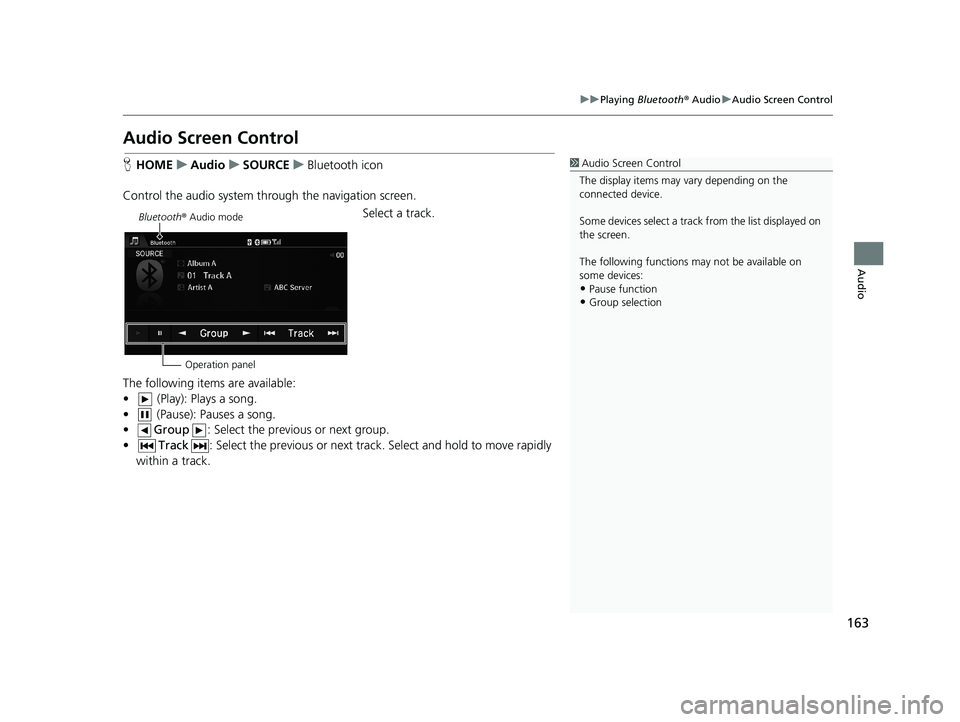

Audio Screen Control
1 Audio Screen Control
The display items may vary depending on the
connected device.
Some devices select a trac k from the list displayed on
the screen.
The following functions may not be available on
some devices:
•Pause function
•Group selection
H HOME u Audio u SOURCE u Bluetooth icon
Control the audio system thro ugh t
he navigation screen.
Bluetooth® Audio mode
Operation panelSelect a track.
The following items are available:
• (Play): Plays a song.
• (Pause): Pauses a song.
• Group : Select the previous or next group.
•Track : Select the previous or next track. Sel ect and hold to move rapidly
within a track.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 163 ページ ２０１４年３月２１日　金曜日　午後３時２０分

164
uu Playing Bluetooth ® Audio u Audio Menu
Audio

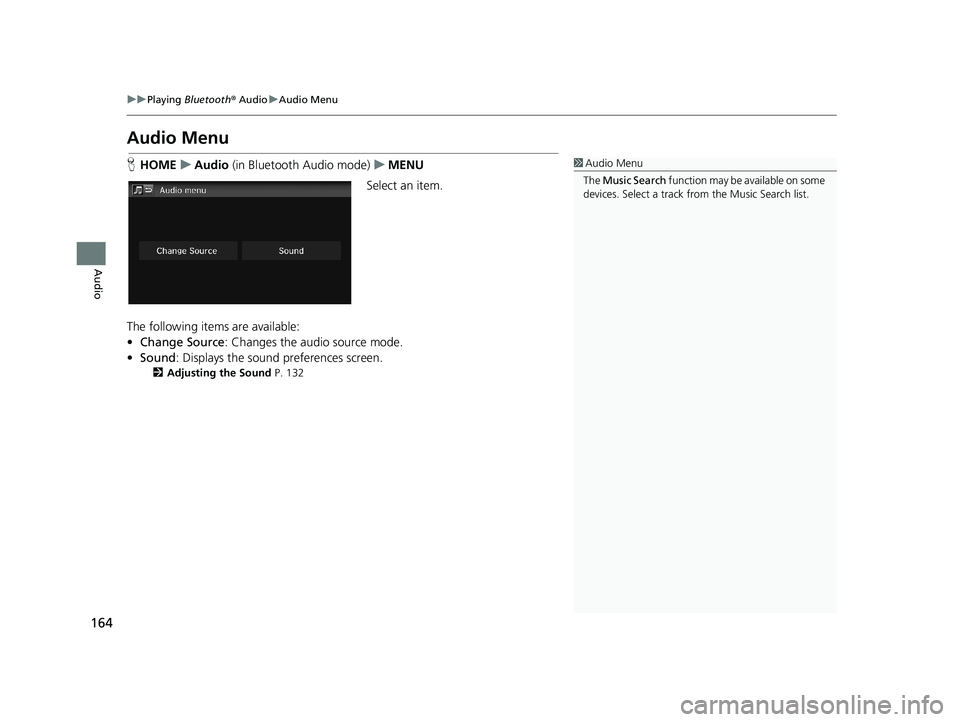

Audio Menu
1 Audio Menu
The Music Search function may be available on some
devices. Select a track from the Music Search list.H HOME u Audio (in Bluetooth Audio mode) u MENU
Select an item.
The following items are available:
• Ch
ange Source: Changes the audio source mode.
•Sound : Displa
ys the sound preferences screen.
2Adjusting the Sound P. 132
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 164 ページ ２０１４年３月２１日　金曜日　午後３時２０分

167
B l u e t o o t h® HandsFreeLink®
This section describes how to operate Bluetooth® HandsFreeLink®. You can place and
receive phone calls using your vehicle’s audio system without handling your cell phone.
Bluetooth® HandsFreeLink®................. 168
Pairing a Phone .................................... 170
Bluetooth Setting ................................. 172Automatic Phone Sync ......................... 176
Setting Up Speed Dialing...................... 177
Phonebook Phonetic Modification ........ 180Phone Setting ...................................... 182
Making a Call....................................... 183
Receiving a Call .................................... 187HFL Menus ........................................... 188
Text Message/E-mail............................ 192
Text/Email Setting ................................ 194HondaLink Assist.................................. 195
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 167 ページ ２０１４年３月２１日　金曜日　午後３時２０分

168

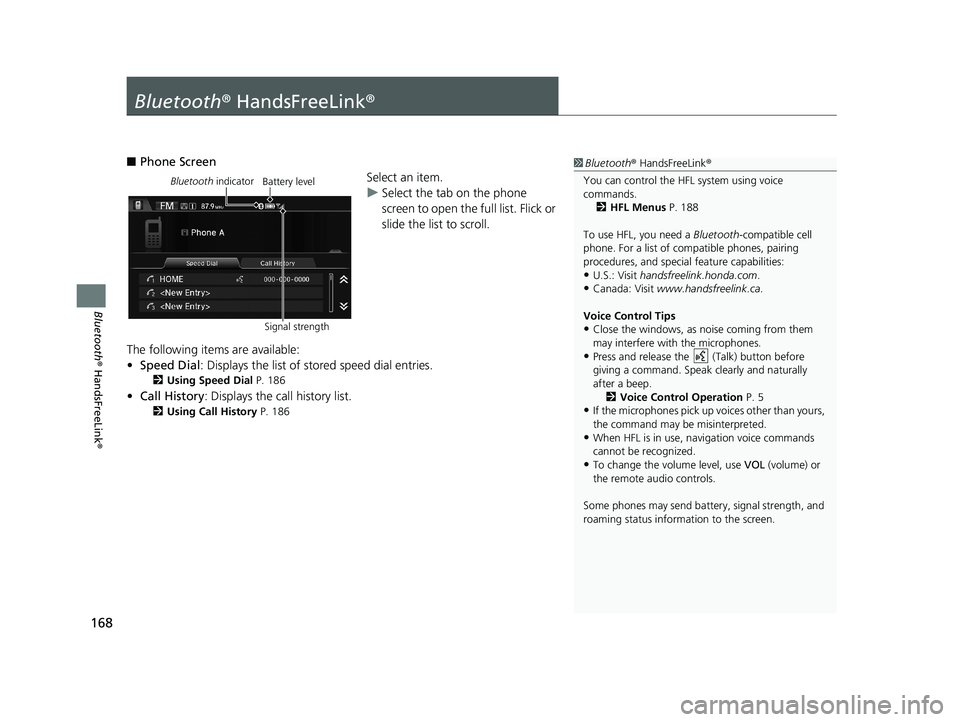

Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ®
1Bluetooth ® HandsFreeLink ®
You can control the HFL system using voice
commands. 2 HFL Menus P. 188
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit handsfreelink.honda.com.
•Canada: Visit www.handsfreelink.ca .
Voice Control Tips
•Close the windows, as noise coming from them
may interfere with the microphones.
•Press and release the (Talk) button before
giving a command. Speak clearly and naturally
after a beep. 2 Voice Control Operation P. 5
•If the microphones pick up vo ices other than yours,
the command may be misinterpreted.
•When HFL is in use, navigation voice commands
cannot be recognized.
•To change the volume level, use VOL (volume) or
the remote audio controls.
Some phones may send batter y, signal strength, and
roaming status information to the screen.
■ Phone Screen
Bluetooth indicator
Signal strengthBattery levelSelect an item.
uSelect
the tab on the phone
screen to open the full list. Flick or
slide the list to scroll.
The following items are available:
• Sp
eed Dial : Displays the list of stored speed dial entries.
2Using Speed Dial P. 186
• Call History: Displays the call history list.
2 Using Call History P. 186
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 168 ページ ２０１４年３月２１日　金曜日　午後３時２０分

1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
Bluetooth word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motors Co., Ltd., is
under license. Other tradem arks and trade names are
those of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. Audio will resume when
the call is ended.
Certain touchscree n functions are disabled while the
vehicle is moving.
2 Limitations for Manual Operation P. 21
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
If you press and hold the MENU button on the
steering wheel on while the Phone screen, the
following items are available. Use the steering wheel
buttons to sele ct the items.
•Speed Dial
•Call History•Redial
169
uu Bluetooth ® HandsFreeLink ® u
Bluetooth® HandsFreeLink ®

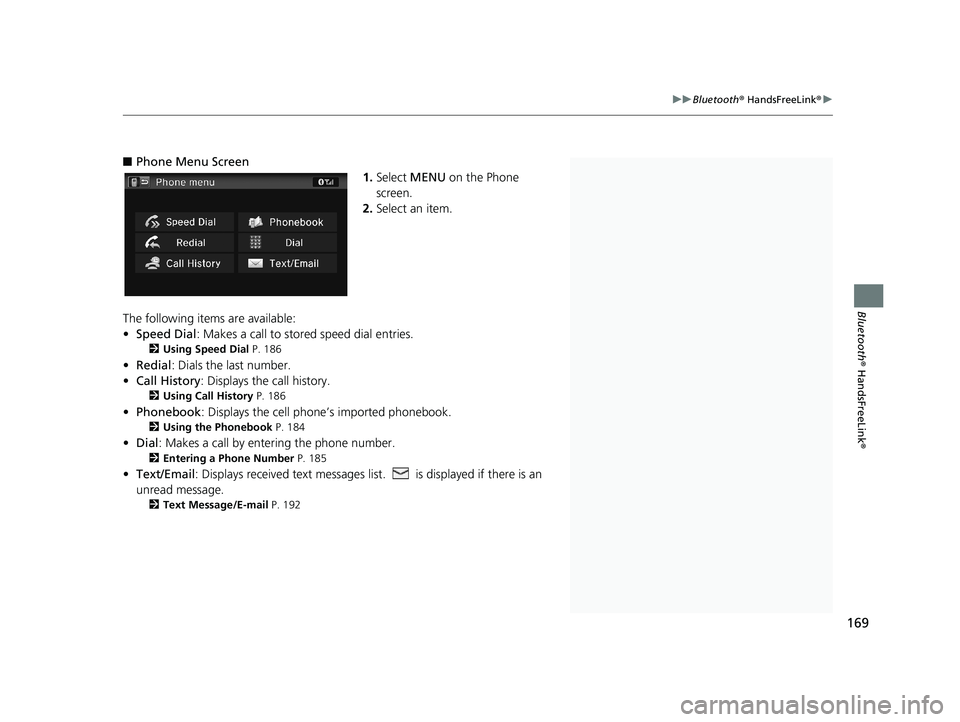

■Phone Menu Screen
1. Select MENU on the Phone
screen.
2. Select an item.
The following items are available:
• Speed Dial :
Makes a call to stored speed dial entries.
2Using Speed Dial P. 186
• Redial : Dials the last number.
• Call History: Dis
plays the call history.
2Using Call History P. 186
• Phonebook : Displays the cell phone’s imported phonebook.
2Using the Phonebook P. 184
• Dial : Makes a call by enteri ng the phone number.
2Entering a Phone Number P. 185
• Text/Email : Displays received text messages list. is displayed if there is an
unread message.
2Text Message/E-mail P. 192
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 169 ページ ２０１４年３月２１日　金曜日　午後３時２０分

170
uu Bluetooth ® HandsFreeLink ® u Pairing a Phone
Bluetooth ® HandsFreeLink ®

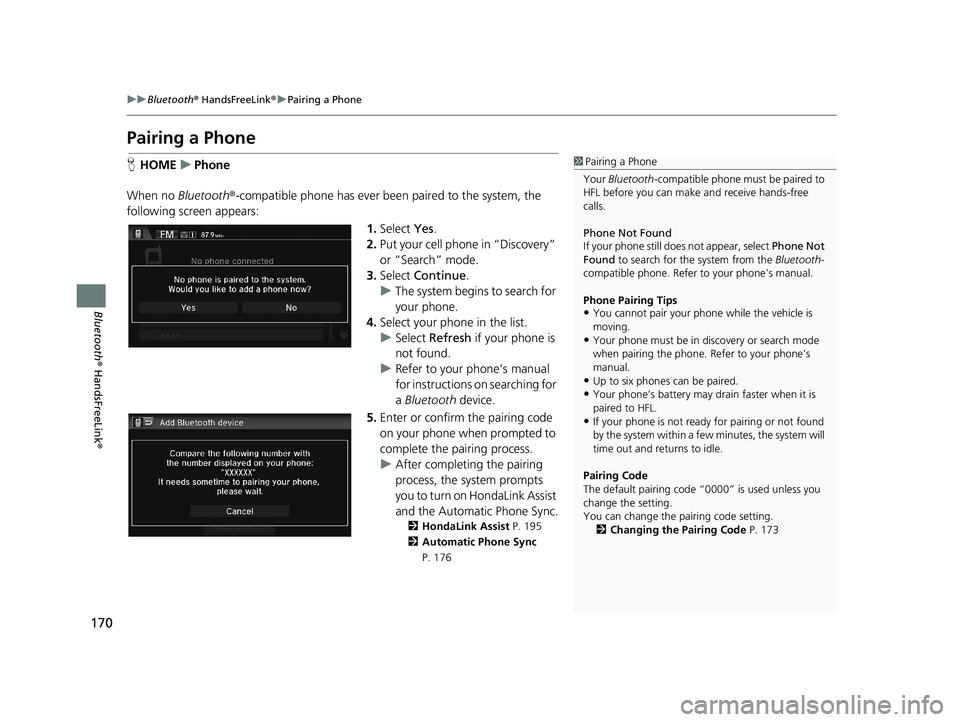

Pairing a Phone
1Pairing a Phone
Your Bluetooth -compatible phone must be paired to
HFL before you can make and receive hands-free
calls.
Phone Not Found
If your phone still doe s not appear, select Phone Not
Found to search for the system from the Bluetooth-
compatible phone. Refer to your phone’s manual.
Phone Pairing Tips
•You cannot pair your phone while the vehicle is
moving.
•Your phone must be in discovery or search mode
when pairing the phone. Refer to your phone’s
manual.
•Up to six phones can be paired.
•Your phone’s battery may dr ain faster when it is
paired to HFL.
•If your phone is not ready for pairing or not found
by the system within a few minutes, the system will
time out and returns to idle.
Pairing Code
The default pair ing code “0000” is used unless you
change the setting.
You can change the pairing code setting. 2 Changing the Pairing Code P. 173
HHOME u Phone
When no Blue
tooth®-compatible phone has ever been paired to the system, the
following scre en appears:
1.Select Yes.
2. Put yo
ur cell phone in “Discovery”
or “Search” mode.
3. Select Co
ntinue.
u The system
begins to search for
your phone.
4. Selec
t your phone in the list.
u Select Refre
sh if your phone is
not found.
u Refer to
your phone’s manual
for instructions on searching for
a Bluetooth device.
5.Enter or confirm the pairing code
on your phone when prompted to
complete the pairing process.
u After completing
the pairing
process, the system prompts
you to turn on HondaLink Assist
and the Automatic Phone Sync .
2HondaLink Assist P. 195
2 Automatic Phone Sync
P. 176
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 170 ページ ２０１４年３月２１日　金曜日　午後３時２０分

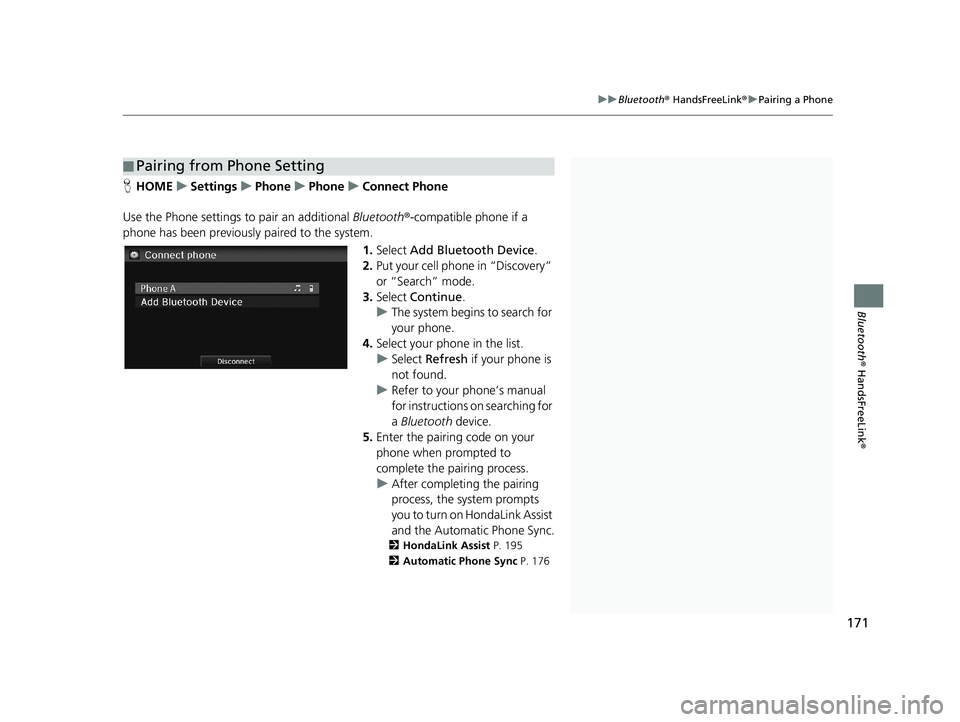

■Pairing from Phone Setting1
Pairing from Phone Setting
You can control the HFL system using voice
commands. 2 HFL Menus P. 188
Select another paired phone from the list to connect
another phone.
171
uu Bluetooth ® HandsFreeLink ® u Pairing a Phone
Bluetooth ® HandsFreeLink ®
HHOME u Settings u Phone u Phone u Connect Phone
Use the Phone settings to pair an additional Blu
etooth®-compatible phone if a
phone has been previously paired to the system.
1.Select Add Bluetooth Device .
2. Put you
r cell phone in “Discovery”
or “Search” mode.
3. Select Co
ntinue.
u The syste
m begins to search for
your phone.
4. Select your phon e in
the list.
u Select Re
fresh if your phone is
not found.
u Refer to
your phone’s manual
for instructions on searching for
a Bluetooth device.
5. Enter
the pairing code on your
phone when prompted to
complete the pairing process.
u Afte
r completing the pairing
process, the system prompts
you to turn on HondaLink Assist
and the Automatic Phone Sync .
2HondaLink Assist P. 195
2 Automatic Phone Sync P. 176
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 171 ページ ２０１４年３月２１日　金曜日　午後３時２０分

172
uu Bluetooth ® HandsFreeLink ® u Bluetooth Setting
Bluetooth ® HandsFreeLink ®

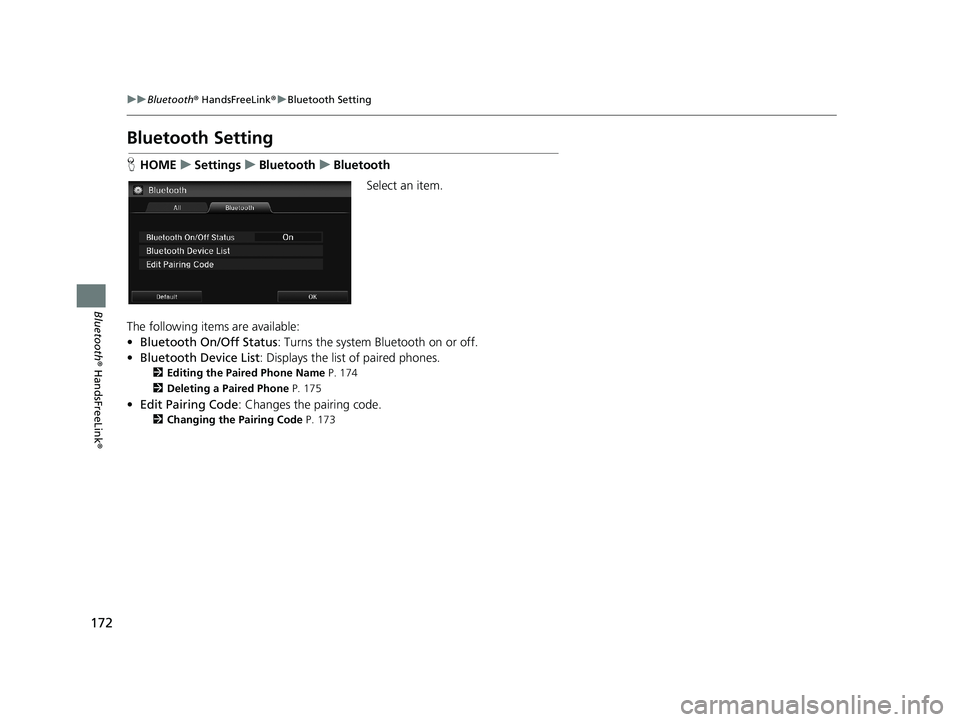

Bluetooth Setting
HHOME u Settings u Bluetooth u Bluetooth
Select an item.
The following items are available:
• Bl
uetooth On/Off Status : Turns the system Bluetooth on or off.
• Bl
uetooth Device List : Displays the list of paired phones.
2Editing the Paired Phone Name P. 174
2 Deleting a Paired Phone P. 175
•Edit Pairing Code : Changes the pairing code.
2Changing the Pairing Code P. 173
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 172 ページ ２０１４年３月２１日　金曜日　午後３時２０分

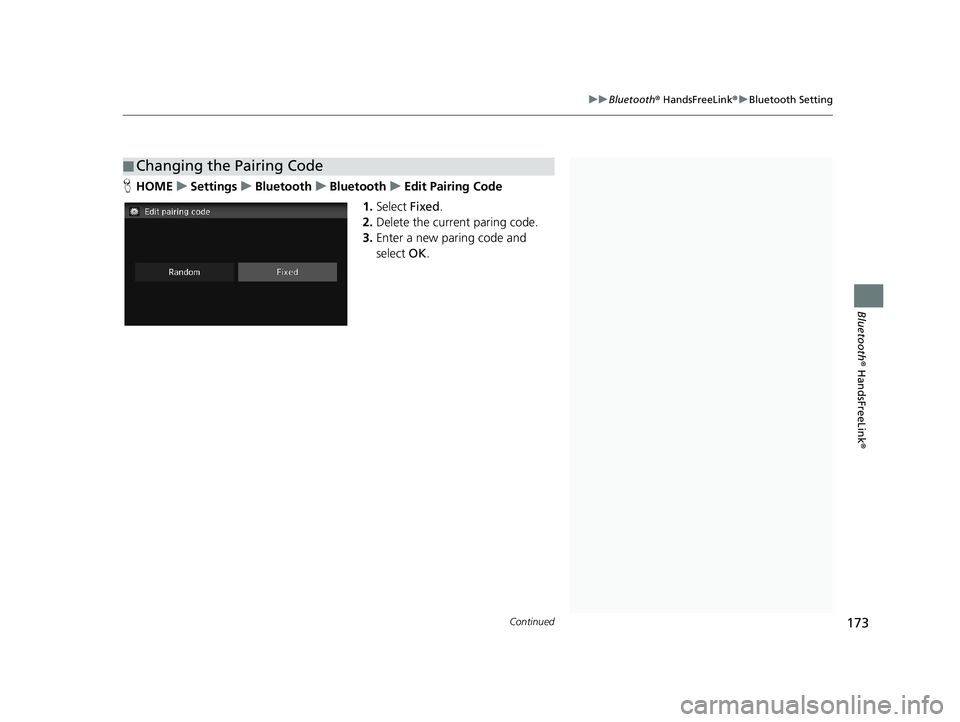

■Changing the Pairing Code1
Changing the Pairing Code
When your phone is not found by the system and you
have to initiate the pr ocess from your phone, you
need to enter the pairin g code from your phone.
Random
Uses a randomly gene rated pairing code.
The default pairing code is “0000” until you change
the setting.
Continued173
uu Bluetooth ® HandsFreeLink ® u Bluetooth Setting
Bluetooth ® HandsFreeLink ®
HHOME u Settings u Bluetooth u Bluetooth u Edit Pairing Code
1. Select Fixed.
2. Delete the
current paring code.
3. Enter
a new paring code and
select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 173 ページ ２０１４年３月２１日　金曜日　午後３時２０分

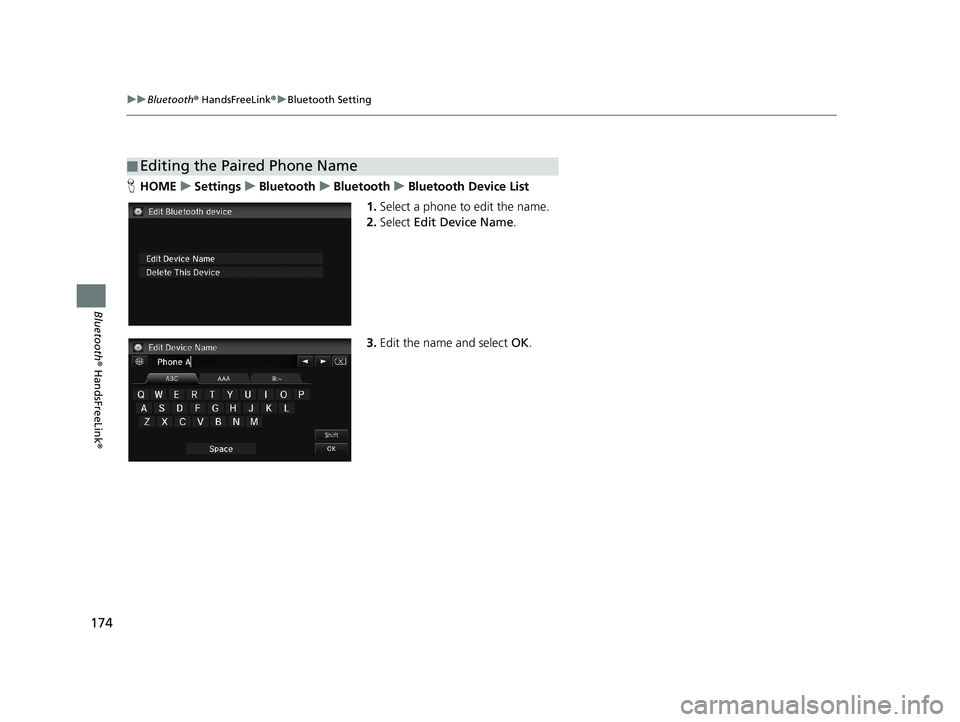

■Editing the Paired Phone Name
174
uu
Bluetooth ® HandsFreeLink ® u Bluetooth Setting
Bluetooth ® HandsFreeLink ®
HHOME u Settings u Bluetooth u Bluetooth u Bluetooth Device List
1. Select a phone to edit the name.
2. Select Edit Devic
e Name.
3.Edit the name and select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 174 ページ ２０１４年３月２１日　金曜日　午後３時２０分
