navigation system HONDA CIVIC SEDAN 2014 Navigation Manual (in English)

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,
however, to discontinue or change specif ications or design at any time without notice and without incurring any obligation.
Accessories Precautions
The GPS antenna is located in the dashboard .
Metallic front or side window tinting can seriously degrade or obstruct GPS recept ion.
Signal noise from devices such as radar detectors, vehicle trackin
g devices, remote starters, and additional amplifiers can disrupt the navigation system. If you
install any such item, install it away from the navigation display and antenna.
Important Safety Information
Using the navigation system while driving can take your
attention away from the road, causing a crash in which you
could be seriously injured or killed.
Only operate system controls when the conditions permit you
to safely do so.
Avoid focusing on the screen or manually operating the system controls while driving.
Certain on-screen controls are disabled when driving, but most of
the audible instructions and voice commands continue to function. Pull to the side of the road
if you need to devote more atte ntion and time to look at the screen or access additional menus.
Route guidance may conflict with street closures, road cons
truction, detours, and out-of-date map data.
The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgm
ent and obey
traffic laws.
2
System Limitations P. 224
3 WARNING
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 0 ページ ２０１４年３月２１日　金曜日　午 後３時２０分

Contents
2System Setup P. 19Start-up 20 Voice Control System 22Display Mode Settings 25 Personal Information 27
Routing 38 Guidance 46 Map 49 System Settings 63
Display Settings 65 Sound and Beep Settings 67 Voice Recognition Settings 69Clock Adjustment 70
Other Settings 76 Data Reset 78
2Navigation P. 79Entering a Destination 80Calculating the Route 98Driving to Your Destination 100Map Menu 105
Changing Your Route 111 Changing Your Destination 120 Resuming Your Trip 123
2Audio P. 125Audio System 126 Audio Remote Controls 128 Audio Settings 131 Playing FM/AM Radio 133
Playing XM® Radio 137 Playing a Disc 141 Playing an iPod 146Playing Pandora® 154
Playing a USB Flash Drive 157Playing Bluetooth ® Audio 161 Playing a Video Using the HDMI ® 165
2Bluetooth ® Han dsFreeLink® P. 167Bluetooth® HandsFreeLink® 168 Text Message/E-mail 192HondaLink Assist 195
2Other Features P. 197Trip Computer 198 Information Functions 199 Multi-View Rear Camera 202
2Troubleshooting P. 205Troubleshooting 206 Error Messages 214
2Reference Information P. 221System Initialization 222 System Limitations 224 Customer Assistance 226 Legal Information 230
2Voice Commands P. 233Voice Commands 234
Quick Reference GuideP. 2
System Setup P. 19
Navigation P. 79
Audio P. 125
Bluetooth® HandsFreeLink®P. 167
Other Features P. 197
TroubleshootingP. 205
Reference Information P. 221
Voice Commands P. 233
Index P. 245
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 1 ページ ２０１４年３月２１日　金曜日　午 後３時２０分

2
Quick Reference Guide
Quick Reference Guide

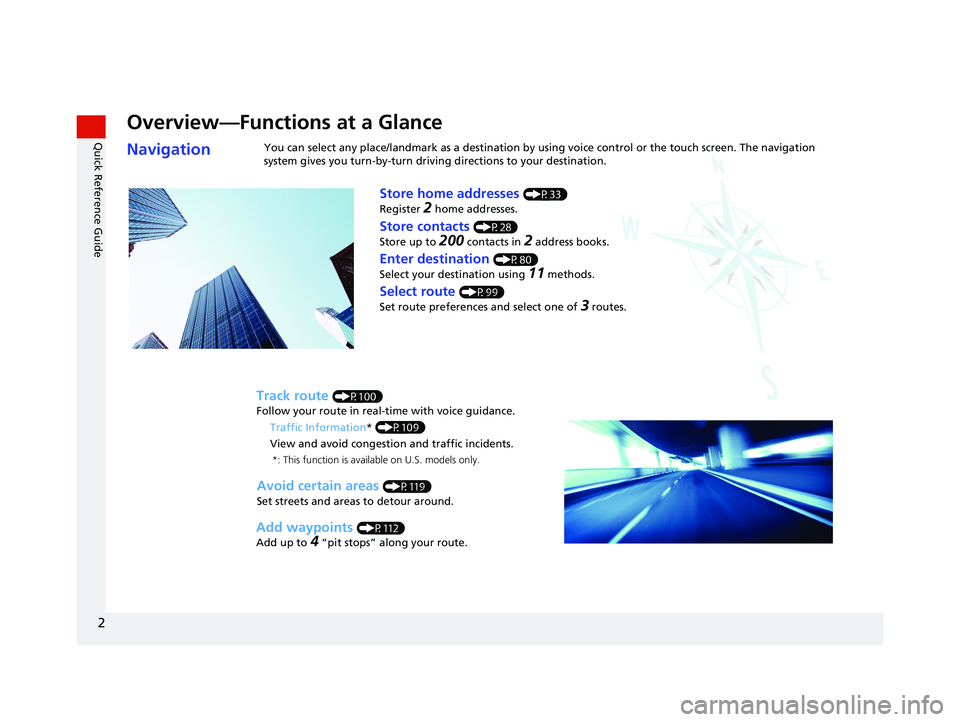

Overview—Functions at a Glance
NavigationYou can select any place/landmark as a destination by using voice control or the touch screen. The navigation
system gives you turn-by- turn driving directions to your destination.
Store home addresses (P33)
Register
2 home addresses.
Track route (P100)
Follow your route in real-time with voice guidance.
Store contacts (P28)
Store up to
200 contacts in 2 address books.
Enter destination (P80)
Select your destination using
11 methods.
Select route (P99)
Set route preferences and select one of
3 routes.
Avoid certain areas (P119)
Set streets and areas to detour around.
Add waypoints (P112)
Add up to
4 “pit stops” along your route.
Traffic Information
* (P109)
View and avoid congestion and traffic incidents.
*: This function is available on U.S. models only.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 2 ページ ２０１４年３月２１日　金曜日　午 後３時２０分

AudioThe advanced audio system provides clear, well-defined sound and makes the most of your music.
Enjoy listening to a variety of audio sources, such as:
AM/FM Radio (P133)
XM® Radio (P137)
Compact Disc (P141)
Pandora® (P154)
iPod (P146)
USB Flash Drive (P157)
Bluetooth® Audio (P161)
Voice Control (P22)
Use voice commands to control the system while dr iving. You can operate all key functions of the
navigation, audio, Bluetooth ® HandsFreeLink ®, and climate control systems*.
Bluetooth ® HandsFreeLink ® (P168)
Pair a compatible cell phone to receive incoming and make outgoing calls. You can operate the
phone features without ever taking your hands off the wheel.
Text Messages (P192)
Receive text messages on the navigation screen from a compatible device and hear them read aloud.
Reply to them using preloaded messages.
*: Not available on all models.
3
Quick Reference Guide
Other Features
Multi-View Rear Camera (P202)
Helps you check for obstacles around the rear of your vehicle on the navigation screen when reversing.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 3 ページ ２０１４年３月２１日　金曜日　午 後３時２０分

4
Quick Reference GuideSystem Controls
4 (Display Mode)
Button
(P25)
Navigation Screen
(Touchscreen)
Audio Common
Voice Control 
Bluetooth ® HandsFreeLink ®
1 (Audio Power)
Button
(P9)
3 (Eject) Button
2Disc Slot
lh (Talk) Button (P22)
lg (Hang-Up/Back)
Button
(P187)
lf (Pick-Up) Button
(P187)
6HOME (P7)
8MENU
7
VOL (Volume)
(P9)
9BACK
5Microphone
(P22)
2
4
5
1
6
7
8
9 lh
lg
lf
0
(Display/Information)
Button
(P129)
ld (Volume) Button
(P129)
lc (Channel) Button
(P129)
lbSOURCE Button (P128)
3 5 0
lb
lc ld
le
MENU Button (P130)
le
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 4 ページ ２０１４年３月２１日　金曜日　午 後３時２０分

7
Quick Reference GuideHOME Screen
The system displays various functions from the HOME screen. Select HOME at any time to return to the main HOME screen.
The position of the icons on the HOME screen can be changed. (P64)
Phone (P167)
Display the phone screen and use a Bluetooth-compatible phone
to make and receive calls.
Navi (P79)
Display the map screen and ope rate the navigation system.
Audio (P9) (P125)
Display the audio control screen. Play
various music media such as the radio,
CD, and iPod. Settings
(P19)
Change settings for functions
in the system.
Info
View system information, the trip computer, and more.
HOME
Display the HOME screen.
VOL
(Volume)
Increase or decrea se audio volume.
MENU
Display the menu screen of each
function.
BACK
Go back to the previous screen.
Only VOL (Volume) is displayed on
the HOME screen.
HondaLink Apps
You can connect a compatible
smartphone to the system to enable
integration between the smartphone's
approved apps and the vehicle. This
allows you to control the phone through
the vehicle display. When a smartphone is
connected, select on the HOME screen
to display the app launcher screen.
Select an icon to launch the app.
 To check smartphone compatibility and
connection instructions:
U.S.: visit handsfreelink.honda.com .
Canada: visit www.handsfreelink.ca .
 To get more inform ation on HondaLink
features and apps:
U.S.: visit www.hondalink.com .
Canada: visit www.honda.ca/hondalink .
Sample images shown.Connect
Display the HondaLink screen.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 7 ページ ２０１４年３月２１日　金曜日　午 後３時２０分

15
Quick Reference GuideVoice Help
This navigation system comes with voice help, which shows you what command to say when using the voice command functions.
Command Help
(Talk)
a Press and release the
button.
“Voice Help.”
b Say
The voice help screen is displayed.
 The “V
oice Help ” command is available on most screens.
(Talk)
c Press and release the
button.
dSay one of the options for a list of
available commands by category (e.g.,
“Navi commands ”).
(Talk)
e Press and release the button.
fSay one of the options for a list of
available commands by category (e.g.,
“Find place commands ”).
gThe system displays a list of all
available commands for the category.
Select Read to h
ear the list read
aloud.
Voice Commands (P 233)
You can also display the All commands
screen from the I
nfo Menu. Select
Voice Info on the Info Menu screen.
Getting Started Tutorial
“Getting Started ” on the
a Say
voice help screen.
The system starts to read the tutorial
automatically.
 Select Stop or select BA
CK to stop
reading.
 Say “Previou
s ” or “Next” to
display the previous/next page.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 15 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

16
Quick Reference GuideTroubleshootingFor more Information (P205)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large di fferences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in
with a major metro area. In rural “unverified” areas or
new subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1.Select HOME and then select Settings. Select System ,
and then select Sound/Beep. Check that Volume is
not set to 00.
2.Select Voice Recog on the System se ttings screen, and
set Voice Prompt to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navi
gation system is asking for a code. Where do I find it?
In most cases, you do not need to enter a code. Simply
press an
d hold the
(Audio Power) button for two
seconds; the system should reactivate.
2 System Initialization P. 222
How can I check if my smartphone is compatible with the
system?
Visit the following website:●U.S.: handsfreelink.honda.com .●Canada: www.handsfreelink.ca .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 16 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

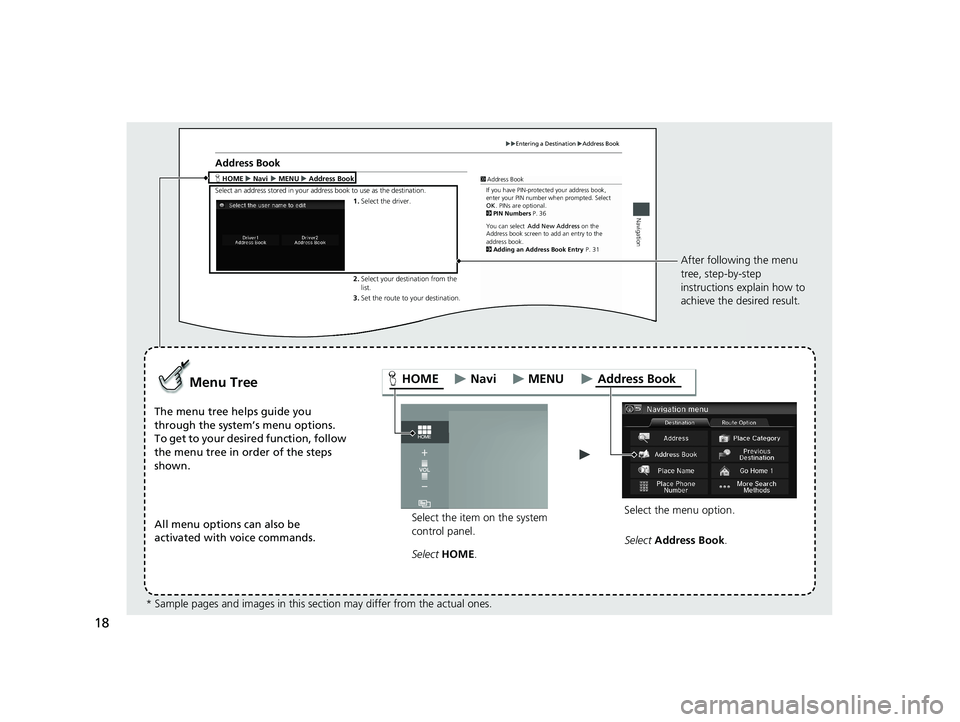

Entering a DestinationAddress Book
Navigation
Address Book
H Address Book
Select an address stored in your address book to use as the destination.\
1.Select the driver.
2. Select your destination from the
list.1Address Book
If you have PIN-protected your address book,
enter your PIN number when prompted. Select
OK . PINs are optional.
2 PIN Numbers P. 36
You can select
Address book screen to add an entry to the
address book.
2 Adding an Address Book Entry P. 31
Add New Address
on the HOMENaviMENU
3.Set the route to your destination.
Select the item on the system
control panel.
Menu Tree
The menu tree helps guide you
through the system’s menu options.
To get to your desired function, follow
the menu tree in order of the steps
shown.
All menu options can also be
activated with voice commands. Select HOME . Select the menu option.After following the menu
tree, step-by-step
instructions explain how to
achieve the desired result.
* Sample pages and images in this se ction may differ from the actual ones. Select
Address Book .
HOME Address Book
MENU
Navi
18
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 18 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

19
System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up................................................... 20Voice Control System............................. 22Command Input .................................... 22Voice Recognition .................................. 23Siri Eyes Free .......................................... 24Display Mode Settings........................... 25Turning Off the Display .......................... 25Switching Display Mode Manually .......... 25Personal Information.............................. 27Address Book ......................................... 28Home Addresses .................................... 33PIN Numbers .......................................... 34User Name ............................................. 35Previous Destination ............................... 36Category History .................................... 37
Routing.....................................................38Route Preference ....................................39Unverified Routing ..................................40Traffic Rerouting .....................................42Edit POI Search Radius Along Route ........43Avoided Area ..........................................44Guidance..................................................46Map...........................................................49Showing Icons on the Map .....................51Color ......................................................53View (Map Orientation) ...........................543D Angle Adjustment .............................55Straight Line Guide .................................55Current Location .....................................56Map Legend ...........................................57
Off-road Tracking ................................... 61Correct Vehicle Position ......................... 62System Settings...................................... 63Display Settings...................................... 65Display ................................................... 65Background Color .................................. 66Sound and Beep Settings....................... 67Voice Recognition Settings.................... 69Clock Adjustment.................................... 70Clock Type ............................................. 71Wallpaper Settings ................................. 72Adjust Time............................................ 75Resetting the Clock Settings ................... 75Other Settings......................................... 76Data Reset............................................... 78
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 19 ページ ２０１４年３月２１日　金曜日　午後３時２０分
