navigation update HONDA CIVIC SEDAN 2014 Navigation Manual (in English)

42
uu Routing u Traffic Rerouting
System Setup
Traffic Rerouting
1 Traffic Rerouting
This feature is availabl e on U.S. models only.
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in the lower 48 states and Hawaii.
Automatic traffic rerouting may not provide a detour
route depending on circumstances.H HOME u Settings u Navigation u Routing u Traffic Rerouting
A faster route can be calculated based on continuously updated
traffic information.
2Traffic ReroutingTM P. 109
Select an option.
The following options are available:
• On : The
system reroutes automatica lly based on traffic information.
• Off
(factory default): Disables the feature.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 42 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

■Selecting a City1
Selecting a City
Vehicle position may not be displayed when:
•The automobile is traveling off-road.
•The vehicle position data cannot be updated.
You do not need to enter spaces or symbols (e.g., &,
-,%). Partial matches are supported (e.g., “LOS” to
find “LOS ANGELES”).
Using Voice Command (English only)
Say “ City” on the Address screen, and the
following screen is displayed.
Select Current City for your current location, or say
the name of different city. 2 Selecting a Street P. 85
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
uu Entering a Destination u Address
84
Navigation
H HOME u Navi u MENU u Address u City
The name of the city where you ar e cu
rrently located is displayed.
1.Enter the name of a different city,
or select OK for the current city.
Non-detailed area mark: Try entering the
street first and then select the city.
2.Select your destination city from
the list.
u A lis
t of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
u Next, you
are prompted to
enter a street name.
2 Selecting a Street P. 85
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 84 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

■System Information1
System Information
You will need this informat ion when ordering a map
update.
2 Obtaining a Navigation Update P. 228
201
uu Information Functions u System/Device Information
Other Features
H HOME u Info u MENU u System/Device Information u System Info
View database, software version, devi ce nu
mber, and vehicle identification
information.
■ Map Update1
Map Update
When you order a map update, it is mailed to you on
a USB flash drive. 2 Obtaining a Navigation Update P. 228
HHOME u Info u MENU u System/Device Information u Map Update
Update the map database.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 201 ページ ２０１４年３月２１日　金曜日　午後３時２０分

205
Troubleshooting
Troubleshooting....................................206
Map, Voice, Entering Destinations .........206
Traffic ...................................................208Guidance, Routing ................................209
Update, Coverage, Map Errors ..............210
Smartphone Connection .......................211Display, Accessories ..............................212
Multi-View Rear Camera .......................212
Miscellaneous Questions .......................213
Error Messages...................................... 214
Navigation System ................................ 214
Disc Player............................................ 215Pandora®............................................. 216
iPod/USB Flash Drive............................. 218
Bluetooth® HandsFreeLink®.................. 219Smartphone Connection ...................... 220
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 205 ページ ２０１４年３月２１日　金曜日　午後３時２０分

209
uu Troubleshooting u Guidance, Routing
Continued

Troubleshooting
Guidance, Routing
ProblemSolution
The navigation system does not route me the same
way I would go or the same way as other mapping
systems.The navigation system attempts to gene rate the optimal route. You can change
the route preferences used when calculating a route.
2 Route Preference P. 39
The street I’m on is not shown on the map screen.The mapping database is constantly undergoing revision. You can access the most
recent information on the internet.
2Map Coverage P. 227
The vehicle position icon is not following the road
and the “GPS icon” text in the upper left hand
corner of the screen is white or missing.●Check that the GPS antenna (located in the dashboard) is not blocked. For best
reception, remove items from the dashboard, such as radar detectors, cell
phones, or loose articles.
●Metallic tinting or other aftermarket devices can interfere with the GPS
reception. Please consult your dealer.
2 GPS System P. 224
The blue highlighted route and voice guidance
stopped or turned into a pink line before I got to my
destination.Your route has entered an unverified area.
2 Unverified Routing P. 40
How do I stop the map from rotating as I drive
along?Select the map orientation icon on the map screen to select the north-up icon, or
say
“ Display north-up ” to change the map orientation.
Sometimes, I cannot select between the North-up,
Heading-up and 3D map orientations.The Heading-up map orientation can only be shown in the lower scales (1/20 - 1
mile (80 m-1.6 km) scales). The 3D map orientation can only be shown in the
lower scales (1/20 - 2 mile (80 m-3 km) scales).
2 Map Scale and Functions P. 58
The “time to destination” display sometimes
increases even though I am getting closer to my
destination.If your speed reduces due to slower tra ffic, the navigation system updates the
“time to destination” based on your ac tual road speed to give you a better
estimate of arrival time.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 209 ページ ２０１４年３月２１日　金曜日　午後３時２０分

ProblemSolution
The vehicle position icon on the map “lags” a short
distance behind, especially when I arrive at an
intersection.This is normal. The navigation system is unaware of the width of intersections.
Large differences in vehicle position ca n indicate a temporary loss of the GPS
signal.
2 GPS System P. 224
The screen is showing wh ite dots as I drive along.These dots are called “breadcr umbs.” These are displayed if Off-road Tracking is
set to On and you drive more than 1/2 mile off mapped roads.
2Off-road Tracking P. 61
How do I remove the white dots (“breadcrumbs”)
from my screen?Select HOME > Settings > Navigation > Map, and set Off-road Tracking to
Off , then return to the map.
2Off-road Tracking P. 61
A road that I selected to avoid is being used when
routing.When you set your area to avoid, make sure to select sections of roads that include
at least one intersection.
2 Avoiding Streets P. 119
My elevation (shown when I display the current
position) seems to fluc tuate even though my
elevation has not changed.This is normal. The elevation can vary ±100 feet due to GPS calculation errors.
2GPS System P. 224
My elevation is missing on the “current position”
screen.The elevation is only displayed if the GPS antenna can receive signals from at least
four satellites. Try moving the vehicle into an open area. The elevation is also not
displayed if the calculated elevation is zero or below sea level.
210
uu Troubleshooting u Update, Coverage, Map Errors

Troubleshooting
Update, Coverage, Map Errors
ProblemSolution
My city is not part of a fully verified detailed
coverage area.The mapping database is constantly under going revision. You can access the most
recent information on the internet.
2 Map Coverage P. 227
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 210 ページ ２０１４年３月２１日　金曜日　午後３時２０分

213
uu Troubleshooting u Miscellaneous Questions

Troubleshooting
Miscellaneous Questions
ProblemSolution
My clock frequently changes forward and backward
by one hour.The clock setting is automatically updated based on your GPS location. If you live
and work on the boundary be tween two time zones, you can turn off this feature.
2Clock Adjustment P. 70
The clock changes even when I am not driving near
a time zone boundary.The time zone boundaries are only ap proximated in the navigation system.
Depending on the geography of the time zo ne boundary, the switch to a different
zone can be erratic.
2 Clock Adjustment P. 70
My state does not observe daylight saving time.
How do I turn off this feature?Select HOME > Settings > System > Clock , and set Auto Daylight to Off .
2Clock Adjustment P. 70
Daylight saving time has started, but the navigation
system did not change time even though Auto
Daylight is set to ON.The automatic daylight saving time feat ure does not work in regions where the
daylight saving time system has not been adopted.
The navigation system automatic daylight feature is
not switching the navigation system clock on the
correct dates.Select HOME > Settings > System > Clock , and set Auto Daylight to On. Note
that the automatic daylight feature does not work in regions where the daylight
saving time system has not been adopted.
2 Clock Adjustment P. 70
The navigation system clock switched by one hour
for no apparent reason.You may be driving near a time zone boundary.
2 Clock Adjustment P. 70
My battery was disconnected or went dead, and the
navigation system is asking for a code.Press and hold the (Audio Power) button for tw o seconds. The system should
reactivate. If you have installed an afterm
arket system, see your dealer.
2Entering the Security Code P. 222
How do I change the interface language?Select HOME > Settings > System > Others > Language , and set the language
to English, Français, or Español .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 213 ページ ２０１４年３月２１日　金曜日　午後３時２０分

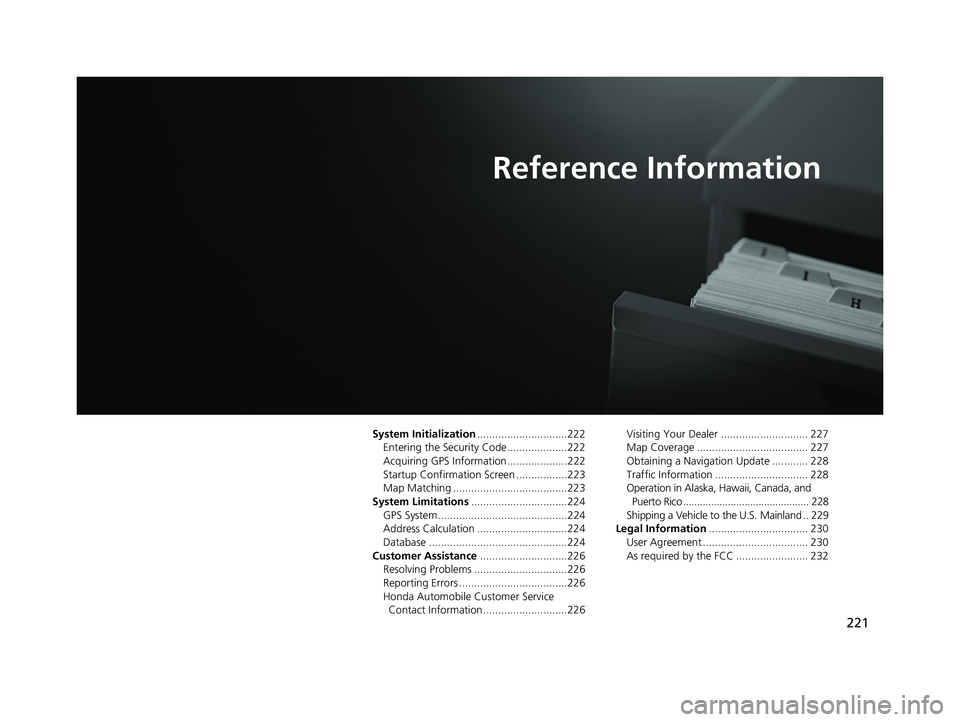

221
Reference Information
System Initialization..............................222
Entering the Security Code ....................222
Acquiring GPS Information ....................222Startup Confirmation Screen .................223
Map Matching ......................................223
System Limitations................................224GPS System...........................................224
Address Calculation ..............................224
Database ..............................................224Customer Assistance.............................226
Resolving Problems ...............................226
Reporting Errors ....................................226Honda Automobile Customer Service
Contact Information ............................226
Visiting Your Dealer ............................. 227
Map Coverage ..................................... 227
Obtaining a Navigation Update ............ 228Traffic Information ............................... 228
Operation in Alaska, Hawaii, Canada, and
Puerto Rico ............................................. 228Shipping a Vehicle to the U.S. Mainland .. 229
Legal Information................................. 230
User Agreement ................................... 230As required by the FCC ........................ 232
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 221 ページ ２０１４年３月２１日　金曜日　午後３時２０分

225
uu System Limitations u Database


Reference Information
In addition, the map database contains
verified and unverified areas. Unverified
streets may be missing from the map, in the
wrong location, or have an incorrect name
or address range. A message will warn you
if your route includes unverified streets.
Exercise additional caution when driving in
unverified areas.
The database does not include, analyze,
process, consider, or reflect any of the
following categories of information:
• Neighborhood quality or safety
• Population density
• Availability or proximity of law
enforcement
• Emergency, rescue, medical, or other
assistance
• Construction work, zones, or hazards
• Road and lane closures
• Legal restrictions (such as vehicular type,
weight, load, height, and speed
restrictions)
• Road slope or grade
• Bridge height, width, weight, or other
limits
• Traffic facilities safety
• Special events
• Pavement characteristics or conditions
Every effort has been made to verify that
the database is accurate. The number of
inaccuracies you experience increases the
longer you go without obtaining an
updated map database.
2Obtaining a Navigation Update P. 228
We assume no liability for any incident that
may result from an error in the program, or
from changed conditions not noted above.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 225 ページ ２０１４年３月２１日　金曜日　午後３時２０分

226



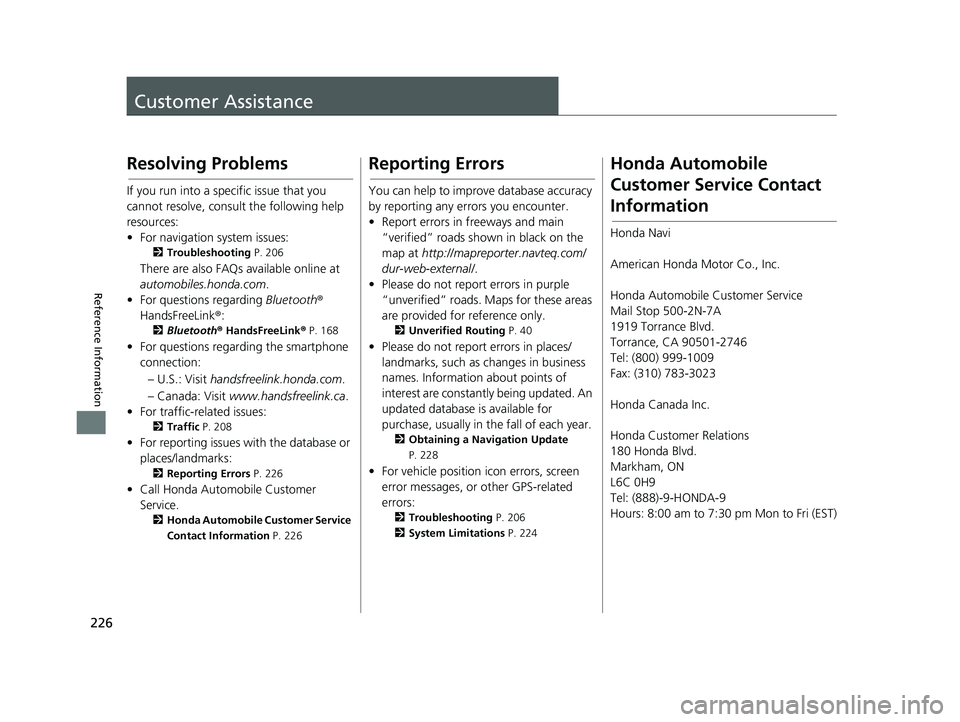

Reference Information
Customer Assistance
Resolving Problems
If you run into a specific issue that you
cannot resolve, consult the following help
resources:
• For navigation system issues:
2Troubleshooting P. 206
There are also FAQs available online at
automobiles.honda.com.
• For questions regarding Bluetooth®
HandsFreeLink®:
2Bluetooth® HandsFreeLink® P. 168
• For questions regarding the smartphone
connection:
– U.S.: Visit handsfreelink.honda.com.
– Canada: Visit www.handsfreelink.ca.
• For traffic-related issues:
2Traffic P. 208
• For reporting issues with the database or
places/landmarks:
2Reporting Errors P. 226
• Call Honda Automobile Customer
Service.
2Honda Automobile Customer Service
Contact Information P. 226
Reporting Errors
You can help to improve database accuracy
by reporting any errors you encounter.
• Report errors in freeways and main
“verified” roads shown in black on the
map at http://mapreporter.navteq.com/
dur-web-external/.
• Please do not report errors in purple
“unverified” roads. Maps for these areas
are provided for reference only.
2Unverified Routing P. 40
• Please do not report errors in places/
landmarks, such as changes in business
names. Information about points of
interest are constantly being updated. An
updated database is available for
purchase, usually in the fall of each year.
2Obtaining a Navigation Update
P. 228
• For vehicle position icon errors, screen
error messages, or other GPS-related
errors:
2Troubleshooting P. 206
2System Limitations P. 224
Honda Automobile
Customer Service Contact
Information
Honda Navi
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009
Fax: (310) 783-3023
Honda Canada Inc.
Honda Customer Relations
180 Honda Blvd.
Markham, ON
L6C 0H9
Tel: (888)-9-HONDA-9 
Hours: 8:00 am to 7:30 pm Mon to Fri (EST)
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 226 ページ ２０１４年３月２１日　金曜日　午後３時２０分
