HONDA CIVIC SEDAN 2014 (in English) User Guide

10
Quick Reference Guide

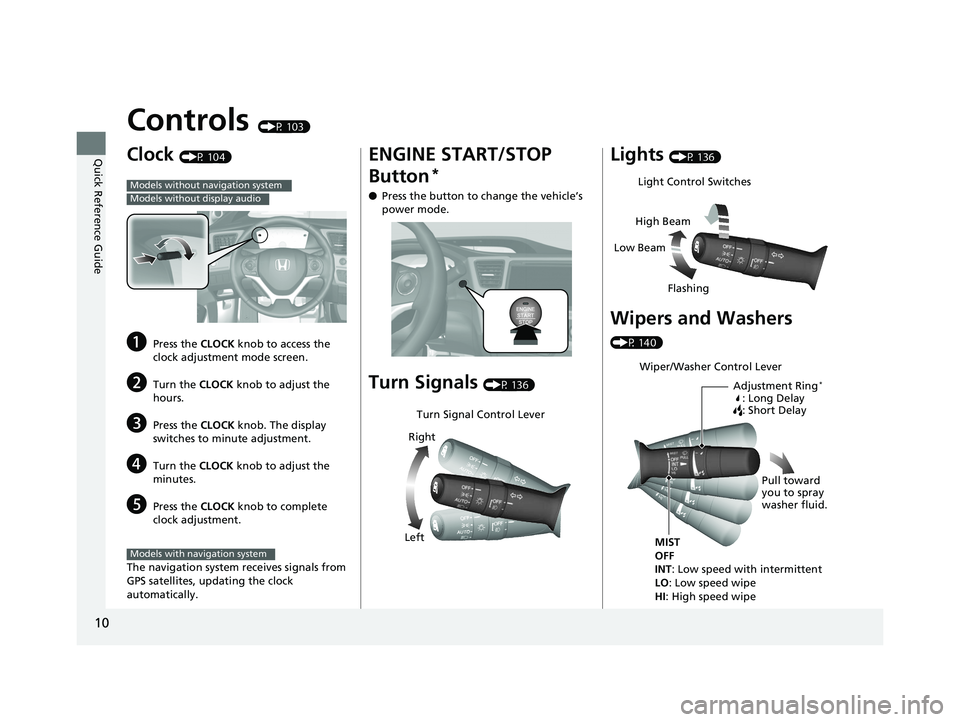

Controls (P 103)
Clock (P 104)
aPress the CLOCK knob to access the
clock adjustment mode screen.
bTurn the CLOCK knob to adjust the
hours.
cPress the CLOCK knob. The display
switches to minute adjustment.
dTurn the CLOCK knob to adjust the
minutes.
ePress the CLOCK knob to complete
clock adjustment.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation systemModels without display audio
Models with navigation system
ENGINE START/STOP
Button
*
● Press the button to change the vehicle’s
power mode.
Turn Signals (P 136)
Turn Signal Control Lever
Right
Left
Lights (P 136)
Wipers and Washers
(P 140)
Light Control Switches
Low Beam High Beam
Flashing
Wiper/Washer Control Lever Adjustment Ring
*
: Long Delay
: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
14 CIVIC 4D_SI-31TR36210.book 10 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

11
Quick Reference Guide

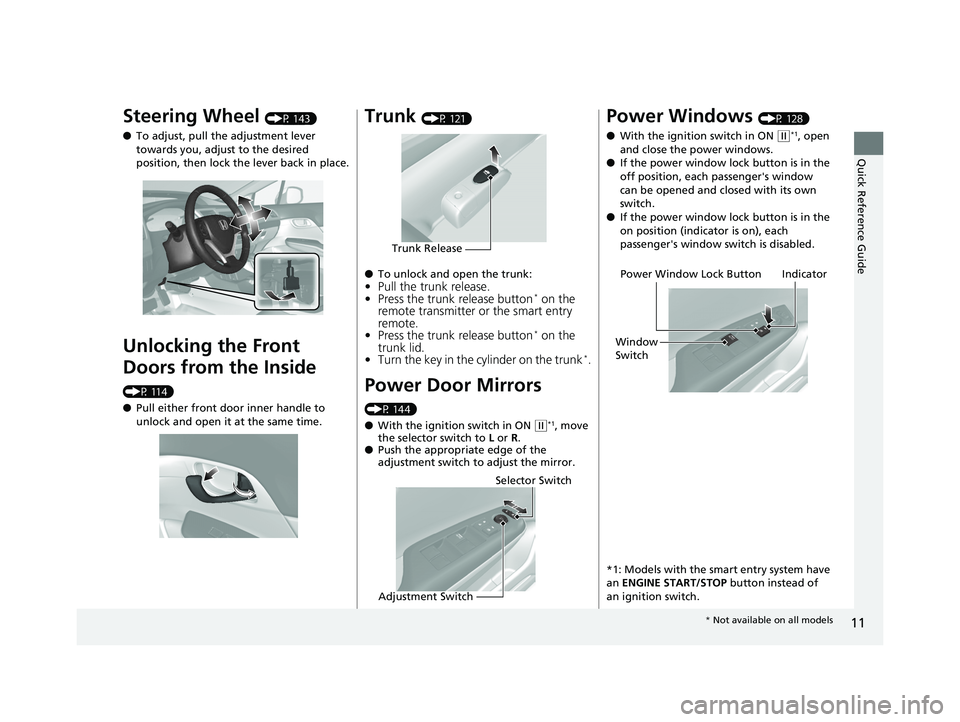

Steering Wheel (P 143)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 114)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P 121)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button* on the
remote transmitter or the smart entry
remote.
• Press the trunk release button
* on the
trunk lid.
• Turn the key in the cylinder on the trunk
*.
Power Door Mirrors
(P 144)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows (P 128)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
14 CIVIC 4D_SI-31TR36210.book 11 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

12
Quick Reference Guide

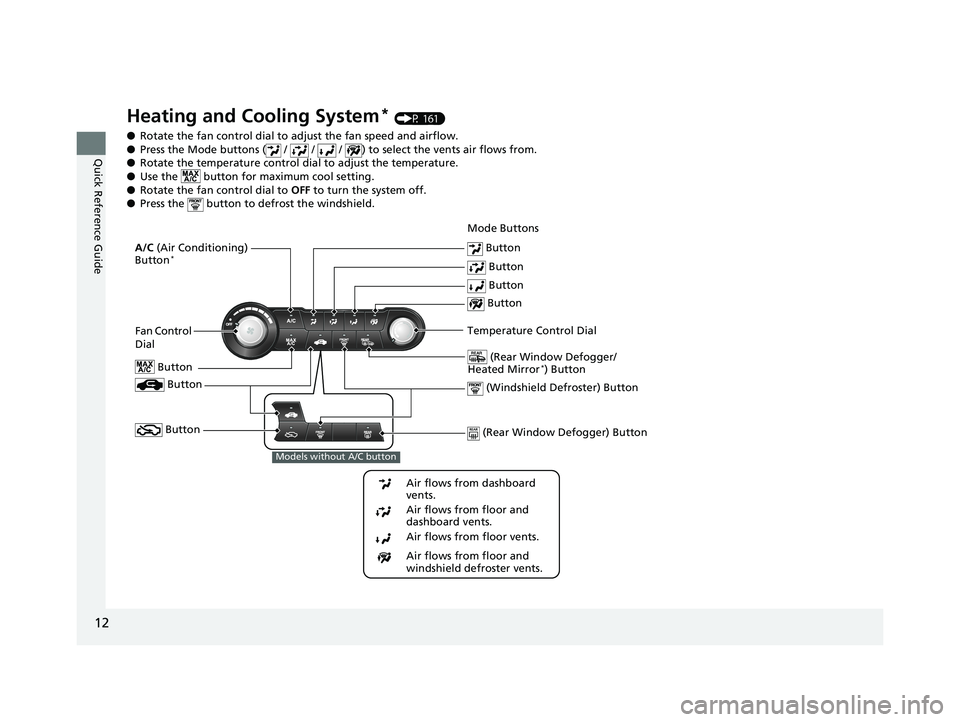

Heating and Cooling System* (P 161)
● Rotate the fan control dial to adjust the fan speed and airflow.
● Press the Mode buttons ( / / / ) to select the vents air flows from.
● Rotate the temperature control dial to adjust the temperature.
● Use the button for ma ximum cool setting.
● Rotate the fan co ntrol dial to OFF to turn the system off.
● Press the button to defrost the windshield.
Fan Control
Dial
(Rear Window Defogger/
Heated Mirror
*) Button
(Windshield Defroster) Button
A/C (Air Conditioning)
Button*
Air flows from floor and
windshield defroster vents.
Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard
vents.
Button
Button
Button
Button
Temperature Control Dial Button
Button
Mode Buttons
Button (Rear Window Defogger) Button
Models without A/C button
14 CIVIC 4D_SI-31TR36210.book 12 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

13
Quick Reference Guide

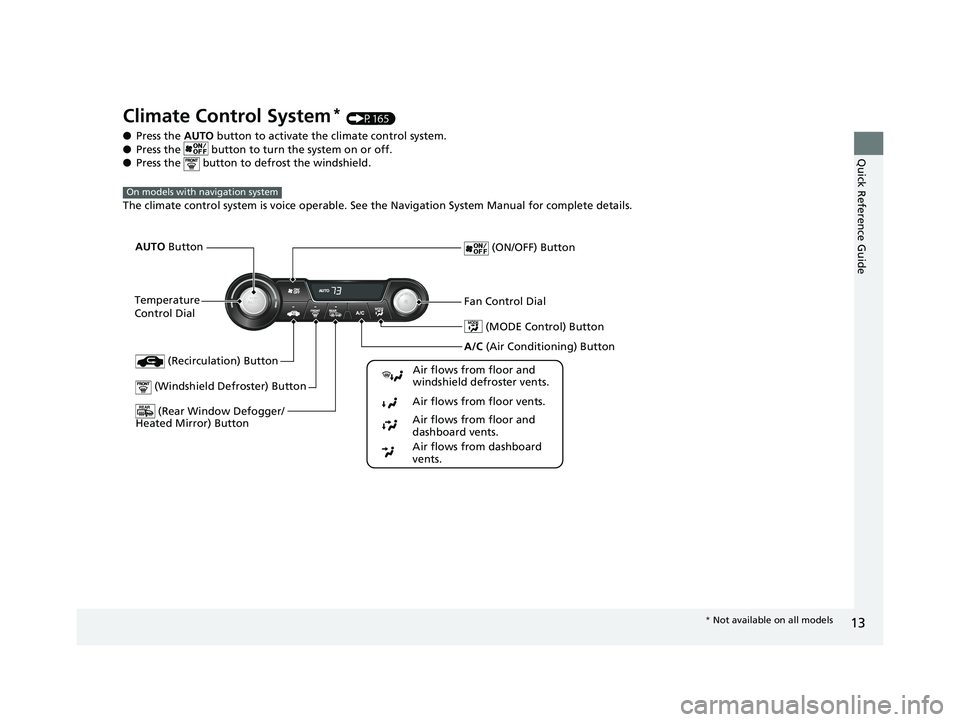

Climate Control System* (P165)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See th e Navigation System Manual for complete details.
On models with navigation system
(MODE Control) Button
(Rear Window Defogger/
Heated Mirror) Button
(Windshield Defroster) Button
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
Temperature
Control Dial AUTO
Button
(ON/OFF) ButtonFan Control Dial
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 13 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

14
Quick Reference Guide

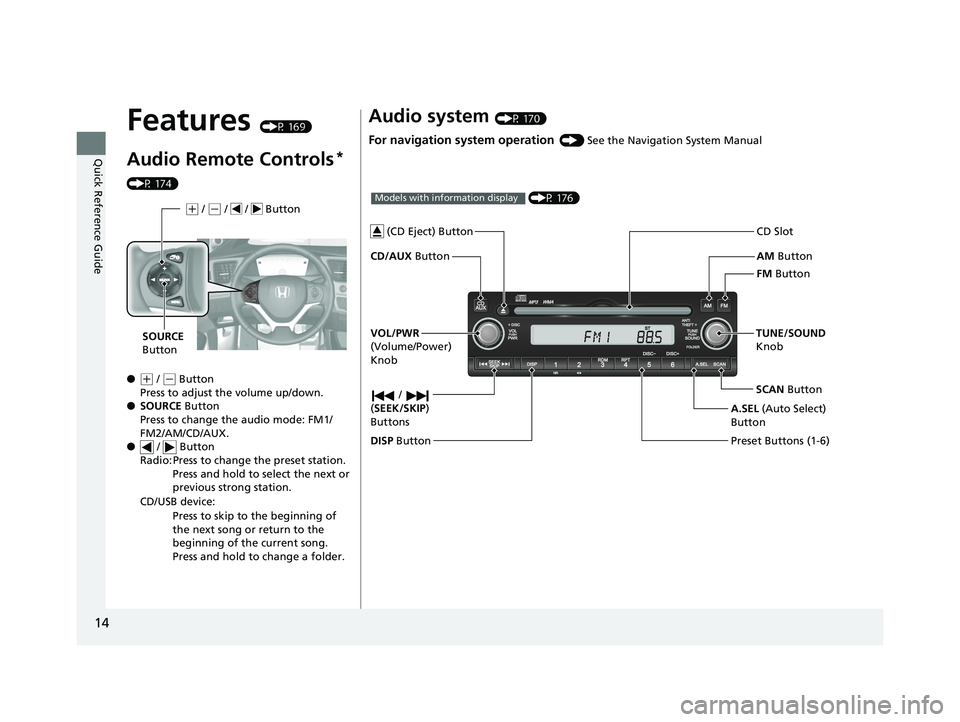

Features (P 169)
Audio Remote Controls*
(P 174)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- / / Button
SOURCE
Button
Audio system (P 170)
For navigation system operation () See the Navigation System Manual
AM Button
FM Button
CD/AUX
Button CD Slot
SCAN Button
Preset Buttons (1-6) TUNE/SOUND

Knob
/
( SEEK/SKIP )
Buttons
(P 176)Models with information display
A.SEL (Auto Select)
Button
VOL/PWR

(Volume/Power)
Knob
DISP Button
(CD Eject) Button
14 CIVIC 4D_SI-31TR36210.book 14 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

15
Quick Reference Guide
002300
75°F miles

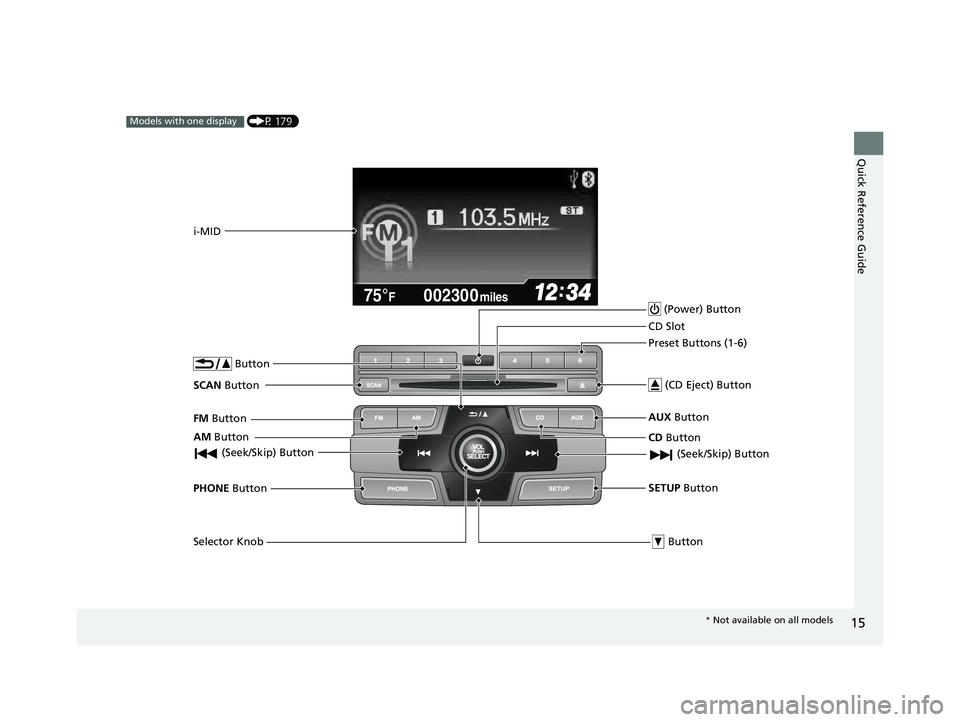

(P 179)Models with one display
AM Button
FM
Button
SCAN Button
(Seek/Skip) Button
Selector Knob Button
PHONE
Button
i-MID
(Power) Button
CD Button
AUX
Button
CD Slot
(CD Eject) Button
Preset Buttons (1-6)
Button
SETUP Button (Seek/Skip) Button
*
Not available on all models
14 CIVIC 4D_SI-31TR36210.book 15 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

16
Quick Reference Guide
002300
75°F miles
(P 197)Models with display audio system
MENU VOL HOME
BACK i-MID
(Power) Button
CD Slot (CD Eject) Button
HOME Screen
Button
14 CIVIC 4D_SI-31TR36210.book 16 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

17
Quick Reference Guide

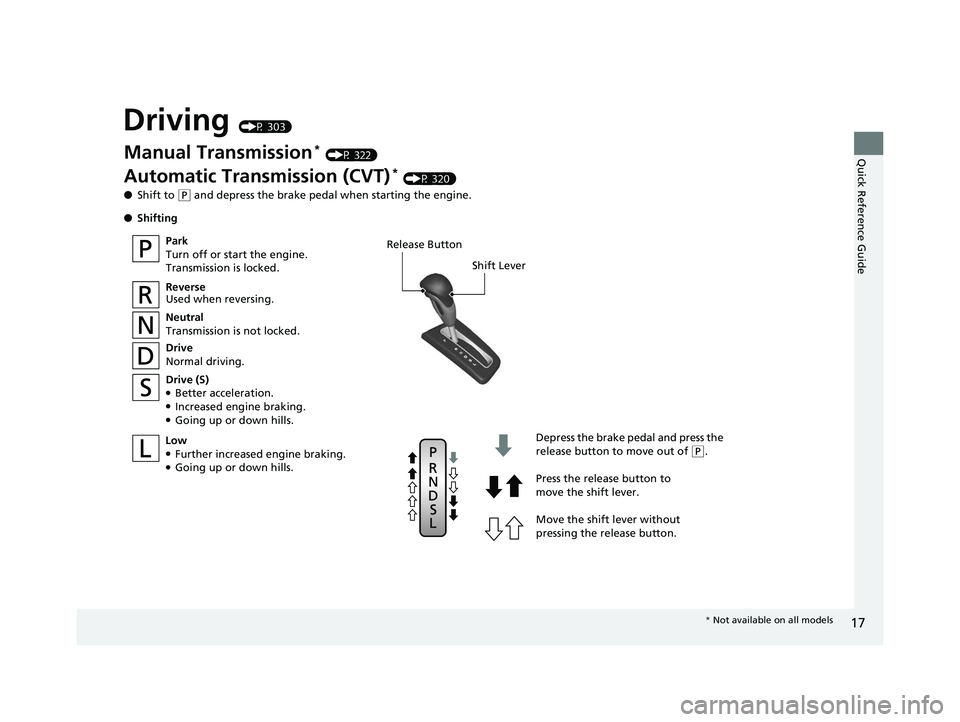

Driving (P 303)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Manual Transmission* (P 322)
Automatic Transmission (CVT)* (P 320)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration.●Increased engine braking.●Going up or down hills.
Low
●Further increased engine braking.●Going up or down hills.
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 17 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

18
Quick Reference Guide

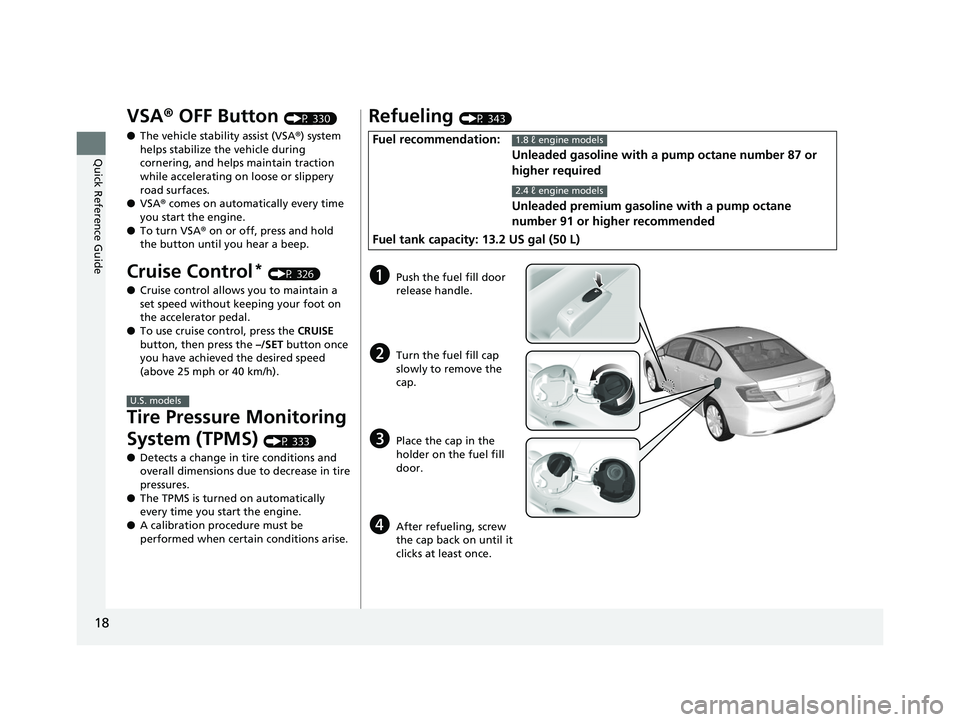

VSA® OFF Button (P 330)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control* (P 326)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P 333)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models
Refueling (P 343)
Fuel recommendation:
Unleaded gasoline with a pu mp octane number 87 or
higher required
Unleaded premium gasoline with a pump octane
number 91 or higher recommended
Fuel tank capacity: 13.2 US gal (50 L)1.8 ℓ engine models
2.4 ℓ engine models
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
14 CIVIC 4D_SI-31TR36210.book 18 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

19
Quick Reference Guide

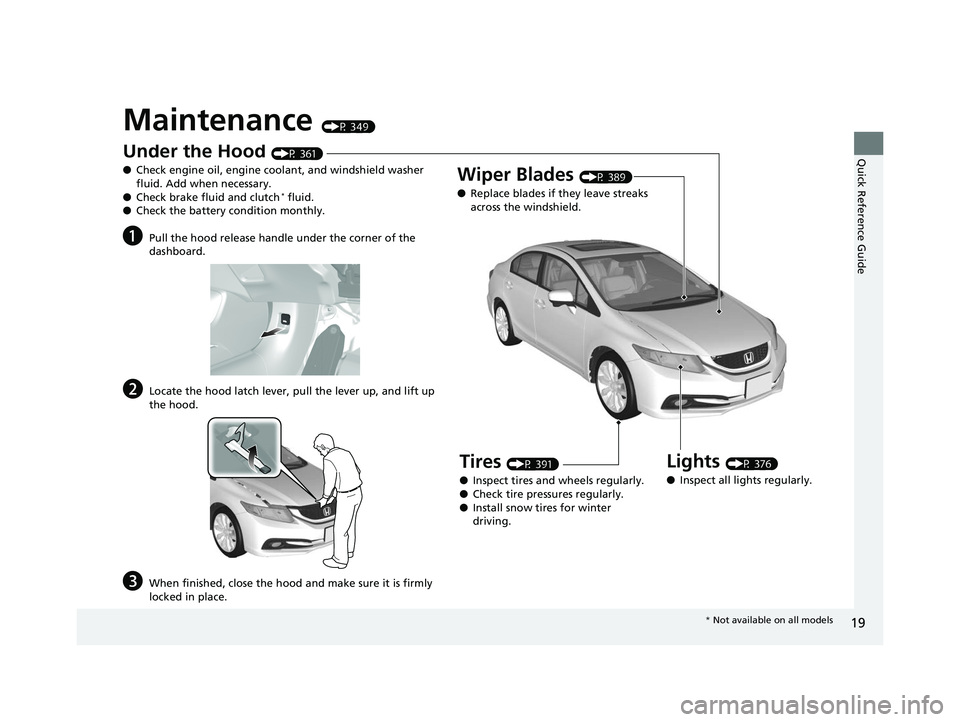

Maintenance (P 349)
Under the Hood (P 361)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch
* fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 376)
● Inspect all lights regularly.
Wiper Blades (P 389)
● Replace blades if they leave streaks
across the windshield.
Tires (P 391)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 19 ページ ２０１４年１月３０日　木曜日　午後１２時１８分
