parking brake HONDA CIVIC SEDAN 2014 Owner's Manual (in English)

Visual Index
4
Quick Reference Guide
❙Door Mirror Controls (P 144)
❙Passenger's Front Airbag
(P 42)
❙Parking Brake (P 337)
❙Glove Box (P 156)
❙Rearview Mirror (P 144)
❙Accessory Power Socket
(P 159)
❙Shift Lever
Automatic Transmission
(CVT)
(P 320)
Manual Transmission
(P 322)
❙Hood Release Handle (P 363)
❙Fuel Fill Door Release Handle (P 344)
❙Driver’s Pocket
❙Trunk Release (P 121)
❙Power Door Lock Master Switch* (P 116)
❙Power Window Switches (P 128)
❙USB/HDMI® Port* (P 171)
❙Interior Fuse Box (P 440)
❙Driver's Front Airbag (P 42)
❙Auxiliary Input Jack* (P 172)
14 CIVIC 4D_SI-31TR36210.book 4 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

Visual Index
6
Quick Reference Guide❙Maintenance Under the Hood (P 361)
❙Windshield Wipers (P 140, 389)
❙Tires (P 391, 411)
❙Fog Lights* (P 139, 380)
❙Door Lock/Unlock Control (P 109)
❙Power Door Mirrors (P 144)
❙Headlights (P 136, 376)
❙Front Turn Signal/Parking/Side Marker Lights (P 136, 383)
❙How to Refuel (P 344)
❙High-Mount Brake Light* (P 388)
❙Emergency Trunk Release Lever
(P 124)
❙Opening/Closing the Trunk (P 121)
❙Rearview Camera* (P 342)
❙Back-Up Lights (P 386)
❙Taillights (P 386)
❙Brake/Taillights (P 385)
❙Rear Turn Signal Lights (P 385)
❙Rear Side Marker Lights (P 385)
❙Trunk Release Button* (P 122)
14 CIVIC 4D_SI-31TR36210.book 6 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

9
Quick Reference Guide
Instrument Panel (P 67)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam IndicatorFog Light Indicator
*
Immobilizer System
Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator*
System Message
Indicator*Parking Brake
and Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door Open Indicator
CRUISE MAIN
Indicator
*
Tachometer Instant Fuel
Economy Gauge
*
Speedometer
Fuel Gauge
Security System
Alarm Indicator
*Shift Lever Position Indicator*Low Fuel Indicator
Gauges (P 82)/Information Display* (P 84)/
intelligent Multi-Inform ation Display (i-MID)
* (P 86)/System Indicators (P 68)
Trunk Open Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator
Low Temperature
Indicator
Maintenance Minder
Indicator
*
Daytime Running
Lights Indicator*
Washer Level
Indicator*
i-VTEC
Indicator
Rev
Indicator
2.4 ℓ engine models
Ambient Meter*
Smart Entry
System Indicator*Brake System
Indicator (Amber)
System IndicatorsU.S.
Canada
U.S.
Canada
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 9 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

22
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, push the lever
to the unlock position.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?
If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The key is left in the ignition switch*.
●The power mode* is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Models with remote transmitter
14 CIVIC 4D_SI-31TR36210.book 22 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

68
Instrument Panel
Indicators
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Parking Brake
and Brake
System Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off if the parking
brake has been released.
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on P. 437
●Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 437
Brake System
Indicator
(Amber)
●Comes on for a fe w seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on if there is a problem
with a component related to
braking.
●Stays on constantly - Have your vehicle
checked by a dealer.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 68 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

119
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Continued
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Default setting

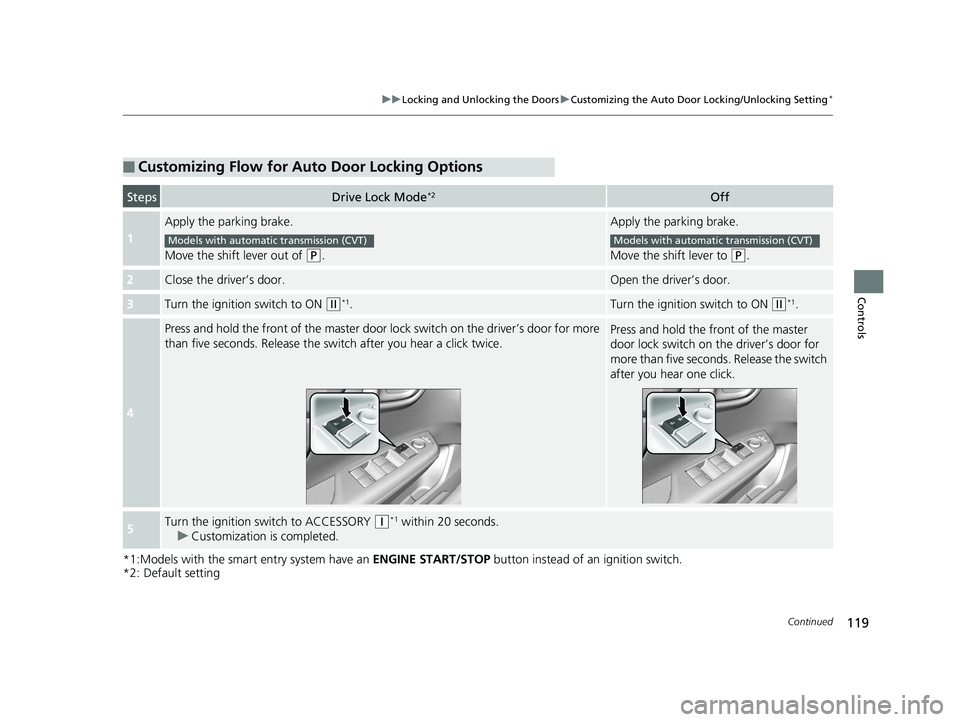

■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*2Off
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON (w*1.
4
Press and hold the front of the master door lo ck switch on the driver’s door for more
than five seconds. Release the switch after you hear a click twice.Press and hold the front of the master
door lock switch on the driver’s door for
more than five seconds. Release the switch
after you hear one click.
5Turn the ignition sw itch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
Models with automatic transmission (CVT)Models with automatic transmission (CVT)
14 CIVIC 4D_SI-31TR36210.book 119 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

120
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Default setting
■Customizing Flow for Auto Door Unlocking Options
StepsDriver's Door Open Mode*2Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1.Turn the ignition switch to ON
(w*1.
4
Press and hold the rear of the ma ster door lock switch on the driver’s door for more than five seconds. Release the switch afte r
you hear a click twice.
5Turn the ignition switch to ACCESSORY (q*1 within 20 seconds.
u Customization is completed.
Models with automatic transmission (CVT)
Models with automatic transmission (CVT)Models with automatic transmission
(CVT)
14 CIVIC 4D_SI-31TR36210.book 120 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

139
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The high beam headlights come on slightly dimmer than normal when the following
conditions have been met:
• The ignition switch is in ON
(w*1.
• The headlight switch is off, or in .
• The parking brake is released.
The lights remain on even if you set th e parking brake. Turning off the ignition
switch or setting the power mode to VEHI CLE OFF will turn off the daytime running
lights.
The high beam headlights return to the original brightness once the headlight
switch is turned on.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Fog Lights*
When the fog lights are on, the indicator in the
instrument pane l will be on.
They go off when the headlights turn off, or when
the daytime running lights are on. 2 Fog Light Indicator
* P. 74
Fog Light Switch
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 139 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

221
uuAudio System Basic Operation uPlaying a Video Using the HDMI ®
Features
1.Select Settings to go to the Settings
screen.
2. Select Audio .
3. Select Aspect Ratio Adjustment .
4. Select the setting you want.
5. Select OK.
■Changing the Screen Aspect1Playing a Video Using the HDMI®
This feature is limited while driving. To play videos,
stop your vehicle and apply the parking brake.
14 CIVIC 4D_SI-31TR36210.book 221 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

233Continued
Features
Customized Features*
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete stop with the power mode in ON, select Settings,
then select a setting item.
1 Customized Features*
When you customize settings:•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
To customize other features, select Settings.
2 List of customizable options P. 237
Automatic transmission (CVT) models
Manual transmission models
Audio/Information Screen
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 233 ページ ２０１４年１月３０日　木曜日　午後１２時１８分
