HONDA CIVIC SEDAN 2016 Navigation Manual (in English)

90

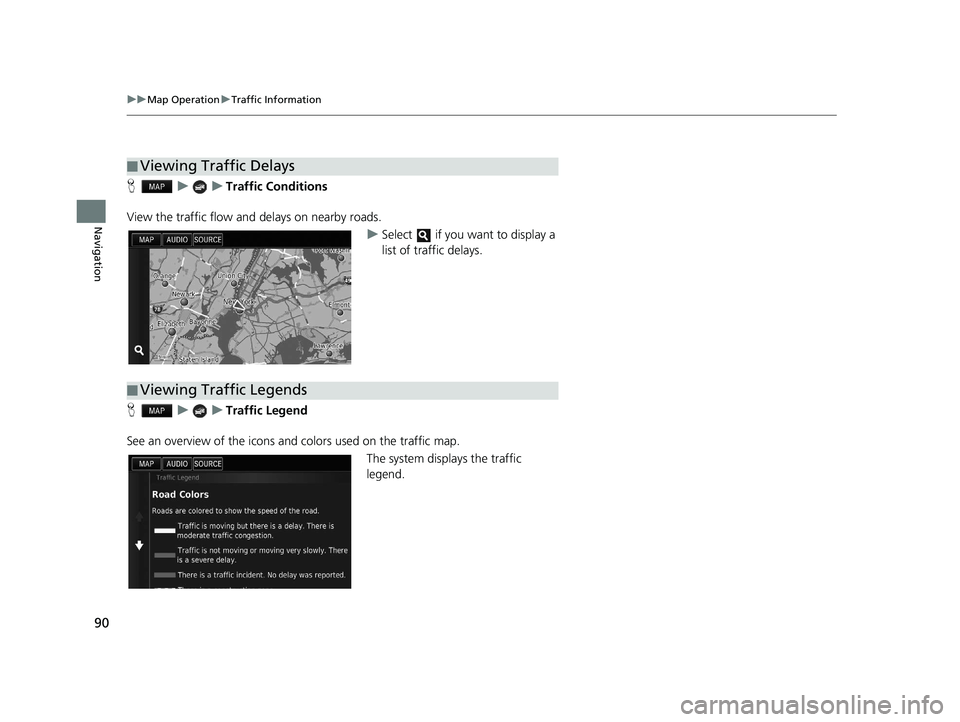

uuMap Operation uTraffic Information
Navigation
H uuTraffic Conditions
View the traffic flow and delays on nearby roads. uSelect if you want to display a
list of traffic delays.
H uuTraffic Legend
See an overview of the icons and colors used on the traffic map.
The system displays the traffic
legend.
■Viewing Traffic Delays
■Viewing Traffic Legends
16 CIVIC NAVI-31TBA8000.book 90 ページ ２０１５年８月２１日　金曜日　午後２時５５分

91
Navigation

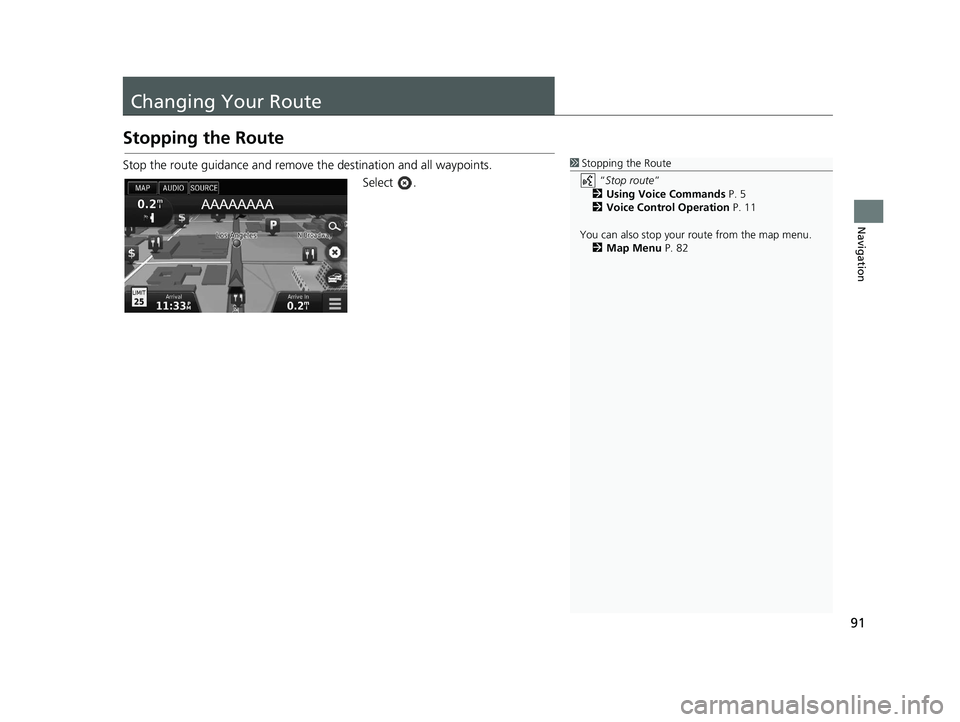

Changing Your Route
Stopping the Route
Stop the route guidance and remove the destination and all waypoints.
Select .1Stopping the Route
“Stop route ”
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
You can also stop your route from the map menu. 2 Map Menu P. 82
16 CIVIC NAVI-31TBA8000.book 91 ページ ２０１５年８月２１日　金曜日　午後２時５５分

92
uuChanging Your Route uTaking a Detour
Navigation

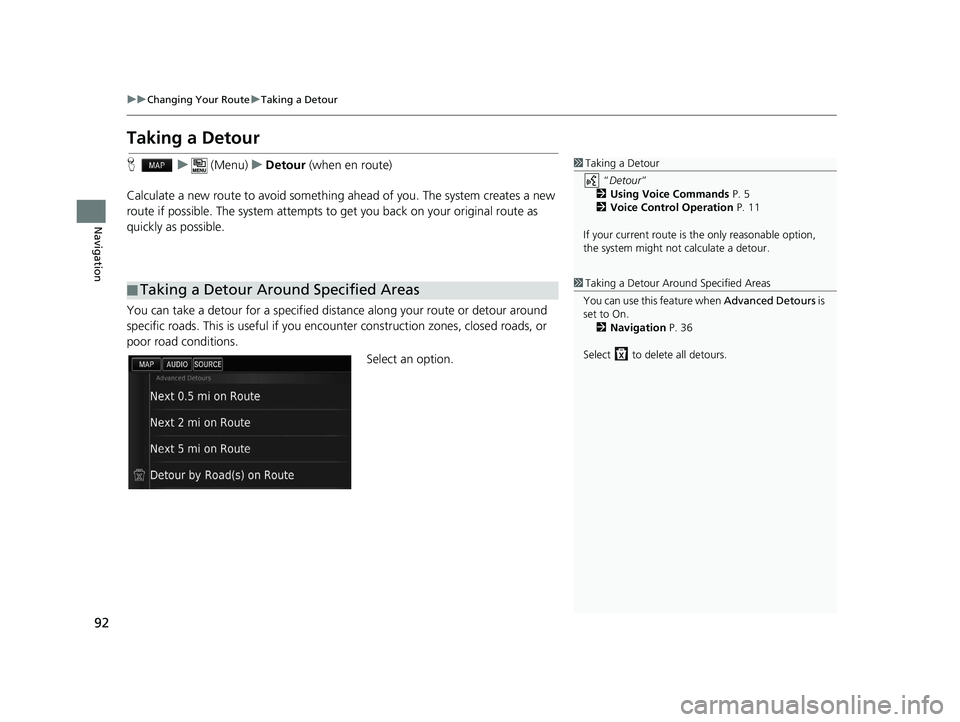

Taking a Detour
H u (Menu) uDetour (when en route)
Calculate a new route to avoid something ahead of you. The system creates a new
route if possible. The system attempts to get you back on your original route as
quickly as possible.
You can take a detour for a specified dist ance along your route or detour around
specific roads. This is useful if you enc ounter construction zones, closed roads, or
poor road conditions.
Select an option.
■Taking a Detour Around Specified Areas
1
Taking a Detour
“Detour ”
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
If your current route is the only reasonable option,
the system might not calculate a detour.
1 Taking a Detour Around Specified Areas
You can use this feature when Advanced Detours is
set to On. 2 Navigation P. 36
Select to delete all detours.
16 CIVIC NAVI-31TBA8000.book 92 ページ ２０１５年８月２１日　金曜日　午後２時５５分

93
uuChanging Your Route uTaking a Detour
Navigation

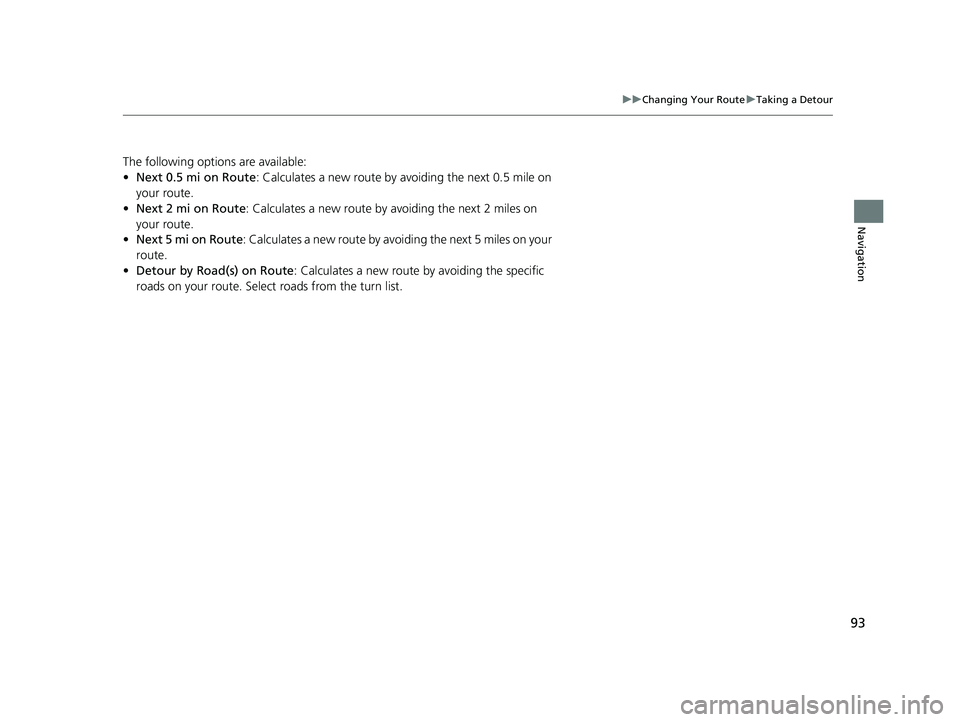

The following options are available:
• Next 0.5 mi on Route : Calculates a new route by avoiding the next 0.5 mile on
your route.
• Next 2 mi on Route : Calculates a new route by av oiding the next 2 miles on
your route.
• Next 5 mi on Route : Calculates a new route by avoiding the next 5 miles on your
route.
• Detour by Road(s) on Route : Calculates a new route by avoiding the specific
roads on your route. Select roads from the turn list.
16 CIVIC NAVI-31TBA8000.book 93 ページ ２０１５年８月２１日　金曜日　午後２時５５分

94
uuChanging Your Route uAdding Waypoints
Navigation
Adding Waypoints
Add waypoints (pit stops) along the route to your destination.
1.Select a search method to add a
waypoint.
2 Entering a Destination P. 54
2.Select a place. Select Go!.
3. Select Add to Active Route .
u Select Start New Route to set
the location as your new
destination.
2 Entering a New Destination
P. 98
4. Select and hold , or
and move the order of
destinations.
5. Select Done.
u The route is automatically
recalculated and displayed on
the map screen.
1Adding Waypoints
When you add a waypoint, the system may take
some time to update the arrival time.
16 CIVIC NAVI-31TBA8000.book 94 ページ ２０１５年８月２１日　金曜日　午後２時５５分

95
Navigation

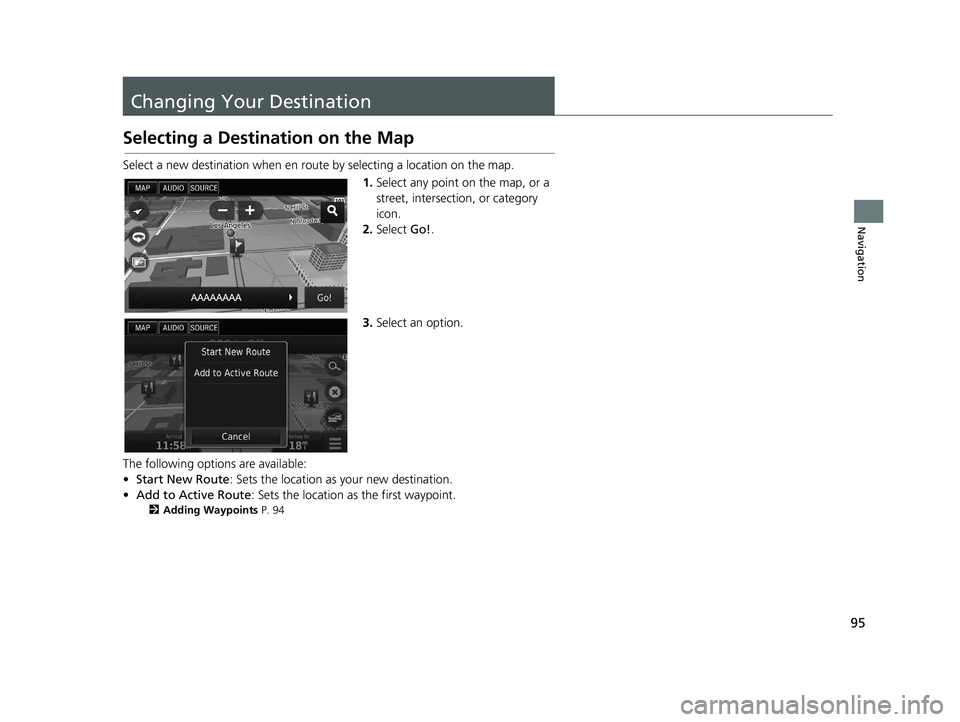

Changing Your Destination
Selecting a Destination on the Map
Select a new destination when en route by selecting a location on the map.1.Select any point on the map, or a
street, intersection, or category
icon.
2. Select Go!.
3. Select an option.
The following options are available:
• Start New Route : Sets the location as your new destination.
• Add to Active Route : Sets the location as the first waypoint.
2Adding Waypoints P. 94
16 CIVIC NAVI-31TBA8000.book 95 ページ ２０１５年８月２１日　金曜日　午後２時５５分

96
uuChanging Your Destination uSearching Near Establishment
Navigation

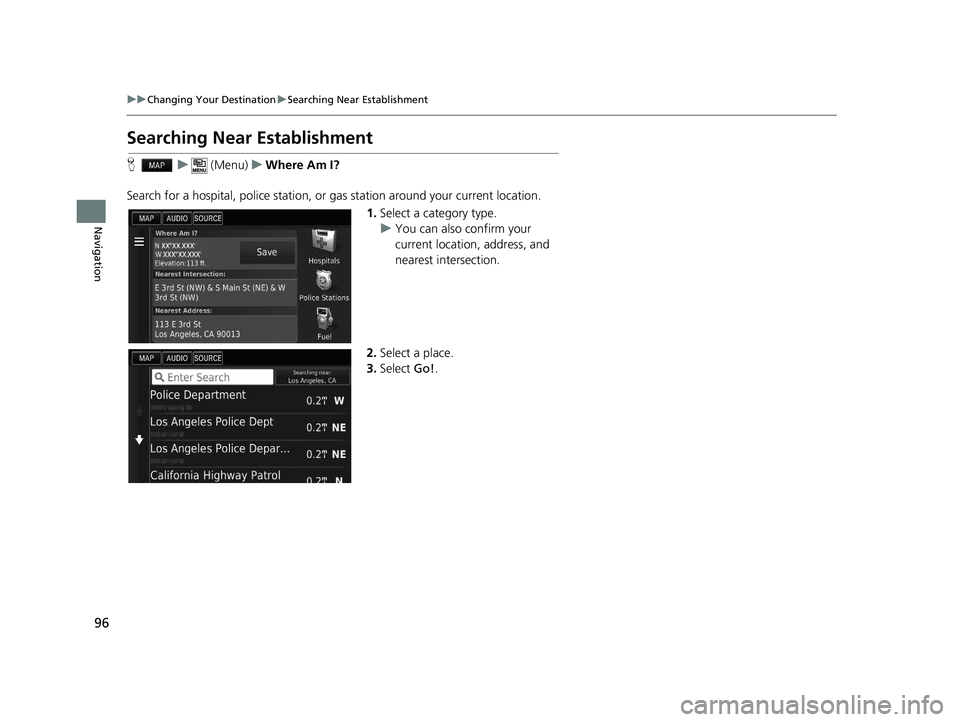

Searching Near Establishment
H u (Menu) uWhere Am I?
Search for a hospital, police station, or gas station around your current location.
1. Select a category type.
u You can also confirm your
current location, address, and
nearest intersection.
2. Select a place.
3. Select Go!.
16 CIVIC NAVI-31TBA8000.book 96 ページ ２０１５年８月２１日　金曜日　午後２時５５分

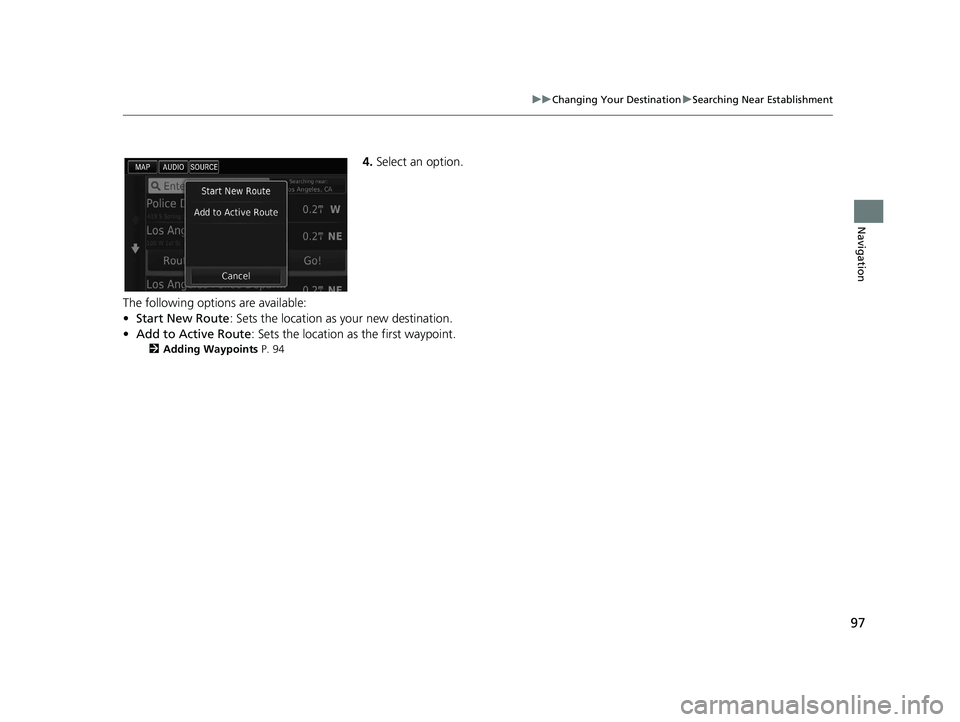

97
uuChanging Your Destination uSearching Near Establishment
Navigation
4. Select an option.
The following options are available:
• Start New Route : Sets the location as your new destination.
• Add to Active Route : Sets the location as the first waypoint.
2Adding Waypoints P. 94
16 CIVIC NAVI-31TBA8000.book 97 ページ ２０１５年８月２１日　金曜日　午後２時５５分

98
uuChanging Your Destination uEntering a New Destination
Navigation

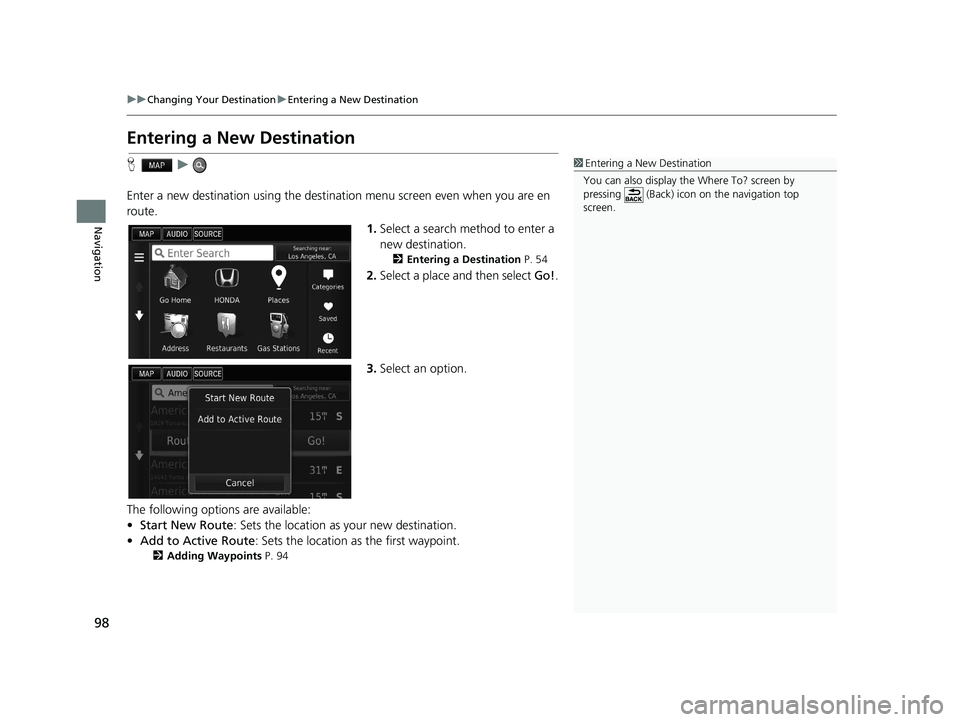

Entering a New Destination
H u
Enter a new destination using the destination menu screen even when you are en
route.
1.Select a search method to enter a
new destination.
2 Entering a Destination P. 54
2.Select a place and then select Go!.
3. Select an option.
The following options are available:
• Start New Route: Sets the location as your new destination.
• Add to Active Route : Sets the location as the first waypoint.
2Adding Waypoints P. 94
1Entering a New Destination
You can also display the Where To? screen by
pressing (Back) icon on the navigation top
screen.
16 CIVIC NAVI-31TBA8000.book 98 ページ ２０１５年８月２１日　金曜日　午後２時５５分

99
uuChanging Your Destination uEntering a New Destination from Trip Planner
Continued
Navigation

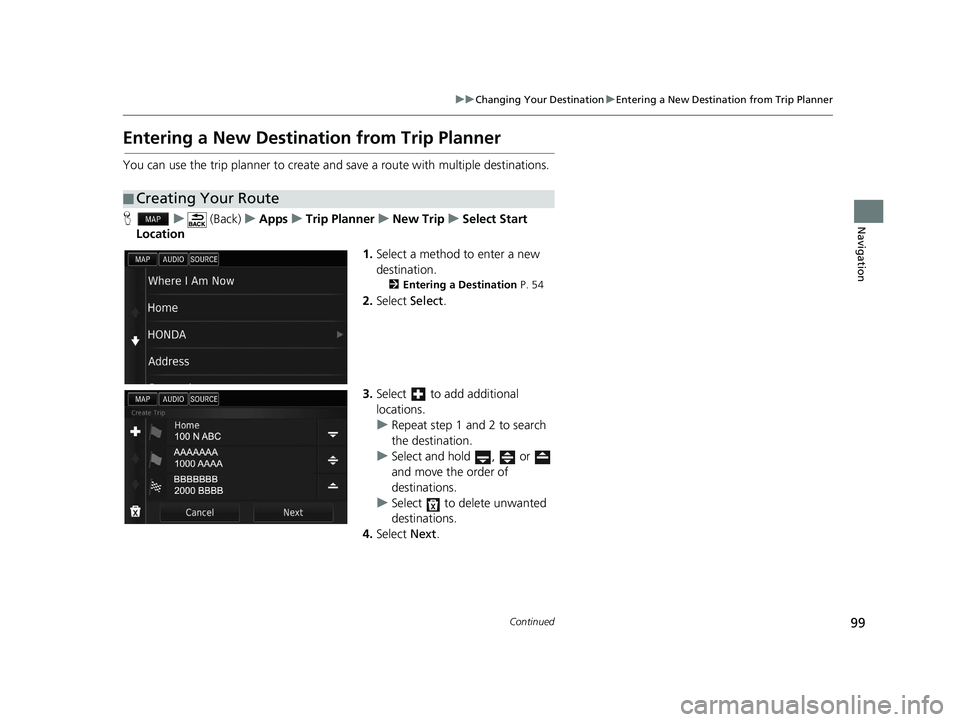

Entering a New Destination from Trip Planner
You can use the trip planner to create and save a route with multiple destinations.
H u (Back) uApps uTrip Planner uNew Trip uSelect Start
Location
1.Select a method to enter a new
destination.
2 Entering a Destination P. 54
2.Select Select.
3. Select to add additional
locations.
u Repeat step 1 and 2 to search
the destination.
u Select and hold , or
and move the order of
destinations.
u Select to delete unwanted
destinations.
4. Select Next.
■Creating Your Route
