Page 21 of 595
19

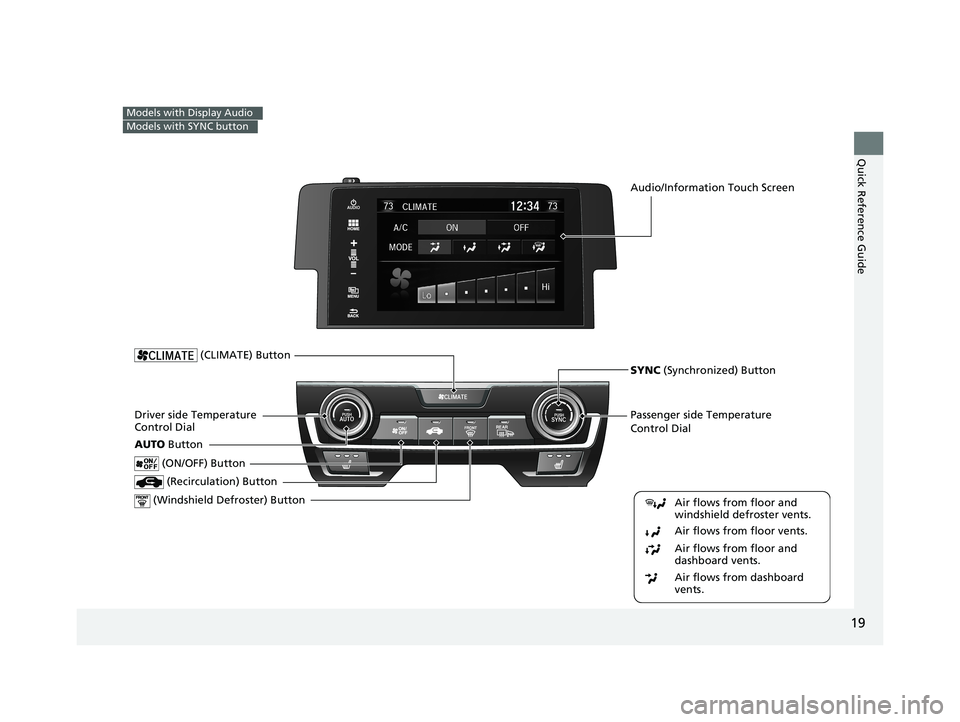

Quick Reference Guide
Models with Display Audio
Models with SYNC button
Passenger side Temperature
Control Dial
(Windshield Defroster) ButtonDriver side Temperature
Control Dial (Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Touch Screen
SYNC (Synchronized) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
16 CIVIC 4D-31TBA6011.book 19 ページ 2018年10月26日 金曜日 午前11時51分
Page 22 of 595
20
Quick Reference Guide

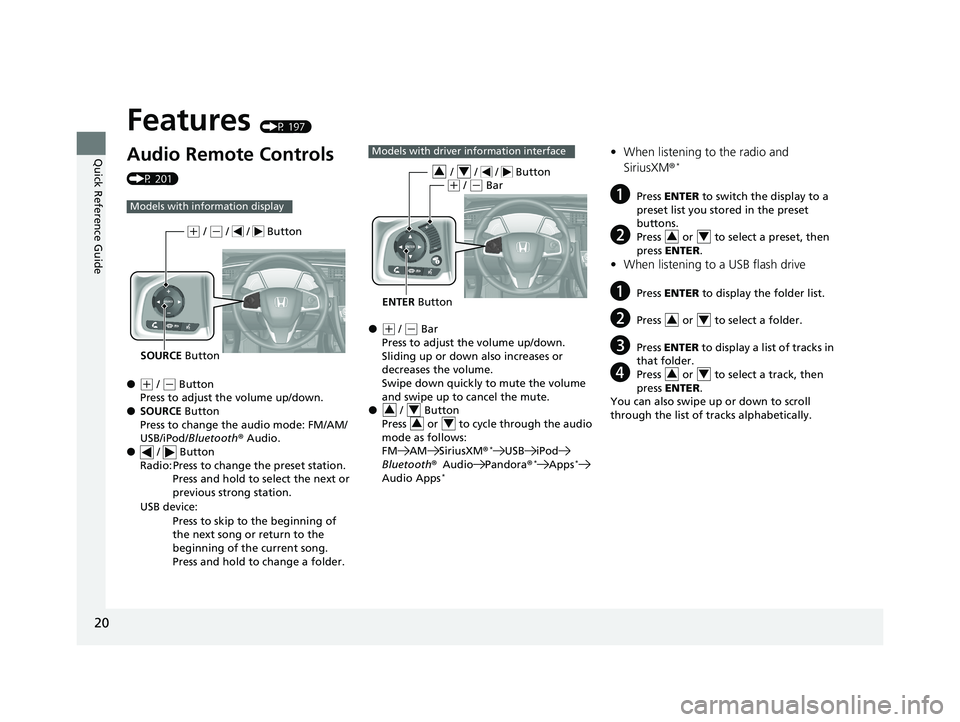

Features (P 197)
Audio Remote Controls
(P 201)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
USB/iPod/ Bluetooth ®Audio.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with info rmation display
SOURCE Button
(+ / (- / / Button
●(+ / (- Bar
Press to adjust the volume up/down.
Sliding up or down also increases or
decreases the volume.
Swipe down quickly to mute the volume
and swipe up to cancel the mute.
● / Button
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ®
*USB iPod
Bluetooth ®Audio Pandora ®*Apps*
Audio Apps*
Models with driver information interface
ENTER Button
/ / / Button34(+ / (- Bar
34
34
• When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
You can also swipe up or down to scroll
through the list of tra cks alphabetically.
34
34
34
16 CIVIC 4D-31TBA6011.book 20 ページ 2018年10月26日 金曜日 午前11時51分
Page 23 of 595
21
Quick Reference Guide

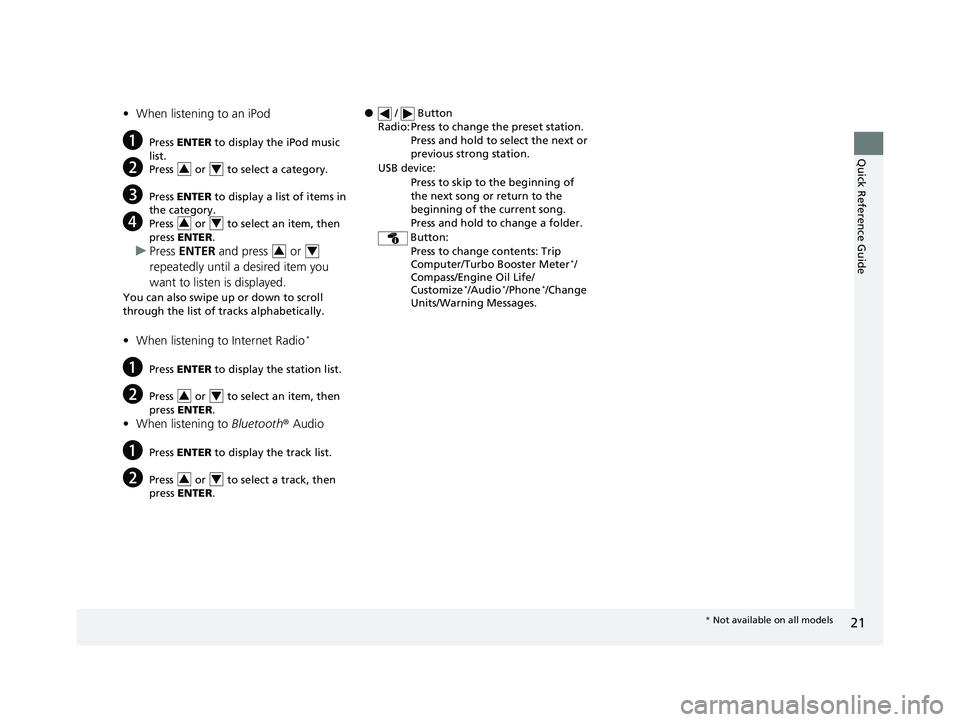

•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
You can also swipe up or down to scroll
through the list of tracks alphabetically.
• When listening to Internet Radio*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth ®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Button: Press to change contents: Trip
Computer/Turbo Booster Meter
*/
Compass/Engine Oil Life/
Customize
*/Audio*/Phone*/Change
Units/Warning Messages.
* Not available on all models
16 CIVIC 4D-31TBA6011.book 21 ページ 2018年10月26日 金曜日 午前11時51分
Page 24 of 595
22
Quick Reference Guide

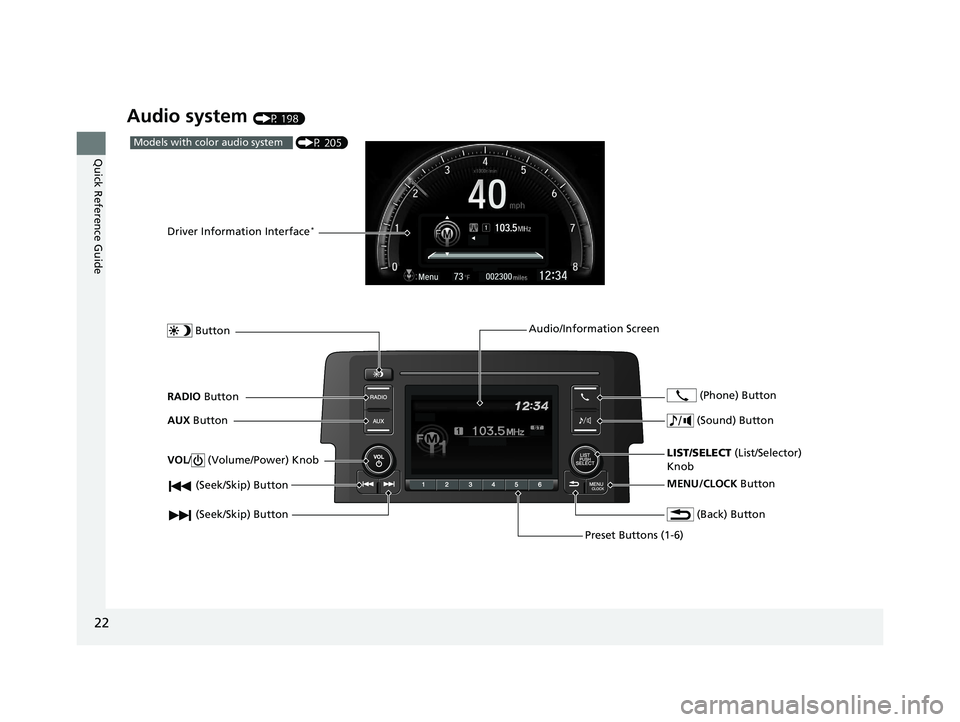

Audio system (P 198)
(P 205)Models with color audio system
(Seek/Skip) Button
RADIO Button
Driver Information Interface*
Button
AUX Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
LIST/SELECT (List/Selector)
Knob (Phone) Button
16 CIVIC 4D-31TBA6011.book 22 ページ 2018年10月26日 金曜日 午前11時51分
Page 25 of 595
23
Quick Reference Guide

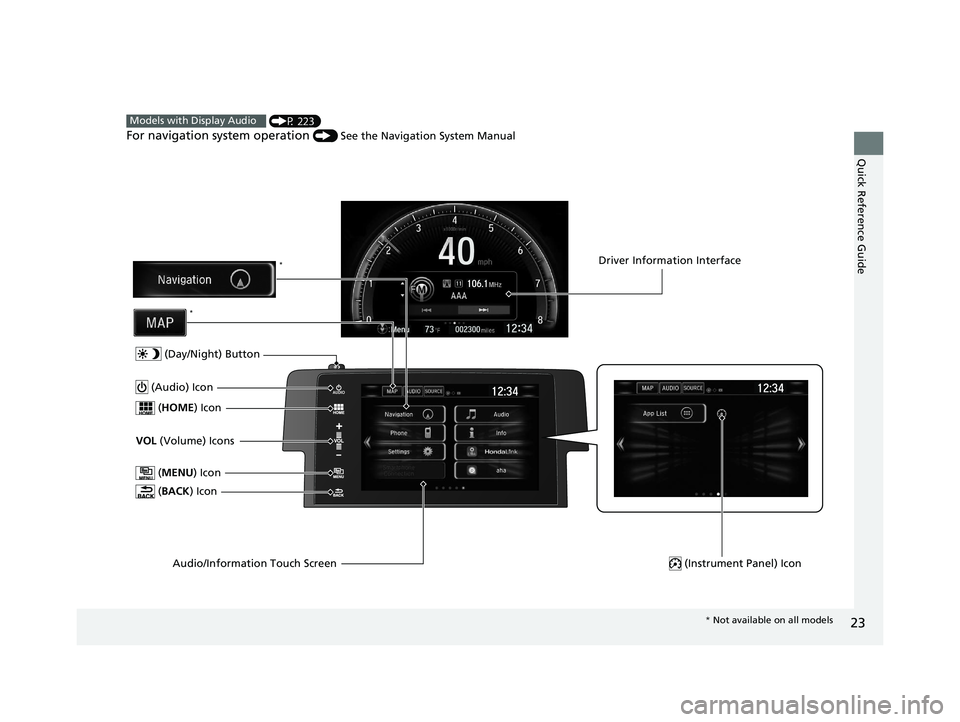

Menu
(P 223)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(MENU ) Icon
VOL (Volume) Icons
(
HOME ) Icon
(BACK ) Icon
Audio/Information Touch Screen
(Audio) Icon
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
*
* Not available on all models
16 CIVIC 4D-31TBA6011.book 23 ページ 2018年10月26日 金曜日 午前11時51分
Page 26 of 595
24
Quick Reference Guide

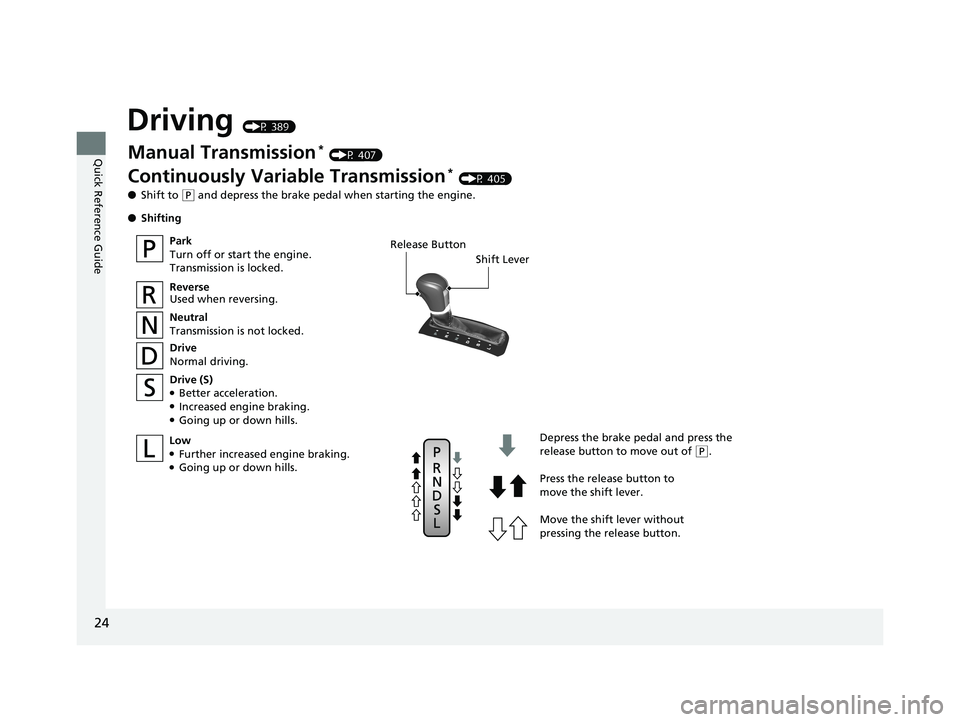

Driving (P 389)
Release ButtonShift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button. Press the release button to
move the shift lever.
Manual Transmission* (P 407)
Continuously Variable Transmission* (P 405)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
Drive (S)
●Better acceleration.●Increased engine braking.●Going up or down hills.
Low
●Further increased engine braking.●Going up or down hills.
16 CIVIC 4D-31TBA6011.book 24 ページ 2018年10月26日 金曜日 午前11時51分
Page 27 of 595
25
Quick Reference Guide
VSA® OFF Button (P 442)
●The vehicle stability assist (VSA®) system helps
stabilize the vehicle during cornering, and
helps maintain traction while accelerating on
loose or slippery road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Cruise Control* (P 411)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Collision Mitigation
Braking System
TM (CMBSTM)
OFF Button
* (P 459)
●When a possible collision is likely unavoidable,
the CMBSTM can help you to reduce the vehicle
speed and the severity of the collision.
● To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 446)
●Detects a change in tire conditions and overall
dimensions due to decrease in tire pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models
Refueling (P 470)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 12.39 US gal (46.9 L)
aPress on the edge of
the fuel fill door to
make it pop up
slightly.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.Wait for five seconds
* Not available on all models
16 CIVIC 4D-31TBA6011.book 25 ページ 2018年10月26日 金曜日 午前11時51分
Page 28 of 595
26
Quick Reference Guide

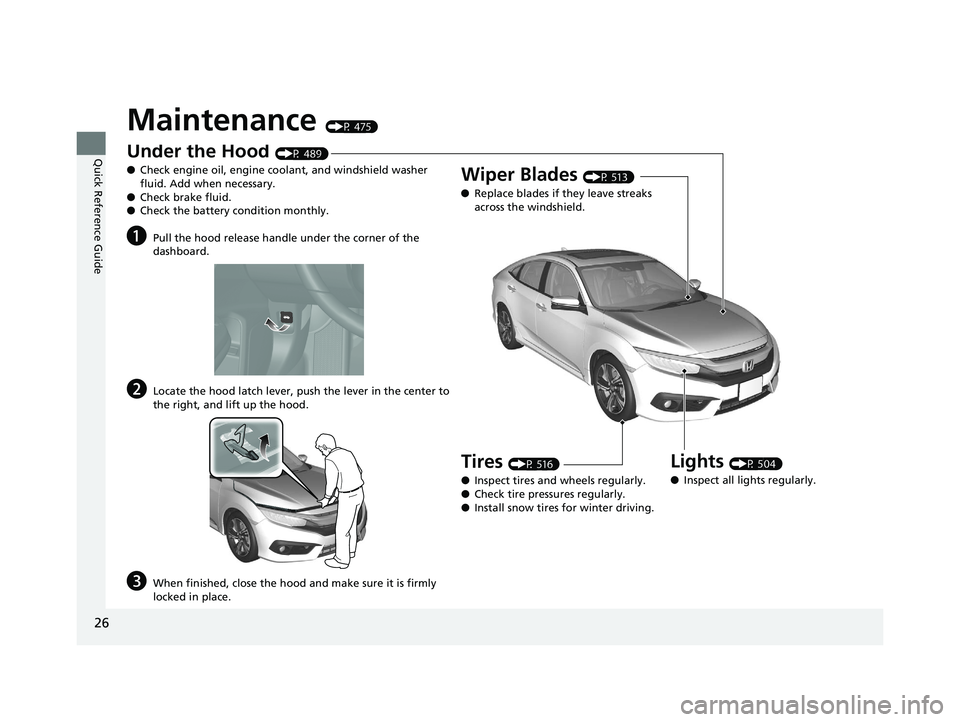

Maintenance (P 475)
Under the Hood (P 489)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pus h the lever in the center to
the right, and lift up the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 504)
● Inspect all lights regularly.
Wiper Blades (P 513)
● Replace blades if they leave streaks
across the windshield.
Tires (P 516)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
16 CIVIC 4D-31TBA6011.book 26 ページ 2018年10月26日 金曜日 午前11時51分
Page 29 of 595
Quick Reference Guide
27

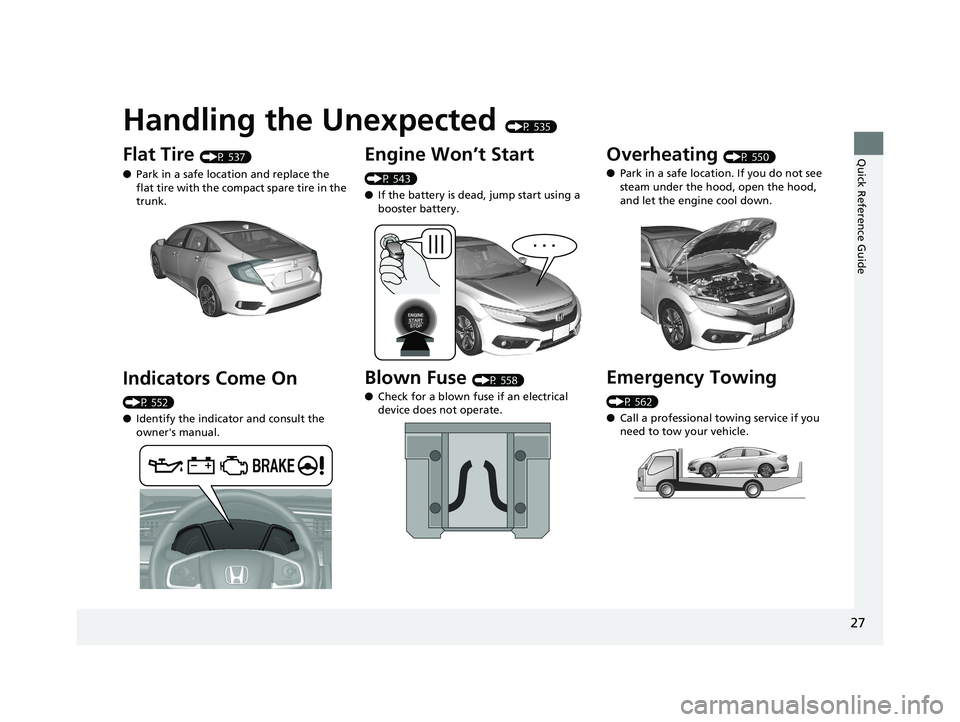

Handling the Unexpected (P 535)
Flat Tire (P 537)
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P 552)
● Identify the indica tor and consult the
owner's manual.
Engine Won’t Start
(P 543)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 558)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 550)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 562)
●Call a professional towing service if you
need to tow your vehicle.
16 CIVIC 4D-31TBA6011.book 27 ページ 2018年10月26日 金曜日 午前11時51分
Page 30 of 595
28
Quick Reference Guide

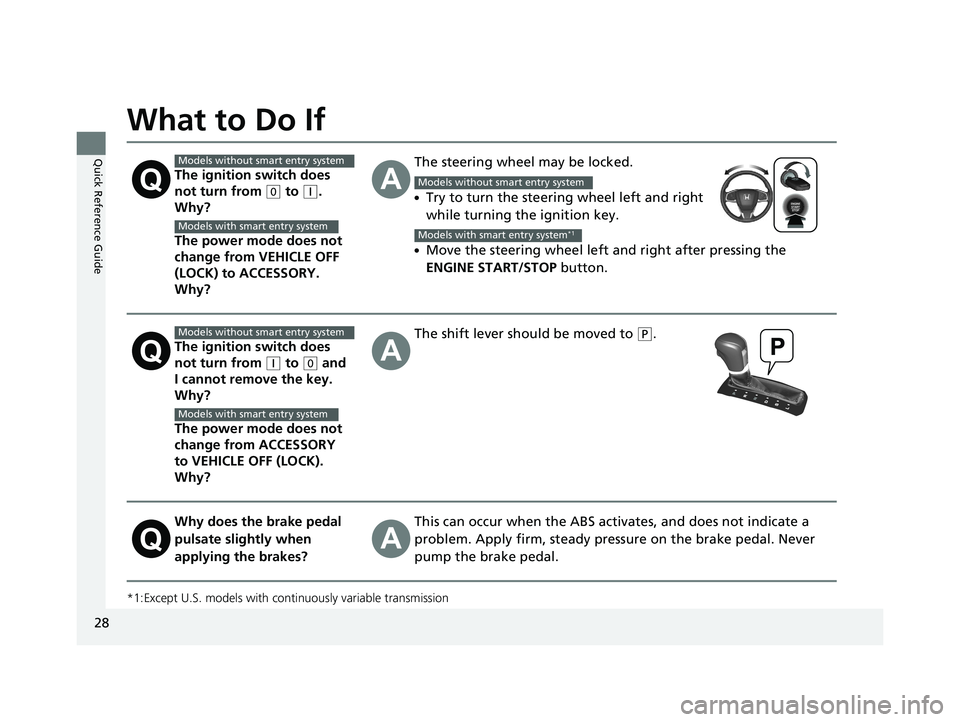

What to Do If
*1:Except U.S. models with continuously variable transmission
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
