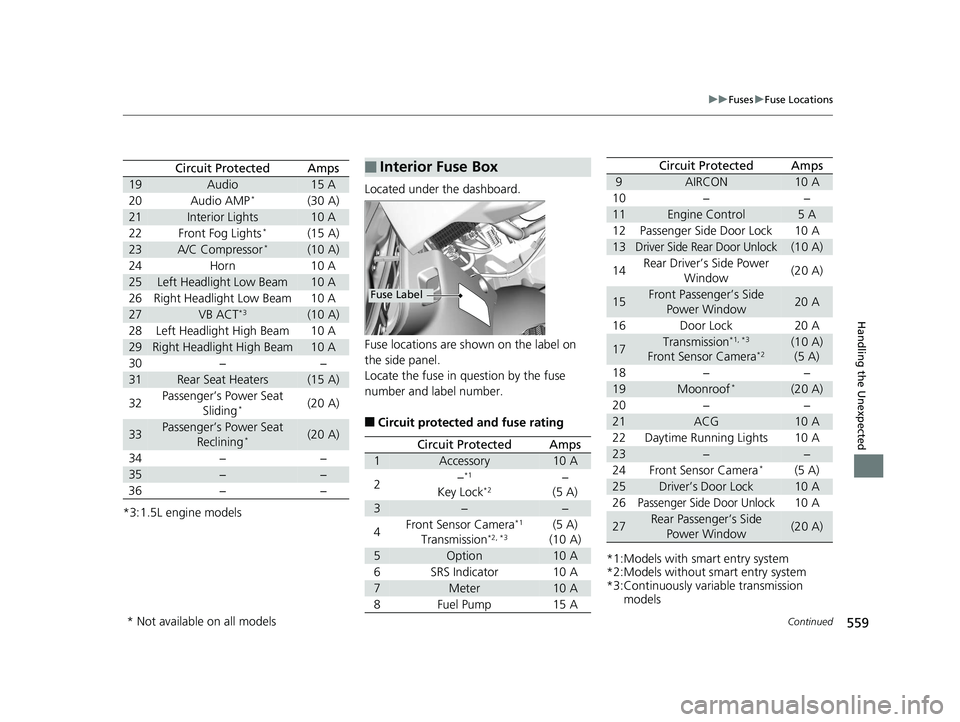

HONDA CIVIC SEDAN 2016 Owner's Manual (in English)

559
uuFuses uFuse Locations
Continued
Handling the Unexpected
*3:1.5L engine models
Circuit ProtectedAmps
19Audio15 A
20 Audio AMP*(30 A)
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor*(10 A)
24 Horn 10 A
25Left Headlight Low Beam10 A
26 Right Headlight Low Beam 10 A
27VB ACT*3(10 A)
28 Left Headlight High Beam 10 A
29Right Headlight High Beam10 A
30 − −
31Rear Seat Heaters(15 A)
32 Passenger’s Power Seat
Sliding
*(20 A)
33Passenger’s Power Seat Reclining*(20 A)
34 − −
35−−
36 − −
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1Accessory10 A
2−*1
Key Lock*2−
(5 A)
3−−
4Front Sensor Camera*1
Transmission*2, *3(5 A)
(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
9AIRCON10 A
10−−
11Engine Control5A
12Passenger Side Door Lock10 A
13Driver Side Rear Door Unlock(10 A)
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2(10 A)(5 A)
18−−
19Moonroof*(20 A)
20−−
21ACG10 A
22Daytime Running Lights10 A
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock10 A
26Passenger Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
Circuit ProtectedAmps
* Not available on all models
16 CIVIC 4D-31TBA6011.book 559 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

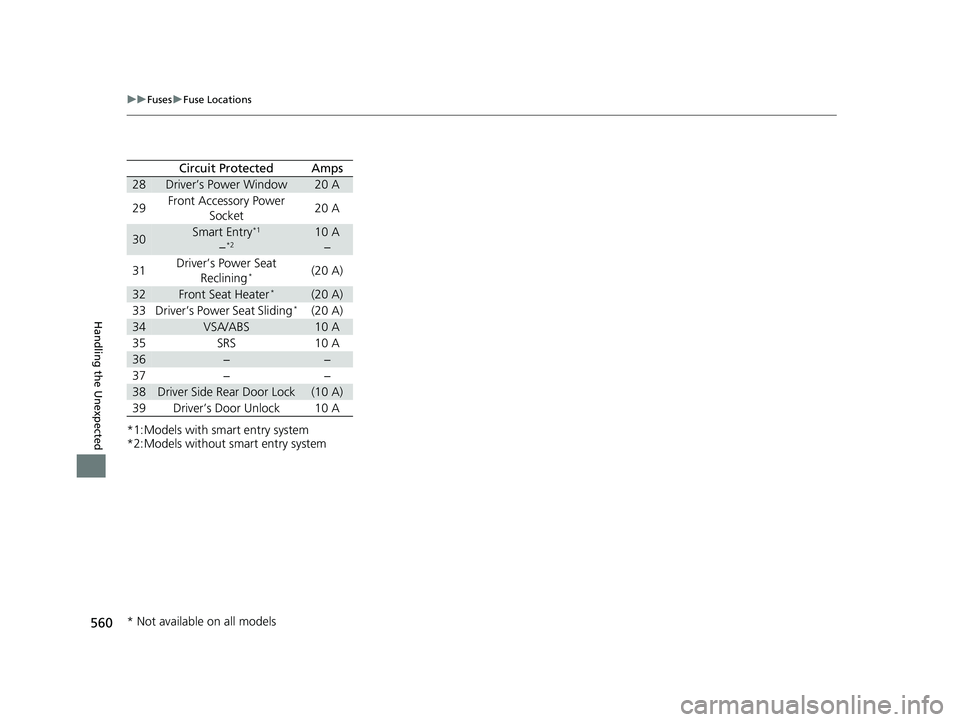

560
uuFuses uFuse Locations
Handling the Unexpected
*1:Models with smart entry system
*2:Models without smart entry system
Circuit ProtectedAmps
28Driver’s Power Window20 A
29Front Accessory Power
Socket20 A
30Smart Entry*1
−*210 A−
31Driver’s Power Seat
Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34VSA/ABS10 A
35SRS10 A
36−−
37−−
38Driver Side Rear Door Lock(10 A)
39Driver’s Door Unlock10 A
* Not available on all models
16 CIVIC 4D-31TBA6011.book 560 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

561
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

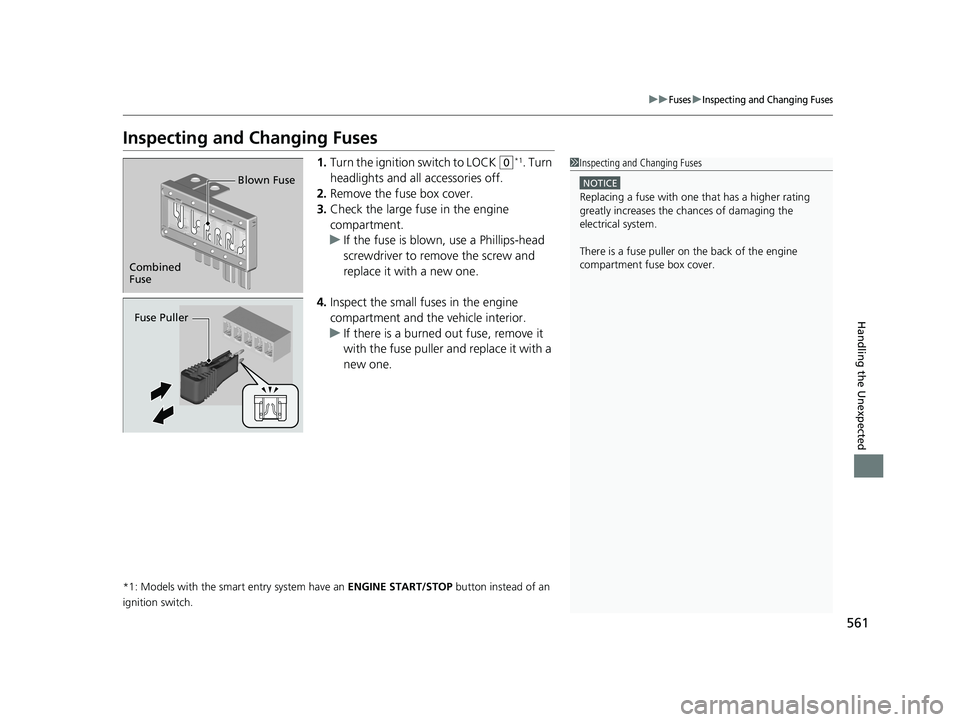

Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
16 CIVIC 4D-31TBA6011.book 561 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

562
Handling the Unexpected

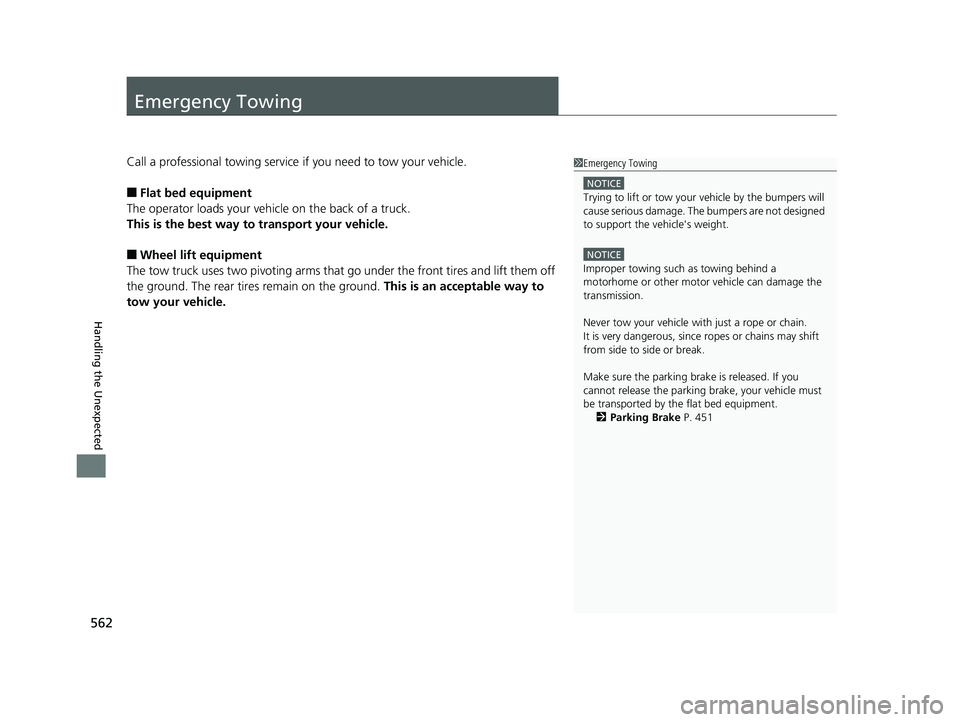

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 451
16 CIVIC 4D-31TBA6011.book 562 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

563
Handling the Unexpected

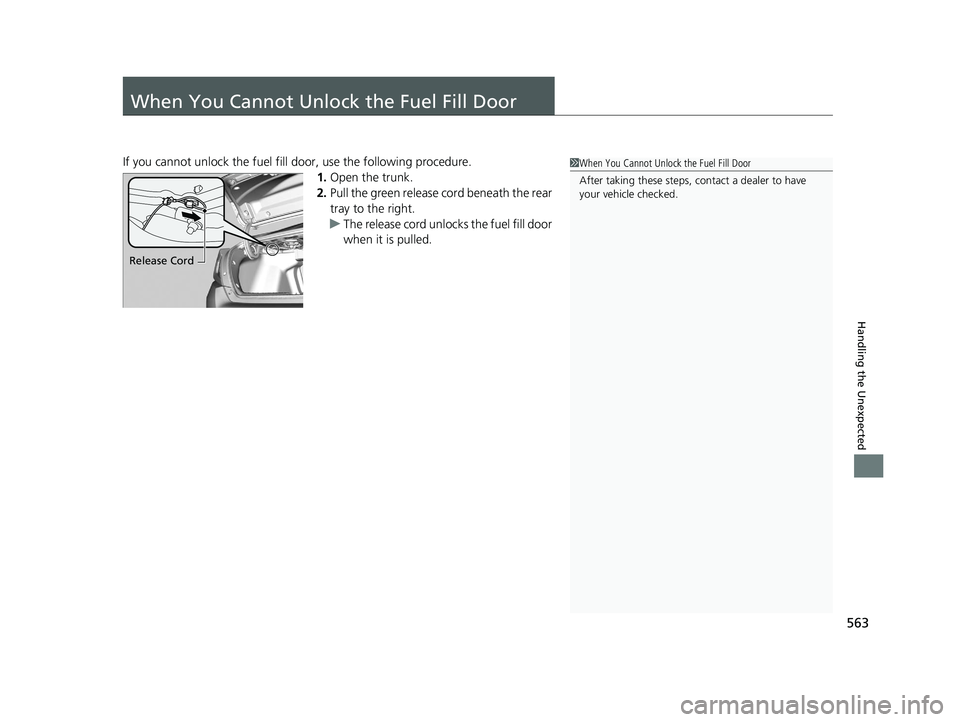

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the trunk.
2. Pull the green release cord beneath the rear
tray to the right.
u The release cord unlocks the fuel fill door
when it is pulled.1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release Cord
16 CIVIC 4D-31TBA6011.book 563 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

564
Handling the Unexpected

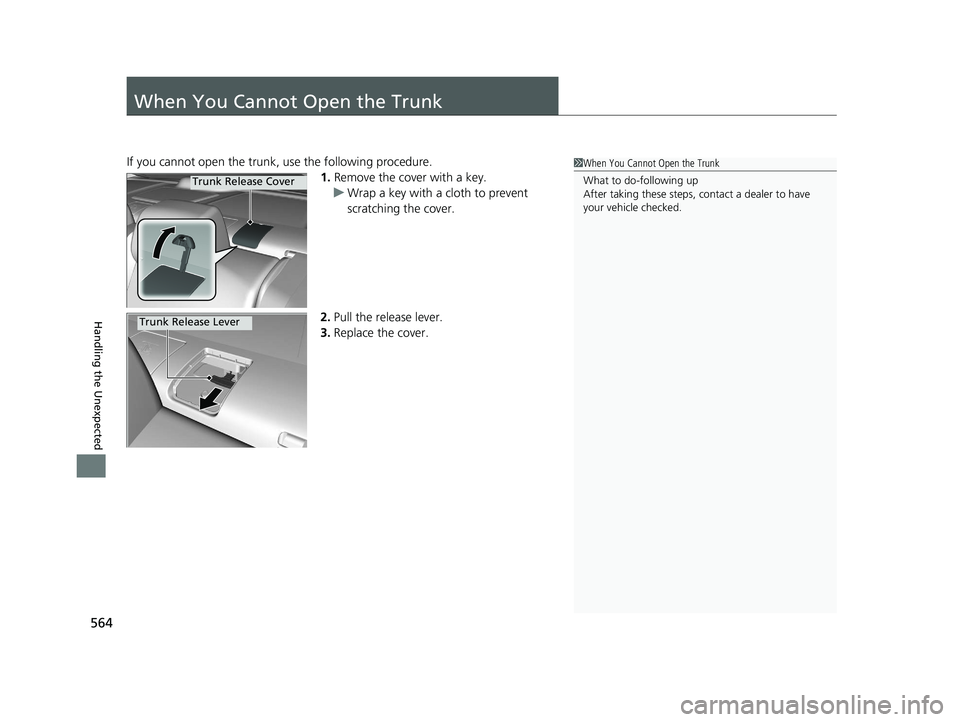

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
u Wrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.1When You Cannot Open the Trunk
What to do-following up
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
16 CIVIC 4D-31TBA6011.book 564 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

565
Handling the Unexpected

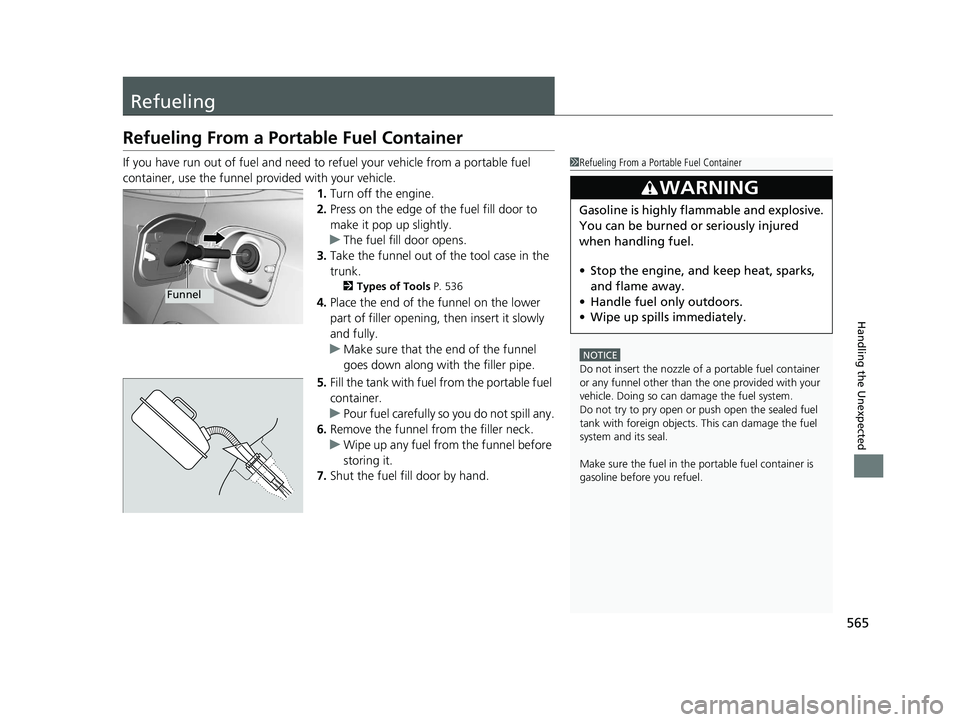

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 536
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
16 CIVIC 4D-31TBA6011.book 565 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

566
16 CIVIC 4D-31TBA6011.book 566 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

567

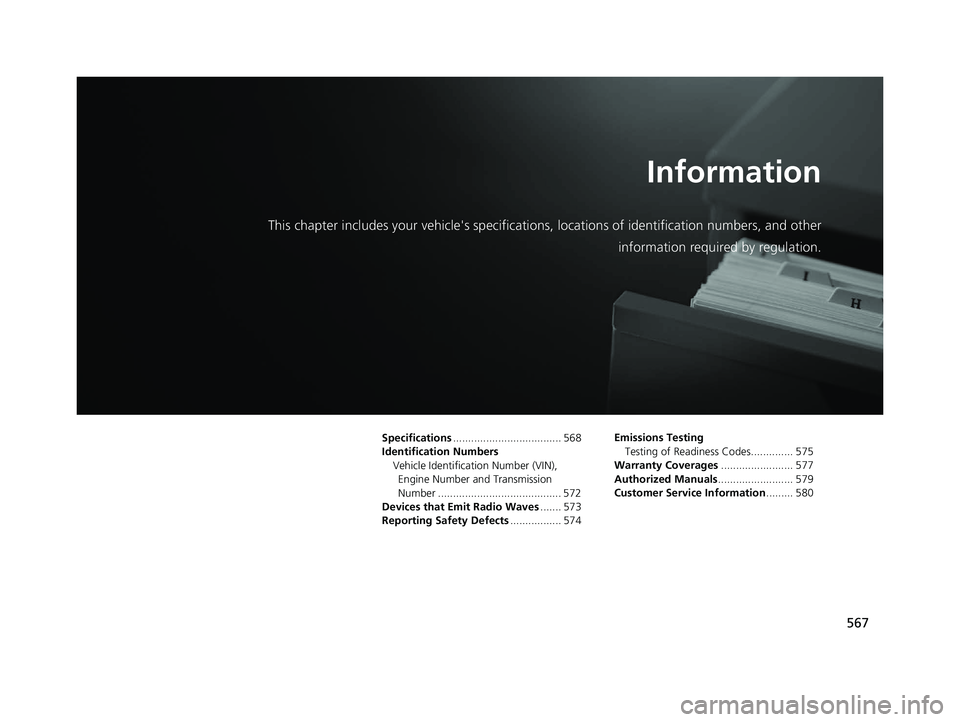

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 568
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 572
Devices that Emit Radio Waves ....... 573
Reporting Safety Defects ................. 574Emissions Testing
Testing of Readiness Codes.............. 575
Warranty Coverages ........................ 577
Authorized Manuals ......................... 579
Customer Service Information ......... 580
16 CIVIC 4D-31TBA6011.book 567 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分

568
Information

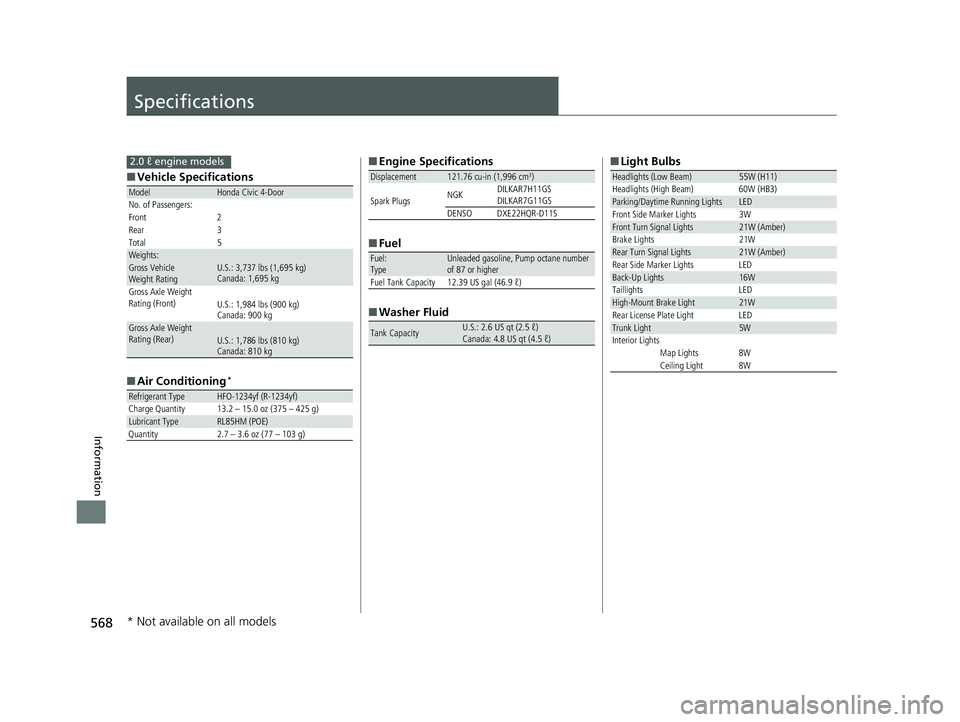

Specifications
■Vehicle Specifications
■ Air Conditioning
*
ModelHonda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,737 lbs (1,695 kg)
Canada: 1,695 kg
Gross Axle Weight
Rating (Front)U.S.: 1,984 lbs (900 kg)
Canada: 900 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,786 lbs (810 kg)
Canada: 810 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 2.7 – 3.6 oz (77 – 103 g)
2.0 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Parking/Daytime Running LightsLED
Front Side Marker Lights 3W
Front Turn Signal Lights21W (Amber)
Brake Lights 21W
Rear Turn Signal Lights21W (Amber)
Rear Side Marker Lights LED
Back-Up Lights16W
Taillights LED
High-Mount Brake Light21W
Rear License Plate Light LED
Trunk Light5W
Interior Lights Map Lights 8W
Ceiling Light 8W
* Not available on all models
16 CIVIC 4D-31TBA6011.book 568 ページ ２０１８年１０月２６日　金曜日　午前１１時５１分
