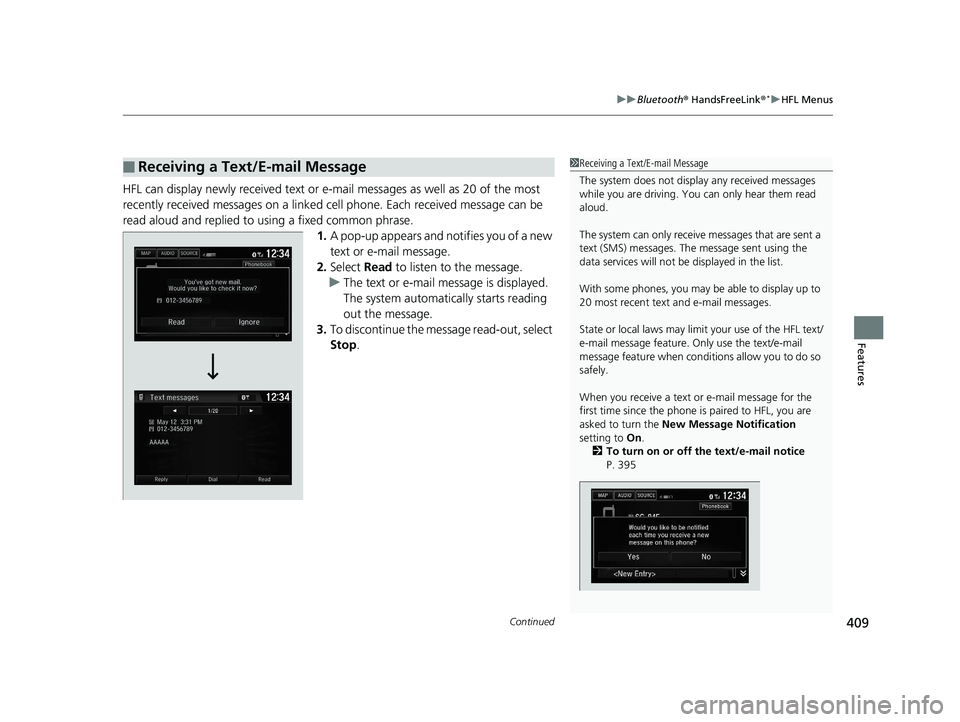

Continued409
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
HFL can display newly received text or e-mail messages as well as 20 of the most
recently received messages on a linked cell phone. Each received message can be
read aloud and replied to using a fixed common phrase.
1.A pop-up appears and notifies you of a new
text or e-mail message.
2. Select Read to listen to the message.
u The text or e-mail message is displayed.
The system automatica lly starts reading
out the message.
3. To discontinue the mess age read-out, select
Stop .
■Receiving a Text/E-mail Message1Receiving a Text/E-mail Message
The system does not display any received messages
while you are driving. You can only hear them read
aloud.
The system can only receive messages that are sent a
text (SMS) messages. The message sent using the
data services will not be displayed in the list.
With some phones, you may be able to display up to
20 most recent text and e-mail messages.
State or local laws may limi t your use of the HFL text/
e-mail message feature. Only use the text/e-mail
message feature when conditions allow you to do so
safely.
When you receive a text or e-mail message for the
first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On .
2 To turn on or off the text/e-mail notice
P. 395
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 409 ページ 2018年10月25日 木曜日 午前11時56分
Page 412 of 643

uuBluetooth ® HandsFreeLink ®*uHFL Menus
410
Features

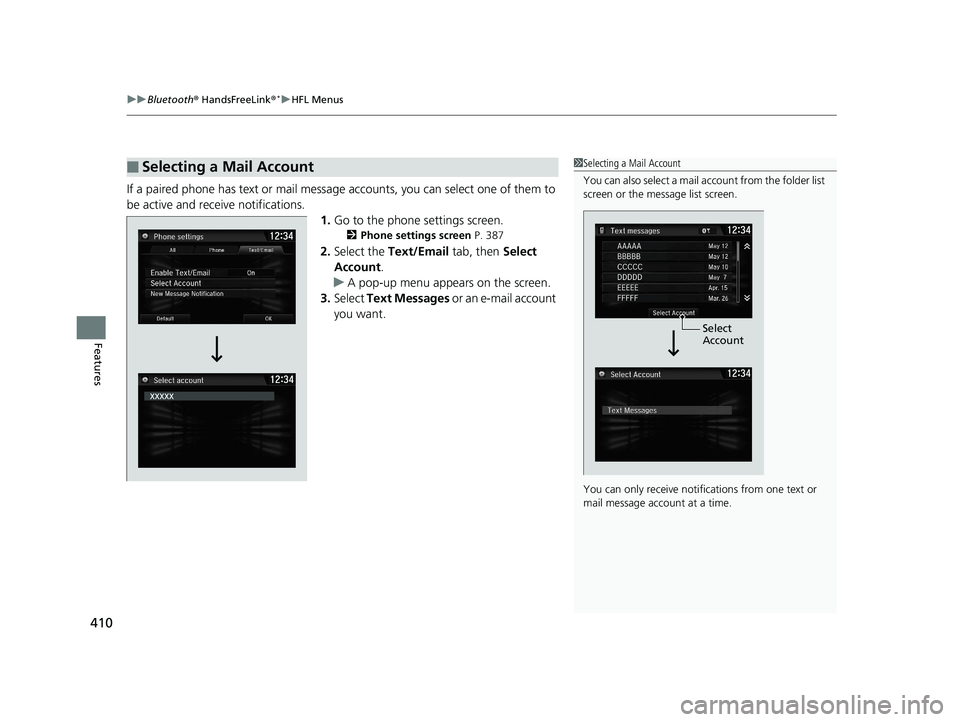

If a paired phone has text or mail message accounts, you can select one of them to
be active and receive notifications.
1.Go to the phone settings screen.
2 Phone settings screen P. 387
2.Select the Text/Email tab, then Select
Account .
u A pop-up menu appears on the screen.
3. Select Text Messages or an e-mail account
you want.
■Selecting a Mail Account1 Selecting a Mail Account
You can also select a mail account from the folder list
screen or the message list screen.
You can only receive notific ations from one text or
mail message account at a time.
Select
Account
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 410 ページ 2018年10月25日 木曜日 午前11時56分
Page 413 of 643

Continued411
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

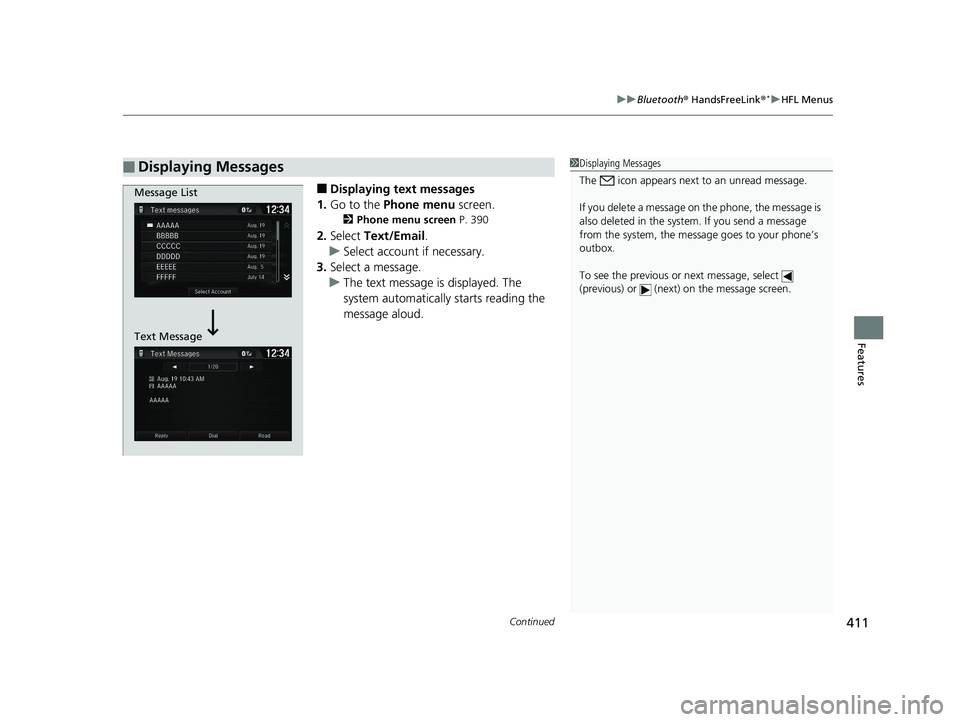

■Displaying text messages
1. Go to the Phone menu screen.
2Phone menu screen P. 390
2.Select Text/Email .
u Select account if necessary.
3. Select a message.
u The text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, select
(previous) or (next) on the message screen.
Message List
Text Message
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 411 ページ 2018年10月25日 木曜日 午前11時56分
Page 414 of 643

412
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

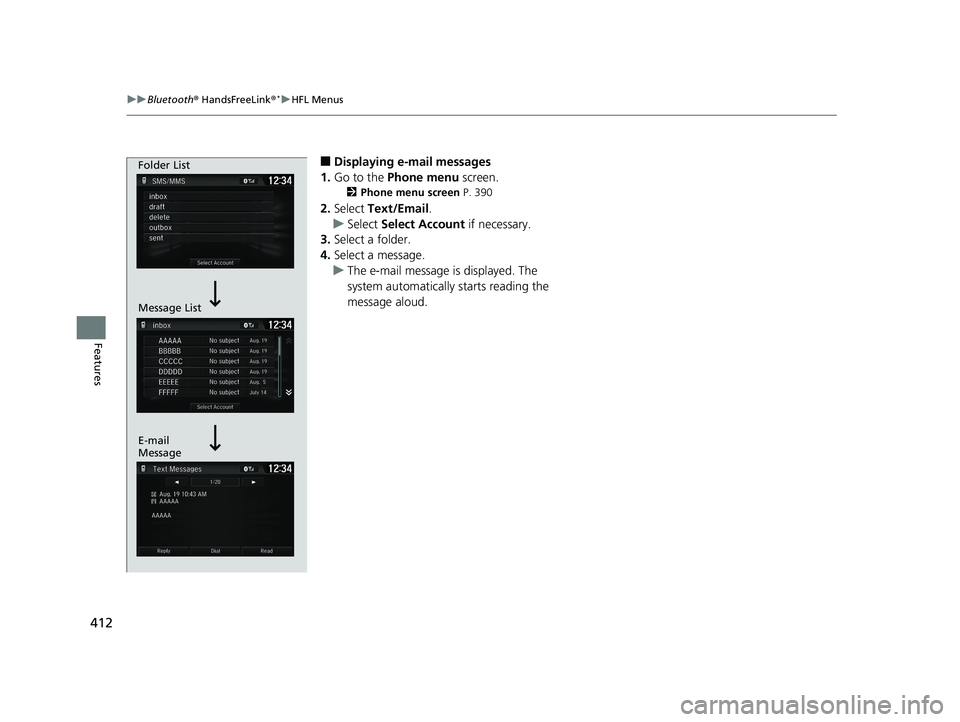

■Displaying e-mail messages
1. Go to the Phone menu screen.
2Phone menu screen P. 390
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail message is displayed. The
system automatically starts reading the
message aloud.
Folder List
Message List
E-mail
Message
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 412 ページ 2018年10月25日 木曜日 午前11時56分
Page 415 of 643

Continued413
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 411
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 411
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receiv e and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit automobiles.honda.com /handsfreelink/,
or call 1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 413 ページ 2018年10月25日 木曜日 午前11時56分
Page 416 of 643

414
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

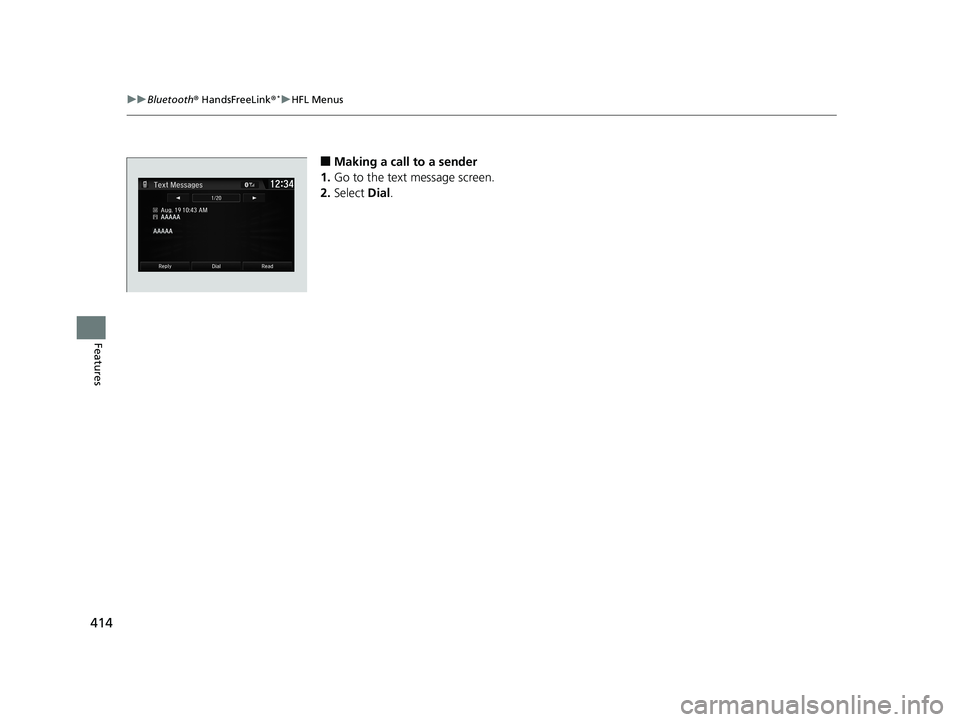

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 414 ページ 2018年10月25日 木曜日 午前11時56分
Page 417 of 643

Continued415
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

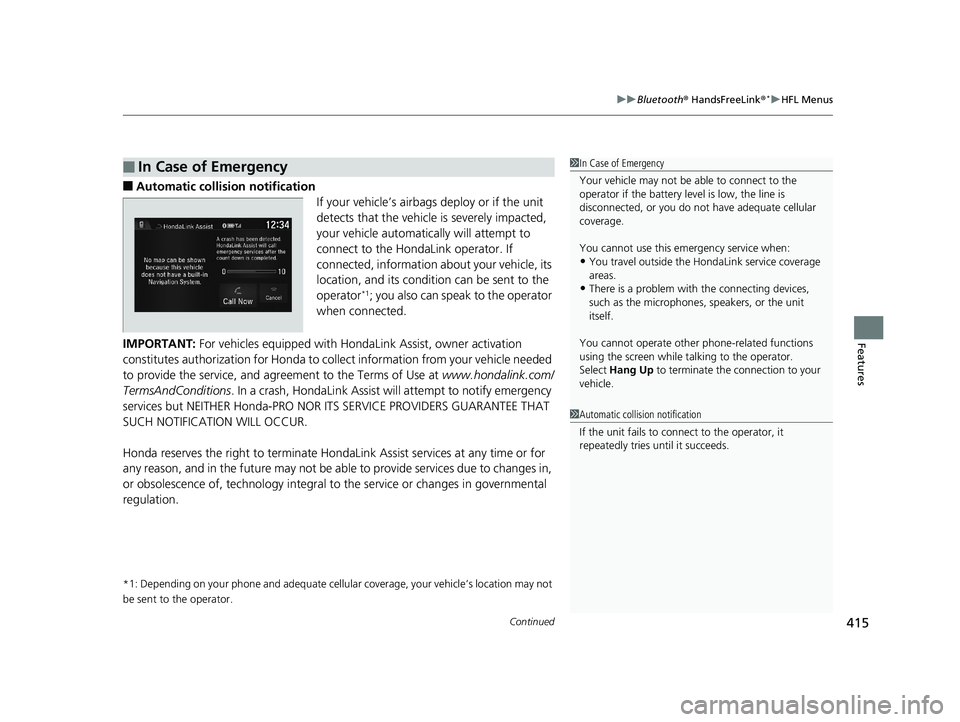

■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with HondaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist will attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellular coverage, your vehicle’s location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 415 ページ 2018年10月25日 木曜日 午前11時56分
Page 418 of 643

uuBluetooth ® HandsFreeLink ®*uHFL Menus
416
Features

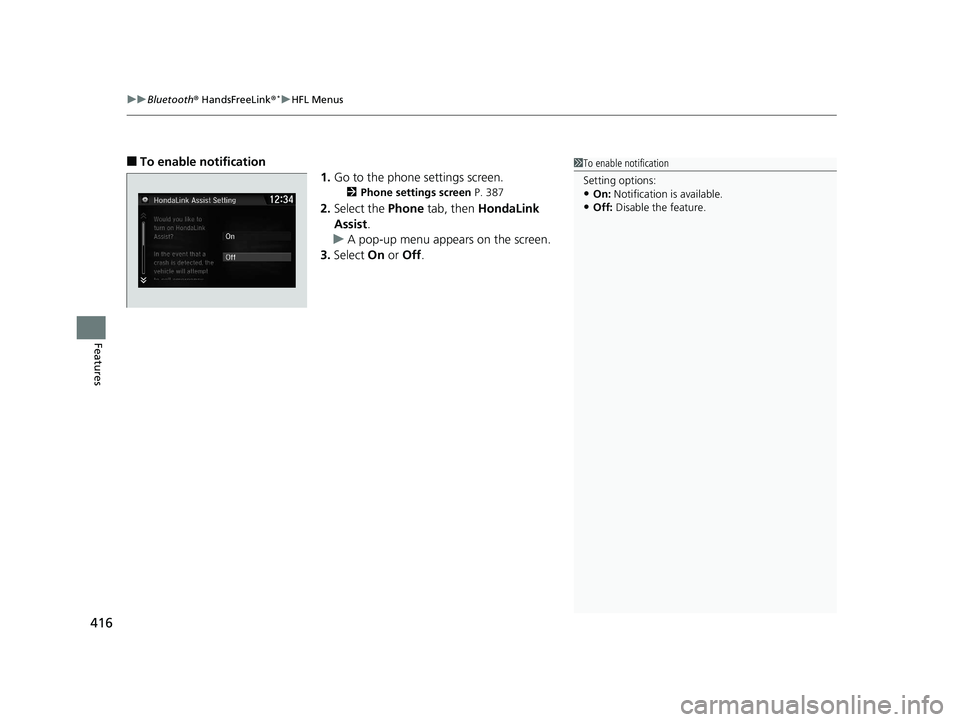

■To enable notification
1.Go to the phone settings screen.
2 Phone settings screen P. 387
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 416 ページ 2018年10月25日 木曜日 午前11時56分
Page 419 of 643

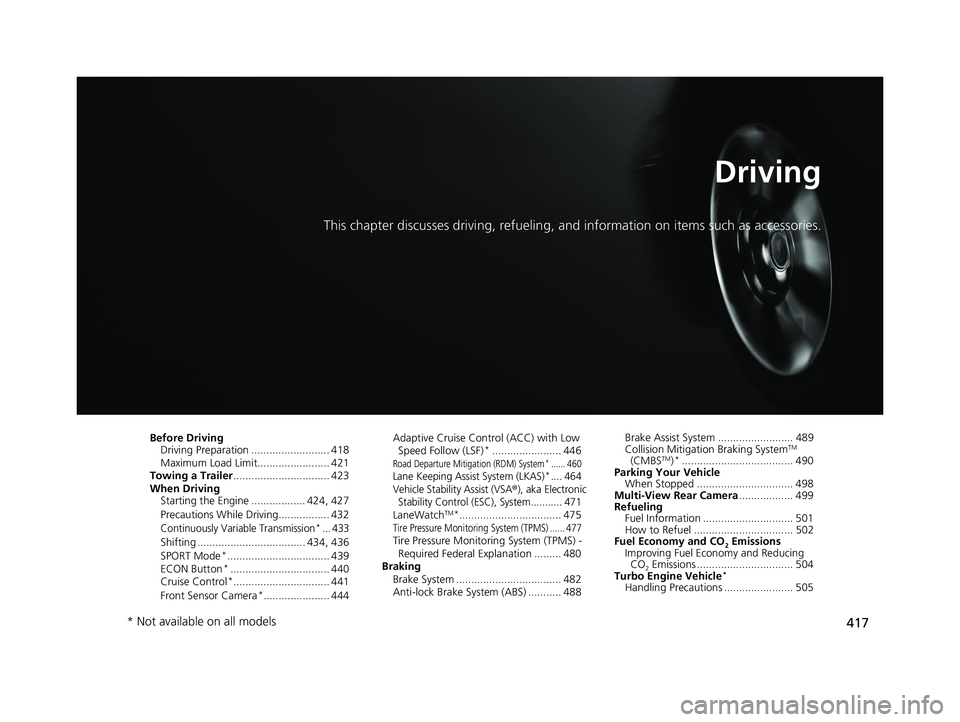

417
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 418
Maximum Load Limit........................ 421
Towing a Trailer ................................ 423
When Driving Starting the Engine .................. 424, 427
Precautions While Driving................. 432
Continuously Variable Transmission*... 433
Shifting .................................... 434, 436
SPORT Mode*.................................. 439
ECON Button*................................. 440
Cruise Control*................................ 441
Front Sensor Camera*...................... 444 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)
*....................... 446Road Departure Mitigation (RDM) System*...... 460Lane Keeping Assist System (LKAS)*.... 464
Vehicle Stabilit y Assist (VSA®), aka Electronic
Stability Control (ESC), System........... 471
LaneWatchTM*.................................. 475Tire Pressure Monitoring System (TPMS) ...... 477Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 480
Braking Brake System ................................... 482
Anti-lock Brake System (ABS) ........... 488 Brake Assist System ......................... 489
Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 490
Parking Your Vehicle When Stopped ................................ 498
Multi-View Rear Camera .................. 499
Refueling Fuel Information .............................. 501
How to Refuel ................................. 502
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing
CO
2 Emissions ................................ 504
Turbo Engine Vehicle*
Handling Precautions ....................... 505
* Not available on all models
17 CIVIC 4D HCM (KA KC KL)-31TBA6111.book 417 ページ 2018年10月25日 木曜日 午前11時56分
Page 420 of 643

418
Driving

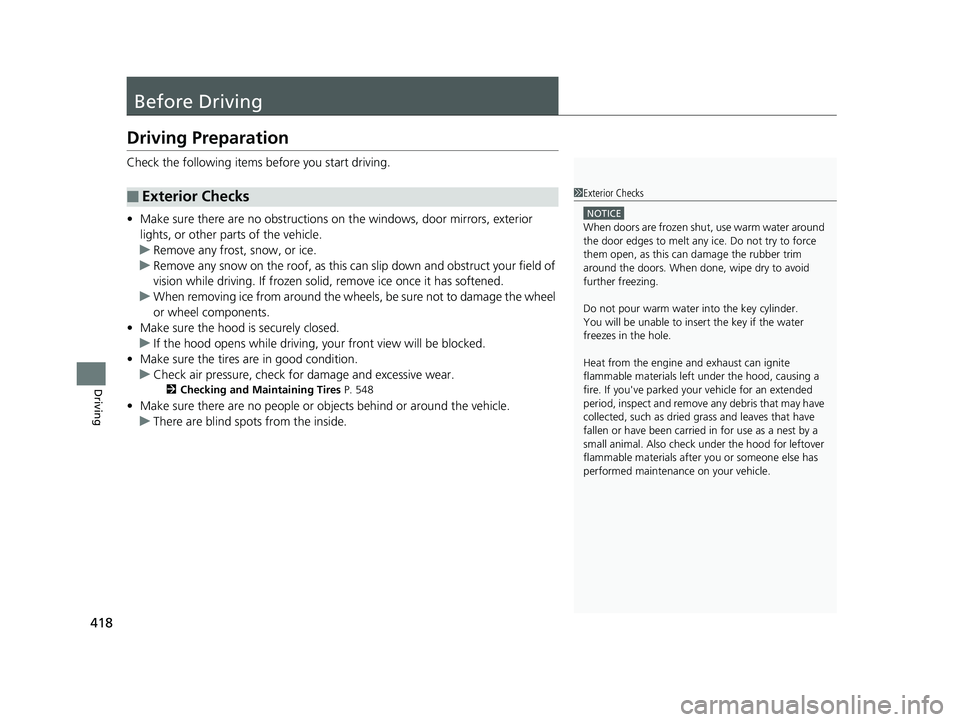

Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 548
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
