HONDA CIVIC SEDAN 2018 (in English) User Guide

9
Quick Reference Guide

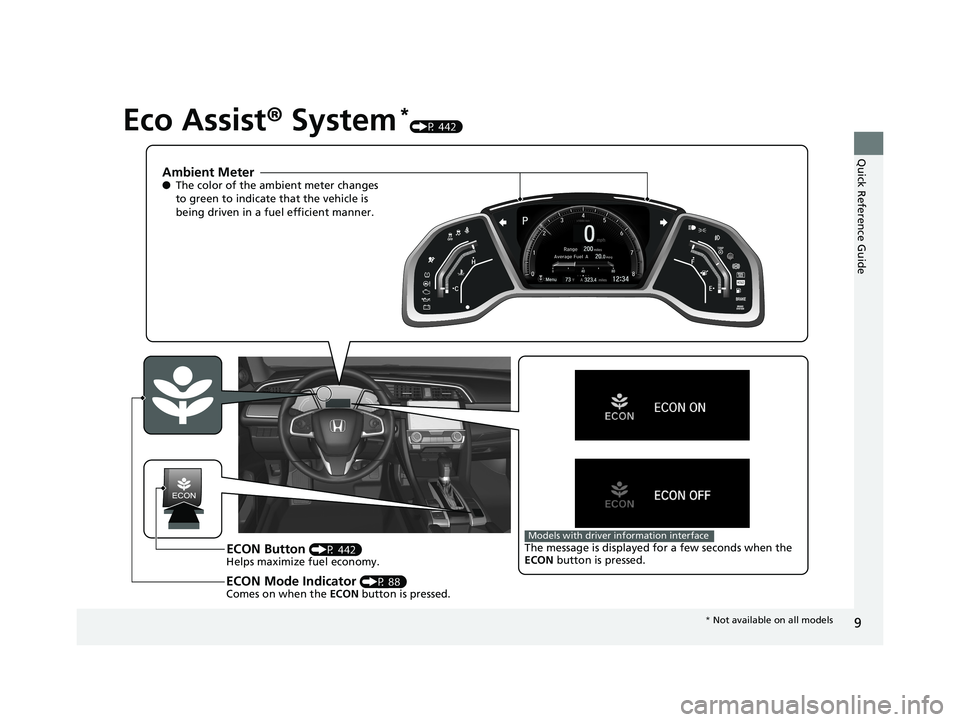

Eco Assist® System*(P 442)
Ambient Meter●The color of the ambient meter changes
to green to indicate that the vehicle is
being driven in a fuel efficient manner.
ECON Button (P 442)
Helps maximize fuel economy.
ECON Mode Indicator (P 88)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.Models with driver information interface
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 9 ページ ２０１８年１０月３０日　火曜日　午前７時２８分

10
Quick Reference Guide
Safe Driving (P 33)
Airbags (P 46)
● Your vehicle is fitted with airb ags to help to protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 73)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 10 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

11
Quick Reference Guide

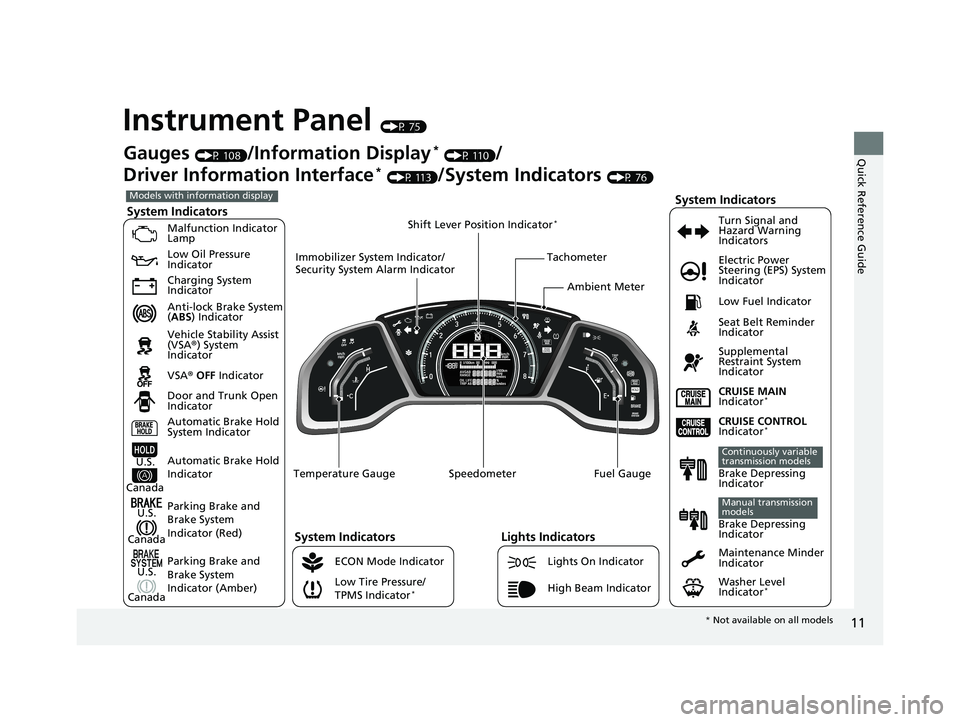

Instrument Panel (P 75)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator*
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door and Trunk Open
Indicator CRUISE MAIN
Indicator
*
Tachometer
Speedometer Fuel Gauge
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P 108)/Information Display* (P 110)/
Driver Information Interface
* (P 113)/System Indicators (P 76)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Washer Level
Indicator
*
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature GaugeBrake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
Indicator
Manual transmission
models
Ambient Meter
*
Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 11 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

12
Quick Reference Guide
200
323.412‰34Menu40 80

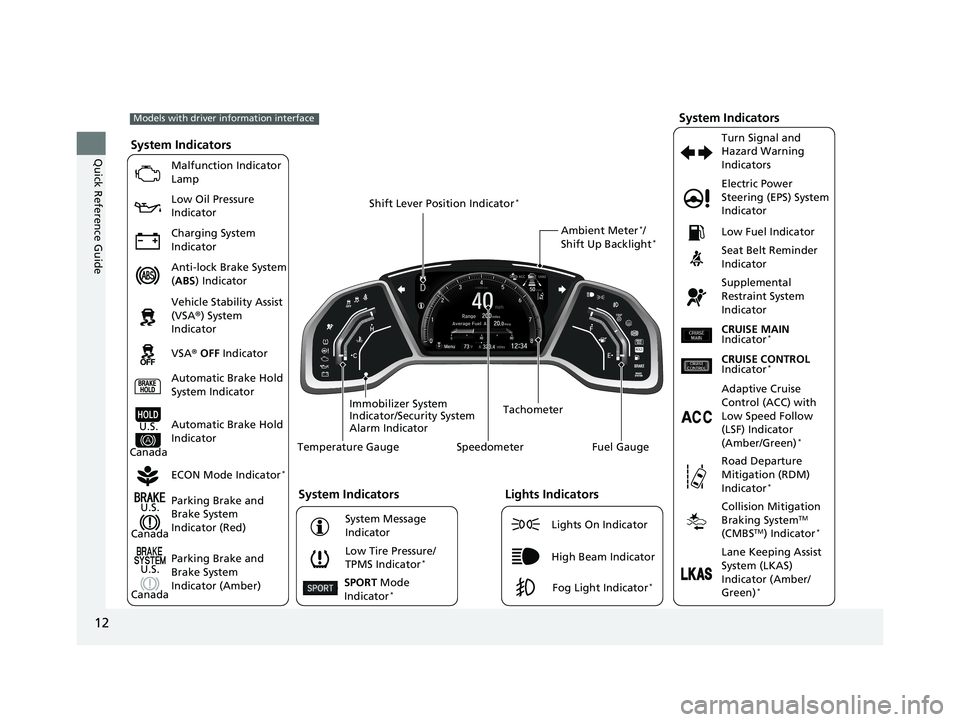

System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Speedometer Fuel Gauge
Immobilizer System
Indicator/Security System
Alarm Indicator Shift Lever Position Indicator
*
Low Fuel Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System IndicatorsU.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)
*
System Message
Indicator Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
*
CRUISE CONTROL
Indicator*
CRUISE MAIN
Indicator*
SPORT Mode
Indicator*
Ambient Meter*/
Shift Up Backlight*
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 12 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

13
Quick Reference Guide

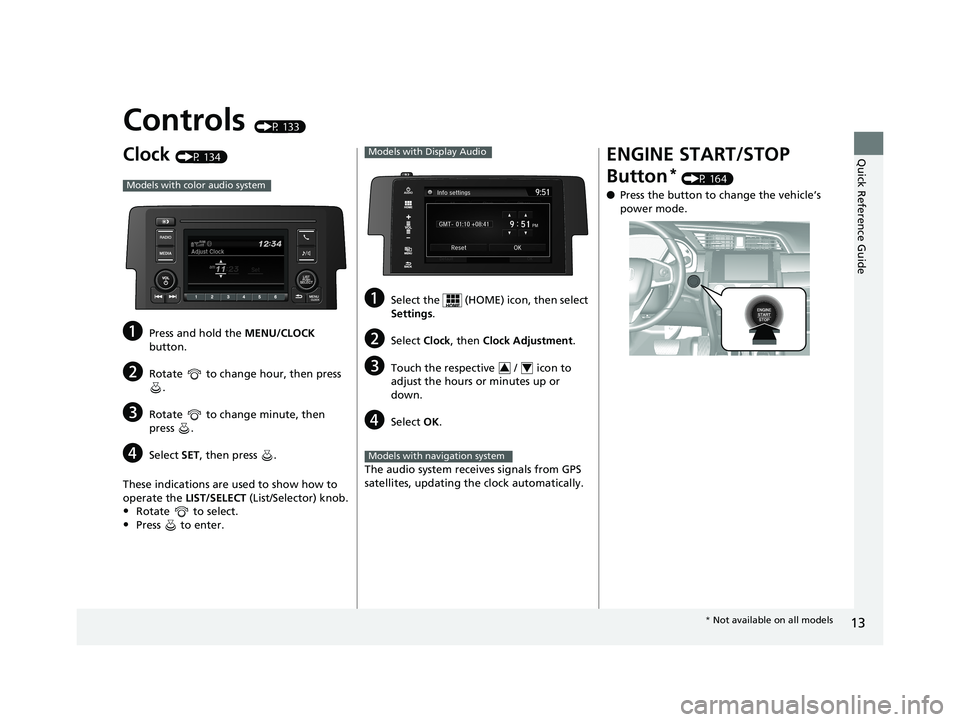

Controls (P 133)
Clock (P 134)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aSelect the (HOME) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The audio system receives signals from GPS
satellites, updating the clock automatically.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 164)
● Press the button to change the vehicle’s
power mode.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 13 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

14
Quick Reference Guide

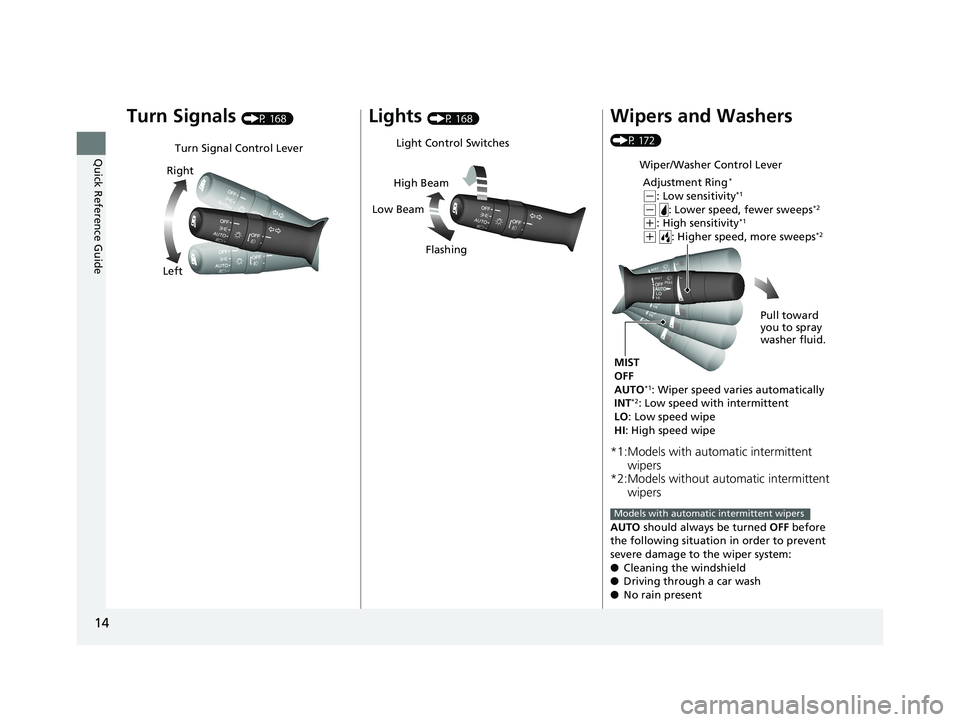

Turn Signals (P 168)
Turn Signal Control Lever
Right
Left
Lights (P 168)
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 172)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
(-: Low sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 14 ページ ２０１８年１０月３０日　
火曜日　午前７時２８分

15
Quick Reference Guide
Steering Wheel (P 176)
● To adjust, pull the adjustment lever up,
adjust to the desired position, then push
down the lever back in place.
Unlocking the Front
Doors from the Inside
(P 147)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P 153)
● To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
remote transmitter or the smart entry
remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors
(P 178)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 159)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 15 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

16
Quick Reference Guide

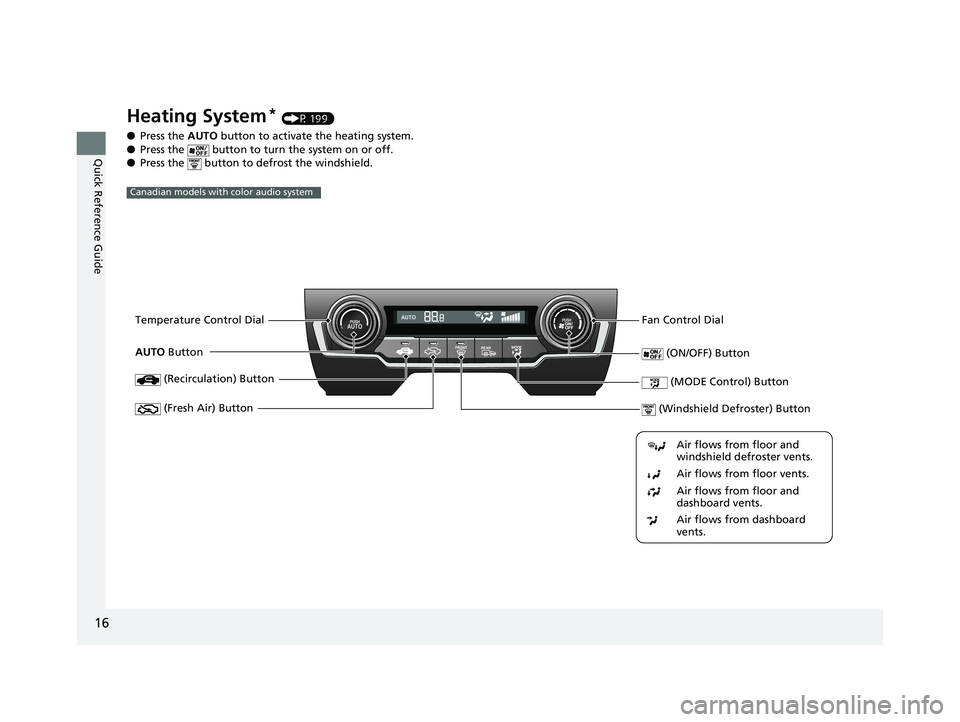

Heating System* (P 199)
● Press the AUTO button to activate the heating system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
Canadian models with color audio system
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button (MODE Control) Button
(Fresh Air) Button
(ON/OFF) ButtonAUTO Button
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 16 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

17
Quick Reference Guide

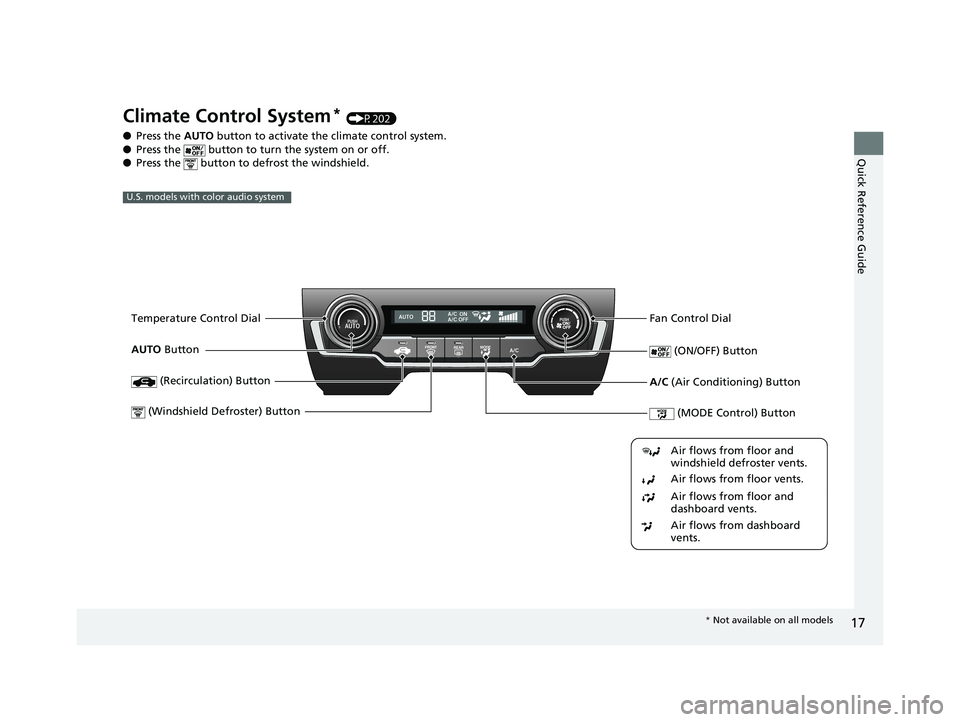

Climate Control System* (P202)
● Press the AUTO button to activate th e climate control system.
● Press the button to turn the system on or off.
● Press the button to de frost the windshield.
U.S. models with color audio system
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) ButtonAUTO Button
A/C (Air Conditioning) Button
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 17 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

18
Quick Reference Guide

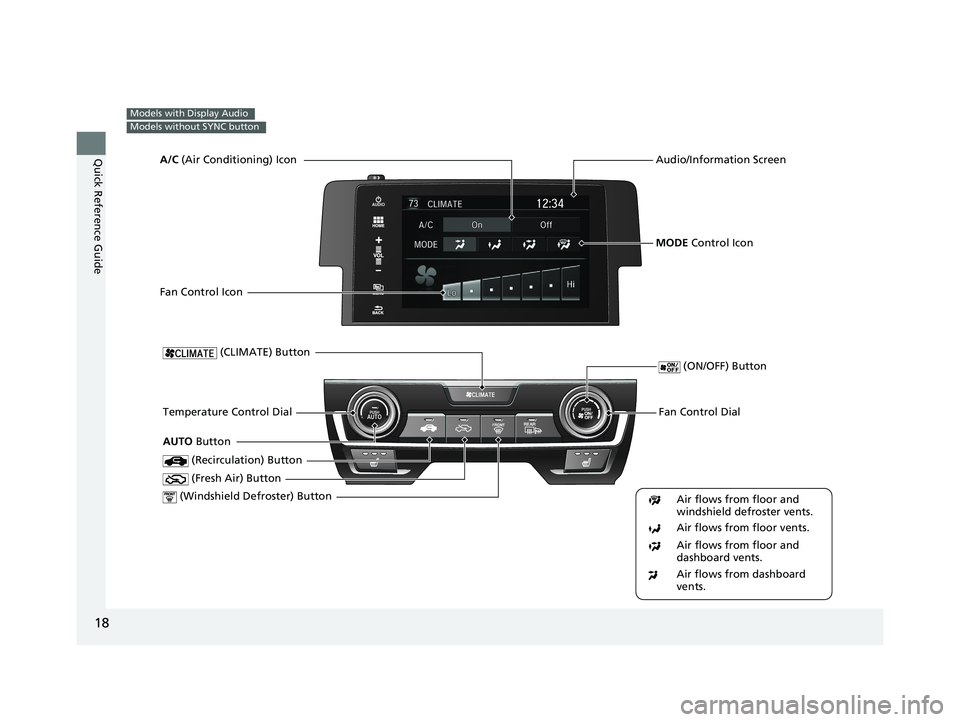

Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE) Button
(Fresh Air) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
MODE Control Icon
A/C
(Air Conditioning) Icon
Fan Control Icon
