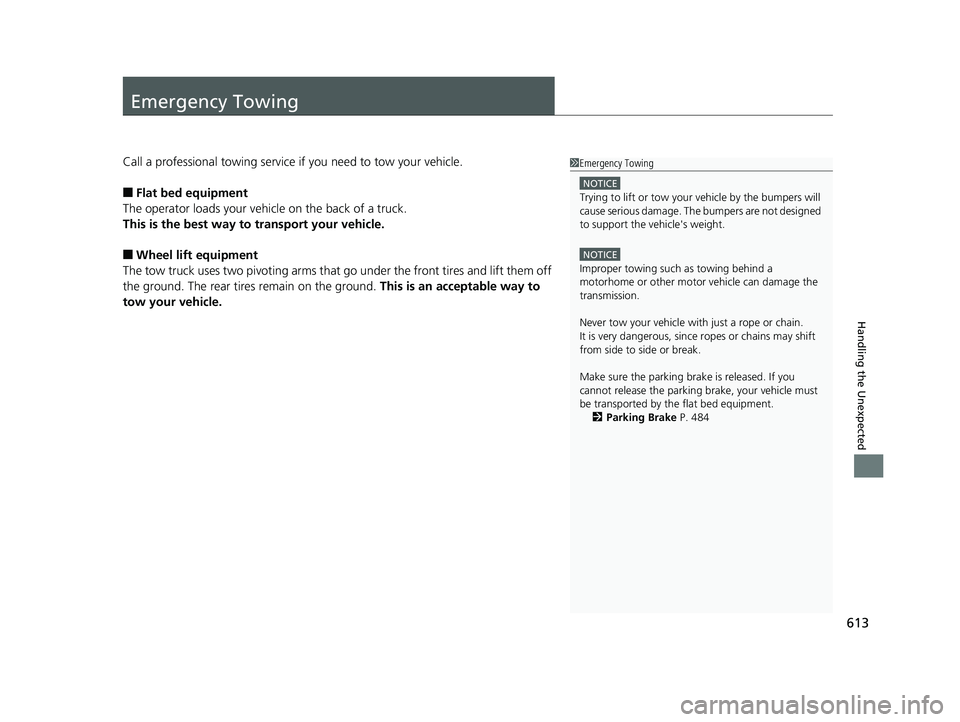

613
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 484
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 613 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

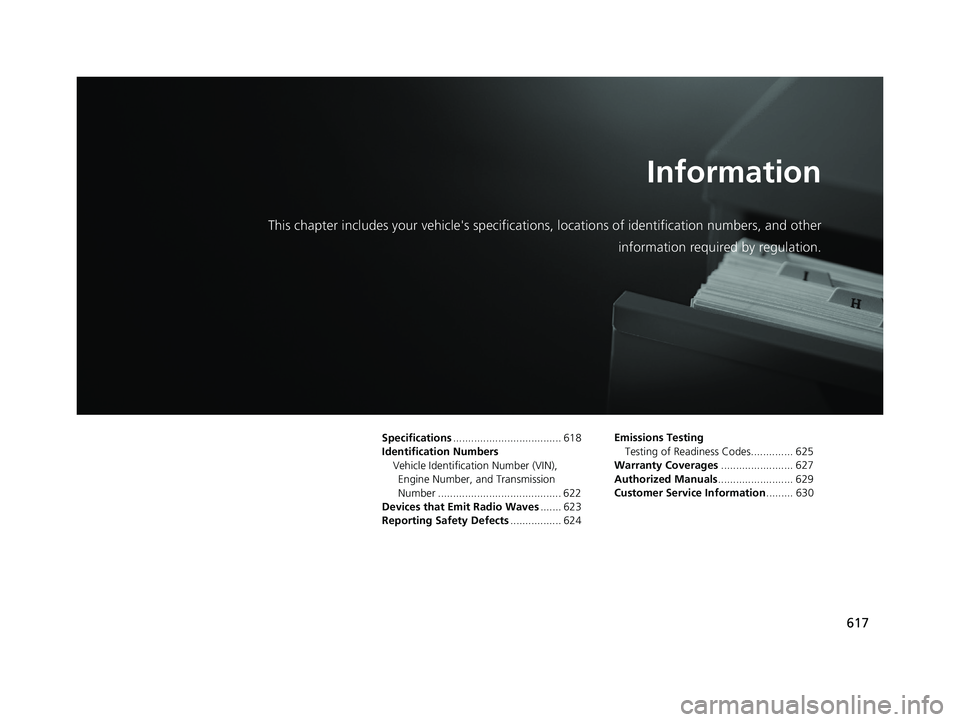

617
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 618
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 622
Devices that Emit Radio Waves ....... 623
Reporting Safety Defects ................. 624Emissions Testing
Testing of Readiness Codes.............. 625
Warranty Coverages ........................ 627
Authorized Manuals ......................... 629
Customer Service Information ......... 630
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 617 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

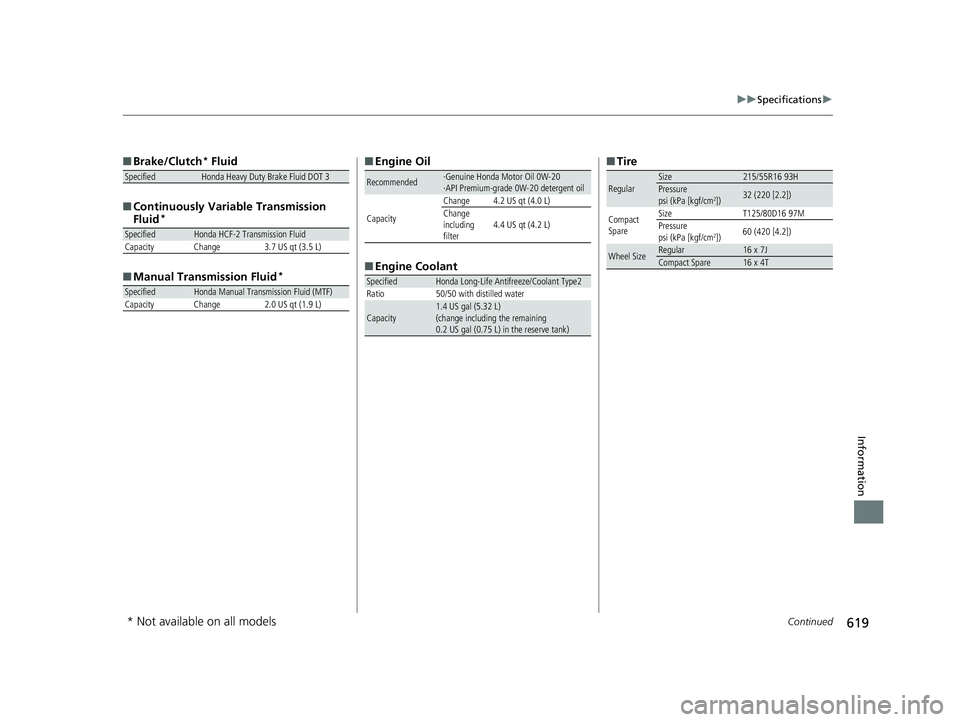

619
uuSpecifications u
Continued
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.7 US qt (3.5 L)
SpecifiedHonda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.4 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
RegularSize215/55R16 93HPressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare Size
T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 7JCompact Spare16 x 4T
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 619 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

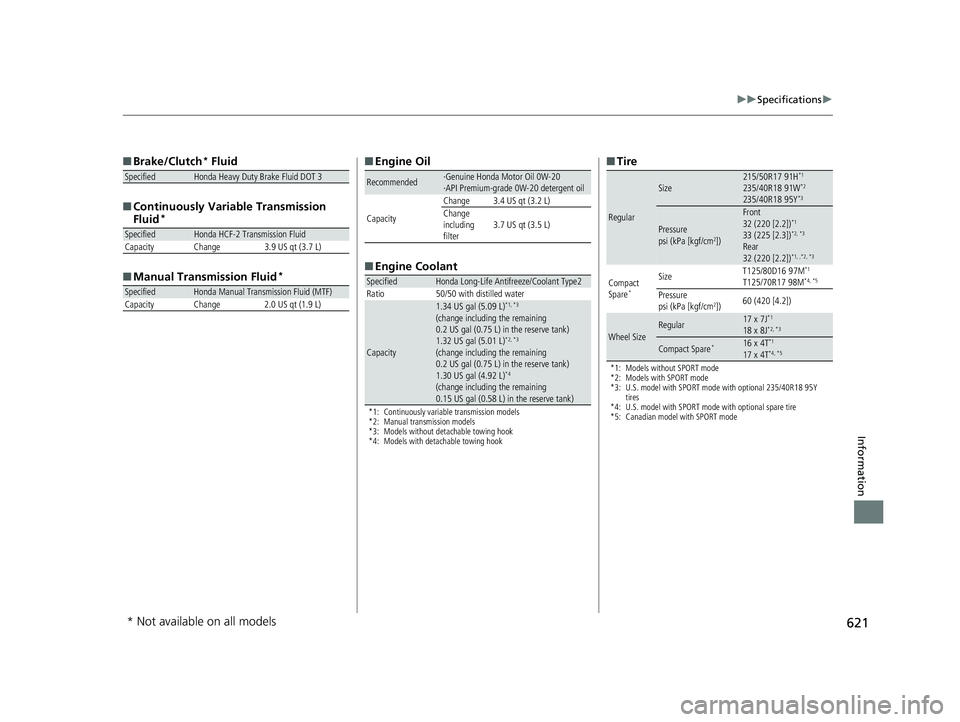

621
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 L)
SpecifiedHonda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
*3: Models without detachable towing hook
*4: Models with detachable towing hook
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.34 US gal (5.09 L)*1, *3
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)
*2, *3
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.30 US gal (4.92 L)
*4
(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)
■ Tire
*1: Models without SPORT mode
*2: Models with SPORT mode
*3: U.S. model with SPORT mode with optional 235/40R18 95Y
tires
*4: U.S. model with SPORT mode with optional spare tire
*5: Canadian model with SPORT mode
Regular
Size215/50R17 91H*1
235/40R18 91W*2
235/40R18 95Y*3
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])*1
33 (225 [2.3])*2, *3
Rear
32 (220 [2.2])*1, ,*2, *3
Compact
Spare*
Size T125/80D16 97M*1
T125/70R17 98M*4, *5
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular17 x 7J*1
18 x 8J*2, *3
Compact Spare*16 x 4T*1
17 x 4T*4, *5
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 621 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

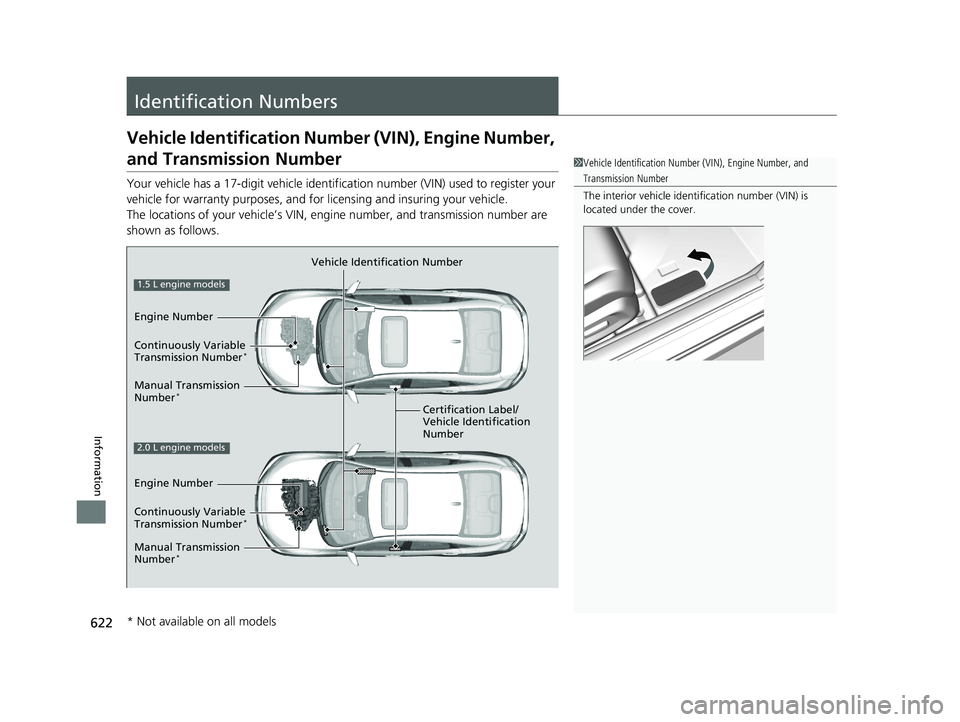

622
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models
1.5 L engine models
Continuously Variable
Transmission Number*
Engine Number
Manual Transmission
Number
*
Continuously Variable
Transmission Number*
Manual Transmission
Number*
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 622 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

625Continued
Information

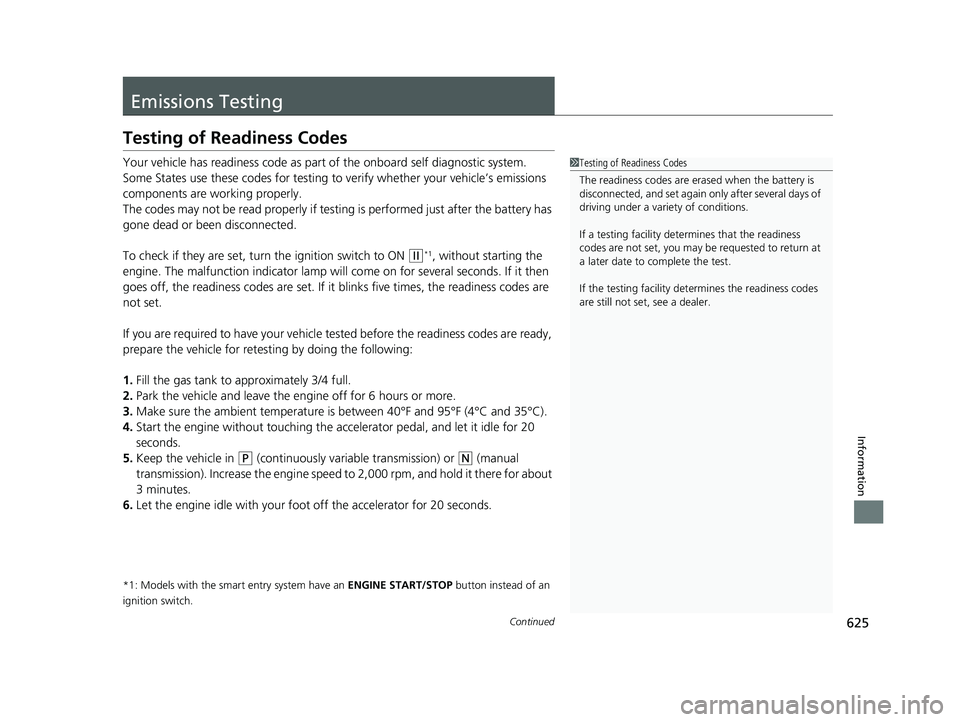

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 625 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

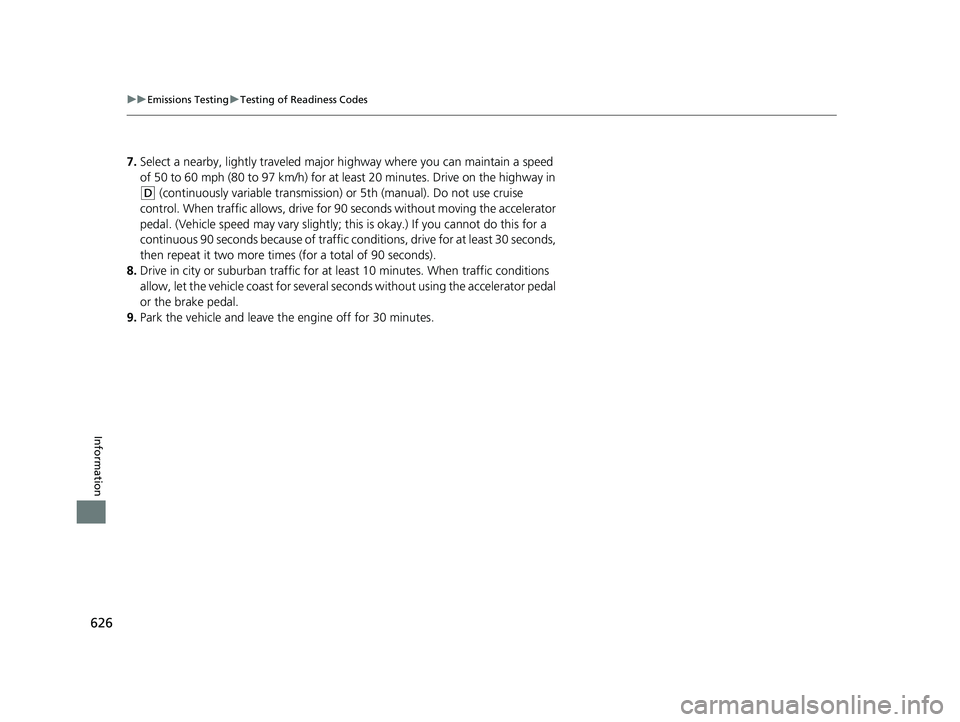

626
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows , drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more time s (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 626 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

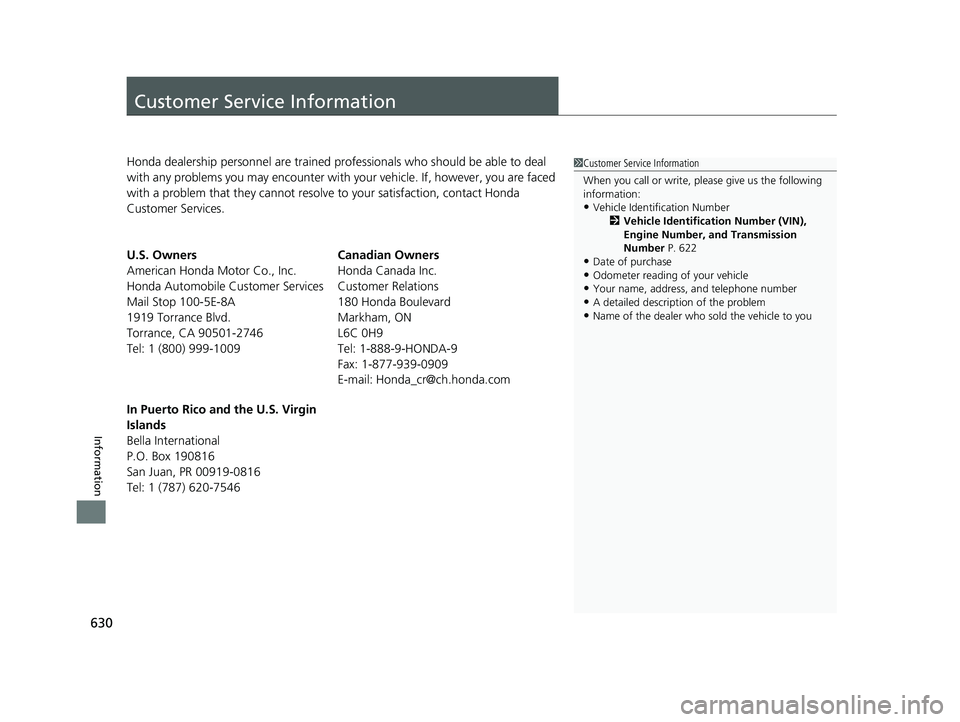

630
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico an d the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 622
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 630 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

632
Index
B
Battery....................................................... 560
Charging System Indicator ................. 79, 603
Jump Starting .......................................... 597
Maintenance (Checking the Battery) ........ 560
Maintenance (Replacing).......................... 562
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 191
Bluetooth ® Audio ............................. 234, 290
Bluetooth ® HandsFreeLink ®............. 361, 385
Booster Seats (For Children) ....................... 72
Brake System ............................................. 484
Anti-lock Brake System (ABS) ................... 490
Automatic Brake Hold.............................. 487
Brake Assist System ................................. 491
Fluid ........................................................ 536
Foot Brake ............................................... 486
Indicator (Red) ........................... 76, 605, 606
Parking Brake .......................................... 484
Braking Pressure Meter ............................ 120
Brightness Control (Instrument Panel) .... 174
Bulb Replacement ..................................... 538
Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Lights and Back-Up Lights .... 545
Fog Lights ................................................ 540
Front Side Marker Lights .......................... 543
Front Turn Signal Lights ........................... 542
Headlights ............................................... 538
High-Mount Brake Light .......................... 546 Parking/Daytime Running Lights .............. 544
Rear License Plate Light ........................... 546
Side Turn Signal/Emergency Indicator
Lights .................................................... 544
Taillights.................................................. 546
Bulb Specifications ........................... 618, 620
C
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 421, 423
Certification Label .................................... 622
Changing Bulbs ........................................ 538
Charging System Indicator ................. 79, 603
Child Safety ................................................. 60
Childproof Door Locks............................. 148
Emergency Trunk Opener ........................ 155
Child Seat .................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder Seat Belt ......................................................... 67
Larger Children ......................................... 71
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 567
Cleaning the Interior ................................ 565 Climate Control System
........................... 202
Changing the Mode................................ 202
Defrosting the Windshield and Windows .............................................. 206
Dust and Pollen Filter .............................. 564
Recirculation/Fresh Air Mode................... 205
Sensors ................................................... 209
Synchronized Mode ................................ 208
Using Automatic Climate Control............ 202
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 492
Coat Hooks ............................................... 196
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 492
Compact Spare Tire .................. 575, 619, 621
Console Compartment ............................. 190
Continuously Variable Transmission
Creeping................................................. 435
Fluid ....................................................... 535
Kickdown ............................................... 435
Operating the Shift Lever .................. 24, 437
Shift Lever Does Not Move ...................... 600
Shifting ................................................... 436
Controls .................................................... 133
Coolant (Engine) ...................................... 533
Adding the Coolant ................................ 534
Overheating ............................................ 601
Creeping (Continuously Variable
Transmission) .......................................... 435
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 632 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

633
Index
Cruise Control.......................................... 443
Indicator ................................................... 88
Cup Holders .............................................. 191
Customer Service Information ................ 630
Customized Features ....................... 124, 328
D
Daytime Running Lights .......................... 171
Dead Battery ............................................ 597
Defaulting All the Settings ...................... 360
Defrosting the Windshield and Windows ......................................... 200, 206
Devices that Emit Radio Waves ............... 623
Dimming Headlights .............................................. 168
Rearview Mirror ...................................... 177
Dipstick (Engine Oil) ................................ 527
Directional Signals (Turn Signal) ............. 168
Display Button .......................................... 238
Display Setup .................................... 225, 260
Display/Information Button .................... 114
Door Mirrors ............................................. 178
Doors ........................................................ 136
Auto Door Locking.................................. 149
Auto Door Unlocking .............................. 149
Door and Trunk Open Indicator........... 37, 83
Door Open Message ........................... 37, 96 Keys ........................................................ 136
Locking/Unlocking the Doors from
the Inside............................................... 146
Locking/Unlocking the Doors from the Outside............................................ 139
DOT Tire Quality Grading ........................ 553
Driver Information Interface ................... 113
Warning and Information Messages .......... 96
Driving ....................................................... 419
Braking .................................................... 484
Continuously Variable Transmission ......... 435
Cruise Control ......................................... 443
Shifting Gear ........................................... 438
Shifting Position ...................................... 436
Starting the Engine .......................... 426, 429
Dust and Pollen Filter ............................... 564
E
Eco Assist® System ........................................ 9
ECON Button ............................................. 442
Elapsed Time ............................................. 117
Electric Power Steering (EPS) System ........ 83
Indicator ............................................ 83, 607
Electronic Stability Control (ESC) ............. 473
Emergency ................................................ 613
Emergency Engine Stop ........................... 596
Emergency Trunk Opener ................ 155, 615Emissions Testing (Readiness Codes)
....... 625
Engine
Coolant ................................................... 533
Jump Starting .......................................... 597
Oil ........................................................... 526
Starting ........................................... 426, 429
Switch Buzzer.......................................... 163
Engine Coolant ......................................... 533
Adding the Coolant................................. 534
Overheating ............................................ 601
Temperature Gauge ................................ 109
Engine Oil ................................................. 526
Adding .................................................... 529
Checking................................................. 527
Displaying Maintenance Minder Information ................................... 513, 518
Low Oil Pressure Indicator ................. 78, 603
Recommended Engine Oil ....................... 526
ENGINE START/STOP Button .................... 164
EPS (Electric Power Steering) System ...... 607
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 567
Exterior Mirrors ........................................ 178
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 633 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
