wheel HONDA CIVIC SEDAN 2018 Owner's Manual (in English)

Contents
Child Safety P. 60Exhaust Gas Hazard P. 73Safety Labels P. 74
Opening and Closing the Trunk P. 153 Security System P. 156 Opening and Closing the Windows P. 159
Operating the Switches Around the Steering Wheel P. 163 Adjusting the Mirrors P. 177
Interior Lights/Interior Conven ience Items P. 187 Heating System
* P. 199
Audio Error Messages P. 307General Information on the Audio System P. 310
When Driving P. 426 Braking P. 484Parking Your Vehicle P. 500
Fuel Economy and CO
2 Emissions P. 506 Turbo Engine Vehicle* P. 507
Maintenance Under the Hood P. 523 Replacing Light Bulbs P. 538
Checking and Maintaining Tires P. 550 Battery P. 560 Remote Transmitter Care P. 562
Cleaning P. 565 Accessories and Modifications P. 570
Engine Does Not Start P. 594 Jump Starting P. 597 Shift Lever Does Not Move P. 600
Fuses P. 609 Emergency Towing P. 613 When You Cannot Unlock the Fuel Fill Door P. 614
Devices that Emit Radio Waves P. 623 Reporting Safety Defects P. 624
Authorized Manuals P. 629 Customer Service Information P. 630
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 75
ControlsP. 133
FeaturesP. 211
DrivingP. 419
MaintenanceP. 509
Handling the UnexpectedP. 573
InformationP. 617
IndexP. 631
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 3 ページ ２０１８年１０月３０日　火曜日　午前７時２８分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P163)
❙ENGINE START/STOP Button*1 (P164)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙Tire Pressure Monitoring System
(TPMS) Button* (P480)
❙Information Display* (P110)
❙System Indicators (P76)
❙Gauges (P108)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button* (P495)
❙ (Vehicle Stability Assist (VSA ®)
System OFF) Button
(P474)
❙Road Departure Mitigation (RDM)
Button* (P463)
❙Navigation System*
() See Navigation System Manual
❙Audio System (P219, 237)
❙Hazard Warning Button
❙Rear Window Defogger (P175)
❙Heated Door Mirror Button* (P175)
❙Heating System* (P199)
❙Climate Control System* (P202)
❙Front Seat Heater Buttons* (P197)
❙Steering Wheel Adjustments (P176)
❙Driver Information Interface* (P113)
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 4 ページ ２０１８年１０月３０日　火曜日　午前７時２８分

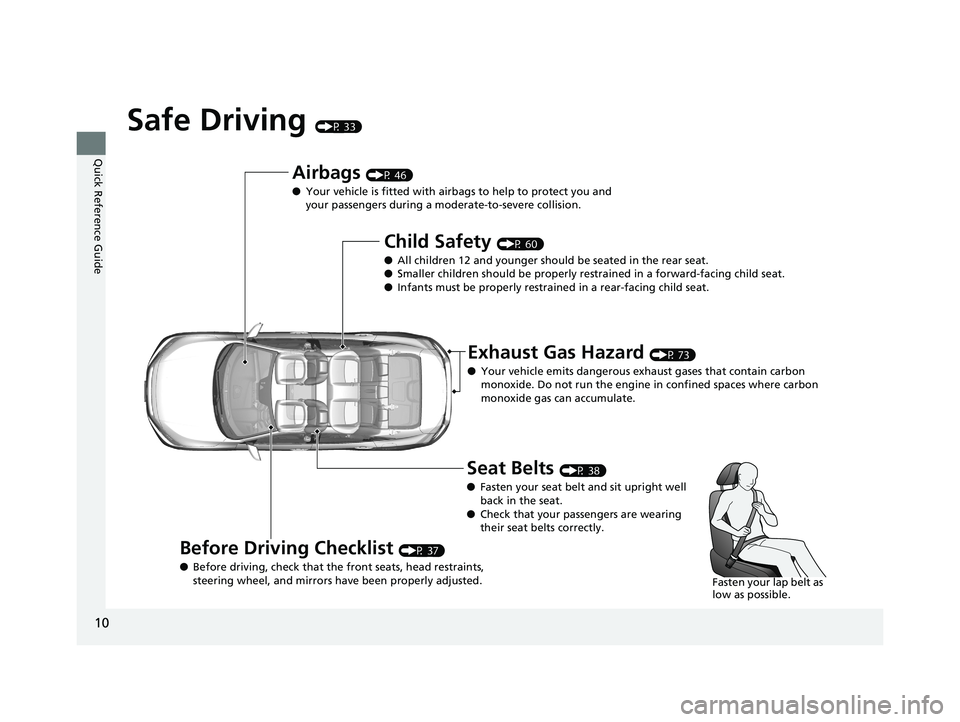

10
Quick Reference Guide
Safe Driving (P 33)
Airbags (P 46)
● Your vehicle is fitted with airb ags to help to protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 73)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 10 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

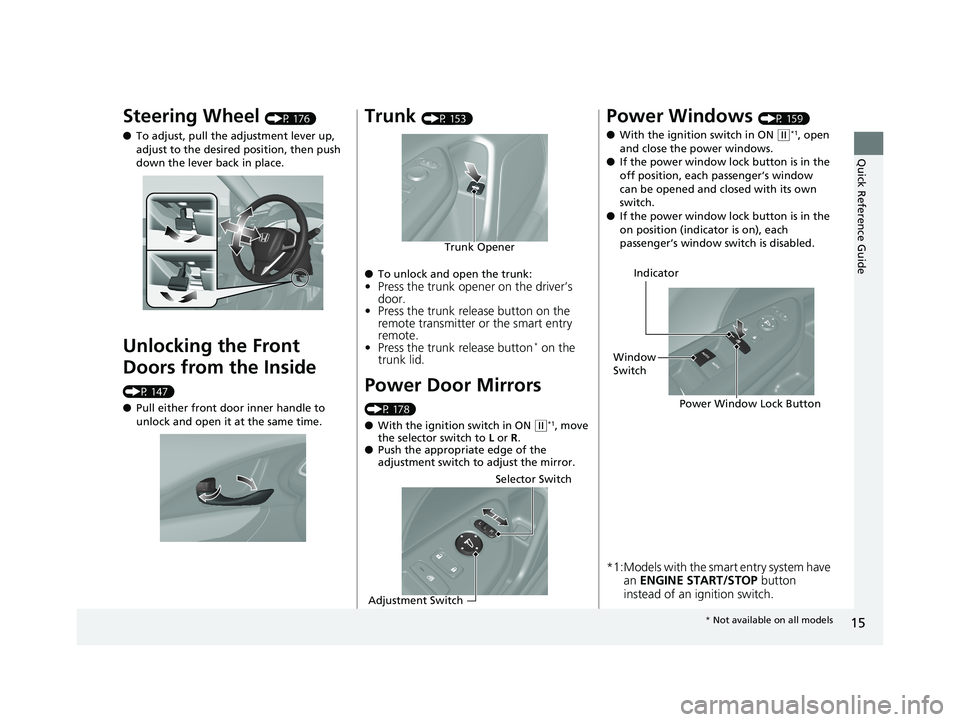

15
Quick Reference Guide
Steering Wheel (P 176)
● To adjust, pull the adjustment lever up,
adjust to the desired position, then push
down the lever back in place.
Unlocking the Front
Doors from the Inside
(P 147)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P 153)
● To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
remote transmitter or the smart entry
remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors
(P 178)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 159)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 15 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

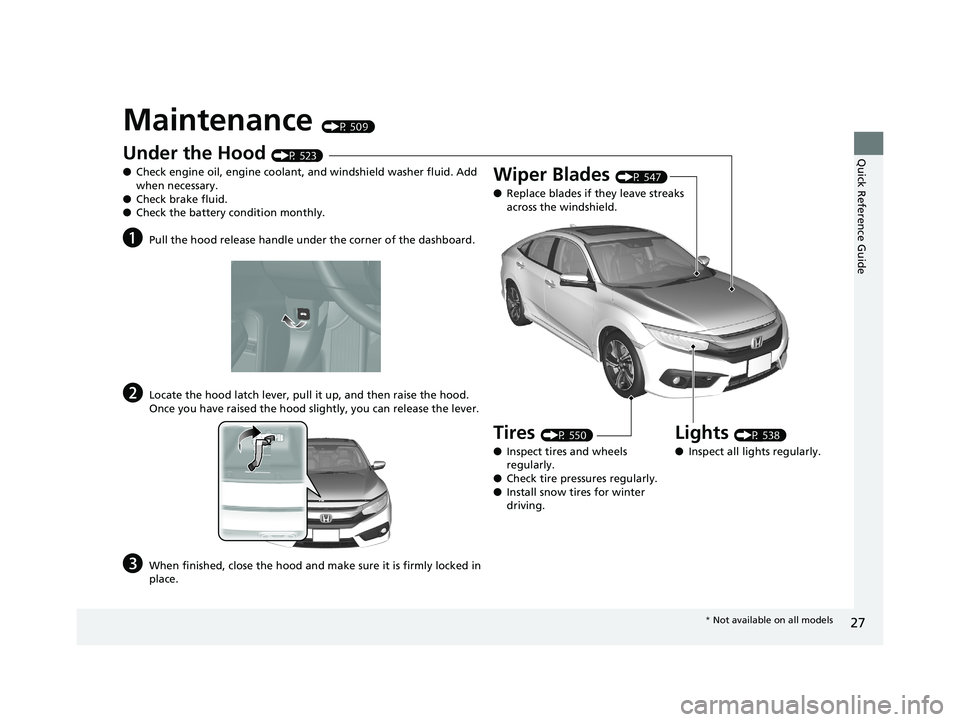

27
Quick Reference Guide
Maintenance (P 509)
Under the Hood (P 523)
● Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P 538)
● Inspect all lights regularly.
Wiper Blades (P 547)
● Replace blades if they leave streaks
across the windshield.
Tires (P 550)
● Inspect tires and wheels
regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 27 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

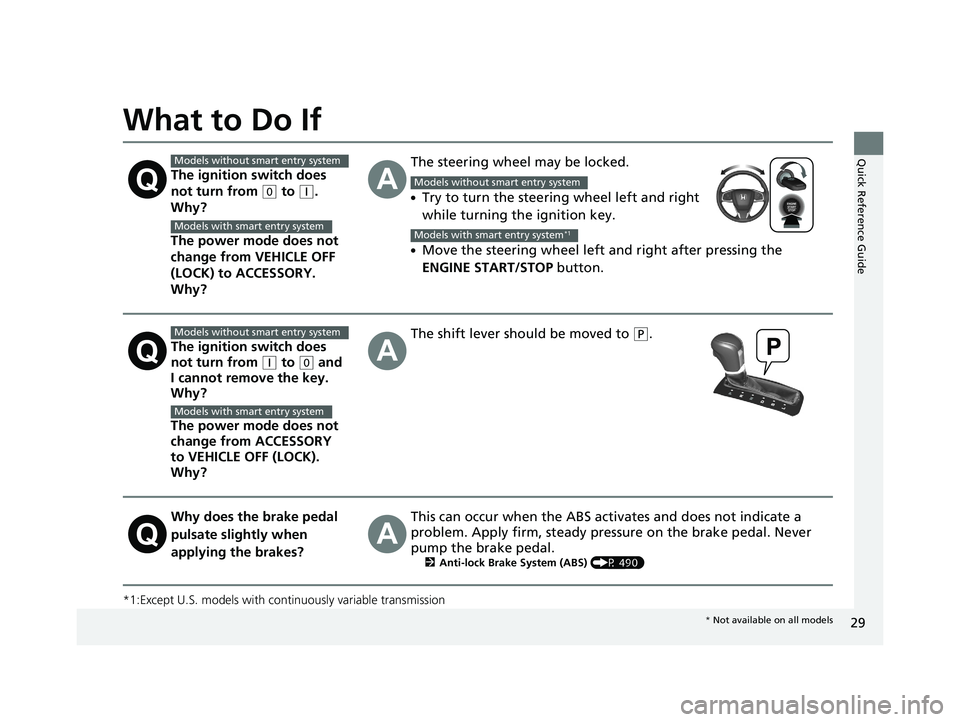

29
Quick Reference Guide
What to Do If
*1:Except U.S. models with continuously variable transmission
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P 490)
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 29 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

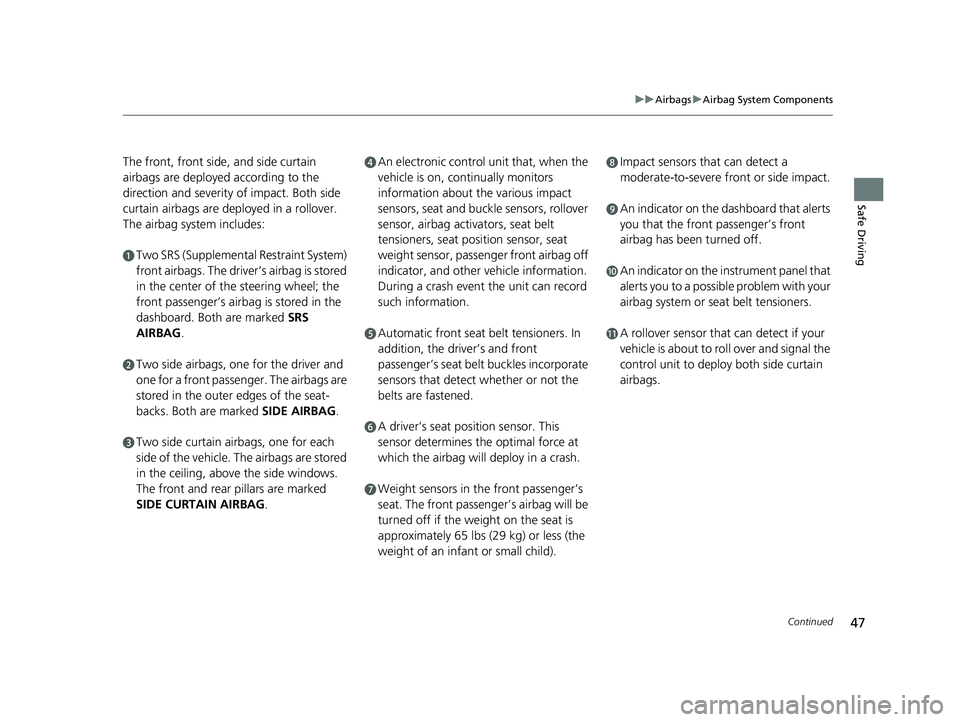

47
uuAirbags uAirbag System Components
Continued
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.
cTwo side curtain ai rbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, abov e the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, seat position sensor, seat
weight sensor, passenger front airbag off
indicator, and other vehicle information.
During a crash event the unit can record
such information.
eAutomatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fA driver’s seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.
gWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kA rollover sensor that can detect if your
vehicle is about to ro ll over and signal the
control unit to deploy both side curtain
airbags.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 47 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

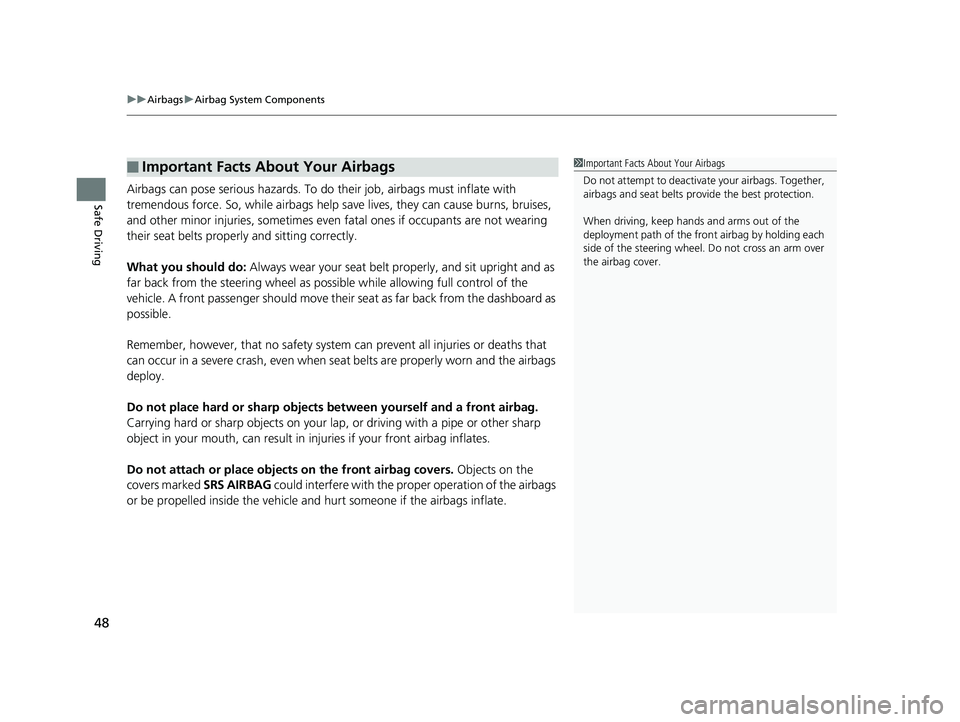

uuAirbags uAirbag System Components
48
Safe DrivingAirbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help save lives, they can cause burns, bruises,
and other minor injuries, sometimes even fatal ones if occupants are not wearing
their seat belts properly and sitting correctly.
What you should do: Always wear your seat belt properly, and sit upright and as
far back from the steering wheel as possi ble while allowing full control of the
vehicle. A front passenger should move their seat as far back from the dashboard as
possible.
Remember, however, that no safety system can prevent all injuries or deaths that
can occur in a severe crash, even when seat belts are properly worn and the airbags
deploy.
Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in in juries if your front airbag inflates.
Do not attach or place object s on the front airbag covers. Objects on the
covers marked SRS AIRBAG could interfere with the proper operation of the airbags
or be propelled inside the vehicle an d hurt someone if the airbags inflate.
■Important Facts About Your Airbags1Important Facts About Your Airbags
Do not attempt to deactivate your airbags. Together,
airbags and seat belts pr ovide the best protection.
When driving, keep hands and arms out of the
deployment path of the fro nt airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 48 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

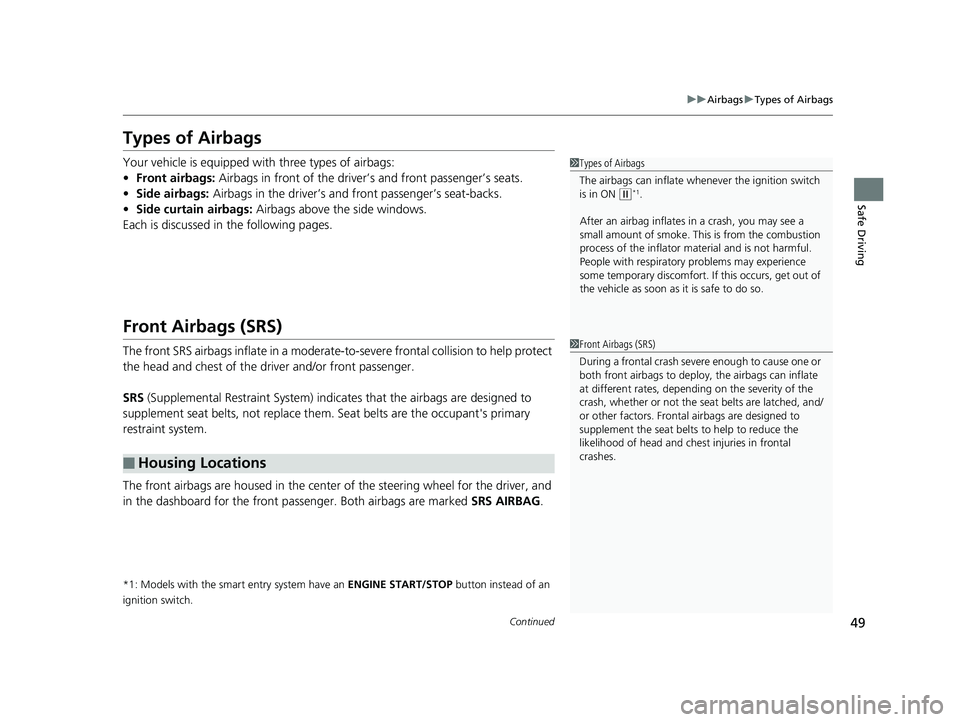

49
uuAirbags uTypes of Airbags
Continued
Safe Driving
Types of Airbags
Your vehicle is equipped wi th three types of airbags:
• Front airbags: Airbags in front of the driver’s and front passenger’s seats.
• Side airbags: Airbags in the driver’s and front passenger’s seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect
the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indica tes that the airbags are designed to
supplement seat belts, not replace them . Seat belts are the occupant's primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front pass enger. Both airbags are marked SRS AIRBAG.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Housing Locations
1 Types of Airbags
The airbags can inflate whenever the ignition switch
is in ON
(w*1.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the infl ator material and is not harmful.
People with respiratory pr oblems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1 Front Airbags (SRS)
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, dependi ng on the severity of the
crash, whether or not the se at belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help to reduce the
likelihood of head and chest injuries in frontal
crashes.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 49 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

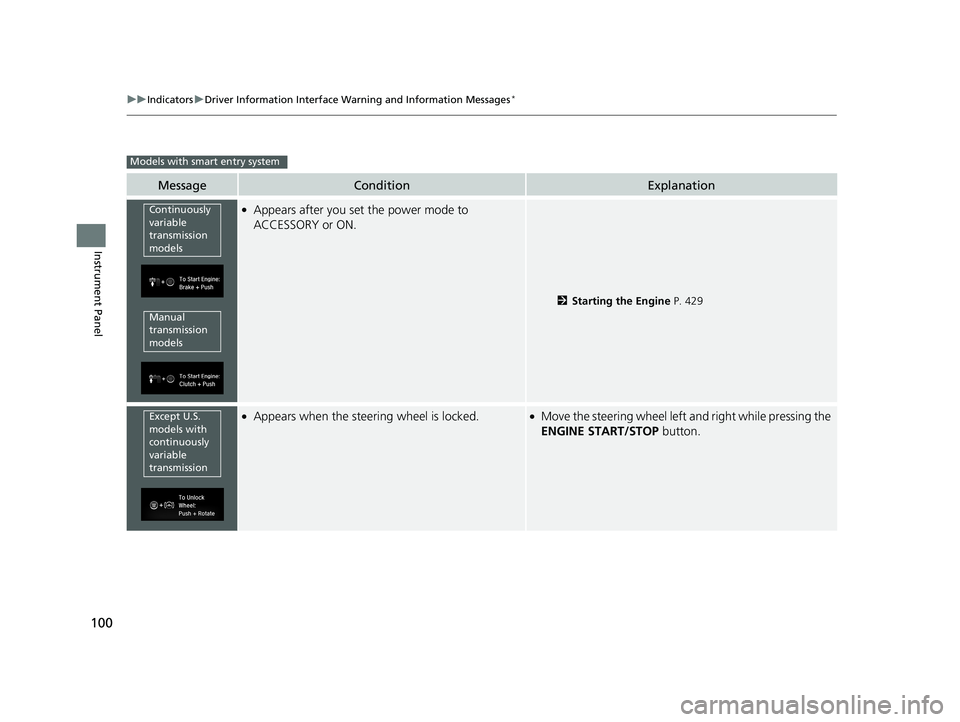

100
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
2Starting the Engine P. 429
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Continuously
variable
transmission
models
Manual
transmission
models
Except U.S.
models with
continuously
variable
transmission
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 100 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
