This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 46
2Instrument Panel P. 75
Indicators P. 76 Gauges and Displays P. 108
2Controls P. 133
Clock P. 134 Locking and Unlocking the Doors P. 136
Opening and Closing the Moonroof* P. 162
Adjusting the Seats P. 179
Climate Control System
* P. 202
2 Features P. 211
Audio System P. 212 Audio System Basic Operation P. 219, 237
Customized Features P. 328 Bluetooth® HandsFreeLink ®* P. 361, 385
2Driving P. 419
Before Driving P. 420 Towing a Trailer P. 425
Multi-View Rear Camera P. 501 Refueling P. 503
2Maintenance P. 509
Before Performing Maintenance P. 510 Maintenance MinderTM P. 513
Checking and Maintaining Wiper Blades P. 547
Heating System
*/Climate Control System* Maintenance P. 564
2 Handling the Unexpected P. 573
Tools P. 574 If a Tire Goes Flat P. 575
Overheating P. 601 Indicator, Coming On/Blinking P. 603
When You Cannot Open the Trunk P. 615 Refueling P. 616
2Information P. 617
Specifications P. 618 Identification Numbers P. 622
Emissions Testing P. 625 Warranty Coverages P. 627
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 2 ページ ２０１８年１０月３０日　火曜日　午前７時２８分

27
Quick Reference Guide
Maintenance (P 509)
Under the Hood (P 523)
● Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P 538)
● Inspect all lights regularly.
Wiper Blades (P 547)
● Replace blades if they leave streaks
across the windshield.
Tires (P 550)
● Inspect tires and wheels
regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 27 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

172
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the ignition switch is in ON (w*1.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*2/AUTO*3, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
*2: Models with manual intermittent operation
*3: Models with automati c intermittent operation
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wiper stops operating due to any obstacle such as
the build-up of snow, park the vehicle in a safe place.
Rotate the wiper switch to OFF, and turn the ignition
switch to ACCESSORY ( q or LOCK (0*1, then
remove the obstacle.
Models with intermittent time adjustment ring
All models
Intermittent Time
Adjustment Ring*
MIST
INT
*2/AUTO*3
OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 172 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

509
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 510
Safety When Performing Maintenance .... 511Parts and Fluids Used in Maintenance Service ........................................... 512
Maintenance Minder
TM..................... 513
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 523Opening the Hood ........................... 525
Recommended Engine Oil ................ 526
Oil Check ......................................... 527
Adding Engine Oil ............................ 529
Changing the Engine Oil and Oil Filter..... 530
Engine Coolant ................................ 533
Transmission Fluid ............................ 535
Brake/Clutch
* Fluid .......................... 536
Refilling Window Washer Fluid......... 537
Replacing Light Bulbs ....................... 538
Checking and Maintaining Wiper Blades.... 547Checking and Maintaining Tires
Checking Tires ................................. 550
Tire and Loading Information Label .. 551
Tire Labeling .................................... 551
DOT Tire Quality Grading (U.S. Vehicles).. 553Wear Indicators................................ 555
Tire Service Life ................................ 555 Tire and Wheel Replacement ........... 556
Tire Rotation .................................... 557
Winter Tires ..................................... 558
Battery ............................................... 560
Remote Transmitter Care Replacing the Button Battery ........... 562
Heating System
*/Climate Control
System* Maintenance .................... 564
Cleaning Interior Care .................................... 565
Exterior Care.................................... 567
Accessories and Modifications Accessories ...................................... 570
Modifications................................... 571
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 509 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

510
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake/clutch* fluid level monthly.
2 Brake/Clutch* Fluid P. 536
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 550
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 538
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 547
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the information display
*/driver
information interface*.
2 Maintenance Service Items P. 515, 520
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 629
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 510 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

547Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Turn the ignition switch to LOCK (0*1.
2. While holding the wiper switch in the MIST
position, turn the ignition switch to ON
(w*1, then to LOCK (0*1.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 547 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

548
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
4. Press and hold the tab, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.
Tab
Blade
End Cap At
The Bottom
Blade
Holder
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 548 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

549
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Turn the ignition switch to ON
(w*1 and
hold the wiper switch in the MIST position
until both wiper arms return to the
standard position.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Holder Blade
Cap
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 549 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

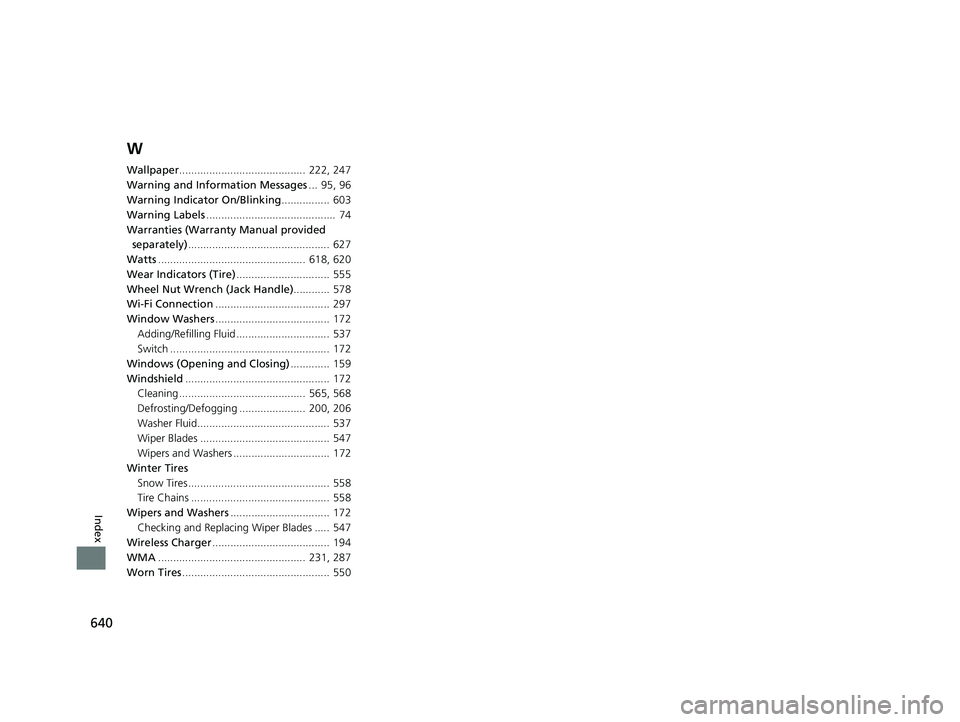

640
Index
W
Wallpaper.......................................... 222, 247
Warning and Information Messages ... 95, 96
Warning Indicator On/Blinking ................ 603
Warning Labels ........................................... 74
Warranties (Warranty Manual provided separately) ............................................... 627
Watts ................................................. 618, 620
Wear Indicators (Tire) ............................... 555
Wheel Nut Wrench (Jack Handle) ............ 578
Wi-Fi Connection ...................................... 297
Window Washers ...................................... 172
Adding/Refilling Fluid ............................... 537
Switch ..................................................... 172
Windows (Opening and Closing) ............. 159
Windshield ................................................ 172
Cleaning .......................................... 565, 568
Defrosting/Defogging ...................... 200, 206
Washer Fluid............................................ 537
Wiper Blades ........................................... 547
Wipers and Washers ................................ 172
Winter Tires
Snow Tires ............................................... 558
Tire Chains .............................................. 558
Wipers and Washers ................................. 172
Checking and Replacing Wiper Blades ..... 547
Wireless Charger ....................................... 194
WMA ................................................. 231, 287
Worn Tires ................................................. 550
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 640 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
