HONDA CIVIC SEDAN 2020 Owner's Manual (in English)

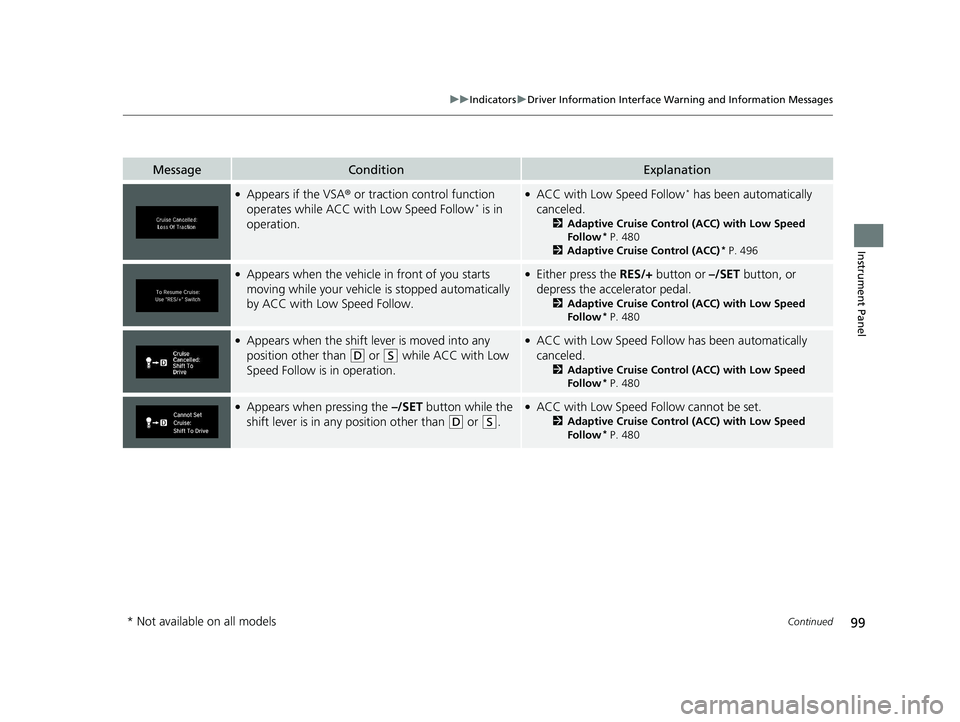

99
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the VSA® or traction control function
operates while ACC with Low Speed Follow* is in
operation.
●ACC with Low Speed Follow* has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
2 Adaptive Cruise Control (ACC)* P. 496
●Appears when the vehicle in front of you starts
moving while your vehicle is stopped automatically
by ACC with Low Speed Follow.●Either press the RES/+ button or –/SET button, or
depress the accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
●Appears when the shift le ver is moved into any
position other than
(D or (S while ACC with Low
Speed Follow is in operation.
●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
●Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 99 ページ ２０２０年７月６日　月曜日　午後３時０分

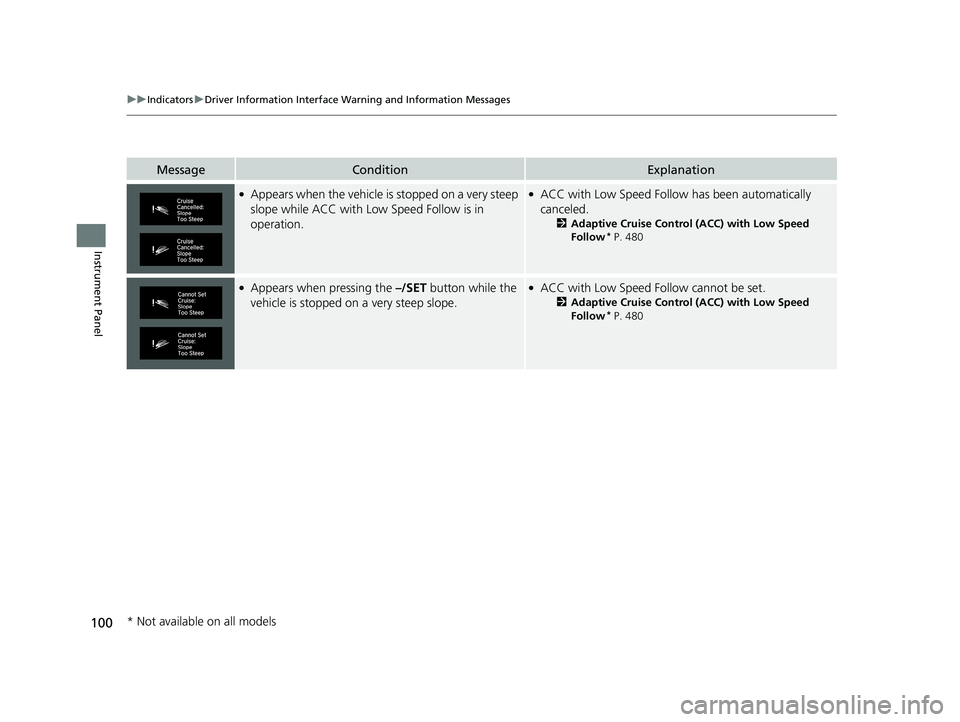

100
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 100 ページ ２０２０年７月６日　月曜日　午後３時０分

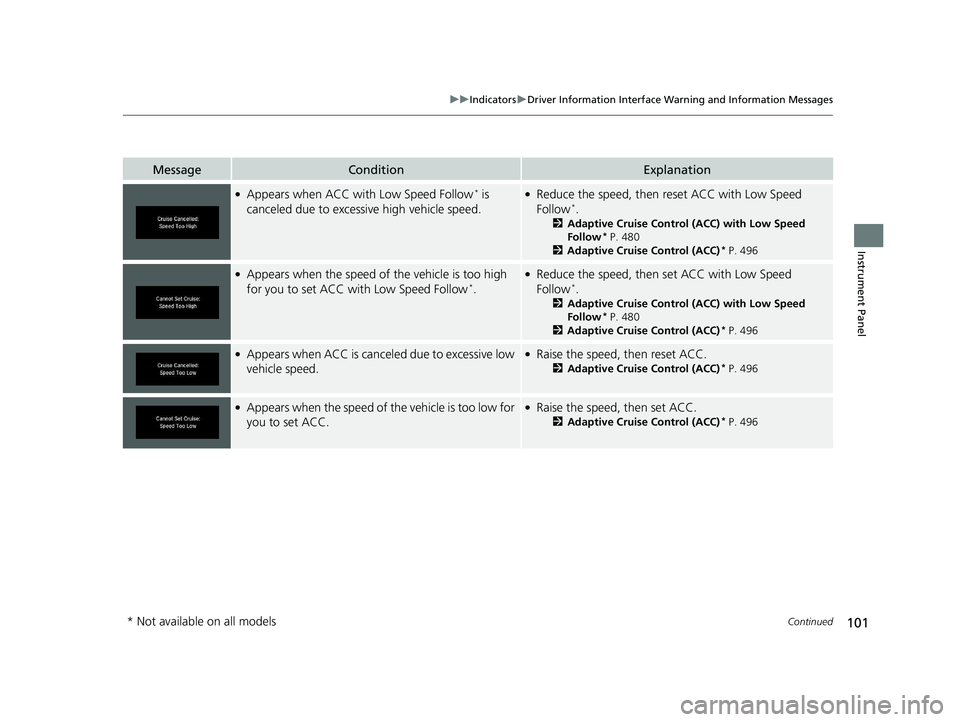

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC with Low Speed Follow* is
canceled due to excess ive high vehicle speed.●Reduce the speed, then reset ACC with Low Speed
Follow*.
2Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
2 Adaptive Cruise Control (ACC)* P. 496
●Appears when the speed of the vehicle is too high
for you to set ACC with Low Speed Follow*.
●Reduce the speed, then set ACC with Low Speed
Follow*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
2 Adaptive Cruise Control (ACC)* P. 496
●Appears when ACC is cancel ed due to excessive low
vehicle speed.●Raise the speed, then reset ACC.
2 Adaptive Cruise Control (ACC)* P. 496
●Appears when the speed of the vehicle is too low for
you to set ACC.●Raise the speed, then set ACC.
2 Adaptive Cruise Control (ACC)* P. 496
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 101 ページ ２０２０年７月６日　月曜日　午後３時０分

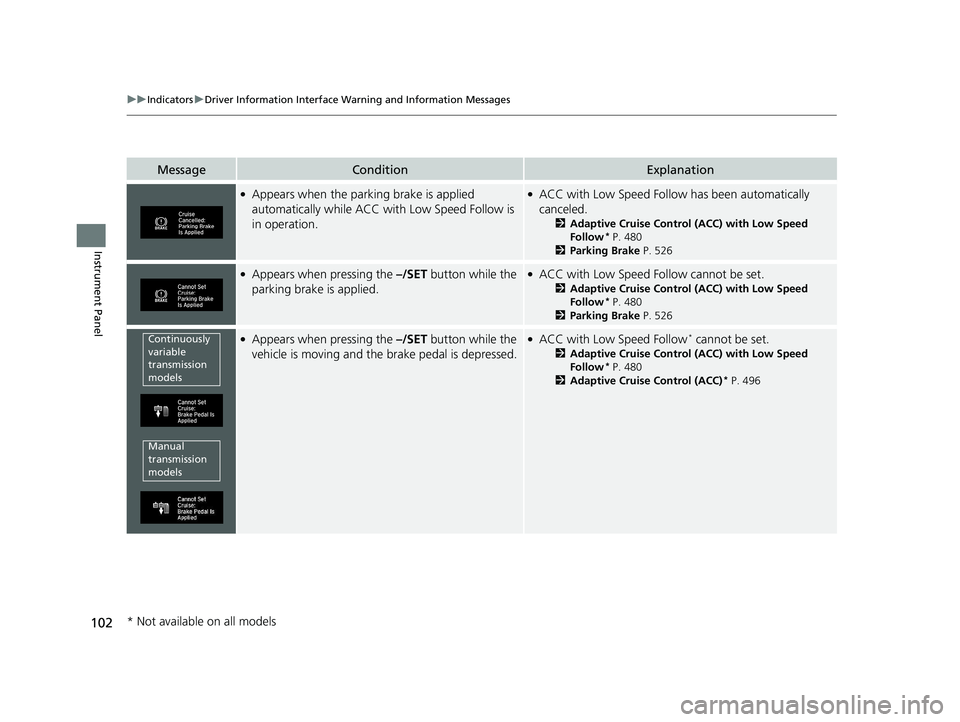

102
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the parking brake is applied
automatically while ACC with Low Speed Follow is
in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
2 Parking Brake P. 526
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
2 Parking Brake P. 526
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.●ACC with Low Speed Follow* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 480
2 Adaptive Cruise Control (ACC)* P. 496
Continuously
variable
transmission
models
Manual
transmission
models
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 102 ページ ２０２０年７月６日　月曜日　午後３時０分

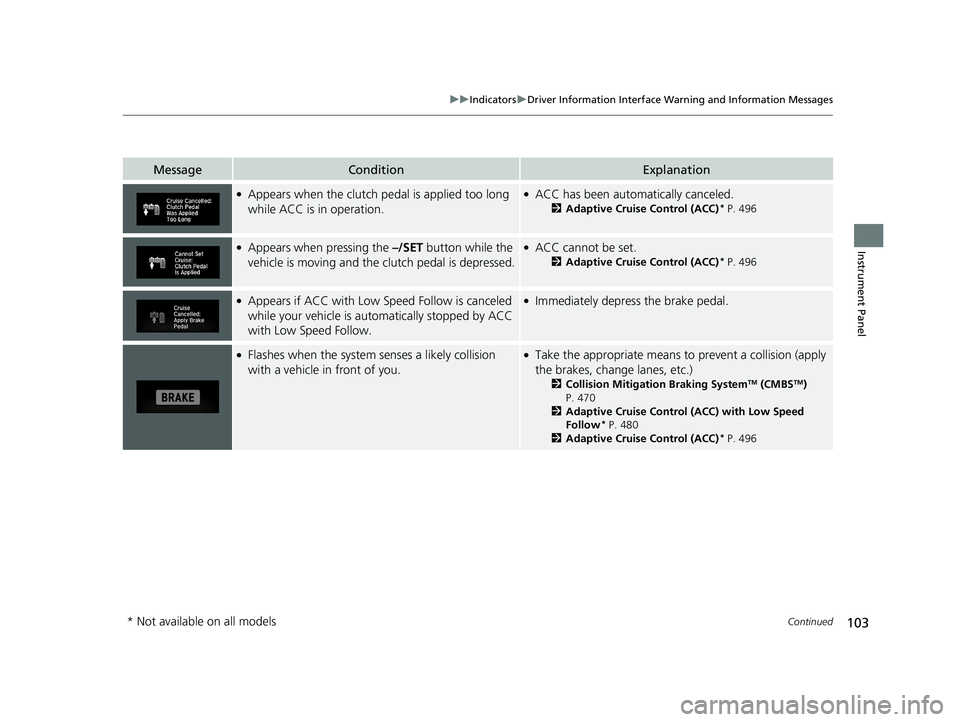

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the clutch pedal is applied too long
while ACC is in operation.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC)* P. 496
●Appears when pressing the –/SET button while the
vehicle is moving and the clutch pedal is depressed.●ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 496
●Appears if ACC with Low Sp eed Follow is canceled
while your vehicle is automatically stopped by ACC
with Low Speed Follow.●Immediately depress the brake pedal.
●Flashes when the system senses a likely collision
with a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 470
2 Adaptive Cruise Control (ACC) with Low Speed
Follow
* P. 480
2 Adaptive Cruise Control (ACC)* P. 496
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 103 ページ ２０２０年７月６日　月曜日　午後３時０分

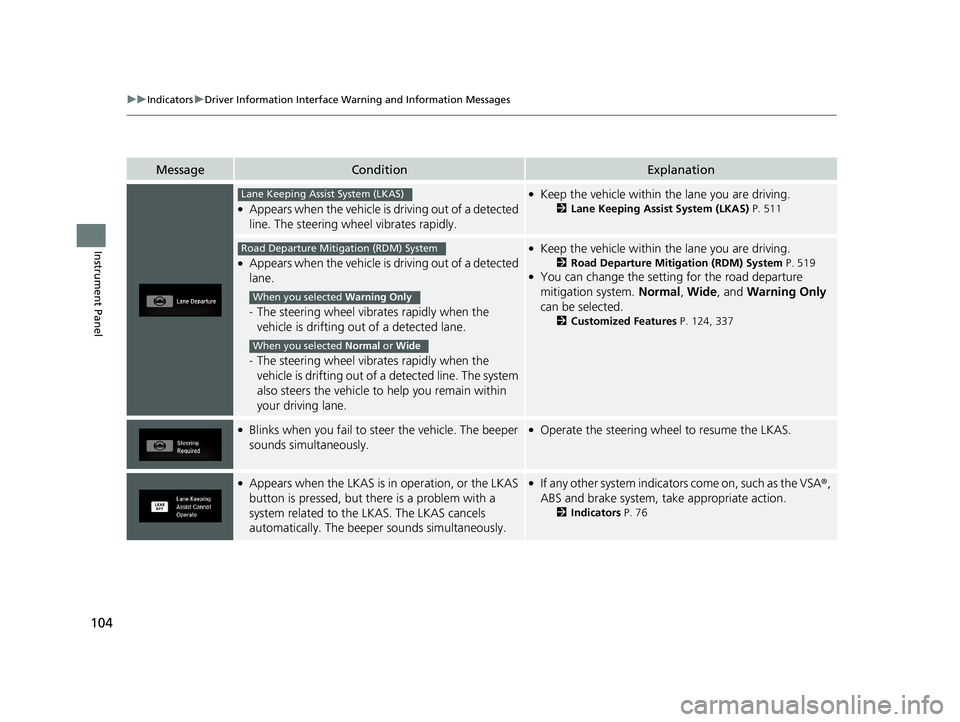

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 511
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 519●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 124, 337
●Blinks when you fail to st eer the vehicle. The beeper
sounds simultaneously.●Operate the steering whee l to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the VSA®,
ABS and brake system, take appropriate action.
2 Indicators P. 76
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 104 ページ ２０２０年７月６日　月曜日　午後３時０分

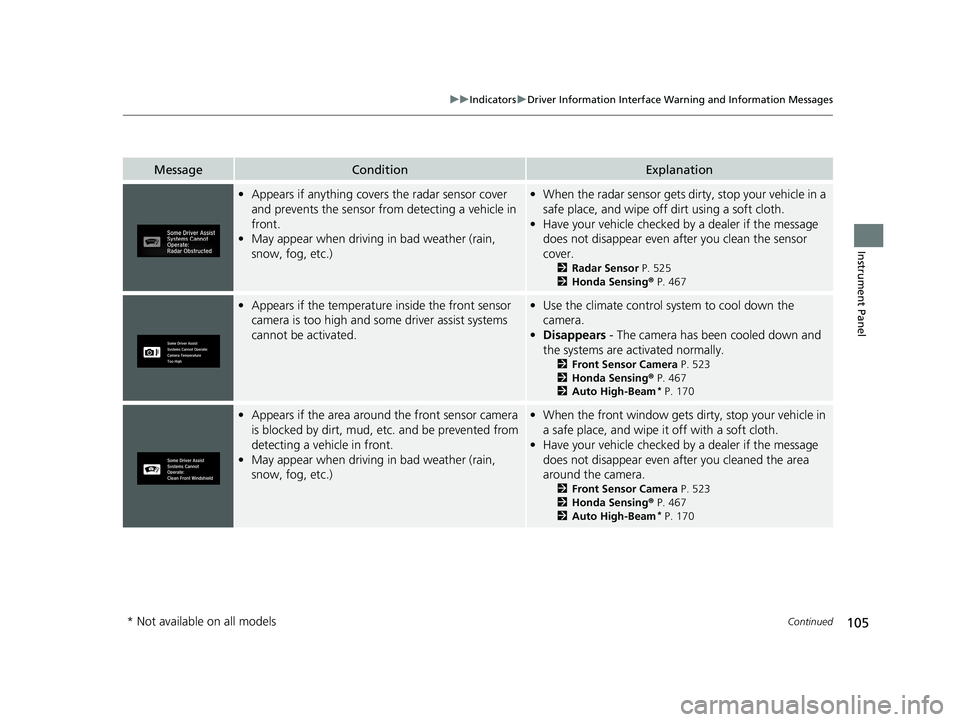

105
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the radar sensor gets di rty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even af ter you clean the sensor
cover.
2 Radar Sensor P. 525
2 Honda Sensing ® P. 467
• Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.• Use the climate control system to cool down the
camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 523
2 Honda Sensing ® P. 467
2 Auto High-Beam
* P. 170
•Appears if the area around the front sensor camera
is blocked by dirt, mud, et c. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even af ter you cleaned the area
around the camera.
2 Front Sensor Camera P. 523
2 Honda Sensing ® P. 467
2 Auto High-Beam
* P. 170
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 105 ページ ２０２０年７月６日　月曜日　午後３時０分

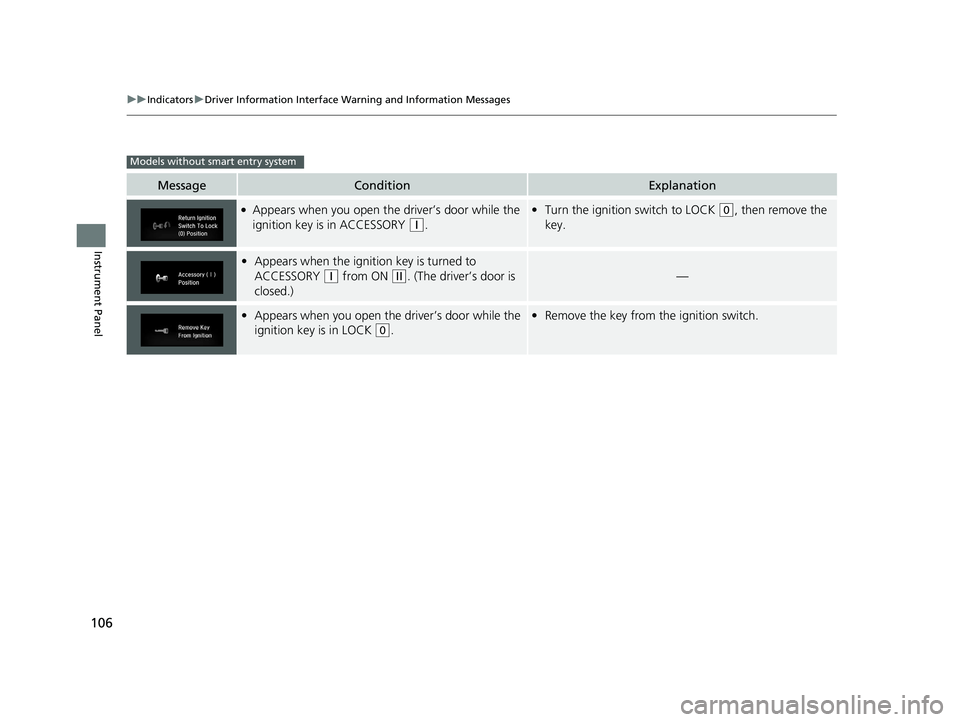

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q.
•Turn the ignition switch to LOCK (0, then remove the
key.
• Appears when the igniti on key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
• Appears when you open th e driver’s door while the
ignition key is in LOCK
(0.
• Remove the key from the ignition switch.
Models without smart entry system
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 106 ページ ２０２０年７月６日　月曜日　午後３時０分

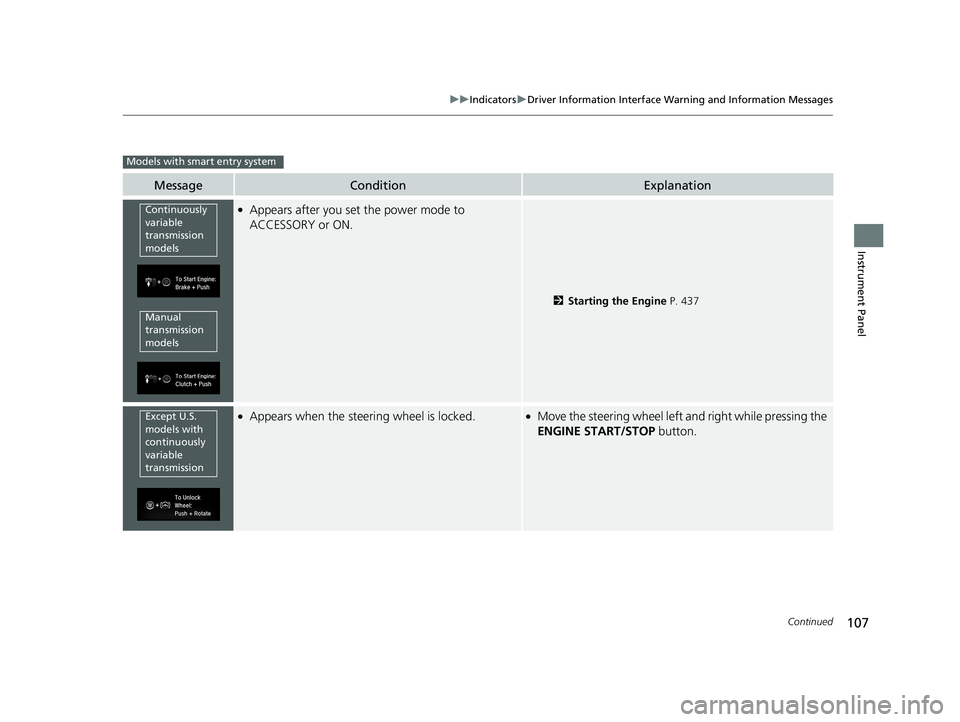

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
2Starting the Engine P. 437
●Appears when the steering wheel is locked.●Move the steering wheel left an d right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Continuously
variable
transmission
models
Manual
transmission
models
Except U.S.
models with
continuously
variable
transmission
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 107 ページ ２０２０年７月６日　月曜日　午後３時０分

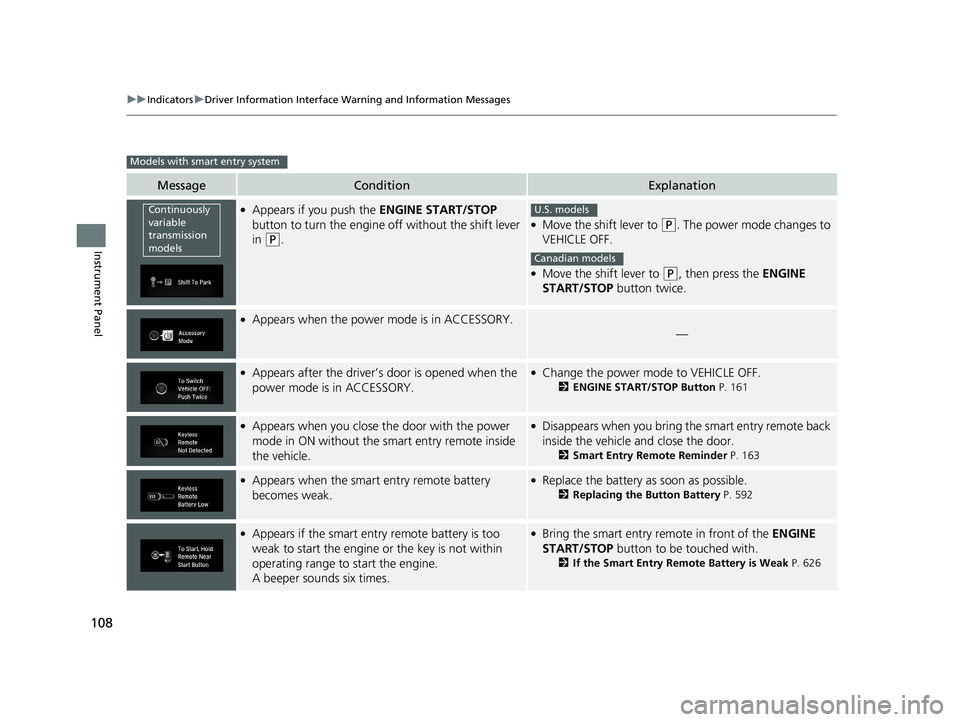

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 161
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 163
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 592
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 626
Models with smart entry system
Continuously
variable
transmission
modelsU.S. models
Canadian models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 108 ページ ２０２０年７月６日　月曜日　午後３時０分
