Page 12 of 675
10
Quick Reference Guide
Safe Driving (P 33)
Airbags (P 46)
● Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P 60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 73)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 10 ページ 2020年7月6日 月曜日 午後3時0分
Page 39 of 675
37
uuFor Safe Driving uSafety Checklist
Safe Driving

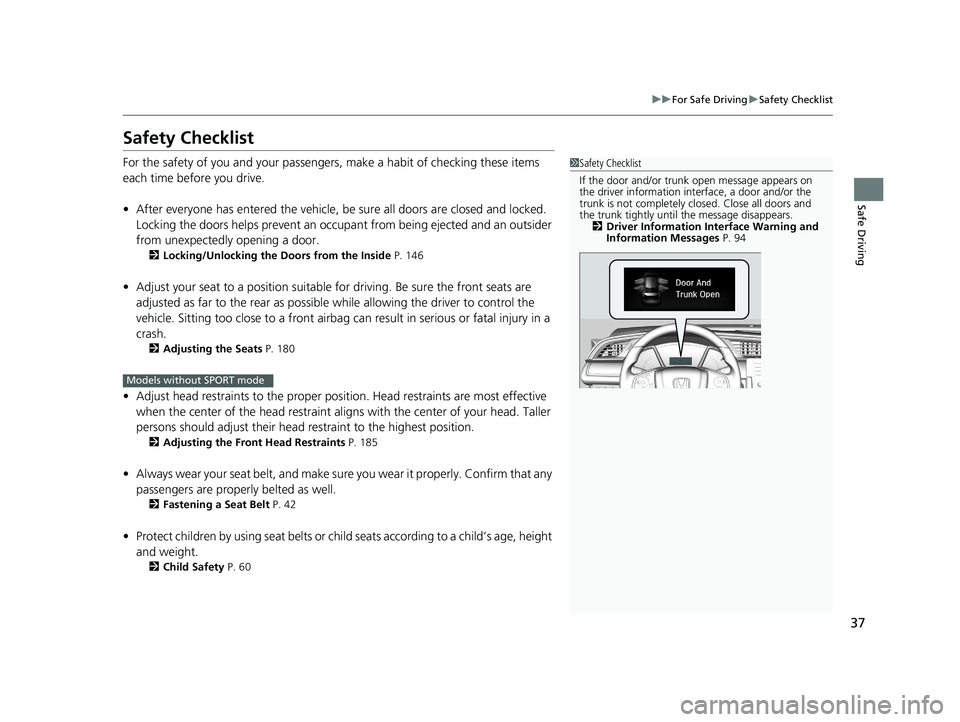

Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 146
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 180
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2Adjusting the Front Head Restraints P. 185
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 42
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 60
1Safety Checklist
If the door and/or trunk open message appears on
the driver information inte rface, a door and/or the
trunk is not completely cl osed. Close all doors and
the trunk tightly until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 94
Models without SPORT mode
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 37 ページ 2020年7月6日 月曜日 午後3時0分
Page 49 of 675
47
uuAirbags uAirbag System Components
Continued
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.
cTwo side curtain ai rbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, abov e the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, and other vehicle
information. During a crash event the
unit can record such information.
eAutomatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fA driver’s seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.
gWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kA rollover sensor that can detect if your
vehicle is about to ro ll over and signal the
control unit to deploy both side curtain
airbags.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 47 ページ 2020年7月6日 月曜日 午後3時0分
Page 68 of 675
uuChild Safety uSafety of Infants and Small Children
66
Safe Driving
3. Open the tether anchor cover behind the
head restraint.
4. Route the tether strap over the top of the
head restraint and secure the tether strap
hook to the anchor. Make sure the strap is
not twisted.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 60
Flexible Type
1Installing a LATCH-Compatible Child Seat
Installing a LATCH-compatible child seat in the
rear center seat
Each outer rear seat is equi pped with a pair of lower
anchors which are used to secure a LATCH-
compatible child seat. The rear center seat, however,
is not equipped with anchors of any kind. The inner
and outer anchors are spaced apart at a standard
distance of 11 inches (280 mm). The distance
between the two inner anc hors is 15.0 inches (380
mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
rear center seat. However, a system fitted with
flexible-type attachments can be installed in the
center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.
3WARNING
Do not use the lower inner anchors of the
outer rear seats to secure a LATCH-
compatible child seat to the rear center
seat, unless the manufacturer’s instructions
for that system permit the use of inner
anchors with the stated spacing.
Tether Strap
Hook
Anchor
Straight Top Tether Type
Tether Strap
Hook
Anchor
Other Top Tether Type
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 66 ページ 2020年7月6日 月曜日 午後3時0分
Page 71 of 675
Continued69
uuChild Safety uSafety of Infants and Small Children

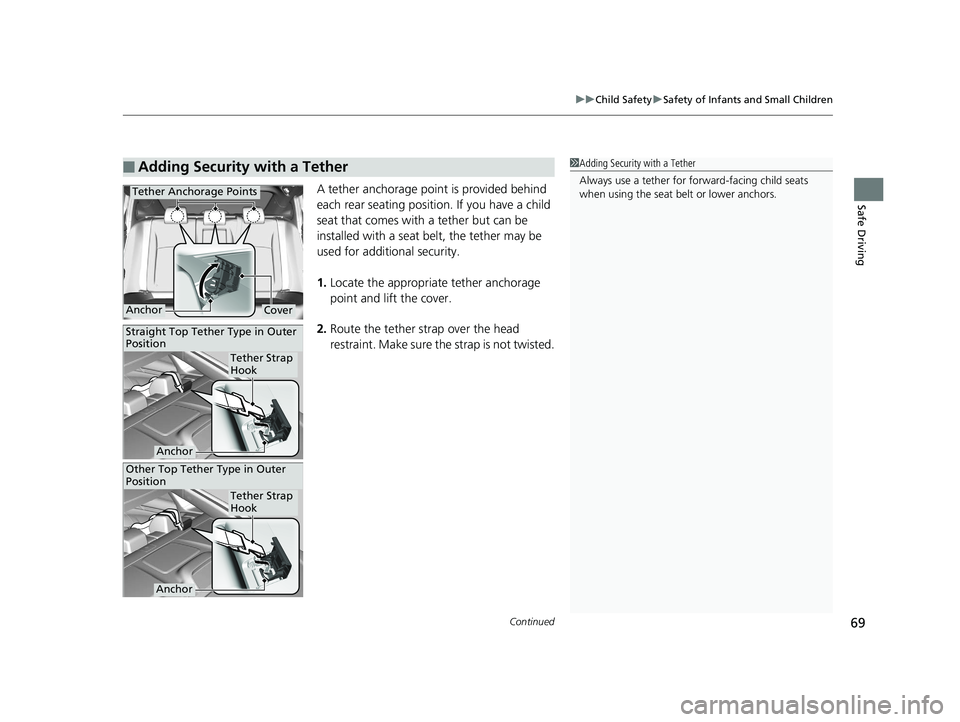

Safe DrivingA tether anchorage point is provided behind
each rear seating positi on. If you have a child
seat that comes with a tether but can be
installed with a seat belt, the tether may be
used for additional security.
1. Locate the appropriate tether anchorage
point and lift the cover.
2. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
■Adding Security with a Tether1Adding Security with a Tether
Always use a tether for forward-facing child seats
when using the seat be lt or lower anchors.
Tether Anchorage Points
CoverAnchor
Straight Top Tether Type in Outer
Position
Tether Strap
Hook
Anchor
Other Top Tether Type in Outer
Position
Tether Strap
Hook
Anchor
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 69 ページ 2020年7月6日 月曜日 午後3時0分
Page 669 of 675
667

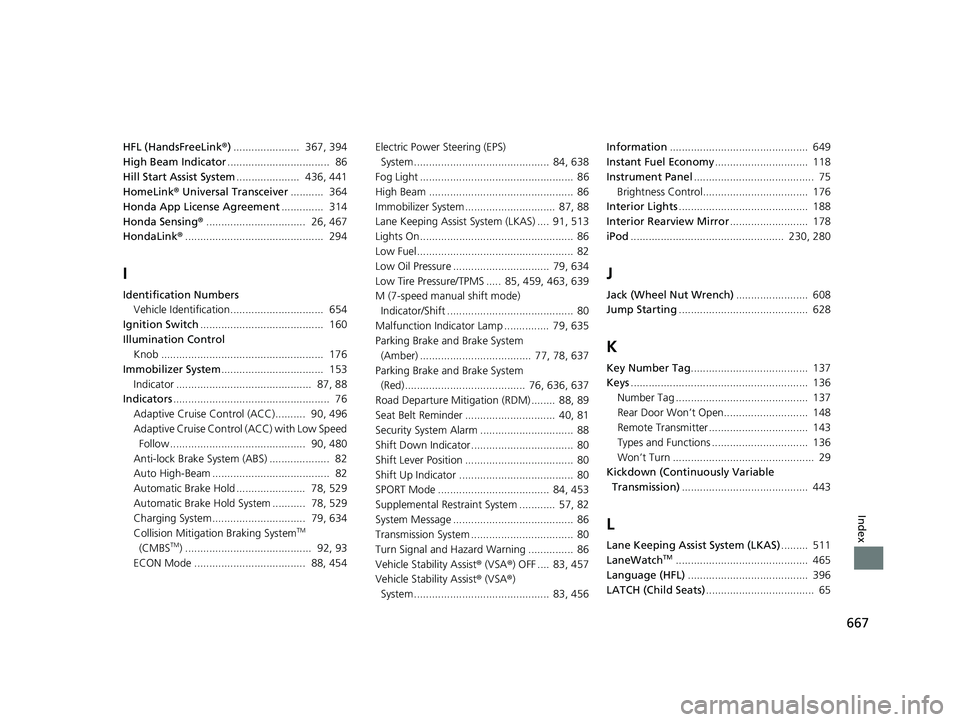

Index
HFL (HandsFreeLink®) ...................... 367, 394
High Beam Indicator .................................. 86
Hill Start Assist System ..................... 436, 441
HomeLink ® Universal Transceiver ........... 364
Honda App License Agreement .............. 314
Honda Sensing ®................................. 26, 467
HondaLink ®.............................................. 294
I
Identification Numbers
Vehicle Identification............................... 654
Ignition Switch ......................................... 160
Illumination Control Knob ...................................................... 176
Immobilizer System .................................. 153
Indicator ............................................. 87, 88
Indicators .................................................... 76
Adaptive Cruise Control (ACC).......... 90, 496
Adaptive Cruise Control (ACC) with Low Speed Follow ............................................. 90, 480
Anti-lock Brake System (ABS) .................... 82
Auto High-Beam ....................................... 82
Automatic Brake Hold ....................... 78, 529
Automatic Brake Hold System ........... 78, 529
Charging System............................... 79, 634
Collision Mitigati on Braking System
TM
(CMBSTM) .......................................... 92, 93
ECON Mode ..................................... 88, 454 Electric Power Steering (EPS)
System............................................. 84, 638
Fog Light ................................................... 86
High Beam ................................................ 86
Immobilizer System .............................. 87, 88
Lane Keeping Assist System (LKAS) .... 91, 513
Lights On ................................................... 86
Low Fuel .................................................... 82
Low Oil Pressure ................................ 79, 634
Low Tire Pressure/TPMS ..... 85, 459, 463, 639
M (7-speed manual shift mode) Indicator/Shift .......................................... 80
Malfunction Indicator Lamp ............... 79, 635
Parking Brake and Brake System
(Amber) ..................................... 77, 78, 637
Parking Brake and Brake System (Red)........................................ 76, 636, 637
Road Departure Mitigation (RDM) ........ 88, 89
Seat Belt Reminder .............................. 40, 81
Security System Alarm ............................... 88
Shift Down Indicator .................................. 80
Shift Lever Position .................................... 80
Shift Up Indicator ...................................... 80
SPORT Mode ..................................... 84, 453
Supplemental Restraint System ............ 57, 82
System Message ........................................ 86
Transmission System .................................. 80
Turn Signal and Haza rd Warning ............... 86
Vehicle Stability Assist ® (VSA ®) OFF .... 83, 457
Vehicle Stability Assist ® (VSA ®)
System............................................. 83, 456 Information
.............................................. 649
Instant Fuel Economy ............................... 118
Instrument Panel ........................................ 75
Brightness Control................................... 176
Interior Lights ........................................... 188
Interior Rearview Mirror .......................... 178
iPod ................................................... 230, 280
J
Jack (Wheel Nut Wrench) ........................ 608
Jump Starting ........................................... 628
K
Key Number Tag ....................................... 137
Keys ........................................................... 136
Number Tag ............................................ 137
Rear Door Won’t Open............................ 148
Remote Transmitter ................................. 143
Types and Functions ................................ 136
Won’t Turn ............................................... 29
Kickdown (Continuously Variable
Transmission) .......................................... 443
L
Lane Keeping Assist System (LKAS) ......... 511
LaneWatchTM............................................ 465
Language (HFL) ........................................ 396
LATCH (Child Seats) .................................... 65
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 667 ページ 2020年7月6日 月曜日 午後3時0分
