oil dipstick HONDA CIVIC SEDAN 2020 Owner's Manual (in English)

553Continued
Maintenance

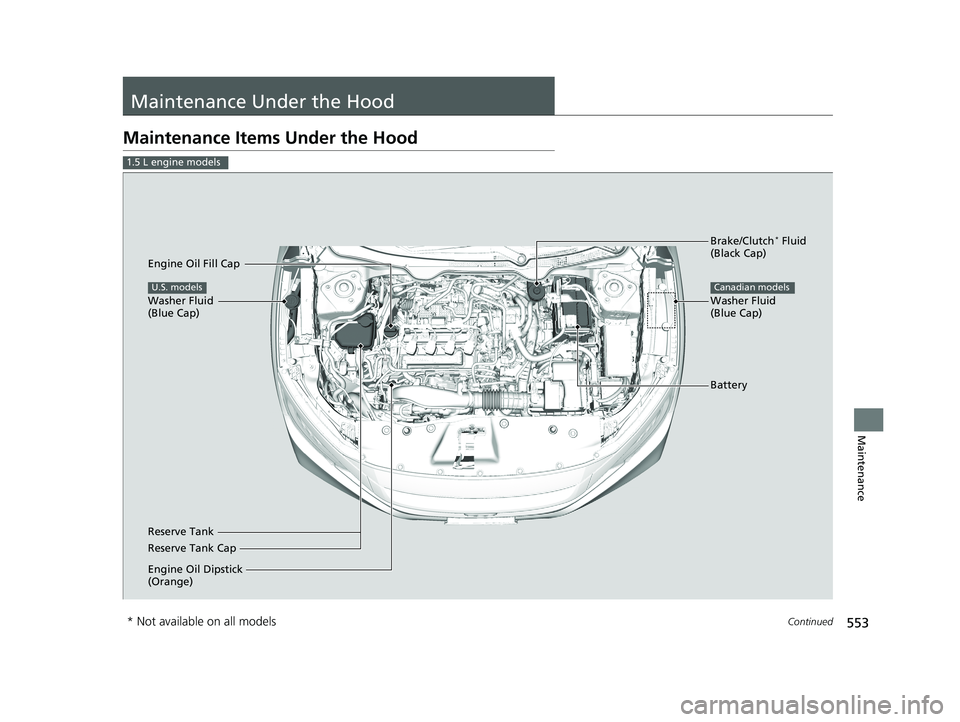

Maintenance Under the Hood
Maintenance Items Under the Hood
1.5 L engine models
Brake/Clutch* Fluid
(Black Cap)
Reserve Tank Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange) Engine Oil Fill Cap Battery
Reserve Tank Cap
U.S. models
Washer Fluid
(Blue Cap)
Canadian models
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 553 ページ ２０２０年７月６日　月曜日　午後３時０分

554

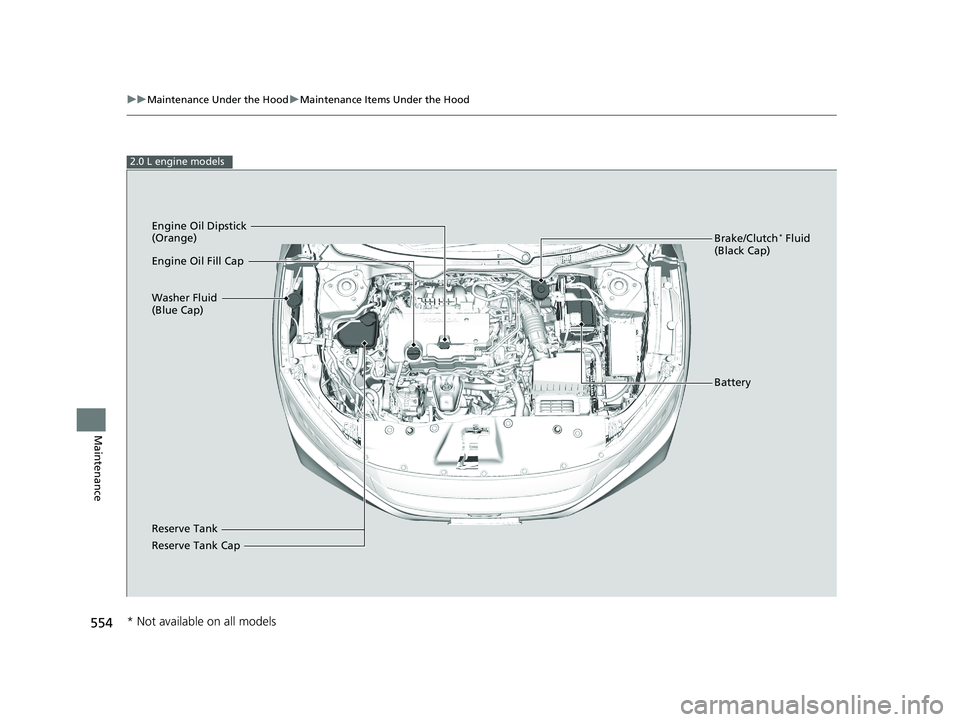

uuMaintenance Under the Hood uMaintenance Items Under the Hood
Maintenance
2.0 L engine models
Brake/Clutch* Fluid
(Black Cap)
Reserve Tank Washer Fluid
(Blue Cap) Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap Battery
Reserve Tank Cap
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 554 ページ ２０２０年７月６日　月曜日　午後３時０分

557
uuMaintenance Under the Hood uOil Check
Continued
Maintenance

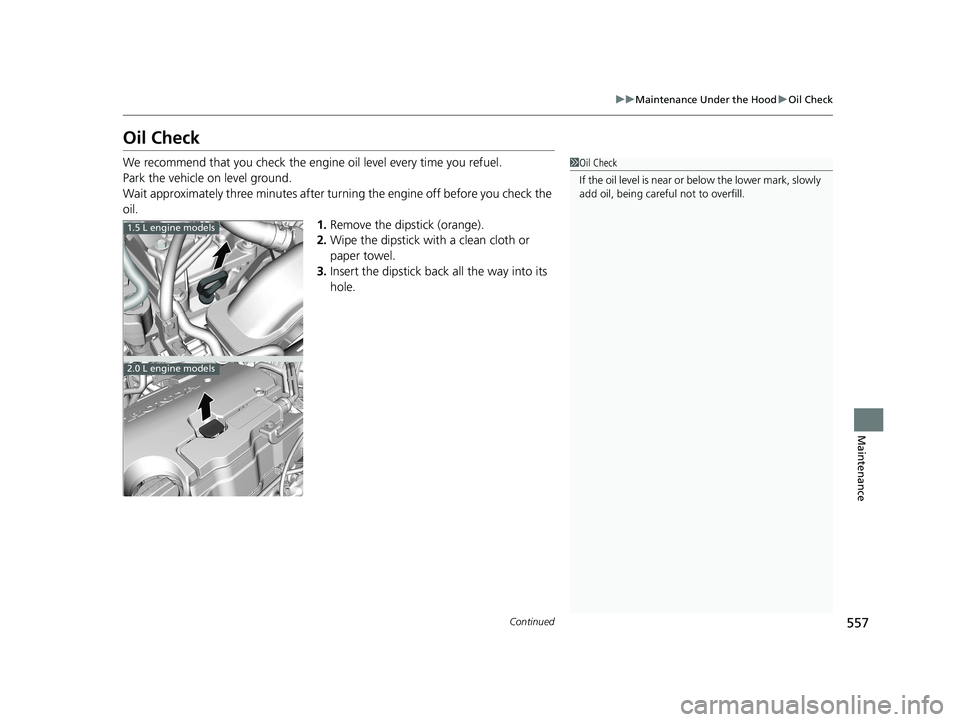

Oil Check
We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turn ing the engine off before you check the
oil. 1.Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.1Oil Check
If the oil level is near or below the lower mark, slowly
add oil, being carefu l not to overfill.
1.5 L engine models
2.0 L engine models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 557 ページ ２０２０年７月６日　月曜日　午後３時０分

uuMaintenance Under the Hood uOil Check
558
Maintenance

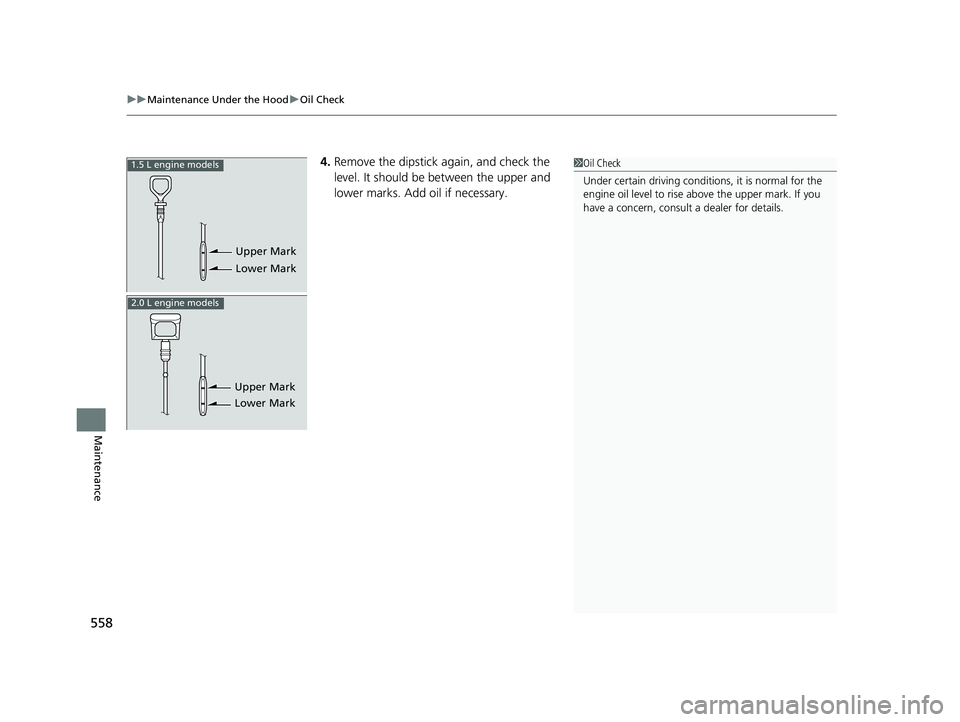

4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.
Upper Mark
Lower Mark
1.5 L engine models
Upper Mark
Lower Mark
2.0 L engine models
1Oil Check
Under certain driving conditions, it is normal for the
engine oil level to rise above the upper mark. If you
have a concern, consult a dealer for details.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 558 ページ ２０２０年７月６日　月曜日　午後３時０分

559
uuMaintenance Under the Hood uAdding Engine Oil
Maintenance

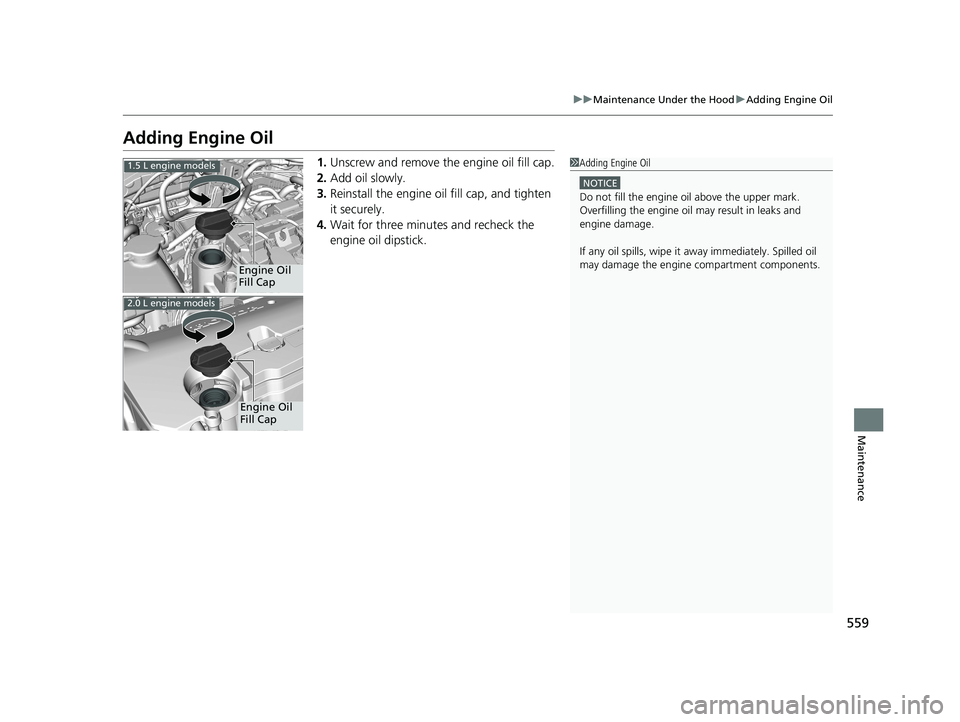

Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.1Adding Engine Oil
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil may result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
Engine Oil
Fill Cap
1.5 L engine models
Engine Oil
Fill Cap
2.0 L engine models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 559 ページ ２０２０年７月６日　月曜日　午後３時０分

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
562
Maintenance

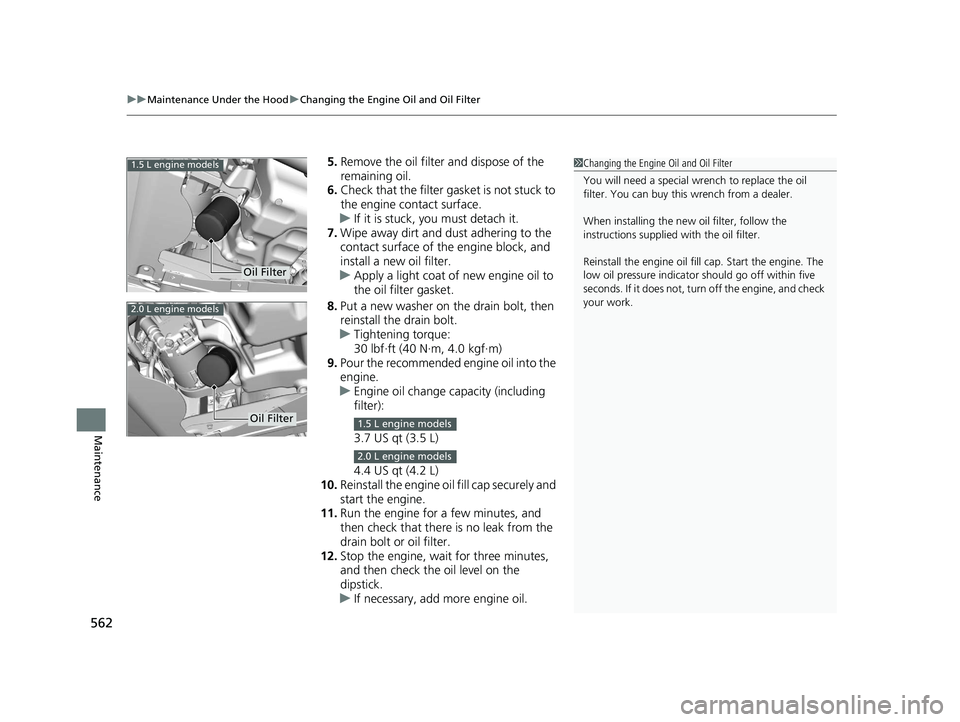

5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.7 US qt (3.5 L)
4.4 US qt (4.2 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that ther e is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
1.5 L engine models
2.0 L engine models
Oil Filter1.5 L engine models
2.0 L engine models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 562 ページ ２０２０年７月６日　月曜日　午後３時０分

665

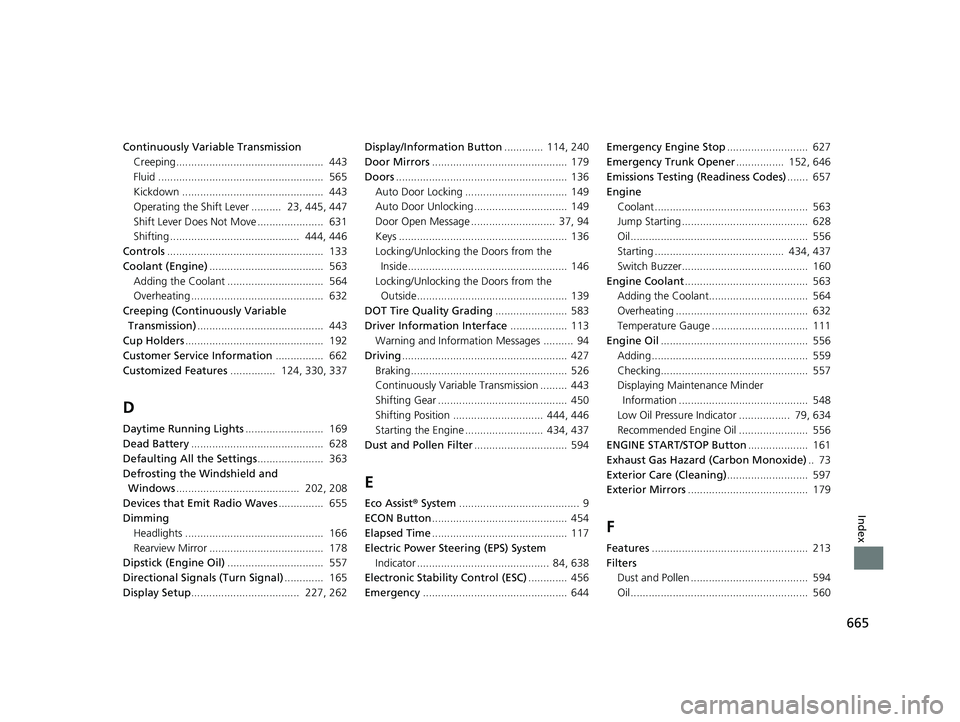

Index
Continuously Variable TransmissionCreeping................................................. 443
Fluid ....................................................... 565
Kickdown ............................................... 443
Operating the Shift Lever .......... 23, 445, 447
Shift Lever Does Not Move ...................... 631
Shifting ........................................... 444, 446
Controls .................................................... 133
Coolant (Engine) ...................................... 563
Adding the Coolant ................................ 564
Overheating ............................................ 632
Creeping (Continuously Variable Transmission) .......................................... 443
Cup Holders .............................................. 192
Customer Service Information ................ 662
Customized Features ............... 124, 330, 337
D
Daytime Running Lights .......................... 169
Dead Battery ............................................ 628
Defaulting All the Settings ...................... 363
Defrosting the Windshield and Windows ......................................... 202, 208
Devices that Emit Radio Waves ............... 655
Dimming Headlights .............................................. 166
Rearview Mirror ...................................... 178
Dipstick (Engine Oil) ................................ 557
Directional Signals (Turn Signal) ............. 165
Display Setup .................................... 227, 262 Display/Information Button
............. 114, 240
Door Mirrors ............................................. 179
Doors ......................................................... 136
Auto Door Locking .................................. 149
Auto Door Unlocking ............................... 149
Door Open Message ............................ 37, 94
Keys ........................................................ 136
Locking/Unlocking the Doors from the
Inside..................................................... 146
Locking/Unlocking the Doors from the Outside.................................................. 139
DOT Tire Quality Grading ........................ 583
Driver Information Interface ................... 113
Warning and Information Messages .......... 94
Driving ....................................................... 427
Braking .................................................... 526
Continuously Variable Transmission ......... 443
Shifting Gear ........................................... 450
Shifting Position .............................. 444, 446
Starting the Engine .......................... 434, 437
Dust and Pollen Filter ............................... 594
E
Eco Assist® System ........................................ 9
ECON Button ............................................. 454
Elapsed Time ............................................. 117
Electric Power Steering (EPS) System Indicator ............................................ 84, 638
Electronic Stability Control (ESC) ............. 456
Emergency ................................................ 644 Emergency Engine Stop
........................... 627
Emergency Trunk Opener ................ 152, 646
Emissions Testing (Readiness Codes) ....... 657
Engine Coolant ................................................... 563
Jump Starting .......................................... 628
Oil ........................................................... 556
Starting ........................................... 434, 437
Switch Buzzer.......................................... 160
Engine Coolant ......................................... 563
Adding the Coolant................................. 564
Overheating ............................................ 632
Temperature Gauge ................................ 111
Engine Oil ................................................. 556
Adding .................................................... 559
Checking................................................. 557
Displaying Maintenance Minder Information ........................................... 548
Low Oil Pressure Indicator ................. 79, 634
Recommended Engine Oil ....................... 556
ENGINE START/STOP Button .................... 161
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 597
Exterior Mirrors ........................................ 179
F
Features.................................................... 213
Filters Dust and Pollen ....................................... 594
Oil ........................................................... 560
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 665 ページ ２０２０年７月６日　月曜日　午後３時０分
