HONDA CIVIC SEDAN 2021 (in English) User Guide

9

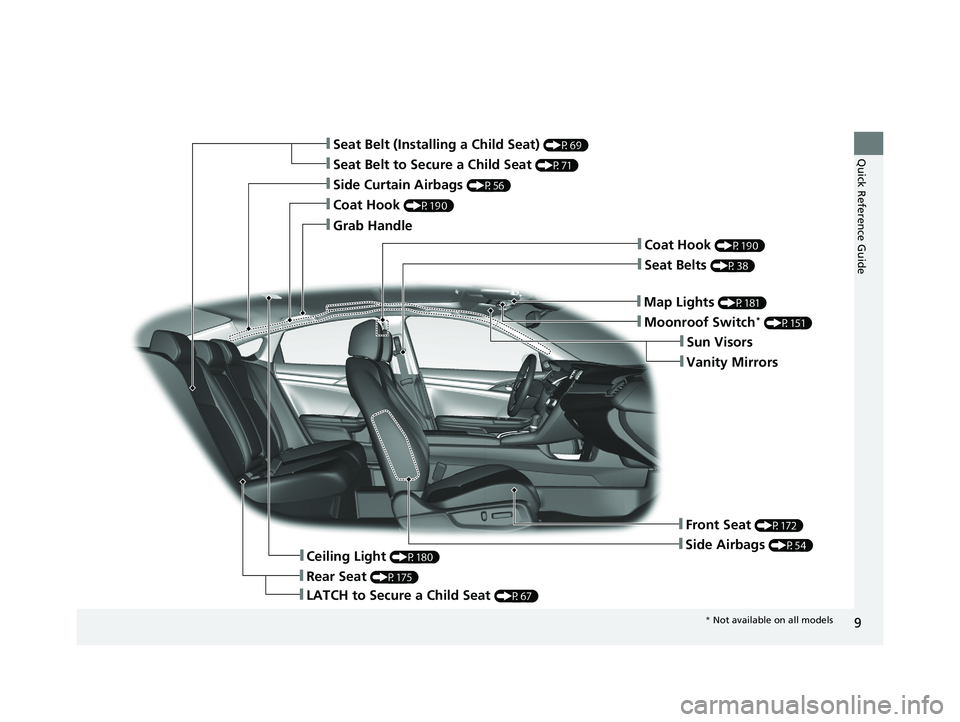

Quick Reference Guide❚Seat Belt to Secure a Child Seat (P71)
❚Seat Belt (Installing a Child Seat) (P69)
❚Moonroof Switch* (P151)
❚Front Seat (P172)
❚Seat Belts (P38)
❚Side Airbags (P54)
❚Rear Seat (P175)
❚LATCH to Secure a Child Seat (P67)
❚Ceiling Light (P180)
❚Side Curtain Airbags (P56)
❚Coat Hook (P190)
❚Grab Handle
❚Coat Hook (P190)
❚Sun Visors
❚Vanity Mirrors
❚Map Lights (P181)
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 9 ページ ２０２０年８月２５日　火曜日　午後２時６分

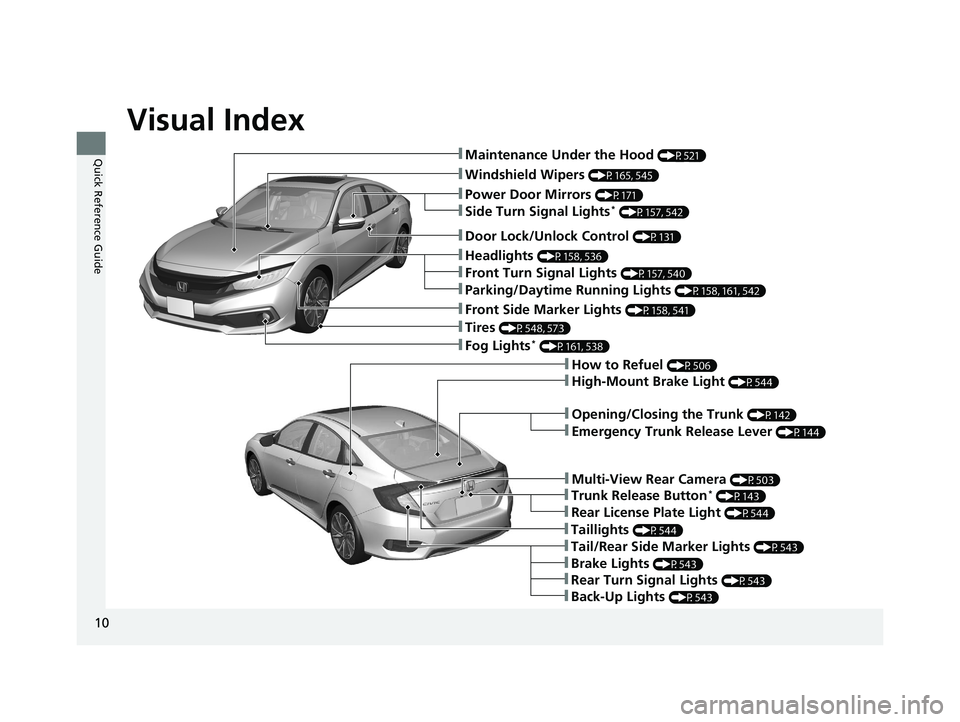

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P521)
❚Windshield Wipers (P165, 545)
❚Tires (P548, 573)
❚Fog Lights* (P161, 538)
❚Power Door Mirrors (P171)
❚How to Refuel (P506)
❚High-Mount Brake Light (P544)
❚Emergency Trunk Release Lever (P144)
❚Opening/Closing the Trunk (P142)
❚Multi-View Rear Camera (P503)
❚Door Lock/Unlock Control (P131)
❚Side Turn Signal Lights* (P157, 542)
❚Headlights (P158, 536)
❚Front Turn Signal Lights (P157, 540)
❚Parking/Daytime Running Lights (P158, 161, 542)
❚Front Side Marker Lights (P158, 541)
❚Taillights (P544)
❚Back-Up Lights (P543)
❚Brake Lights (P543)
❚Rear Turn Signal Lights (P543)
❚Tail/Rear Side Marker Lights (P543)
❚Trunk Release Button* (P143)
❚Rear License Plate Light (P544)
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 10 ページ ２０２０年８月２５日　火曜日　午後２時６分

11
Quick Reference Guide

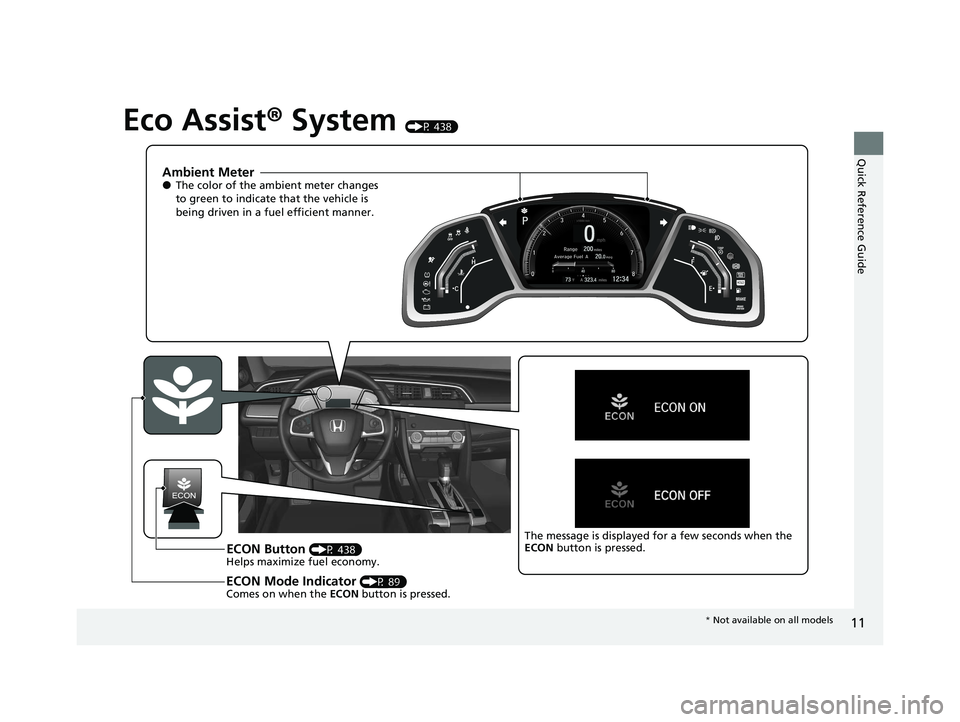

Eco Assist® System (P 438)
Ambient Meter●The color of the ambient meter changes
to green to indicate that the vehicle is
being driven in a fuel efficient manner.
ECON Button (P 438)
Helps maximize fuel economy.
ECON Mode Indicator (P 89)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 11 ページ ２０２０年８月２５日　火曜日　午後２時６分

12
Quick Reference Guide

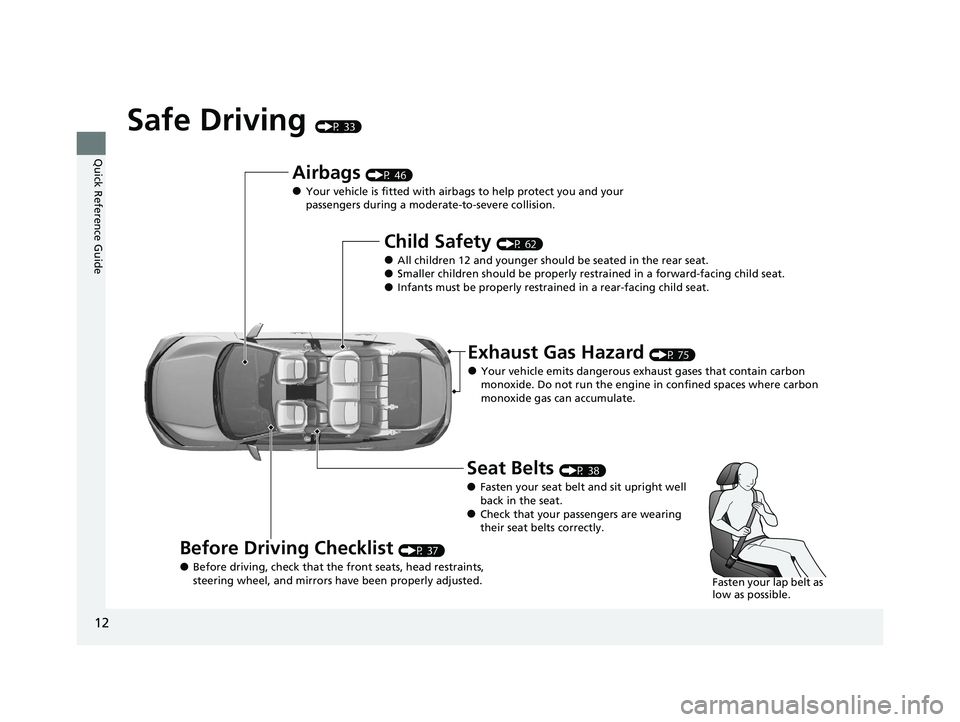

Safe Driving (P 33)
Airbags (P 46)
●Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P 62)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 75)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 12 ページ ２０２０年８月２５日　火曜日　午後２時６分

13
Quick Reference Guide

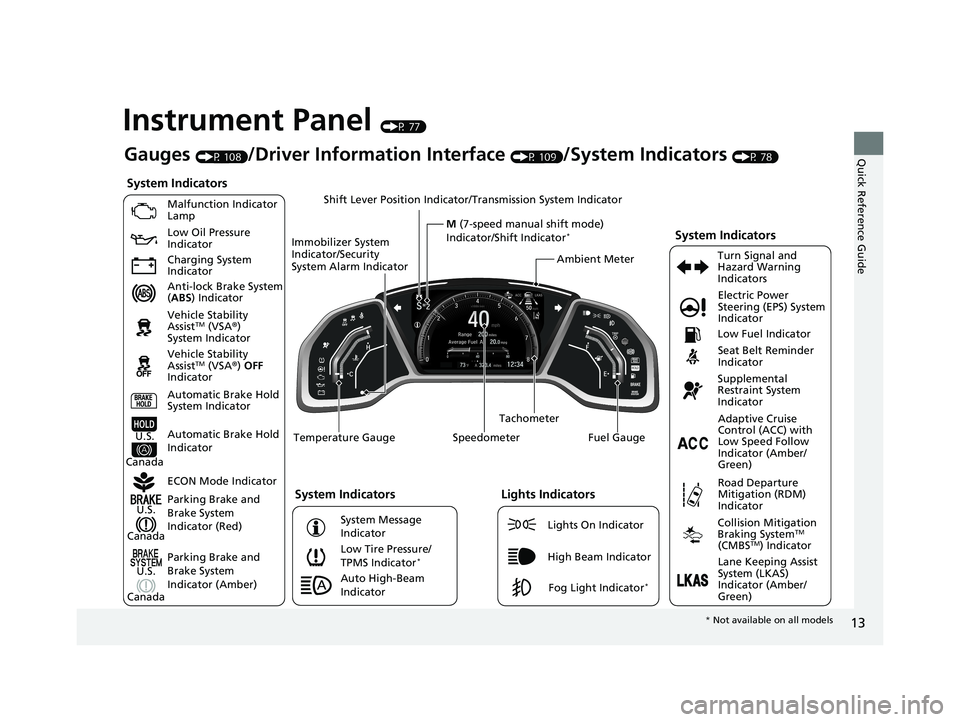

Instrument Panel (P 77)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
Assist
TM (VSA ®)
System Indicator
Vehicle Stability
Assist
TM (VSA ®) OFF
Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Speedometer Fuel Gauge
Immobilizer System
Indicator/Security
System Alarm Indicator
Shift Lever Position Indicator/
Transmission System Indicator
Low Fuel Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Amber/
Green)
System Message
Indicator
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
Ambient Meter
Gauges (P 108)/Driver Information Interface (P 109)/System Indicators (P 78)
M (7-speed manual shift mode)
Indicator/Shift Indicator
*
Auto High-Beam
Indicator
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 13 ページ ２０２０年８月２５日　火曜日　午後２時６分

14
Quick Reference Guide
Controls (P 125)
Clock (P 126)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aPress the (HOME) button, then
select Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The audio system receives signals from GPS
satellites, updating the clock automatically.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 153)
Press the button to change the vehicle’s
power mode.
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 14 ページ ２０２０年８月２５日　火曜日　午後２時６分

15
Quick Reference Guide

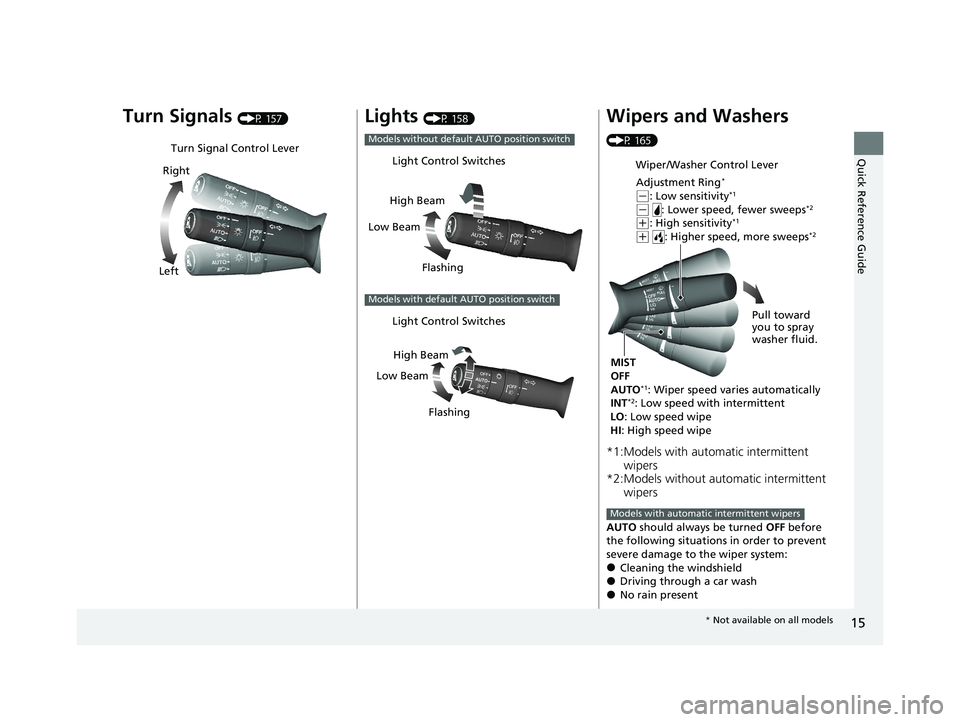

Turn Signals (P 157)
Turn Signal Control Lever
Right
Left
Lights (P 158)
Models without default AUTO position switch
Light Control Switches
Low Beam High Beam
Flashing
Models with default AUTO position switch
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 165)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
*
Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 15 ページ ２０２０年８月２５日　火曜日　午後２時６分

16
Quick Reference Guide

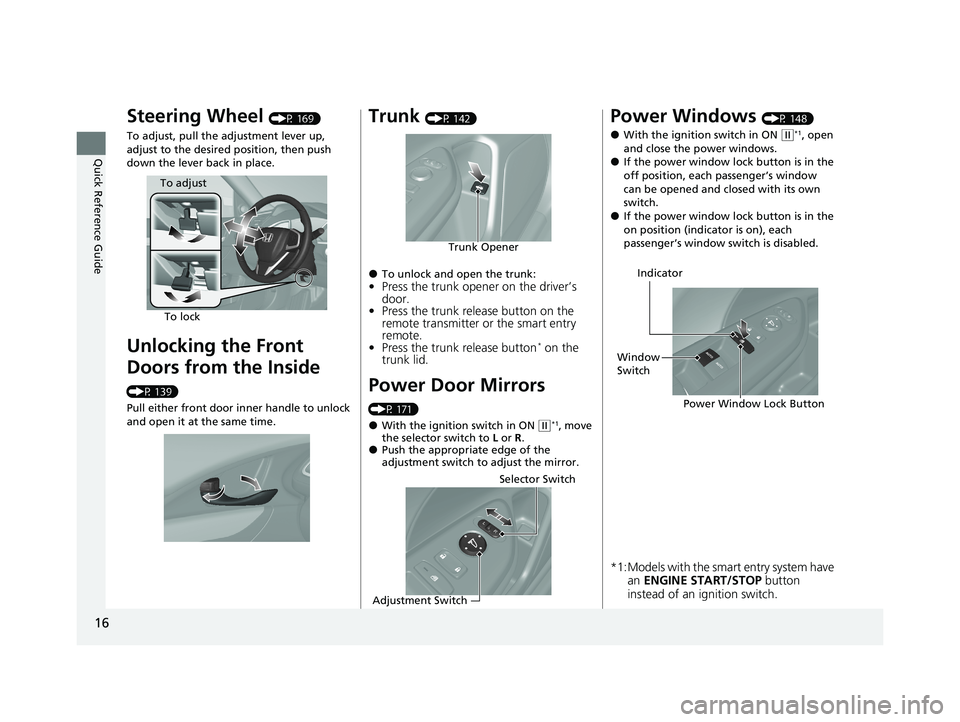

Steering Wheel (P 169)
To adjust, pull the adjustment lever up,
adjust to the desired position, then push
down the lever back in place.
Unlocking the Front
Doors from the Inside
(P 139) Pull either front door inner handle to unlock
and open it at the same time.
To adjust
To lock
Trunk (P 142)
●To unlock and open the trunk:• Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
remote transmitter or the smart entry
remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors
(P 171)
●With the ignition switch in ON ( w*1, move
the selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 148)
●With the ignition switch in ON ( w*1, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 16 ページ ２０２０年８月２５日　火曜日　午後２時６分

17
Quick Reference Guide

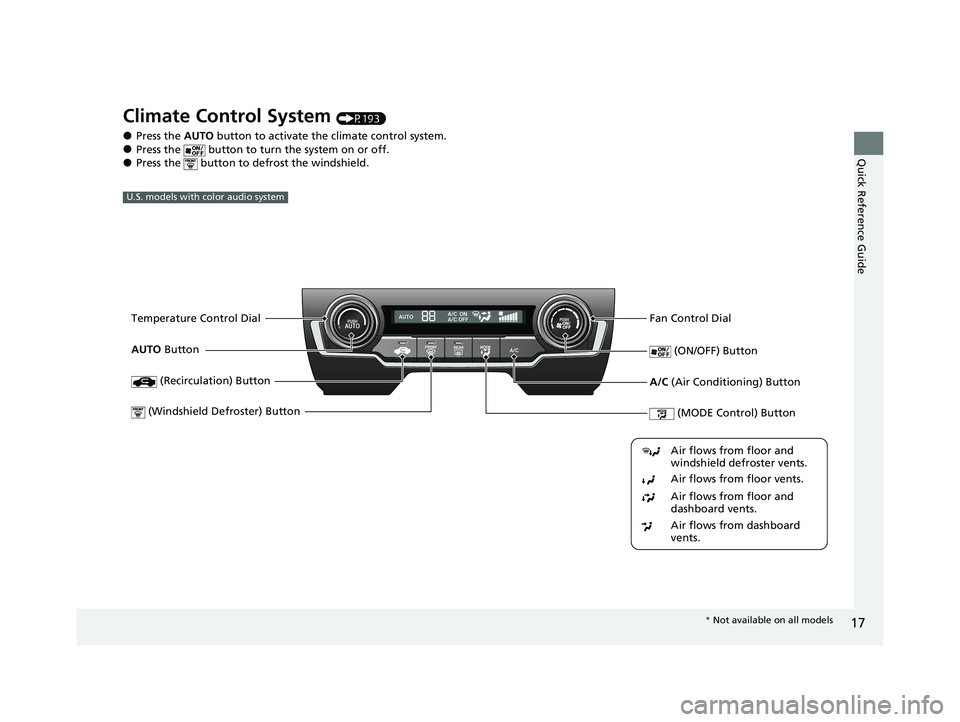

Climate Control System (P193)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
U.S. models with color audio system
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) ButtonAUTO Button
A/C (Air Conditioning) Button
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 17 ページ ２０２０年８月２５日　火曜日　午後２時６分

18
Quick Reference Guide

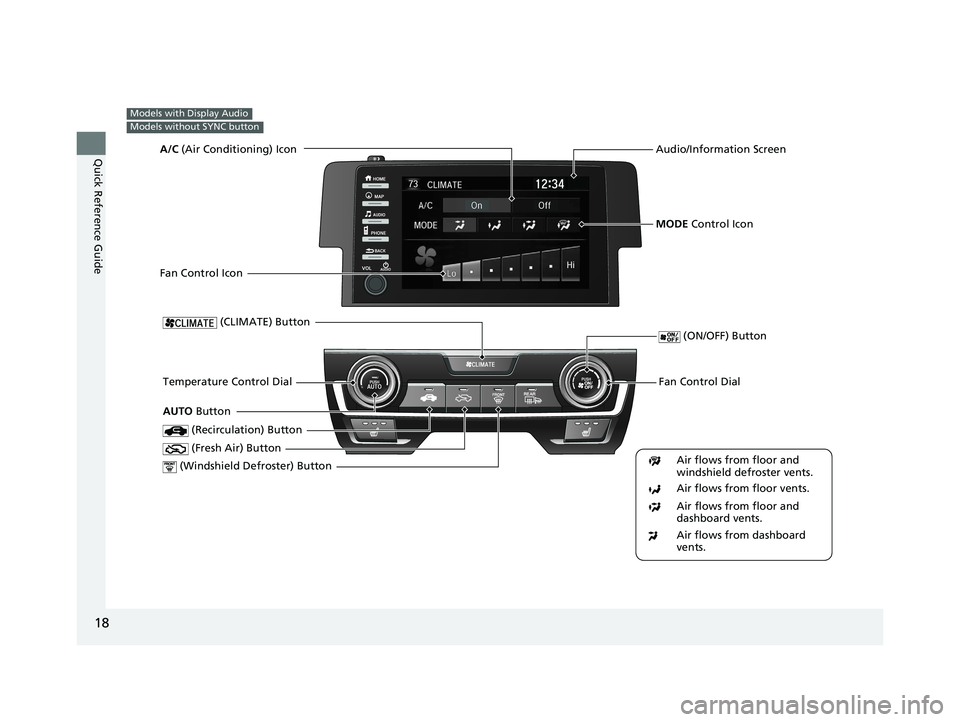

Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE) Button
(Fresh Air) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
MODE Control Icon
A/C
(Air Conditioning) Icon
Fan Control Icon
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 18 ページ ２０２０年８月２５日　火曜日　午後２時６分
