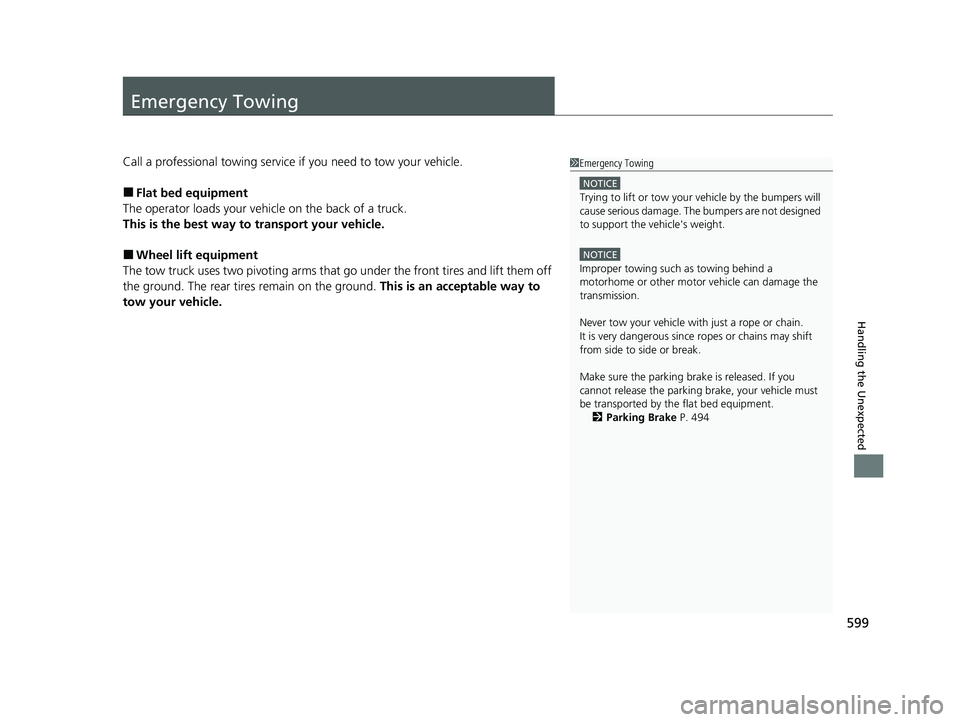

HONDA CIVIC SEDAN 2021 Owner's Manual (in English)

599
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 494
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 599 ページ ２０２０年８月２５日　火曜日　午後２時６分

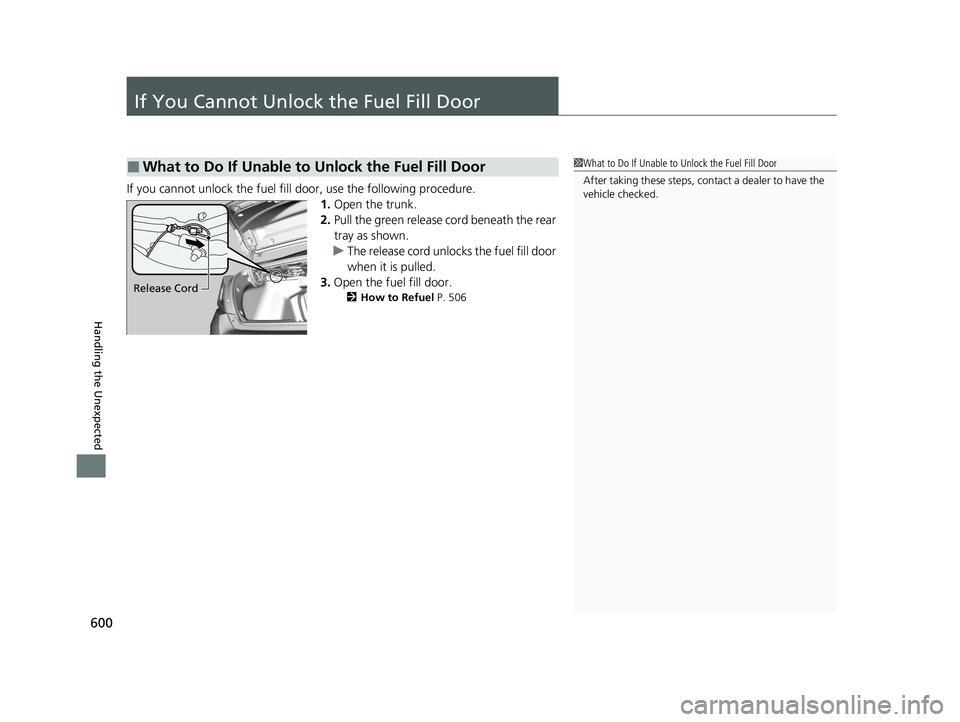

600
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the green release cord beneath the rear
tray as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 506
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Release Cord
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 600 ページ ２０２０年８月２５日　火曜日　午後２時６分

601
Handling the Unexpected

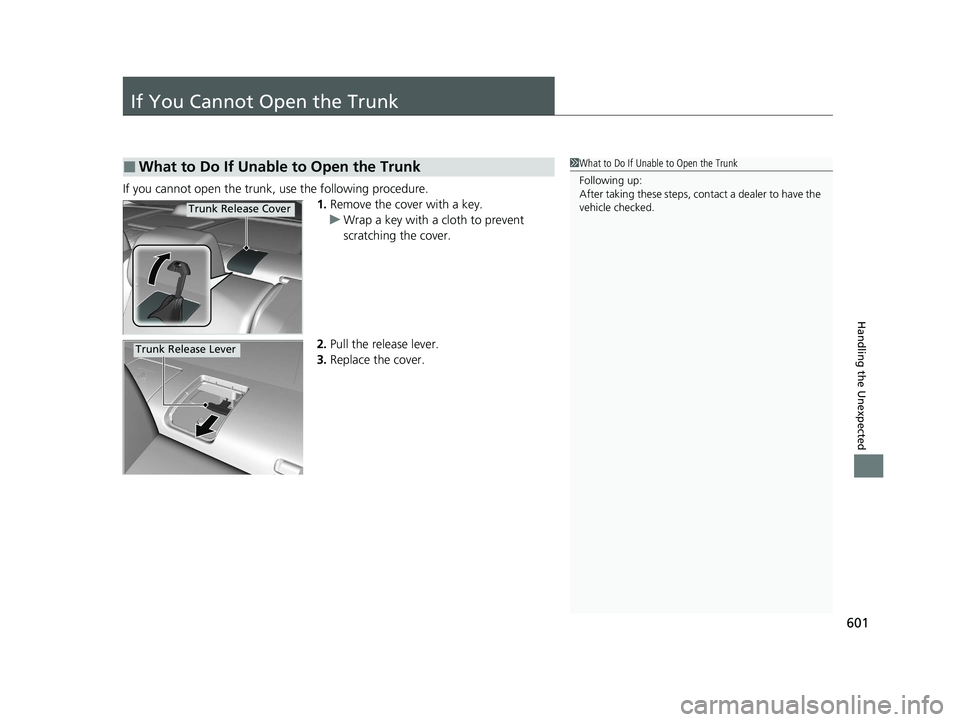

If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
u Wrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
■What to Do If Unable to Open the Trunk1What to Do If Unable to Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Trunk Release Cover
Trunk Release Lever
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 601 ページ ２０２０年８月２５日　火曜日　午後２時６分

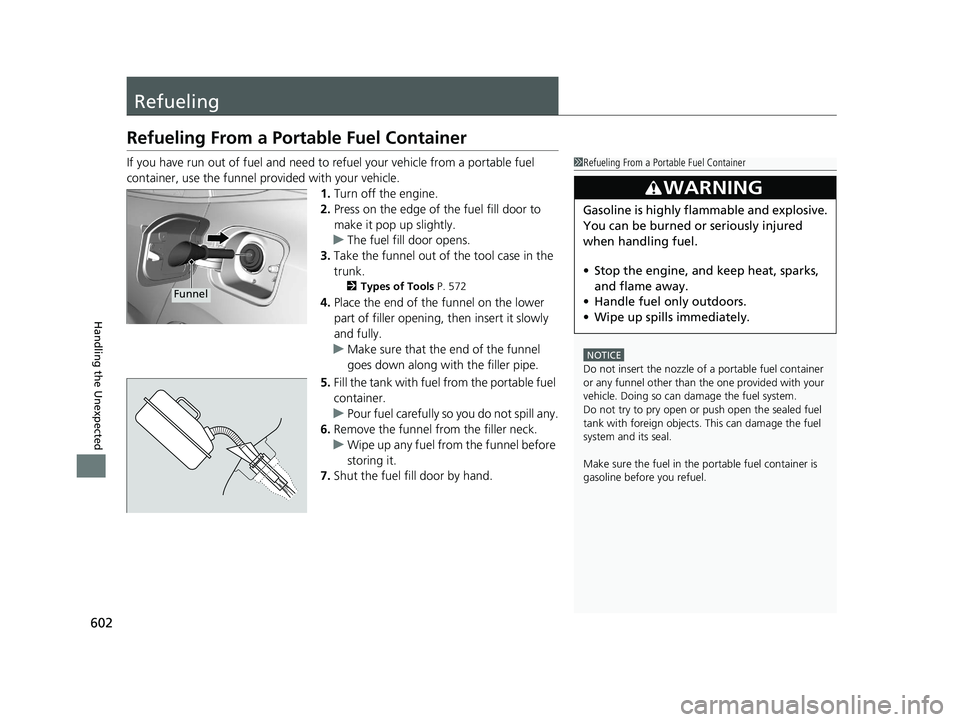

602
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 572
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 602 ページ ２０２０年８月２５日　火曜日　午後２時６分

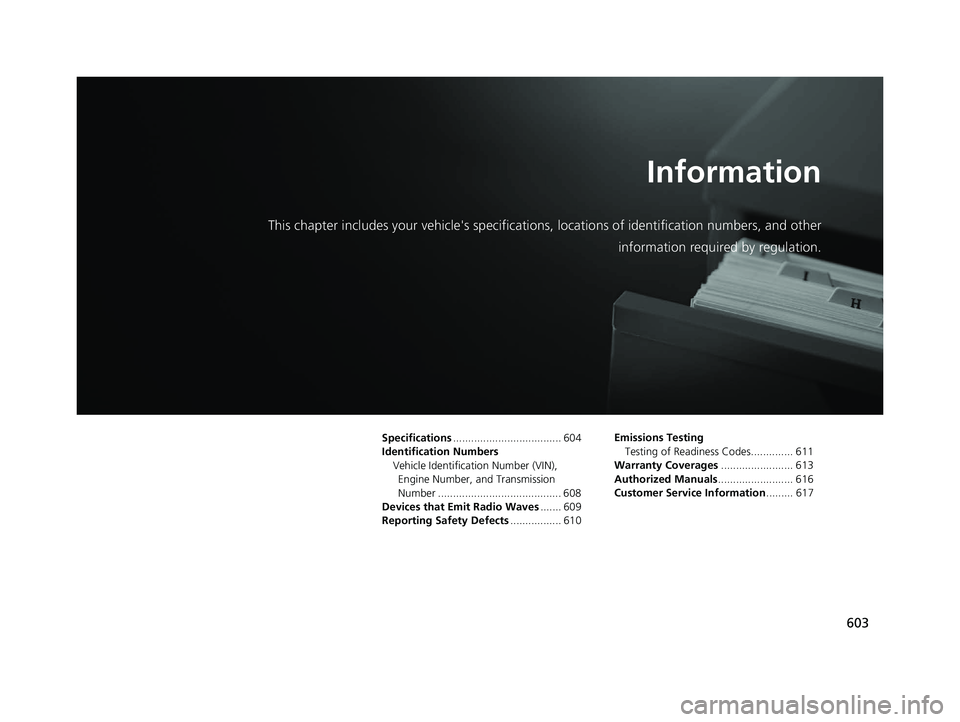

603
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 604
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 608
Devices that Emit Radio Waves ....... 609
Reporting Safety Defects ................. 610Emissions Testing
Testing of Readiness Codes.............. 611
Warranty Coverages ........................ 613
Authorized Manuals ......................... 616
Customer Service Information ......... 617
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 603 ページ ２０２０年８月２５日　火曜日　午後２時６分

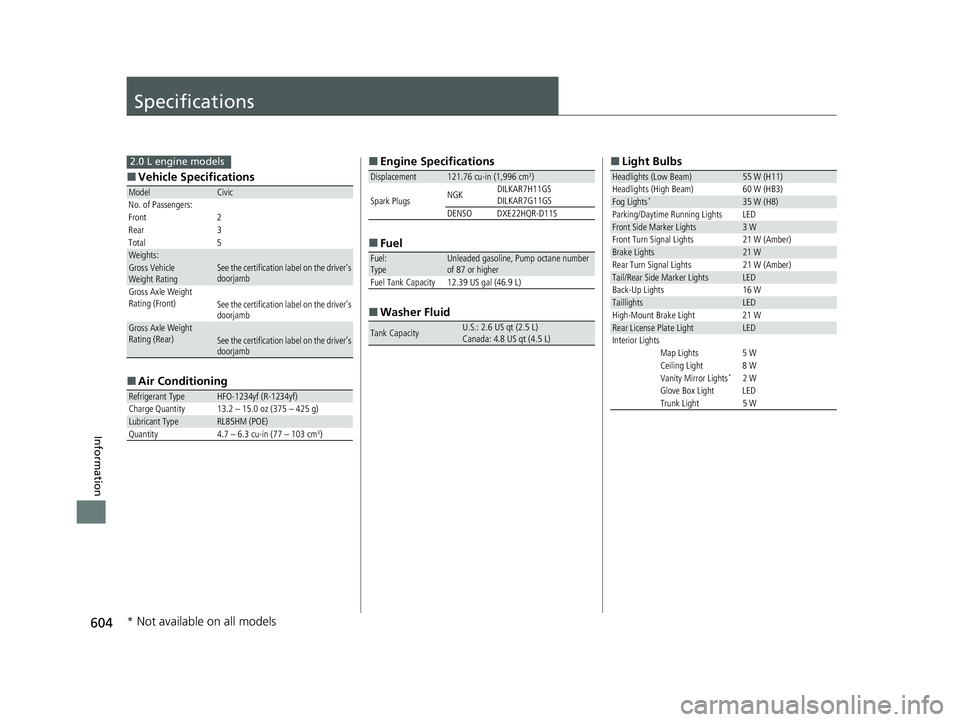

604
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCivic
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
2.0 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)
Headlights (High Beam) 60 W (HB3)
Fog Lights*35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)
Brake Lights21 W
Rear Turn Signal Lights 21 W (Amber)
Tail/Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
High-Mount Brake Light 21 W
Rear License Plate LightLED
Interior Lights Map Lights 5 W
Ceiling Light 8 W
Vanity Mirror Lights
*2 W
Glove Box Light LED
Trunk Light 5 W
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 604 ページ ２０２０年８月２５日　火曜日　午後２時６分

605
uuSpecifications u
Continued
Information
■
Brake Fluid
■ Continuously Variable Transmission
Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.7 US qt (3.5 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.4 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 215/55R16 tires
*3: Models with 235/40R18 tires
Regular
Size*1215/55R16 93H
235/40R18 91W
Pressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])*2
33 (225 [2.3])*3
Rear32 (220 [2.2])*2, *3
Compact
Spare Size
T125/80D16 97M
*2
T125/70R17 98M*3
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular16 x 7J*2
18 x 8J*3
Compact Spare16 x 4T*2
17 x 4T*3
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 605 ページ ２０２０年８月２５日　火曜日　午後２時６分

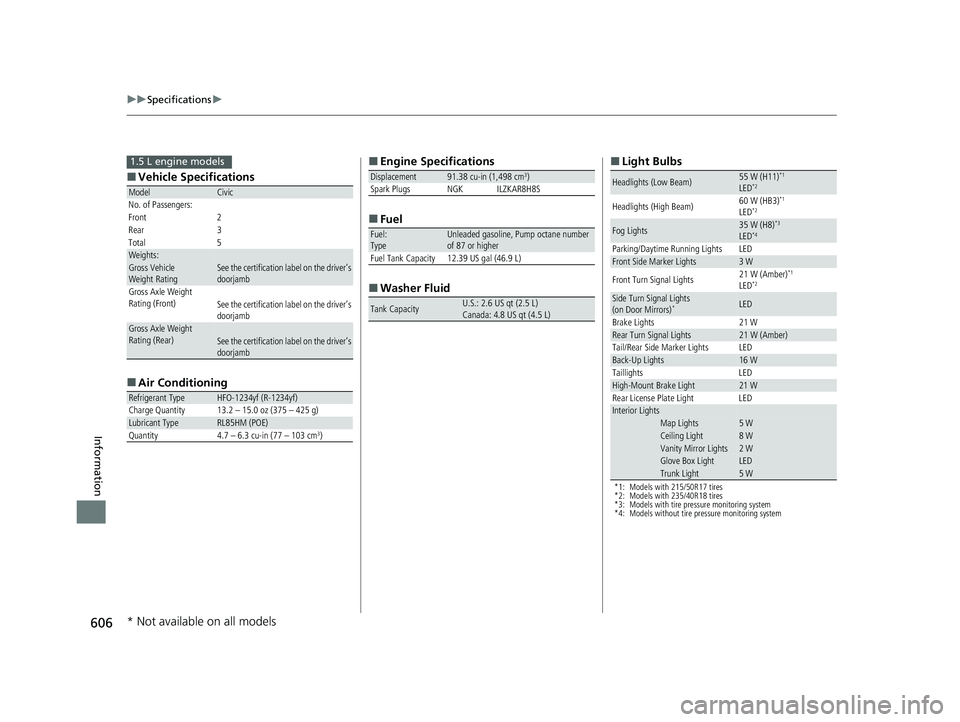

606
uuSpecifications u
Information
■
Vehicle Specifications
■ Air Conditioning
ModelCivic
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK ILZKAR8H8S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
*1: Models with 215/50R17 tires
*2: Models with 235/40R18 tires
*3: Models with tire pressure monitoring system
*4: Models without tire pressure monitoring system
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights35 W (H8)*3
LED*4
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake Light21 W
Rear License Plate Light LED
Interior LightsMap Lights5 WCeiling Light8 WVanity Mirror Lights2 WGlove Box LightLEDTrunk Light5 W
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 606 ページ ２０２０年８月２５日　火曜日　午後２時６分

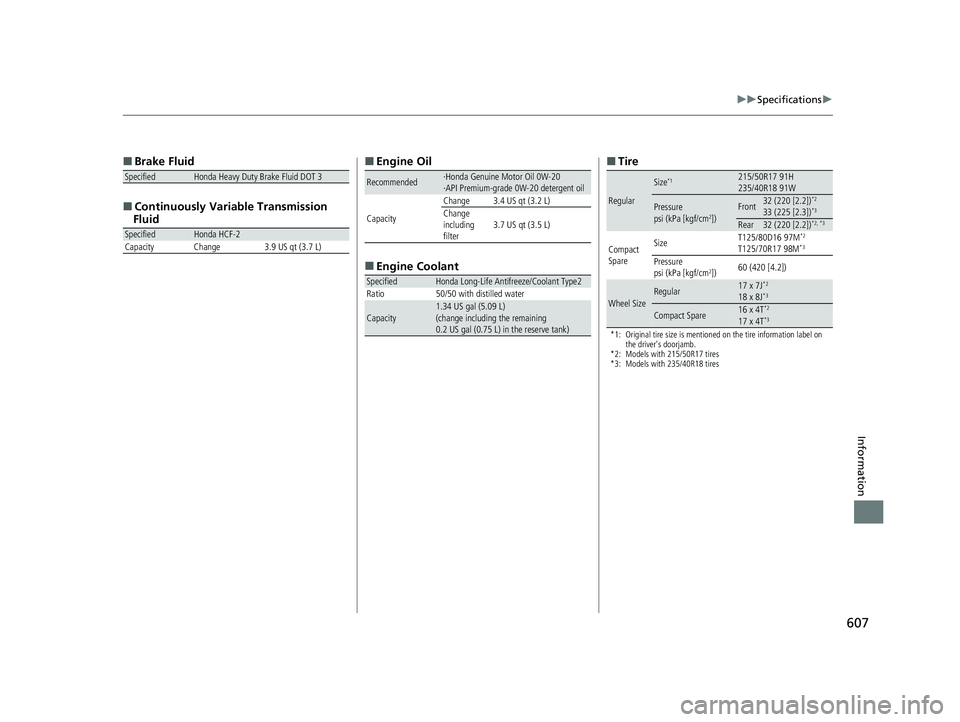

607
uuSpecifications u
Information
■
Brake Fluid
■ Continuously Variable Transmission
Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.34 US gal (5.09 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 215/50R17 tires
*3: Models with 235/40R18 tires
Regular
Size*1215/50R17 91H
235/40R18 91W
Pressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])*2
33 (225 [2.3])*3
Rear32 (220 [2.2])*2, *3
Compact
SpareSizeT125/80D16 97M*2
T125/70R17 98M*3
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular17 x 7J*2
18 x 8J*3
Compact Spare16 x 4T*2
17 x 4T*3
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 607 ページ ２０２０年８月２５日　火曜日　午後２時６分

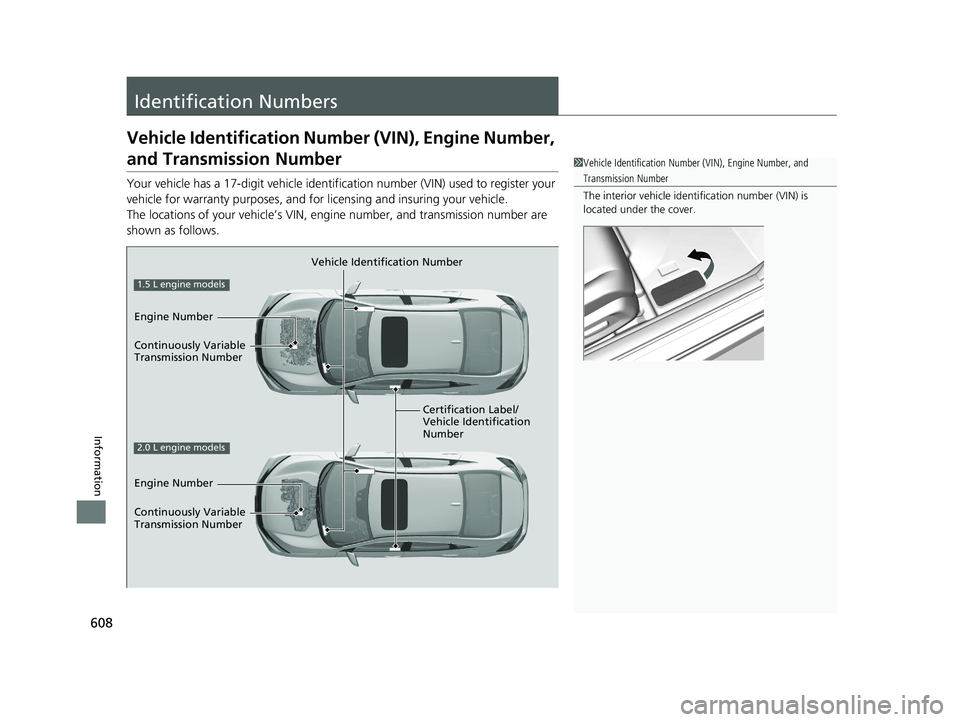

608
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models
1.5 L engine models
Continuously Variable
Transmission Number
Engine Number
Continuously Variable
Transmission Number
