spark plugs replace HONDA CIVIC SEDAN 2021 Owner's Manual (in English)

518
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 518 ページ ２０２０年８月２５日　火曜日　午後２時６分

519
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 519 ページ ２０２０年８月２５日　火曜日　午後２時６分

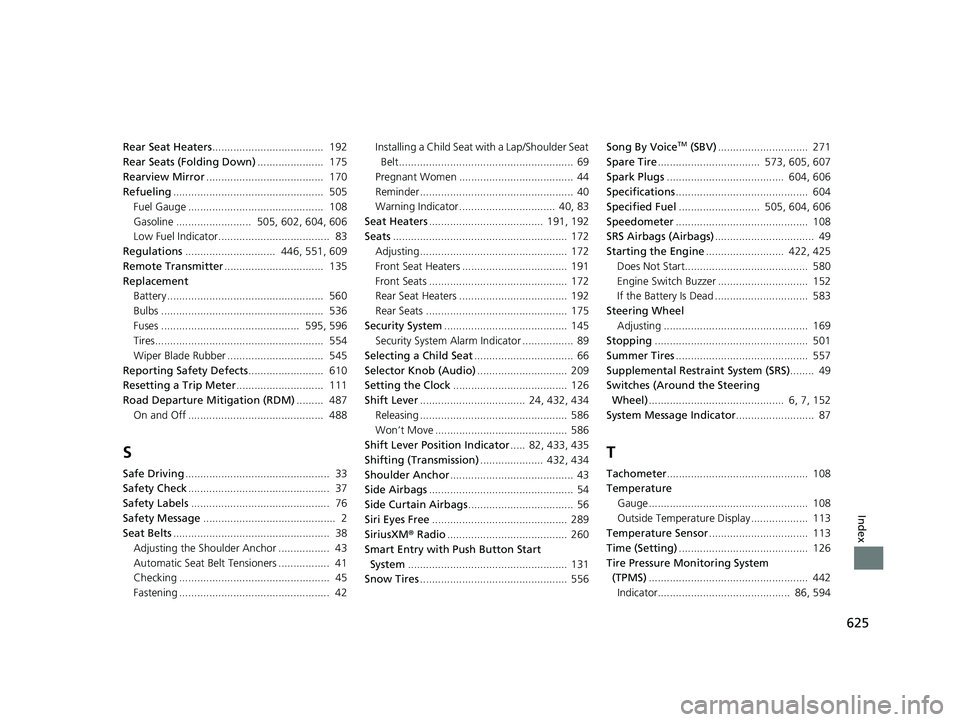

625
Index
Rear Seat Heaters..................................... 192
Rear Seats (Folding Down) ...................... 175
Rearview Mirror ....................................... 170
Refueling .................................................. 505
Fuel Gauge ............................................. 108
Gasoline ......................... 505, 602, 604, 606
Low Fuel Indicator..................................... 83
Regulations .............................. 446, 551, 609
Remote Transmitter ................................. 135
Replacement Battery .................................................... 560
Bulbs ...................................................... 536
Fuses .............................................. 595, 596
Tires........................................................ 554
Wiper Blade Rubber ................................ 545
Reporting Safety Defects ......................... 610
Resetting a Trip Meter ............................. 111
Road Departure Mitigation (RDM) ......... 487
On and Off ............................................. 488
S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels .............................................. 76
Safety Message ............................................ 2
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor ................. 43
Automatic Seat Belt Tensioners ................. 41
Checking .................................................. 45
Fastening .................................................. 42 Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 69
Pregnant Women ...................................... 44
Reminder ................................................... 40
Warning Indicator ................................ 40, 83
Seat Heaters ...................................... 191, 192
Seats .......................................................... 172
Adjusting ................................................. 172
Front Seat Heaters ................................... 191
Front Seats .............................................. 172
Rear Seat Heaters .................................... 192
Rear Seats ............................................... 175
Security System ......................................... 145
Security System Alarm Indicator ................. 89
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 209
Setting the Clock ...................................... 126
Shift Lever ................................... 24, 432, 434
Releasing ................................................. 586
Won’t Move ............................................ 586
Shift Lever Position Indicator ..... 82, 433, 435
Shifting (Transmission) ..................... 432, 434
Shoulder Anchor ......................................... 43
Side Airbags ................................................ 54
Side Curtain Airbags ................................... 56
Siri Eyes Free ............................................. 289
SiriusXM ® Radio ........................................ 260
Smart Entry with Push Button Start
System ..................................................... 131
Snow Tires ................................................. 556 Song By Voice
TM (SBV)
.............................. 271
Spare Tire .................................. 573, 605, 607
Spark Plugs ....................................... 604, 606
Specifications ............................................ 604
Specified Fuel ........................... 505, 604, 606
Speedometer ............................................ 108
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 422, 425
Does Not Start......................................... 580
Engine Switch Buzzer .............................. 152
If the Battery Is Dead ............................... 583
Steering Wheel Adjusting ................................................ 169
Stopping ................................................... 501
Summer Tires ............................................ 557
Supplemental Restraint System (SRS) ........ 49
Switches (Around the Steering
Wheel) ............................................. 6, 7, 152
System Message Indicator .......................... 87
T
Tachometer............................................... 108
Temperature
Gauge ..................................................... 108
Outside Temperature Display ................... 113
Temperature Sensor ................................. 113
Time (Setting) ........................................... 126
Tire Pressure Monitoring System (TPMS) ..................................................... 442
Indicator............................................ 86, 594
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 625 ページ ２０２０年８月２５日　火曜日　午後２時６分
