heater HONDA CLARITY ELECTRIC 2018 Owner's Manual (in English)

6
Quick Reference Guide
Quick Reference Guide

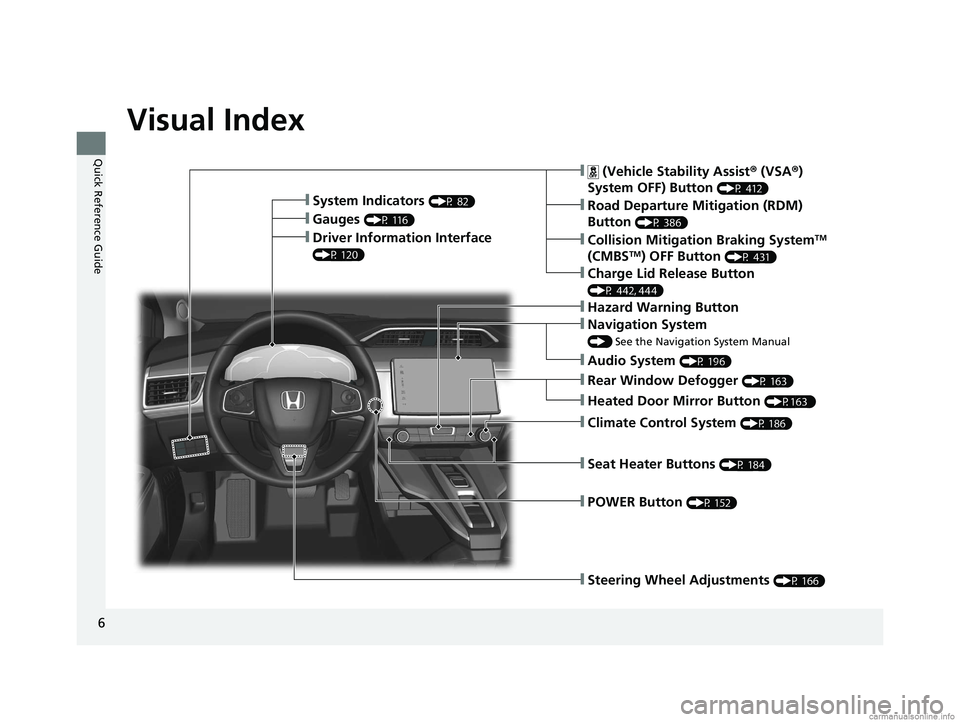

Visual Index
❙Steering Wheel Adjustments (P 166)
❙ (Vehicle Stability Assist® (VSA ®)
System OFF) Button
(P 412)
❙Road Departure Mitigation (RDM)
Button
(P 386)
❙System Indicators (P 82)
❙Gauges (P 116)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 431)
❙Charge Lid Release Button
(P 442, 444)
❙Driver Information Interface
(P 120)
❙Navigation System
() See the Navigation System Manual
❙Climate Control System (P 186)
❙Rear Window Defogger (P 163)
❙POWER Button (P 152)
❙Seat Heater Buttons (P 184)
❙Audio System (P 196)
❙Hazard Warning Button
❙Heated Door Mirror Button (P163 )
18 CLARITY ELECTRIC CSS-31TRV6100.book 6 ページ ２０１８年２月５日　月曜日　午後１２時０分

15
Quick Reference Guide

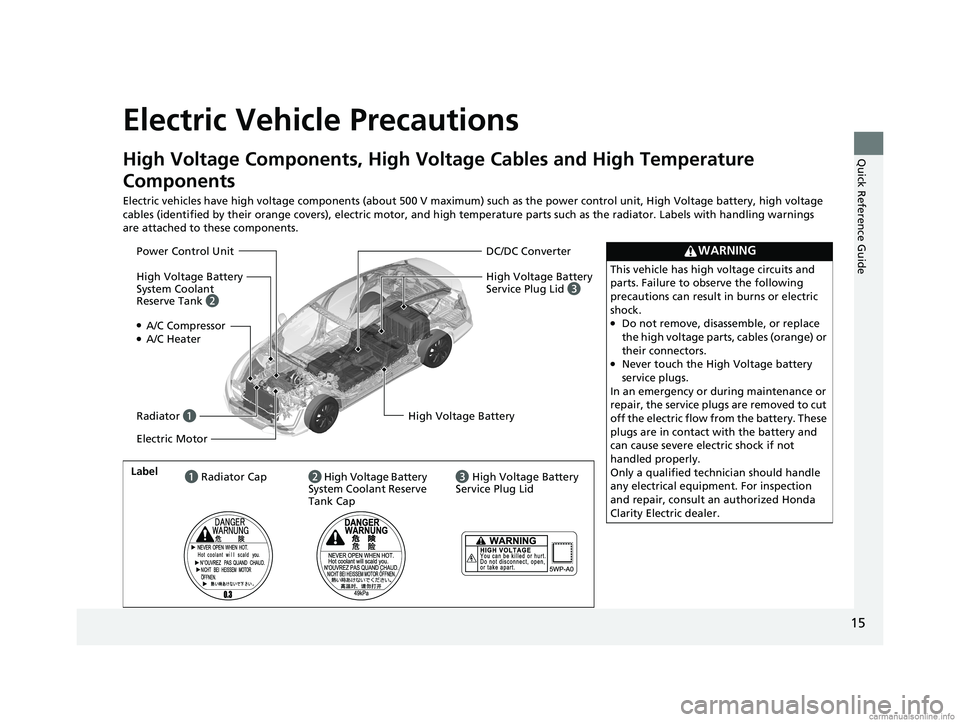

Electric Vehicle Precautions
High Voltage Components, High Voltage Cables and High Temperature
Components
Electric vehicles have high voltage components (about 500 V maximum) such as the power control unit, High Voltage battery, high voltage
cables (identified by their orange covers), electric motor, and high temperature parts such as the radiator. Labels with handli ng warnings
are attached to these components.
WARNING
This vehicle has high voltage circuits and
parts. Failure to observe the following
precautions can result in burns or electric
shock.
●Do not remove, disassemble, or replace
the high voltage parts, cables (orange) or
their connectors.
●Never touch the High Voltage battery
service plugs.
In an emergency or during maintenance or
repair, the service plugs are removed to cut
off the electric flow from the battery. These
plugs are in contact with the battery and
can cause severe electric shock if not
handled properly.
Only a qualified technician should handle
any electrical equipment. For inspection
and repair, consult an authorized Honda
Clarity Electric dealer.
DC/DC Converter
●A/C Compressor●A/C Heater
Radiator a High Voltage Battery
Label
a Radiator Cap
Power Control Unit
Electric Motor
High Voltage Battery
Service Plug Lid c
High Voltage Battery
System Coolant
Reserve Tank b
b High Voltage Battery
System Coolant Reserve
Tank Cap c
High Voltage Battery
Service Plug Lid
18 CLARITY ELECTRIC CSS-31TRV6100.book 15 ページ ２０１８年２月５日　月曜日　午後１２時０分

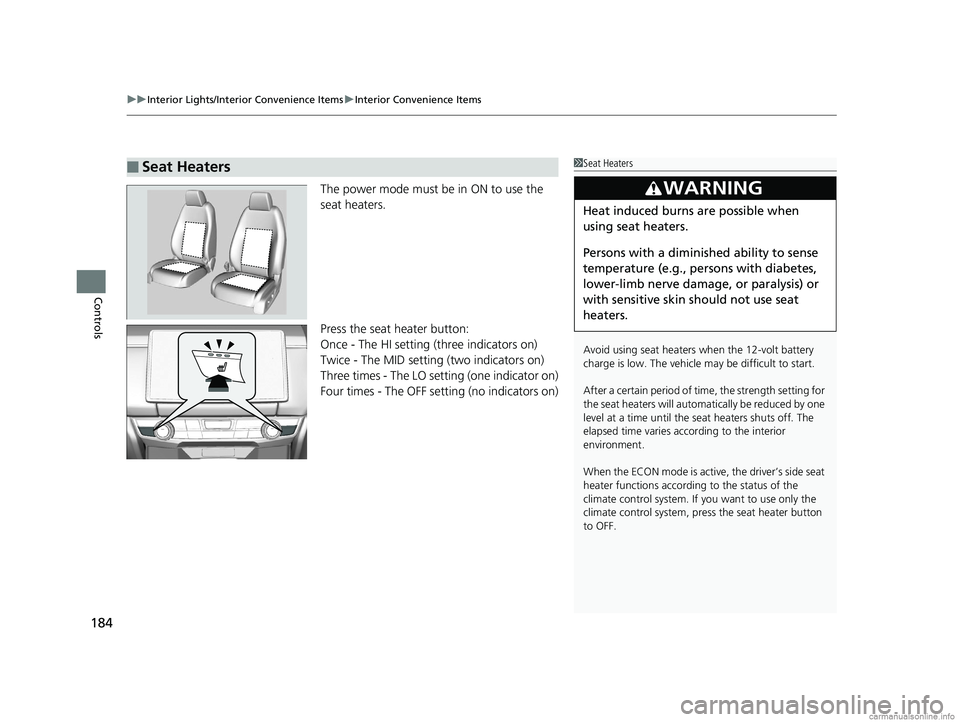

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
184
Controls
The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
■Seat Heaters1Seat Heaters
Avoid using seat heaters when the 12-volt battery
charge is low. The vehicle may be difficult to start.
After a certain period of time, the strength setting for
the seat heaters will automatically be reduced by one
level at a time until the seat heaters shuts off. The
elapsed time varies according to the interior
environment.
When the ECON mode is active, the driver’s side seat
heater functions accordi ng to the status of the
climate control system. If you want to use only the
climate control system, press the seat heater button
to OFF.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
18 CLARITY ELECTRIC CSS-31TRV6100.book 184 ページ ２０１８年２月５日　月曜日　午後１２時０分

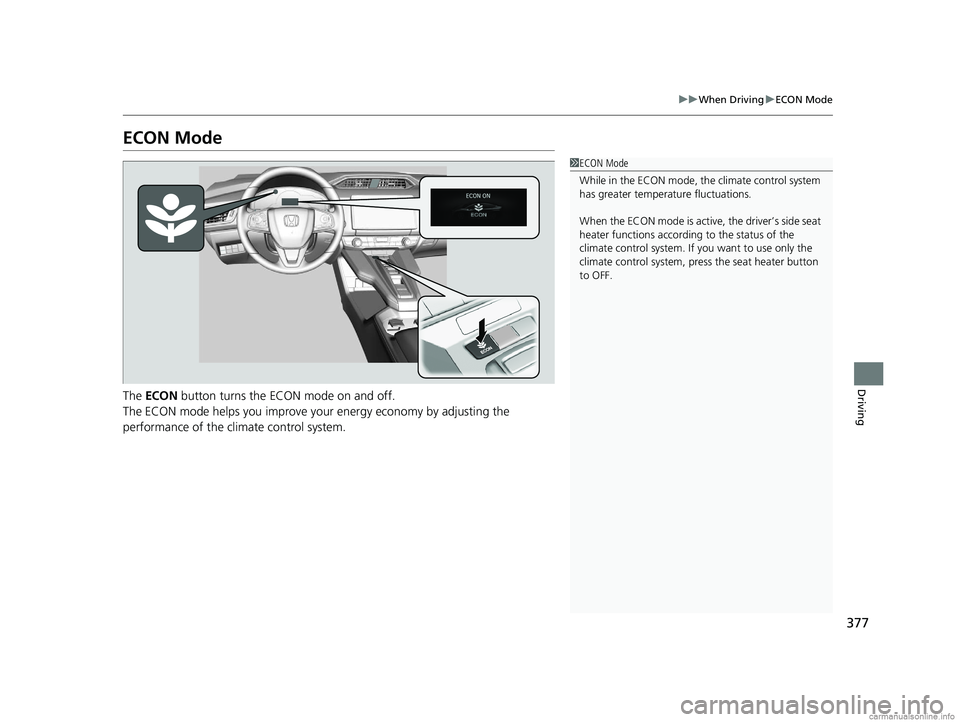

377
uuWhen Driving uECON Mode
Driving
ECON Mode
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your energy economy by adjusting the
performance of the climate control system.
1 ECON Mode
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.
When the ECON mode is active, the driver’s side seat
heater functions accordi ng to the status of the
climate control system. If you want to use only the
climate control system, press the seat heater button
to OFF.
18 CLARITY ELECTRIC CSS-31TRV6100.book 377 ページ ２０１８年２月５日　月曜日　午後１２時０分

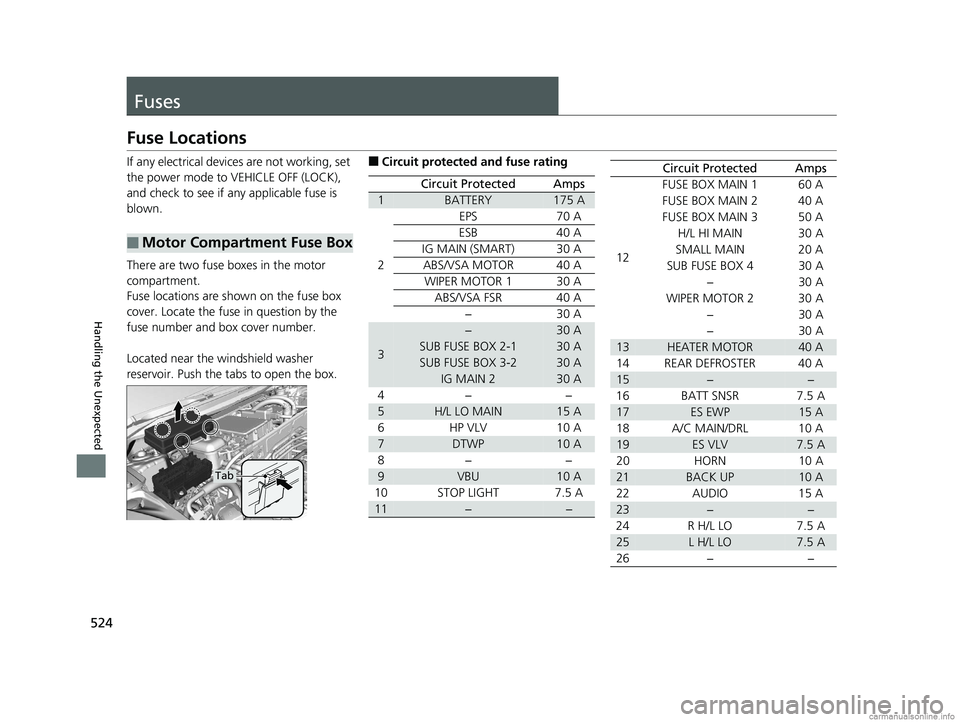

524
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are two fuse boxes in the motor
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the windshield washer
reservoir. Push the tabs to open the box.
■Motor Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY175 A
2
EPS70 A
ESB40 A
IG MAIN (SMART)30 A
ABS/VSA MOTOR40 A
WIPER MOTOR 130 A
ABS/VSA FSR40 A
−30 A
3
−30 A
SUB FUSE BOX 2-130 A
SUB FUSE BOX 3-230 A
IG MAIN 230 A
4− −
5H/L LO MAIN15 A
6HP VLV 10 A
7DTWP10 A
8− −
9VBU10 A
10 STOP LIGHT 7.5 A
11−−
Circuit ProtectedAmps
12 FUSE BOX MAIN 1 60 A
FUSE BOX MAIN 2 40 A
FUSE BOX MAIN 3 50 A
H/L HI MAIN 30 A
SMALL MAIN 20 A
SUB FUSE BOX 4 30 A − 30 A
WIPER MOTOR 2 30 A − 30 A
− 30 A
13HEATER MOTOR40 A
14 REAR DEFROSTER 40 A
15−−
16 BATT SNSR 7.5 A
17ES EWP15 A
18 A/C MAIN/DRL 10 A
19ES VLV7.5 A
20 HORN 10 A
21BACK UP10 A
22 AUDIO 15 A
23−−
24 R H/L LO 7.5 A
25L H/L LO7.5 A
26 − −
18 CLARITY ELECTRIC CSS-31TRV6100.book 524 ページ ２０１８年２月５日　月曜日　午後１２時０分

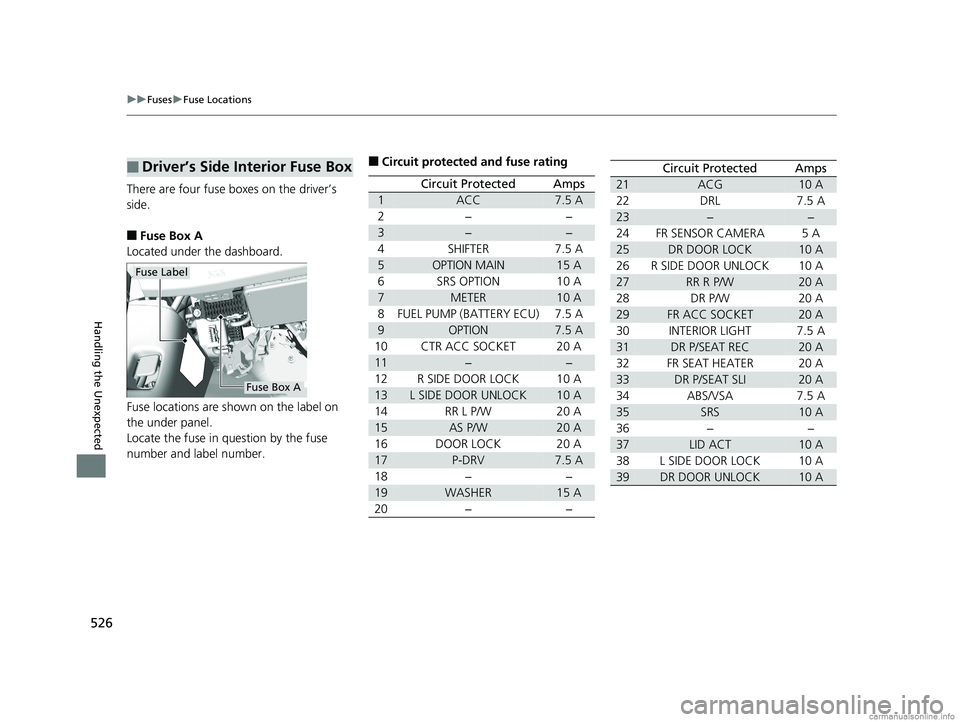

526
uuFuses uFuse Locations
Handling the Unexpected
There are four fuse boxes on the driver’s
side.
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
Fuse Box A
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC7.5 A
2−−
3−−
4SHIFTER7.5 A
5OPTION MAIN15 A
6SRS OPTION10 A
7METER10 A
8FUEL PUMP (BATTERY ECU)7.5 A
9OPTION7.5 A
10CTR ACC SOCKET20 A
11−−
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17P-DRV7.5 A
18−−
19WASHER15 A
20−−
Circuit ProtectedAmps
21ACG10 A
22DRL7.5 A
23−−
24FR SENSOR CAMERA5 A
25DR DOOR LOCK10 A
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30INTERIOR LIGHT7.5 A
31DR P/SEAT REC20 A
32FR SEAT HEATER20 A
33DR P/SEAT SLI20 A
34ABS/VSA7.5 A
35SRS10 A
36−−
37LID ACT10 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
18 CLARITY ELECTRIC CSS-31TRV6100.book 526 ページ ２０１８年２月５日　月曜日　午後１２時０分

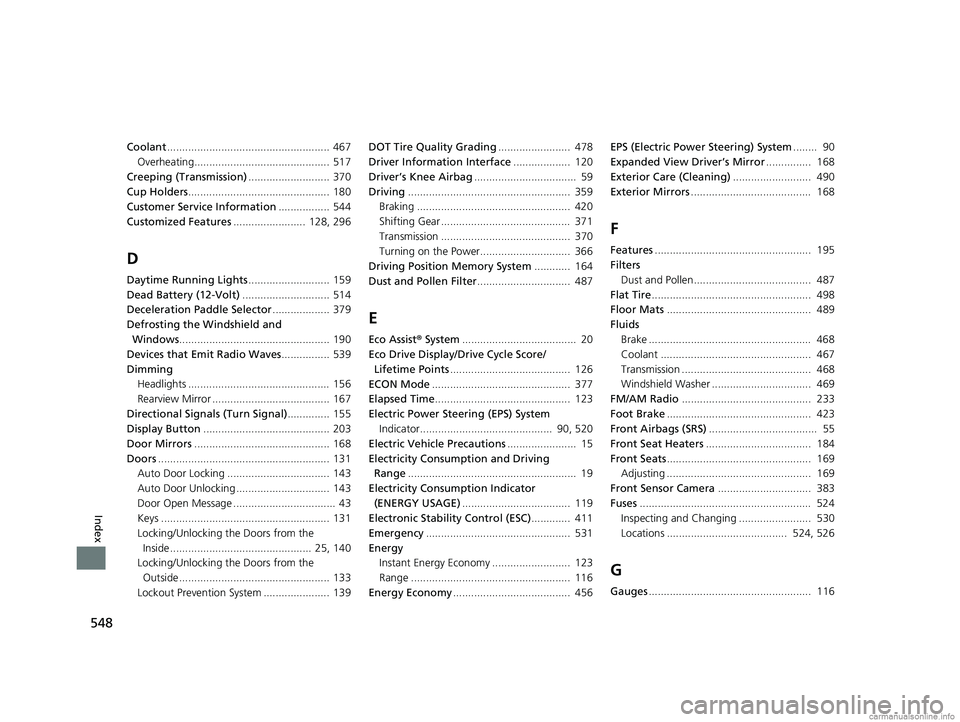

548
Index
Coolant...................................................... 467
Overheating............................................. 517
Creeping (Transmission) ........................... 370
Cup Holders ............................................... 180
Customer Service Information ................. 544
Customized Features ........................ 128, 296
D
Daytime Running Lights ........................... 159
Dead Battery (12-Volt) ............................. 514
Deceleration Paddle Selector ................... 379
Defrosting the Windshield and
Windows .................................................. 190
Devices that Emit Radio Waves ................ 539
Dimming
Headlights ............................................... 156
Rearview Mirror ....................................... 167
Directional Signals (Turn Signal) .............. 155
Display Button .......................................... 203
Door Mirrors ............................................. 168
Doors ......................................................... 131
Auto Door Locking .................................. 143
Auto Door Unlocking ............................... 143
Door Open Message .................................. 43
Keys ........................................................ 131
Locking/Unlocking the Doors from the
Inside ............................................... 25, 140
Locking/Unlocking the Doors from the Outside .................................................. 133
Lockout Prevention System ...................... 139 DOT Tire Quality Grading
........................ 478
Driver Information Interface ................... 120
Driver’s Knee Airbag .................................. 59
Driving ...................................................... 359
Braking ................................................... 420
Shifting Gear ........................................... 371
Transmission ........................................... 370
Turning on the Power.............................. 366
Driving Position Memory System ............ 164
Dust and Pollen Filter ............................... 487
E
Eco Assist® System ...................................... 20
Eco Drive Display/Drive Cycle Score/ Lifetime Points ........................................ 126
ECON Mode .............................................. 377
Elapsed Time ............................................. 123
Electric Power Steering (EPS) System Indicator............................................ 90, 520
Electric Vehicle Precautions ....................... 15
Electricity Consumption and Driving Range ........................................................ 19
Electricity Consumption Indicator
(ENERGY USAGE) .................................... 119
Electronic Stability Control (ESC) ............. 411
Emergency ................................................ 531
Energy Instant Energy Economy .......................... 123
Range ..................................................... 116
Energy Economy ....................................... 456 EPS (Electric Power Steering) System
........ 90
Expanded View Driver’s Mirror ............... 168
Exterior Care (Cleaning) .......................... 490
Exterior Mirrors ........................................ 168
F
Features.................................................... 195
Filters Dust and Pollen....................................... 487
Flat Tire ..................................................... 498
Floor Mats ................................................ 489
Fluids
Brake ...................................................... 468
Coolant .................................................. 467
Transmission ........................................... 468
Windshield Washer ................................. 469
FM/AM Radio ........................................... 233
Foot Brake ................................................ 423
Front Airbags (SRS) .................................... 55
Front Seat Heaters ................................... 184
Front Seats ................................................ 169
Adjusting ................................................ 169
Front Sensor Camera ............................... 383
Fuses ......................................................... 524
Inspecting and Changing ........................ 530
Locations ........................................ 524, 526
G
Gauges ...................................................... 116
18 CLARITY ELECTRIC CSS-31TRV6100.book 548 ページ ２０１８年２月５日　月曜日　午後１２時０分

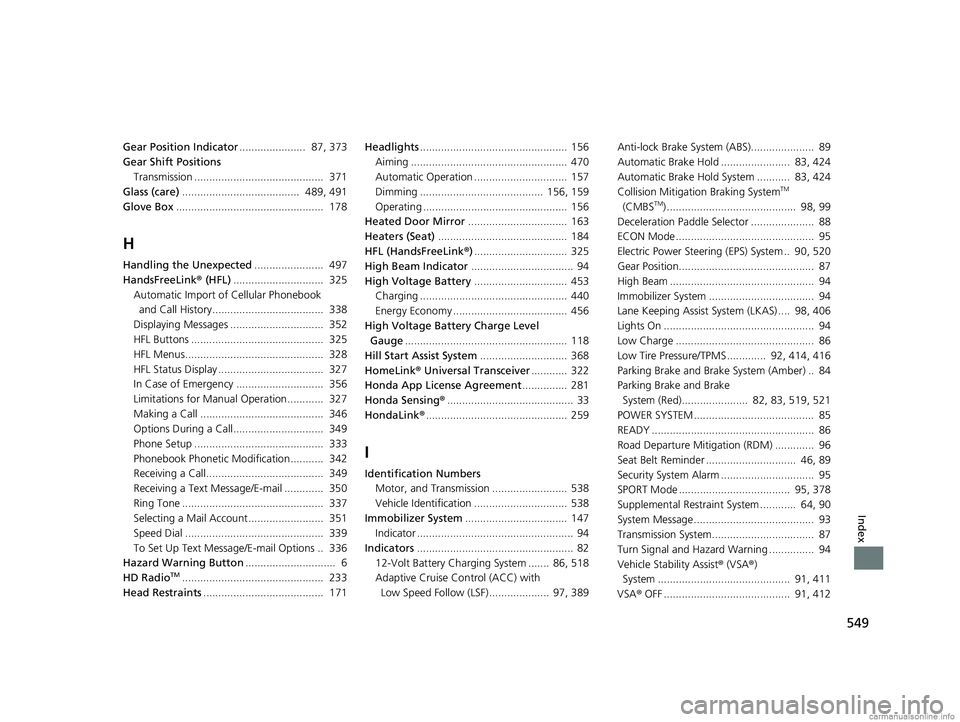

549
Index
Gear Position Indicator...................... 87, 373
Gear Shift Positions
Transmission ........................................... 371
Glass (care) ....................................... 489, 491
Glove Box ................................................. 178
H
Handling the Unexpected ....................... 497
HandsFreeLink ® (HFL) .............................. 325
Automatic Import of Cellular Phonebook
and Call History..................................... 338
Displaying Messages ............................... 352
HFL Buttons ............................................ 325
HFL Menus.............................................. 328
HFL Status Display ................................... 327
In Case of Emergency ............................. 356
Limitations for Manual Operation............ 327
Making a Call ......................................... 346
Options During a Call.............................. 349
Phone Setup ........................................... 333
Phonebook Phonetic Modification........... 342
Receiving a Call....................................... 349
Receiving a Text Message/E-mail ............. 350
Ring Tone ............................................... 337
Selecting a Mail Account......................... 351
Speed Dial .............................................. 339
To Set Up Text Messa ge/E-mail Options .. 336
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 233
Head Restraints ........................................ 171 Headlights
................................................. 156
Aiming .................................................... 470
Automatic Operation ............................... 157
Dimming ......................................... 156, 159
Operating ................................................ 156
Heated Door Mirror ................................. 163
Heaters (Seat) ........................................... 184
HFL (HandsFreeLink ®)............................... 325
High Beam Indicator .................................. 94
High Voltage Battery ............................... 453
Charging ................................................. 440
Energy Economy ...................................... 456
High Voltage Battery Charge Level Gauge ...................................................... 118
Hill Start Assist System ............................. 368
HomeLink® Universal Transceiver ............ 322
Honda App License Agreement ............... 281
Honda Sensing ®.......................................... 33
HondaLink ®............................................... 259
I
Identification Numbers
Motor, and Transmission ......................... 538
Vehicle Identification ............................... 538
Immobilizer System .................................. 147
Indicator .................................................... 94
Indicators .................................................... 82
12-Volt Battery Charging System ....... 86, 518
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF).................... 97, 389 Anti-lock Brake System (ABS)..................... 89
Automatic Brake Hold ....................... 83, 424
Automatic Brake Hold System ........... 83, 424
Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................... 98, 99
Deceleration Paddle Selector ..................... 88
ECON Mode .............................................. 95
Electric Power Steering (EPS) System .. 90, 520
Gear Position............................................. 87
High Beam ................................................ 94
Immobilizer System ................................... 94
Lane Keeping Assist System (LKAS) .... 98, 406
Lights On .................................................. 94
Low Charge .............................................. 86
Low Tire Pressure/TPMS ............. 92, 414, 416
Parking Brake and Brake System (Amber) .. 84
Parking Brake and Brake System (Red)...................... 82, 83, 519, 521
POWER SYSTEM ........................................ 85
READY ...................................................... 86
Road Departure Mitigation (RDM) ............. 96
Seat Belt Reminder .............................. 46, 89
Security System Alarm ............................... 95
SPORT Mode ..................................... 95, 378
Supplemental Restraint System ............ 64, 90
System Message ........................................ 93
Transmission System.................................. 87
Turn Signal and Hazard Warning ............... 94
Vehicle Stability Assist ® (VSA ®)
System ............................................ 91, 411
VSA ® OFF .......................................... 91, 412
18 CLARITY ELECTRIC CSS-31TRV6100.book 549 ページ ２０１８年２月５日　月曜日　午後１２時０分

551

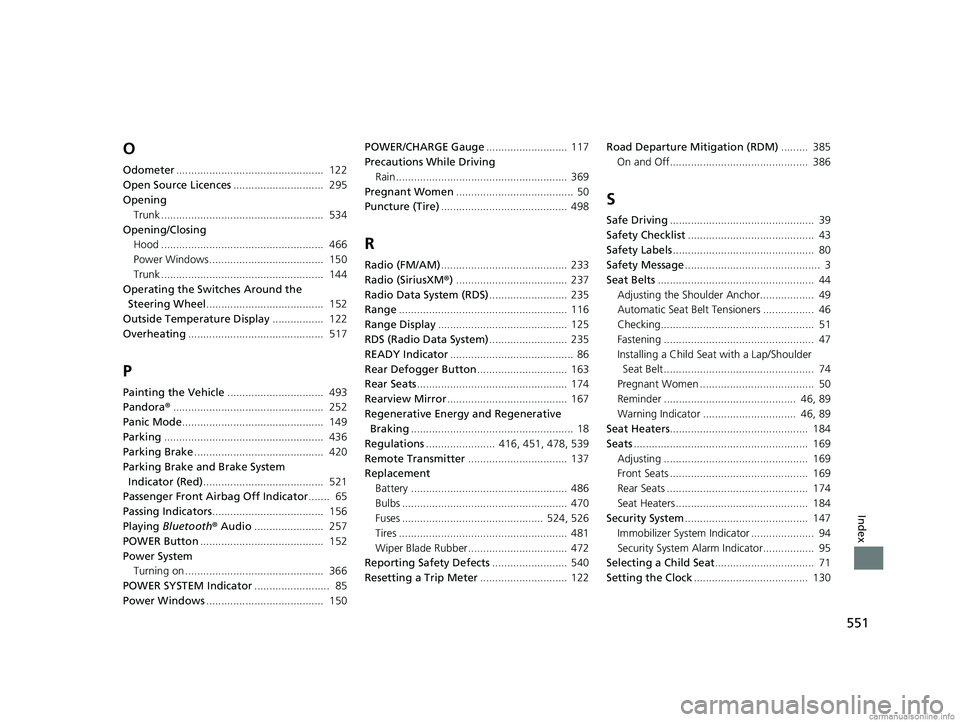

Index
O
Odometer................................................. 122
Open Source Licences .............................. 295
Opening Trunk ...................................................... 534
Opening/Closing Hood ...................................................... 466
Power Windows...................................... 150
Trunk ...................................................... 144
Operating the Switches Around the Steering Wheel ....................................... 152
Outside Temperature Display ................. 122
Overheating ............................................. 517
P
Painting the Vehicle ................................ 493
Pandora ®.................................................. 252
Panic Mode ............................................... 149
Parking ..................................................... 436
Parking Brake ........................................... 420
Parking Brake and Brake System Indicator (Red) ........................................ 521
Passenger Front Airb ag Off Indicator....... 65
Passing Indicators ..................................... 156
Playing Bluetooth ® Audio ....................... 257
POWER Button ......................................... 152
Power System Turning on .............................................. 366
POWER SYSTEM Indicator ......................... 85
Power Windows ....................................... 150 POWER/CHARGE Gauge
........................... 117
Precautions While Driving
Rain ......................................................... 369
Pregnant Women ....................................... 50
Puncture (Tire) .......................................... 498
R
Radio (FM/AM).......................................... 233
Radio (SiriusXM ®) ..................................... 237
Radio Data System (RDS) .......................... 235
Range ........................................................ 116
Range Display ........................................... 125
RDS (Radio Data System) .......................... 235
READY Indicator ......................................... 86
Rear Defogger Button .............................. 163
Rear Seats .................................................. 174
Rearview Mirror ........................................ 167
Regenerative Energy and Regenerative Braking ...................................................... 18
Regulations ....................... 416, 451, 478, 539
Remote Transmitter ................................. 137
Replacement Battery .................................................... 486
Bulbs ....................................................... 470
Fuses ............................................... 524, 526
Tires ........................................................ 481
Wiper Blade Rubber ................................. 472
Reporting Safety Defects ......................... 540
Resetting a Trip Meter ............................. 122 Road Departure Mitigation (RDM)
......... 385
On and Off.............................................. 386
S
Safe Driving ................................................ 39
Safety Checklist .......................................... 43
Safety Labels ............................................... 80
Safety Message ............................................. 3
Seat Belts .................................................... 44
Adjusting the Shoulder Anchor.................. 49
Automatic Seat Belt Tensioners ................. 46
Checking................................................... 51
Fastening .................................................. 47
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 74
Pregnant Women ...................................... 50
Reminder ............................................ 46, 89
Warning Indicator ............................... 46, 89
Seat Heaters .............................................. 184
Seats .......................................................... 169
Adjusting ................................................ 169
Front Seats .............................................. 169
Rear Seats ............................................... 174
Seat Heaters ............................................ 184
Security System ......................................... 147
Immobilizer System Indicator ..................... 94
Security System Alarm Indicator................. 95
Selecting a Child Seat ................................. 71
Setting the Clock ...................................... 130
18 CLARITY ELECTRIC CSS-31TRV6100.book 551 ページ ２０１８年２月５日　月曜日　午後１２時０分
