HONDA CLARITY FUEL CELL 2018 Owner's Manual (in English)

359
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

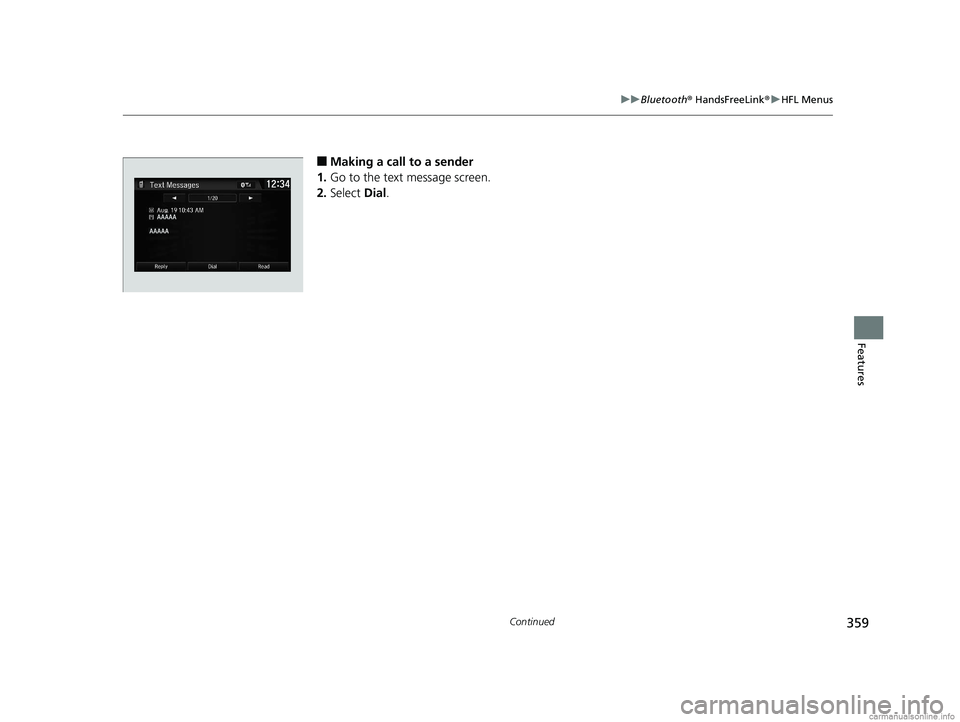

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
18 CLARITY FUEL CELL PPO-31TRT6100.book 359 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuBluetooth ® HandsFreeLink ®u HFL Menus
360
Features

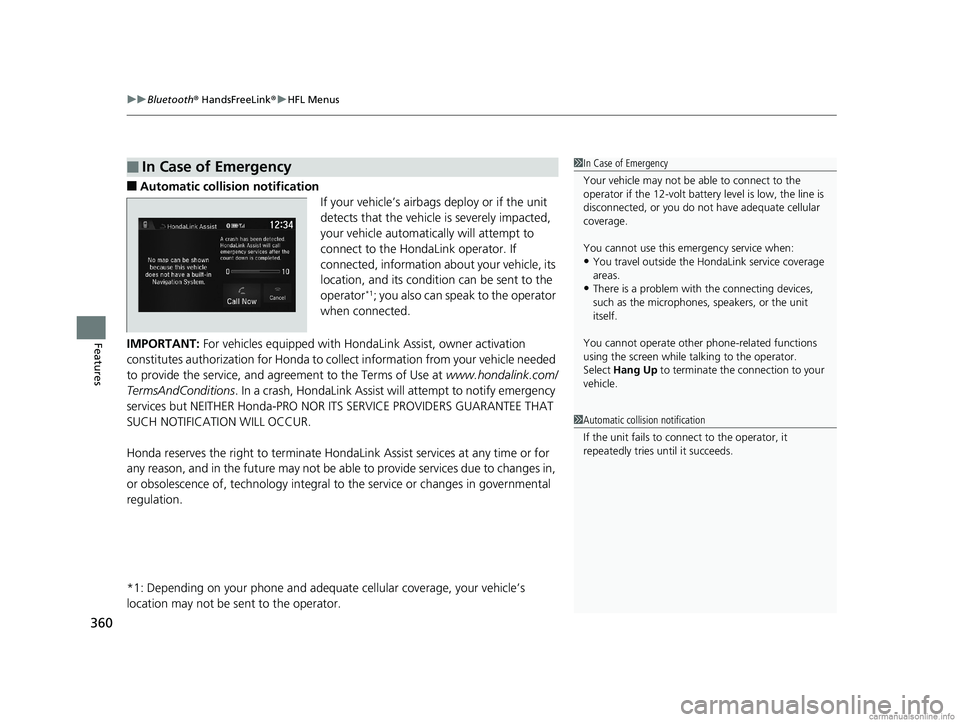

■Automatic collisi on notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Hond aLink Assist, owner activation
constitutes authorization for Honda to co llect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist w ill attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellular coverage, your vehicle’s
location may not be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the 12-volt battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
18 CLARITY FUEL CELL PPO-31TRT6100.book 360 ページ ２０１７年１１月２１日　火曜日　午後３時３分

361
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

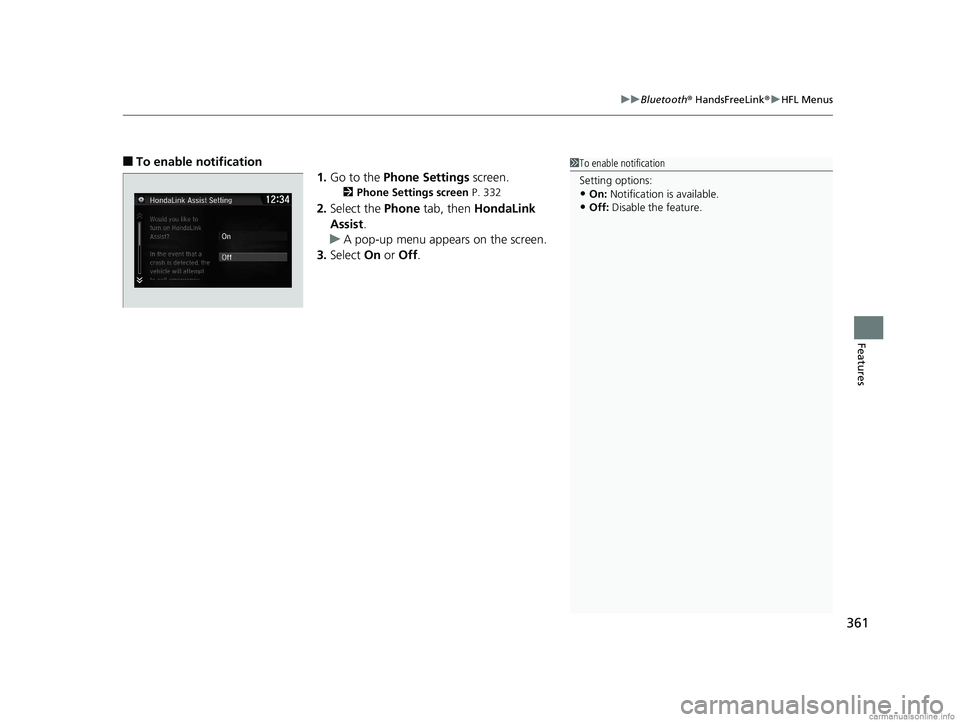

■To enable notification
1.Go to the Phone Settings screen.
2Phone Settings screen P. 332
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
18 CLARITY FUEL CELL PPO-31TRT6100.book 361 ページ ２０１７年１１月２１日　火曜日　午後３時３分

362
18 CLARITY FUEL CELL PPO-31TRT6100.book 362 ページ ２０１７年１１月２１日　火曜日　午後３時３分

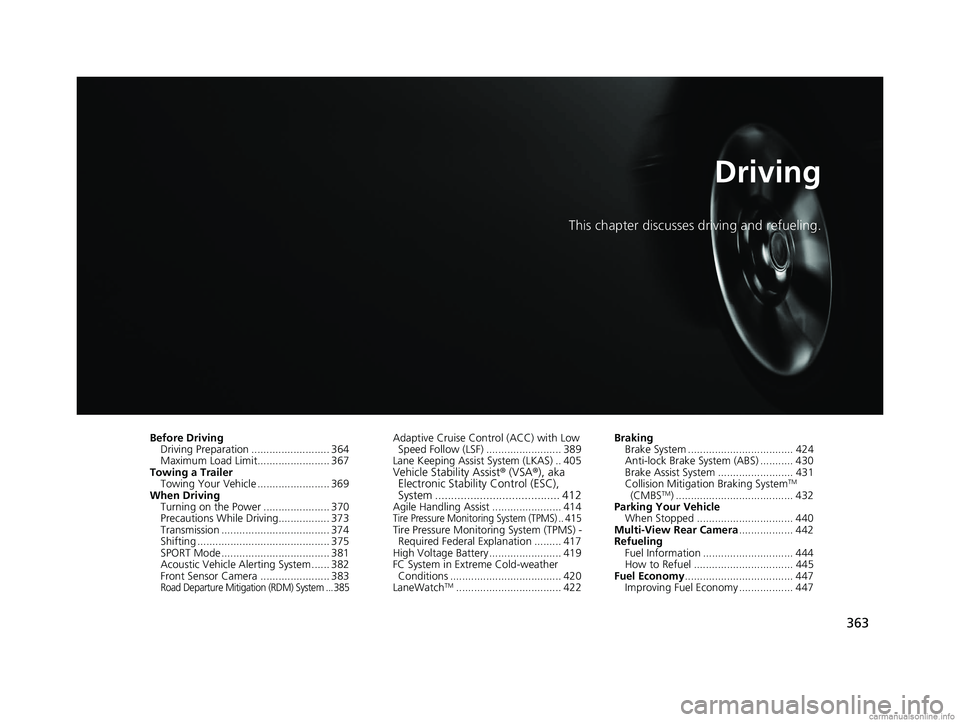

363
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 364
Maximum Load Limit........................ 367
Towing a Trailer Towing Your Vehicle ........................ 369
When Driving Turning on the Power ...................... 370
Precautions While Driving................. 373
Transmission .................................... 374
Shifting ............................................ 375
SPORT Mode.................................... 381
Acoustic Vehicle Al erting System ...... 382
Front Sensor Camera ....................... 383
Road Departure Mitigation (RDM) System ... 385
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ......................... 389
Lane Keeping Assist System (LKAS) .. 405
Vehicle Stability Assist ® (VSA ®), aka
Electronic Stability Control (ESC),
System ....................................... 412
Agile Handling Assist ....................... 414Tire Pressure Monitoring System (TPMS) .. 415Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 417
High Voltage Battery ........................ 419
FC System in Extreme Cold-weather
Conditions ..................................... 420
LaneWatch
TM................................... 422 Braking
Brake System ................................... 424
Anti-lock Brake System (ABS) ........... 430
Brake Assist System ......................... 431
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 432
Parking Your Vehicle When Stopped ................................ 440
Multi-View Rear Camera .................. 442
Refueling Fuel Information .............................. 444
How to Refuel ................................. 445
Fuel Economy .................................... 447
Improving Fuel Economy .................. 447
18 CLARITY FUEL CELL PPO-31TRT6100.book 363 ページ ２０１７年１１月２１日　火曜日　午後３時３分

364
Driving

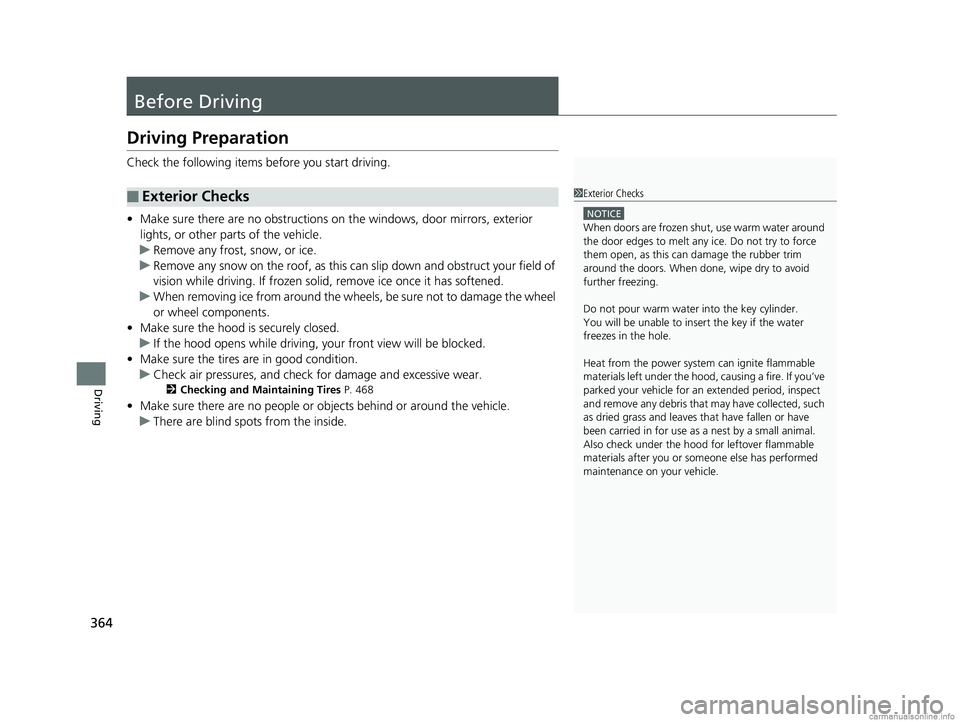

Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 468
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the power syst em can ignite flammable
materials left under the hood, causing a fire. If you’ve
parked your vehicle for an extended period, inspect
and remove any debris that may have collected, such
as dried grass and leaves th at have fallen or have
been carried in for use as a nest by a small animal.
Also check under the hood fo r leftover flammable
materials after you or so meone else has performed
maintenance on your vehicle.
18 CLARITY FUEL CELL PPO-31TRT6100.book 364 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Continued365
uuBefore Driving uDriving Preparation
Driving

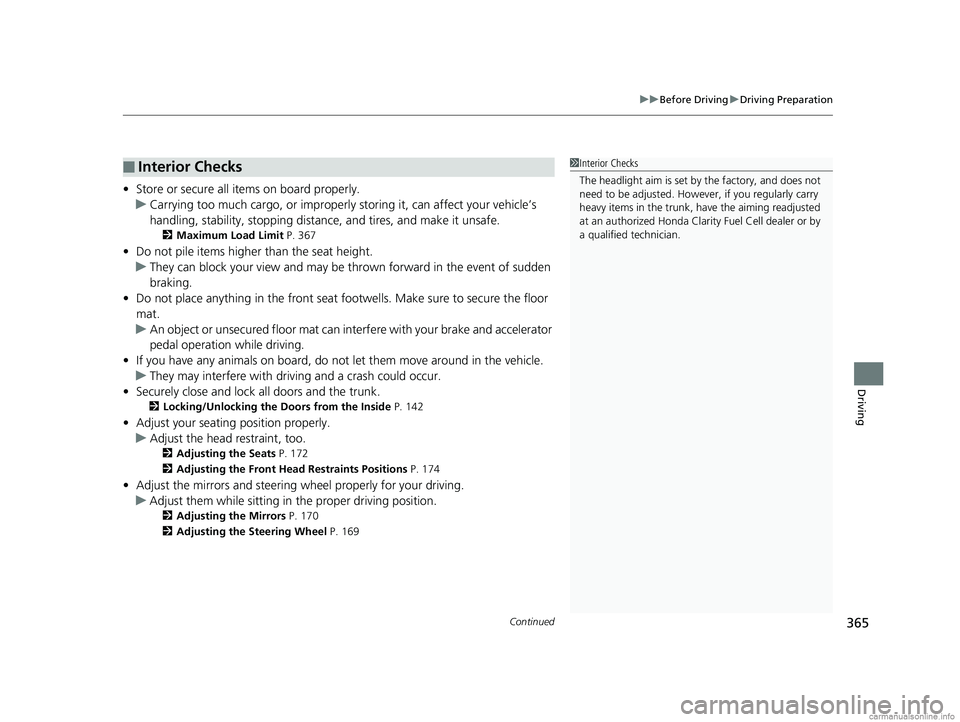

• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 367
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 142
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 172
2 Adjusting the Front Head Restraints Positions P. 174
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 170
2 Adjusting the Steering Wheel P. 169
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Honda Clar ity Fuel Cell dealer or by
a qualified technician.
18 CLARITY FUEL CELL PPO-31TRT6100.book 365 ページ ２０１７年１１月２１日　火曜日　午後３時３分

366
uuBefore Driving uDriving Preparation
Driving

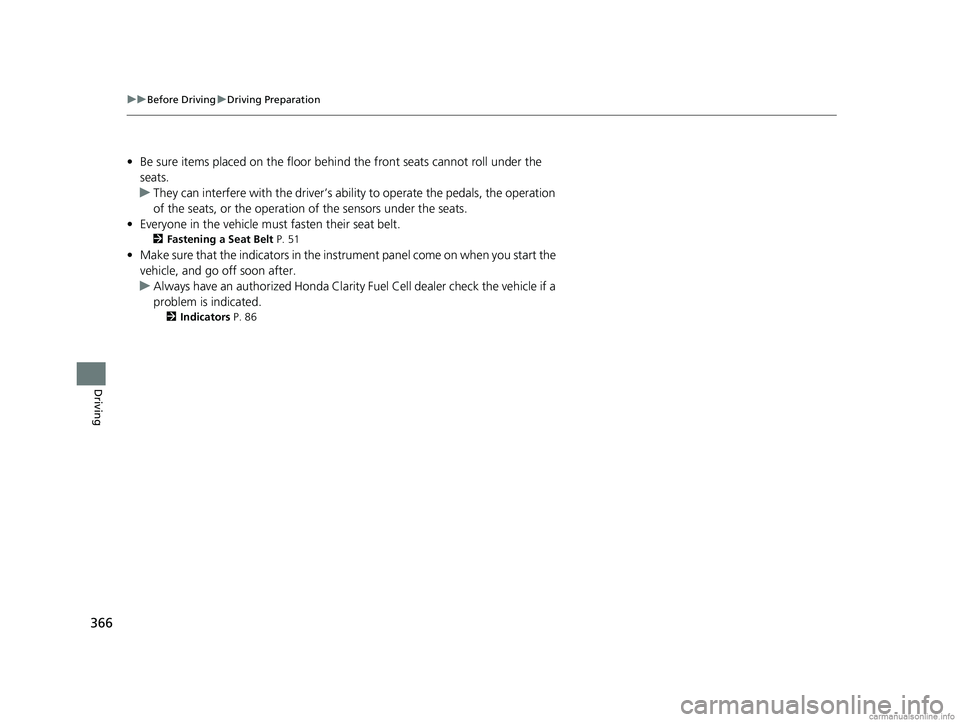

• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have an authorized Honda Clarity Fuel Cell dealer check the vehicle if a
problem is indicated.
2 Indicators P. 86
18 CLARITY FUEL CELL PPO-31TRT6100.book 366 ページ ２０１７年１１月２１日　火曜日　午後３時３分

367
uuBefore Driving uMaximum Load Limit
Continued
Driving

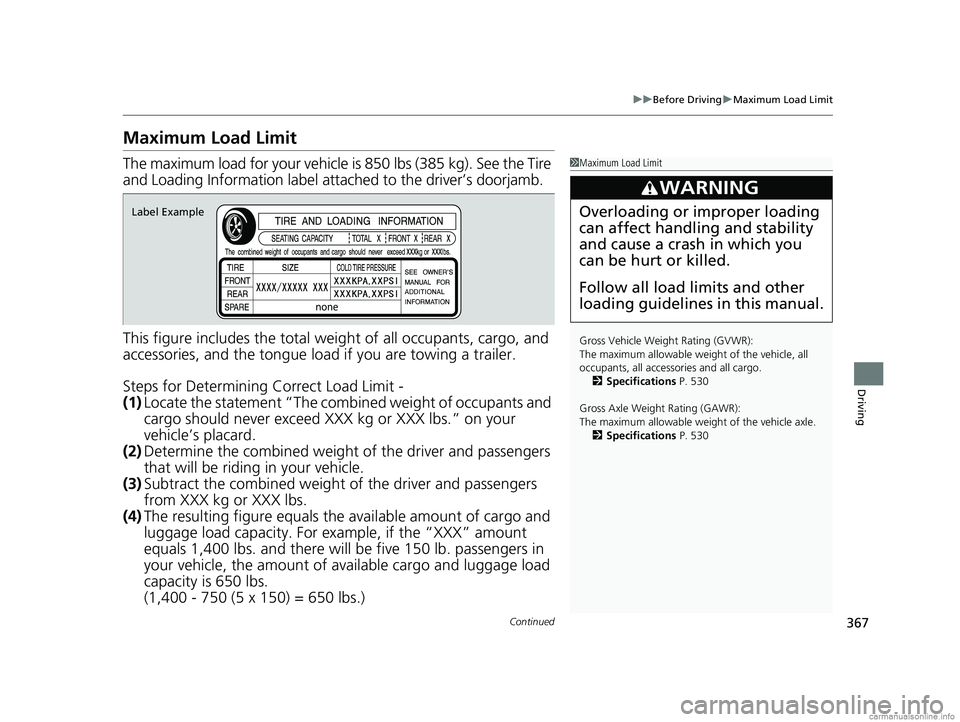

Maximum Load Limit
The maximum load for your vehicle is 850 lbs (385 kg). See the Tire
and Loading Information label atta ched to the driver’s doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 530
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 530
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.Label Example
18 CLARITY FUEL CELL PPO-31TRT6100.book 367 ページ ２０１７年１１月２１日　火曜日　午後３時３分

368
uuBefore Driving uMaximum Load Limit
Driving

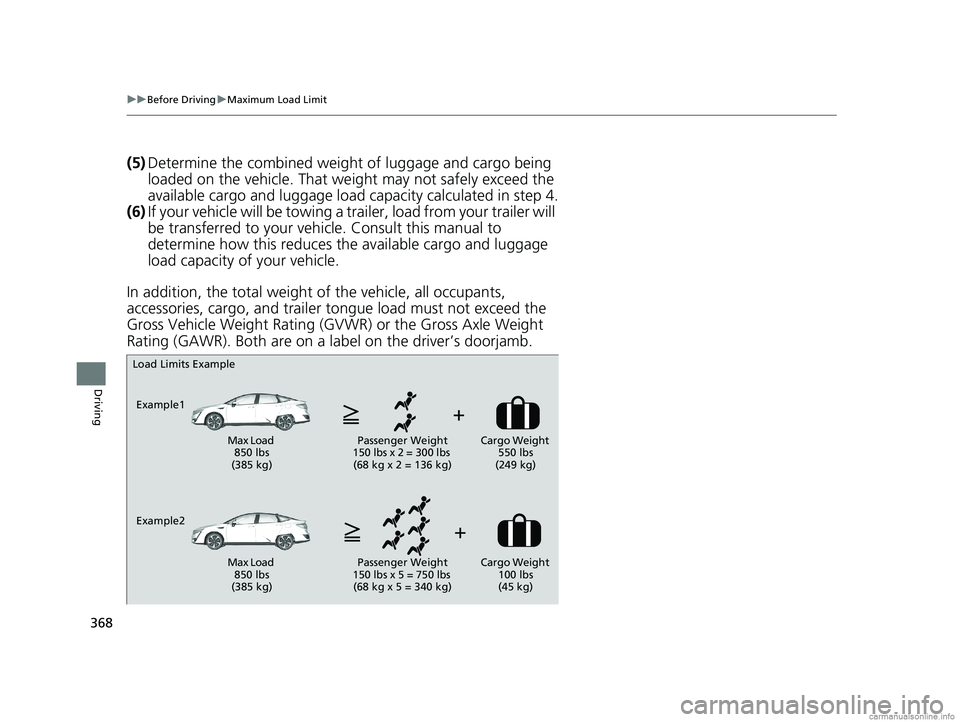

(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a tra iler, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.
Load Limits Example
Example1 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
550 lbs
(249 kg)
Example2 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
100 lbs
(45 kg)
18 CLARITY FUEL CELL PPO-31TRT6100.book 368 ページ ２０１７年１１月２１日　火曜日　午後３時３分
