uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchorage point is provided behind
each rear seating position.
If you have a child s eat that comes with a
tether but can be installed with a seat belt, the
tether may be used for additional security.
■Using an outer anchor
1. Locate the appropriate tether anchorage
point and lift the cover.
2. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
Route the tether strap around the head
restraint. Make sure the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.

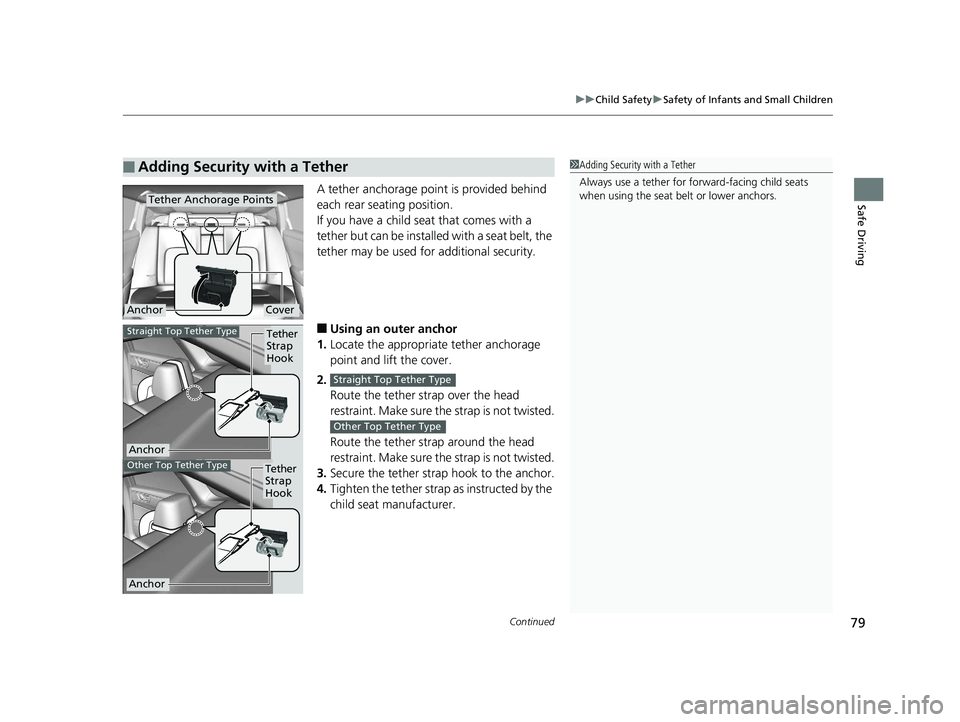

■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward-facing child seats
when using the seat be lt or lower anchors.
Tether Anchorage Points
CoverAnchor
Tether
Strap
Hook
Anchor
Straight Top Tether Type
Other Top Tether TypeTether
Strap
Hook
Anchor
Straight Top Tether Type
Other Top Tether Type
19 CLARITY FCV CSS-31TRT6200.book 79 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分

80
uuChild Safety uSafety of Infants and Small Children
Safe Driving

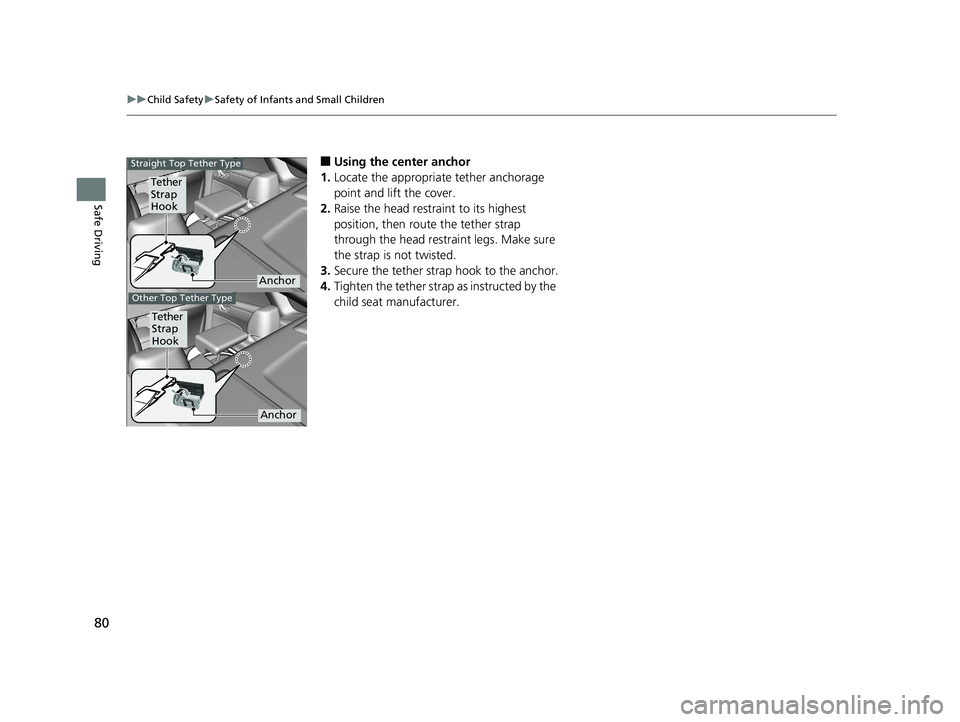

■Using the center anchor
1. Locate the appropriate tether anchorage
point and lift the cover.
2. Raise the head restraint to its highest
position, then rout e the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether
Strap
Hook
Anchor
Other Top Tether Type
Tether
Strap
Hook
Anchor
Straight Top Tether Type
19 CLARITY FCV CSS-31TRT6200.book 80 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分

81
uuChild Safety uSafety of Larger Children
Continued
Safe Driving

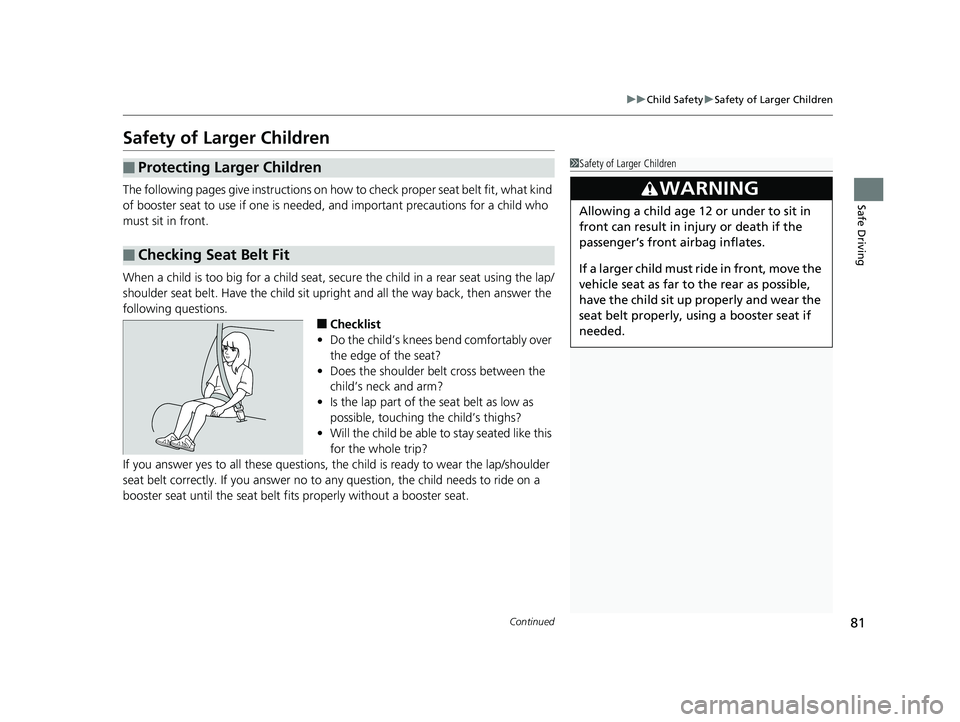

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ri de in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
19 CLARITY FCV CSS-31TRT6200.book 81 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分

uuChild Safety uSafety of Larger Children
82
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the chil d in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.

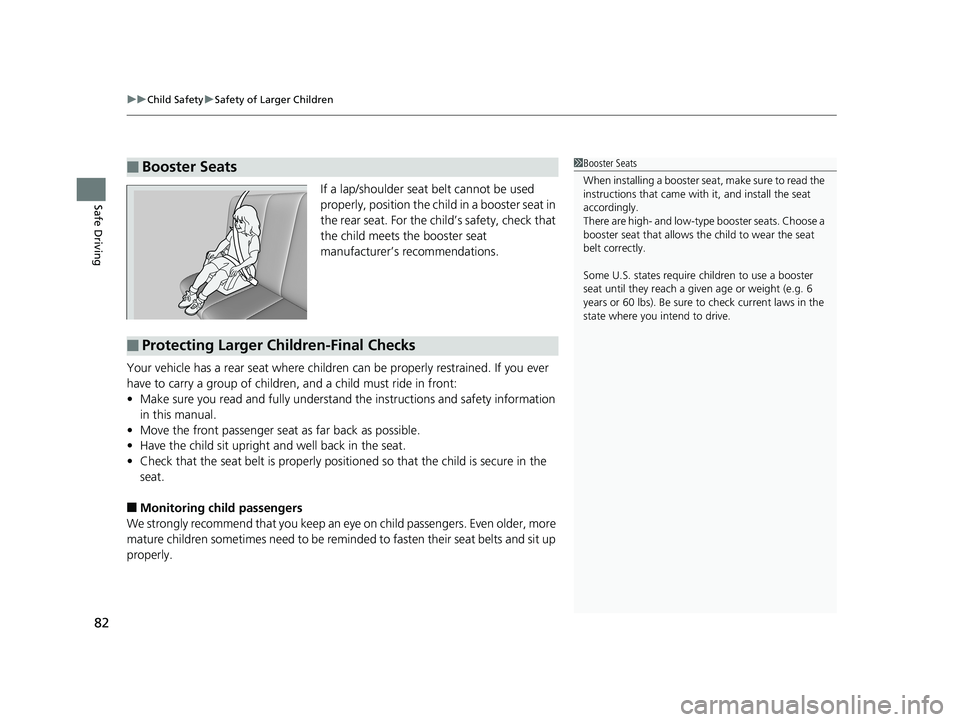

■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states require children to use a booster
seat until they reach a gi ven age or weight (e.g. 6
years or 60 lbs). Be sure to check current laws in the
state where you intend to drive.
■Protecting Larger Children-Final Checks
19 CLARITY FCV CSS-31TRT6200.book 82 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分

83
Safe Driving

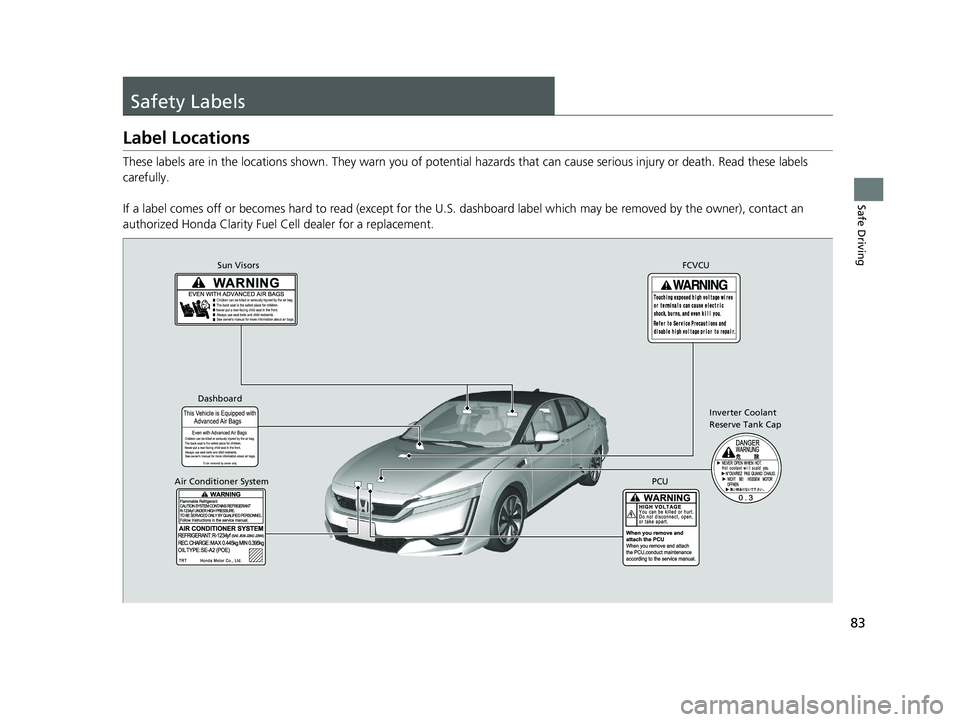

Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a n
authorized Honda Clarity Fuel Cell dealer for a replacement.
Dashboard Sun Visors
Inverter Coolant
Reserve Tank Cap
FCVCU
Air Conditioner System PCU
19 CLARITY FCV CSS-31TRT6200.book 83 ページ ２０１９年１月１７日　木曜日　午前１１時５４分

84
19 CLARITY FCV CSS-31TRT6200.book 84 ページ ２０１９年１月１７日　木曜日　午前１１時５４分

85
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 86
Driver Information Interface Warning and Information Messages ..................... 102
Gauges and Driver Information Interface ....................................... 116
Gauges ............................................ 116
Driver Information Interface ............. 119
Head-Up Display .............................. 127
19 CLARITY FCV CSS-31TRT6200.book 85 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分

86
Instrument Panel

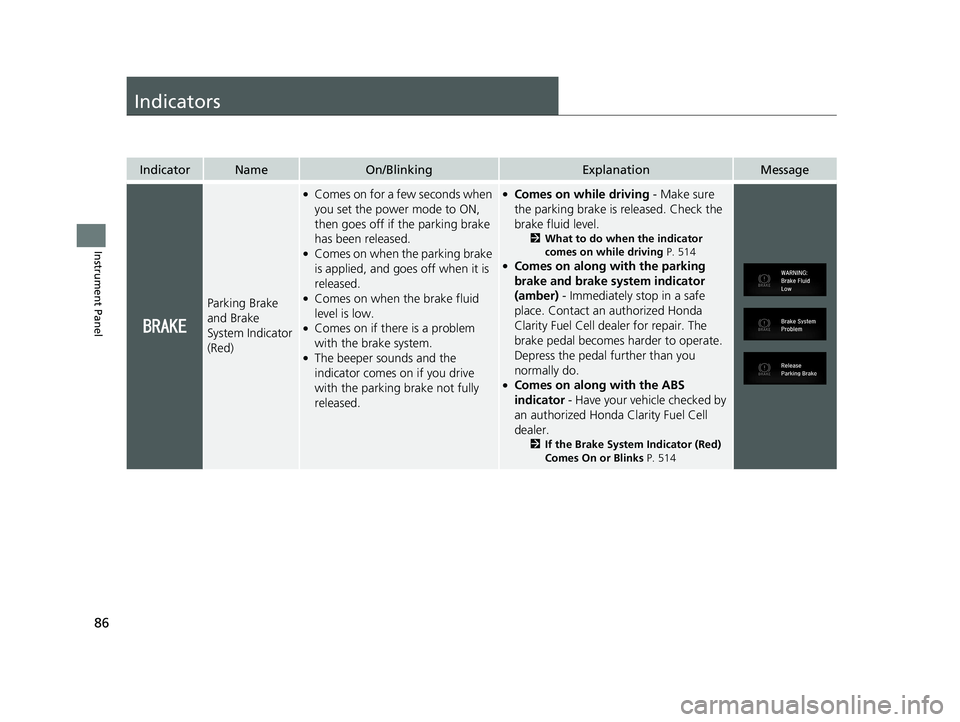

Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 514
●Comes on along with the parking
brake and brake system indicator
(amber) - Immediately stop in a safe
place. Contact an authorized Honda
Clarity Fuel Cell dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.
●Comes on along with the ABS
indicator - Have your vehicle checked by
an authorized Honda Clarity Fuel Cell
dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 514
19 CLARITY FCV CSS-31TRT6200.book 86 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分

87

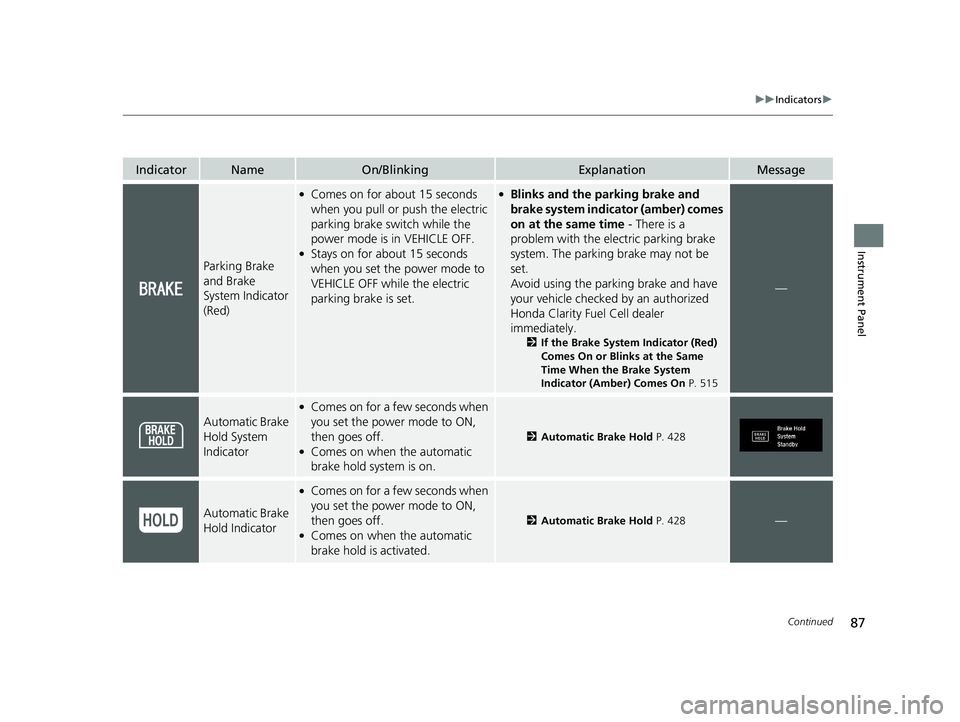

uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for about 15 seconds
when you pull or push the electric
parking brake switch while the
power mode is in VEHICLE OFF.
●Stays on for about 15 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.
●Blinks and the parking brake and
brake system indicator (amber) comes
on at the same time - There is a
problem with the electric parking brake
system. The parking brake may not be
set.
Avoid using the parking brake and have
your vehicle checked by an authorized
Honda Clarity Fuel Cell dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 515
—
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 428
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the automatic
brake hold is activated.
2Automatic Brake Hold P. 428—
19 CLARITY FCV CSS-31TRT6200.book 87 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分

88

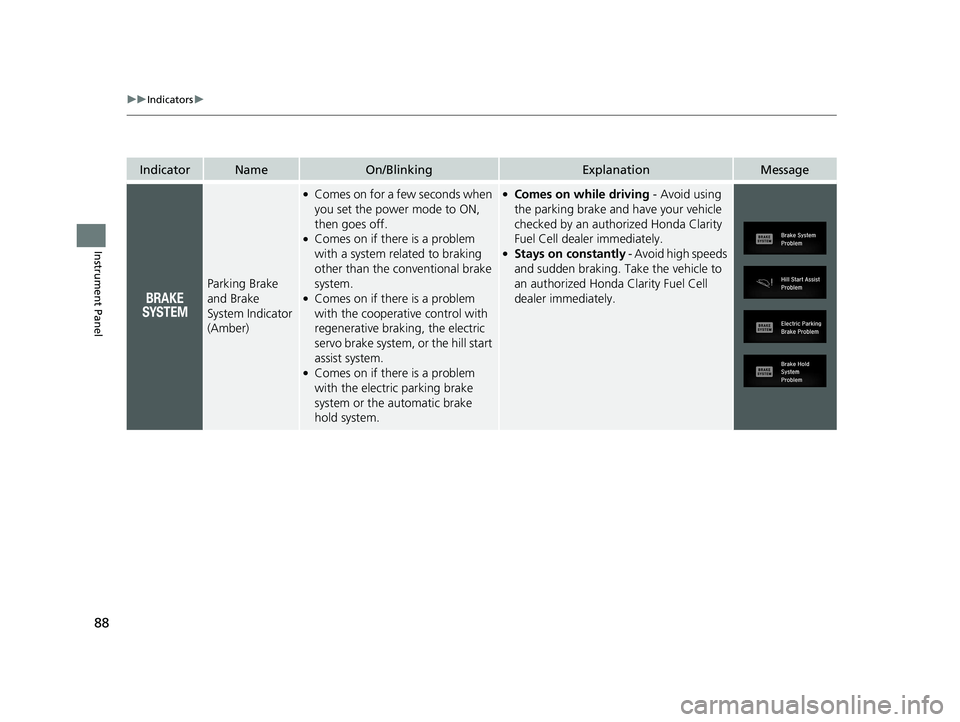

uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.
●Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer immediately.
●Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to
an authorized Honda Clarity Fuel Cell
dealer immediately.
19 CLARITY FCV CSS-31TRT6200.book 88 ページ ２０１９年１月１７日　木曜日　午前１１時 ５４分
