immobilizer HONDA CLARITY FUEL CELL 2020 Owner's Manual (in English)

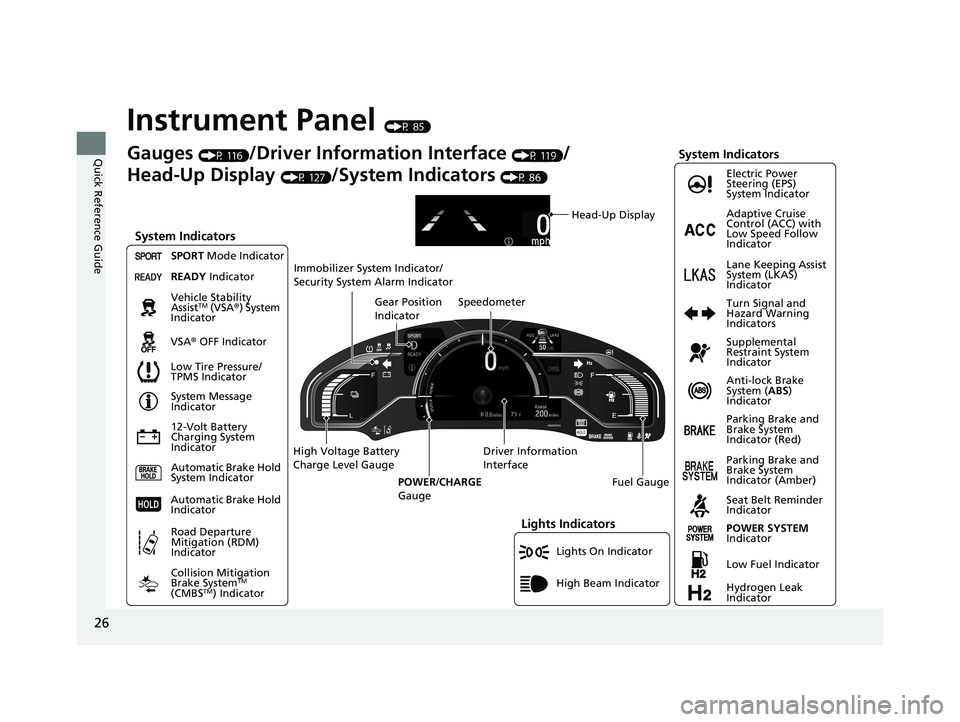

26
Quick Reference Guide
Instrument Panel (P 85)
Lights On Indicator
System Indicators
12-Volt Battery
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist
TM (VSA
®) System
Indicator
VSA ® OFF Indicator Electric Power
Steering (EPS)
System Indicator
Lights Indicators
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Gauges (P 116)/Driver Information Interface (P 119)/
Head-Up Display
(P 127)/System Indicators (P 86)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Speedometer
Automatic Brake Hold
System Indicator Parking Brake and
Brake System
Indicator (Amber)
SPORT
Mode Indicator
Collision Mitigation
Brake System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Automatic Brake Hold
Indicator
Head-Up Display
READY Indicator
POWER SYSTEM
Indicator
Gear Position
Indicator
Fuel Gauge
Driver Information
Interface
High Voltage Battery
Charge Level Gauge
POWER/CHARGE
Gauge
Low Fuel Indicator
Hydrogen Leak
Indicator Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator
Lane Keeping Assist
System (LKAS)
Indicator
20 CLARITY FCV CSS-31TRT6300.book 26 ページ ２０１９年９月１０日　火曜日　午前１１時 ３分

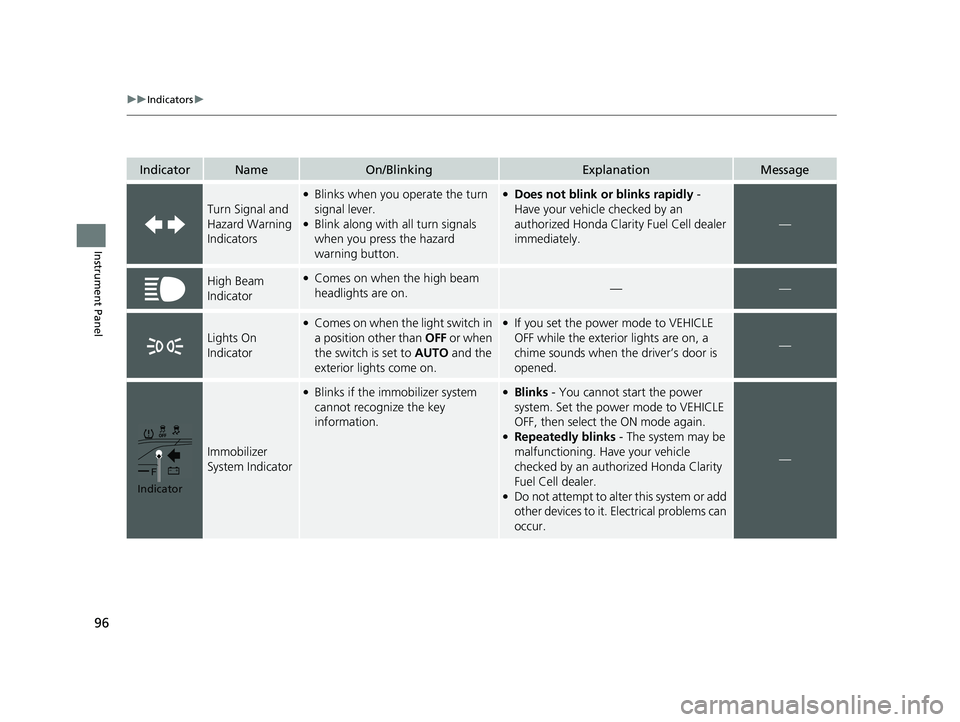

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly -
Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch in
a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on.●If you set the power mode to VEHICLE
OFF while the exterior lights are on, a
chime sounds when the driver’s door is
opened.
—
Immobilizer
System Indicator
●Blinks if the immobilizer system
cannot recognize the key
information.●Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF, then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer.
●Do not attempt to alter this system or add
other devices to it. El ectrical problems can
occur.
—
Indicator
20 CLARITY FCV CSS-31TRT6300.book 96 ページ ２０１９年９月１０日　火曜日　午前１１時 ３分

131
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 132
Locking and Unlocking the Doors Key Types and Functions .................. 133
Low Smart Entry Remote Signal Strength .. 134Locking/Unlocking the Doors from the Outside .......................................... 135
Locking/Unlocking the Doors from the Inside ............................................. 142
Childproof Door Locks ..................... 144
Auto Door Locking/Unlocking .......... 145
Opening and Closing the Trunk ....... 146
Security System ................................ 149
Immobilizer System .......................... 149 Security System Alarm...................... 149
Opening and Closing the Windows ... 152
Operating the Switches Around the
Steering Wheel POWER Button................................. 154
Turn Signals ..................................... 157
Light Switches.................................. 158
Daytime Running Lights ................... 161
Wipers and Washers ........................ 162
Brightness Control ........................... 164
Rear Defogger/Heated Door Mirror Button........................................ 166
Driving Position Memory System ...... 167 Adjusting the Steering Wheel .......... 169
Adjusting the Mirrors ....................... 170
Interior Rearview Mirror ................... 170
Power Door Mirrors ......................... 171
Adjusting the Seats .......................... 172
Front Seats ...................................... 172
Interior Lights/Interior Convenience Items ................................................ 178
Interior Lights .................................. 178
Interior Convenience Items .............. 180
Climate Control System ................... 188
Using Automatic Climate Control .... 188
Automatic Climate Control Sensors ... 196
20 CLARITY FCV CSS-31TRT6300.book 131 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

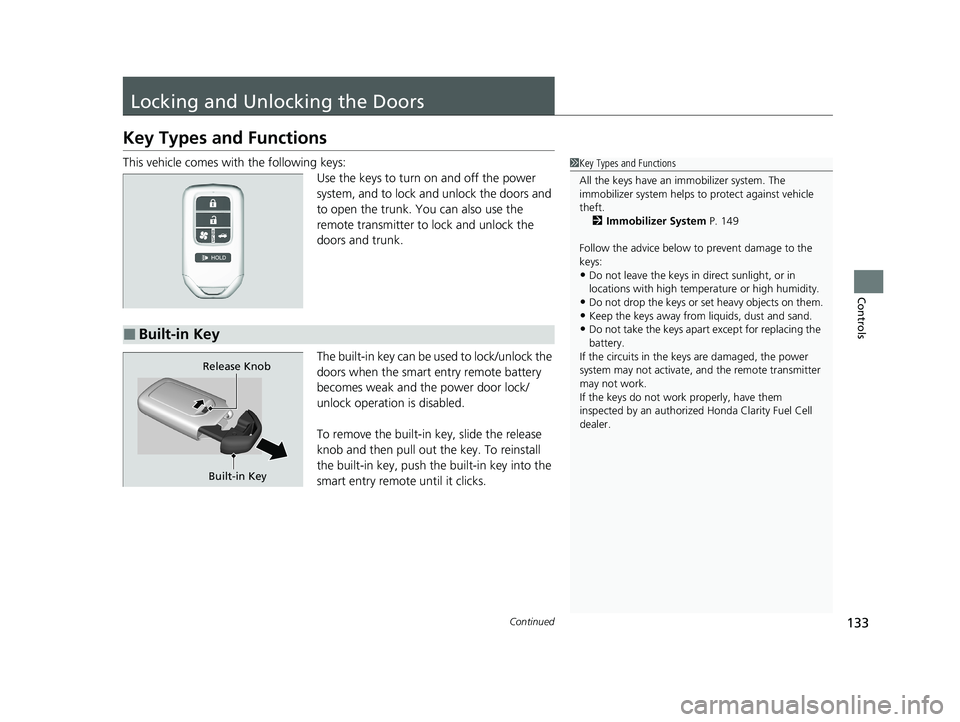

133Continued
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to turn on and off the power
system, and to lock and unlock the doors and
to open the trunk. You can also use the
remote transmitter to lock and unlock the
doors and trunk.
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 149
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by an authorized Honda Clarity Fuel Cell
dealer.■Built-in Key
Built-in Key
Release Knob
20 CLARITY FCV CSS-31TRT6300.book 133 ページ ２０１９年９月１０日　火曜日　午前１１
時３分

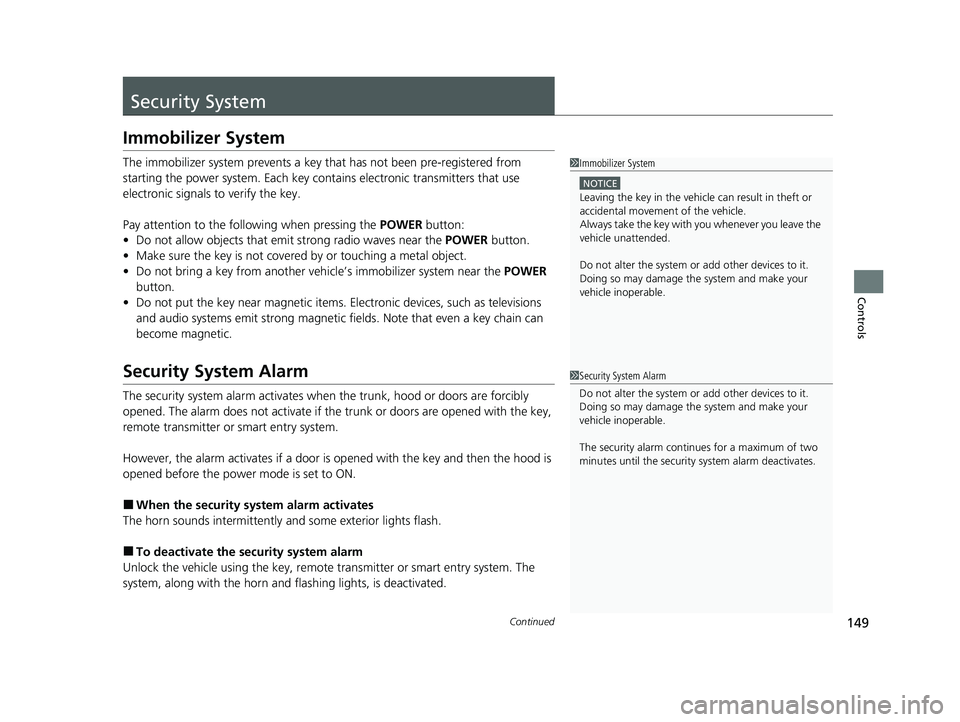

149Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the POWER
button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if the trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is op ened with the key and then the hood is
opened before the power mode is set to ON.
■When the security system alarm activates
The horn sounds intermittently and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system. The
system, along with the horn and flashing lights, is deactivated.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
20 CLARITY FCV CSS-31TRT6300.book 149 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

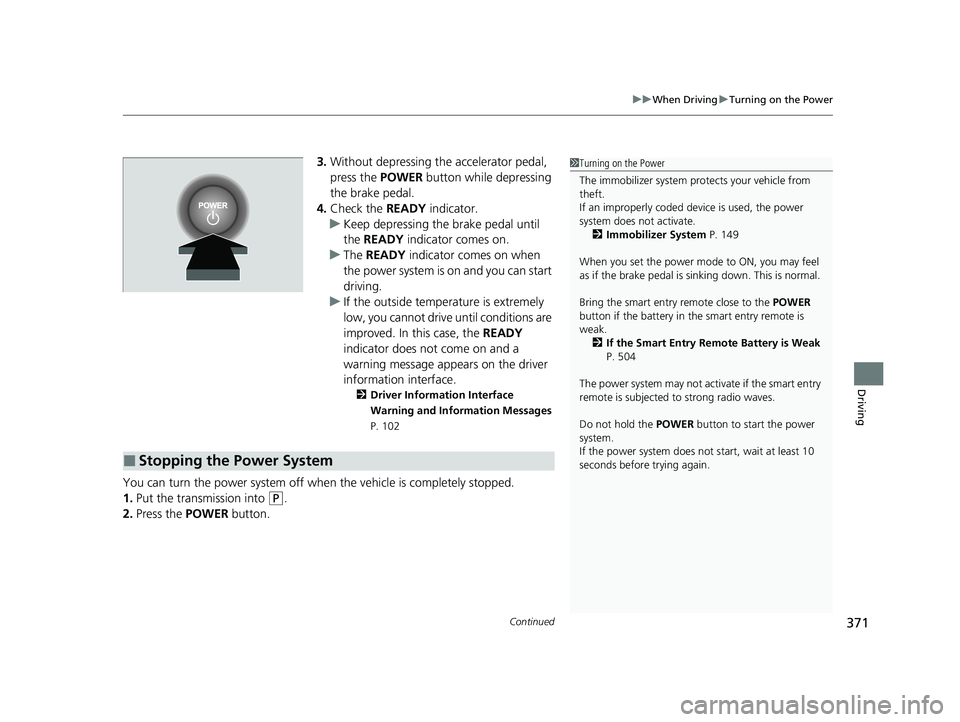

Continued371
uuWhen Driving uTurning on the Power
Driving
3. Without depressing the accelerator pedal,
press the POWER button while depressing
the brake pedal.
4. Check the READY indicator.
u Keep depressing the brake pedal until
the READY indicator comes on.
u The READY indicator comes on when
the power system is on and you can start
driving.
u If the outside temperature is extremely
low, you cannot drive until conditions are
improved. In this case, the READY
indicator does not come on and a
warning message appears on the driver
information interface.
2 Driver Information Interface
Warning and Information Messages
P. 102
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
1Turning on the Power
The immobilizer system pr otects your vehicle from
theft.
If an improperly coded de vice is used, the power
system does not activate. 2 Immobilizer System P. 149
When you set the power mode to ON, you may feel
as if the brake pedal is sinking down. This is normal.
Bring the smart entry remote close to the POWER
button if the battery in the smart entry remote is
weak.
2 If the Smart Entry Remote Battery is Weak
P. 504
The power system may not activate if the smart entry
remote is subjected to strong radio waves.
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 10
seconds before trying again.
■Stopping the Power System
20 CLARITY FCV CSS-31TRT6300.book 371 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

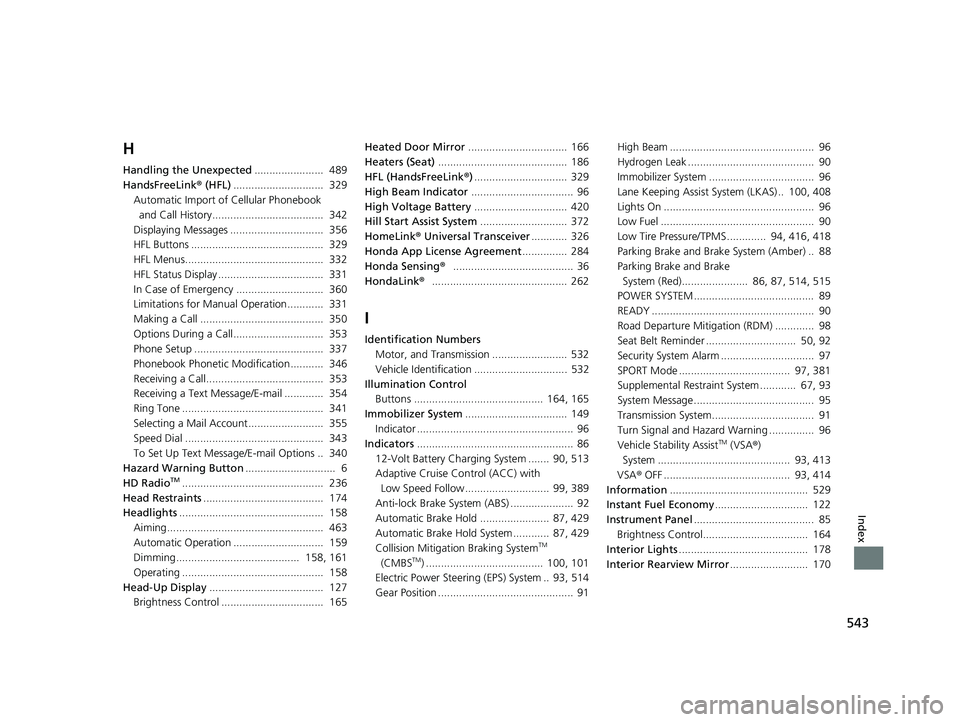

543
Index
H
Handling the Unexpected....................... 489
HandsFreeLink ® (HFL) .............................. 329
Automatic Import of Cellular Phonebook
and Call History..................................... 342
Displaying Messages ............................... 356
HFL Buttons ............................................ 329
HFL Menus.............................................. 332
HFL Status Display ................................... 331
In Case of Emergency ............................. 360
Limitations for Manual Operation............ 331
Making a Call ......................................... 350
Options During a Call.............................. 353
Phone Setup ........................................... 337
Phonebook Phonetic Modification........... 346
Receiving a Call....................................... 353
Receiving a Text Message/E-mail ............. 354
Ring Tone ............................................... 341
Selecting a Mail Account......................... 355
Speed Dial .............................................. 343
To Set Up Text Messa ge/E-mail Options .. 340
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 236
Head Restraints ........................................ 174
Headlights ................................................ 158
Aiming.................................................... 463
Automatic Operation .............................. 159
Dimming......................................... 158, 161
Operating ............................................... 158
Head-Up Display ...................................... 127
Brightness Control .................................. 165 Heated Door Mirror
................................. 166
Heaters (Seat) ........................................... 186
HFL (HandsFreeLink ®)............................... 329
High Beam Indicator .................................. 96
High Voltage Battery ............................... 420
Hill Start Assist System ............................. 372
HomeLink® Universal Transceiver ............ 326
Honda App License Agreement ............... 284
Honda Sensing ®........................................ 36
HondaLink® ............................................. 262
I
Identification Numbers
Motor, and Transmission ......................... 532
Vehicle Identification ............................... 532
Illumination Control Buttons ........................................... 164, 165
Immobilizer System .................................. 149
Indicator .................................................... 96
Indicators .................................................... 86
12-Volt Battery Charging System ....... 90, 513
Adaptive Cruise Control (ACC) with Low Speed Follow............................ 99, 389
Anti-lock Brake System (ABS) ..................... 92
Automatic Brake Hold ....................... 87, 429
Automatic Brake Hold System ............ 87, 429
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 100, 101
Electric Power Steering (EPS) System .. 93, 514
Gear Position ............................................. 91 High Beam ................................................ 96
Hydrogen Leak .......................................... 90
Immobilizer System ................................... 96
Lane Keeping Assist Sy
stem (LKAS) .. 100, 408
Lights On .................................................. 96
Low Fuel ................................................... 90
Low Tire Pressure/TPMS ............. 94, 416, 418
Parking Brake and Brake System (Amber) .. 88
Parking Brake and Brake System (Red)...................... 86, 87, 514, 515
POWER SYSTEM ........................................ 89
READY ...................................................... 90
Road Departure Mitigation (RDM) ............. 98
Seat Belt Reminder .............................. 50, 92
Security System Alarm ............................... 97
SPORT Mode ..................................... 97, 381
Supplemental Restraint System ............ 67, 93
System Message ........................................ 95
Transmission System.................................. 91
Turn Signal and Hazard Warning ............... 96
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 93, 413
VSA ® OFF .......................................... 93, 414
Information .............................................. 529
Instant Fuel Economy ............................... 122
Instrument Panel ........................................ 85
Brightness Control................................... 164
Interior Lights ........................................... 178
Interior Rearview Mirror .......................... 170
20 CLARITY FCV CSS-31TRT6300.book 543 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

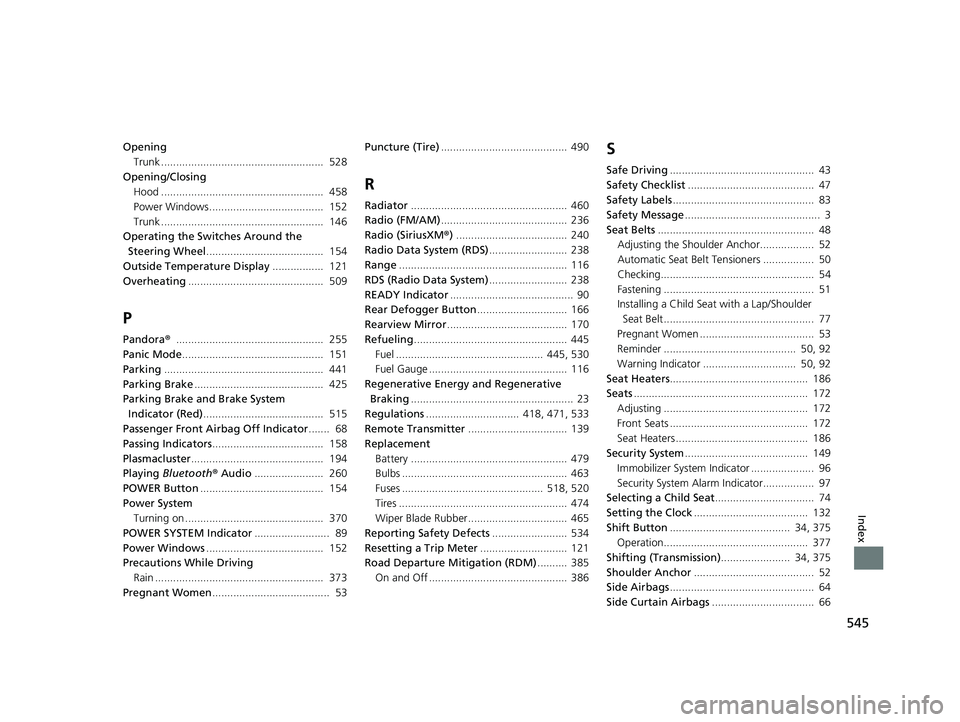

545
Index
OpeningTrunk ...................................................... 528
Opening/Closing Hood ...................................................... 458
Power Windows...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ....................................... 154
Outside Temperature Display ................. 121
Overheating ............................................. 509
P
Pandora®................................................. 255
Panic Mode ............................................... 151
Parking ..................................................... 441
Parking Brake ........................................... 425
Parking Brake and Brake System
Indicator (Red) ........................................ 515
Passenger Front Airb ag Off Indicator....... 68
Passing Indicators ..................................... 158
Plasmacluster ............................................ 194
Playing Bluetooth ® Audio ....................... 260
POWER Button ......................................... 154
Power System Turning on .............................................. 370
POWER SYSTEM Indicator ......................... 89
Power Windows ....................................... 152
Precautions While Driving Rain ........................................................ 373
Pregnant Women ....................................... 53 Puncture (Tire)
.......................................... 490
R
Radiator.................................................... 460
Radio (FM/AM) .......................................... 236
Radio (SiriusXM ®) ..................................... 240
Radio Data System (RDS) .......................... 238
Range ........................................................ 116
RDS (Radio Data System) .......................... 238
READY Indicator ......................................... 90
Rear Defogger Button .............................. 166
Rearview Mirror ........................................ 170
Refueling ................................................... 445
Fuel ................................................. 445, 530
Fuel Gauge .............................................. 116
Regenerative Energy and Regenerative Braking ...................................................... 23
Regulations ............................... 418, 471, 533
Remote Transmitter ................................. 139
Replacement
Battery .................................................... 479
Bulbs ....................................................... 463
Fuses ............................................... 518, 520
Tires ........................................................ 474
Wiper Blade Rubber ................................. 465
Reporting Safety Defects ......................... 534
Resetting a Trip Meter ............................. 121
Road Departure Mitigation (RDM) .......... 385
On and Off .............................................. 386
S
Safe Driving ................................................ 43
Safety Checklist .......................................... 47
Safety Labels ............................................... 83
Safety Message ............................................. 3
Seat Belts .................................................... 48
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 77
Pregnant Women ...................................... 53
Reminder ............................................ 50, 92
Warning Indicator ............................... 50, 92
Seat Heaters .............................................. 186
Seats .......................................................... 172
Adjusting ................................................ 172
Front Seats .............................................. 172
Seat Heaters ............................................ 186
Security System ......................................... 149
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator................. 97
Selecting a Child Seat ................................. 74
Setting the Clock ...................................... 132
Shift Button ........................................ 34, 375
Operation................................................ 377
Shifting (Transmission) ....................... 34, 375
Shoulder Anchor ........................................ 52
Side Airbags ................................................ 64
Side Curtain Airbags .................................. 66
20 CLARITY FCV CSS-31TRT6300.book 545 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分
