9
Quick Reference Guide
❙ Side Airbags (P 63)❙ Side Curtain Airbags (P 65)
❙ Seat Belts (P 47)
❙ Seat Belt (Installing a Child Seat) (P 76)
❙ Rear Seat (P 181)❙ Coat Hook (P 190)
❙ Map Lights (P 184)
❙ Sun Visors
❙ Vanity Mirrors
❙ Seat Belt to Secure a Child Seat (P 78)❙ Map Lights (P 184)
❙ Grab Handle
❙ Sunglasses Holder (P 192)
❙ Accessory Power
Socket (P 189)
❙ Front Seat (P 175)
❙ USB Ports (P 205)
❙ LATCH to Secure a Child Seat (P 74)
* Not available on all models18 CLARITY PHEV CSS-31TRW6000.book 9 ページ 2017年8月31日 木曜日 午後2時4 9分
Page 12 of 591

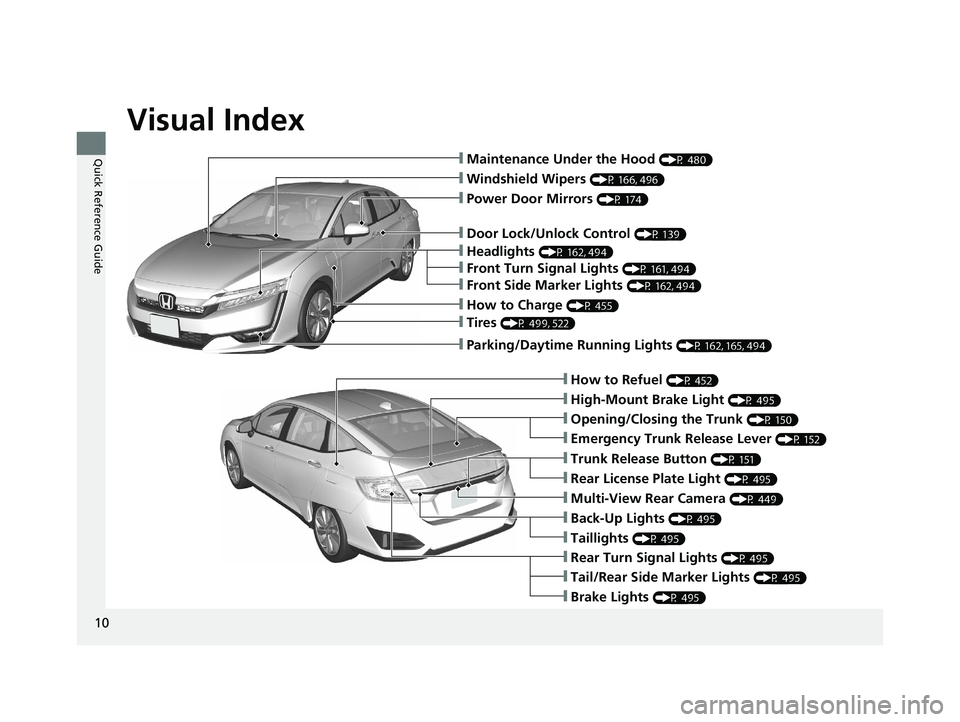

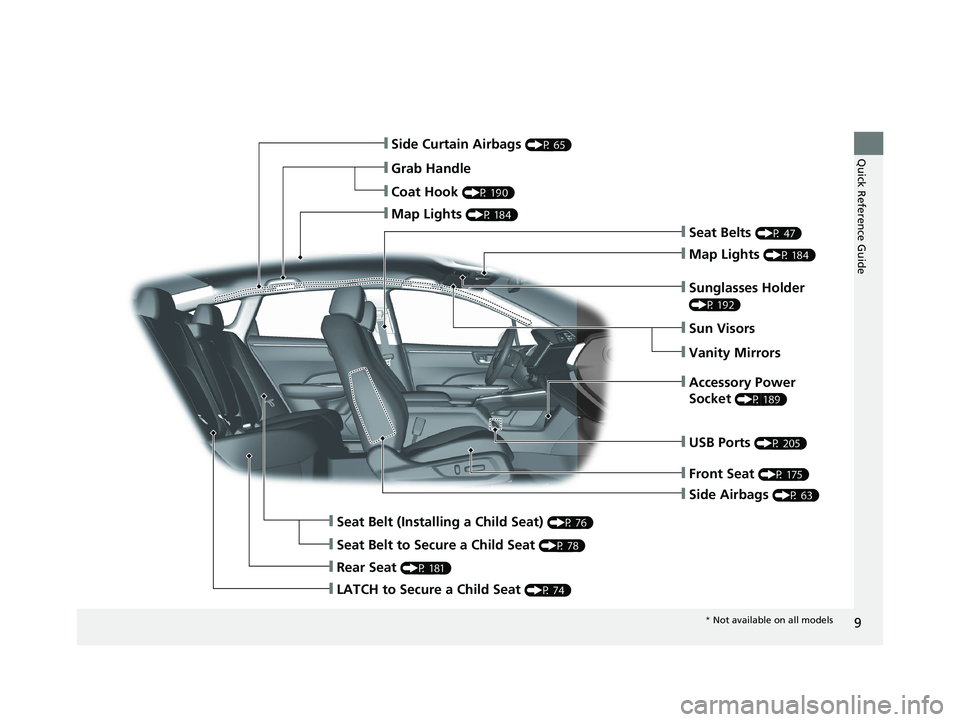

Visual Index
10
Quick Reference Guide ❙ Maintenance Under the Hood (P 480)
❙ Windshield Wipers (P 166, 496)
❙ Tires (P 499, 522)
❙ Door Lock/Unlock Control (P 139)
❙ Power Door Mirrors (P 174)
❙ Headlights (P 162, 494)
❙ Front Turn Signal Lights (P 161, 494)
❙ How to Refuel (P 452)
❙ High-Mount Brake Light (P 495)
❙ Emergency Trunk Release Lever (P 152)
❙ Opening/Closing the Trunk (P 150)
❙ Tail/Rear Side Marker Lights (P 495)
❙ Brake Lights (P 495)
❙ Rear Turn Signal Lights (P 495)
❙ Back-Up Lights (P 495)
❙ Taillights (P 495)
❙ Trunk Release Button (P 151)
❙ Rear License Plate Light (P 495)
❙ Multi-View Rear Camera (P 449)❙ Parking/Daytime Running Lights (P 162, 165, 494)
❙ Front Side Marker Lights (P 162, 494)
❙ How to Charge (P 455)18 CLARITY PHEV CSS-31TRW6000.book 10 ページ 2017年8月31日 木曜日 午後2時 49分
Page 13 of 591
11
Quick Reference Guide

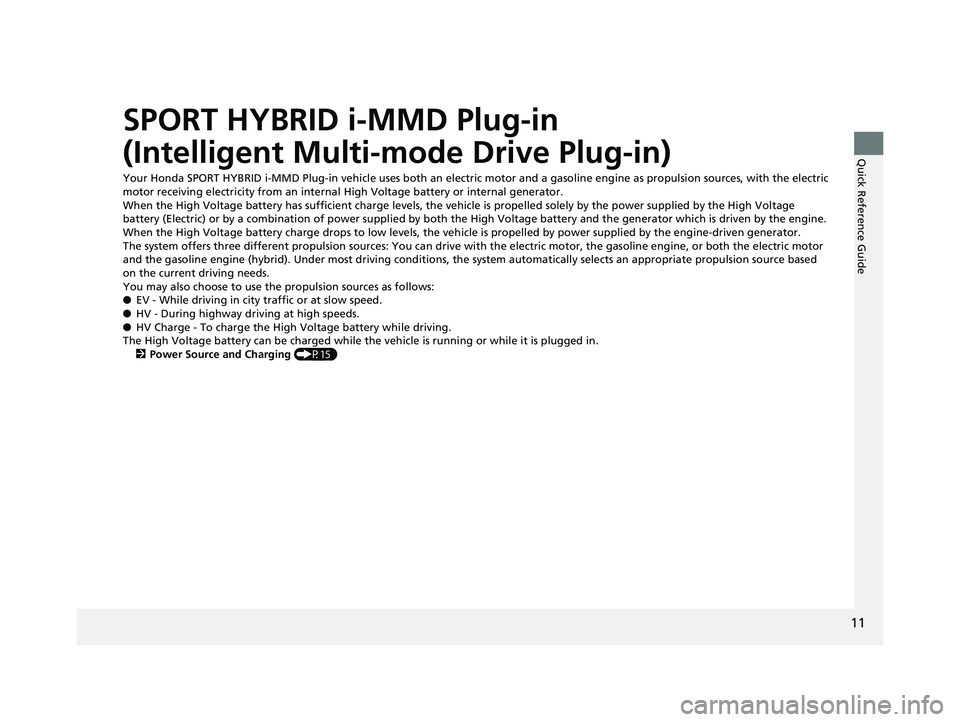

SPORT HYBRID i-MMD Plug-in
(Intelligent Multi-mode Drive Plug-in) Your Honda SPORT HYBRID i-MMD Plug-in vehicl e uses both an electric motor and a gasoline engine as propulsion sources, with the electric
motor receiving electricity from an internal High Voltage battery or internal generator.
When the High Voltage battery has sufficient charge levels, the vehicle is propelled solely by the power supplied by the High V oltage
battery (Electric) or by a combination of power supplied by both the High Voltage battery and th e generator which is driven by the engine.
When the High Voltage battery charge drops to low levels, the ve hicle is propelled by power supplied by the engine-driven gener ator.
The system offers three different propulsion sources: You can dr ive with the electric motor, th e gasoline engine, or both the e lectric motor
and the gasoline engine (hybrid). Under most driving conditions , the system automatically selects an appropriate propulsion sou rce based
on the current driving needs.
You may also choose to use the propulsion sources as follows:
● EV - While driving in city traffic or at slow speed.
● HV - During highway driving at high speeds.
● HV Charge - To charge the High Voltage battery while driving.
The High Voltage battery can be charged while the vehicle is running or while it is plugged in.
2 Power Source and Charging (P15)18 CLARITY PHEV CSS-31TRW6000.book 11 ページ 2017年8月31日 木曜日 午後2時 49分
Page 14 of 591
12

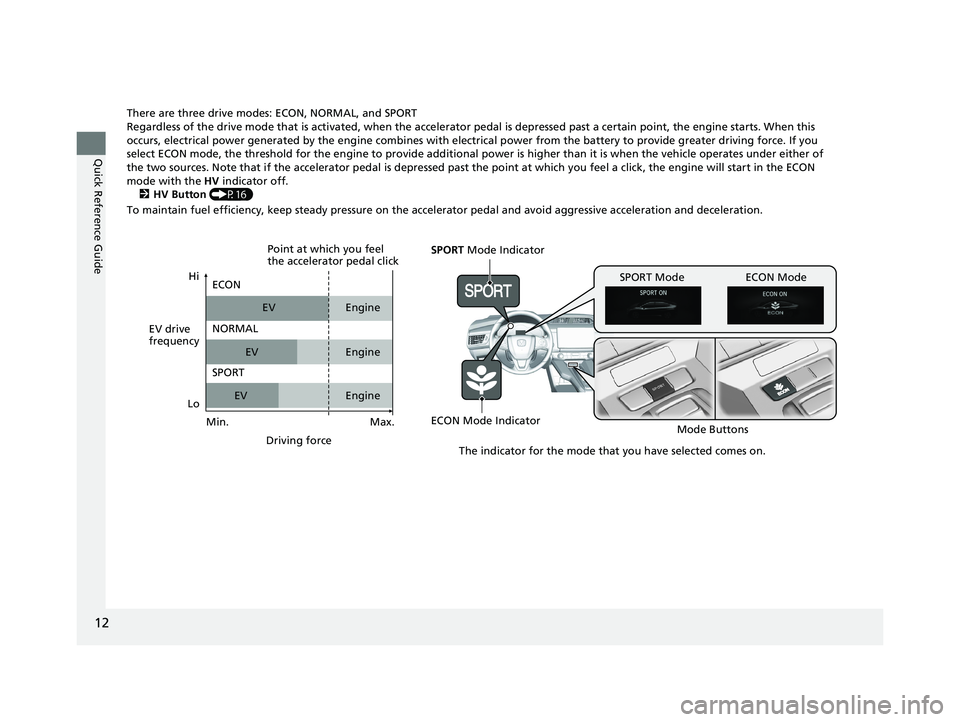

Quick Reference Guide There are three drive modes: ECON, NORMAL, and SPORT
Regardless of the drive mode that is acti vated, when the accelerator pedal is depr essed past a certain point, the engine starts . When this
occurs, electrical power generated by the en gine combines with electrical power from th e battery to provide greater driving force. If you
select ECON mode, the threshold for the engine to provide additional power is higher than it is when the vehicle operates under either of
the two sources. Note that if the accelerator pedal is depressed past the point at which you feel a click, the engine will star t in the ECON
mode with the HV indicator off.
2 HV Button (P16)
To maintain fuel efficiency, keep steady pressure on the accelerator pedal and avoid aggressive acceleration and deceleration.
SPORT Mode Indicator
ECON Mode Indicator
Mode ButtonsSPORT Mode ECON Mode
The indicator for the mode that you have selected comes on.EV drive
frequency Hi
Max.
Driving forceECON
NORMAL
SPORT EV
EV
EV Engine
Engine
EnginePoint at which you feel
the accelerator pedal click
Min.Lo18 CLARITY PHEV CSS-31TRW6000.book 12 ページ 2017年8月31日 木曜日 午後2時 49分
Page 15 of 591
13
Quick Reference Guide

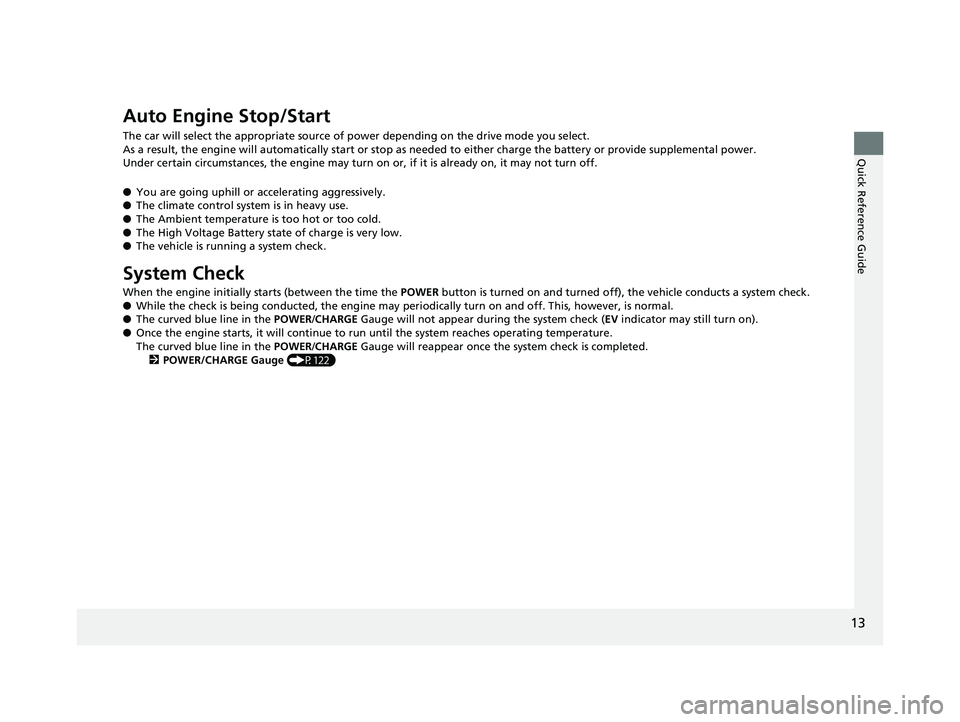

Auto Engine Stop/Start The car will select the appropriate source of power depending on the drive mode you select.
As a result, the engine will automatically start or stop as needed to either charge the battery or provide supplemental power.
Under certain circumstances, the engine may turn on or, if it is already on, it may not turn off.
● You are going uphill or accelerating aggressively.
● The climate control system is in heavy use.
● The Ambient temperature is too hot or too cold.
● The High Voltage Battery state of charge is very low.
● The vehicle is running a system check.
System Check When the engine initially starts (between the time the POWER button is turned on and turned of f), the vehicle conducts a system check.
● While the check is being conducted, the engine may periodically turn on and off. This, however, is normal.
● The curved blue line in the POWER / CHARGE Gauge will not appear during the system check ( EV indicator may still turn on).
● Once the engine starts, it will continue to run until the system reaches operating temperature.
The curved blue line in the POWER / CHARGE Gauge will reappear once the system check is completed.
2 POWER/CHARGE Gauge (P122)18 CLARITY PHEV CSS-31TRW6000.book 13 ページ 2017年8月31日 木曜日 午後2時 49分
Page 16 of 591
14

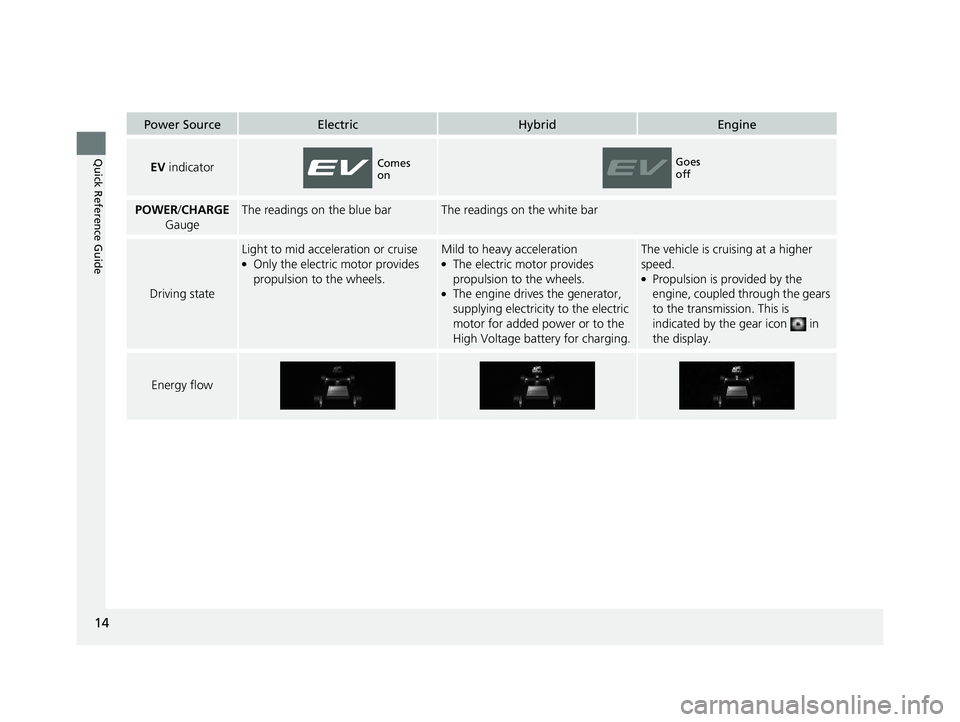

Quick Reference Guide Power Source Electric Hybrid Engine
EV indicator
POWER / CHARGE
Gauge The readings on the blue bar The readings on the white bar
Driving state Light to mid acceleration or cruise ●
Only the electric motor provides
propulsion to the wheels. Mild to heavy acceleration ●
The electric motor provides
propulsion to the wheels. ●
The engine drives the generator,
supplying electricity to the electric
motor for added power or to the
High Voltage battery for charging. The vehicle is cruising at a higher
speed. ●
Propulsion is provided by the
engine, coupled through the gears
to the transmission. This is
indicated by the gear icon in
the display.
Energy flow Comes
on Goes
off18 CLARITY PHEV CSS-31TRW6000.book 14 ページ 2017年8月31日 木曜日 午後2時 49分
Page 17 of 591
15
Quick Reference Guide

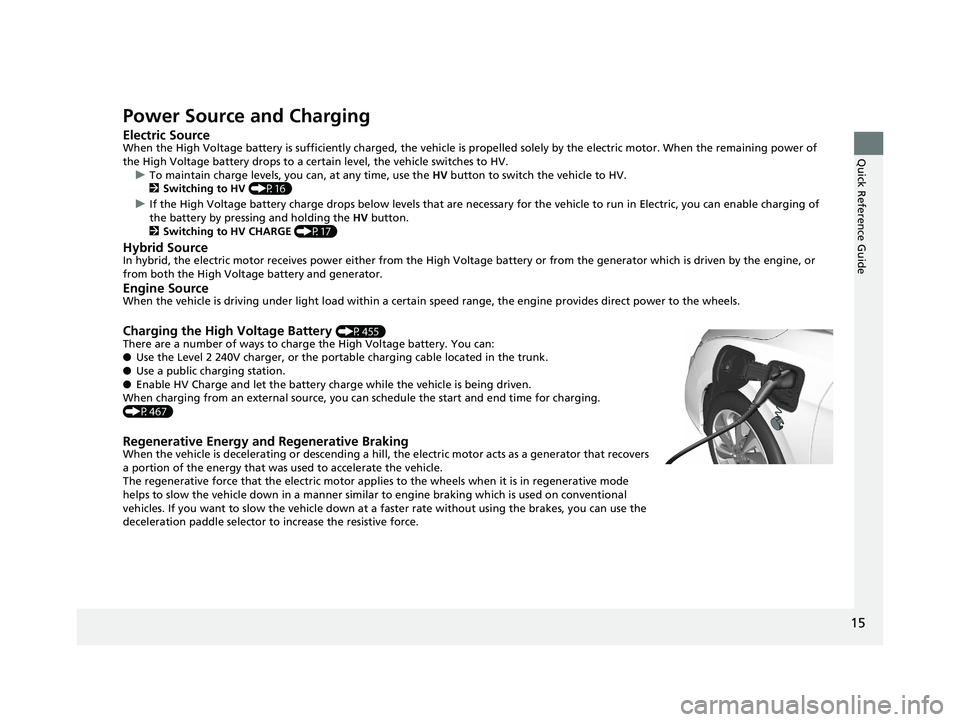

Power Source and Charging Electric Source When the High Voltage battery is sufficiently charged, the vehicl e is propelled solely by the electric motor. When the remainin g power of
the High Voltage battery drops to a certain level, the vehicle switches to HV.
u To maintain charge levels, you can, at any time, use the HV button to switch the vehicle to HV.
2 Switching to HV (P16)
u If the High Voltage battery charge drops below levels that are necessary for the vehicle to run in Electric, you can enable cha rging of
the battery by pressing and holding the HV button.
2 Switching to HV CHARGE (P17)
Hybrid Source In hybrid, the electric motor receives powe r either from the High Voltage battery or from the generator which is driven by the engine, or
from both the High Volt age battery and generator.
Engine Source When the vehicle is driving under light load within a certain speed range, the engine provides direct power to the wheels.
Charging the High Voltage Battery (P455)
There are a number of ways to charge the High Voltage battery. You can:
● Use the Level 2 240V charger, or the portable charging cable located in the trunk.
● Use a public charging station.
● Enable HV Charge and let the battery charge while the vehicle is being driven.
When charging from an external source, you ca n schedule the start and end time for charging.
(P467)
Regenerative Energy and Regenerative Braking When the vehicle is decelerating or descending a hill, the electric motor acts as a generator that recovers
a portion of the energy that was used to accelerate the vehicle.
The regenerative force that the electric motor applie s to the wheels when it is in regenerative mode
helps to slow the vehicle down in a manner similar to engine braking which is used on conventional
vehicles. If you want to slow the vehicle down at a faster rate without using the brakes, you can use the
deceleration paddle selector to increase the resistive force. 18 CLARITY PHEV CSS-31TRW6000.book 15 ページ 2017年8月31日 木曜日 午後2時 49分
Page 18 of 591
16
Quick Reference Guide HV Button You can enable HV or HV Charge by pressing the HV button.
The HV indicator comes on regardless of which source you have
enabled. If you press the HV button again, or set the power mode
to VEHICLE OFF or ACCESSORY, the source you have selected will be
cancelled.
● HV
To enable HV, press the HV button. In HV, the engine may run at
times to drive the generator so that battery charge levels can be
maintained.
PressHV Charge Indicator
HV Indicator HV Charge
HV
TimeHigh Voltage battery charge levels maintained
HVRemaining power of the
High Voltage battery Press the HV button. Press the HV button.
EV EV18 CLARITY PHEV CSS-31TRW6000.book 16 ページ 2017年8月31日 木曜日 午後2時 49分
Page 19 of 591
17
Quick Reference Guide

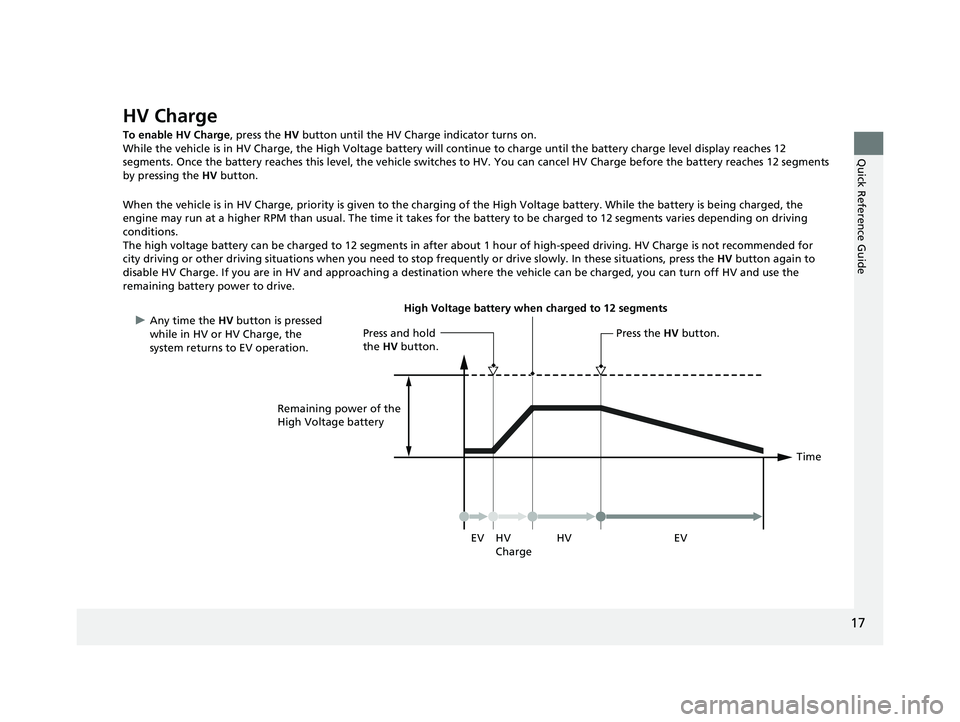

HV Charge To enable HV Charge , press the HV button until the HV Charge indicator turns on.
While the vehicle is in HV Charge, the High Voltage battery will continue to charge until the battery charge level display reac hes 12
segments. Once the battery reaches this leve l, the vehicle switches to HV. You can canc el HV Charge before the battery reaches 12 segments
by pressing the HV button.
When the vehicle is in HV Charge, priority is given to the charging of the High Voltage battery. While the battery is being charged, the
engine may run at a higher RPM than usual. The time it takes for the battery to be charged to 12 segments varies depending on d riving
conditions.
The high voltage battery can be charged to 12 segments in after about 1 hour of high-speed driving. HV Charge is not recommende d for
city driving or other driving situations when you need to stop frequently or driv e slowly. In these situations, press the HV button again to
disable HV Charge. If you are in HV and approaching a destination where the vehicle can be charged, you can turn off HV and use the
remaining battery power to drive.
TimeHigh Voltage battery when charged to 12 segments
HV
ChargeRemaining power of the
High Voltage battery Press and hold
the HV button. Press the HV button.
EV EVHVu Any time the HV button is pressed
while in HV or HV Charge, the
system returns to EV operation.18 CLARITY PHEV CSS-31TRW6000.book 17 ページ 2017年8月31日 木曜日 午後2時 49分
Page 20 of 591
18

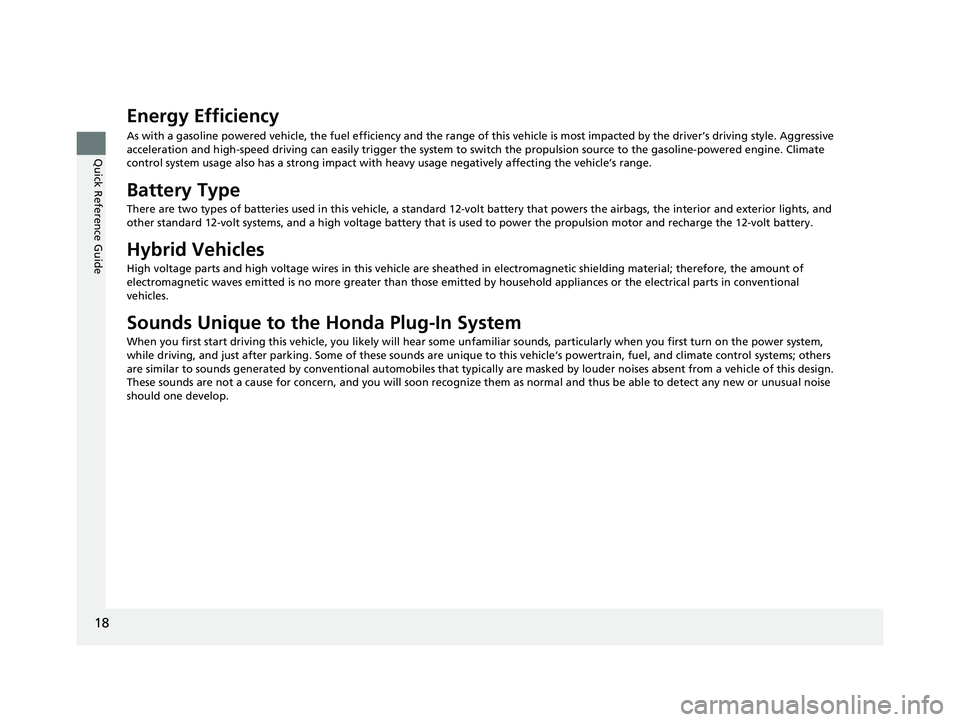

Quick Reference Guide Energy Efficiency As with a gasoline powered vehicle, the fuel efficiency and the range of this vehicle is most impacted by the driver’s driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e. Climate
control system usage also has a str ong impact with heavy usage negatively affecting the vehicle’s range.
Battery Type There are two types of batteries used in this vehicle, a standa rd 12-volt battery that powers th e airbags, the interior and exterior lights, and
other standard 12-volt systems, and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
Hybrid Vehicles High voltage parts and high voltag e wires in this vehicle are sheathed in electro magnetic shielding material; therefore, the am ount of
electromagnetic waves emitted is no more gr eater than those emitted by household appliances or the electrical parts in conventi onal
vehicles.
Sounds Unique to the Honda Plug-In System When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particula rly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this vehicle‘s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventi onal automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.18 CLARITY PHEV CSS-31TRW6000.book 18 ページ 2017年8月31日 木曜日 午後2時 49分
