wiper blades HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

Contents

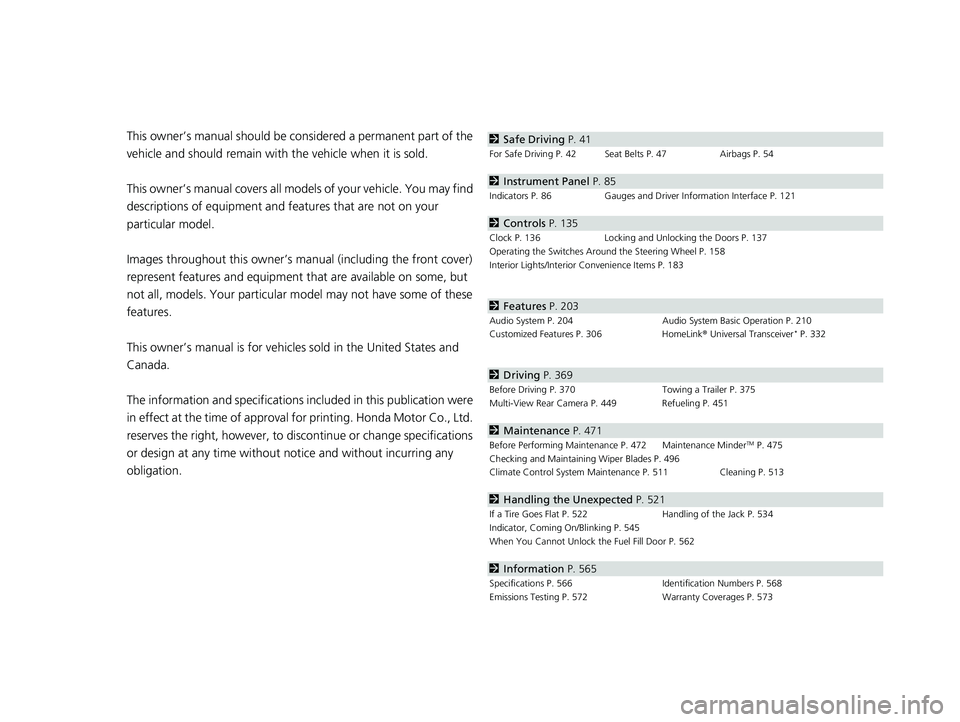

This owner’s manual should be co nsidered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation. 2 Safe Driving P. 41For Safe Driving P. 42 Seat Belts P. 47 Airbags P. 54
2 Instrument Panel P. 85Indicators P. 86 Gauges and Driver Information Interface P. 121
2 Controls P. 135 Clock P. 136 Locking and Unlocking the Doors P. 137
Operating the Switches Ar ound the Steering Wheel P. 158
Interior Lights/Interior Convenience Items P. 183
2 Features P. 203 Audio System P. 204 Audio System Basic Operation P. 210
Customized Features P. 306 HomeLink ® Universal Transceiver *
P. 332
2 Driving P. 369 Before Driving P. 370 Towing a Trailer P. 375
Multi-View Rear Camera P. 449 Refueling P. 451
2 Maintenance P. 471Before Performing Maintenance P. 472 Maintenance Minder TM
P. 475
Checking and Maintaining Wiper Blades P. 496
Climate Control System Main tenance P. 511 Cleaning P. 513
2 Handling the Unexpected P. 521If a Tire Goes Flat P. 522 Handling of the Jack P. 534
Indicator, Coming On/Blinking P. 545
When You Cannot Unlock the Fuel Fill Door P. 562
2 Information P. 565Specifications P. 566 Identi fication Numbers P. 568
Emissions Testing P. 572 Warranty Coverages P. 57318 CLARITY PHEV CSS-31TRW6000.book 6 ページ ２０１７年８月３１日　木曜日　午後２時４ ９分

35

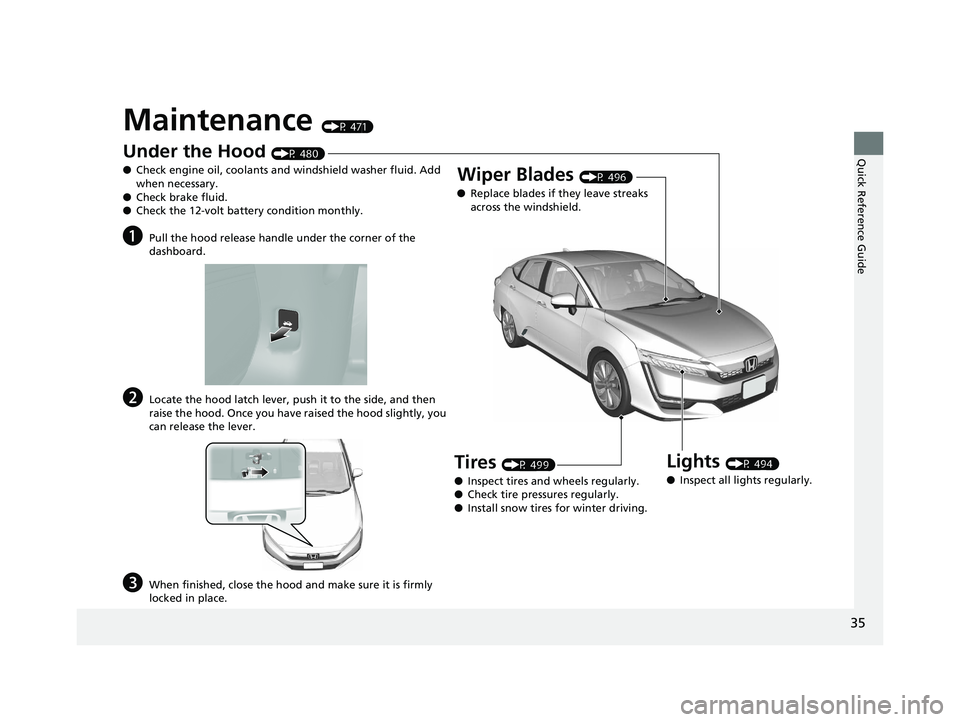

Quick Reference Guide
Maintenance (P 471)
Under the Hood (P 480)
● Check engine oil, coolants and windshield washer fluid. Add
when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
a Pull the hood release handle under the corner of the
dashboard.
b Locate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
c When finished, close the hood and make sure it is firmly
locked in place. Lights (P 494)
● Inspect all lights regularly.Wiper Blades (P 496)
● Replace blades if they leave streaks
across the windshield.
Tires (P 499)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.18 CLARITY PHEV CSS-31TRW6000.book 35 ページ ２０１７年８月３１日　木曜日　午後２時 ４９分

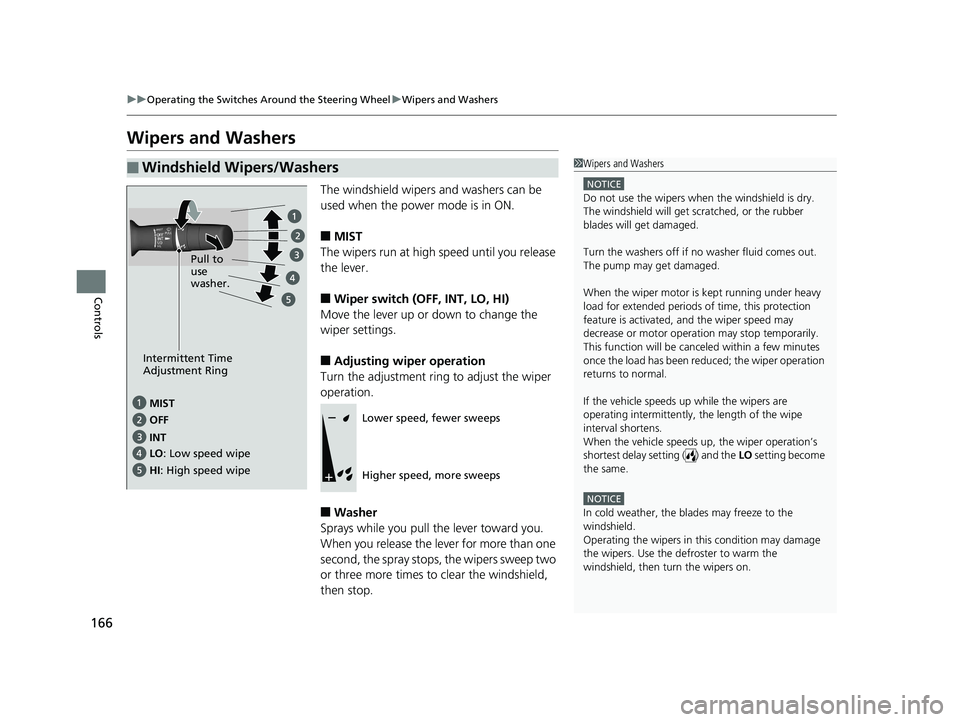

166 uu Operating the Switches Around the Steering Wheel u Wipers and Washers
Controls Wipers and Washers The windshield wipers and washers can be
used when the power mode is in ON.
■ MIST
The wipers run at high speed until you release
the lever.
■ Wiper switch (OFF, INT, LO, HI)
Move the lever up or down to change the
wiper settings.
■ Adjusting wiper operation
Turn the adjustment ring to adjust the wiper
operation.
■ Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.■ Windshield Wipers/Washers 1 Wipers and Washers NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
When the wiper motor is kept running under heavy
load for extended periods of time, this protection
feature is activated, and the wiper speed may
decrease or motor operat ion may stop temporarily.
This function will be canceled within a few minutes
once the load has been reduced; the wiper operation
returns to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.MIST
OFF
LO : Low speed wipe
HI : High speed wipe Pull to
use
washer.
INTIntermittent Time
Adjustment Ring
Lower speed, fewer sweeps
Higher speed, more sweeps18 CLARITY PHEV CSS-31TRW6000.book 166 ページ ２０１７年８月３１日　木曜日　午後２時４９分

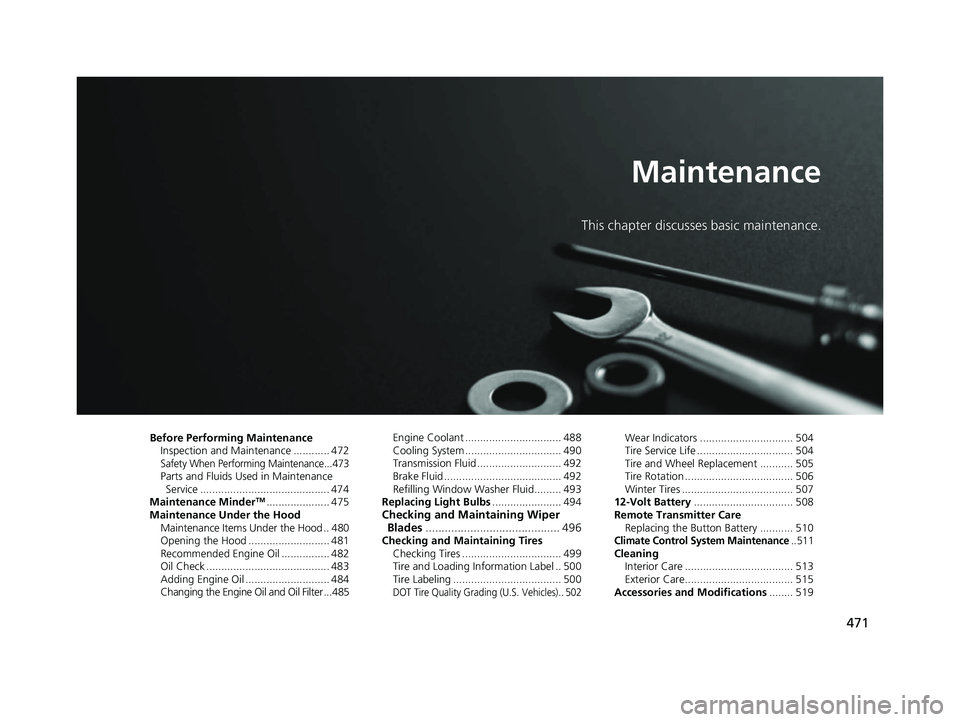

471Maintenance This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 472
Safety When Performing Maintenance...473
Parts and Fluids Used in Maintenance
Service ........................................... 474
Maintenance Minder TM
..................... 475
Maintenance Under the Hood
Maintenance Items Under the Hood .. 480
Opening the Hood ........................... 481
Recommended Engine Oil ................ 482
Oil Check ......................................... 483
Adding Engine Oil ............................ 484
Changing the Engine Oil and Oil Filter ...485 Engine Coolant ................................ 488
Cooling System ................................ 490
Transmission Fluid ............................ 492
Brake Fluid ....................................... 492
Refilling Window Washer Fluid......... 493
Replacing Light Bulbs ....................... 494
Checking and Maintaining Wiper
Blades .......................................... 496
Checking and Maintaining Tires
Checking Tires ................................. 499
Tire and Loading Information Label .. 500
Tire Labeling .................................... 500
DOT Tire Quality Grading (U.S. Vehicles).. 502 Wear Indicators ............................... 504
Tire Service Life ................................ 504
Tire and Wheel Replacement ........... 505
Tire Rotation .................................... 506
Winter Tires ..................................... 507
12-Volt Battery ................................. 508
Remote Transmitter Care
Replacing the Button Battery ........... 510
Climate Control System Maintenance .. 511
Cleaning
Interior Care .................................... 513
Exterior Care.................................... 515
Accessories and Modifications ........ 51918 CLARITY PHEV CSS-31TRW6000.book 471 ページ ２０１７年８月３１日　木曜日　午後２時４９分

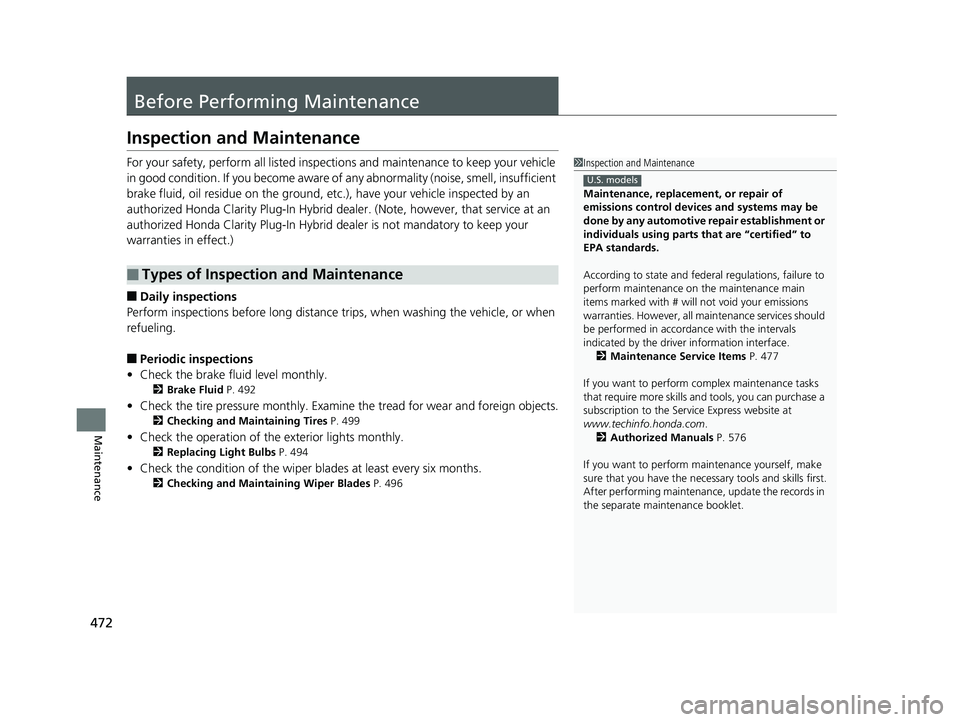

472
Maintenance Before Performing Maintenance Inspection and Maintenance For your safety, perform all listed inspecti ons and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc .), have your vehicle inspected by an
authorized Honda Clar ity Plug-In Hybrid dealer. (Note, however, that service at an
authorized Honda Clar ity Plug-In Hybrid dealer is not mandatory to keep your
warranties in effect.)
■ Daily inspections
Perform inspections before long distance trips, when washing th e vehicle, or when
refueling.
■ Periodic inspections
• Check the brake fluid level monthly. 2 Brake Fluid P. 492
• Check the tire pressure monthly. Examin e the tread for wear and foreign objects.2 Checking and Maintaining Tires P. 499
• Check the operation of the exterior lights monthly. 2 Replacing Light Bulbs P. 494
• Check the condition of the wiper bl ades at least every six months.2 Checking and Maintaining Wiper Blades P. 496■ Types of Inspection and Maintenance 1 Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 477
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 576
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet. U.S. models18 CLARITY PHEV CSS-31TRW6000.book 472 ページ ２０１７年８月３１日　木曜日　午後２時４９分

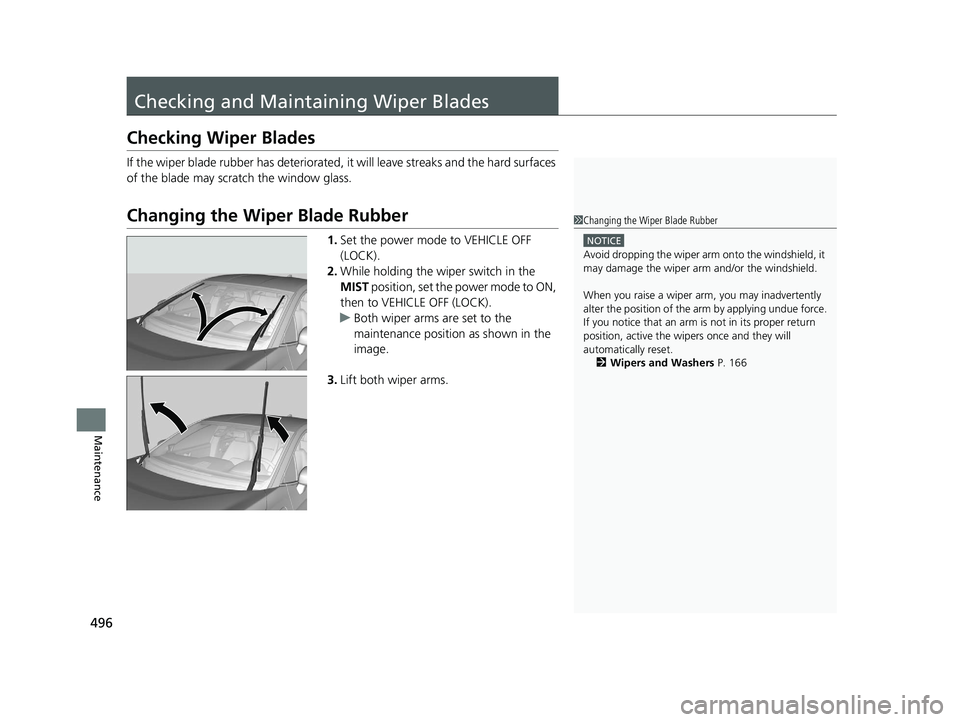

496
Maintenance Checking and Mainta ining Wiper BladesChecking Wiper Blades If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber 1. Set the power mode to VEHICLE OFF
(LOCK).
2. While holding the wiper switch in the
MIST position, set the power mode to ON,
then to VEHICLE OFF (LOCK).
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms. 1 Changing the Wiper Blade Rubber NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
When you raise a wiper arm, you may inadvertently
alter the position of the arm by applying undue force.
If you notice that an arm is not in its proper return
position, active the wipers once and they will
automatically reset.
2 Wipers and Washers P. 16618 CLARITY PHEV CSS-31TRW6000.book 496 ページ ２０１７年８月３１日　木曜日　午後２時４９分

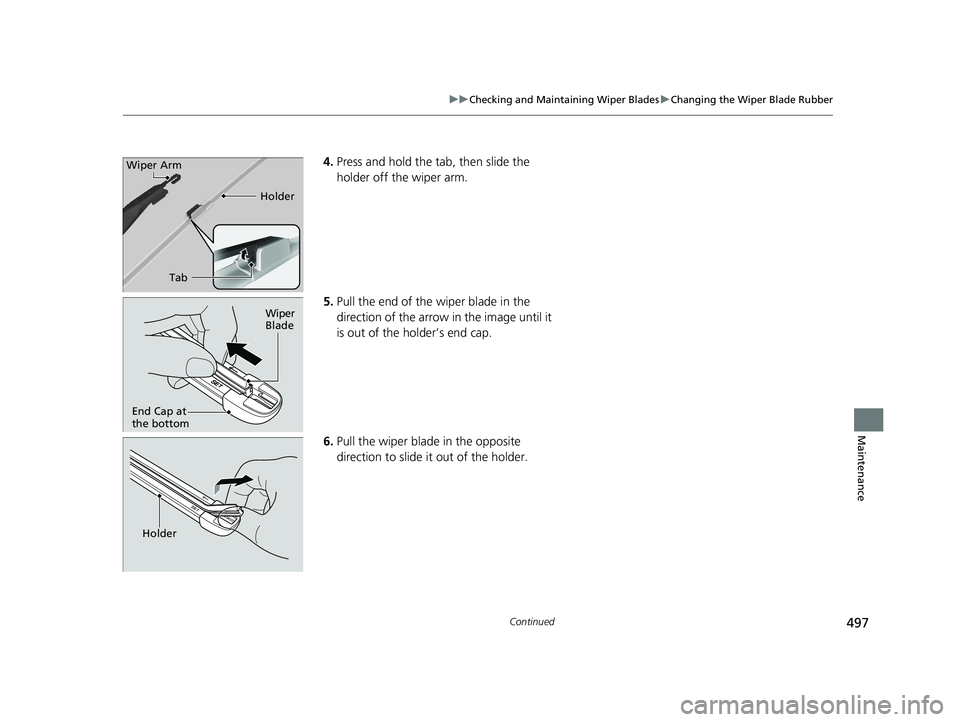

497uu Checking and Maintaining Wiper Blades u Changing the Wiper Blade Rubber
Continued
Maintenance
4. Press and hold the ta b, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.Tab HolderWiper Arm
Wiper
Blade
End Cap at
the bottom
Holder18 CLARITY PHEV CSS-31TRW6000.book 497 ページ ２０１７年８月３１日　木曜日　午後２時４９分

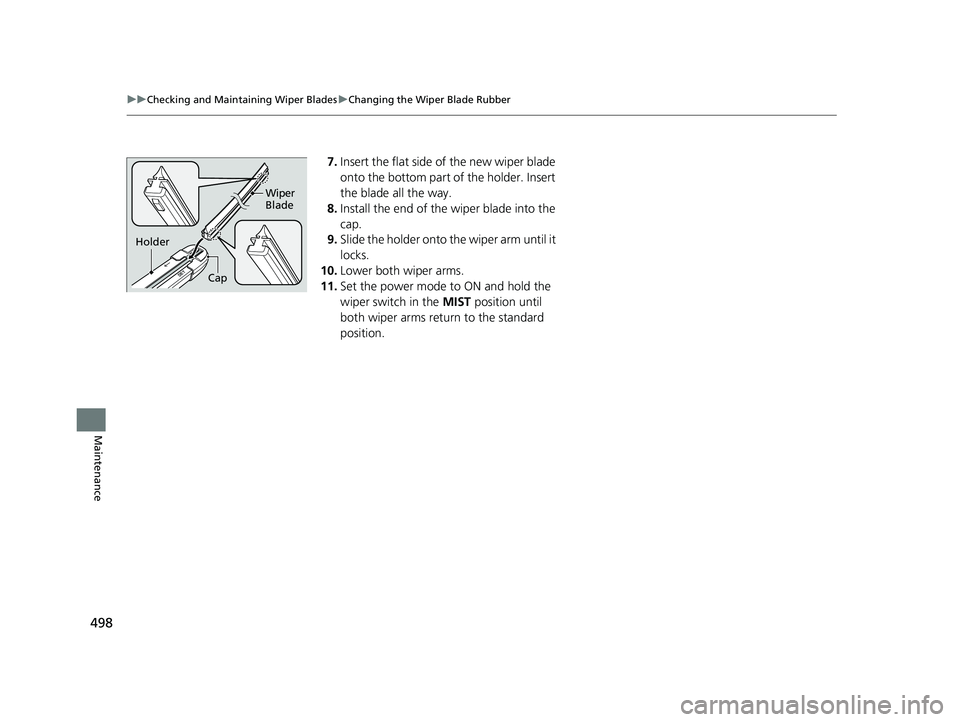

498 uu Checking and Maintaining Wiper Blades u Changing the Wiper Blade Rubber
Maintenance 7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Set the power mode to ON and hold the
wiper switch in the MIST position until
both wiper arms return to the standard
position.Cap Wiper
Blade
Holder18 CLARITY PHEV CSS-31TRW6000.book 498 ページ ２０１７年８月３１日　木曜日　午後２時４９分

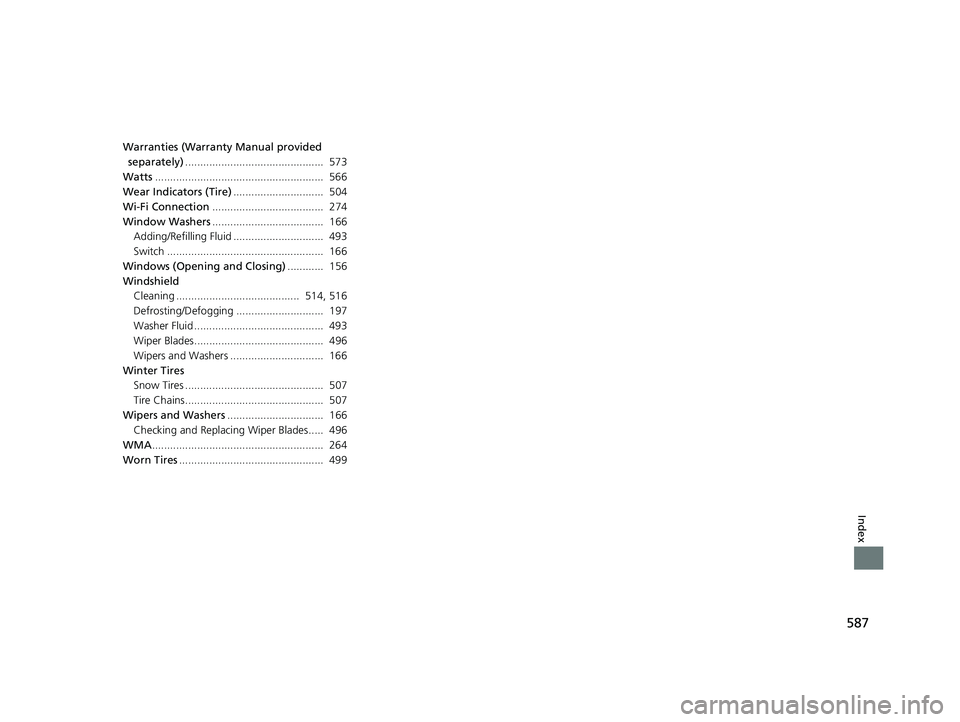

587
Index
Warranties (Warranty Manual provided
separately) .............................................. 573
Watts ........................................................ 566
Wear Indicators (Tire) .............................. 504
Wi-Fi Connection ..................................... 274
Window Washers ..................................... 166
Adding/Refilling Fluid .............................. 493
Switch .................................................... 166
Windows (Opening and Closing) ............ 156
Windshield
Cleaning ......................................... 514, 516
Defrosting/Defogging ............................. 197
Washer Fluid ........................................... 493
Wiper Blades........................................... 496
Wipers and Washers ............................... 166
Winter Tires
Snow Tires .............................................. 507
Tire Chains.............................................. 507
Wipers and Washers ................................ 166
Checking and Replacing Wiper Blades..... 496
WMA ......................................................... 264
Worn Tires ................................................ 49918 CLARITY PHEV CSS-31TRW6000.book 587 ページ ２０１７年８月３１日　木曜日　午後２時４９分
