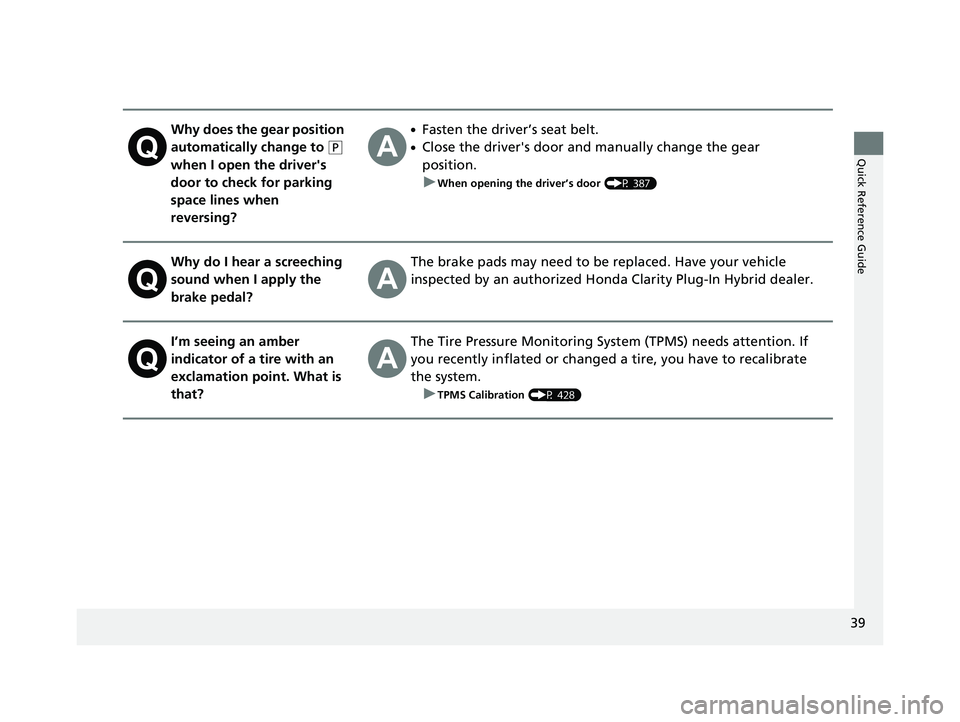

Why does the gear position
automatically change to ( P

when I open the driver's
door to check for parking
space lines when
reversing? ●
Fasten the driver’s seat belt. ●
Close the driver's door and manually change the gear
position.
u When opening the driver’s door
(P 387)
Why do I hear a screeching
sound when I apply the
brake pedal? The brake pads may need to be replaced. Have your vehicle
inspected by an authorized Honda Clarity Plug-In Hybrid dealer.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that? The Tire Pressure Monitoring Syst em (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
u TPMS Calibration
(P 428)19 CLARITY PHEV-31TRW6100.book 39 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

40 19 CLARITY PHEV-31TRW6100.book 40 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

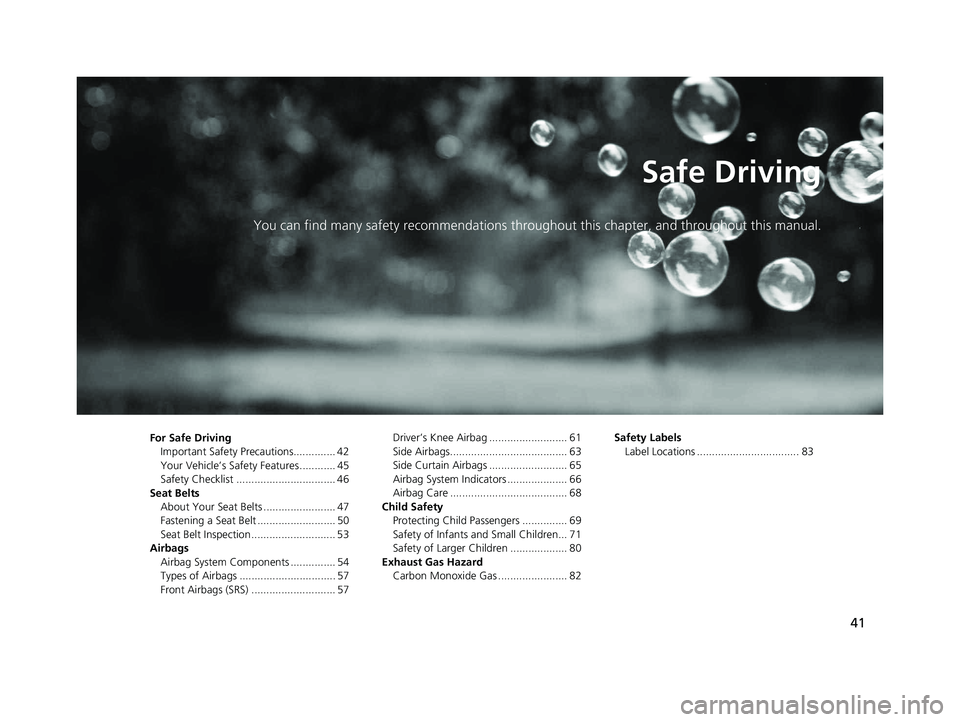

41Safe DrivingYou can find many safety recommendations through out this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 42
Your Vehicle’s Safety Features ............ 45
Safety Checklist ................................. 46
Seat Belts
About Your Seat Belts ........................ 47
Fastening a Seat Belt .......................... 50
Seat Belt Inspection ............................ 53
Airbags
Airbag System Components ............... 54
Types of Airbags ................................ 57
Front Airbags (SRS) ............................ 57 Driver’s Knee Airbag .......................... 61
Side Airbags....................................... 63
Side Curtain Airbags .......................... 65
Airbag System Indicators .................... 66
Airbag Care ....................................... 68
Child Safety
Protecting Child Passengers ............... 69
Safety of Infants a nd Small Children... 71
Safety of Larger Children ................... 80
Exhaust Gas Hazard
Carbon Monoxide Gas ....................... 82 Safety Labels
Label Locations .................................. 8319 CLARITY PHEV-31TRW6100.book 41 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

42

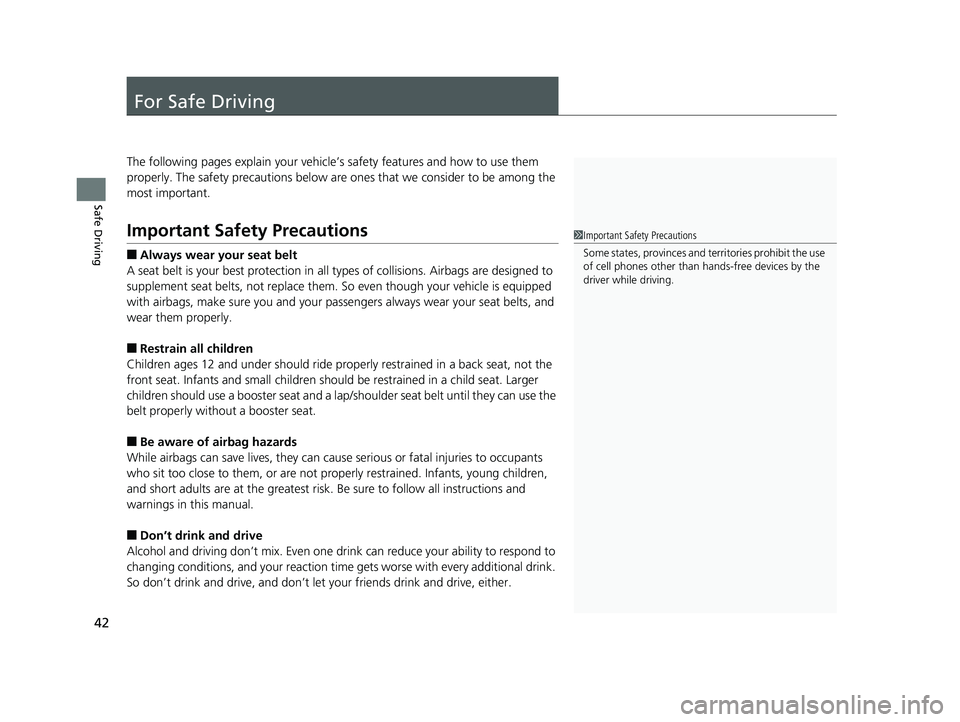

Safe Driving For Safe Driving The following pages explain your vehicle’ s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions ■ Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passe ngers always wear your seat belts, and
wear them properly.
■ Restrain all children
Children ages 12 and under should ride prop erly restrained in a back seat, not the
front seat. Infants and small children should be restrain ed in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■ Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infa nts, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■ Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with ever y additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either. 1 Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.19 CLARITY PHEV-31TRW6100.book 42 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

43uu For Safe Driving u Important Safety Precautions
Continued
Safe Driving

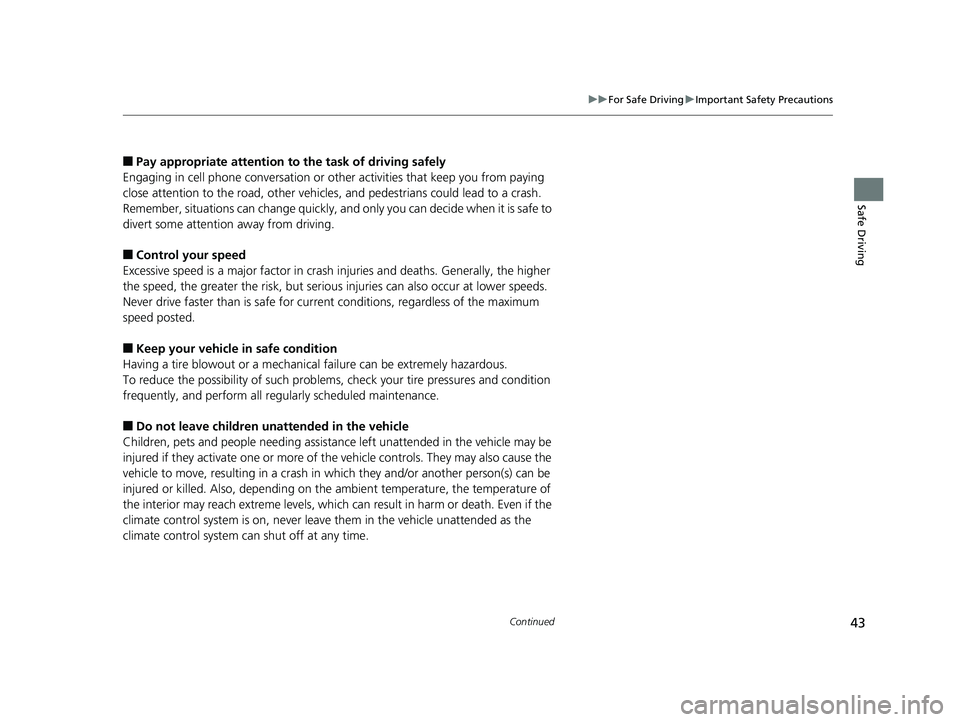

■ Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■ Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■ Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
■ Do not leave children unattended in the vehicle
Children, pets and people needing assistan ce left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which ca n result in harm or death. Even if the
climate control system is on, never leave them in the vehicle unattended as the
climate control system can shut off at any time. 19 CLARITY PHEV-31TRW6100.book 43 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

44 uu For Safe Driving u Important Safety Precautions

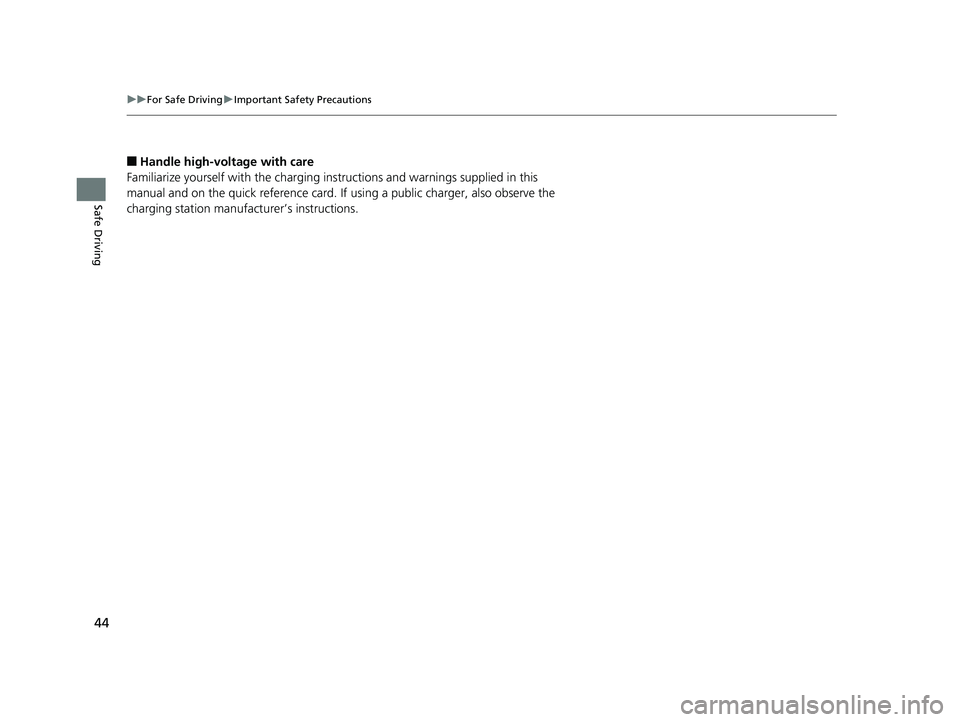

Safe Driving ■ Handle high-vol tage with care
Familiarize yourself with the charging instructions and warnings supplied in this
manual and on the quick reference card. If using a public charger, also observe the
charging station manufacturer’s instructions. 19 CLARITY PHEV-31TRW6100.book 44 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

45uu For Safe Driving u Your Vehicle’s Safety Features
Safe Driving

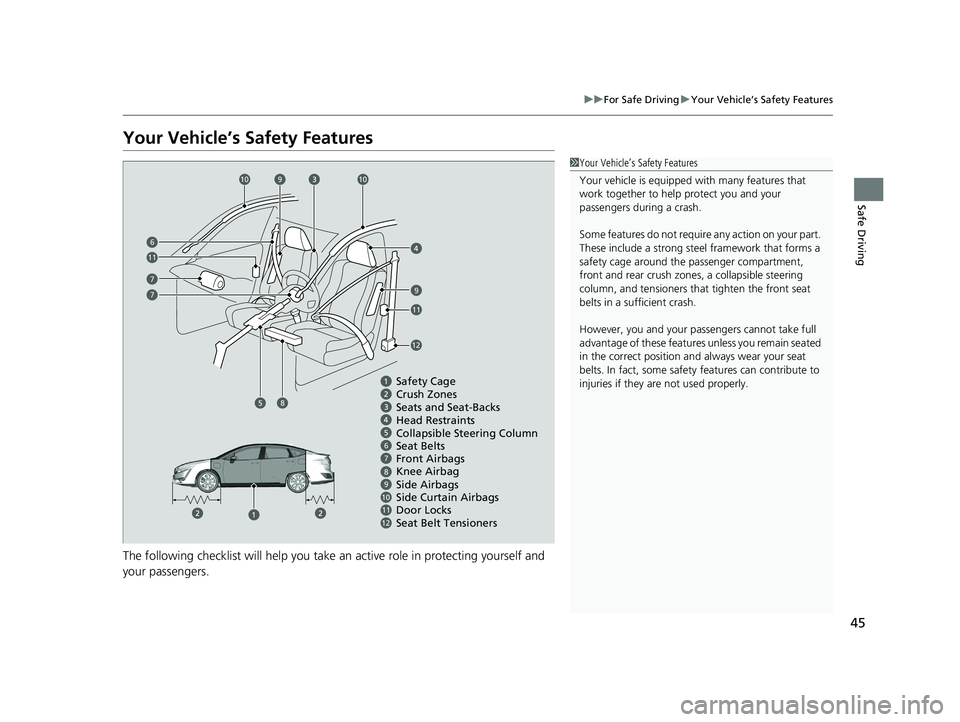

Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers. 1 Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zone s, a collapsi ble steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.6
7
9
10
11
12Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door LocksSide Airbags
Seat Belt Tensioners77 1010
99
1111 6
12
8
Knee Airbag 819 CLARITY PHEV-31TRW6100.book 45 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

46 uu For Safe Driving u Safety Checklist

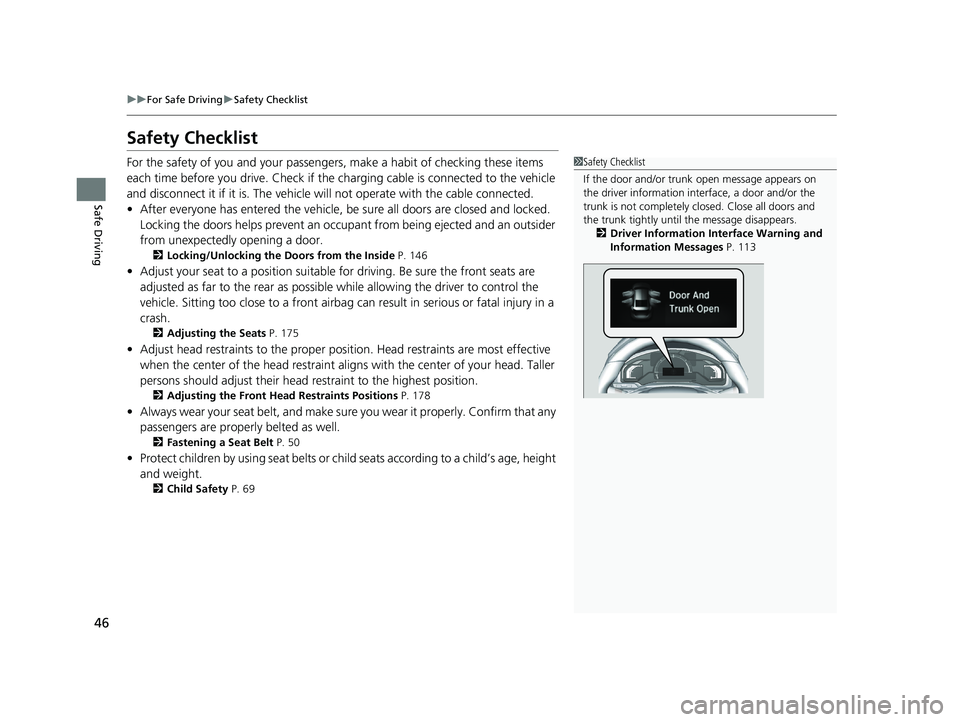

Safe Driving Safety Checklist For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive. Check if the ch arging cable is conn ected to the vehicle
and disconnect it if it is. The vehicle will not operate with the cable connected.
• After everyone has entered the vehicle, be sure all doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door. 2 Locking/Unlocking the Doors from the Inside P. 146
• Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash. 2 Adjusting the Seats P. 175
• Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position. 2 Adjusting the Front Head Restraints Positions P. 178
• Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well. 2 Fastening a Seat Belt P. 50
• Protect children by using seat belts or chil d seats according to a child’s age, height
and weight. 2 Child Safety P. 69 1 Safety Checklist
If the door and/or trunk open message appears on
the driver information inte rface, a door and/or the
trunk is not completely cl osed. Close all doors and
the trunk tightly until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 11319 CLARITY PHEV-31TRW6100.book 46 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

47Continued
Safe Driving

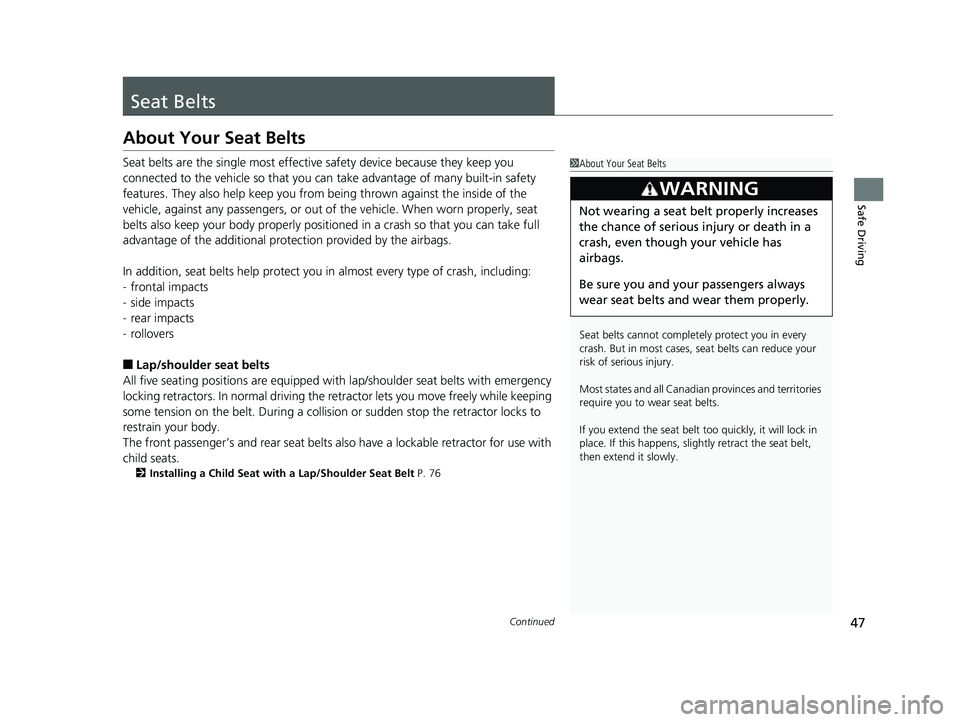

Seat Belts About Your Seat Belts Seat belts are the single most effectiv e safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from be ing thrown against the inside of the
vehicle, against any passengers, or out of the vehicle. When worn properly, seat
belts also keep your body properly positioned in a crash so that you can take full
advantage of the additional protection provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
- frontal impacts
- side impacts
- rear impacts
- rollovers
■ Lap/shoulder seat belts
All five seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving the retractor lets you move freely while keeping
some tension on the belt. During a collision or sudden stop the retractor locks to
restrain your body.
The front passenger’s and rear seat belts al so have a lockable retractor for use with
child seats. 2 Installing a Child Seat with a Lap/Shoulder Seat Belt P. 76 1 About Your Seat Belts
Seat belts cannot complete ly protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to wear seat belts.
If you extend the seat belt t oo quickly, it will lock in
place. If this happens, sli ghtly retract the seat belt,
then extend it slowly.3
WARNING Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passengers always
wear seat belts and wear them properly.19 CLARITY PHEV-31TRW6100.book 47 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Seat Belts u About Your Seat Belts
48

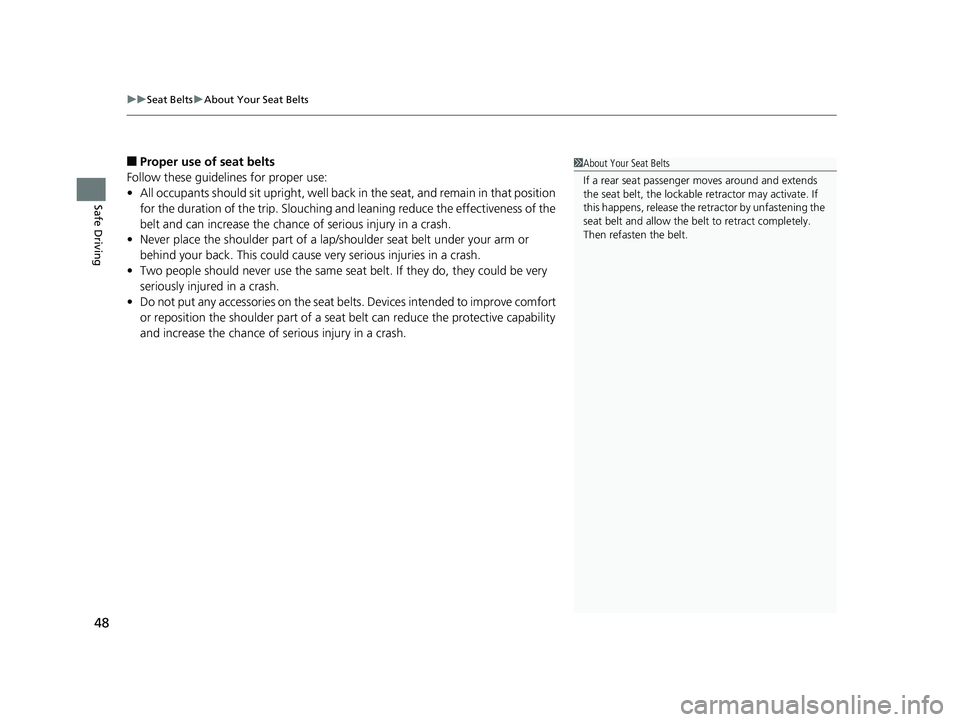

Safe Driving ■ Proper use of seat belts
Follow these guidelines for proper use:
• All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduce the effectiveness of the
belt and can increase the chance of serious injury in a crash.
• Never place the shoulder part of a lap/shoulder seat belt under your arm or
behind your back. This could cause very serious injuries in a crash.
• Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
• Do not put any accessories on the seat be lts. Devices intended to improve comfort
or reposition the shoulder part of a seat be lt can reduce the protective capability
and increase the chance of serious injury in a crash. 1 About Your Seat Belts
If a rear seat passenger moves around and extends
the seat belt, the lockable retractor may activate. If
this happens, release the retractor by unfastening the
seat belt and allow the belt to retract completely.
Then refasten the belt.19 CLARITY PHEV-31TRW6100.book 48 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
