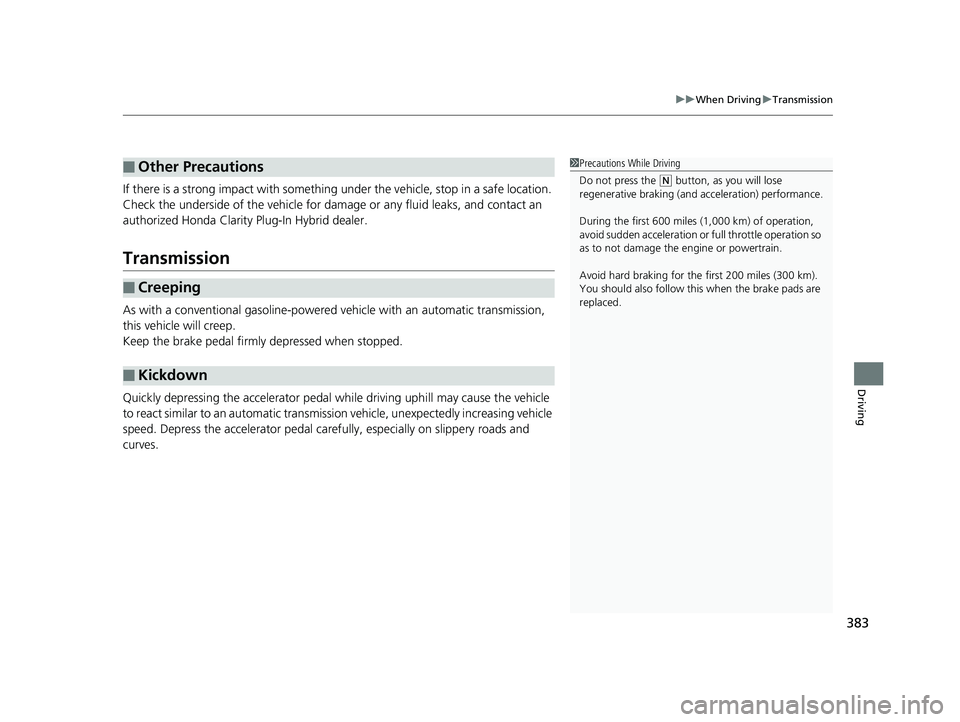

383 uu When Driving u Transmission
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks, and contact an
authorized Honda Clarity Plug-In Hybrid dealer.
Transmission As with a conventional gasoline-powered ve hicle with an auto matic transmission,
this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal wh ile driving uphill may cause the vehicle
to react similar to an automatic transmissio n vehicle, unexpected ly increasing vehicle
speed. Depress the accelerator pedal carefu lly, especially on slippery roads and
curves.■ Other Precautions
■ Creeping
■ Kickdown 1 Precautions While Driving
Do not press the ( N
button, as you will lose
regenerative braking (and ac celeration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as to not damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.19 CLARITY PHEV-31TRW6100.book 383 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

473Maintenance This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 474
Safety When Performing Maintenance...475
Parts and Fluids Used in Maintenance
Service ........................................... 476
Maintenance Minder TM
..................... 477
Maintenance Under the Hood
Maintenance Items Under the Hood .. 482
Opening the Hood ........................... 483
Recommended Engine Oil ................ 484
Oil Check ......................................... 485
Adding Engine Oil ............................ 486
Changing the Engine Oil and Oil Filter ...487 Engine Coolant ................................ 490
Cooling System ................................ 492
Transmission Fluid ............................ 494
Brake Fluid ....................................... 494
Refilling Window Washer Fluid......... 495
Replacing Light Bulbs ....................... 496
Checking and Maintaining Wiper
Blades .......................................... 498
Checking and Maintaining Tires
Checking Tires ................................. 501
Tire and Loading Information Label .. 502
Tire Labeling .................................... 502
DOT Tire Quality Grading (U.S. Vehicles).. 504 Wear Indicators ............................... 506
Tire Service Life ................................ 506
Tire and Wheel Replacement ........... 507
Tire Rotation .................................... 508
Winter Tires ..................................... 509
12-Volt Battery ................................. 510
Remote Transmitter Care
Replacing the Button Battery ........... 512
Climate Control System Maintenance .. 513
Cleaning
Interior Care .................................... 515
Exterior Care.................................... 517
Accessories and Modifications ........ 52119 CLARITY PHEV-31TRW6100.book 473 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

479uu Maintenance Minder TM
u To Use Maintenance Minder TM
Continued
Maintenance
■ Maintenance Service Items 1 Maintenance Service Items
• Adjust the valves during services A, 0, 1, 2, or 3 if
they are noisy.
Maintenance Minder MessageSystem Message
Indicator
Sub ItemsMain Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.CODE Maintenance Main Items
A ●
Replace engine oil *1
and oil filter
0 ●
Inspect front and rear brakes ●
Check expiration date for Temporary Tire Repair Kit ●
Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
• Stay RR, RR Subframe
• Under body battery cover *2: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*3: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (75,000 km) or 3 years.
*4: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
*5: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace dust and pollen filter *2
3 ●
Replace transmission fluid *3
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *4
8 ●
Replace air cleaner element *519 CLARITY PHEV-31TRW6100.book 479 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

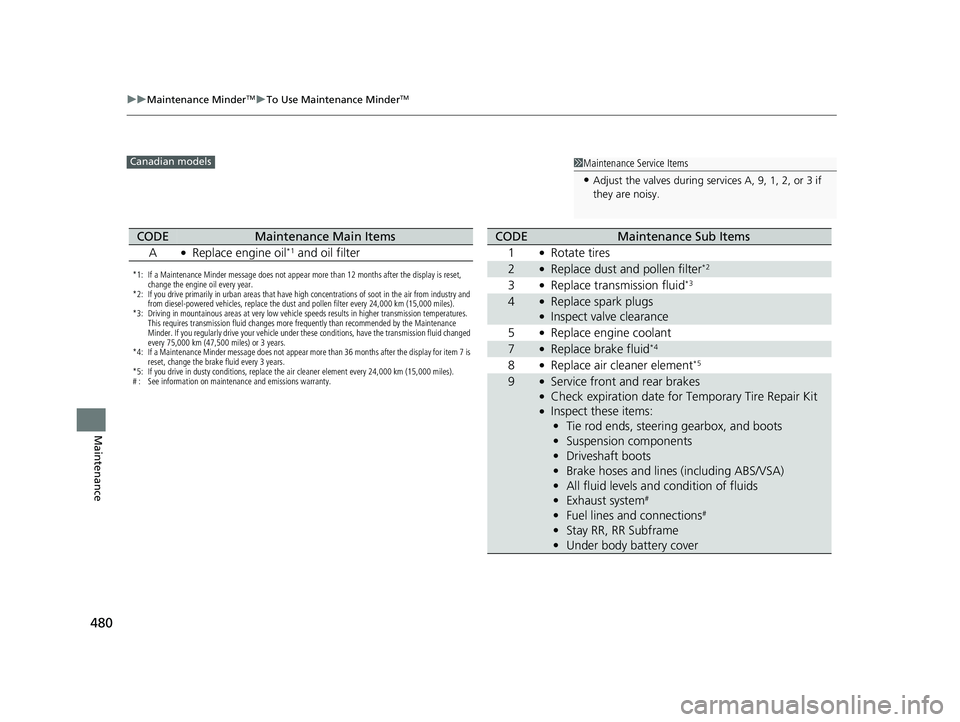

480 uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance 1 Maintenance Service Items
• Adjust the valves during services A, 9, 1, 2, or 3 if
they are noisy.Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*3: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 75,000 km (47,500 miles) or 3 years.
*4: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
*5: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
# : See information on maintenance and emissions warranty.CODE Maintenance Main Items
A ●
Replace engine oil *1
and oil filter CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace dust and pollen filter *2
3 ●
Replace transmission fluid *3
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *4
8 ●
Replace air cleaner element *5
9 ●
Service front and rear brakes ●
Check expiration date for Temporary Tire Repair Kit ●
Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
• Stay RR, RR Subframe
• Under body battery cover19 CLARITY PHEV-31TRW6100.book 480 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

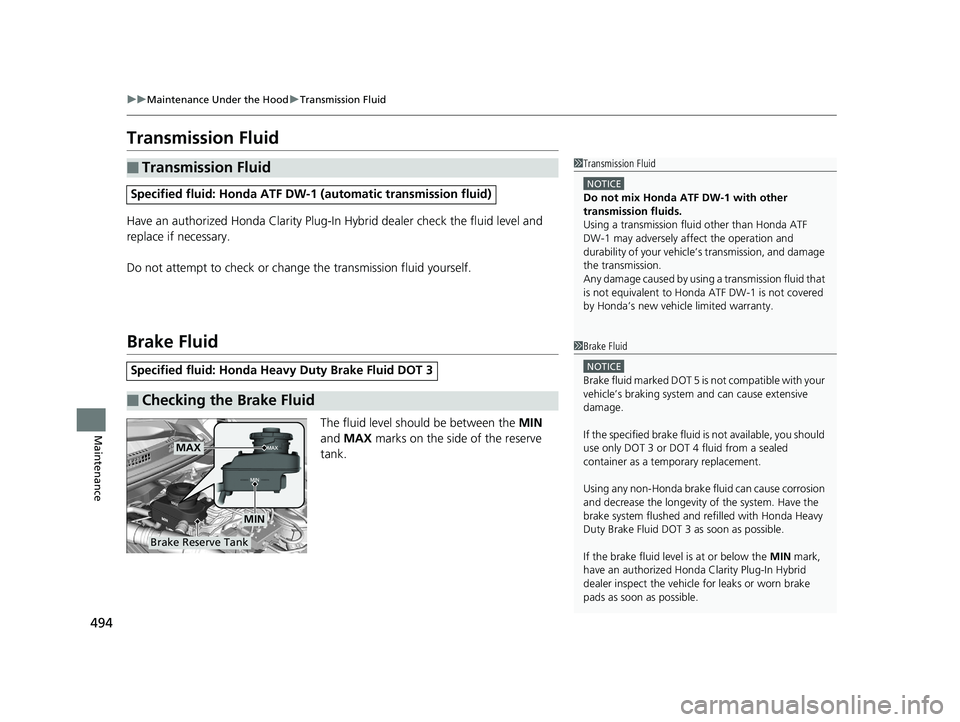

494 uu Maintenance Under the Hood u Transmission Fluid
Maintenance Transmission Fluid Have an authorized Honda Clarity Plug-In Hybrid dealer check the fluid level and
replace if necessary.
Do not attempt to check or change the transmission fluid yourself.
Brake Fluid The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.■ Transmission Fluid Specified fluid: Honda ATF DW-1 (automatic transmission fluid)
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■ Checking the Brake Fluid 1 Transmission Fluid NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehi cle limited warranty.
1 Brake Fluid NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a tem porary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have an authorized Hond a Clarity Plug-In Hybrid
dealer inspect the vehicle for leaks or worn brake
pads as soon as possible.Brake Reserve Tank MAX
MIN19 CLARITY PHEV-31TRW6100.book 494 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

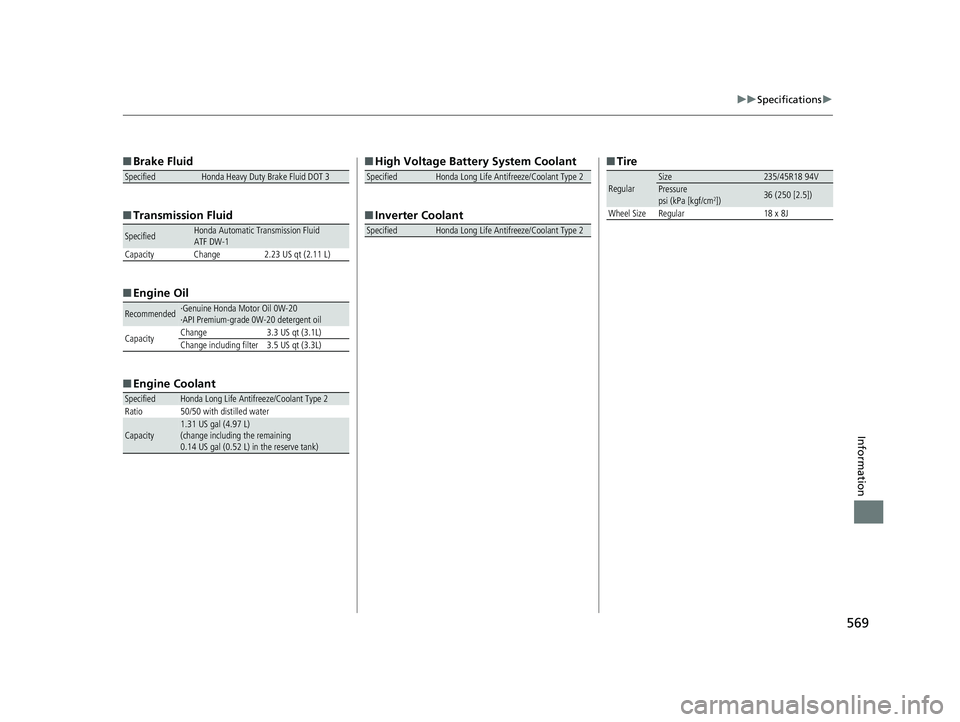

569 uu Specifications u
Information
■ Brake Fluid
■ Transmission Fluid
■ Engine Oil
■ Engine Coolant Specified Honda Heavy Duty Brake Fluid DOT 3
Specified Honda Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.23 US qt (2.11 L)
Recommended ·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1L)
Change including filter 3.5 US qt (3.3L)
Specified Honda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity 1.31 US gal (4.97 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank) ■ High Voltage Battery System Coolant
■ Inverter Coolant Specified Honda Long Life Antifreeze/Coolant Type 2
Specified Honda Long Life Antifreeze/Coolant Type 2
■ Tire Regular Size 235/45R18 94V
Pressure
psi (kPa [kgf/cm 2
]) 36 (250 [2.5])
Wheel Size Regular 18 x 8J19 CLARITY PHEV-31TRW6100.book 569 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

583

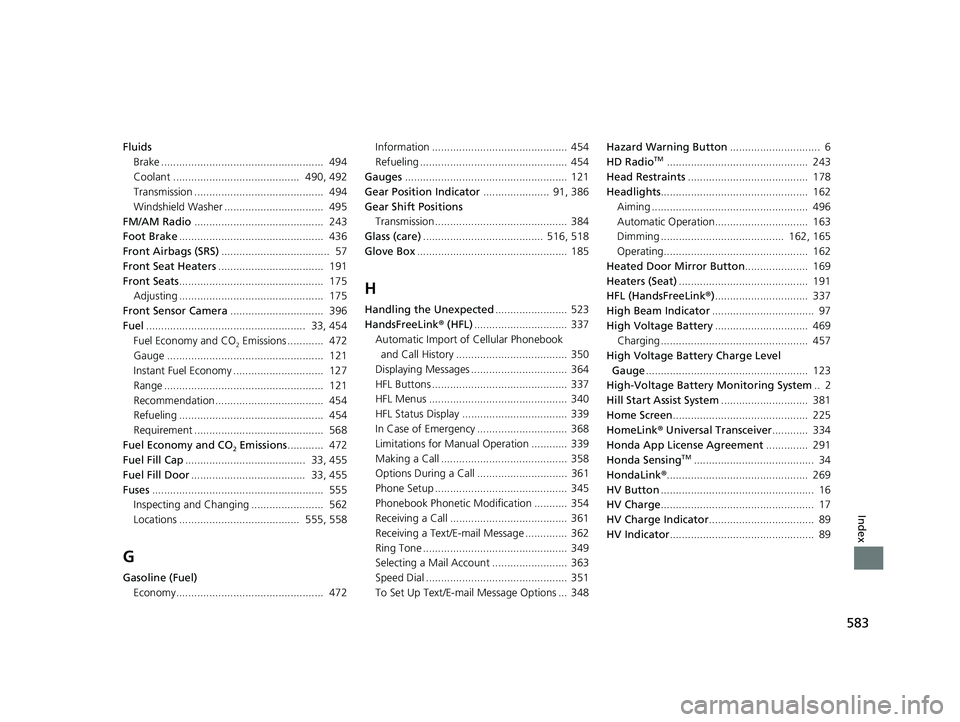

Index
Fluids
Brake ...................................................... 494
Coolant .......................................... 490, 492
Transmission ........................................... 494
Windshield Washer ................................. 495
FM/AM Radio ........................................... 243
Foot Brake ................................................ 436
Front Airbags (SRS) .................................... 57
Front Seat Heaters ................................... 191
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 396
Fuel ..................................................... 33, 454
Fuel Economy and CO 2
Emissions ............ 472
Gauge .................................................... 121
Instant Fuel Economy .............................. 127
Range ..................................................... 121
Recommendation.................................... 454
Refueling ................................................ 454
Requirement ........................................... 568
Fuel Economy and CO 2
Emissions ............ 472
Fuel Fill Cap ........................................ 33, 455
Fuel Fill Door ...................................... 33, 455
Fuses ......................................................... 555
Inspecting and Changing ........................ 562
Locations ........................................ 555, 558
G Gasoline (Fuel)
Economy................................................. 472 Information ............................................. 454
Refueling ................................................. 454
Gauges ...................................................... 121
Gear Position Indicator ...................... 91, 386
Gear Shift Positions
Transmission ............................................ 384
Glass (care) ........................................ 516, 518
Glove Box .................................................. 185
H Handling the Unexpected ........................ 523
HandsFreeLink ® (HFL) ............................... 337
Automatic Import of Cellular Phonebook
and Call History ..................................... 350
Displaying Messages ................................ 364
HFL Buttons ............................................. 337
HFL Menus .............................................. 340
HFL Status Display ................................... 339
In Case of Emergency .............................. 368
Limitations for Manua l Operation ............ 339
Making a Call .......................................... 358
Options During a Call .............................. 361
Phone Setup ............................................ 345
Phonebook Phonetic M odification ........... 354
Receiving a Call ....................................... 361
Receiving a Text/E-mail Message .............. 362
Ring Tone ................................................ 349
Selecting a Mail Account ......................... 363
Speed Dial ............................................... 351
To Set Up Text/E-mail Message Options ... 348 Hazard Warning Button .............................. 6
HD Radio TM
............................................... 243
Head Restraints ........................................ 178
Headlights ................................................. 162
Aiming .................................................... 496
Automatic Operation............................... 163
Dimming ......................................... 162, 165
Operating................................................ 162
Heated Door Mirror Button ..................... 169
Heaters (Seat) ........................................... 191
HFL (HandsFreeLink ® ) ............................... 337
High Beam Indicator .................................. 97
High Voltage Battery ............................... 469
Charging ................................................. 457
High Voltage Battery Charge Level
Gauge ...................................................... 123
High-Voltage Battery Monitoring System .. 2
Hill Start Assist System ............................. 381
Home Screen ............................................. 225
HomeLink ® Universal Transceiver ............ 334
Honda App License Agreement .............. 291
Honda Sensing TM
........................................ 34
HondaLink ® ............................................... 269
HV Button ................................................... 16
HV Charge ................................................... 17
HV Charge Indicator ................................... 89
HV Indicator ................................................ 8919 CLARITY PHEV-31TRW6100.book 583 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

585
Index
Low Battery Charge (12-Volt) ................. 548
Low Fuel Indicator ..................................... 91
Low Smart Entry Remote Signal
Strength .................................................. 138
Lower Anchors ........................................... 74
Luggage (Maximum Load Limit) ............. 375
M Maintenance ............................................ 473
12-Volt Battery ....................................... 510
Brake Fluid .............................................. 494
Cleaning ................................................. 515
Climate Control System .......................... 513
Coolant .......................................... 490, 492
Maintenance Minder TM
............................ 477
Oil .......................................................... 485
Precautions ............................................. 474
Radiator .................................................. 491
Remote Transmitter ................................ 512
Replacing Light Bulbs .............................. 496
Safety ..................................................... 475
Service Items ........................................... 479
Tires........................................................ 501
Transmission Fluid ................................... 494
Under the Hood ...................................... 482
Malfunction Indicator Lamp ..................... 90
Map Lights ................................................ 184
Maximum Load Limit ............................... 375
Meters, Gauges ........................................ 121 Mirrors ....................................................... 173
Adjusting ................................................. 173
Door........................................................ 174
Exterior .................................................... 174
Interior Rearview ..................................... 173
Modifications (and Accessories) .............. 521
Motor ........................................................ 570
Jump Starting .......................................... 541
MP3 ........................................................... 264
Multi-View Rear Camera .......................... 452
N Numbers (Identification) .......................... 570
O Odometer .................................................. 126
Oil (Engine) ............................................... 484
Adding .................................................... 486
Checking ................................................. 485
Displaying Oil Life .................................... 477
Recommended Engine Oil ........................ 484
Viscosity .................................................. 484
Warning .................................................. 547
Open Source Licenses ............................... 305
Opening
Trunk .............................................. 150, 566
Opening/Closing
Hood ....................................................... 483
Power Windows ...................................... 156 Trunk ...................................................... 150
Operating the Switches Around the
Steering Wheel ....................................... 158
Outside Temperature Display .................. 126
Overheating .............................................. 544
P Pandora ® ................................................... 262
Panic Mode ............................................... 155
Parking ...................................................... 450
Parking Brake ........................................... 434
Parking Brake and Brake
System Indicator (Red) ....... 86, 87, 550, 552
Passenger Front Airb ag Off Indicator ....... 67
Passing Indicators ..................................... 162
Playing Bluetooth ® Audio ........................ 267
POWER Button ......................................... 158
Power Flow Monitor ................................ 132
Power System
Turning on .............................................. 378
POWER SYSTEM Indicator .......................... 88
Power Windows ....................................... 156
POWER/CHARGE Gauge ........................... 122
Precautions While Driving
Rain ........................................................ 382
Pregnant Women ....................................... 52
Puncture (Tire) .......................................... 52419 CLARITY PHEV-31TRW6100.book 585 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

587
Index
Timer ......................................................... 470
Tire Pressure Monitoring System
(TPMS) ..................................................... 428
Indicator ........................................... 96, 553
Tires .......................................................... 501
Air Pressure..................................... 502, 569
Chains .................................................... 509
Checking and Maintaining ...................... 501
Flat Tire (Puncture) .................................. 524
Inspection ............................................... 501
Labeling .................................................. 502
Regulations ............................................. 504
Rotation.................................................. 508
Summer .................................................. 509
Temporary Tire Repair Kit ........................ 525
Wear Indicators....................................... 506
Winter .................................................... 509
Towing a Trailer ....................................... 377
Towing Your Vehicle ............................... 377
Emergency .............................................. 563
TPMS (Tire Pressure Monitoring
System) .................................................... 428
Transmission ............................... 31, 383, 384
Creeping................................................. 383
Fluid ....................................................... 494
Gear Position Indicator ...................... 91, 386
Indicator ................................................... 92
Number .................................................. 570
Operating the Shift Button ................ 31, 386
Shifting ................................................... 384
Warning Message ............................. 92, 554 Trip Meter ................................................. 126
Troubleshooting ....................................... 523
Blown Fuse ...................................... 555, 558
Brake Pedal Vibrates .................................. 37
Buzzer Sounds When Opening Door .......... 37
Cannot Start Charging ............................ 466
Emergency Towing .................................. 563
Flat Tire/Puncture ..................................... 524
Noise When Braking .................................. 39
Overheating ............................................ 544
Power System Won’t Start ....................... 537
Rear Door Won’t Open ...................... 37, 148
Unable to Open the Charge Lid ............... 565
Unable to Unlock the Fuel Fill Door .......... 564
Warning Indicators .................................... 86
Trunk ......................................................... 150
Lid ........................................................... 150
Light Bulbs .............................................. 568
Unable to Open ....................................... 566
Turn Signals .............................................. 161
Indicators (Instrument Panel) ...................... 97
Turn-by-Turn Directions ........................... 127
Turning on the Power .............................. 378
Does Not Activate .................................... 537
Jump Starting .......................................... 541
U Under-Floor Storage Area ........................ 190
Unlocking the Doors ................................ 139 Unlocking the Fron t Doors from the
Inside ................................................. 25, 146
USB Flash Drives ............................... 264, 290
USB Ports ................................................... 205
Using the Smart Entr y with Push Button
Start System ............................................ 139
V Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 570
Vehicle Monitoring System .......................... 2
Vehicle Stability Assist ® (VSA ® ) ................ 425
Off Button............................................... 426
Off Indicator...................................... 95, 426
System Indicator ................................ 95, 425
Viscosity (Oil) ............................................ 484
Voice Control Operation .......................... 239
Audio Commands ................................... 241
Climate Control Commands .................... 242
General Commands ................................ 242
Music Search Commands ........................ 242
On Screen Commands............................. 242
Phone Commands ................................... 241
Useful Commands ................................... 241
Voice Portal Screen.................................. 240
Voice Recognition ................................... 239
VSA ® (Vehicle Stability Assist ® ) ................ 42519 CLARITY PHEV-31TRW6100.book 587 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
