Troubleshooting

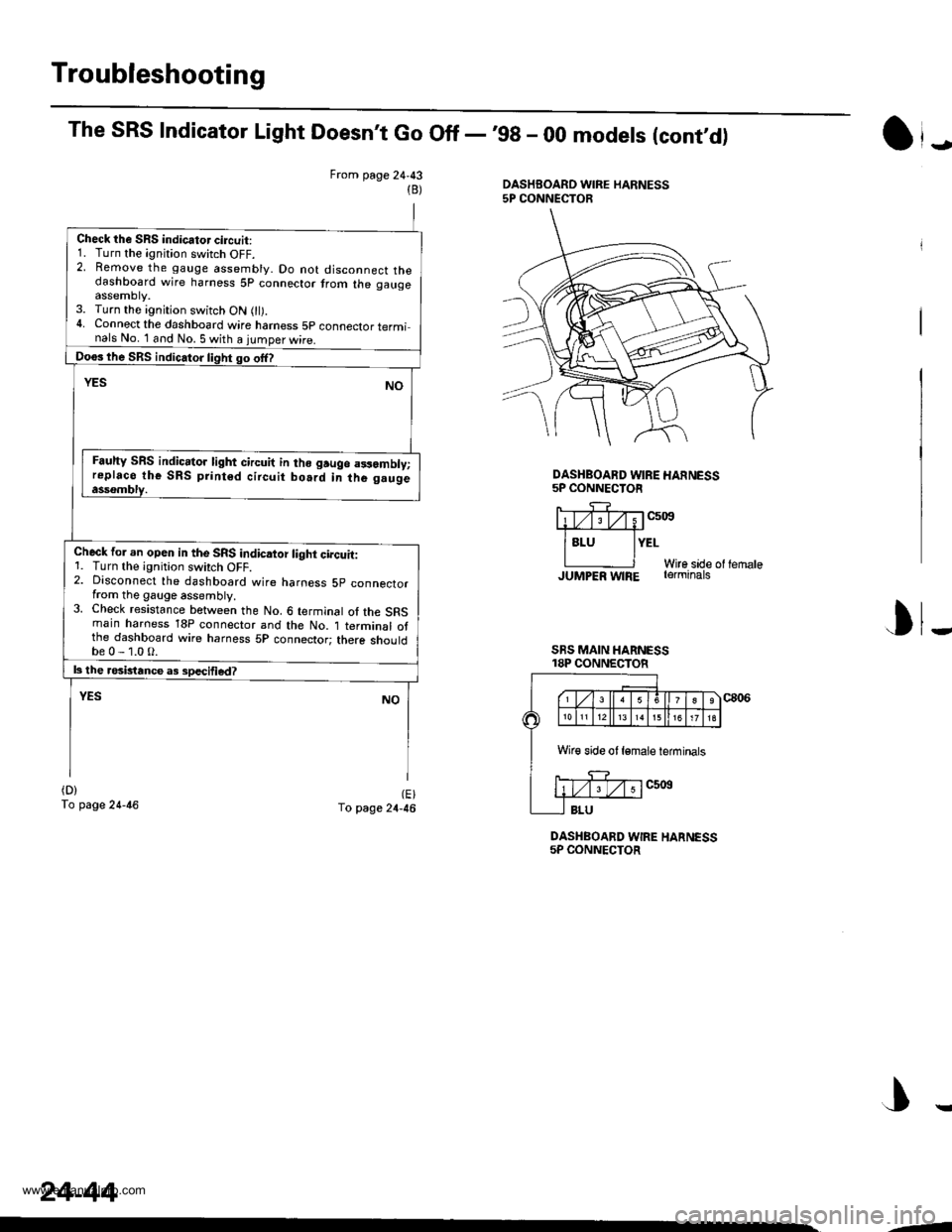

The SRS Indicator Light Doesn't Go Off -'99 - 00 models (cont,d)
From page 24,43DASHBOARD WIRE HARNESS5P CONNECTOR(B)
Check the SRS indicator circuit:1. Turn the ignition switch OFF.2. Remove the gauge assembly. Do not disconnect thedashboard wire harness 5p connector trom the gaugeassemDty.3. Turn the ignition switch ON 0l).4. Connect the dashboard wire hamess 5p connector terminals No. 1 and No. 5 with a iumoer wire.
Doos lhe SRS indic.tor light go offl
YESNO
Fauhy SRS indic.tor light circuit in lho gruge a3samblv;replaco the SRS print6d circuit bo.rd in the g.ugeassombly.
Check for an opeo in the SRS indicaior light circuit:1. Turn the ignition swirch OFF.2. Disconnect the dashboard wire harness 5p connectorfrom the gauge assembly.3. Check resistance between the No. 6 terminal of the SRSmain haroess 18P connector and the No. 1 terminal otthe dashboard wire harness 5P connector; there shouldbe0-1.0O.
|3 the rosbtance a3 sDecified?
YESNO
(D)
To page 24-46(E)To page 24-46
DASHBOARD WIRE HARNESS5P CONNECTOR
J
DASHBOARD WIRE HANNESS5P CONNECTOR
liTv;Tv;1c5i0s#
lsru lYErWire sade ol lernaleJUMPER w|RE rerminats
I
SRS MAIN HARNESS18P CONNECTOR
J
Wir€ side ot lemale ieminals
24-44
,-
www.emanualpro.com
Page 1342 of 1395

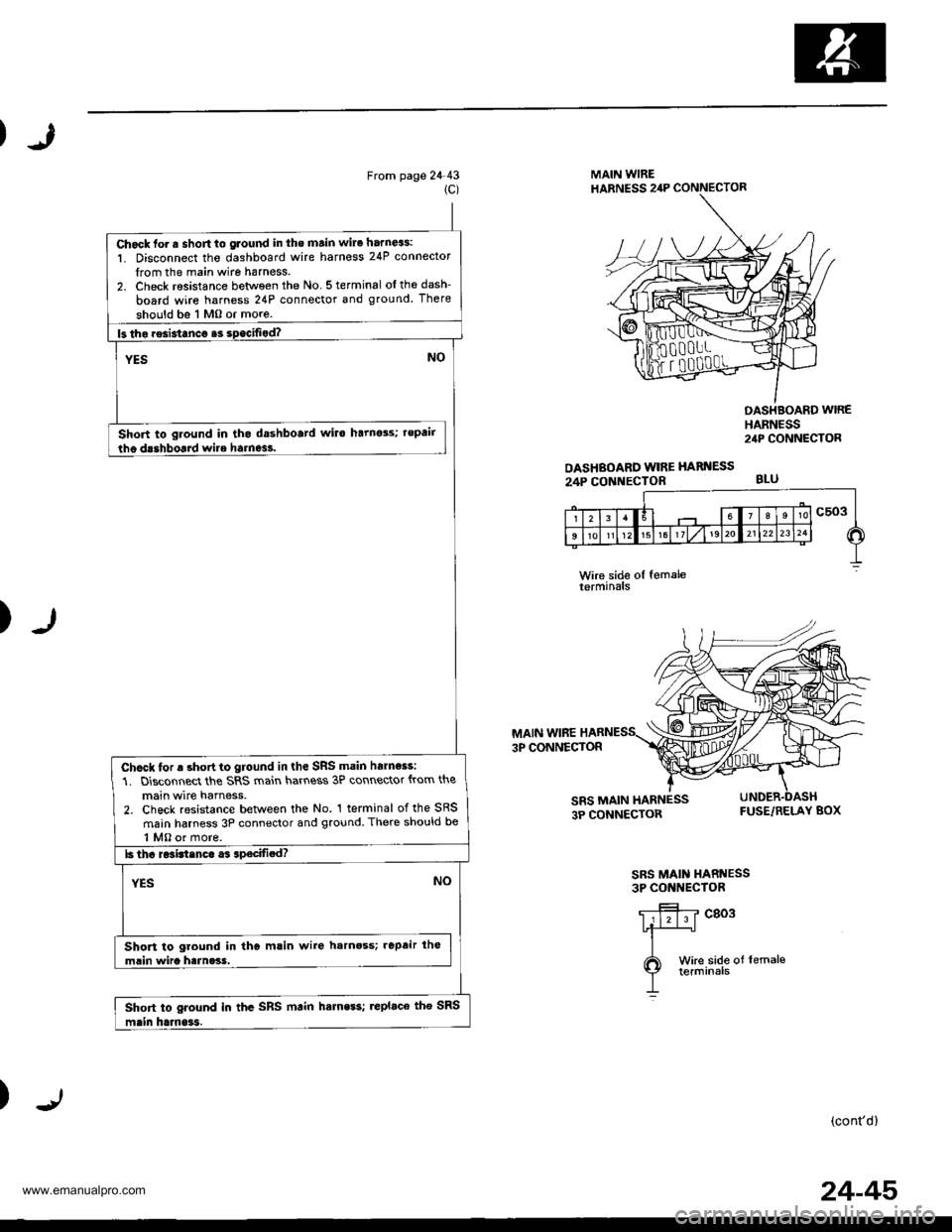

Chock fo. a short to glound in tho main wire harn63:
1. Disconnect tho dashboard wire harnoss 24P connector
from the main wire harness.2. Check resistance between the No 5terminal oIthedash-
board wire harness 24P connector and ground. There
should bs 1 Mo or more.
Short to ground in tho dashboatd wilo harnots; repair
Chcck for a short to ground in the SRS main harnoss:
1. Disconnect the SRS main hart\ess 3P connector {rom the
main wire harness,2. Check resistance between the No. 1 terminal of the SRS
main harness 3P connector and ground. There should be
1 MO or more.
Short to ground in the mlin wire harnoss; .epair lh€
mlin wira harness.
Short to ground in thc SRS mtin hemess; replace tho SRS
J
From page 24-431C)
MAIN WIREHABNESS 2,lP CONNECTOR
OASHBOARD WIRE HARI{ESS
24P CONNECTOR
OASHBOARD WIREHARNESS2,rP CONNECTOR
BLU
)
MAIN WIRE3P CONNECTOR
cToR FUSE/RELAY BOX
SRS MAIN HARNESS3P CONIIECTOR
c803
)(cont'd)
24-45
www.emanualpro.com
Page 1343 of 1395
Troubleshooting
The SRS Indicator Light Doesn't Go Off -,99 - 00 models (cont,d)
Frcm page 24-44{D)
Ch€ck the SRS indicator circuit input voltage:1. Reconnect the SRS main harness 18p connector to theSRS unit.2. Connect a voltmeter between the No. 1 terminal {+) ofthe dashboard 5P connector and ground.3. Turn the ignition switch ON {ll}, wait for six seconds,then measure voltage.
ls there 8.5 V or more?
YESNO
The problem has disapp€ared due to disconnecting andconnecting tho connectors. Be sure all terminals makegood contact, and .echeck the system {seo Troublo_shooting Intermiftent Failures on page 2it-2E).
Poo. contact at the SRS main harn8s 18p connector; checkthe connector.. lf the connoctor is OK, aubstitute a known-good SRS unit,end recheck.. lf the problem is still present, .6place tho SRS m.in har-ne33.
Ftom lage24-44(E)
J)
DASHEOARD WFE HARNESS5P CONNECTOR
c5ott
Wire side of lemaleterminals
J
Torminal side ol male termtnal
ca03
SRS MAIN HARNESS18P CONNECTOR
c806
SRS MAIN HARNESS3P CONNECTOR
DASHBOARD WIRE HARNESS
Check for an open in the dashboa.d wire harnessi1. Disconnect the main wire harness 24p connector fromthe dashboard wire harness.2. Check resistance between the No. 6 terminal of the SRSmain harness 18P connector and No. S te.minal of the mainwire harness 24P connector; there should be 0 - 1.0 0.
ls th€ resistance rs speciliedT
YESNO
Open in the 8LU wi.o ol the dashboard wire hrmess:repair the dashboard wire ha.ness.
Check fo. an open in the m.in wire hamess:1. Disconnect the SRS rnain harness 3p connector from themain wire harness,2. Check resistance between the No. 6 terminal of the SRSrnain harness 18P connector and No. 1 terminal of the SRSmain harness 3P connector;there should be 0 1.0O.
b the rGbtanco as sDecified?
NOYES
Open in the BLU wir6 of th6 main wire hernos3; reori.the main wire hamess,
Open in the SRS main harness; r€place the SRS main ha.-noss.
24-46
--
www.emanualpro.com
Page 1344 of 1395

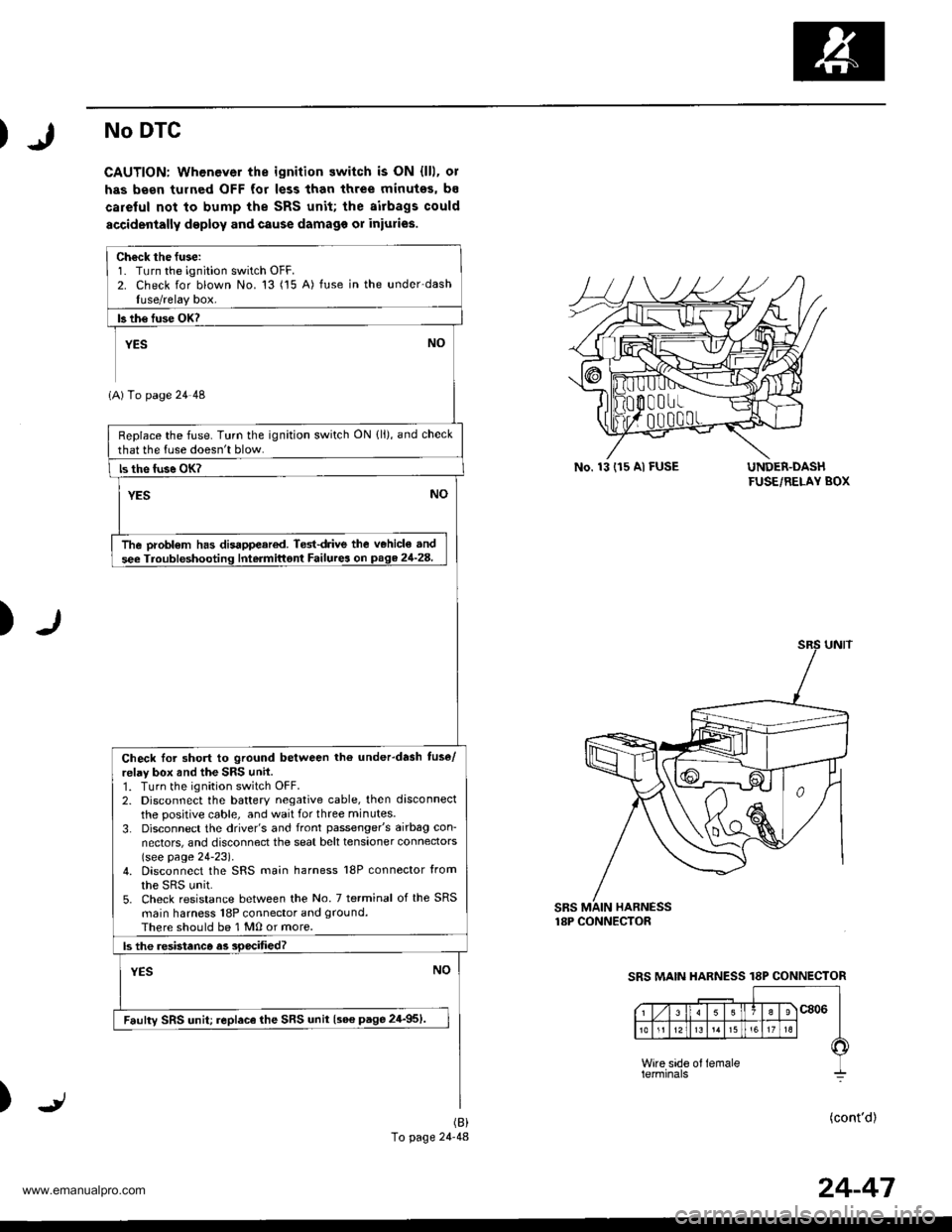

No DTC
CAUTION: Whenever the ignition switch is ON {lll, ol
has been tulned OFF for less than three minutes, bs
careful not to bump the SRS unit; the airbags could
accidenially deploy and cause damago or iniuries.
UNDER-DASHFUSE/RELAY BOX
)
SBS MAIN HARNESS18P CONNECTOR
)(cont'd)(B)
To page 24-48
Ch€ck the fuse:1. Turn the ignition switch OFF.2. Check for blown No. 13 ('15 A) fuse in the under-dashIuse/relay box.
b th€ fuse OK?
YEs NO
1A) To page 24 48
Replace the fuse. Turn the ignition switch ON {ll), and check
that the luse doesn't blow.
ls the fuse OK?
YESNO
The probl€m has disappeared. Ted{rive the v€hicle and
see Troubfeshooting Intermittont Failurea on page 21-28.
Check Ior short to ground between tho underdash tuse/
relay box and the SRS unil.1. Turn the ignition switch OFF.2. Disconnect the battery negative cable, then disconnect
the positive cable, and wait for three min utes.
3. Disconnect the driver's and front passenger's airbag con-
nectors, and disconnect the seat belt tensioner connectors(see page 24-23).4. Disconnect the SRS main harness l8P connector from
the sRs unit.5. Check resistance between the No. 7 terminal of the SRS
main harness 18P connector and ground.
There should be 1 M0 or more.
ls the .esistanco as soecified?
YESNO
Faulty SRS unit; replace lhe SRS unit {see page 24-951.
No. 13 (r5 Al FUSE
SRS MAIN HARNESS 18P CONNECTOR
24-47
www.emanualpro.com
Page 1345 of 1395
Troubleshooting

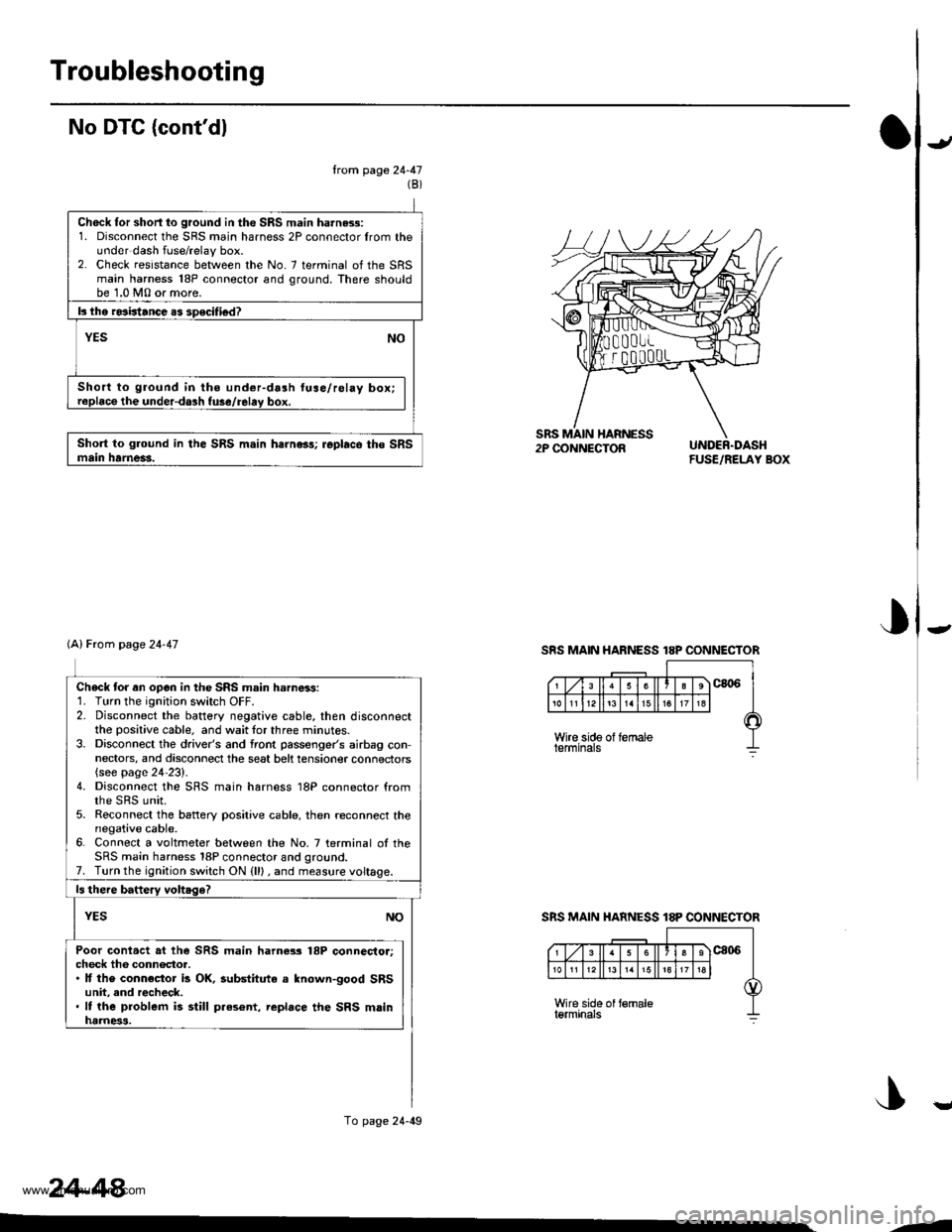

No DTC (cont'dl
ltofi page 24-47(B)
Chock for short to ground in the SRS main harne3s:1. Disconnect the SRS main harness 2P connector lrom theunder dash fuse/relay box.2. Check resrstance betwoen the No.7 terminal of the SRSmain harness 18P connector and ground. There shouldbe 1.0 M0 or more.
k the ro3irtancc as specifi€d?
YESNO
Short to ground in tho under-da3h lus6/rolay box;replace the under-dash fuse/relav box,
Short to glound in the SRS m.in hernoss; roplace tho SRSmain hatnei3.FUSE/RELAY BOX
Check tor an op€n in the SRS main harness:1. Turn the ignition switch OFF.2. Disconnect the battery negative cable, then disconnectthe positive cable. and wait for th ree minutes.3. Disconnect the driver's and front passenge/s airbag con,nectors, and disconnect the seat belt tension€r connectors{see page 24-23}.4. Disconnect the SRS main harness 18P connector fromthe SRS unit.5. Reconnect the battery positive cable, then reconnect thenegative cable.6. Connect a voltmeter between the No. 7 terminal oI theSRS main harness 18P connector and ground.7. Turn the ignition switch ON (lll , and measure voltage.
Poor conlact .t the SRS main harness l8P connesto.:check th6 connector,. It the connector is OK, substitute a known-good SRSunit, and rgcheck.. It lhe problem ii still p.es6nt, rcplace the SRS mlinhamess.
(A) From page 24-47
To page 24-49
SRS MAIN HARNESS 18P CONNECTOR
SRS MAIN HARNESS 18P CONNECTOR
J3
24-48
-a
1
J
www.emanualpro.com
Page 1346 of 1395
)
UNDER-DASHFUSE/RELAY BOX
)c801
SRS MAIN HARNESS2P CONNECTOR
)
From page 24-48

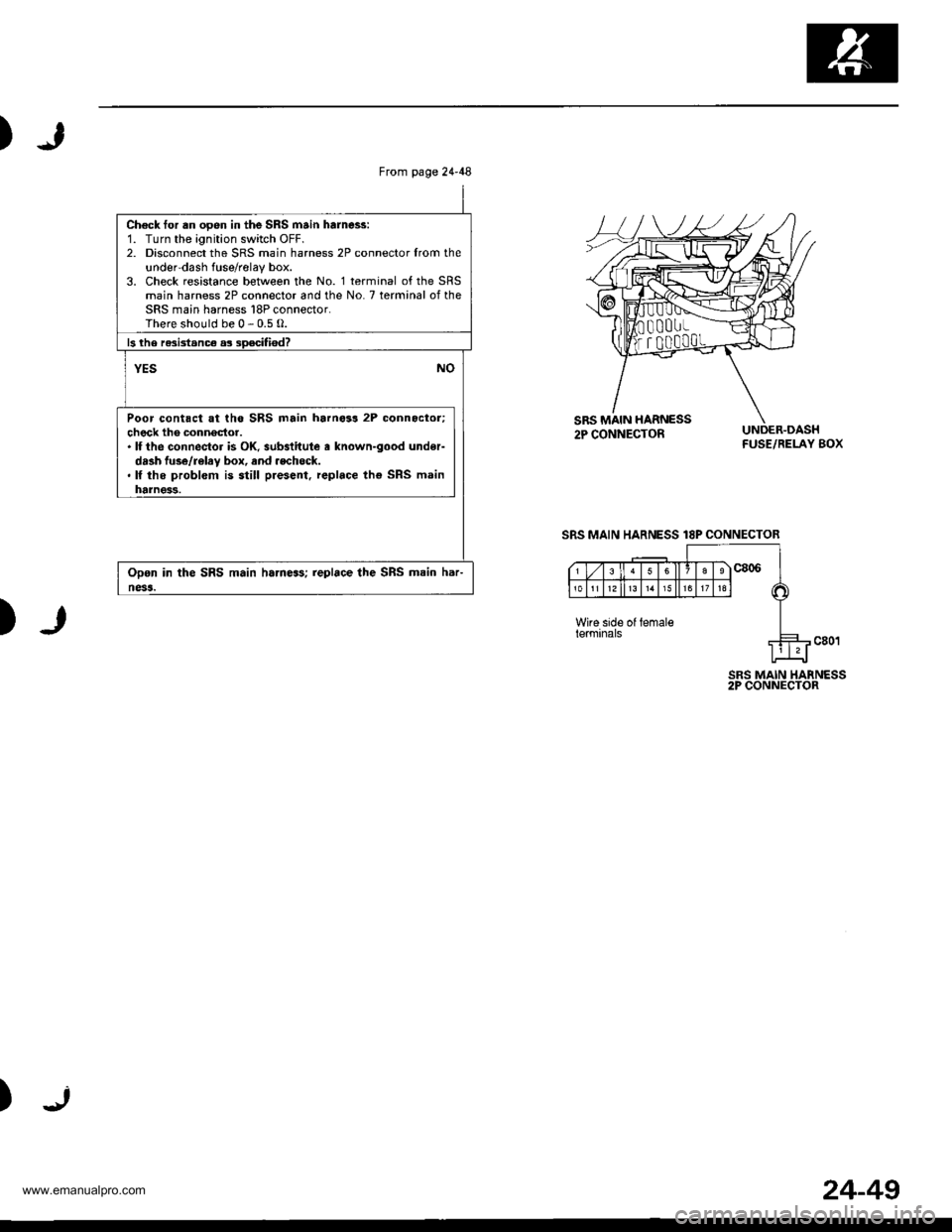

Check tor an open in the SRS main harne$:1. Turn the ignition switch OFF.2. Disconnect the SRS main harness 2P connector lrom theundeFdash fuse/relay box.3. Check resistance between the No. 1 terminal of the SRSmain harness 2P connector and the No. 7 terminal of theSRS main harness l8P connector.There should be 0 - 0.5 O.
ls the re3istanc€ as soecitiod?
YESNO
Poor contact at iho SRS main harnoss 2P connoctor;check thg connocior.. lf the connector is OK. substitute a known-good under-da3h fuse/rolav box, and .echeck.'lf tho probl€m is still present. replace tho SRS mainharne3s.
Opon in the SRS main ha.ness; replace the SRS main harness.
SRS MAIN HARNESS lEP CONNECTOR
24-49
www.emanualpro.com
Page 1347 of 1395
Troubleshooting

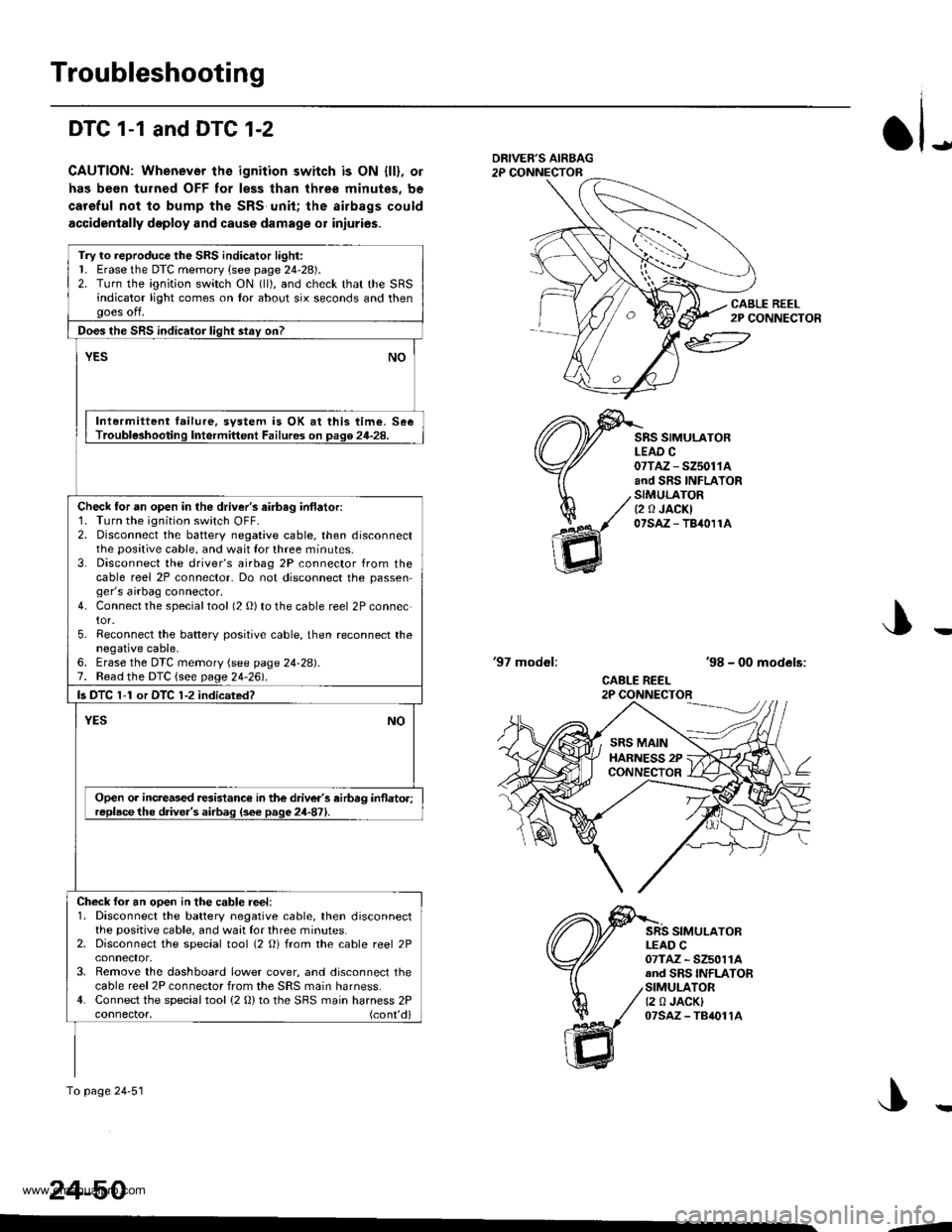

DTC 1-1 and DTC 1-2
CAUTION: Whenever the ignition switch is ON {ll}, or
has been turned OFF for less than three minutes, be
careful not to bump the SRS unit; the airbags could
accidentally deploy and cause damage o1 iniuries.
JDRIVEF'S AIRBAG2P CONNECTOR
CABLE REEL2P CONNECTOR
SRS SIMULATORLEAD C07TAZ - SZ5011Aand SRS INFLATORSIMULATORt2 0 JACKI07saz - TB40r1A
'97 modol:'98 - 00 models:
CABLE REEL2P CONNECTOR
SRS SIMULATORLEAD C07TAZ - SZ5011Aand SRS INFLATORSIMULATOR12 0 JACKI07sAz - TB4011A
J
24-50
Try to reproduce the SRS indicator light:1. Erase the DTC memory (see page 24-28).2. Turn the ignition switch ON (ll), and check that the SRSindicator light comes on tor about six seconds and thenooes off.
Does the SRS indicator liqht stav on?
YESNO
Intermiltent failure, svstem is OK at this time. SeeTrouble3hooting Intermittent Failures on page 24-28.
Check tor an open in the driver's airbag inflatori1. Turn the ignition switch OFF-2. Disconnect the battery negative cable, then disconnectthe positive cable, and wait for three minutes.3. Disconnect the driver's airbag 2P connector from thecable reel 2P connector- Do not disconnect the passenger's airbag connector.4. Connect the specialtool (2 O) to the cable reel 2P connector.5. Reconnect the batterv positive cable, then reconnect thenegative cable,6. Erase the DTC memory (see page 24-28).7. Read the DTC {see page 24-261.
ls DTC 1-1 or DTC 1-2 indicsted?
NOYES
Open or increased resistance in the driver's airbag inflato.;replacethe d.ive.'s airbag (s6e page 24-871.
Check foi an ooen in the cable reel:1. Disconnect the battery negative cable, then disconnectthe positive cable, and waat for three minutes.2. Disconnect the special tool (2 Oi from the cable reel 2P
3. Remove the dashboard lower cover, and disconnect thecable reel 2P connector from the SRS main harness.4. Connect the special tool (2 0) to the SBS main harness 2Pconnector, (cont'd)
To page 24'51
SRS MAINHARNESS 2PCONNECTOR
--
www.emanualpro.com
Page 1348 of 1395
)
)
SRS MAIN HARNESS18P CONNECTOR
From page 24 50

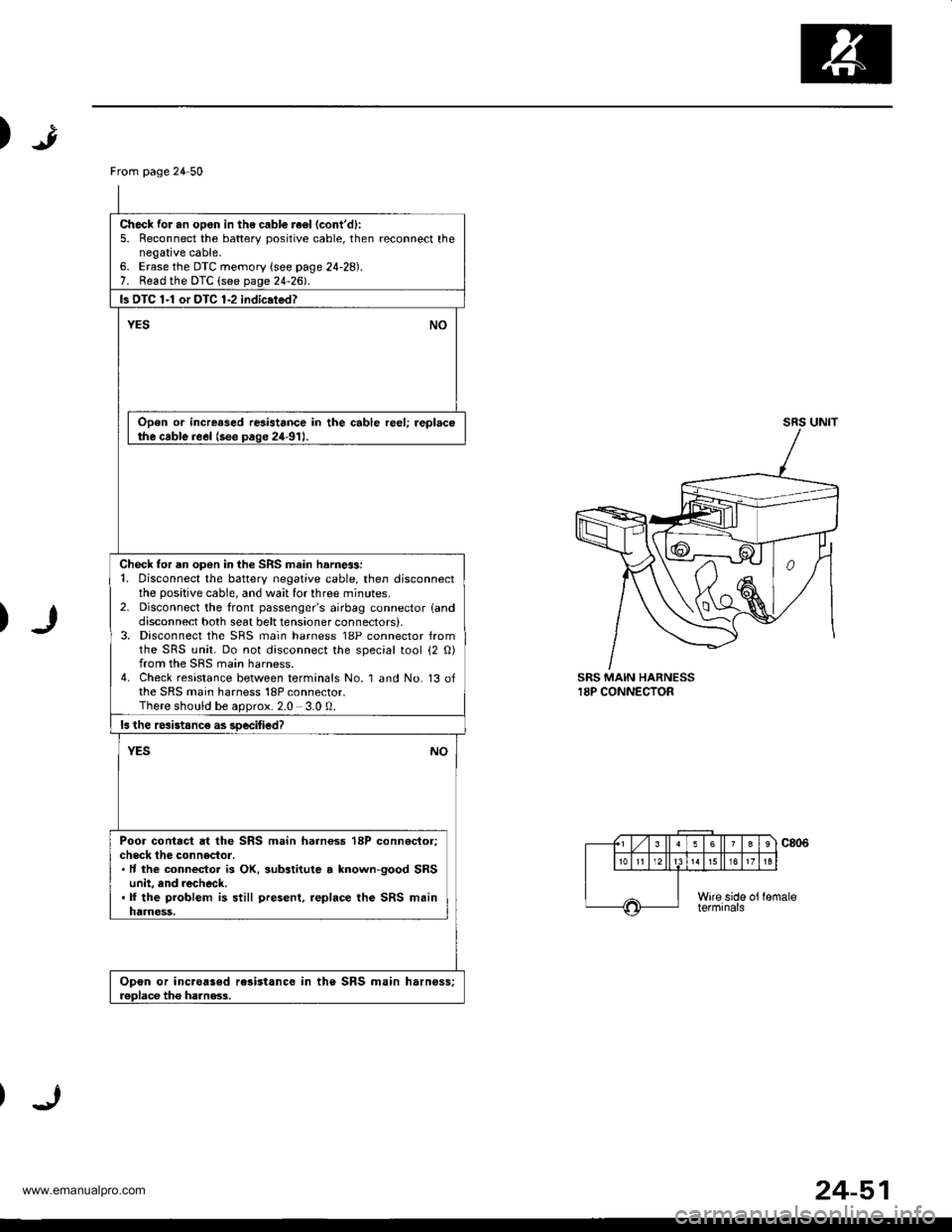

Check for an opon in the cabl€ re€l (cont'd):
5. Reconnect the batterv positive cable, then reconnect thenegative cable,6. Erase the DTC memory (see page 24-28).7. Read the DTC (see page 24-2d.
ls DTC 1-1 or DTC 1-2 indic.ted?
YESNO
Open or increased resistance in the cable reel; replacethe cable reel (see paqe 24-91J.
Check for an open in the SRS main harne$:1. Disconnect the battery negative cable, then disconnectthe positive cable, and wait lor three minutes.2- Disconnect the front passenger's airbag connector landdisconnect both seat belt tensioner connectors),3, Disconnect the SRS main harness 18P connector fromthe SRS unit. Do not disconnect the special tool 12 O)from the SRS main harness.4. Check resistance between terminals No. 1 and No. 13 ofthe SRS main harness 18P connector.There should be aoorox.2.0 3.0 0.
ls the rcsistanc€ as soecified?
NOYES
Poor contact at the SRS main harnoss 18P conn€ctor;check the connector.. It the connecior is OK, substitute a lnown-good SRSunit, and recheck..lf the problem is still present, .eplace the SRS mainharness,
Opon or inc.oased rc3istance in the SRS main harnoss;roDlace tho ha]nss.3.
24-51
www.emanualpro.com
Page 1349 of 1395
Troubleshooting

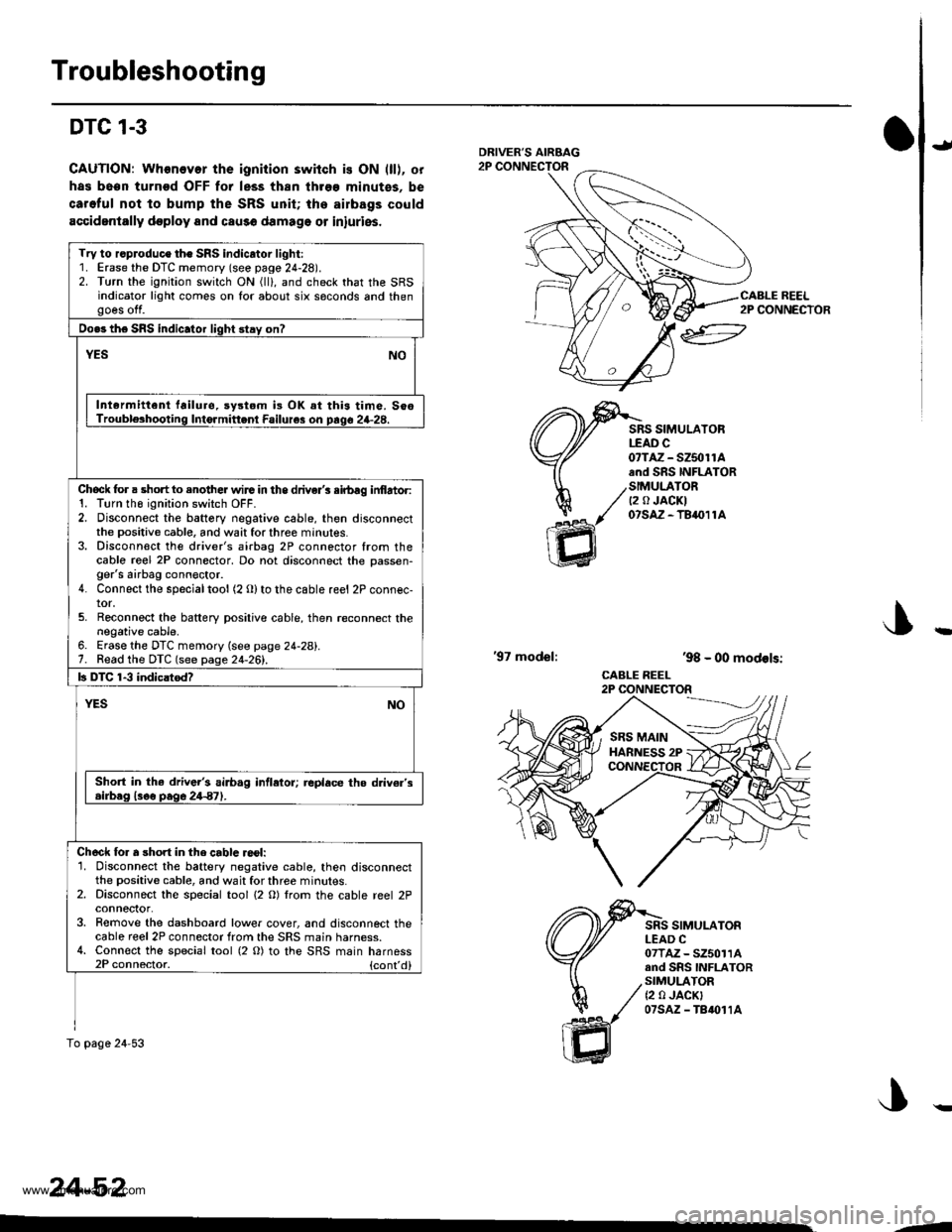

DTC 1-3
CAUTION: Whonovor the ignition switch is ON (ll), or
has been turnod OFF for less thsn three minutss. be
caroful not to bump the SRS unit; tha ailbags could
accidentally doploy and cau3o damage or iniuries.
J
ffi
SRS SIMULATORtfAD c0?TAZ - SZ5olrAand SRS INFLATOR
/SIMULATOR/ Q a JACKI
/' 07s,A-TB411A
,98 - 00 models:
CABLE REEL2P CONNECTOR
'97 model:
SRS SIMULATORLEAD C07TAZ - SZ50114and SnS INFLATORSIMULATOR{2 0 JACK}07sAz - TB{011A
Try to r.produce the SRS indicator light:1. Erase the DTC memory (see page 24-28).2. Turn the ignition switch ON (ll), and check that the SRSindicator light comes on for about six saconds and thengoes off.
Do.s the SRS indic.tor light stay on?
NOYES
Intermittenl failuro. sy3tom i3 OK at this time. SooTrouble3hooting Intormittenl Failure3 on prqo 24-28.
Chock for a short to enother wirG in the driver's sirbag inf,artor:1. Tlrn tho ignition switch OFF.2. Disconnect the battery negative cable, then disconnectthe positive cable, and wait for three minutes.3. Disconn€ct the driver's airbag 2P connector from thecablo re€l 2P connector, Do not disconnect the oassen-ger's airbag conn€ctor.4. Connect the specialtool (2 Olto the cable reel 2P connec-tor.5. Reconnect the baftery positive cable, then reconnect thenegative cable.6. Erase the DTC memory (see page 24-28).7. Read the DTC (see page 24-261.
b DTC 1-3 indicatod?
YESNO
Sho.t in the driv6r's airb.g intletor; replace the d v€r's.irb.g l3oo pag6 24€7).
Ch6ck lor a short in the cablc reol:'1. Disconnect the battery negative cable, then disconnectthe positive cable, and wait for three minutes.2. Disconnect the special tool {2 O) lrom the cable reel 2Pconneclor.3. Remove the dashboard lower cover, and disconnect thecable reel 2P connector from the SRS main harness.4. Connect the special tool (2 O) to the SRS main harness2P connector. {cont'd}
To pago 24-53
24-52
2P CONNECTOR
--
www.emanualpro.com
Page 1350 of 1395

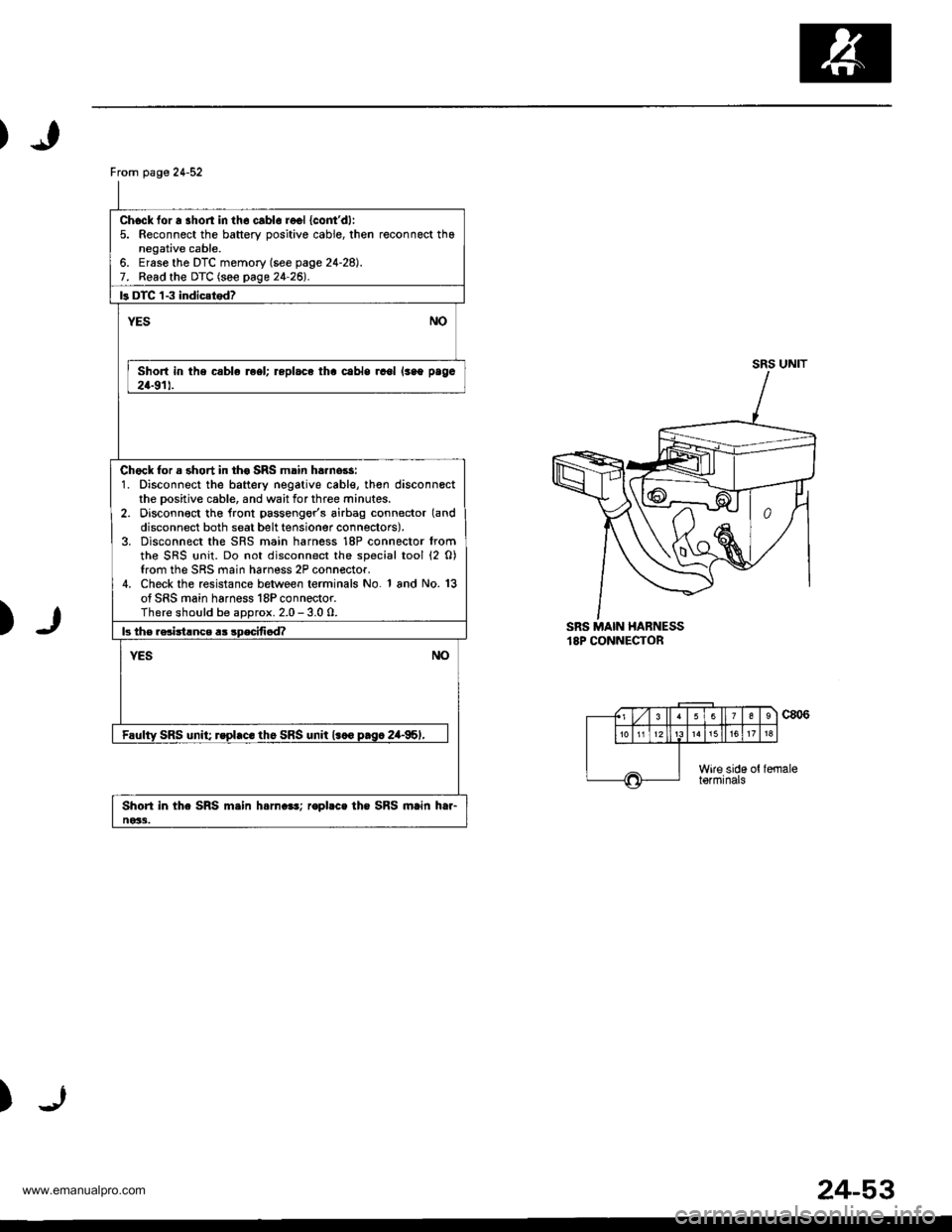

From page 24-52
Chock for a shon in th6 cablo recl {cont'dl:5. Reconnect the battery oositive cable, then reconnect thanegative cable.6. Ersse the DTC memory (see page 24-28).7. Read the DTC (see page 24-26l'.
ls DTC 'l-3 indic{tod?
NOYES
Short in the csble reel; replace tha cabls rcol lsao paga
24-911.
Chock for a short in th€ SRS main ha.nors:1. Disconnect the battery negative cable, th€n disconnectthe Dositive cable, and wait for three minutes.2. Disconn€ct tho lront passengor's airbag connector (and
disconnect both seat belt tensioner connectors).3. Disconnect the SRS main harness 18P connector fromthe SRS {rnit. Do not disconnect the special tool (2 0)from the SRS main harness 2P connector.4. Check the resistance between terminals No. 1 and No. 13of SRS main harness 18P connector.There should be aDorox. 2.0 - 3.0 0.
b th€ rsciitlnce a3 sDecifi6d?
NOYES
Faulty SRS unit; rspl.c. th6 SRS unit l.co p.sc 2a-95,,
Shori in the SRS m.in h.rn.e!; ropbce the SRS main htr-ne33.
SRS UNIT
)SRS MAIN HABNESS18P CONNECTOR
c806
)
(., Lzl 3 ll63
1518
Wire side ottormrnats
24-53
