If the light comes on at any other
time, or does not come on at all, you
should have the system checked by
your dealer. For example:If the SRS indicator light does not
come on after you turn the ignition
switch to ON (II).
If the light stays on after the
engine starts.
If the light comes on or f lashes on
andoff whileyoudrive.
The SRS indicator light
alerts you to a potential
problem with your f ront airbags and
automatic seat belt tensioners.
On models with side airbags, this
light will also alert you to a potential
problem with your side airbags or
passenger’s side airbag automatic
cutof f system (see page ).
When you turn the ignition ON (II),
this indicator will light brief ly then
go out. This tells you that the system
is working properly. If you see any of these indications,
your f ront or side airbags may not
deploy, your passenger’s side airbag
automatic cutoff system may not
work properly, or your seat belt
tensioners may not work when you
need them. See your Honda dealer
as soon as possible.
58
How the SRS Indicator L ight
Works
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety57
Ignoring the SRS indicator light
can result in serious injury or
death if the airbags, cutoff
system, or tensioners do not
work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS light alerts you to a
potential problem.

A f ront seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutof f
system f rom working properly.
If a small-statured adult leans
sideways, or larger adult slouches
and leans sideways into the
deployment path of the side airbag,
the system may also shut of f the side
airbag.
If the side airbag cutof f indicator
light comes on, you should have the
passenger sit upright. Once the
passenger is out of the deployment
path of the side airbag, the system
will turn the airbag back on and the
light will go out.
To reduce the risk of injury f rom an
inf lating side airbag, your vehicle has
an automatic cutoff system for the
passenger’s side airbag.
Although Honda does not encourage
children to ride in the f ront, this
system is designed to shut of f the
side airbag if a child leans sideways
and the child’s head is in the side
airbag deployment path. This light alerts you that
the passenger’s side airbag
has been automatically shut off.
It does not mean there is a problem
with your side airbags. It means that
thesideairbagcutoff systemhas
activated to prevent the side airbag
f rom deploying. When you turn the ignition switch to
ON (II), the indicator should light
brief ly and go out (see page ). If it
doesn’t light, stays on, or comes on
while driving without a passenger in
the front seat, have the system
checked.
67
Only on models equipped with side
airbags
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How the Side Airbag Cutof f
Indicator L ight Works
58

Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury. See page f or f urther inf ormation
and precautions relating to your
airbags.
If rain or spilled water
soaks into a seat-back, it can
prevent the side airbag system
f rom working properly. Improperly
replacing or covering f ront seat-
back covers can prevent your side
airbags f rom inf lating during a
collision.
Any
airbag that has deployed must be
replaced along with the control
unit, automatic seat belt
tensioners, and other related parts.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by a Honda dealer or a
knowledgeable body shop.
Your f ront and side airbag systems
(if equipped) are virtually
maintenance-f ree, and there are no
parts you can saf ely service.
However, you must have your
vehicle serviced if:
Take your vehicle to
an authorized Honda dealer as
soon as possible. If you ignore this
indication, the airbags might not
inf late when you need them. 192
Airbag Service
Additional Saf ety Precautions
Donotattempttodeactivateyour
airbags.
Do not t amper wit h airbagcomponent s or wiring f or anyreason.
Do not expose t he f ront seat -backsto water. Do not cover or replace f ront seat -
back covers wit hout consult ing aHonda dealer.
Your airbags ever inf late.
T he SRS indicat or light alert s yout o a problem.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety59

Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side. With the tailgate/hatch glass open,
air flow can pull exhaust gas into
your vehicle’s interior and create a
hazardous condition. If you must
drive with the tailgate/hatch glass
open, open all the windows and set
the heating and cooling system as
shown below.
If you must sit in your parked vehicle,
even in an unconf ined area, with the
engine running, adjust the heating
and cooling system as f ollows:
Select the Fresh Air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety60
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read, contact your Honda dealer
f or a replacement.
CONT INUED
U.S. models onlyU.S. models
Canadian modelsU.S. models only
Saf ety L abels
Driver and Passenger Saf ety61
SUN VISOR
SUN VISOR
DASHBOARD

On models without side airbagsOn models with side airbags
Saf ety L abels
Driver and Passenger Saf ety62
HOOD
RADIATOR CAP

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations .64
...............................
Indicator Lights .65
.............................................
Gauges .72
...............................
Speedometer .72
.................................
Tachometer .72
..............
Odometer/Trip Meter . 73
Outside Temperature ..................................
Indicator .73
..................................
Fuel Gauge .74
...................
Temperature Gauge . 74
Controls Near the Steering .......................................
Wheel .75
...................................
Headlights .76 ............
Daytime Running Lights . 77
....
Instrument Panel Brightness . 77
................................
Turn Signals .77
.....................
Windshield Wipers .78
..................
Windshield Washers . 79
Rear Window Wiper and .....................................
Washer .80
..........................
Hazard Warning .81
.............
Rear Window Def ogger . 81
.............................
Parking Brake .82
......
Steering Wheel Adjustment . 83
...............................
Keys and Locks .84
..............................................
Keys .84
....................
Immobilizer System . 85
............................
Ignition Switch .86
......................
Power Door Locks .88
...................
Remote Transmitter . 89
..............
Childproof Door Locks . 93
........................................
Tailgate .93
....................................
Glove Box .96
.................................................
Seats .97
.............
Front Seat Adjustments . 97
Driver’s Seat Height ..............................
Adjustment .98
...................
FrontSeatArmrests . 98
..........................
Head Restraints .99 ............
Rear Seat Adjustments . 100
....................
Rear Seat Armrest .101
........
Reclining the Front Seats . 102
.............
Folding the Rear Seats . 104
...................
Detachable Anchor . 108
..................................
Seat Heaters .109
............................
Power Windows .110
.......................................
Moonroof .113
...........................................
Mirrors .114
..
Adjusting the Power Mirrors . 114
..................................
Center Table .115
.........................
Beverage Holders .116
.................................
Built-in Table .117
...............................
Center Pocket .119
...................................
Storage Box .119
.............................
Driver’s Pocket .120
.......................................
Coin Tray .120
........................
Sunglasses Holder .121
............
Accessory Power Sockets . 122
........................
Dashboard Pocket .123
...............................
Interior Lights .124
..............................
Ceiling Light .124
...................................
Spotlights .124
......................
Cargo Area Light .125
................
Ignition Switch Light . 125
Instruments and Controls
Inst rument s and Cont rols63

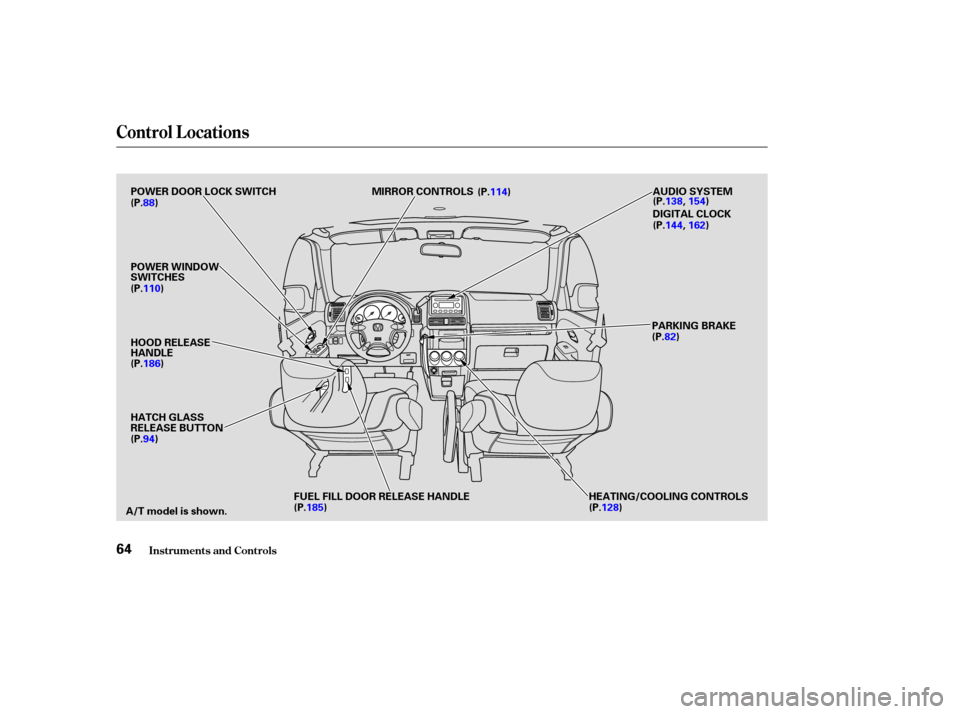

Control L ocations
Inst rument s and Cont rols64
POWER DOOR LOCK SWITCH
(P.88)
(P.110) POWER WINDOW
SWITCHES
(P.186) HOOD RELEASE
HANDLE
(P.94) HATCH GLASS
RELEASE BUTTON
A/T model is shown. FUEL FILL DOOR RELEASE HANDLE
(P.185)
(P.128)
HEATING/COOLING CONTROLS (P.82) PARKING BRAKE
(P.144,
162)
DIGITAL CLOCK (P.138,
154)
AUDIO SYSTEM
MIRROR CONTROLS
(P.114)

Î
Î
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Indicator L ights
Inst rument s and Cont rols65
(P.68)
LOW OIL PRESSURE INDICATOR
(P.66, 325)
(P.68) IMMOBILIZER
SYSTEM
INDICATOR
MALFUNCTION
INDICATOR
LAMP
(P.66, 326)
CHARGING
SYSTEM
IND
ICATOR
(P.327)
MAINTENANCE
REQUIRED INDICATOR
(P.70) (P.67) SEAT BELT
REMINDER LIGHTHIGH BEAM
INDICATOR
(P. 69) DOOR-OPEN
INDICATOR
(P.70) (P.66)PARKING BRAKE AND BRAKE
SYSTEM INDICATOR (P.69) LOW FUEL
INDICATOR
CRUISE CONTROL
INDICATOR
SIDE AIRBAG CUTOFF
INDICATOR
(P.67)
(P.69)
(P.70) TAILGATE AND HATCH GLASS OPEN INDICATOR
(P.67) SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATOR

See page .
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.
This light has two f unctions:
This indicator comes on when you
turn the ignition switch ON (II). It
is a reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
If the indicator remains lit after
you have f ully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
inf ormation, see page .
The engine can be severely damaged
if this light f lashes or stays on when
the engine is running. For complete
inf ormation, see page .
If this light comes on when the
engine is running, the battery is not
being charged. For complete
inf ormation, see page .
2. 1.
329
327
325
326
Indicator L ights
Inst rument s and Cont rols
Malf unction Indicator
Lamp Parking Brake and
Brake System
Indicator
L ow Oil Pressure
Indicator
Charging System
Indicator
66
U.S. Canada
