Page 196 of 374
Covering the outside edge of a
f ront seat-back, with a non-Honda
seat cover for example, could
prevent the airbag from inflating
properly.If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
vehicle and hurt someone.
Some examples are:
Lowering the vehicle with an
aftermarket suspension kit that
signif icantly reduces ground
clearance can allow the
undercarriage to impact speed
bumps or other raised objects,
which could cause the airbags to
deploy.
Raising the vehicle with an
af termarket suspension kit can
af f ect the handling and stability.
Af termarket wheels, because they
are a universal design, can cause
excessive stress on suspension
components. Larger or smaller wheels and tires
can interf ere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Do not modif y your steering wheel
or any other part of your
Supplemental Restraint System.
Modif ications could make the
system inef f ective.
Any object
attached to or placed on the covers
marked ‘‘SRS AIRBAG,’’ in the
center of the steering wheel and
on top of the dashboard, could
interf ere with the proper operation
of the airbags. Or, if the airbags
inf late, the objects could be
propelled inside the vehicle and
hurt someone.
If you plan to modif y your vehicle,
consult with your Honda dealer.
Removing parts f rom your vehicle,
or replacing components with non-
Honda (af termarket) components
could seriously af f ect your vehicle’s
handling, stability, and reliability.
Only on models equipped with side
airbagsModif ications
Additional Saf ety Precautions
Do not place any object s over t heoutsideedgeof afront seat-back.
Do not at t ach hard object s on or
near a f ront door.
Do not at t ach or place object s on the f ront airbag covers.
A ccessories and Modif ications
Bef ore Driving192
Page 225 of 374
Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Askyourtrailersalesorrental
agency if any other items are
recommended or required f or your
towing situation.When preparing to tow, and bef ore
driving away, be sure to check the
f ollowing:
The vehicle has been properly
serviced, and the tires, brakes,
suspension, and cooling system
are in good operating condition. The lights and brakes on your
vehicle and the trailer are working
properly.
The trailer has been properly
serviced and is in good condition.
Allitemsonandinthetrailerare
properly secured and cannot shif t
while you drive. Thehitch,safetychains,andany
other attachments are secure. Your vehicle tires and spare are
properly inf lated (see page ),
and the trailer tires and spare are
inflated as recommended by the
trailer maker.
All weights and loads are within
limits (see pages and ). If you tow f requently, f ollow the
Severe Conditions maintenance
schedule. 217 218 278
Additional Trailer EquipmentPre-T ow Checklist
Towing a Trailer
Driving221
Page 242 of 374
µ
Î
Ì
Ì
ÌÎ
Maint enance238
Service at the indicated distance or time whichever comes first.miles x 1,000
km x 1,000
months 10
16
50
8070
112 110
176
Check oil and coolant at each fuel stop
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years.
See information on maintenance and emissions warranty, last column, page .
Service the following items at the recommended intervals.
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy Every 110,000 miles (176,000 km)Every 30,000 miles (48,000 km)
Check engine oil and coolant
Replace engine oil
Rotate tires (Check tire inflation and condition at least once per month)
Replace engine oil filter
Inspect front and rear brakes
Check parking brake adjustment
Visually inspect the following items:
Tie rod ends, steering gear box and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluidsExhaust system
Fuel lines and connections
Inspect and adjust drive belts
Replace dust and pollen filter
Replace transmission fluid
Replace rear differential fluid ( 4WD)
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Inspect idle speed
Replace engine coolant
Replace brake fluid Every 160,000 miles (256,000 km) or 8 years
At 120,000 miles (192,000 km) or 10 years,
then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
20
32
30
4840
64 60
9680
128 100
160120
192
90
144
24 4872
12 3660
M/T
A/T 237
:
:
Maintenance Schedule for Normal Conditions
Page 244 of 374
µ
Î
Ì
ÌÌÎ
Maint enance240
Service at the indicated distance or time whichever comes first. miles x 1,000
km x 1,000
months
Replace every 5,000 miles (8,000 km) or 6 monthsCheck oil and coolant at each fuel stop
At 120,000 miles (192,000 km) or 10 years,
then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
At 60,000 miles (96,000 km) or 3 years, then every 30,000 miles
(48,000 km) or 2 years
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy Every 110,000 miles (176,000 km)
Every 15,000 miles (24,000 km) in dusty conditions,
otherwise use normal schedule
Service the following items at the recommended intervals.
See information on maintenance and emissions warranty, last column, page . See dust and pollen filter on page for replacement information under special driving conditions.
Check engine oil and coolant
Replace engine oil
Rotate tires (Check tire inflation and condition at least once per month)
Replace engine oil filter
Inspect front and rear brakes
Lubricate door hinges, lo
cks, and latches
Visually inspect the following items: Tie rod ends, steering gear box and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Visually inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluidsExhaust system, Fuel lines and connections
Lights and controls, Vehicle underbody
Inspect and adjust drive belts
Replace dust and pollen filter
Replace transmission fluid
Replace rear differential fluid (4WD)
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Inspect idle speed
Replace engine coolant
Replace brake fluid 10
16
20
3230
4840
6450
8060
9670
112 80
128 90
144 100
160110
176120
192
Every 160,000 miles (256,000 km) or 8 years 24
4872
12 3660
M/T
A/T
:
: 237
275
Maintenance Schedule for Severe Conditions
Page 282 of 374
To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated. The
f ollowing pages give more detailed
informationonhowandwhento
check air pressure, how to inspect
your tires f or damage and wear, and
what to do when your tires need to
be replaced.Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort. Underinf lated tires wear
unevenly, adversely af f ect handling
and f uel economy, and are more
likely to f ail f rom being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,aremore
prone to damage from road hazards,
and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf /cm ) per month.
Remember to check the spare tire at
thesametimeyoucheckallthe
other tires.
Check the pressure in the tires when
they are cold. This means the vehicle
has been parked f or at least three
hours. If you have to drive the
vehicle bef ore checking the tire
pressure, the tires can still be
considered ‘‘cold’’ if you drive less
than 1 mile (1.6 km).
Add or release air, if needed, to
match the recommended cold tire
pressures on page .
279
Inf lation
Tires
Maint enance278
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Page 311 of 374
This section covers the more-
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.....................
Changing a Flat Tire .308
..........
If Your Engine Won’t Start . 318
Nothing Happens or the Starter Motor Operates Very .................................
Slowly .318
The Starter Operates ................................
Normally .319
................................
Jump Starting .320
............
If Your Engine Overheats . 323
.........
Low Oil Pressure Indicator . 325
..........
Charging System Indicator . 326
.......
Malf unction Indicator Lamp . 327
.......................
Readiness Codes .328
...............
Brake System Indicator . 329
..................
Closing the Moonroof . 330
..............................................
Fuses .331
..........
Checking and Replacing . 332
......................
Emergency Towing .337
Taking Care of the Unexpected
T aking Care of t he Unexpect ed307
Page 312 of 374
If you have a f lat tire while driving,
stop in a saf e place to change it.
Stopping in traf f ic or on the shoulder
of a busy road is dangerous. Drive
slowly along the shoulder until you
gettoanexitoranareatostopthat
is far away from the traffic lanes.Park the vehicle on f irm, level and
non-slippery ground away f rom
traffic. Put the transmission in
Park (automatic) or Reverse
(manual). Apply the parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire. If you are towing a trailer, unhitch
the trailer.Open the tailgate.
1.
2. 3.
T aking Care of t he Unexpect ed
Changing a Flat T ire
308
JACK SPARE TIRE
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Page 314 of 374

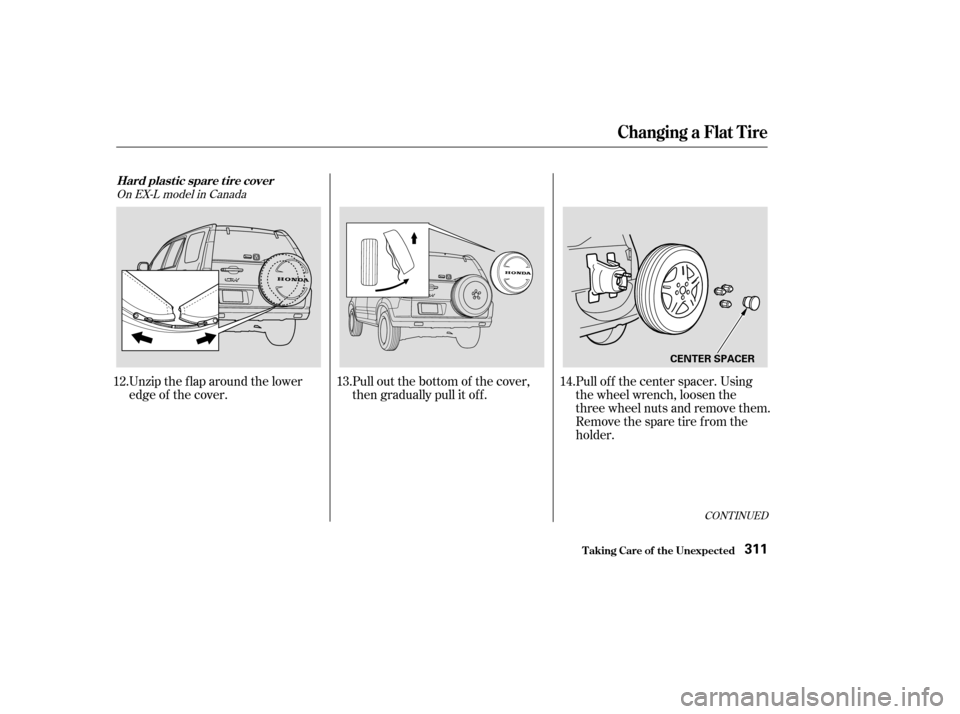

Remove the spare tire cover. Do
not f orcibly pull of f the cover or
you may damage it.
Your vehicle is equipped with a
sof t vinyl spare tire cover. The
f ollowing shows you how to
remove the cover.
Your vehicle is equipped with a
hard plastic spare tire cover. See
page f or how to remove the
cover.Zip open the cover.Pull out the cover’s two lower f laps.
Don’t pull the top of the cover, or
you will tear it.
Remove the cover. Pull the upper f laps out by
gradually working your hands up
the sides of the cover.
7.
8.9.
11. 10.
311
OnLXandEXmodelsintheU.S.and
Canada
On EX-L model in Canada OnLXandEXmodelsintheU.S.and
Canada
Sof t vinyl spare t ire cover
Changing a Flat T ire
T aking Care of t he Unexpect ed310
Page 315 of 374
Unzip the flap around the lower
edge of the cover.Pull of f the center spacer. Using
the wheel wrench, loosen the
three wheel nuts and remove them.
Remove the spare tire from the
holder.
Pull out the bottom of the cover,
then gradually pull it of f .
12.
14.
13.
CONT INUED
On EX-L model in Canada
Hard plastic spare tire cover
T aking Care of t he Unexpect ed
Changing a Flat T ire
311
CENTER SPACER
Page 316 of 374
Loosen the f ive wheel nuts 1/2
turn with the wheel wrench.Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
center of the jacking point tab is
restinginthejacknotch.Use the extension and wheel
wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
15.
16.17.
T aking Care of t he Unexpect ed
Changing a Flat T ire
312
WHEEL NUT
JACKING POINT WHEEL WRENCHEXTENSION
