Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Dolby noise reduction turns on
when you insert a tape. The indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the button. Dolby remains of f until
you press the button again.
To remove the tape, press the eject
button. If you want to turn the player
off, press the PWR/VOL knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it lef t of f .
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PROG
button. When the player reaches the
end of the tape, it will automatically
reverse direction and play the other
side.
To switch to the radio or CD player
while a tape is playing, press the AM,
FM, or CD button. To change back
to the tape player, press the TAPE
button.
To rewind the tape,
push the REW button. You will see
REW in the display. To fast forward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY button to take the
system out of rewind or f ast f orward.
Press the button to find
the beginning of the current song or
passage. Press the button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
To Play a Tape
To Stop Playing a TapeT ape Search Functions
FF/REW
SK IP
Playing a T ape
114

µThetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive. Store tapes in their cases to protect
them f rom dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in the player.
Never try to insert f oreign objects
into the tape player.
Press the RPT button
to continuously play a song or
passage. You will see REPEAT
displayed. The track will repeat until
you press the RPT button again.
The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. If you see the error message
‘‘ ’’ on the display, press the
tape eject button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error message stays on
after the tape ejects, take your
vehicle to your dealer.
Caring f or the T ape and Player
REPEAT
Playing a T ape
Features
115
NOTE:

µ
µ
µ ÓÓ
´µ
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 5 seconds. When it plays a
station you want to listen to, press
the SCAN button again.
You can use any of f ive methods to
f ind radio stations on the selected
band:
the
preset buttons, and .
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button, then
release it.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingthePWR/VOLknoborthe
FM/AM button. Adjust the volume
by turning the PWR/VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
XM satellite radio inf ormation is
available on page .
120
Optional f or U.S. EX and SE models.
To Play the Radio SCAN
TUNE,SEEK,SCAN, AUTO SELECT
To Select a Station
TUNE
SEEK
Playing the Radio
Features
117

µ
µ If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. Each preset button can
store one f requency on AM and two
f requencies on FM.
Pick a preset button and hold it
until you hear a beep. Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described. To turn of f auto select, press the
A. SEL button. This restores the
presets you originally set.
1.
2.
3.
4.
Playing the Radio
AUTO SELECT
Preset
118

µµ
µ
µ You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
Adjust the balance or side-
to-side strength of the sound.
Adjust the fader or the
f ront-to-back strength of the sound.
Adjustthetrebleinthe
sound.
Adjust the bass in the sound. Press the SOUND knob repeatedly
to display the Bass (BAS), Treble
(TRE), Fader (FAD), and Balance
(BAL) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the SOUND knob
to adjust the setting to your liking.
When the level reaches the center,
you will see a ‘‘C’’ in the display. The
system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.
For inf ormation, see page .67
132
Playing the Radio
A udio System L ighting
Adjusting the Sound
BAL
FAD
TRE
BAS Radio Frequencies and Reception
Features
119

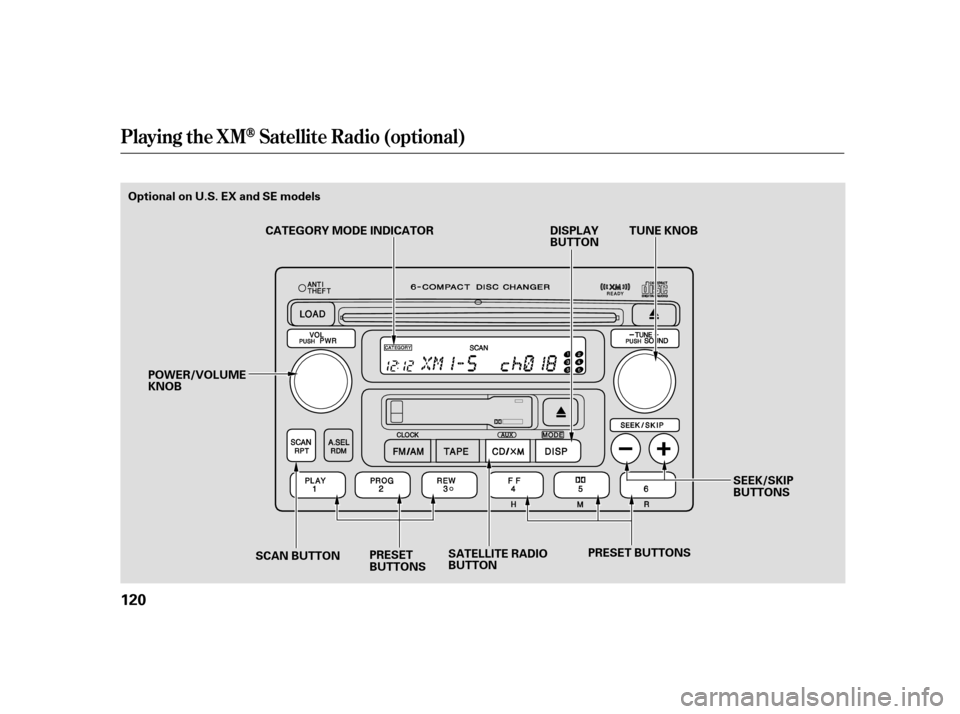

Playing the XMSatellite Radio (optional)
120
SCAN BUTTON
Optional on U.S. EX and SE models
CATEGORY MODE INDICATOR
PRESET BUTTONS
POWER/VOLUME
KNOB
SATELLITE RADIO
BUTTONDISPLAY
BUTTON
TUNE KNOB
SEEK/SKIP
BUTTONS
PRESET
BUTTONS

µµ
µ µ
Ó
Ó µ
´
µ
XMis a registered trademark of
XM Satellite Radio, Inc.
Satellite radio is available in U.S.
models only. Press and hold this button for more
than 2 seconds to change the mode
between the channel number and the
category.
The scan f unction samples
all channels f or 5 seconds. To
activate the function, push the SCAN
button. Push it again to get out of the
sequence.
Each preset button can
store one channel in XM1 and one in
XM2.
Push the CD/XM button, you will
see XM1 or XM2.
Use the TUNE, SEEK or SCAN
function to tune the radio to a
desired channel.
Pick a preset button and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on XM1 and six on
XM2.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position.
Turn the system on:
Press and release this
button to change the display. The
display will change in the f ollowing
sequence: channel name, channel
number, category, artist name, and
music title. The SEEK/SKIP
f unction selects the various
categories in XM, such as Jazz/Blues,
Rock, Classical, etc. Push the to
change the category f orward. Push
the to change the category
backward. To search f or channels
within a category, turn the TUNE
knob clockwise. Turn the TUNE knob to
change channel selection. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels.
When in the satellite radio mode, you can use any of three methods to
f ind channels: TUNE, SEEK/SKIP,
and SCAN.
Turn the PWR/VOL knob to adjust
the volume. Push any of the f ollowing: PWR/
VOL knob or the CD/XM button. Your vehicle is capable of receiving
XM
satellite radio anywhere in the
United States except Hawaii and
Alaska.
1.
2.
3.
4.
Satellite Digital Radio
To Play XM
Satellite Radio
SCAN
Preset
DISP SEEK /SK IP TUNE
T o Select a Channel
Playing the XMSatellite Radio (optional)
Features
Opt ional on U.S. EX and SE models
121

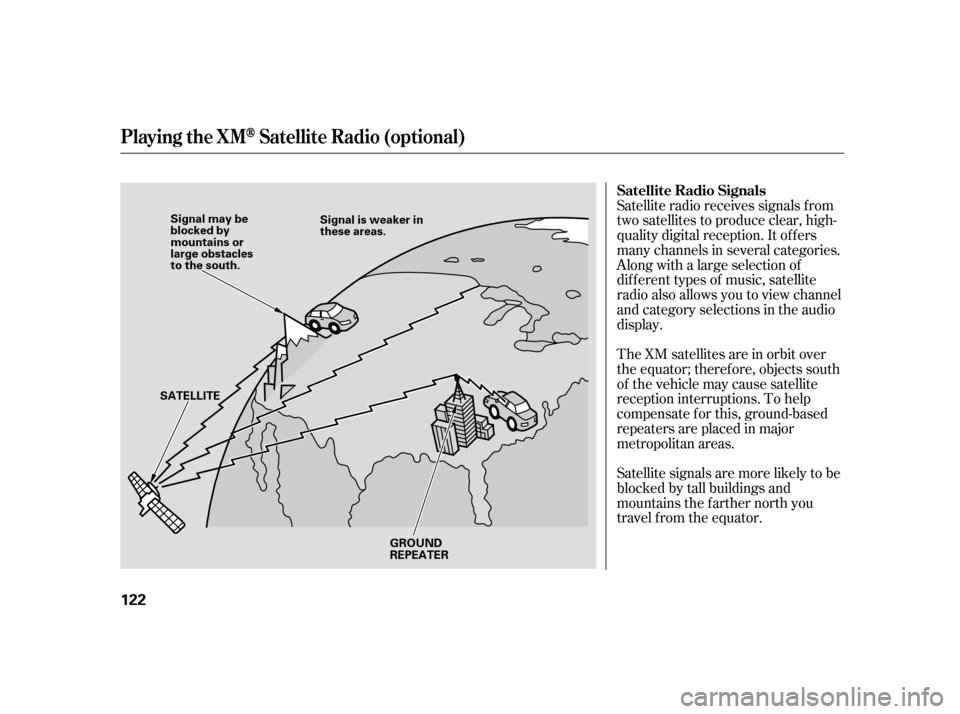

Satellite radio receives signals f rom
two satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
TheXMsatellitesareinorbitover
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator. Satellite Radio Signals
Playing the XMSatellite Radio (optional)
122
Signal may be
blocked by
mountains or
large obstacles
to the south.
SATELLITE
GROUND
REPEATER
Signal is weaker in
these areas.

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the south side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
There may also be other geographic
situations that could af f ect satellite
radio reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM satellite radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
PWR/VOL knob to turn on the audio
system, and press the CD/XM
button. A variety of music types and
styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at
, or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting for activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display,
andyou’llbeabletolistentoXM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from the activation request. If the
service has not been activated after
36 hours, contact XM Radio.As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com
Playing the XMSatellite Radio (optional)
Receiving Satellite Radio ServiceFeatures
123

You operate the CD player/CD
changer with the same controls used
for the radio. To select the CD
player/CD changer, press the CD
button. The number of the track
playing is shown in the display. With
the in-dash CD changer, the disc and
track numbers are displayed. The
system will continuously play a CD
until you change modes.If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . To play the tape when a CD is
playing, insert a tape in the player. If
a tape is in the player, press the
TAPE button. Press the CD button
again to switch back to the CD
player.
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
You can also play 3-inch (8-cm) discs
without using an adapter ring.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
Your vehicle’s in-dash CD changer
holdsuptosixdiscs.
Press the LOAD button until you
hear a beep and see ‘‘LOAD’’ in
the display.
To load only one CD, press and
release the LOAD button.
The disc number f or an empty
position is highlighted.
Insert the disc into the CD slot
when the green CD load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display while the
CD load indicator turns red and
blinks as the CD is loaded.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
1.
2.
3.
CONT INUED
To Play a CDL oading CDs in t he In-dash CD
Changer
Playing a Disc
Features
125
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
