This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.This indicator has three f unctions.
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. See page f or more
inf ormation on the VSA system. This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page f or more inf ormation on the
VSA system. 1.
2.
3.
170 170
170 138
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator
Cruise Control Indicator
Instrument Panel Indicators
58

This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
On Canadian models, this indicator
comes on with reduced brightness
when the daytime running lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to the ON
(II) position with the headlight
switch of f and the parking brake set.
It should go of f if you turn on the
headlights or release the parking
brake. If it comes on at any other
time, it means there is a problem
withtheDRL.Theremayalsobea
problem with the high beam
headlights.This indicator comes on as a
reminder that you must ref uel soon.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash. When the indicator comes on, there
is about 2.74 US gal (10.4
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
This indicator comes on if the
tailgate or the hatch glass is not
closed tightly.
This indicator comes on if any door
is not closed tightly.
67
67
205
Canadian models only
Turn Signal and Hazard Warning
Indicators High Beam Indicator
L ow Fuel Indicator
Daytime Running L ights
Indicator Tailgate and Hatch Glass
Open Indicator
Door-open Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59

If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
dealer, reset the indicator as f ollows.Turn of f the engine. Press and hold the Select/Reset
buttonontheinstrumentpanel,
then turn the ignition switch to the
ON (II) position.
Hold the button for about 10
seconds until the indicator goes
off.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the maintenance schedule
f or normal and severe driving
conditions on pages and .
For the f irst 8,000 miles (12,800 km)
af ter the maintenance required
indicator is reset, it will come on f or
2 seconds when you turn the ignition
switch to the ON (II) position. Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), this
indicator will come on f or 2 seconds
when you f irst turn the ignition
switch to the ON (II) position, and
then f lash f or 10 seconds.
1.
2.
3.
198
188
187
Canadian models only
Instrument Panel Indicators
Washer Level Indicator
Maintenance Required
Indicator
60
SELECT/RESET BUTTON

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer display by
pressing the Select/Reset button
repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0.’’ When you turn the ignition switch to
the ON (II) position, the meter you
last selected is displayed.
Gauges
Trip Meter
Inst rument s and Cont rols
61

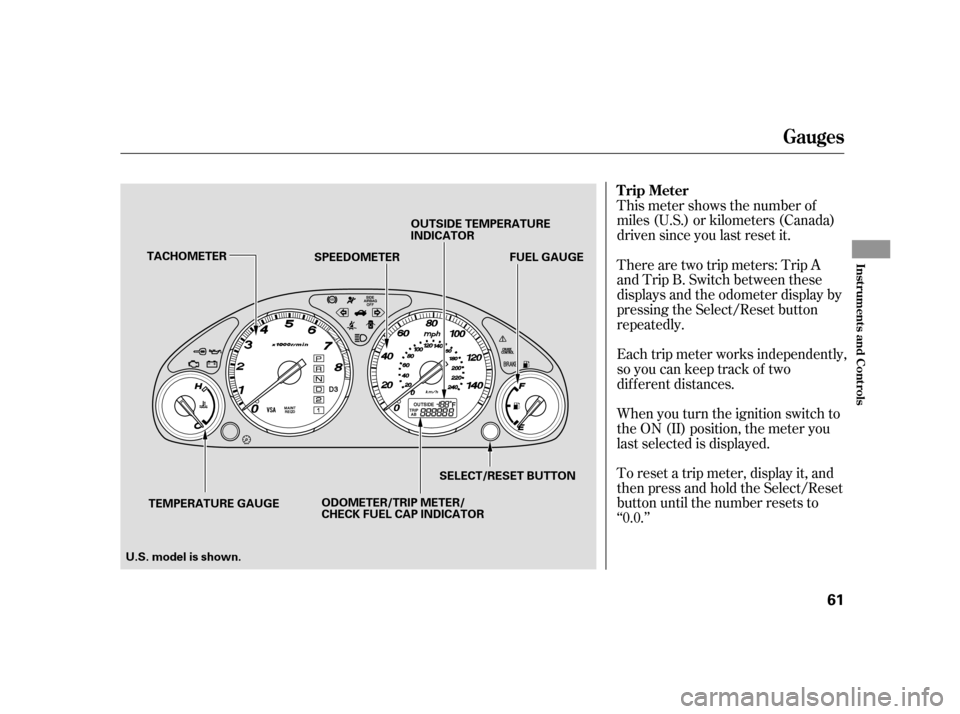

TEMPERATURE GAUGE
TACHOMETER
SELECT/RESET BUTTON
SPEEDOMETER
FUEL GAUGE
OUTSIDE TEMPERATURE
INDICATOR
U.S. model is shown. ODOMETER/TRIP METER/
CHECK FUEL CAP INDICATOR

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engines cooling system.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models).
231
If equipped
Gauges
Outside Temperature Indicator
Temperature Gauge
Odometer
Fuel Gauge
62
OUTSIDE TEMPERATURE INDICATOR
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

¶¶µ
µµµµ µµµ
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
NOTE: The temperature must be
stabilized bef ore doing this
procedure. If the outside temperature is
incorrectly displayed, you can adjust
it up 5°F in U.S. models ( 3°C in
Canadian models) warmer or cooler. The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
messageappearsastextinthe
odometer/trip meter display af ter
you start the engine. The message
appears f rom CHECK to FUEL, then
to CAP repeatedly. When it reaches the desired value,
release the Select/Reset button. You
should see the new outside
temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. To adjust the outside temperature
display, press and hold the Select/
Reset button f or 10 seconds. The
f ollowing sequence will appear f or
one second each: 0, 1, 2, 3, 4, 5, 5,4, 3, 2, 1, 0 (U.S.) or 0, 1, 2,
3, 3, 2, 1, 0 (Canada). Turn the engine of f and conf irm the
f uel f ill cap is installed. If it is, loosen
the cap, then retighten it until it
clicks at least once. When you
restart the engine, the message
appears again. To clear, press and
hold the Select/Reset button until
the message is replaced by the
odometer/trip meter display.
If the system still detects a loose or
missing f uel f ill cap, the malf unction
indicator lamp (MIL) comes on.
Turn the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL goes
out af ter 3 days of normal driving
once the cap is tightened or replaced.
If it does not go out, have your
dealer inspect the vehicle. For more
inf ormation, see page .
234
Gauges
Check Fuel Cap Indicator
Inst rument s and Cont rols
63

Î
Î
Î
Î Î
To use the horn, press the center pad of the steering wheel.
If equipped.
1:
2:

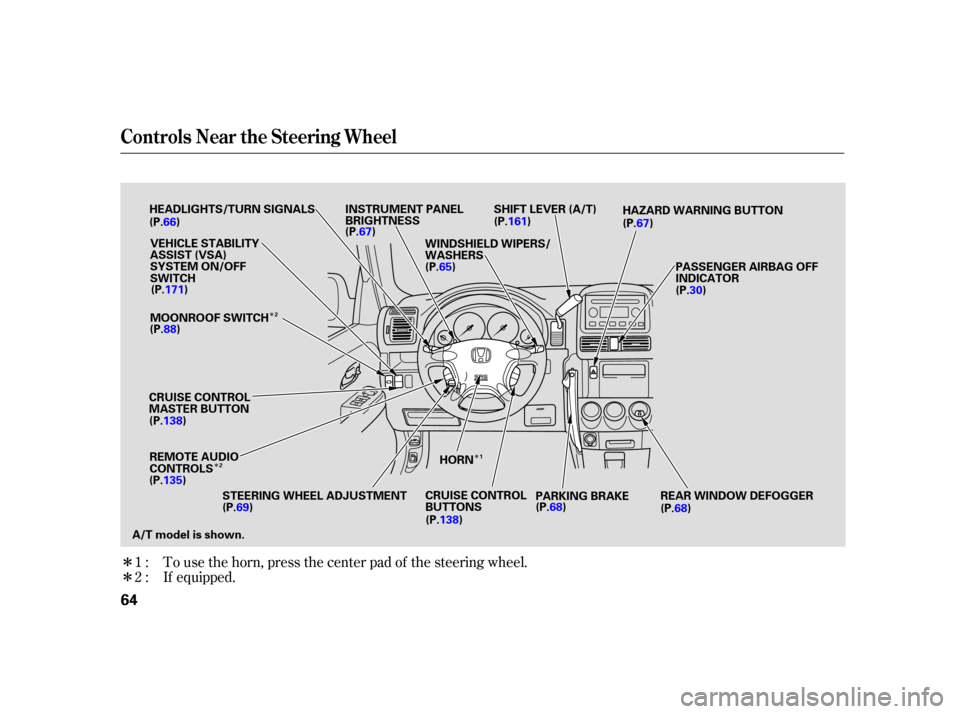

Controls Near the Steering Wheel
64
CRUISE CONTROL
MASTER BUTTON
(P.138)HEADLIGHTS/TURN SIGNALS
SHIFT LEVER (A/T)
WINDSHIELD WIPERS/
WASHERS
A/T model is shown. REAR WINDOW DEFOGGER
HAZARD WARNING BUTTON
(P.65) (P.
67)
(P.88)
(P.68)
(P.30)
(P.69)
(P.66)
PASSENGER AIRBAG OFF
INDICATOR
VEHICLE STABILITY
ASSIST (VSA)
SYSTEM ON/OFF
SWITCH INSTRUMENT PANEL
BRIGHTNESS
(P.67)
(P.171)
MOONROOF SWITCH
REMOTE AUDIO
CONTROLS
(P.135) (P.161)
PARKING BRAKE
(P.68)
STEERING WHEEL ADJUSTMENT
CRUISE CONTROL
BUTTONS
(P.138) HORN
2
2 1

µ
µ
µ
µ
µ µ
µ
µ
µ

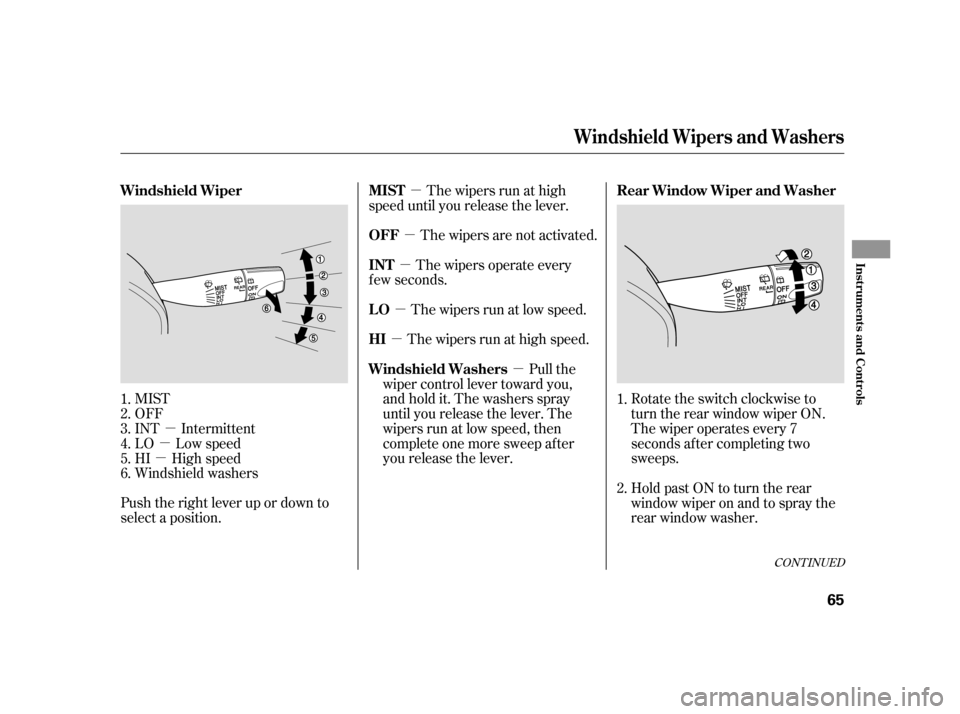

Push the right lever up or down to
select a position. The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers operate every
f ew seconds.
The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you,
andholdit.Thewashersspray
until you release the lever. The
wipers run at low speed, then
complete one more sweep af ter
you release the lever. Rotate the switch clockwise to
turn the rear window wiper ON.
The wiper operates every 7
seconds af ter completing two
sweeps.
Hold past ON to turn the rear
window wiper on and to spray the
rear window washer.
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers
1.
2.
3.
4.
5.
6. 1.
2.
CONT INUED
Windshield Wiper
Rear Window Wiper and Washer
MIST
OFF
INT
LO
HI
Windshield Washers
Windshield Wipers and Washers
Inst rument s and Cont rols
65

µ

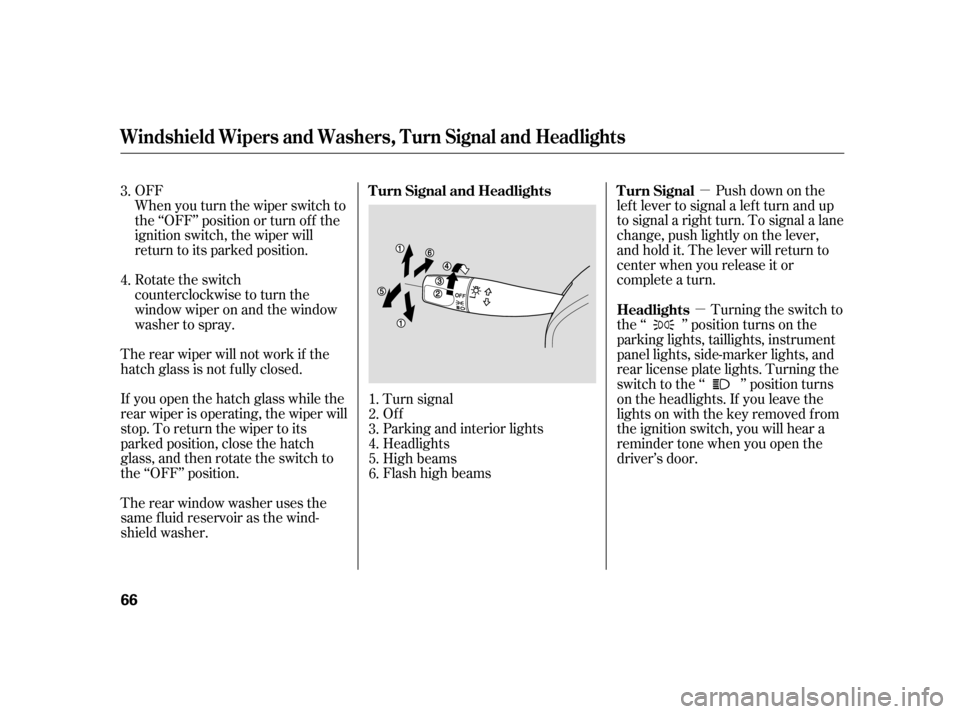

µ Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
OFF
When you turn the wiper switch to
the ‘‘OFF’’ position or turn of f the
ignition switch, the wiper will
return to its parked position.
Rotate the switch
counterclockwise to turn the
window wiper on and the window
washer to spray.
The rear wiper will not work if the
hatch glass is not f ully closed.
If you open the hatch glass while the
rear wiper is operating, the wiper will
stop. To return the wiper to its
parked position, close the hatch
glass, and then rotate the switch to
the ‘‘OFF’’ position.
Therearwindowwasherusesthe
same f luid reservoir as the wind-
shield washer. Turn signal
Of f
Parking and interior lights
Headlights
High beams
Flashhighbeams Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights. Turning the
switch to the ‘‘ ’’ position turns
on the headlights. If you leave the
lights on with the key removed f rom
the ignition switch, you will hear a
reminder tone when you open the
driver’s door.
1.
2.
3.
4.
5.
6.
3.
4.
Turn Signal
Turn Signal and Headlights
Headlights
Windshield Wipers and Washers, Turn Signal and Headlights
66

µTurntheknobontheleftsideof the
instrument panel to adjust the
brightness of the instrument panel
lights. Push the button below the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
The headlights revert to normal
operation when you turn the switch
to the ‘‘ ’’ position. With the headlight switch off, the
high beam headlights and the high
beam indicator come on with
reduced brightness when you turn
the ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake. To turn on high
beams, push the lever f orward until
you hear a click. The blue high beam
indicator will come on (see page ).
Pull the lever back to return to the
low beams. 59
Canadian models only
Hazard Warning Button
Instrument Panel Brightness
Daytime Running L ights High Beams
Headlights, Instrument Panel Brightness, Hazard Warning Button
Inst rument s and Cont rols
67
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB
