fuse box HONDA CR-V 2006 RD4-RD7 / 2.G Owners Manual

Only remove the fuse after you have
perf ormed the transmission shif ting
procedure, and the key is in the
ACCESSORY (I) position. Store the
f use in an obvious location (centertray, coin pockets, etc) as a reminder
to re-install the fuse before driving
the vehicle.
If youtowaCR-Vwithanautomatic
transmission, the transmission f luid
must be changed every two years or
30,000 miles (48,000 km), whichever
comes f irst.
When towing your vehicle f or long
periods, remove the 15 A Front
Accessory Power Socket f use to
reduce drain on battery. This f use is
located in the interior f use box and is
shown as number 18 below.
If you tow more than 8 hours in one
day, you should repeat the above
procedure at least every 8 hours
(when you stop f or f uel, etc.)
Towing Your Vehicle Behind a Motorhome
Automatic Transmission
Ext ended T owing
Ext ended T owing
178
INTERIOR FUSE BOX FRONT ACCESSORY
POWER SOCKET FUSE
Severe automatic transmission damage
will occur if the vehicle is shif ted f rom
reverse to neutral and then towed with
the drive wheels on the ground. This f use MUST be re-installed bef ore
driving the vehicle. Failure to re-install
the f use may allow you to remove the
key with the transmission in gear.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Failure to f ollow the recommended
instructions exactly will result in severe
automatic transmission damage. If you
cannot shif t the transmission or start
the engine, your vehicle must be
transported on a f lat-bed truck or
trailer.

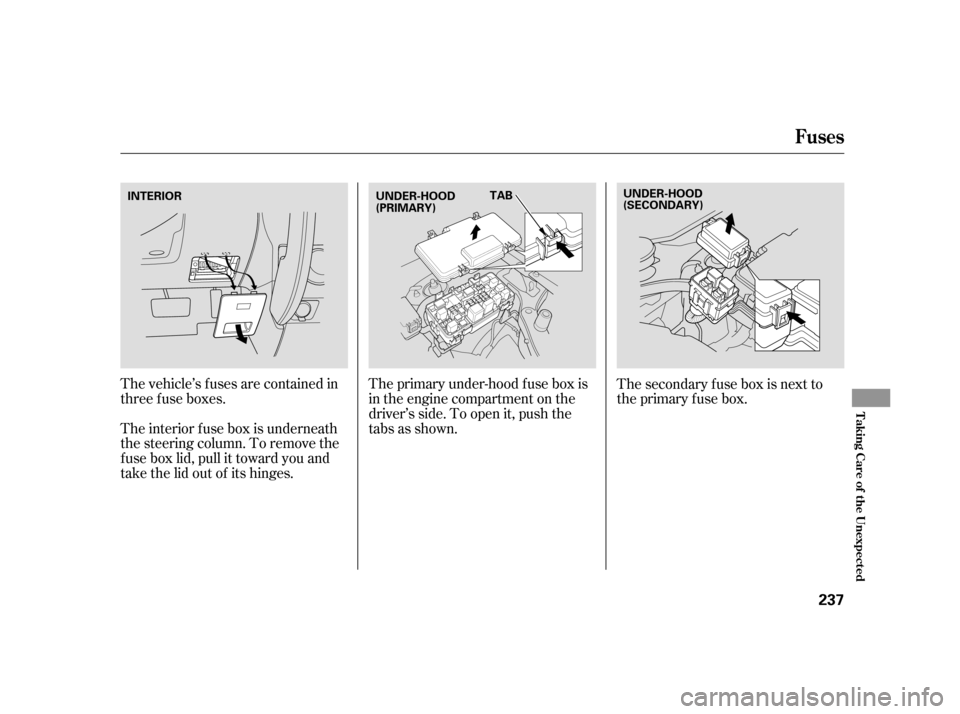

The vehicle’s f uses are contained in
threefuseboxes.
The interior f use box is underneath
the steering column. To remove the
f use box lid, pull it toward you and
take the lid out of its hinges.The primary under-hood f use box is
in the engine compartment on the
driver’s side. To open it, push the
tabs as shown.
The secondary f use box is next to
the primary f use box.
Fuses
T aking Care of t he Unexpect ed
237
TAB
INTERIOR UNDER-HOOD
(PRIMARY)UNDER-HOOD
(SECONDARY)

Check the smaller f uses in the
under-hood f use boxes and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the primary
under-hood f use box.
Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Removing these f uses
requires a Phillips-head
screwdriver.
If something electrical in your
vehicle stops working, check f or a
blown f use f irst. Determine f rom the
chart on pages and , or the
diagram on the f use box lid, which
f use or f uses control that device.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Look f or a blown wire inside the
fuse.If itisblown,replaceitwith
one of the spare f uses of the same
rating or lower.
Remove the cover f rom the f use
box. 3.
4.
5.
1.
2. 240 241
Fuses
Checking and Replacing Fuses
238
FUSE
BLOWN BLOWN

µµ
µ
Î Î
Î
´
No. Amps. Circuits Protected No.
Circuits Protected
Amps.
1
2
3
4
5 15 A
10 A
10 A
10 A
Ignition Coil
Daytime running lights
ACG
Not Used 6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25 Power Window Relay
Moonroof
Accessory, Radio
Rear Wiper
Meter
Not Used
Daytime running lights
SRS
Remote Control Mirrors
BFRACC
Heated Seat
Fuel Pump
Turn Signal Lights
Front Wiper
Not Used
Front Right Power Window
Front Left Power Window
Rear Left Power Window
Rear Right Power Window
7.5 A
20 A
7.5 A
7.5 A
7.5 A
7.5 A 10 A
10 A
15 A
20 A
15 A
15 A
7.5 A 20 A
20 A
20 A
20 A
20 A
: Canadian models
Rear Accessory Power Socket Front Accessory Power Socket
Fuse Locations
240
INTERIOR FUSE BOX

µµ
Î
ÎNo.
No.Circuits Protected
Amps. Circuits Protected Amps.
No. Amps. Circuits Protected : On Canadian models
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
17
18
19
20
Option
Left Headlight
Door Lock
Right Headlight
ABS F/S
Battery
Ignition 1
Spare Fuses
20 A
30 A
15 A
20 A
15 A
15 A
15 A
15 A
10 A
30 A
20 A
40 A
40 A Condenser Fan
Engine
Interior Light
Cooling Fan
Hazard
Small Light
Horn, Stop
DBW
Back Up
ABS Motor
Rear Defroster
Heater Motor
Power Window 40 A
20 A
20 A
20 A
30 A
100 A 50 A
1
2
3
4 20 A
7.5 A 15 A
15 A LAF Heater
Daytime running lights
FI ECU (ECM/PCM)
IG Coil
21 257.5A 30A
Fuse Locations
T aking Care of t he Unexpect ed
241

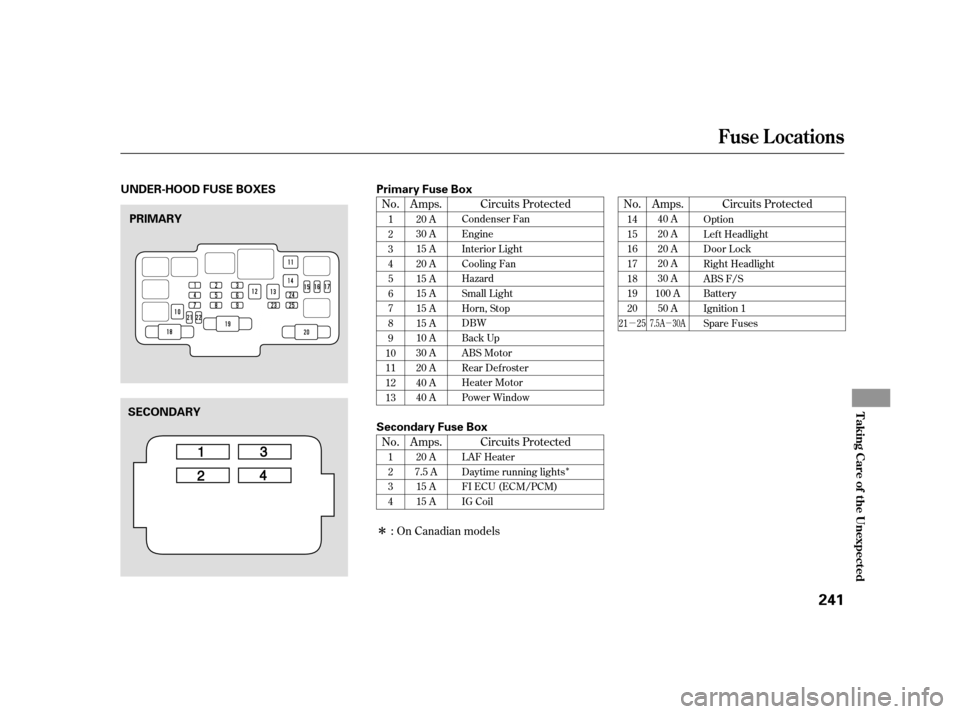

Primary Fuse Box
Secondary Fuse Box
PRIMARY
SECONDARY
UNDER-HOOD FUSE BOXES

µµµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
Technical Inf ormation
247
Air Conditioning
Battery Fuses
Alignment
Tires
Lights
HFC-134a (R-134a)
17.0 18.7 oz (480 530 g) SP-10
12 V
12 V 55 W
21 W
36 AH/5 HR
12 V 12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21 W
3CP
8W
4CP
8W
5W
21 W
21/5 W
21 W
12 V 47 AH/20 HR 29 psi (200 kPa , 2.0 kgf/cm
)
29 psi (200 kPa , 2.0 kgf/cm)
1°45’
1°
0°
0.08 in (2.0 mm) 0.0in(0mm)
12 V
Refrigerant type
Charge quantity
Lubricant type
Capacity
Interior
Under-hood
Toe-in
Camber
Caster
Size
Pressure
215/65R16 98T
12 V 3 CP
Headlights
Front turn signal lights
Parking lights/side marker
lights
Rear turn signal lights
Stop/Taillights
Back-up lights
License plate light
Ceiling light
Spotlights
Cargo area Light
Rear side marker lights
High-mount brake light See page 240 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 241 or the fuse box
cover.
Front
Rear
Front
Rear
Front
Front/Rear
Front
Rear
High/Low
(H1)
(Amber)

...............
