lock HONDA CR-V 2007 RD1-RD5, RE7 / 3.G Owner's Guide

If the power door lock system cannot
unlock the tailgate, unlock it
manually.Push the release lever to the lower
right as shown.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer.
Place a cloth on the upper of the
cover, then use a small flat-tip
screwdriver to remove the cover on
the back of the tailgate. Unlocking the T ailgate
Tailgate
Inst rument s and Cont rols
93
RELEASE LEVER

µ
See pages for important safety
inf ormation and warnings about how to properly position the seats and seat-backs. 11 13
Make all seat adjustments bef ore
you start driving.

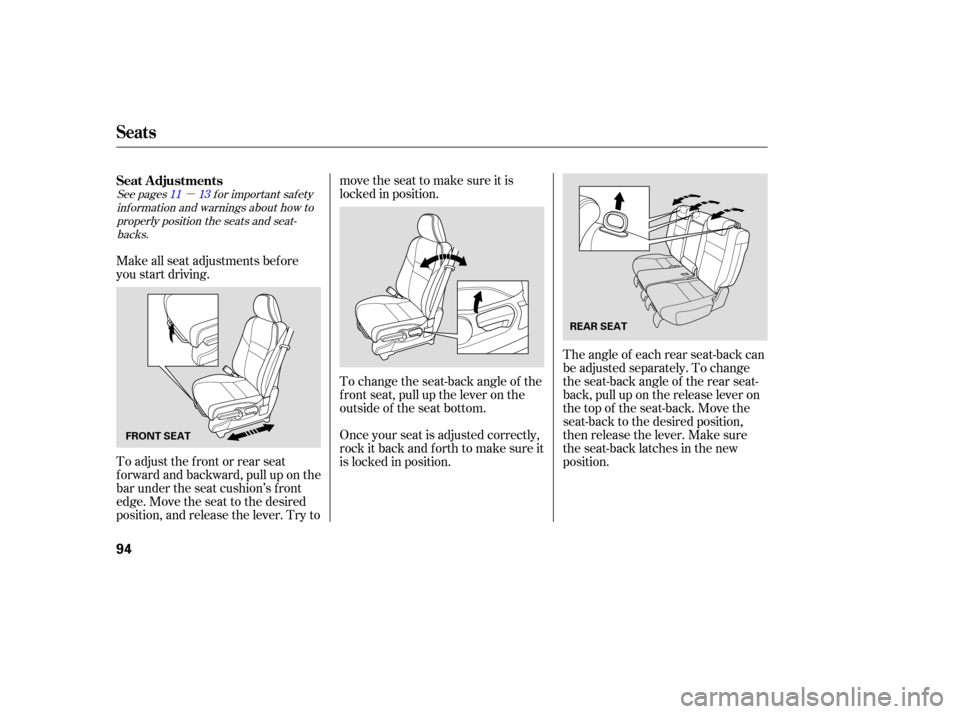

To adjust the front or rear seat
f orward and backward, pull up on the
bar under the seat cushion’s f ront
edge. Move the seat to the desired
position, and release the lever. Try to movetheseattomakesureitis
locked in position.
To change the seat-back angle of the
f ront seat, pull up the lever on the
outside of the seat bottom.
Once your seat is adjusted correctly,
rock it back and f orth to make sure it
is locked in position.
The angle of each rear seat-back can
be adjusted separately. To change
the seat-back angle of the rear seat-
back, pull up on the release lever on
the top of the seat-back. Move the
seat-back to the desired position,
then release the lever. Make sure
the seat-back latches in the new
position.
Seat A djustments
Seats
94
FRONT SEAT
REAR SEAT

See page for important safety
inf ormation and a warning about how to properly position the head restraints. 13
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom whiplash and other
injuries.
Theyaremosteffectivewhenyou
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
To remove a head restraint, pull it up
as f ar as it will go. Push the release
button, then pull the restraint out of
the seat-back.
Make sure the removed head
restraints are securely stored.
Make sure the head restraint locks
in position when you reinstall it.
The head restraints adjust f or height.
You need both hands to adjust a
restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
CONT INUED
Head Restraints
Seats
Inst rument s and Cont rols
97
FRONT POSITION RELEASE BUTTON
REAR OUTER
POSITION
RELEASE BUTTON

Adjust the front seats forward as
far as possible. Pull up the seat-
back angle adjustment lever and
pivot the seat-back backward until
it is level with the rear seat
cushion.
Adjust the rear seat-back to the
desired position.
Reverse this procedure to return the
front and rear seats to the upright
position. Make sure you install the
head restraints and securely lock the
seats before driving.
When you return the seat-back to its
upright position, hold the seat-back
to keep it from going up too quickly. Ea
ch rear seat-back can be folded
down separately to give more cargo
room. With either of the outer seat-
backs folded-down, you can still
carry a passenger in the rear seat.
With the center seat-back folded-
down, either outer seating position
can be used.
Push the seat belt buckles into the
seat cushion.
You can also fold up the left or right
side of the rear seats separately to
create further cargo space (see page
).
Remove any items from the seat
before folding down the seat-back.
3.
4.
1.
102
CONT INUED
Folding the Rear Seats Down
Seats
Inst rument s and Cont rols
99
BUCKLE

Followsteps1through4onpagef or f olding down the seat-
back.
Lower the center seat-back bef ore
f olding the passenger’s side seat
forward.
Unlock the seat f rom the f loor by
pulling the lock release strap
under the seat cushion’s back
edge, then lif t the rear of the seat.
You cannot fold up the rear seat if
it is not latched securely in the
rearmost position.Pull out the f astening strap f rom
the slit on the seat-back. Then
attach the anchor on the fastening
strap to the hook on the center
pillar.
2.
3.
99
4.
Seats
102
LOCK RELEASE STRAPANCHOR
HOOK
FASTENING
STRAP

Open the lower glove box by pulling
the bottom of the handle. Close it
with a f irm push. Lock or unlock the
glove box with the master key.
The glove box light comes on when
the parking lights are on.
Sitting on or getting under the table,
or putting heavy objects on the table,
may damage or deform it.
Do not put any items on the table
while driving. They may f all down or
f ly around when you go around
corners or brake hard.
To use the center table, pull up the
outside edge of the table until it
latches. To store it, pull the lever and
lower the table.On LX and EX models
Interior Convenience Items
Lower Glove Box
Center Table
114
To lock

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:Open any door.
Unlock the doors and the tailgate
with the key or remote transmitter.
Your vehicle has a seat under tray
located under the f ront passenger
seat. Use the tray by pulling on the
f ront center edge of the tray.
Touseacoathook,slideitout
slightly, then pull it down.
Make sure the coat hook is f olded up
when you are not using it. This hook
is not designed f or large or heavy
items.If equipped
Interior Convenience Items, Interior L ights
Ceiling L ight
Seat Under T ray
Coat Hook
Inst rument s and Cont rols
119
ON
OFF DOOR ACTIVATED

Turn on the spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
The spotlights have a two-position
switch. In the DOOR position, the
lights come on when you open any
door. In the OFF position, the lights
do not come on.
The spotlights (with the switch in
the DOOR position) also come on
when you unlock the door with the
key or the remote transmitter, and
when you remove the key f rom the
ignition switch.
Af ter all doors and the tailgate are
closed tightly, the light fades out in
about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door and
the tailgate, the light f ades out in
about 30 seconds.
If you leave any door or the tailgate
open without the key in the ignition
switch, the ceiling light goes of f af ter
3 minutes.
Interior Lights
Spotlights
120
Push
Push
EX, EX-L models LX model
Push
Push
Courtesy light Courtesy light

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle..............
Vents, Heating, and A/C . 124
................................
Audio System .129
..........
Playing the AM/FM Radio . 131
.................................
Playing a Disc .135
........
Disc Player Error Messages . 142
...........
Playing the AM/FM Radio . 143
.
Playing the XM
Satellite Radio . 147
..................................
Playing Discs .152
........
Disc Player Error Messages . 159
...........
Playing the AM/FM Radio . 160
.
Playing the XM
Satellite Radio . 166
..................................
Playing a disc .172
....................................
CD Changer .181
...........................
Playing a PC card .188
............
AM/FM Radio Reception . 200
..................
Protecting Your Discs . 202
................
Remote Audio Controls . 203
.................
Radio Thef t Protection . 205
..........................
Setting the Clock .206
............................
Security System .207
...
Rearview Camera and Monitor . 208
...............................
Cruise Control .209
LX model
EX and EX-L models without navigation system
EX-L Models with navigation system
Features
Features
123

Turn this dial to increase or decrease
the fan speed and airflow.
Tu rning this dial clockwise increases
the temperature of the airflow. This
button turns the rear window
defogger off and on (see page ).
Air flows from the center
and corner vents in the dashboard.
Airflow is divided between
the vents in the dashboard and the
floor vents.
When
the recirculation indicator is
on, air from the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in reci rculation
mode, parti cularly with the A/C off,
can cause the windows to fog up.
Switch to recirc ulation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode. On some models, this button also
operates the heated outside mirrors
(see page ).
Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
This button turns the air
conditioning on and of f . The
indicatorinthebuttonisonwhen
the A/C is on.
The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center and side vents in the
dashboard. Pressing the , A/C,
or any of mode buttons cancels MAX
A/C. 77
109
CONT INUED
Vents, Heating, and A/C
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button Rear Window Def ogger Button
Recirculation Button
Mode Control
MAX A/C Button
Features
125
