buttons HONDA CR-V 2007 RD1-RD5, RE7 / 3.G Owners Manual

Î
Î
Î
ÎÎÎ
Î Î
To use the horn, press the center pad of the steering wheel.
If equipped.
Ref er to the navigation system manual.
1:
2:
3:
Your Vehicle at a Glance
4
WINDSHIELD
WIPERS/WASHERS
AUDIO SYSTEM
INSTRUMENT PANEL
BRIGHTNESS
CLOCK
CRUISE CONTROL
BUTTONS
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
ON/OFF SWITCH
STEERING WHEEL ADJUSTMENTS
PARKING BRAKE PEDAL PASSENGER AIRBAG
OFF INDICATOR
HAZARD WARNING
BUTTON
REMOTE AUDIO CONTROLS
SHIFT LEVER
SEAT HEATER SWITCHES
(P.75)
(P.76)
(P.32) (P.129)
(P.206)
(P.73)
REAR WINDOW
DEFOGGER/HEATED
MIRRORS BUTTON
(P.77)
(P.231)
(P.105)
(P.209)
VOICE CONTROL SWITCHES
(P.78) (P.78) (P.241)
(P.203)
MIRROR CONTROLS (P.109)
HORN AUDIO SYSTEM
(P.160)
2
22
3 1

After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
The
front seats have adjustable seat
belt anchors. To adjust the height of
an anchor, press and hold the release
buttons, and slide the anchor up or
down as needed (it has f our
positions). This could cause
very serious injuries in a crash.
See page f or additional
inf ormation about your seat belts
and how to take care of them. Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible. If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
18
CONT INUED
Maintain a Proper Sitting
Position
6.Never place t he shoulder port ion of a
lap/shoulder belt under your arm orbehind your back.
No one should sit in a seat wit h aninoperat ive seat belt .
Protecting A dults and Teens
Driver and Passenger Saf ety
15
RELEASE BUTTONS

Î
Î: EX-L model and All Canadian models

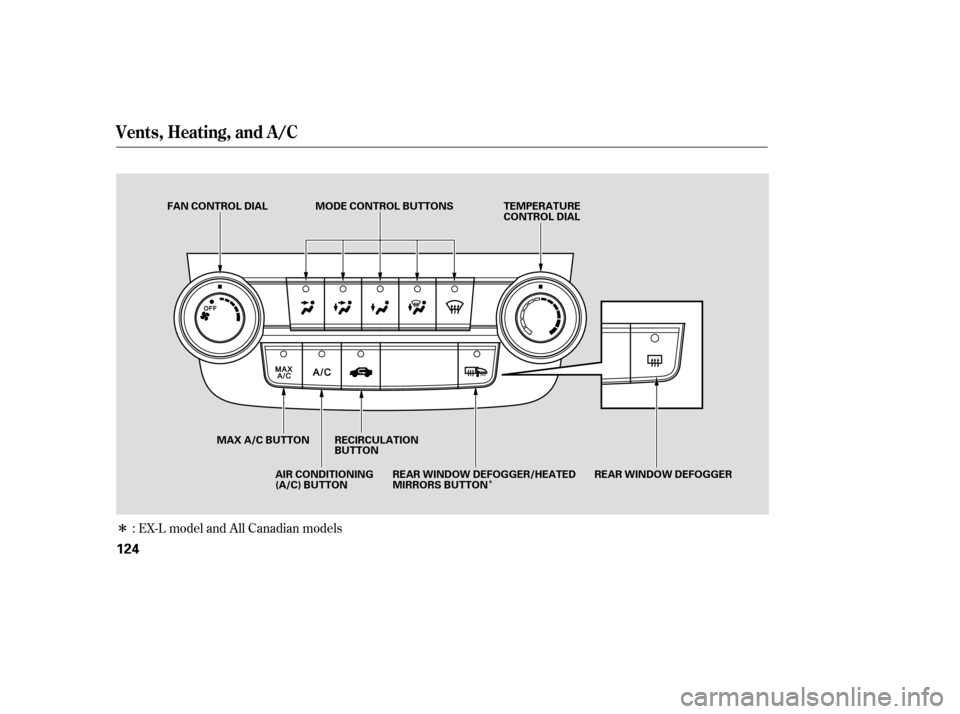

Vents, Heating, and A/C
124
TEMPERATURE
CONTROL DIAL
AIR CONDITIONING
(A/C) BUTTON
FAN CONTROL DIAL
MAX A/C BUTTON RECIRCULATION BUTTON
REAR WINDOW DEFOGGER/HEATED
MIRRORS BUTTON
MODE CONTROL BUTTONS
REAR WINDOW DEFOGGER

Turn this dial to increase or decrease
the fan speed and airflow.
Tu rning this dial clockwise increases
the temperature of the airflow. This
button turns the rear window
defogger off and on (see page ).
Air flows from the center
and corner vents in the dashboard.
Airflow is divided between
the vents in the dashboard and the
floor vents.
When
the recirculation indicator is
on, air from the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in reci rculation
mode, parti cularly with the A/C off,
can cause the windows to fog up.
Switch to recirc ulation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode. On some models, this button also
operates the heated outside mirrors
(see page ).
Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
This button turns the air
conditioning on and of f . The
indicatorinthebuttonisonwhen
the A/C is on.
The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center and side vents in the
dashboard. Pressing the , A/C,
or any of mode buttons cancels MAX
A/C. 77
109
CONT INUED
Vents, Heating, and A/C
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button Rear Window Def ogger Button
Recirculation Button
Mode Control
MAX A/C Button
Features
125

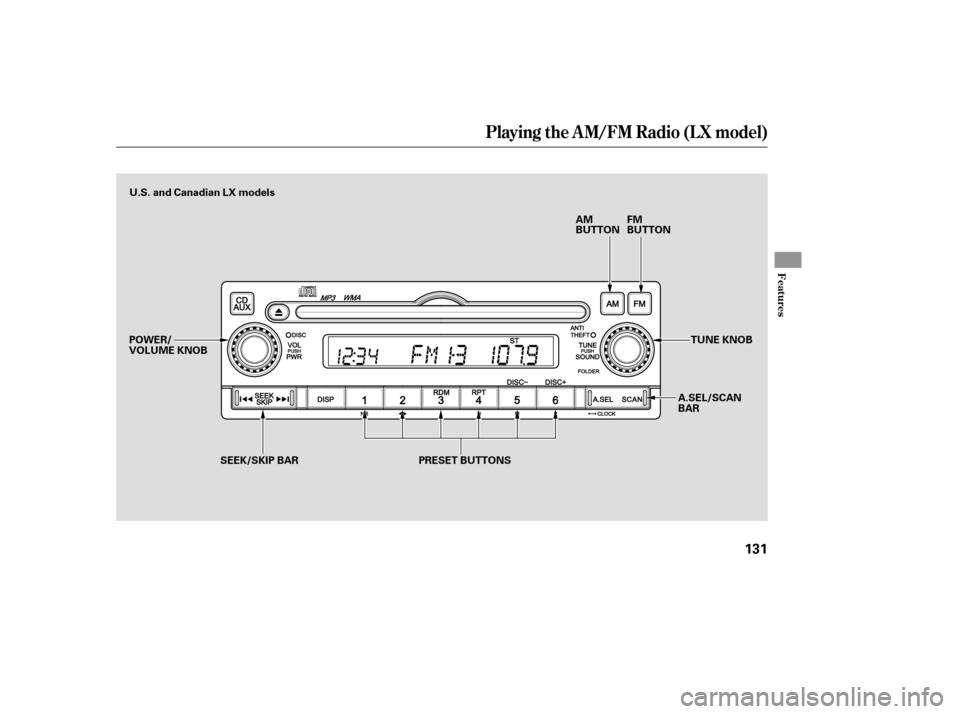

Playing the AM/FM Radio (LX model)
Features
131
AM
BUTTONFM
BUTTON
PRESET BUTTONS A.SEL/SCAN
BARTUNE KNOB
POWER/
VOLUME KNOB U.S. and Canadian LX models
SEEK/SKIP BAR

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune a
higher f requency, and turn it to the
lef t to tune a lower f requency.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the right side of the A. SEL/SCAN
bar, then release it. You will see
SCAN in the display. The system will
scan f or a station with a strong signal.
When it f inds one, it will stop and
play that station for about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN side of the bar again.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it. To Select a Station
TUNE
To Play the AM/FM Radio SCAN
SEEK /SK IP
Playing the AM/FM Radio (LX model)
132

µ
µ
µ If
you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. If
you do not like the stations auto
select has stored, you can store
other frequencies on the preset
buttons as previously described.
For information on AM/FM radio
f requencies and reception, see page .
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. ,pressthe
A. SEL side of the bar. This restores
the presets you originally set.
Press the lef t side of the
A. SEL/SCAN bar. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
Pick a preset button (1 6), and
hold it until you hear a beep.
1.
2.
3.
4.
200
To turn of f auto select
AUTO SELECT
Preset
Playing the AM/FM Radio (LX model)
Features
133

Playing the AM/FM Radio (EX and EX-L models without navigation system)
Features
143
SCAN
BUTTONAUTO SELECT
BUTTON
AM
BUTTON
FM
BUTTON AUTO SELECT BUTTON
PRESET
BUTTONS TUNE KNOB
PRESET
BUTTONS
POWER/VOLUME
KNOB
TUNE KNOB AM
BUTTON
FM
BUTTON
SEEK BAR
U.S. EX and Canadian EX and EX-L models
U.S. EX-L
SEEK BAR
POWER/VOLUME
KNOB

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune a
higher f requency, and turn it to the
lef t to tune a lower f requency. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available. The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
To Select a Station
TUNESCAN
To Play the AM/FM Radio
SEEK
Playing the AM/FM Radio (EX and EX-L models without navigation system)
144

µ
µ
µ If
you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. You will see
A. SEL flashing in the display, and
the system goes into scan mode for
several seconds. It stores the
frequencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if auto
select cannot find a strong station for
every preset button. If
you do not like the stations auto
select has stored, you can store
other frequencies on the preset
buttons as previously described.
For inf ormation on AM/FM radio
f requencies and reception, see page .
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. Pick a preset button (1 6), and
hold it until you hear a beep. press the
A. SEL button. This restores the
presets you originally set.
1.
2.
3.
4. 200
To turn of f auto select,
AUTO SELECT
Preset
Playing the AM/FM Radio (EX and EX-L models without navigation system)
Features
145
