immobilizer HONDA CR-V 2007 RD1-RD5, RE7 / 3.G Owners Manual

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .58 ............................
Instrument Panel . 59
..........
Instrument Panel Indicators . 60
.............................................
Gauges .66
...................................
Trip Meter .67
.................
Current Fuel Mileage . 68
................
Average Fuel Mileage . 68
...........................................
Range .68
.....................................
Odometer .69
..................................
Fuel Gauge .69
...................
Temperature Gauge . 69
Outside Temperature ..................................
Indicator .69
..........
Check Fuel Cap Message . 71
..................
Maintenance Minder . 71
Controls Near the Steering ...........................................
Wheel .72
.
Windshield Wipers and Washers . 73
.........
Turn Signals and Headlights . 74
........
Instrument Panel Brightness . 75
.................
Hazard Warning Button . 76
.................
Rear Window Def ogger . 77
.................................
Parking Brake .78
........
Steering Wheel Adjustments . 78
...............................
Keys and Locks .79
........................
Immobilizer System .80
................................
Ignition Switch .81 ......................................
Door Locks .82
......................
Power Door Locks .82
.
Auto Door Locking/Unlocking . 84
..............
Childproof Door Locks . 88
.......................
Remote Transmitter .89
............................................
Tailgate .92
.................................................
Seats .94
..................................
Seat Heaters .105
............................
Power Windows .106
.......................................
Moonroof .107
...........................................
Mirrors .108
.........
Interior Convenience Items . 110
............
Dual Deck Cargo Shelf . 111
.....................
Beverage Holders .113
.............................
Center Table .114
......................
Lower Glove Box .114
......................
Upper Glove Box .115
............................
Vanity Mirror .115
...................................
Sun Visor .116
....................
Sunglasses Holder .116
................
Conversation Mirror . 117
........
Accessory Power Sockets . 117
.............
Console Compartment . 118
..................................
Coat Hook .119
.......................
Seat Under Tray .119
...............................
Interior Lights .119
Instruments and Controls
Inst rument s and Cont rols
57

Î
ÎÎ
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.

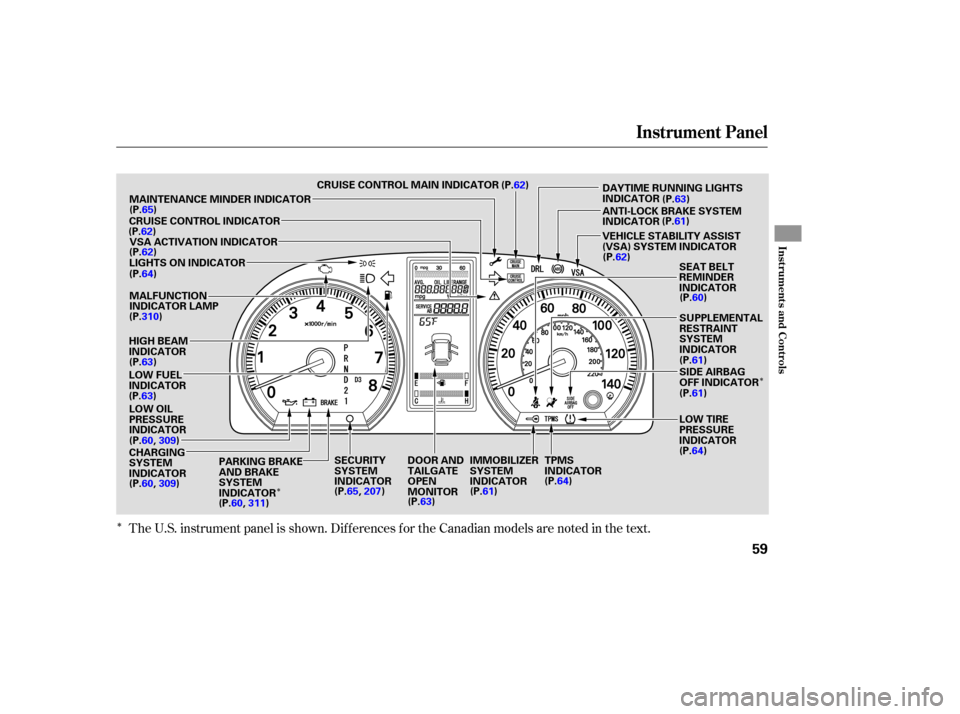

Instrument Panel
Inst rument s and Cont rols
59
IMMOBILIZER
SYSTEM
INDICATOR
CHARGING
SYSTEM
INDICATOR
HIGH BEAM
INDICATOR
LOW FUEL
INDICATOR
SEAT BELT
REMINDER
INDICATOR
MAINTENANCE MINDER INDICATOR
CRUISE CONTROL INDICATOR VSA ACTIVATION INDICATOR
LOW OIL
PRESSURE
INDICATOR TPMS
INDICATORSUPPLEMENTAL
RESTRAINT
SYSTEM
INDICATOR
LOW TIRE
PRESSURE
INDICATOR
CRUISE CONTROL MAIN INDICATOR
PARKING BRAKE
AND BRAKE
SYSTEM
INDICATOR ANTI-LOCK BRAKE SYSTEM
INDICATOR
DOOR AND
TAILGATE
OPEN
MONITOR
MALFUNCTION
INDICATOR LAMP
DAYTIME RUNNING LIGHTS
INDICATOR
LIGHTS ON INDICATOR VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
SECURITY
SYSTEM
INDICATOR SIDE AIRBAG
OFF INDICATOR
(P.65)
(P.62)
(P.64)
(P.310)
(P.63)
(P.63)
(P.60, 309)
(P.60, 311)
(P.60,
309)
(P.63)(P.61)
(P.64) (P.64)(P.61) (P.61)(P.60)
(P.62)
(P.61)
(P.63)
(P.62)
(P.62)
(P.65, 207)

This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
info rmation, see page .
If
either of you do not fasten your
seat belt while driving, the beep er
will sound and the indicator will flash
again at regular intervals. For more
info rmation, see page .
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
poten tial problem with your front
airbags. This indica tor will also alert
you to a poten tial problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the front passenger’s
weight sensors. For more
info rmation, see page . This
indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. It will then go off if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine’s fuel system will be
disabled. (see page ). This
indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem in the ABS.
If this happens, have your vehicle
checked by your dealer. With the
indicator on, your vehicle still has
norm al braking ability but no anti-
lock. For more inf ormation, see page .
31
31
18
80238
Instrument Panel Indicators
Side Airbag Of f Indicator
Supplemental Restraint
System Indicator
Immobilizer System
IndicatorAnti-lock Brake System
(A BS) Indicator
Inst rument s and Cont rols
61
Canada
U.S.

Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.

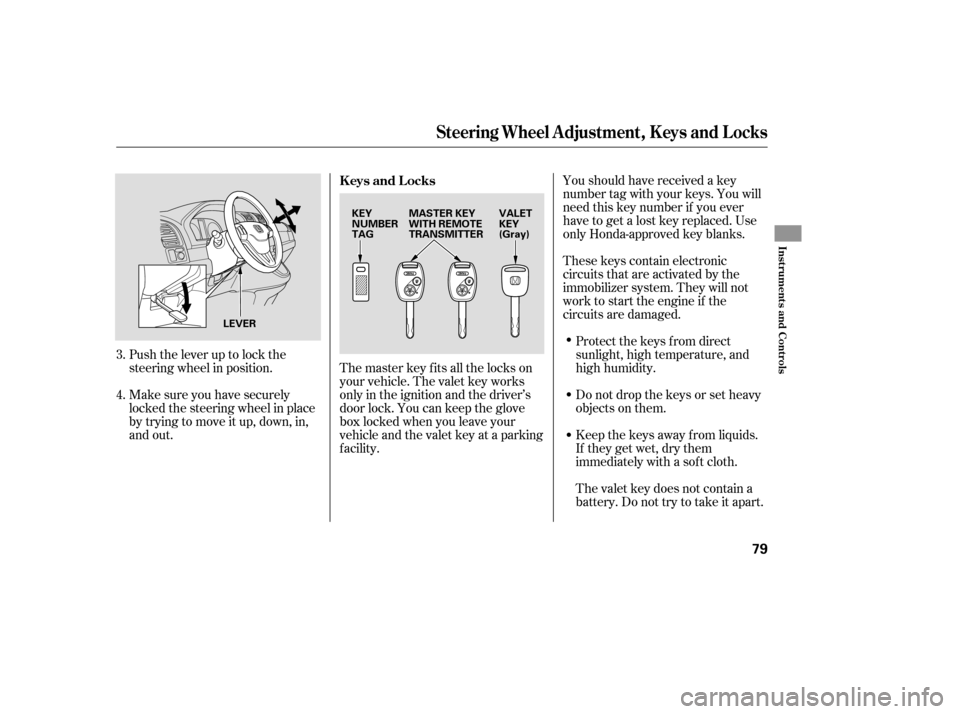

Push the lever up to lock the
steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the driver’s
door lock. You can keep the glove
boxlockedwhenyouleaveyour
vehicle and the valet key at a parking
f acility.
The valet key does not contain a
battery. Do not try to take it apart.
3.
4. Keys and Locks
Steering Wheel A djustment, K eys and L ocks
Inst rument s and Cont rols
79
LEVER
KEY
NUMBER
TAG
MASTER KEY
WITH REMOTE
TRANSMITTER VALET
KEY
(Gray)

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undrivable.
If you have lost your key and cannot
start your engine, contact your
dealer.
The Immobilizer System protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine’s f uel
system is disabled.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
brief ly, then go of f . If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer System
80
Always take the ignition key with you
whenever you leave the vehicle alone.

Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery. Without
touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III)
position for more than 15 seconds
at a time. If the engine does not
start right away, pause for at least
10 seconds before trying again. If
the engine fails to start, press
the accelerator pedal all the way
down, and hold it there while
starting to clear flooding. If the
engine still does not start, return
to step 5.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressu re on the accelerator pedal
so the engine does not race.
Make
sure the shift lever is in
Park. Press on the brake pedal.
1.
2.
3.
4.
5.6.
80
Starting
theEngine
230
The engine is harder to start in cold
weather. Also, the thinner air found at
altitudes above 8,000 feet (2,400
meters) adds to this problem.
The
immobilizer system protects your
vehicle f rom thef t. If an improperly-
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page .

In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to the START (III)
position, but the engine does not run.
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Are you using the proper starting
procedure? Refer to
on page . Do
you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See on page .
61
230 317
312
If theEngineWon’tStart
T he Starter Operates Normally
Starting the
Engine Emergency
Towing
304

.................................................
Fuel .214
........
Check Fuel Cap Message .216
......................
Fill Door and Cap .215
.....................
Low Fuel Indicator .63
...........................................
Gauge .66
................
Octane Requirement .214
...............................
Oxygenated .214
........................
Tank, Ref ueling .215
...............................
Fuel Economy .219
.....................
Fuses, Checking the .312
...............
Gas Mileage, Improving .219
..........................................
Gasohol .214
.........................................
Gasoline .214
.....................
Low Fuel Indicator. 63
...........................................
Gauge .69
................
Octane Requirement .214
........................
Tank, Ref ueling .215
................
Gas Station Procedures .215
Gauges
...
Engine Coolant Temperature .69
...............................................
Fuel .69
Gearshif t Lever Positions ..........
Automatic Transmission .231 ......................................
Glove Box .114
Gross Vehicle Weight Rating
.............................
(G VWR) . 246, 322
.............
Halogen Headlight Bulbs . 277
..............
Hazard Warning Flashers . 76
Headlights ........................................
Aiming .277
............
Daytime Running Lights . 75
..................
High Beam Indicator . 63
.........................
Reminder Chime .75
........
Replacing Halogen Bulbs . 277
...................................
Turning on .74
..............................
Head Restraints .97
.............................
Heated Mirrors .109
...................................
Heater, Seat .105
.....................
Heating and Cooling .124
............................
High Beam Lever .74
.......................
Hood, Opening the .217
..............................................
Horn .4,72
...
Identif ication Number, Vehicle . 320Ignition
..............................................
Keys .79
...........................................
Switch .81
............
Timing Control System . 330
........................
Immobilizer System .80
.........
Important Safety Precautions . 6
Indicators ......
ABS (Anti-Lock Brake) . 61, 238
Brake (Parking and Brake ............................
System) . 60, 311
................
Charging System . 60, 309
.............................
Cruise Control .62
DRL (Daytime Running ......................................
Lights) .63
...................................
High Beam .63
........
Key (Immobilizer System) . 61
......................................
Low Fuel .63
................
Low Oil Pressure . 60, 309
..............
Low Tire Pressure . 64, 242
..........
Maintenance Minder . 65,257
Malf unction Indicator ................................
Lamp . 60, 310
.................
Passenger Airbag Of f . 32
...........................
Side Airbag Of f .61
...............................................
SRS .61
...................................
TPMS . 64, 243
Index
G H
I
IV
