The driver’s and f ront passenger’s
seats have active head restraints. If
the vehicle is struck severely f rom
the rear, the occupant properly
secured with the seat belt will be
pushed against the seat-back and the
head restraint will automatically
move forward.
This reduces the distance between
the restraint and the occupant’s head.
It also helps protect the occupantsagainst whiplash and injuries to the
neck and upper spine.
Af ter a collision, the activated
restraint should return to its normal
position.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer.
For a head restraint system to work
properly:
Do not hang any items on the head
restraints, or f rom the restraint
legs.
Do not place any object between
an occupant and the seat-back.
Install each restraint in its proper
location.
Only use genuine Honda
replacement head restraints.
Seats
A ct ive Head Rest raint s
100
\f—\f—y
y
(,
\fy\f
\fy
2008 CR- V

You can recline the seat-backs on the
f ront seats so they are level with the
rear seat cushions, making a large
cushioned area. To do this:Adjust the rear seats as f ar back
as possible.
Remove the f ront head restraints
(see page ), and store them
securely.
Only the passenger’s side can be
level as f ollows. Adjust the front seats forward as
f ar as possible. Pull up the seat-
back angle adjustment lever and
pivot the seat-back backward until
it is level with the rear seat
cushion.
The seat-back of the power
adjustable driver’s seat cannot be
level. Do not push the seat-back
down f orcibly.
Adjust the rear seat-back to the
desired position.
Reverse this procedure to return the
front and rear seats to the upright
position. Make sure you install the
head restraints and securely lock the
seats before driving.
When you return the seat-back to its
upright position, hold the seat-back
to keep it f rom going up too quickly.
1.
2.
4.
3.
98
EX-L model only EX-L model only
Reclining the Front Seats
Seats
Inst rument s and Cont rols
101
SLIDE BAR
SEAT-BACK ANGLE
ADJUSTMENT LEVER
\f—\f—y
y
(,
\fy\f
\fy
2008 CR- V

Lower the rear head restraints to
their lowest position.
Pull up the release lever on the top
of the seat-back.
Fold the seat-back forward.
Do not put any heavy items on the
seat-back when it is folded down. Reverse this procedure to return the
seat-back to the upright position.
Make sure the seat is secured and
the seat belt is in f ront of the seat-
back bef ore driving.
In the rear center seating position,
be sure the detachable anchor is
latched securely (see page ).
Make sure that the f olded down rear
seat does not interf ere with the f ront
passenger’s seat-back. This will
cause the f ront passenger’s weight
sensors and the f ront passenger’s
seat belt reminder indicator to work
improperly (see pages and ).
Also check the passenger airbag of f
indicator to assure proper operation
of the passenger’s front airbag.
2.
3.
4. 107
1832
CONT INUED
Seats
Inst rument s and Cont rols
103
RELEASE LEVER
\f—\f—y
\fy
(,
\fy\f
\fy
2008 CR- V

When any seat-back is f olded down,
do not use the dual deck cargo shelf
(if equipped).
Make sure all items in the cargo area
are secured. Loose items can f ly
f orward and cause injury if you have
to brake hard (See
on page ).The lef t and right rear seats can be
f olded up separately to make room
for cargo.
To f old the rear seat f orward:
Remove any items from the seat
beforeyoufolduptheseatcushion.Pull up the bar under the seat
cushion and slide the rear seat
backward. The rear seat will not
foldforwardunlessitisasfar
back as it will go. Follow steps 1 through 4 on page
f or f olding down the seat-
back.
Lower the center seat-back bef ore
f olding the passenger’s side seat
forward.
1. 2.
236 102
Carrying Cargo Folding the Rear Seat Forward
Seats
104
SLIDE BAR
\f—\f—y


y
(,
\fy\f
\fy
2008 CR- V

Unlock the seat f rom the f loor by
pulling the lock release strap
under the seat cushion’s back
edge, then lif t the rear of the seat.
You cannot fold up the rear seat if
it is not latched securely in the
rearmost position.Pull out the f astening strap f rom
the slit on the seat-back. Then
attach the anchor on the fastening
strap to the hook on the center
pillar.
Pull down on the anchor to engage
the upper part of the anchor
securely on the hook, and make
sure the seat is secure.
3. 4. 5.
CONT INUED
Seats
Inst rument s and Cont rols
105
LOCK RELEASE STRAP ANCHOR
HOOK
FASTENING
STRAP ANCHOR
FASTENING STRAP
HOOK
\f—\f—y
\fy
(,
\fy\f

\fy
2008 CR- V

Make sure that the f olded up right
rear seat does not interf ere with the
f ront passenger’s seat-back. This will
cause the f ront passenger’s weight
sensors and the f ront passenger’s
seat belt reminder indicator to work
improperly (see page ). Also
check the passenger airbag of f
indicator to assure proper operation
of the passenger’s advanced f ront
airbag.
Reverse this procedure to return the
seat to the upright position.
Make sure the seat is securely
latched bef ore driving.
When you are not using the
fastening strap, store the strap into
the slit on the seat-back.Make sure both outer seat belts are
positioned in side of the rear seat-
backs.
In the center seating position of the
rear seat, be sure the detachable
anchor is latched securely bef ore
using the seat belt (see page ).
Make sure all items in the cargo area
are secured. Loose items can f ly
f orward and cause injury if you have
to brake hard (See
on page ).
Do not use the dual deck cargo shelf
(if equipped) when the seats are
folded down or forward.
The seat belt in the rear center seat
is equipped with a detachable anchor.
This allows the center seat belt to be
unlatched when the rear center seat
back is f olded down or the right side
rear seat is folded forward.
32
107
236 Carrying Cargo Detachable Anchor
Seats
106
Using the seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.
\f—\f—y
y
(,
\fy\f


y
2008 CR- V

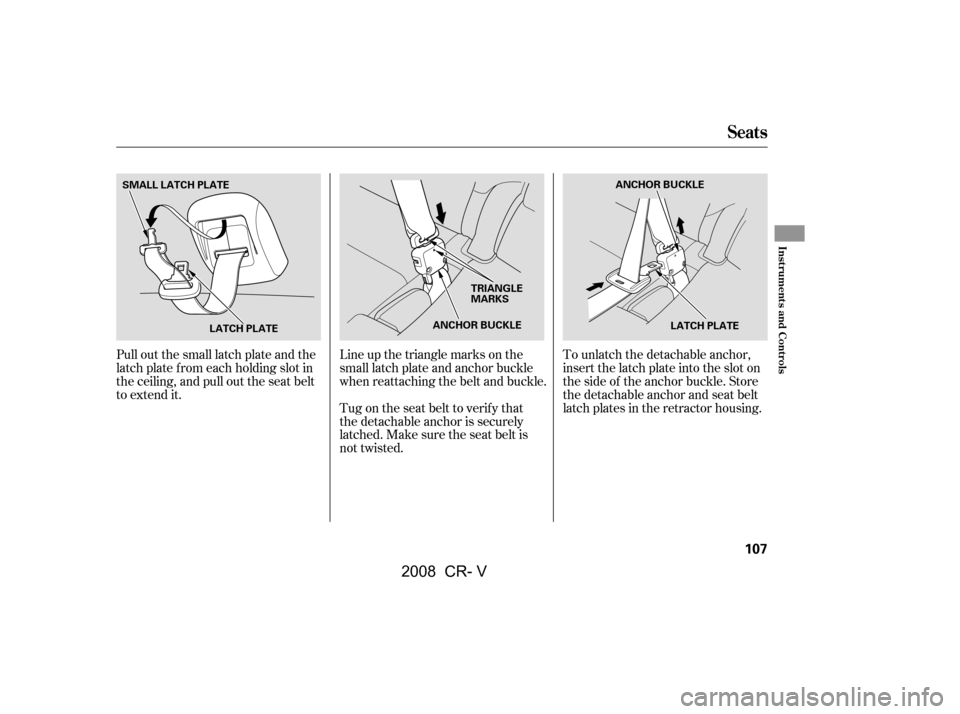

Pull out the small latch plate and the
latch plate f rom each holding slot in
the ceiling, and pull out the seat belt
to extend it.Line up the triangle marks on the
small latch plate and anchor buckle
when reattaching the belt and buckle.
Tug on the seat belt to verify that
the detachable anchor is securely
latched. Make sure the seat belt is
not twisted.To unlatch the detachable anchor,
insert the latch plate into the slot on
the side of the anchor buckle. Store
the detachable anchor and seat belt
latch plates in the retractor housing.
Seats
Inst rument s and Cont rols
107
TRIANGLE
MARKS
ANCHOR BUCKLE
SMALL LATCH PLATE
LATCH PLATE LATCH PLATE
ANCHOR BUCKLE
\f—\f—y
y
(,
\fy\f

y
2008 CR- V

The dual deck cargo shelf will
separate the storage area into two
storage areas. On the upper area,
you can store small and light items.
Youshouldplaceheavyitemsinthe
lower storage area. You can remove
the dual deck cargo shelf and store it
on the cargo f loor to make a larger
cargo area.To store the dual deck cargo shelf ,
lif t up either side of it, then move it
as shown above.
Make sure to use the dual deck cargo shelf f ully opened and securely
latched.
To remove the dual deck cargo shelf ,
f old up the rear half of the shelf
forward onto the front half, push up
on both sides, then pull it toward you.
Place the dual deck cargo shelf on
the f ar side of the cargo f loor, then
slide it f orward while f olding out the
upperhalfoftheshelf.
If equipped
Dual Deck Cargo Shelf
Interior Convenience Items
114
\f—\f—y
y
(,
\fy\f

y
2008 CR- V

The dual deck cargo shelf can be
placed on the f loor as shown above.
Reverse this procedure to return the
dual deck cargo shelf to the upper
position. Make sure the dual deck
cargo shelf is latched securely.The maximum load on the dual deck
cargo shelf is 20 lbs on U.S. models,
and10kgoncanadianmodels.This
isshownonalabelonthedriver’s
side of the dual deck cargo shelf
(see page ). To prevent damage
to the dual deck cargo shelf , do not
exceed the maximum load.
Make sure all items in the cargo area
are secured. Loose items can f ly
f orward and cause injury if you have
to brake hard (See
on page ).
When any of the rear seats are
f olded down or f orward, do not place
any objects on the dual deck cargo
shelf . Make sure to store the shelf
on the cargo area f loor. It could be
unlatched during a crash. 56
236
CONT INUED
Carrying Cargo
Interior Convenience Items
Inst rument s and Cont rols
115
Do not use this shelf if the
second row seats are folded
down.
Objects placed on the shelf
could be thrown forward during
a crash or sudden stop and hurt
someone.
\f—\f—y
y
(,
\fy\f
\fy
2008 CR- V

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle..............
Vents, Heating, and A/C .126
...............
Climate Control System .131
..........
Dual Temperature Control .136
..............
Climate Control Sensors .138
................................
Audio System .139 ..........
Playing the AM/FM Radio .141
.................................
Playing a Disc.145
........
Disc Player Error Messages.152
...........
Playing the AM/FM Radio.153
.
Playing the XM
Satellite Radio .157
..................................
Playing Discs.162
........
Disc Player Error Messages.169
...........
Playing the AM/FM Radio.170
.
Playing the XM
Satellite Radio .176
..................................
Playing a disc.182
.......
Disc Player Error Messages .190
....................................
CD Changer.191
.....
CD Changer Error Messages .197
...........................
Playing a PC card.198
.............
PC card Error Messages .210 ............
AM/FM Radio Reception .211
..................
Protecting Your Discs .213
................
Remote Audio Controls .216
.................
Radio Thef t Protection .218
..........................
Setting the Clock .219
............................
Security System .220
...
Rearview Camera and Monitor .221
...............................
Cruise Control .222
LX model
EX and EX-L models without navigationsystem
EX-L Models with navigation system
Features
Features
125
