navigation system HONDA CR-V 2008 RD1-RD5, RE7 / 3.G Service Manual

µµ
Push the AUDIO button beside the
screen to show the audio display and
operate the disc player.
You can also operate the audio
system without using the control
icons on the audio screen. Press the
CD button. The status bar appears
on the bottom of the screen. On the
navigation screen, you can see the
audio inf ormation whenever you
touch the AUDIO INFO icon on the
lower portion of the screen.
When playing a CD recorded with
text data, the track, album, and artist
name are shown on the audio display.
When playing a disc in MP3 or WMA,
the f older number and name, the f ile
number and name, the artist name,
and the elapsed time are shown. The
system will continuously play a disc
until you change modes. If the disc
was not recorded with text data, it
will not be displayed. You can also select an icon with the
joystick. Move it to left, right, up, or
down to change the highlighting and
scroll through lists. Then press the
ENT on the top of the joystick to
select the icon.
Each time you press and
release (preset 6), the player
skips forward to the beginning of the
next track (f ile in MP3 or WMA
mode). Press and release (preset 5), to skip backward to
the beginning of the current track.
Press it again to skip to the
beginning of the previous track.
You can use the preset buttons while
a disc is playing to select passages
and change tracks (files in MP3 or
WMA mode). Each preset button’s
f unction is shown on the bottom of
the screen. To move rapidly within
a track/f ile, press and hold (preset 4) or (preset 3).
CONT INUED
T o Change or Select T racks/Files
SK IP
FF/REW
Playing a disc (EX-L model with navigation system)
Features
185
PRESET BUTTON’S FUNCTION
PRESET BUTTONS
U.S. model is shown
\f—\f—y

y
(,
\fy\f
\fy
2008 CR- V

µ
Û Ý
µ µ
µ µ
To
select a dif f erent f older, press either
side of the TUNE bar to move to the
beginning of the next f older. Press
the side of the TUNE bar to skip
to the next folder, and the side to
move to the beginning of the current
folder.Pressitagaintoskiptothe
beginning of the previous f older.
This
f eature plays the tracks/f iles within
a disc in random order. To activate
track random, press and release the
RDM button (preset 2). You will see
TRACK RANDOM in the display.
Press the RDM button again to
return to normal play. This
feature, when activated, plays all
f iles in the selected f older in random
order, rather than in the order they
are compressed. To activate folder
random, press and hold the RDM
button. You will see FOLDER
RANDOM in the display. The
system then selects and plays f iles
randomly. This continues until you
deactivate f older random by pressing
the RDM button again, or if you
select a dif f erent f older with the
TUNE bar.
To continuously replay
a track (f ile in MP3 or WMA mode),
press and release the RPT button
(preset 1). You will see TRACK
REPEAT in the display. Press the
RPT button again to turn it off. This feature,
when activated, replays all f iles on
the selected f older in the order they
are compressed. To activate folder
repeat, press and hold the RPT
button (preset 1) f or 2 seconds. You
will see FOLDER REPEAT in the
display. The system continuously
replays the current f older. Press the
RPT button again to turn it off.
Selecting a dif f erent f older with the
TUNE bar also turns of f f older
repeat.
In MP3 or WMA mode
In MP3 or WMA mode In MP3 or WMA mode
FOLDER SELECTION
TRACK RANDOM (Random
within a disc/f older)FOLDER RANDOM
T RA CK REPEA T (FIL E
REPEAT) FOLDER REPEAT
Playing a disc (EX-L model with navigation system)
186
\f—\f—y
y
(,
\fy\f

y
2008 CR- V

µµ
You can also select a track/f ile
directly f rom a track list on the audio
display. Press the AUDIO button to
show the audio display, then touch
the Track List icon. The track list
menu appears on the display.
The scan f unction samples all tracks
(f iles in MP3 or WMA) in the order
they were recorded. To activate scan,
press and release the SCAN button.
You will see TRACK SCAN in the
display. You will get a 10 second
sampling of each track/f ile on the
disc. Press the SCAN button to get
out of scan mode and play the last
track/f ile sampled.
Pressing either SKIP button (preset
5 or 6) also turns of f scan.
This feature,
when activated, samples all the first
f iles in each f older on the disc in
order. To activate f older scan, press
andholdtheSCANbuttonfor2
seconds. You will see FOLDER
SCAN in the display.
The system plays the f irst f ile in
each f older f or about 10 seconds. If
you do nothing, the system then
plays the f irst f ile in each f older f or
10 seconds each. Af ter playing the
first file of the last folder, the system
goes to normal playing.
Pressing either SKIP button (preset
5 or 6), or selecting a dif f erent f older
with the TUNE bar, or pressing the
SCAN button, also turns of f f older
scan.In MP3 or WMA mode
CONT INUED
Using a T rack L istSCA N (T RA CK /FIL E SCA N) FOLDER SCAN
Playing a disc (EX-L model with navigation system)
Features
187
FOLDER ICON TRACK/FILE ICON
FOLDER NUMBER RETURN ICON
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

ÛÝÎ
Î
Î
When playing a CD recorded with
text data, each track name is shown
on the audio display. With a disc
recorded in MP3 or WMA, the f older
number and the location are also
displayed.
If the disc was not recorded with text
data, only the track number is shown.
To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon on the
screen. To play the radio when a disc is
playing, press the AM/FM button or
touch the FM1, FM2, AM, XM1 , or
XM2 icon.If aPCcardisinthe
audio unit, touch the CARD icon to
play the PC card. If a CD or CDs are
loaded in the CD changer, touch the
CDC icon to play the CD changer.
Press the CD button again or touch
the CD icon to switch back to the
disc player.
If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
Select the desired track/f ile by
touching the icon on the display. The
selected icon will be highlighted in
blue. The system begins to play the
selected track/f ile. With a disc in
MP3 or WMA, touch the f older icon
on the upper lef t of the screen to
move to the parent folder. The
current f older is highlighted in blue.
:U.S.modelonly
To Stop Playing a Disc
Playing a disc (EX-L model with navigation system)
188
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

You cannot close the screen if a disc
is partially inserted into its slot.
To remove a disc f rom the audio unit,
f old back the screen by pressing the
OPEN button (see page ). Press
the disc eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
it af ter 10 seconds and put it in pause
mode. To begin playing, press the
CD button.
To return the screen to the upright
position, press the CLOSE button.
You can also eject the disc when the
ignition switch is of f .For inf ormation on how to handle
and protect discs, see page .
184 213
Removing a DiscProtecting Discs
Playing a disc (EX-L model with navigation system)
Features
189
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

If you see an error message in the
display while playing a disc, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For the additional information on
damaged discs, see page .Cause
Error Message
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer. Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc. Solution
214
FOCUS Error
Mechanical Error
TOC Error
High Temperature Press the eject button, and pull out the disc.
Check if it is inserted correctly in the disc
player.
Make sure the disc is not scratched or damaged.
For more information see page214.
Press the eject button, and pull out the disc.
Check the disc for damage or deformation. For
more information see page214.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Press the eject button, and pull out the disc.
Check the disc for damage or deformation.
Will disappear when the temperature returns to
normal.
Disc Player Error Messages (EX-L model with navigation system)
190
DISC ERROR
MECH ERROR DISC
HEAT ERROR
——y
y
(,
y
y
2008 CR- V

´
µ µ´

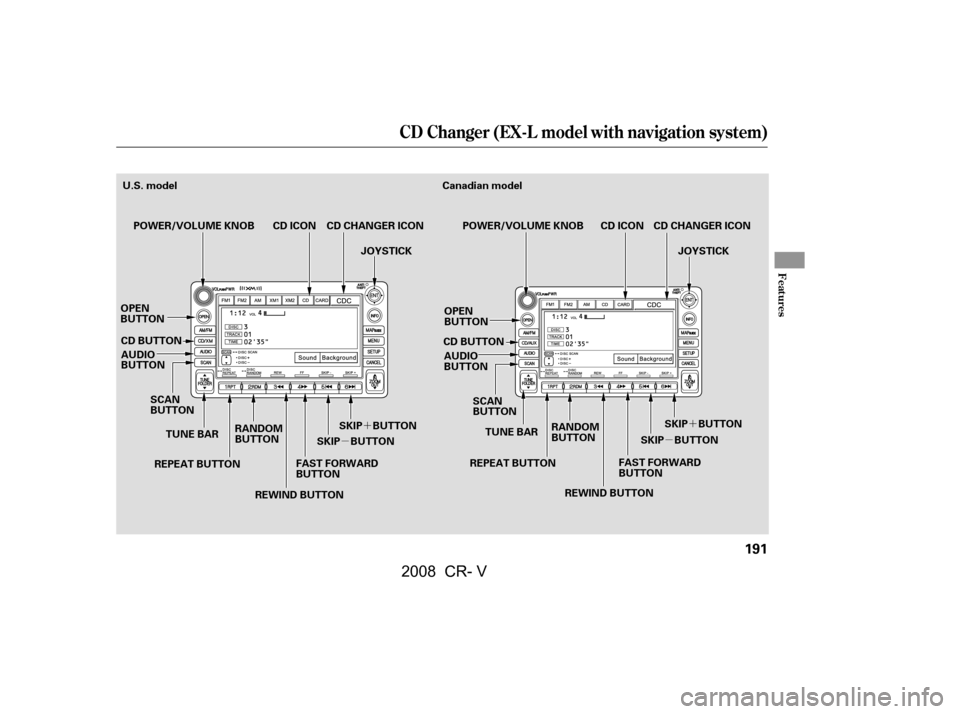

CD Changer (EX-L model with navigation system)
Features
191
JOYSTICK
CD BUTTON RANDOM
BUTTON
REPEAT BUTTON
REWIND BUTTON
TUNE BAR
OPEN
BUTTON
AUDIO
BUTTON SCAN
BUTTON
FAST FORWARD
BUTTON CD BUTTON
REPEAT BUTTONTUNE BAR
OPEN
BUTTON
AUDIO
BUTTON
SCAN
BUTTON JOYSTICK
RANDOM
BUTTON FAST FORWARD
BUTTON
U.S. model Canadian model
SKIP BUTTON
SKIP BUTTON CD CHANGER ICON
CD CHANGER ICON
POWER/VOLUME KNOB CD ICON POWER/VOLUME KNOB CD ICON
REWIND BUTTONSKIP BUTTON
SKIP BUTTON
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

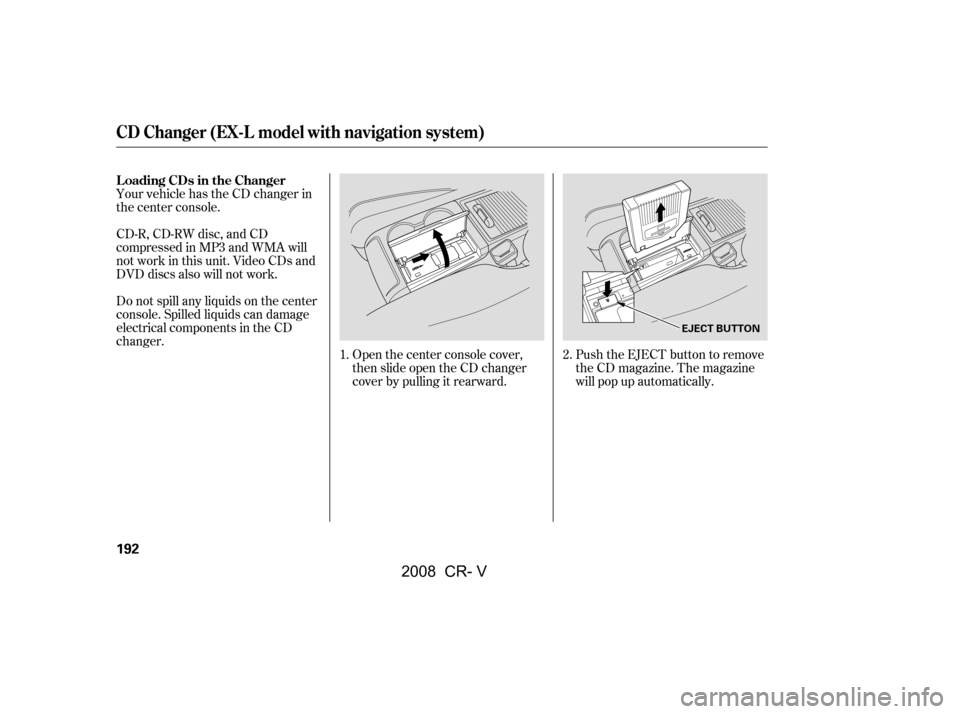

Open the center console cover,
then slide open the CD changer
cover by pulling it rearward.Push the EJECT button to remove
the CD magazine. The magazine
will pop up automatically.
Your vehicle has the CD changer in
the center console.
CD-R,CD-RWdisc,andCD
compressedinMP3andWMAwill
not work in this unit. Video CDs and
DVD discs also will not work.
Do not spill any liquids on the center
console. Spilled liquids can damage
electrical components in the CD
changer.
1. 2.
L oading CDs in the Changer
CD Changer (EX-L model with navigation system)
192
EJECT BUTTON
\f—\f—y
\f\f\fy
(,
\fy\f
y
2008 CR- V

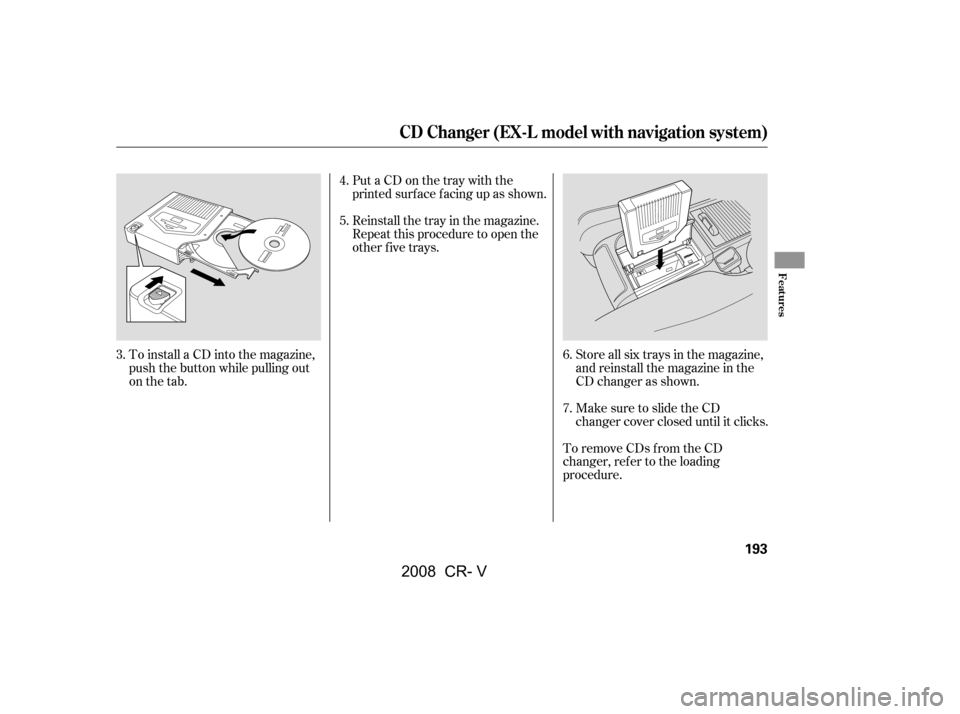

To install a CD into the magazine,
push the button while pulling out
on the tab.Store all six trays in the magazine,
and reinstall the magazine in the
CD changer as shown.
PutaCDonthetraywiththe
printed surf ace f acing up as shown.
Reinstall the tray in the magazine.
Repeat this procedure to open the
other f ive trays.
Make sure to slide the CD
changer cover closed until it clicks.
To remove CDs f rom the CD
changer, ref er to the loading
procedure.
3. 4.
5.
6.
7.
CD Changer (EX-L model with navigation system)
Features
193
\f—\f—y
\f\f
y
(,
\fy\f
y
2008 CR- V

µ
´ Û
Ý
To play CDs, the ignition switch
must be in the ACCESSORY (I) or
ON (II) position.
You operate the CD changer with
the same controls used f or the in-
dash disc player or the radio. To
select the CD changer, touch the
CDC icon. The disc and track
numbers are displayed. The system
will continuously play a CD until you
change modes. To select a dif f erent disc, use the
preset buttons (5 or 6). Press and
release the Preset 5 (DISC )
button to select the previous disc or
Preset 6 (DISC ) to select the next
disc in sequence. Pressing the or
side of the TUNE bar also
changes the disc. If you select an
empty position in the CD changer,
the system will try to load the CD in
the next available slot.
You can use the preset buttons while
a disc is playing to select passages
and change tracks. Each preset
buttonfunctionisshownonthe
bottom of the screen.
To Play a CD
CD Changer (EX-L model with navigation system)
194
TUNE
BAR
PRESET BUTTONS
Do not use CDs with adhesive labels.
The label can curl up and cause the CD
to jam in the unit.
\f—\f—y
\f\f
y
(,
\fy\f
y
2008 CR- V
