The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle..............
Vents, Heating, and A/C .126
...............
Climate Control System .131
..........
Dual Temperature Control .136
..............
Climate Control Sensors .138
................................
Audio System .139 ..........
Playing the AM/FM Radio .141
.................................
Playing a Disc.145
........
Disc Player Error Messages.152
...........
Playing the AM/FM Radio.153
.
Playing the XM
Satellite Radio .157
..................................
Playing Discs.162
........
Disc Player Error Messages.169
...........
Playing the AM/FM Radio.170
.
Playing the XM
Satellite Radio .176
..................................
Playing a disc.182
.......
Disc Player Error Messages .190
....................................
CD Changer.191
.....
CD Changer Error Messages .197
...........................
Playing a PC card.198
.............
PC card Error Messages .210 ............
AM/FM Radio Reception .211
..................
Protecting Your Discs .213
................
Remote Audio Controls .216
.................
Radio Thef t Protection .218
..........................
Setting the Clock .219
............................
Security System .220
...
Rearview Camera and Monitor .221
...............................
Cruise Control .222
LX model
EX and EX-L models without navigationsystem
EX-L Models with navigation system
Features
Features
125
\f—\f—y
\fy
(,
\fy\f
\fy
2008 CR- V

µµ
µ µ
µ µ
Press the TUNE (SOUND) knob
repeatedly to display the BASS,
TREBLE, FADER, BALANCE,
SUBWOOFER (if equipped), and
SVC (speed-sensitive volume
compensation) settings.
Adjusts the bass.Adjusts the treble.
Adjusts the side-to-
side strength of the sound.
Adjusts the
strength of sound f rom the
subwoof er speaker. Adjusts the front-to-back
strength of the sound. The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes; SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the TUNE knob to
adjust the setting to your liking. If
you f eel the sound is too loud,choose low. If you f eel the sound is
too quiet, choose high.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display. Adjusts the volume level
basedonthevehiclespeed.
This f unction is set to MID as the
def ault setting when the vehicle
leaves the factory.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .76
If equipped
Adjusting the Sound
BASS
TREBLE
BAL ANCE
SUBWOOFER
FADER SVC
A udio System L ighting
Speed-sensit ive VolumeCompensat ion (SVC)
Playing the AM/FM Radio (EX and EX-L models without navigation system)
156
\f—\f—y

y
(,
\fy\f

y
2008 CR- V

Your audio system is capable of
receiving XM
Satellite Radio
anywhere in the United States,
except Hawaii and Alaska.
XM
is a registered trademark of
XM Satellite Radio, Inc.
XM satellite radio receives signals
f rom two satellites to produce clear,
high-quality digital reception. It
of f ers many channels in several
categories. Along with a large
selection of dif f erent types of music,
XM satellite radio allows you to view
channel and category selections in
the display.
Playing the XM
Satellite Radio
Playing the XMSatellite Radio (U.S. EX-L model without navigation system)
Features
On U.S. EX-L wit hout Navigat ion
Syst em
157

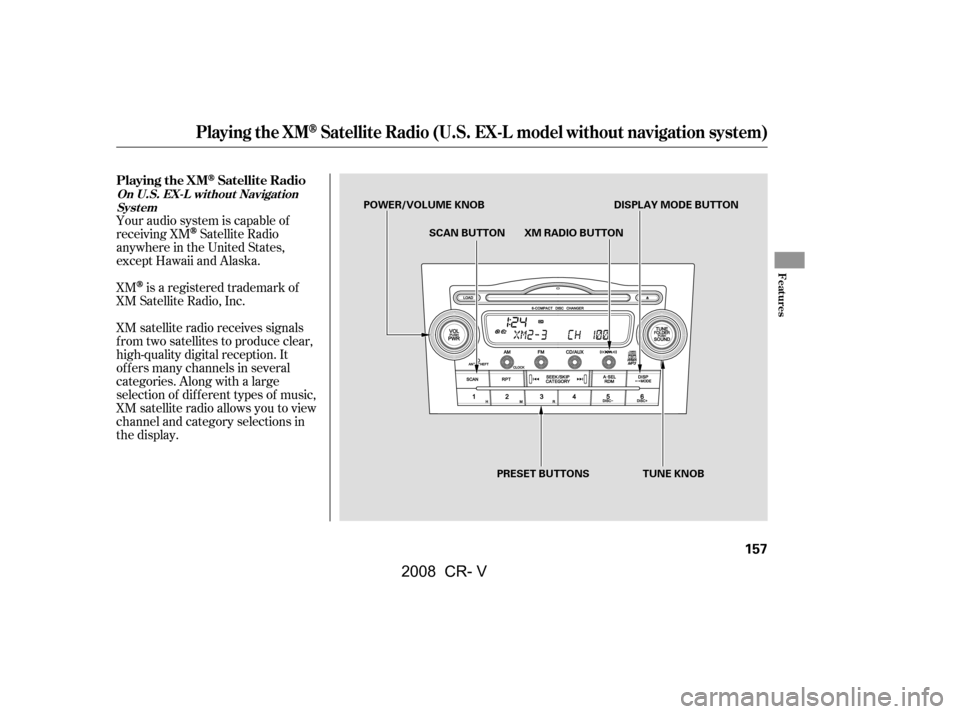

SCAN BUTTON
PRESET BUTTONS TUNE KNOBXM RADIO BUTTON
POWER/VOLUME KNOB DISPLAY MODE BUTTON
\f—\f—y

y
(,
\fy\f
y
2008 CR- V

µ
µ
µ
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
power/volume knob to turn on the
audio system, and press the ‘‘XM’’
button. Adjust the volume by turning
the knob. The last channel you
listened to will show in the display.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Turn the TUNE knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title.
Press either side of the CATEGORY
bar ( or ) to select another
category.
Operating the XM Radio
TUNE
MODE
SEEK /SK IP (CA T EGORY)
Playing the XMSatellite Radio (U.S. EX-L model without navigation system)
158
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

µµ
µ
µ
µ
µ The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Usethetune,seek,orscan
function to tune to a desired
channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. Store
the next six channels using steps 2
and 3.
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display. Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Once a channel is stored, press and
release the proper preset button to
tune to it.
1. 2.
3.
4.
5.
CONT INUED
SCAN
XM Radio Display Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
Preset
Playing the XMSatellite Radio (U.S. EX-L model without navigation system)
Features
159
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

µµ
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
‘‘----’’
‘‘A NT ENNA ’’
Playing the XMSatellite Radio (U.S. EX-L model without navigation system)
160

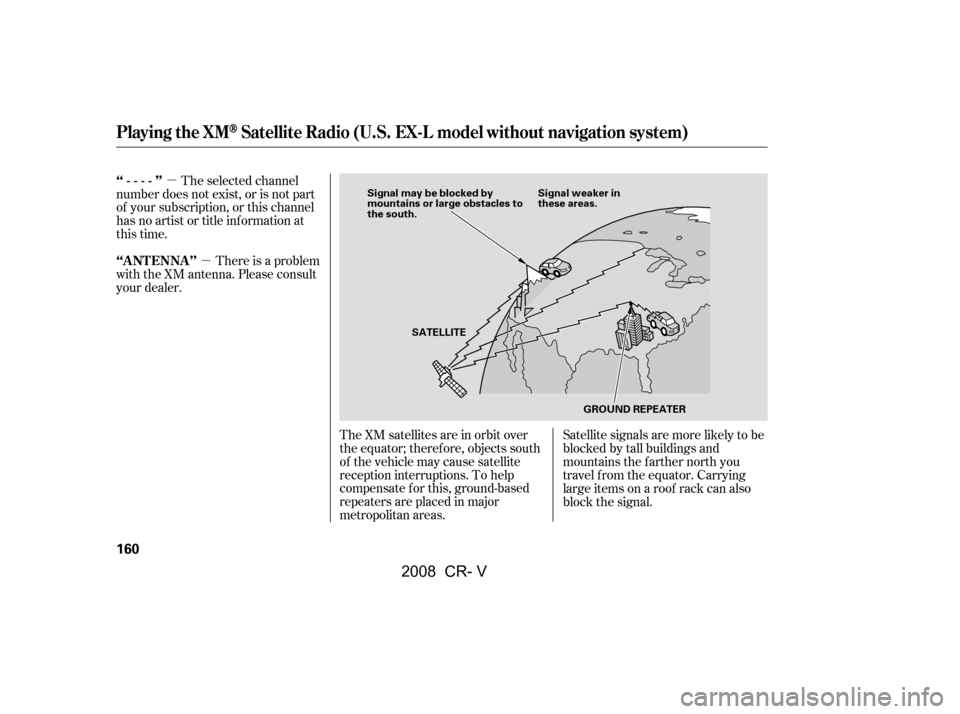

Signal may be blocked by
mountains or large obstacles to
the south. Signal weaker in
these areas.
SATELLITE GROUND REPEATER
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
Driving on the north side of an
east/west mountain road.
Large items carried on a roof rack.
There may be other geographic
situations that could af f ect XM radio
reception. While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
If your XM Satellite Radio service
has expired or you purchased your
vehicle f rom a previous owner, you
can listen to a sampling of the
broadcasts available on XM Satellite
Radio. With the ignition switch in the
ACCESSORY (I) or ON (II) position,
push the power/volume knob to turn
on the audio system and press the
XM button. A variety of music types
and styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, press TUNE until ‘‘0’’ appears in the display. Your I.D.
will appear in the display.As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com
Receiving Satellite Radio Service
Playing the XMSatellite Radio (U.S. EX-L model without navigation system)
Features
161
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

µ
µ
µ
µ
µ µ
µ
µ
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD button (CD/AUX button on
models with satellite radio), the disc
and track numbers are displayed.
The system will continuously play a
disc until you change modes.
Compatible with variable bit rate
and multi-session
NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays FORMAT, and then skips to
the next f ile.
Video CDs and DVD discs do not
work in this unit.
The specif ications of the compatible
MP3 f ile are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
Bit rate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Maximum layers (including ROOT): 8 layers
The specif ications of the compatible
WMA f ile are:
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99 f olders, or up to 255 tracks/f iles.
Bit rate:
32/40/48/64/80/96/128/160/192
kbps
Maximum layers
(including ROOT): 8 layers
Compatible with variable bit rate
and multi-session
Sampling f requency:
32/44.1/48 kHz
To Play a Disc
Playing Discs (EX and EX-L models without navigation system)
Features
163
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
\f—\f—y

y
(,
\fy\f
y
2008 CR- V

Î
ÎYou can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst.
To remove the disc currently in play,
press the eject ( ) button. When
a disc is removed f rom a slot, the
system automatically begins the load
sequence so you can load another
disc in that position. If you do not
remove the disc f rom the changer
within 10 seconds, the system
returns to the previous mode (AM,
FM or satellite radio ). The disc will
reload into the system and will
remainthereinapausemode.
To remove a different disc from the
changer,firstselectitwiththe
appropriate preset button. When that
disc begins playing, press the eject
button. Continue pressing the eject
button to remove all the discs from
the changer.
Press the AM, FM, AUX button, or
CD/AUX, XM button to switch to
the radio or satellite radio (U.S.
models), while a disc is playing.
Press the CD button again to play
the disc.
If you turn the system of f while a
disc is playing, either with the PWR/
VOL knob or by turning of f the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it lef t of f .
:OnU.S.EX-Lmodel
Removing Discs f rom the In-dash
Disc Changer
To Stop Playing a Disc
Playing Discs (EX and EX-L models without navigation system)
168
\f—\f—y
y
(,
\fy\f
y
2008 CR- V

µµ
µ
µ
µ
µ
You can adjust the sound on the
navigation screen. To adjust the
sound, push the AUDIO button, then
enter the sound grid by touching the
SOUNDicononthedisplay.
Adjusts the bass.Adjusts the side-to-
side strength of the sound.
To adjust the left/right balance,
touch the L or R icon.
Adjusts the
strength of sound f rom the
subwoof er speaker. To adjust the
sound strength, touch or on each side of the adjustment
bar.
The right upper display shows you
the current setting of the sound
strength coming f rom each speaker.
The SVC mode
controls the volume based on vehicle
speed. The f aster you go, the louder
the audio volume becomes. As you
slow down, the audio volume
decreases. Touch the appropriate
icon (Low, Mid, Hi, Of f ) to select the
mode.
Adjusts the treble. To
adjust the treble and bass, touch or on each side of the
treble or bass adjustment bar. The
adjustment bar on the right lower
display shows you the current
setting.
Adjusts the front-to-back
strength of the sound. To adjust the
front/rear fader, touch the FR or RR
icon.
Adjusting the Sound
BASSBAL ANCE
SUBWOOFER
SVC (speed-sensitive volume
compensation)
TREBLE
FADER
Playing the AM/FM Radio (EX-L model with navigation system)
174
SPEAKER SETTING
BASS/TREBLE SETTING
SOUND ICON
\f—\f—y
y
(,
\fy\f
y
2008 CR- V
