If you tow more than 8 hours in one
day, you should repeat the above
procedure at least every 8 hours
(when you stop f or f uel, etc.)Only remove the fuse after you have
perf ormed the transmission shif ting
procedure, and the key is in the
ACCESSORY (I) position. Store the
f use in an obvious location (center
tray, coin pockets, etc) as a reminder
to re-install the fuse before drivingthe vehicle.
When towing your vehicle f or long
periods, remove the 7.5 A Accessory
Radio f use to reduce drain on battery.
This f use is located in the interior
f use box and is shown as number 34
below.
If you tow a CR-V behind a
motorhome, the transmission fluid
must be changed every 2 years or
30,000 miles (48,000 km), whichever
comes f irst.
Ext ended T owing
Towing Your Vehicle Behind a Motorhome
Driving
267
INTERIOR FUSE BOXACCESSORY RADIO FUSE
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Failure to f ollow the recommended
instructions exactly will result in severe
automatic transmission damage. If you
cannot shif t the transmission or start
the engine, your vehicle must be
transported on a f lat-bed truck or
trailer. Severe transmission damage will occur
if the vehicle is shif ted f rom reverse to
neutral and then towed with the drive
wheels on the ground.
\f—\f—y

y
(,\fy\fy
2009 CR- V

Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Reinstall the f use box in place
securely.
(Driver’s side)
Open the hood.

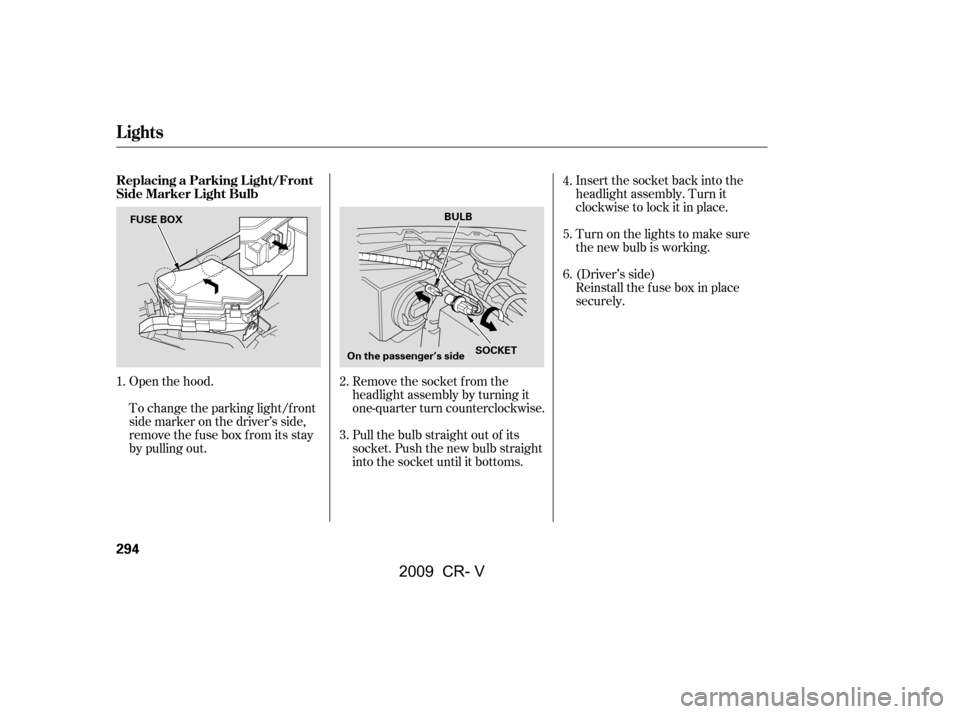

To change the parking light/f ront
side marker on the driver’s side,
removethefuseboxfromitsstay
by pulling out. Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
1. 2.
3.4.
5.
6.
Lights
Replacing a Parking L ight/Front
Side Marker L ight Bulb
294
FUSE BOX
On the passenger’s sideBULB
SOCKET
\f—\f—y
\fy
(,\fy\fy
2009 CR- V

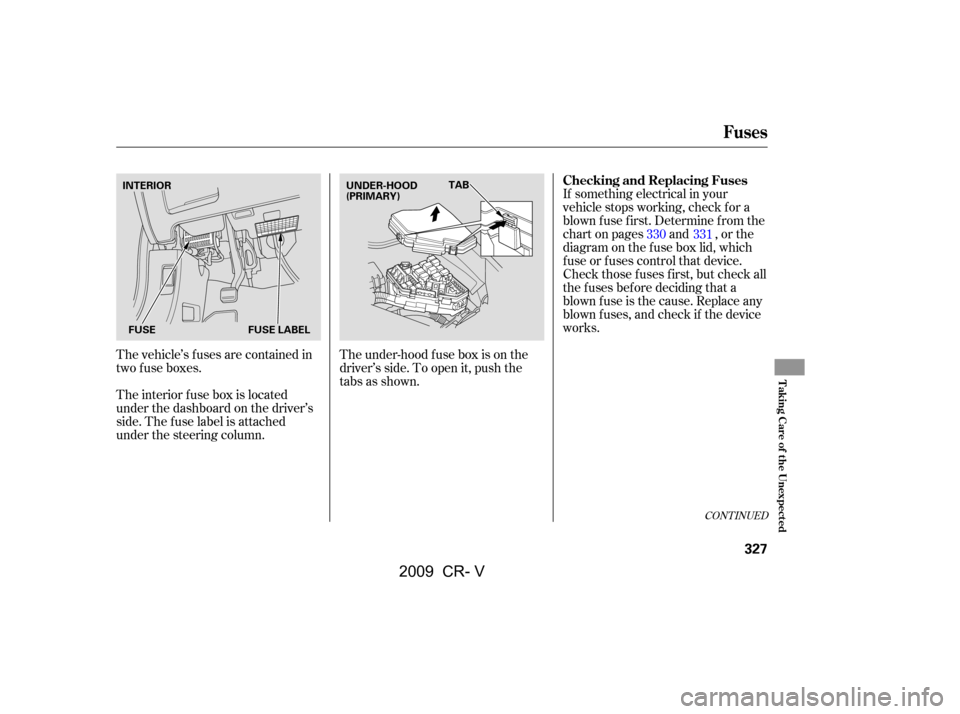

The interior f use box is located
under the dashboard on the driver’s
side. The f use label is attached
under the steering column.The under-hood f use box is on the
driver’s side. To open it, push the
tabs as shown.If something electrical in your
vehicle stops working, check f or a
blown f use f irst. Determine f rom the
chart on pages and , or the
diagram on the f use box lid, which
f use or f uses control that device.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
The vehicle’s f uses are contained in
two f use boxes. 330
331
CONT INUED
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
327
TAB
INTERIOR UNDER-HOOD
(PRIMARY)
FUSE LABEL
FUSE
\f—\f—y
y
(,\fy\fy
2009 CR- V

Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box.Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each one with the f use
pullerprovidedonthebackof the
under-hood f use box cover.
Check each of the large f uses in
the under-hood f use box by
looking through the side window
at the wire inside. Removing these
f uses requires a Phillips-head
screwdriver.
3.
4.
1.
2.
Fuses
328
FUSE BLOWN FUSEBLOWN
FUSE PULLER
\f—\f—y
y
(,\fy\fy
2009 CR- V

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualif ied technician.
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower.
Your vehicle has spare fuses on
the back of the under-hood f use
box cover. If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
may see ‘‘ENTER CODE’’ in the
f requency display. Use the preset
buttons to enter the digit code (see
page ).
On vehicles with a navigation system,
touch the appropriate icon to enter
the code number (see page ).
6.
5. 218
218
Fuses
T aking Care of t he Unexpect ed
329
BLOWN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
\f—\f—y
y
(,\fy\fy
2009 CR- V

ÎÎ
Î
Î
µ µ
µ
Î

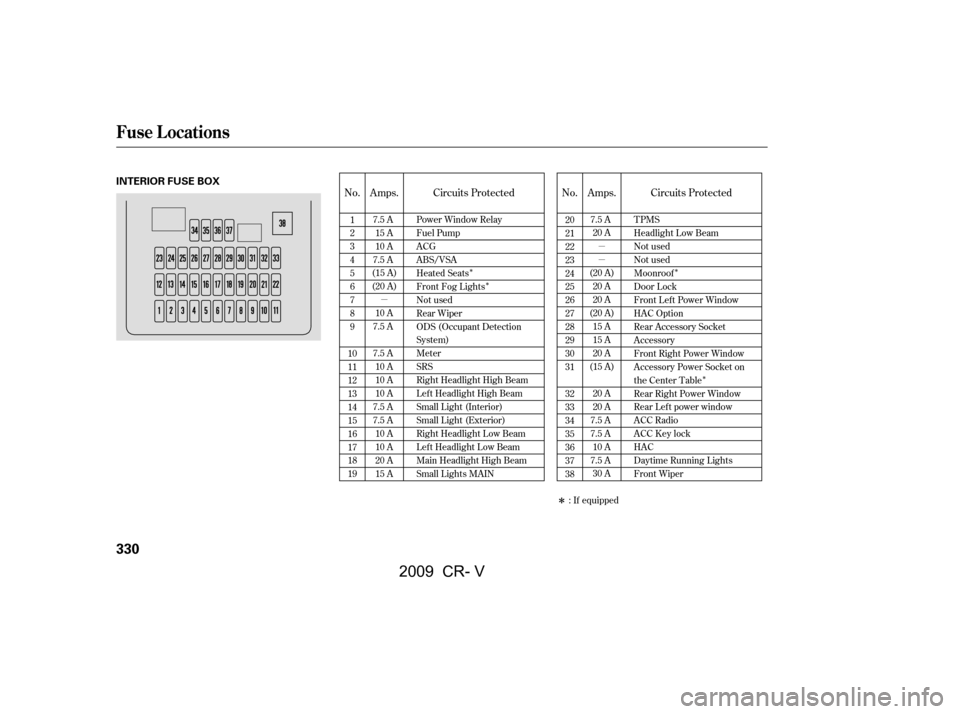

No.
No. Circuits Protected
Circuits Protected
Amps. Amps.
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 TPMS
Headlight Low Beam
Not used
Not used
Moonroof
Door Lock
Front Left Power Window
HAC Option
Rear Accessory Socket
Accessory
Front Right Power Window
Accessory Power Socket on
the Center Table
Rear Right Power Window
Rear Left power window
ACC Radio
ACC Key lock
HAC
Daytime Running Lights
Front Wiper
Power Window Relay
Fuel Pump
ACG
ABS/VSA
Heated Seats
Front Fog Lights
Not used
Rear Wiper
ODS (Occupant Detection
System)
Meter
SRS
Right Headlight High Beam
Left Headlight High Beam
Small Light (Interior)
Small Light (Exterior)
Right Headlight Low Beam
Left Headlight Low Beam
Main Headlight High Beam
Small Lights MAIN
7.5 A
15 A
10 A
7.5 A
(15 A)
(20 A)
10 A
7.5 A
7.5 A 10 A
10 A
10 A
7.5 A
7.5 A 10 A
10 A
20 A
15 A 7.5 A
20 A
(20 A) 20 A
20 A
(20 A) 15 A
15 A
20 A
(15 A)
20 A
20 A
7.5 A
7.5 A 10 A
7.5 A 30 A
: If equipped
Fuse Locations
330
INTERIOR FUSE BOX
\f—\f—y
y
(,\fy\fy
2009 CR- V

ÎÎ Î
Î
Î Î
Î
No. No.
Circuits Protected Circuits Protected
Amps. Amps.
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
Battery
EPS
Option Main
Ignition Switch Main
ABS/VSA FSR
ABS/VSA Motor
Headlight Main
Power Window Main
EPT-R
Sub Fan Motor
Main Fan Motor
Rear Defogger
Blower
Hazard
LAF
Stop and Horn PowerSeatDRRRHI/
Reclining
Power Seat DR FR HI/Sliding
IGPS OIL LEVEL
EPT-L
High Power Sound
IG Coil
FI Main
MG Clutch
DBW
Interior Light
Back Up
100 A
(70 A) 80 A
50 A
20 A
40 A
50 A
40 A
(30 A) 20 A
20 A
30 A
40 A
15 A
15 A
15 A (20 A)
(20 A)
7.5 A
(30 A)
(15 A) 15 A
15 A
7.5 A 15 A
7.5 A 10 A
: If equipped
Fuse Locations
T aking Care of t he Unexpect ed
331
UNDER-HOOD FUSE BOX
\f—\f—y
\fy
(,\fy\fy
2009 CR- V

µ
µµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
Technical Inf ormation
337
Fuses
Alignment
Battery
Lights
Air Conditioning
Seating Capacities Tires
Interior
Under-hood
Toe-in
Camber
Caster0.0in(0mm)
0.08 in (2.0 mm) 0°
1°00’
3°02’
225/65R17 102T
T155/90D17 101M
Capacity 12 V 36 AH/5 HR 12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21 W
5W
8W
8W
8W
5W
21 W
21/5 W
21 W
3CP
21 W
50/55 W
Headlights
Front turn signal lights
Parking lights/side marker
lights
Rear turn signal lights
Stop/Taillights
Back-up lights
License plate light
Ceiling light
Spotlights
Cargo area light
Rear side marker lights
High-mount brake light
Refrigerant type
Charge quantity
Lubricant type SP-10 15.5 17.3 oz (440 490 g)HFC-134a (R-134a) 5
2
3
See page330or the fuse label
attached under the steering
column.
See page331or the fuse box
cover.
Total
Front
Rear
12 V 47 AH/20 HR Size
Pressure
60 psi (420 kPa , 4.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
30 psi (210 kPa , 2.1 kgf/cm)
12 V 38 AH/5 HR 45 AH/20 HR
12 V T155/90R17 101M
Front
Rear
Front
Rear
Front
High/Low
(HB2)
(Amber)
(Amber) Front/Rear
Spare
Front
Rear
Spare
