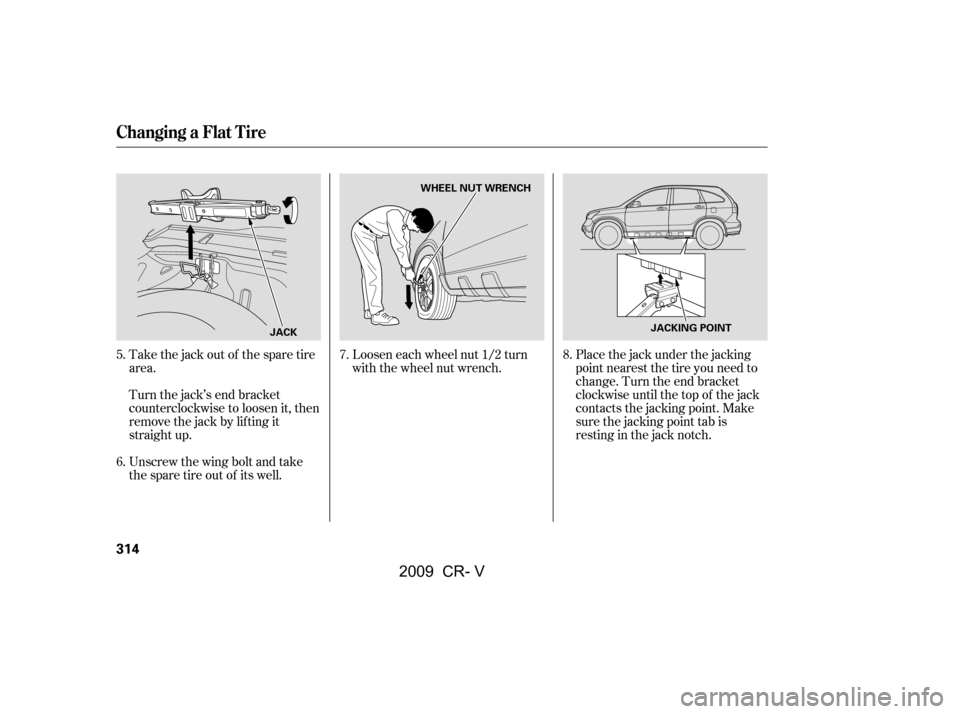

Take the jack out of the spare tire
area.
Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack by lif ting it
straight up.
Unscrew the wing bolt and take
the spare tire out of its well.Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
6.
5. 7.8.
Changing a Flat Tire
314
JACKWHEEL NUT WRENCH
JACKING POINT
\f—\f—y
\f\fy
(,\fy\f
y
2009 CR- V

CONT INUED
..................................................
