width HONDA CR-V 2009 RD1-RD5, RE7 / 3.G Owners Manual

Î
Î
Î
Î
Specif ications
336
Dimensions
Weights
Engine
Capacities Capacities
177.9 in (4,518 mm)
Length
Width
Height
Wheelbase
Track 66.1 in (1,680 mm)
103.1 in (2,620 mm)
61.6 in (1,565 mm)
61.6 in (1,565 mm)
Gross vehicle weight rating See the certification label attached to the driver’s doorjamb.
Type
BorexStroke
Displacement
Compression ratio
Spark plugs Water cooled 4-stroke DOHC
i-VTEC 4-cylinder gasoline engine 3.43 x 3.90 in (87.0 x 99.0 mm) 144 cu-in (2,354 cm
)
9.7 : 1
IZFR6K11
SKJ20DR-M11
Fuel tank
Engine oil 15.3 US gal (58
)
4.4 US qt (4.2
)
4.2 US qt (4.0)
5.6 US qt (5.3) 1.32 US gal (5.0
)
1.88 US gal (7.1)
Engine
coolant
Automatic
transmission
fluid
Rear
differential
fluid (4WD)
Windshield
washer
reservoir 2.6 US qt (2.5
)
7.6 US qt (7.2
)
2.7 US qt (2.6
)
1.3 US qt (1.2
)
1.5 US qt (1.4)
7.4 US qt (7.0
)
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
0.16 US gal (0.6
) 2.6 US qt (2.5
)
4.8 US qt (4.5)
Approx.
Front
Rear
1:
2:
(DENSO) Change
Total
Change
4WD
2WD
Total 4WD
2WD
Change
Total
U.S. Vehicles
Canada
Vehicles
71.6 in (1,820 mm)
Change Including filter
Without filter
Total (NGK)
2
1
\f—\f—y

y
(,\fy\f
y
2009 CR- V

The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. T readwear 200
Traction AA
Temperature A
Unif orm T ire Quality Grading T readwear
T raction
DOT Tire Quality Grading (U.S. Vehicles)
338
\f—\f—y

y
(,\fy\fy
2009 CR- V

µ
µ
µ
µ
µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Below is an example of
tire size with an explanation of what
each component means.
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches. Manuf acturer’s
identification mark.
R
DOT
B97R
65
T
102
225
17
Tire Labeling
T ire Ident if icat ion Number (T IN)
Tire Size
340
(1)
(1)
(3) (2)

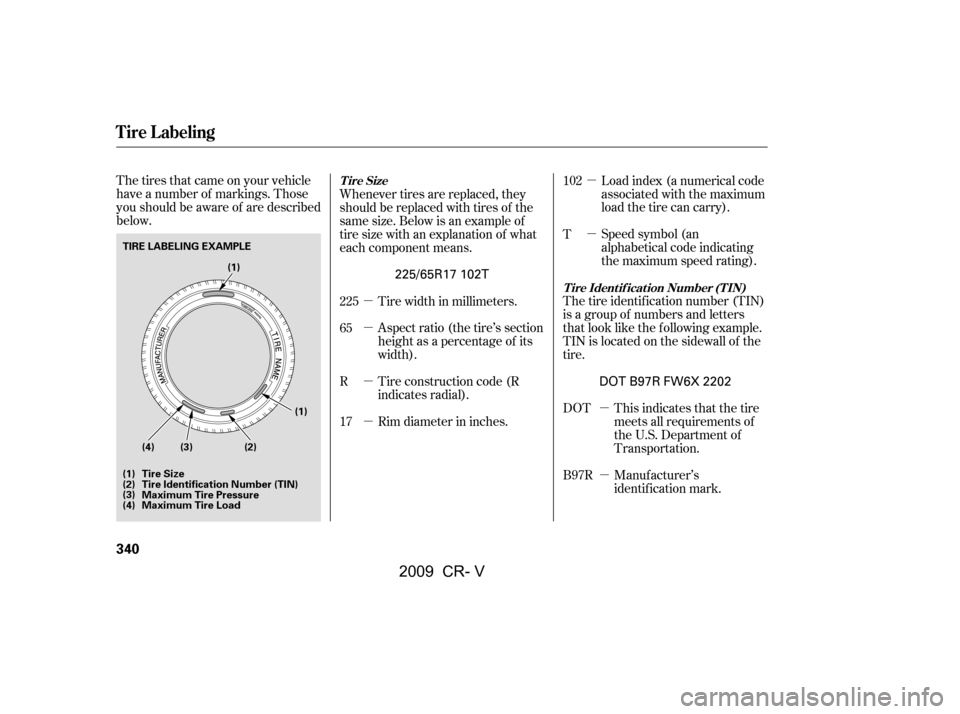

TIRE LABELING EXAMPLE
(1)
(2)
(3)
(4)
Tire Size
Tire Identification Number (TIN)
Maximum Tire Pressure
Maximum Tire Load
(4)
DOT B97R FW6X 2202
225/65R17 102T
\f—\f—y
\fy
(,\fy\fy
2009 CR- V
