If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘ENTER
CODE’’ in the f requency display the
nexttimeyouturnonthesystem.
Use the preset buttons to enter the
code. On vehicles with navigation
system, touch the icon to enter the
code number, then touch the Done
icon to set the code. The code is on
the radio code card included in your
owner’s manual kit. When it is
entered correctly, the radio will start
playing.
If you make a mistake entering the
code, do not start over; complete the
sequence, then enter the correct
code. You have 10 tries to enter the
correct code. If you are unsuccessf ul
in 10 attempts, you must then leave
the system on f or 1 hour bef ore
trying again.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.
Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic code using the preset
buttons (icon on vehicle’s with
navigation system). Because there
are hundreds of number
combinations possible f rom specif ic
digits, making the system work
without knowing the exact code is
nearly impossible.
Radio T hef t Prot ect ion
258
Table of Contents

On models with navigation system
On models without navigation system
The navigation system receives
signals f rom the global positioning
system (GPS), and the displayed
time is updated automatically by the
GPS. Ref er to the navigation system
manual f or how to adjust the time.
Change the hours by pressing the H
(hour) button until the numbers
advance to the desired time. Change
the minutes by pressing the M
(minute) button until the numbers
advance to the desired time.
Press the CLOCK button again to
enter the set time.
For example: 1:06 will reset to 1:001:52 will reset to 2:00
You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, press and hold
the CLOCK button, then press the R
(reset) button to set the time back to
the previous hour. If the displayed
time is af ter the half hour, the same
procedure sets the time f orward to
the beginning of the next hour.
To set the time, press the CLOCK
button until you hear a beep. The
displayed time begins to blink.
Setting the Clock
Features
259

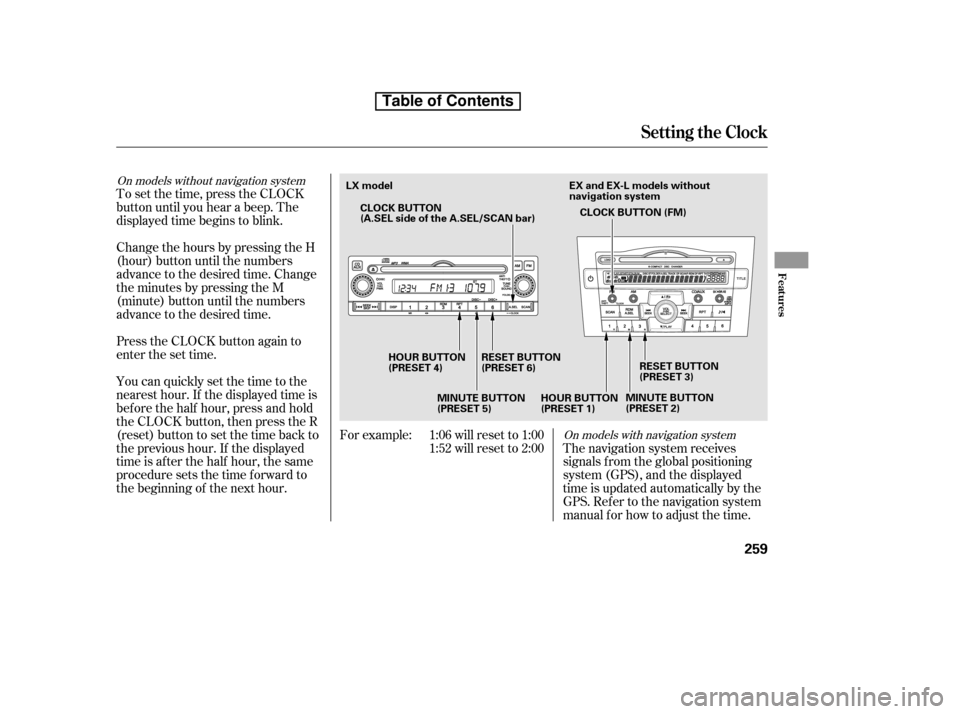

EX and EX-L models without
navigation system
CLOCK BUTTON
(A.SEL side of the A.SEL/SCAN bar)
HOUR BUTTON
(PRESET 4) RESET BUTTON
(PRESET 6)
LX model
MINUTE BUTTON
(PRESET 5) RESET BUTTON
(PRESET 3)
HOUR BUTTON
(PRESET 1) MINUTE BUTTON
(PRESET 2)
CLOCK BUTTON (FM)
Table of Contents

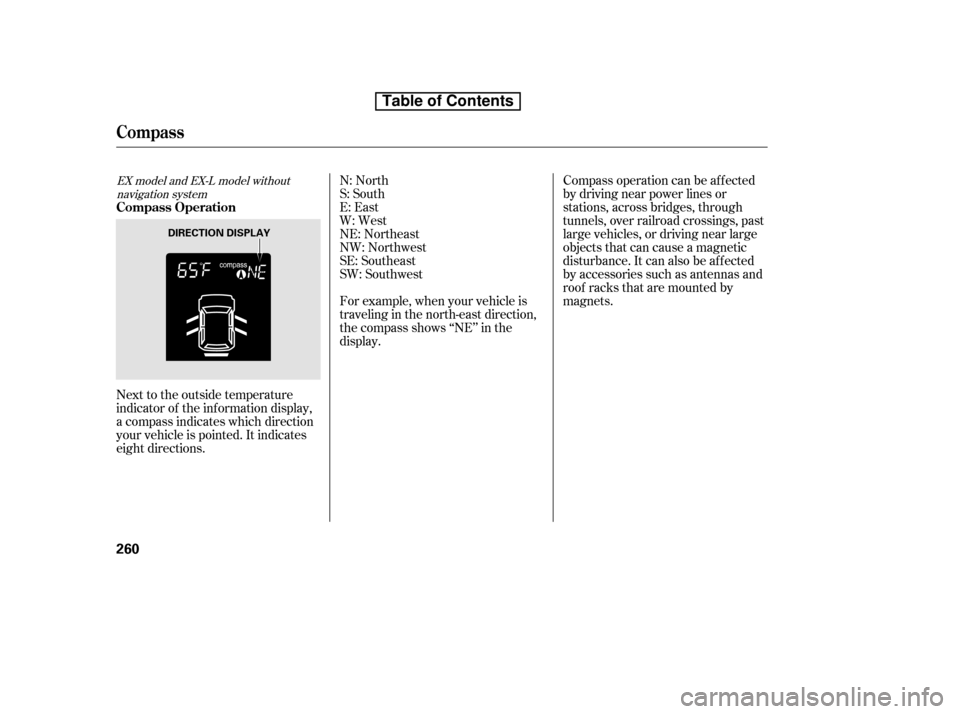

Next to the outside temperature
indicator of the inf ormation display,
a compass indicates which direction
your vehicle is pointed. It indicates
eight directions.N: North
S: South
E: East
W: West
NE: Northeast
NW: Northwest
SE: Southeast
SW: Southwest
For example, when your vehicle is
traveling in the north-east direction,
the compass shows ‘‘NE’’ in the
display.
Compass operation can be af f ected
by driving near power lines or
stations, across bridges, through
tunnels, over railroad crossings, past
large vehicles, or driving near large
objects that can cause a magnetic
disturbance. It can also be af f ected
by accessories such as antennas and
roof racks that are mounted by
magnets.
EX model and EX-L model without
navigation system
Compass
Compass Operation
260
DIRECTION DISPLAY
Table of Contents

µµµµ
µµ

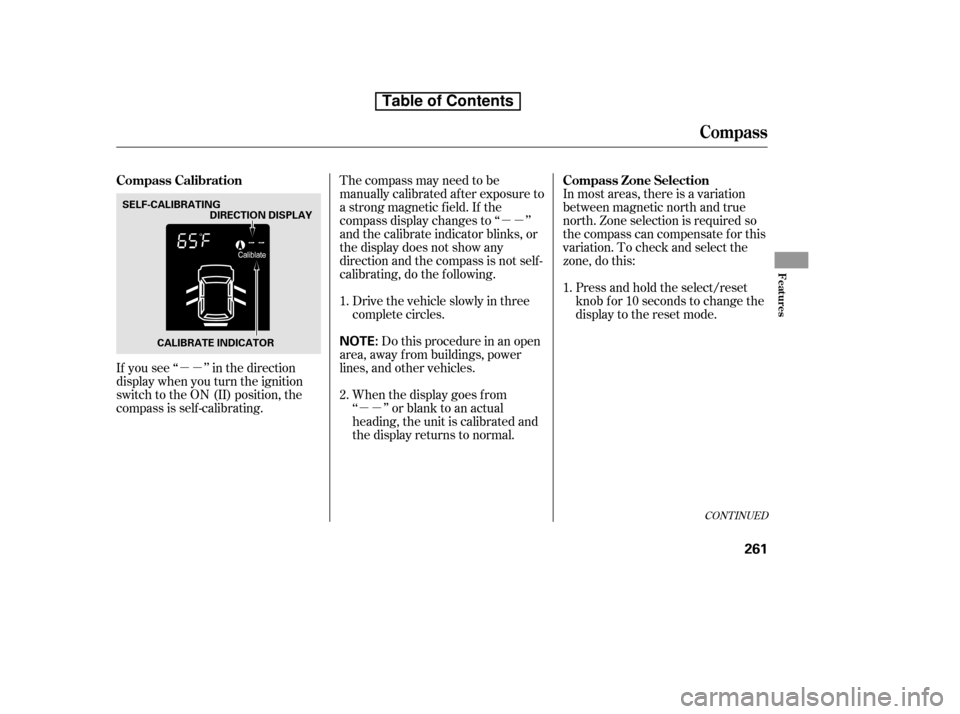

If you see ‘‘ ’’ in the direction
display when you turn the ignition
switch to the ON (II) position, the
compassisself-calibrating. The compass may need to be
manually calibrated af ter exposure to
a strong magnetic field. If the
compass display changes to ‘‘ ’’
and the calibrate indicator blinks, or
the display does not show any
direction and the compass is not self -
calibrating, do the f ollowing.
Do this procedure in an open
area, away f rom buildings, power
lines, and other vehicles. In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone, do this:
Drivethevehicleslowlyinthree
complete circles.
When the display goes f rom
‘‘ ’’ or blank to an actual
heading, the unit is calibrated and
the display returns to normal. Press and hold the select/reset
knob f or 10 seconds to change the
display to the reset mode.
1. 1.
2.
CONT INUED
Compass
Compass Calibration Compass Zone Selection
Features
261
NOTE:CALIBRATE INDICATOR
SELF-CALIBRATING
DIRECTION DISPLAY
Table of Contents

µµ
When the system does not accept
the selected compass zone, you see
‘‘ ’’ in the direction display. Select
appropriate zone number again.

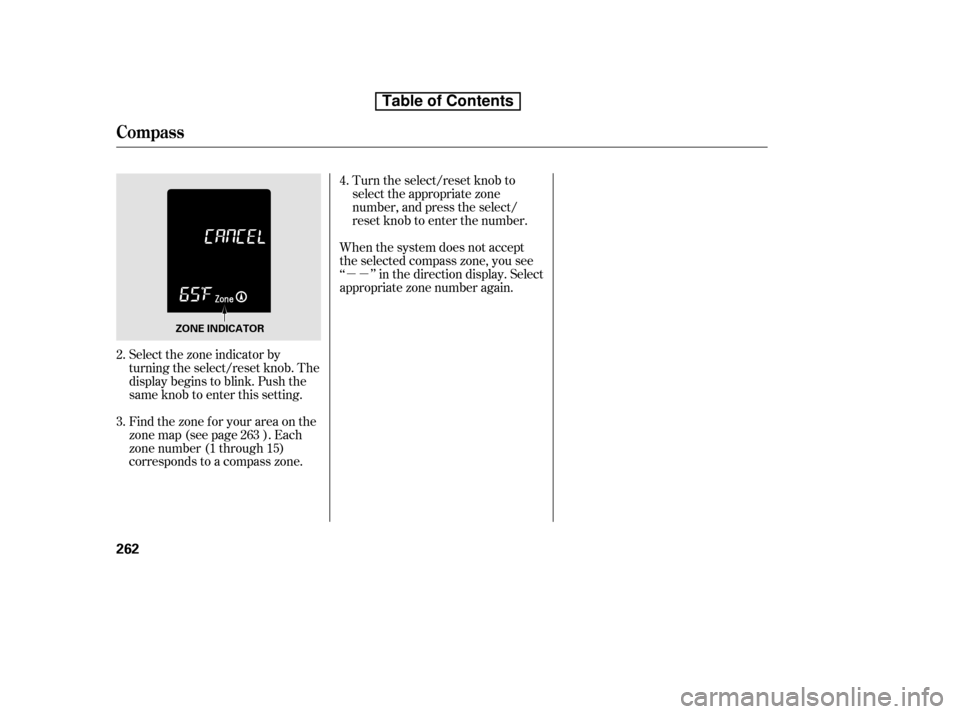

Select the zone indicator by
turning the select/reset knob. The
display begins to blink. Push the
same knob to enter this setting.
Find the zone f or your area on the
zone map (see page ). Each
zone number (1 through 15)
corresponds to a compass zone. Turn the select/reset knob to
select the appropriate zone
number, and press the select/
reset knob to enter the number.
2. 3. 4.
263
Compass
262
ZONE INDICATOR
Table of Contents

If equipped
Once the security system is set,
opening any door without using the
key or the remote transmitter, the
hood, or the tailgate will cause the
system to alarm.Use the remote transmitter
to quickly check that the hood, the
tailgate, and all doors are closed.
Push the lock button twice within 5
seconds. There should be an audible
conf irmation beep.
Do not attempt to alter this system
or add other devices to it.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doorsandthetailgatefromthe
outside with the key, driver’s lock
tab, door lock master switch, or
remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself .
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights f lash if
someone attempts to break into your
vehicle or remove the audio unit.
This alarm continues f or 2 minutes,
then the system resets. To reset an
activated system before the 2
minutes have elapsed, unlock the
driver’s door with the key or use the
remote transmitter.
The security system will not set if
the hood, tailgate, or any of the
doors are not f ully closed. If the
system will not set, check the doors
and the tailgate. You can also check
the open indicator on the instrument
panel (see page ), to see if the
doors and the tailgate are f ully
closed. Since it is not part of the
monitor display, manually check thehood.
65
Security System
264
NOTE:
SECURITY SYSTEM INDICATOR
Table of Contents

Ý
Û
When in reverse, the touch screen
and navigation system ‘‘hard’’
buttons are locked out, except the
‘‘ZOOM’’ button. Touching the ‘‘ ’’
or ‘‘ ’’ button allows you to adjust
the brightness of the rearview
camera image.
Whenever you shif t to reverse (R)
with the ignition switch in the ON
(II) position, the rearview is shown
on the navigation system screen.
For the best picture, always keep the
rearview camera clean, and do not
cover the camera lens. To avoid
scratching the lens when you clean it,
use a moist, sof t cloth. Since the rearview camera display
area is limited, you should always
back up slowly and caref ully, and
look behind you f or obstacles.
On EX-L model with navigation system
Rearview Camera and Monitor
Features
265
The camera brightness cannot be
adjusted by voice control.
Table of Contents

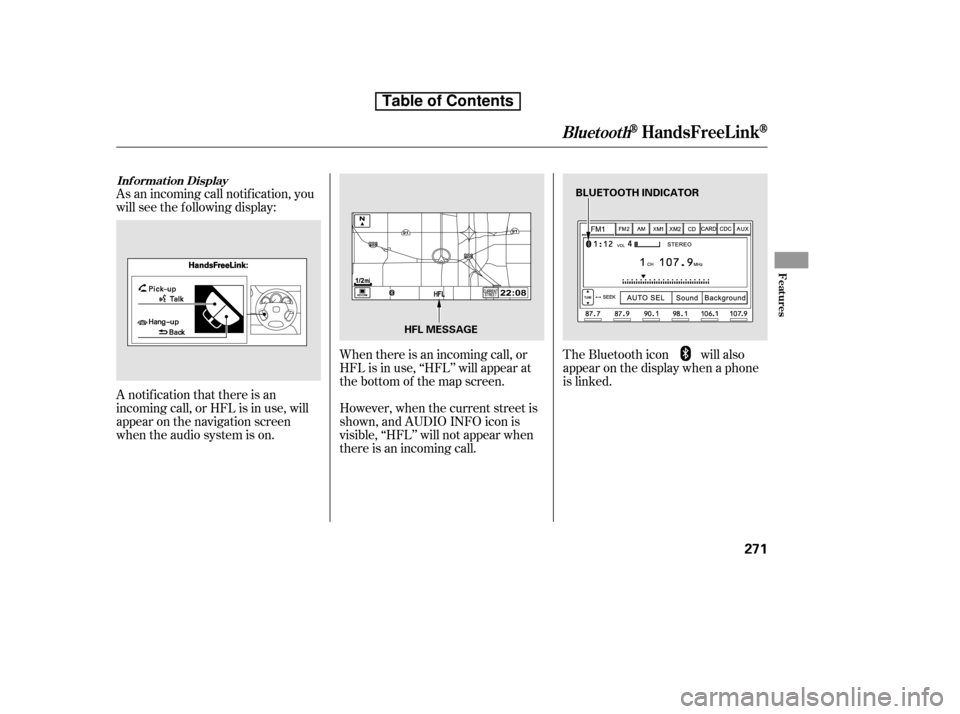

When there is an incoming call, or
HFL is in use, ‘‘HFL’’ will appear at
the bottom of the map screen.
A notif ication that there is an
incoming call, or HFL is in use, will
appear on the navigation screen
when the audio system is on.
As an incoming call notif ication, you
will see the f ollowing display:
The Bluetooth icon will also
appear on the display when a phone
is linked.
However, when the current street is
shown, and AUDIO INFO icon is
visible, ‘‘HFL’’ will not appear when
there is an incoming call.
BluetoothHandsFreeL ink
Inf ormat ion Display
Features
271
HFL MESSAGE BLUETOOTH INDICATOR
Table of Contents

You can make calls using any phone
number or a name in the HFL
phonebook. You can also redial the
last number called.Press and release the HFL Talk
button bef ore a command.
Say ‘‘ ’’ or ‘‘ .’’
Follow the HFL prompts and say
the phone number you want to dial.
Follow the HFL prompts to
conf irm the number and say
‘‘ ’’ or ‘‘ .’’
Once connected, you will hear the
person you called through the audio
speakers.
Bluetooth is the wireless technology
that links your phone to HFL. HFL
uses a Class 2 Bluetooth, which
means the maximum range between
yourphoneandvehicleis30feet(10
meters).
During a call, HFL allows you to talk
up to 30 minutes af ter you remove
the key from the ignition switch.
However, this may weaken the
vehicle’s battery.
Select ‘‘ .’’

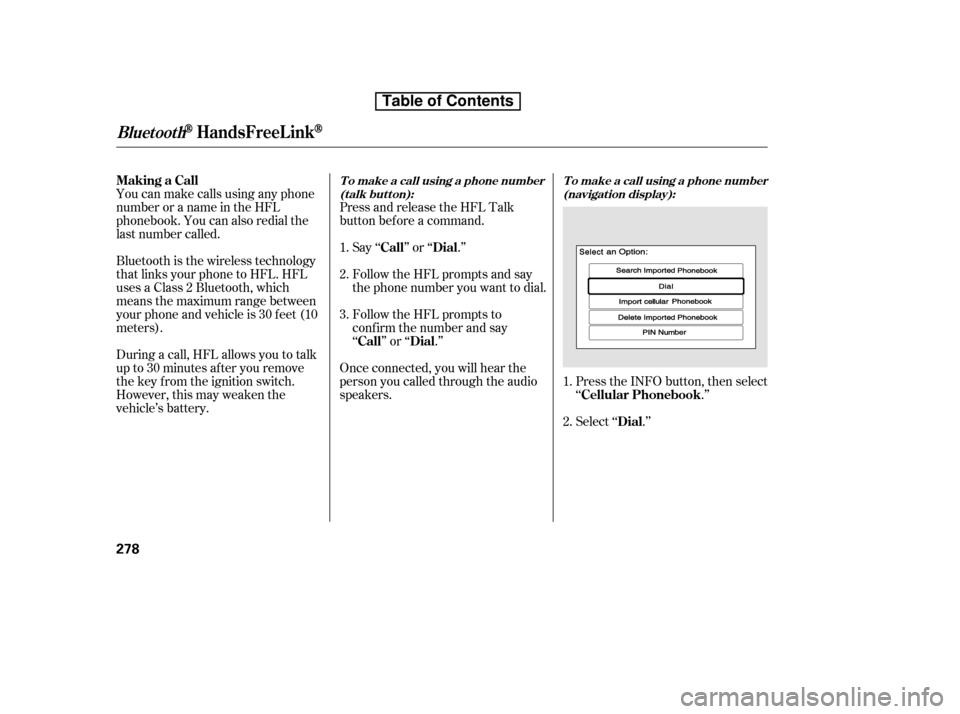

Press the INFO button, then select
‘‘ .’’
1. 2. 3.
1.2.
Making a Call
Call Dial
Call Dial Dial
Cellular Phonebook
BluetoothHandsFreeL ink
T o make a call using a phone number
(t alk but t on): T o make a call using a phone number
(navigat ion display):
278
Table of Contents

Press and release the HFL Talk
button bef ore a command.Follow the HFL prompts and say
thenamestoredintheHFL
phonebook that you want to call.
Follow the HFL prompts to
conf irm the name and make the
call.
Say ‘‘ ’’ or ‘‘ .’’
Press and release the HFL Talk
button and say ‘‘ .’’ Press the INFO button, then select
‘‘ .’’
Select ‘‘
.’’

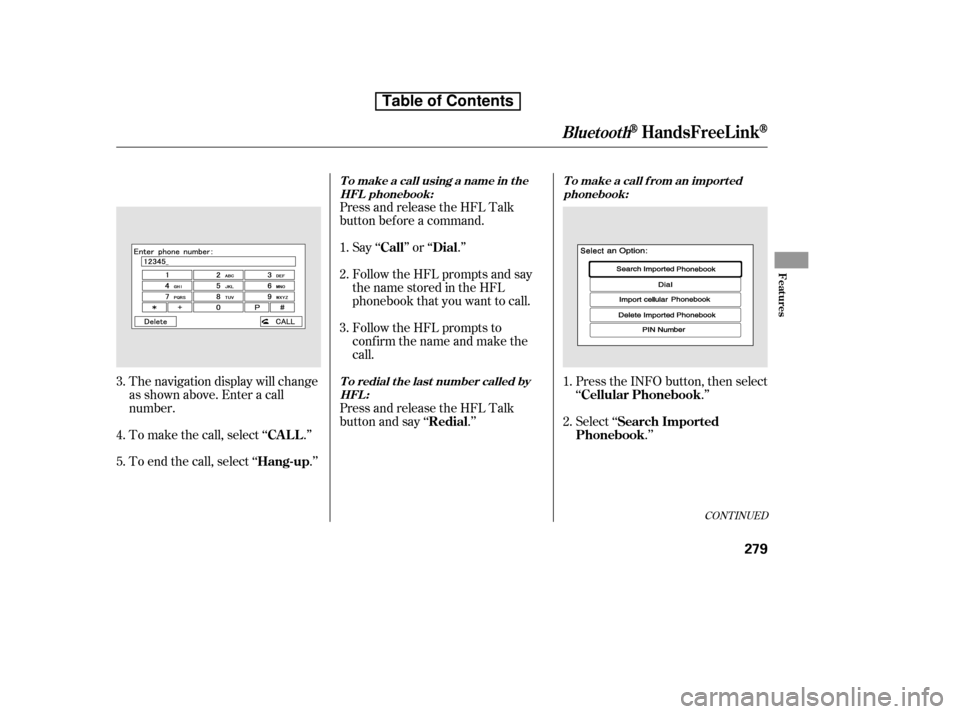

The navigation display will change
as shown above. Enter a call
number.
To make the call, select ‘‘ .’’
To end the call, select ‘‘ .’’ 1.2. 3.
3.4. 5. 1. 2.
CONT INUED
BluetoothHandsFreeL ink
Tomakeacallusinganameinthe
HFL phonebook:
To redial the last number called byHFL : T o make a call f rom an import ed
phonebook:
Call Dial
Redial Cellular Phonebook
Search Imported
Phonebook
CA L L
Hang-up
