This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 60
............................
Instrument Panel . 61 ..........
Instrument Panel Indicators . 62
.............................................
Gauges . 68
....................
Inf ormation Display . 69
...................................
Trip Meter . 69
................
Instant Fuel Economy . 70
..............
Average Fuel Economy . 70
...........................................
Range . 70
.....................................
Odometer . 71
..................................
Fuel Gauge . 71
...................
Temperature Gauge . 71
Outside Temperature
..................................
Indicator . 71
..........
Check Fuel Cap Message . 73
...............
Maintenance Minder . 73
Controls Near the Steering
...........................................
Wheel . 74
.
Windshield Wipers and Washers . 75
.........
Turn Signals and Headlights . 76
........
Instrument Panel Brightness . 79
.................
Hazard Warning Button . 79
.................
Rear Window Def ogger . 80
.................................
Parking Brake . 81
..........
Steering Wheel Adjustment . 81
...............................
Keys and Locks . 82
........................
Immobilizer System . 83
................................
Ignition Switch . 84 ......................................
Door Locks . 85
......................
Power Door Locks . 85
.
Auto Door Locking/Unlocking . 86
..............
Childproof Door Locks . 91
.......................
Remote Transmitter . 92
............................................
Tailgate . 95
.................................................
Seats . 97
..................................
Seat Heaters . 111
............................
Power Windows . 112
.......................................
Moonroof . 113
...........................................
Mirrors . 114
.........
Interior Convenience Items . 116
............
Dual Deck Cargo Shelf . 117
.....................
Beverage Holders . 119
.............................
Center Table . 120
......................
Lower Glove Box . 120
......................
Upper Glove Box . 121
............................
Vanity Mirror . 121
...................................
Sun Visor . 122
....................
Sunglasses Holder . 122
................
Conversation Mirror . 123
........
Accessory Power Sockets . 123
.............
Console Compartment . 124
..................................
Coat Hook . 125
.......................
Seat Under Tray . 125
...............................
Interior Lights . 126
Instruments and Controls
Inst rument s and Cont rols
59
TM
Main Menu

This indicator comes on with the
high beam headlights. For more
inf ormation, see page .This indicator comes on as a
reminder that you must ref uel soon.
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
If this indicator comes on when you
turn the ignition switch to the ON
(II) position and release the parking
brake, it means there is a problem
withtheDRL.Theremayalsobea
problem with the high beam
headlights. Have your vehicle
checked by your dealer.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash. When the indicator comes on, there
are about 2.3 U.S. gal (8.6
)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank.
The appropriate indicator comes on
in this display if the tailgate or any
door is not closed tightly.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
77
78
360 362 High Beam Indicator L ow Fuel Indicator
Daytime Running L ights
Indicator
Turn Signal and
Hazard Warning
Indicators
Door and Tailgate Open Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
65
Main MenuTable of Contents

If equipped
Canadian models only
This indicator comes on when the
security system is set. See page
f or more inf ormation on the
security system.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See page
f or more inf ormation on the
Maintenance Minder .

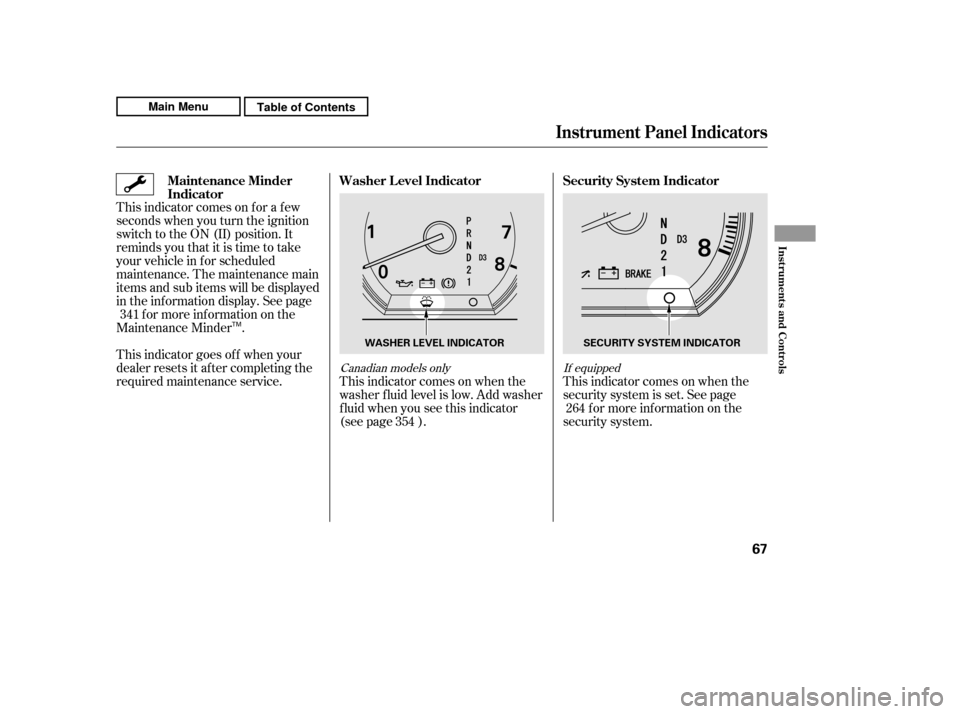

This indicator goes of f when your
dealer resets it after completing the
required maintenance service. This indicator comes on when the washer f luid level is low. Add washer
f luid when you see this indicator
(see page ).
341
354264
Security System Indicator
Maintenance Minder
Indicator Washer Level Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
67
SECURITY SYSTEM INDICATOR
WASHER LEVEL INDICATOR
TM
Main MenuTable of Contents

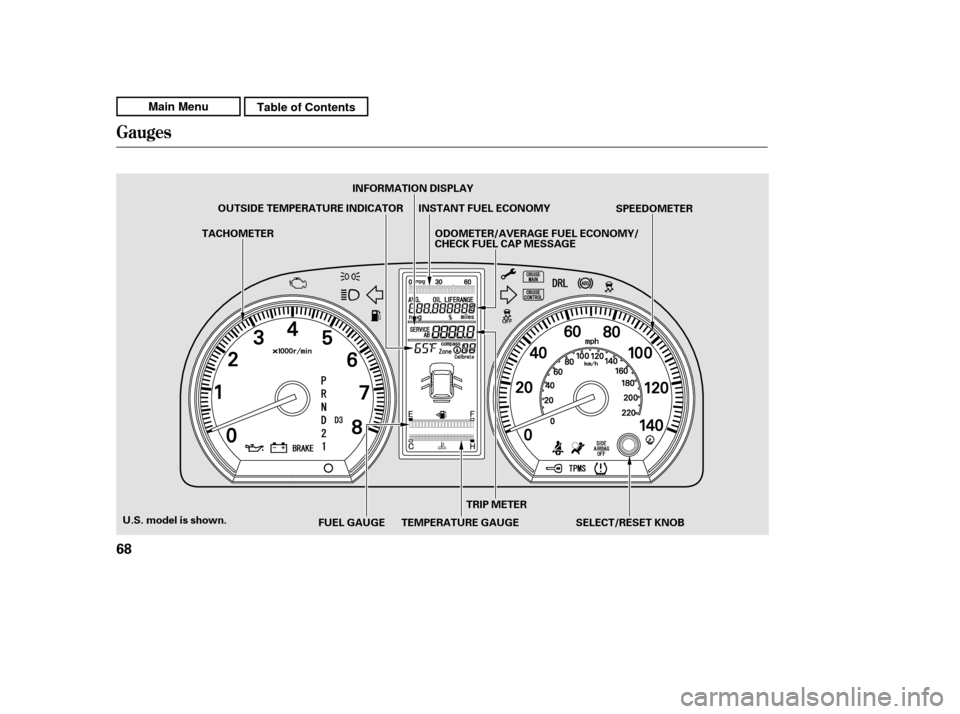

Gauges
68
SELECT/RESET KNOB
TACHOMETER
OUTSIDE TEMPERATURE INDICATOR
INFORMATION DISPLAY
SPEEDOMETER
TRIP METER
TEMPERATURE GAUGE
FUEL GAUGE
U.S. model is shown. INSTANT FUEL ECONOMY
ODOMETER/AVERAGE FUEL EC ONOMY/
CHECK FUEL CAP MESSAGE
Main MenuTable of Contents

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
The inf ormation display consists of
threesegments.Theuppersegment
displays current f uel mileage, the
second segment displays the
odometer, average f uel mileage,
range (estimated distance), engine
oil lif e, and the lower segment
displays the trip meter, and

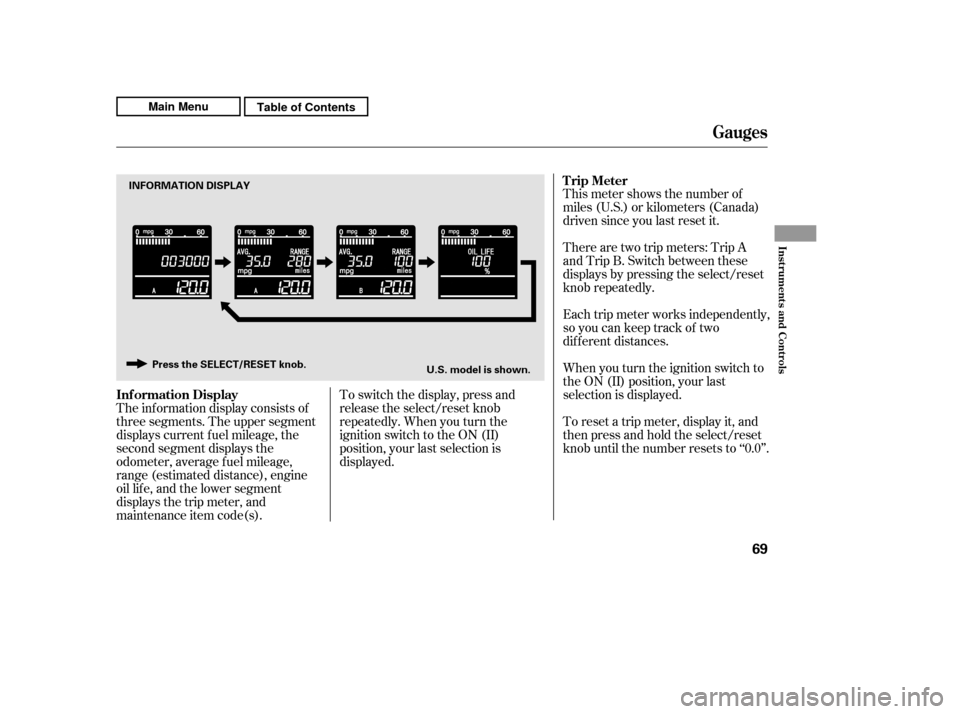

maintenance item code(s). There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed. When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
Trip Meter
Inf ormation Display
Gauges
Inst rument s and Cont rols
69
Press the SELECT/RESET knob.
INFORMATION DISPLAY
U.S. model is shown.
Main MenuTable of Contents

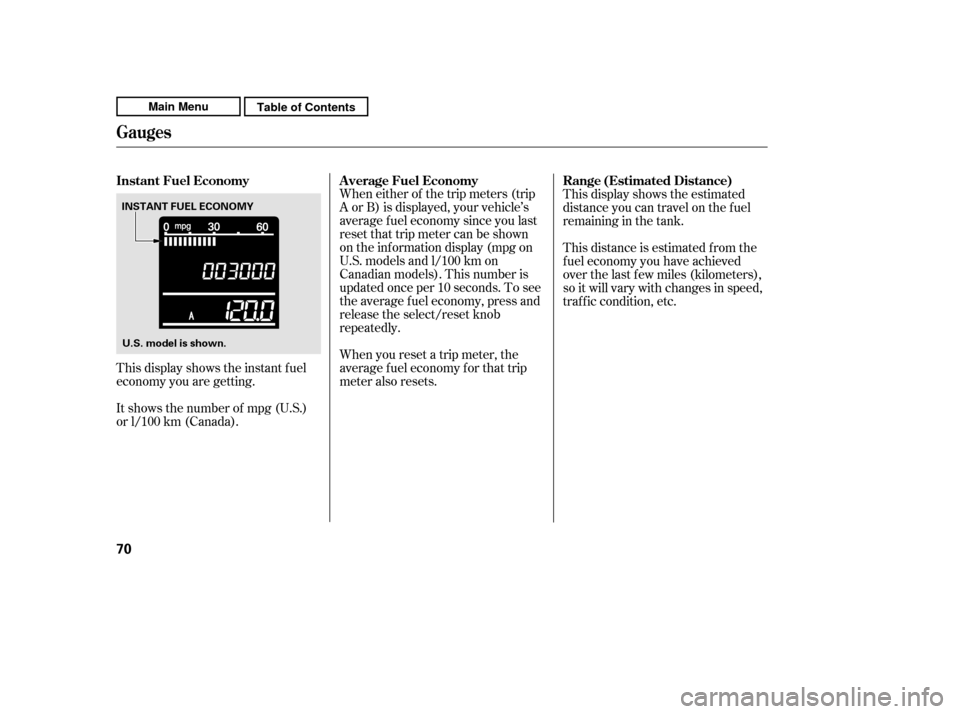

This display shows the instant f uel
economy you are getting.When either of the trip meters (trip
A or B) is displayed, your vehicle’s
average f uel economy since you last
resetthattripmetercanbeshown
on the inf ormation display (mpg on
U.S. models and l/100 km on
Canadian models). This number is
updated once per 10 seconds. To see
the average f uel economy, press and
release the select/reset knob
repeatedly.
When you reset a trip meter, the
average f uel economy f or that trip
meter also resets.This display shows the estimated
distance you can travel on the fuel
remaining in the tank.
This distance is estimated f rom the
f uel economy you have achieved
over the last f ew miles (kilometers),
so it will vary with changes in speed,
traffic condition, etc.
It shows the number of mpg (U.S.)
or l/100 km (Canada). Range (Estimated Distance)
Instant Fuel Economy Average Fuel Economy
Gauges
70
INSTANT FUEL ECONOMY
U.S. model is shown.
Main MenuTable of Contents

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models).
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may reach near
the red mark. If it reaches the red
(Hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engine’s cooling
system.
392
If equipped
CONT INUED
Outside Temperature Indicator
Temperature Gauge
Odometer
Fuel Gauge
Gauges
Inst rument s and Cont rols
71
OUTSIDE TEMPERATURE INDICATOR
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main MenuTable of Contents

¶¶µµµµµµµµ
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.

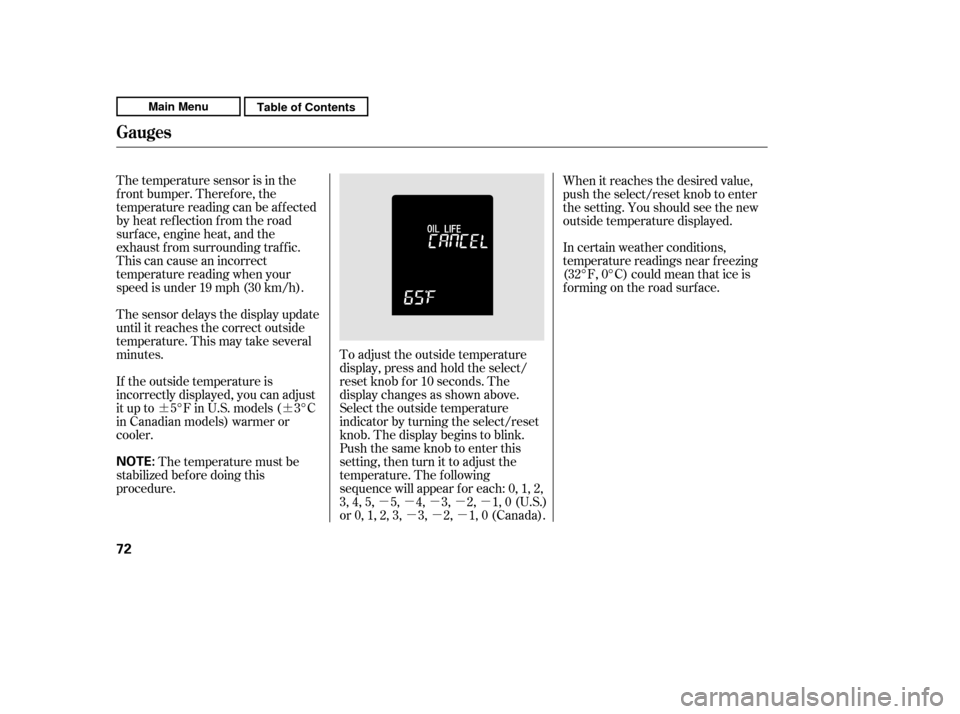

To adjust the outside temperature
display, press and hold the select/
reset knob f or 10 seconds. The
display changes as shown above.
Select the outside temperature
indicator by turning the select/reset
knob. The display begins to blink.
Pushthesameknobtoenterthis
setting, then turn it to adjust the
temperature. The f ollowing
sequence will appear f or each: 0, 1, 2,
3, 4, 5, 5, 4, 3, 2, 1, 0 (U.S.)
or 0, 1, 2, 3, 3, 2, 1, 0 (Canada). When it reaches the desired value,
push the select/reset knob to enter
the setting. You should see the new
outside temperature displayed.
The temperature must be
stabilized bef ore doing this
procedure.
Gauges
72
NOTE:
Main MenuTable of Contents

If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears on the inf ormation
display af ter you start the engine.
For more inf ormation, see page .The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
296
341
Gauges
Maintenance Minder
Check Fuel Cap Message
Inst rument s and Cont rols
73
